How to Adjust the Camber, Toe, and Caster on a Side-by-Side

What Each Angle Does, Which Ones You Can Actually Change, and How to Measure at Home

Camber, toe and caster are the three angles that describe how your wheels sit relative to the machine and the ground. Get them right and the side-by-side tracks straight, steers predictably, and wears its tires evenly across the tread. Get them wrong and you will feel it in the steering and pay for it in tires.

Here is the part most alignment articles skip: on a stock side-by-side, only one of the three is adjustable. Polaris states it plainly in its own service literature — “The camber and caster are non-adjustable.” Toe is the angle you can set with hand tools in your garage. Camber becomes adjustable only once you have added hardware that provides the adjustment. Caster, on most machines, is fixed by the frame and the control arms and is not something you dial in at all.

That single fact reframes the whole job. This guide covers what each angle does, how to tell which one is out from the way your machine drives and the way your tires wear, how to measure toe at home with a tape measure, and what it actually takes to change camber on a UTV.

What Camber, Toe, and Caster Actually Are

Each angle is defined by the direction you view the wheel from. Camber is what you see standing in front of the machine. Toe is what you would see looking down from above. Caster is what you see from the side.

Camber: the tilt you see from the front

Camber is how far the wheel leans in or out from vertical when viewed head-on. If the top of the wheel leans inward toward the machine, that is negative camber. If it leans outward, that is positive camber. Straight up and down is zero.

A small amount of negative camber helps in corners. As the machine leans and the suspension compresses, the outside tire tends to roll onto its outer edge — starting it tilted inward means it arrives closer to flat on the ground exactly when it is carrying the most load. The trade is straight-line tire wear: run too much negative camber and the inside edge of the tread carries more than its share of the load all the time, and wears out well before the rest of the tire.

Toe: the direction the wheels point, seen from above

Toe is whether the front edges of the two front tires are closer together or further apart than the rear edges. Fronts closer together is toe-in. Fronts further apart is toe-out. It is the angle that costs the most tires the fastest when it is wrong, because a toed wheel is being dragged sideways every single foot the machine rolls.

It is also the angle with the tightest tolerance. Polaris publishes toe specifications in fractions of an inch measured across the tire, and the useful window on most machines is well under a quarter inch. That is small enough that it is worth measuring rather than eyeballing.

Worth knowing: side-by-sides commonly specify a little toe-out, which surprises people used to car alignment figures. Every Polaris specification quoted further down this page is a toe-out figure. Do not assume a car rule of thumb transfers.

Caster: the lean of the steering axis, seen from the side

Caster is the hardest of the three to picture because it is not about the wheel at all — it is about the imaginary line the wheel steers around. Draw a line through the upper and lower steering pivots (the ball joints) and extend it to the ground. If the top of that line is tilted toward the rear of the machine, you have positive caster.

Positive caster is what makes the steering wheel want to return to center after a corner, and what makes the machine track straight instead of wandering. It is the same principle as the angled forks on a bicycle. More positive caster gives better straight-line stability and stronger self-centering, at the cost of heavier steering effort — which is why caster complaints usually show up as either darty and wandering (too little) or heavy and slow to turn in (too much).

Symptoms: Which Angle Is Out?

Alignment problems announce themselves in two places — how the machine drives, and how the tires wear. The wear pattern is the more reliable of the two, because it is a physical record of what has been happening for the last few hundred miles rather than a feeling you might be talking yourself into.

When to Check Alignment on a Side-by-Side

A side-by-side does not need alignment on a schedule the way a car does, but it does need it after specific events:

• After a lift kit. Lifting an independent suspension moves the control arms through their arc, and on unequal-length A-arms the camber angle changes as the arms move. This is the single most common cause of sudden inner-edge tire wear on a UTV.
• After larger tires or different-offset wheels. Bigger tires magnify whatever alignment error already existed, and a different offset changes the leverage the tire applies to the steering.
• After installing A-arms, radius rods, tie rods or ball joints. Anything that changes an arm length or a pivot location changes the geometry. Aftermarket arms with adjustable pivot blocks generally ship set to stock specification, but shipped-to-spec is not the same as verified-on-your-machine.
• After a hard impact. A rock strike, a bad landing or a stump you did not see. Check alignment and inspect for bent parts.
• After a meaningful ride-height change. Because camber changes through suspension travel on an independent design, cranking spring preload up or down changes static camber. Riders who adjust preload for a passenger or a loaded bed and then find their camber has moved are seeing normal geometry, not a fault.
• Before a long trip, and any time the machine starts feeling different from how you remember it.

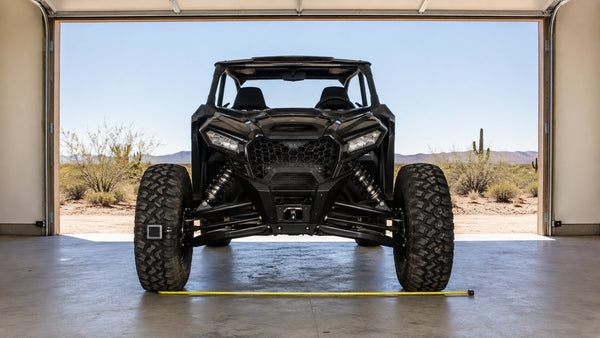

How to Measure Toe at Home

You can measure toe accurately with a tape measure. What matters is that the machine is set up consistently before you take a single reading — most bad home alignments are bad setups, not bad measurements.

Set the machine up first

• Level ground. A sloped driveway loads the suspension unevenly and every number you take will be wrong.
• Correct and equal tire pressure. Set all four to your normal riding pressure before measuring. A few psi of difference changes the rolling diameter and skews the reading.
• Normal ride height, normal load. Measure the machine as you ride it. If you always ride two-up, that is a defensible way to set it.
• Steering centered. The steering wheel must be straight ahead, and it helps to secure it so it cannot drift.
• Roll it, do not push it sideways. Roll the machine forward several feet and let it settle so the suspension and steering find their natural resting position before you measure.

The measure-and-rotate method

This is the method Polaris publishes in its own manuals, and it is the one to use if you only have a tape measure:

1. Mark the center line of both front tires at roughly hub height — Polaris describes marking about 10 inches from the floor, near the axle centerline.
2. With the marks facing forward, measure the distance between them. Call this the front measurement.
3. Roll the machine forward until the wheels have turned 180 degrees, so the same two marks are now facing rearward.
4. Measure between the marks again. Call this the rear measurement.
5. Subtract the rear measurement from the front. A positive result is toe-out; a negative result is toe-in.

Rotating the same marks to the back is what makes this work with cheap tools. It cancels out wheel runout and tire irregularity, which is exactly what wrecks the accuracy of a single measurement taken across two arbitrary points on the tread.

The string method

If you want to check all four corners rather than just front toe, run a string box: two parallel strings down each side of the machine at hub height, set equidistant from the chassis centerline at the front and the rear. You then measure from each string to the front and rear edge of each wheel rim. This takes longer to set up but it also reveals rear toe and whether the rear axle is square to the chassis — things the front-only method cannot show you.

If you would rather measure from the hub than the tread, that is what a bolt-on alignment plate does. The plate mounts to the hub in place of the wheel, so the reading comes off the wheel’s mounting face instead of a flexing sidewall, and a magnetic angle finder reads camber off the plate. We stock two: the High Lifter alignment tool for 4, 5 and 6 lug machines, and the 4-lug kit for 4/137 and 4/156 hubs. Check your bolt pattern before ordering — the two are not interchangeable.

How to Adjust Toe

Toe is adjusted by changing the length of the tie rods. The procedure is the same in principle on nearly every side-by-side:

1. Loosen the jam nuts at both ends of the tie rod.
2. Hold the tie rod end so it cannot rotate, and turn the rod to lengthen or shorten it. Lengthening pushes the front of that wheel outward; shortening pulls it in.
3. Make small changes. A fraction of a turn moves the measurement more than most people expect.
4. Re-measure after every adjustment, with the machine rolled and settled again.
5. Tighten the jam nuts to specification with the rod ends held parallel. Polaris explicitly warns that failing to hold them parallel damages the rod ends and causes premature wear.

Published jam nut torque values are low — 13 to 14 ft-lbs on the Polaris models below. These are not lug nuts, and an impact gun has no place here.

How to Adjust Camber on a Side-by-Side

Here is where expectations and reality separate. On most stock machines there is simply nothing to turn. Camber is determined by the length of the upper and lower control arms and the position of their mounting points, and the factory fixed all of those when the machine was built.

Camber adjustment exists on a UTV only when a component provides it. The usual paths are:

• Aftermarket A-arms with adjustable pivot blocks. The pivot block is where the arm bolts to the frame, and an adjustable block lets you shift that pivot point. Moving it effectively changes the arm's working length, which tilts the top of the knuckle inward or outward — which is camber. Adjustability normally lives in the lower arms.
• Adjustable ball joints. These move the outer pivot instead of the inner one, achieving the same result from the other end of the arm.
• Camber bolts or eccentric hardware, where a machine's design accommodates them.

If you have lifted the machine or fitted much larger tires and you are watching the inside edges of your front tires disappear, the honest answer is that no amount of tie-rod work will fix it. Toe and camber are independent angles. You need hardware that provides camber adjustment, or you need to accept the wear.

Caster: Why You Probably Cannot Adjust It

Caster is set by the fore-and-aft positions of the upper and lower control arm mounts. On a stock side-by-side those are welded or bolted locations on the chassis, and Polaris's own manuals describe caster, alongside camber, as non-adjustable.

What genuinely changes caster is changing the parts or the stance:

• Control arms with different mounting geometry, or arms designed with a caster change built in.
• Offset or eccentric bushings, where a machine supports them.
• Ride-height changes that are unequal front to rear — raising the rear more than the front rotates the whole chassis slightly and adds caster; raising the front more removes it.

So if your steering has gone vague and darty after a suspension change, look at what the change did to your ride height and rake before assuming something is broken.

Published Alignment Specifications

The figures below come from Polaris service and owner literature and are reproduced as reference points, not as universal values. Specifications differ by model and by year.

When to Stop and See a Shop

Home alignment is realistic for toe on a healthy machine. Stop and get professional eyes on it when:

• Your measurements are not symmetrical side to side no matter how you adjust — that usually means something is bent, not misadjusted.
• You find cracked welds, an egg-shaped bolt hole, a bent arm or a damaged knuckle during inspection.
• Wear on one corner only, or wear that returns quickly after you have set toe correctly.
• You cannot reach specification within the adjustment range of the tie rods.
• The machine has been in a significant impact. Frame and mounting-point damage is not something a tape measure will find.

Frequently Asked Questions

Can you adjust camber on a side-by-side?

Only if the machine has hardware that provides the adjustment. Stock control arms on most side-by-sides have fixed geometry, and Polaris describes camber as non-adjustable in its service literature. Camber becomes adjustable when you fit aftermarket A-arms with adjustable pivot blocks, adjustable ball joints, or camber bolts where the design accommodates them. Without one of those, camber is whatever the arm lengths and mounting points make it.

Should a UTV be toe-in or toe-out?

Follow the specification for your machine, and do not assume car practice applies. Every Polaris figure quoted in this guide is a toe-out specification — the RZR XP 1000 service manual calls for 1/8" to 3/16" toe out, the RZR 200 owner's manual for 0 to 1/8" toe out, and the Hawkeye for 1/8" to 1/4" toe out. Guessing at toe-in because that is what you have read about cars is a good way to wear out a set of tires.

What is the toe specification for a Polaris RZR?

It varies by model. The RZR XP 1000 service manual specifies 1/8" to 3/16" (3.2 to 4.8 mm) toe out; the RZR 200 owner's manual specifies 0 to 1/8" (0 to 3.2 mm) toe out. Because the figure differs between models and can change between model years, check the manual for your exact machine rather than applying another RZR's number to it.

Can you adjust caster on a UTV?

Generally no. Caster is determined by where the upper and lower control arms mount to the chassis, and those positions are fixed on a stock machine — Polaris lists caster alongside camber as non-adjustable. Caster changes when you change components with different mounting geometry, fit offset bushings where supported, or alter ride height unevenly between the front and rear of the machine.

Do I need an alignment after installing a lift kit or bigger tires?

Yes, you should at minimum measure it. Lifting an independent suspension moves the control arms through their arc, and because camber changes through suspension travel on unequal-length A-arms, the static camber angle changes with it. That is why inner-edge tire wear so often appears shortly after a lift. Larger tires do not by themselves change the angles, but they magnify the cost of any error that is already there.

What does bad alignment look like on UTV tires?

Toe problems produce feathered or sawtooth wear — the knobs develop a sharp edge on one side and a rounded edge on the other, and the tread feels rough when you run your hand across it. Camber problems produce wear concentrated on one shoulder of the tread across both sides of the machine: inner-edge wear points to excessive negative camber, outer-edge wear to positive. Wear on one corner only usually is not an alignment setting at all — inspect for a bent arm or a damaged knuckle.

Do you set camber or toe first?

Camber first, then caster if the machine allows any adjustment, then toe last. Camber and caster changes both move the wheel enough to alter the toe reading, so toe has to be measured after they are finalized. Setting toe first simply means setting it twice.

Can I align a side-by-side at home, or do I need a shop?

Toe is a realistic home job on a healthy machine. You need level ground, correct and equal tire pressures, a tape measure, and the discipline to roll and settle the machine before every reading. Camber and caster are a different matter — on most machines there is nothing to adjust, and where adjustment does exist it is worth measuring properly. Take it to a shop if your readings will not come out symmetrical, if you find bent or cracked components, or if abnormal wear returns after you have set toe correctly.
