What Are UTV Beadlock Wheels?
UTV beadlock wheels use a bolted outer ring to mechanically clamp the tire’s outer bead to the wheel. That added retention is valuable when sand, rock and technical-trail riders reduce tire pressure for a larger contact patch, improved flotation or better tire conformity.
When Do Beadlock Wheels Make Sense?
- Dune and sand riding where lower pressure can improve flotation.
- Rock crawling and technical trails where the tire must conform around uneven terrain.
- Desert and race builds that need dependable bead retention under demanding off-road use.
- Drivers who understand that beadlock ring hardware requires correct installation and routine inspection.
A non-beadlock wheel may be the simpler choice when you normally run standard trail pressure and do not face a meaningful risk of debeading. Choose the wheel for the job instead of buying beadlock hardware only for appearance.
Choose the Correct Size, Bolt Pattern and Offset
Confirm your exact year, make, model and submodel before ordering. Wheel diameter alone does not establish fitment. Bolt pattern, wheel width, offset, tire size, brake clearance, suspension clearance and finished vehicle width must work together. Common UTV patterns include 4/110, 4/137, 4/156 and 5x114.3, but availability and compatibility vary by wheel and machine.
Offset determines where the wheel sits relative to the hub. Changing offset can affect steering clearance, fender coverage, track width and whether the finished UTV still fits its trailer. Review our UTV Wheel Offset Buyer’s Guide or contact Dunes 2 Dezert before ordering.
True Beadlock vs. Simulated Beadlock
A true beadlock ring clamps the tire bead. A simulated beadlock ring is cosmetic and does not provide the same retention. This collection is intended for true beadlock wheels; always verify the individual product specifications before purchase.
Frequently Asked Questions
Can beadlock wheels prevent every tire failure? No. They help retain the outer bead at reduced pressure, but they do not prevent punctures, sidewall damage or damage caused by incorrect installation.
Do beadlock wheels require maintenance? Yes. Install and service the ring and fasteners according to the wheel manufacturer’s instructions.
What size beadlock wheel should I buy? Match the wheel’s bolt pattern, diameter, width and offset to your exact machine and tire.
Shop UTV and SXS Beadlock Wheels

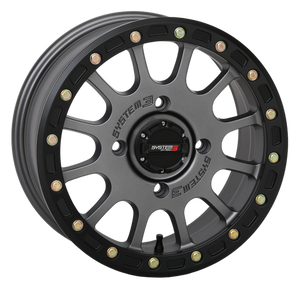

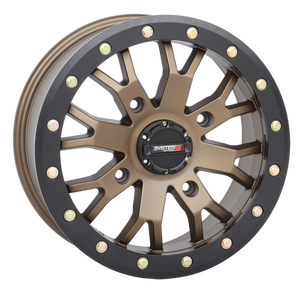

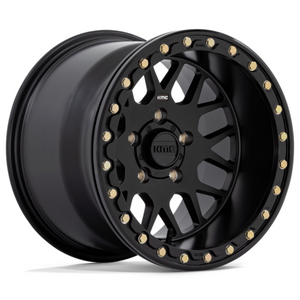

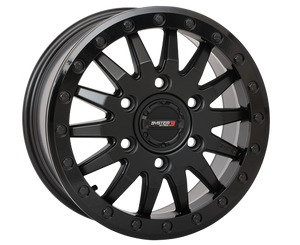

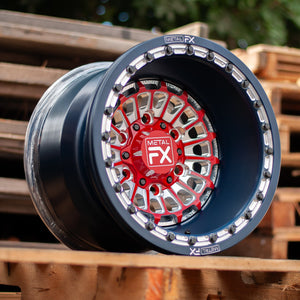

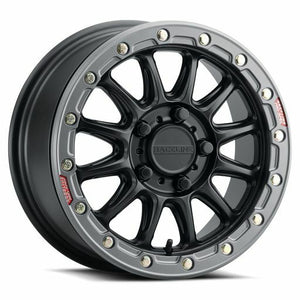

Compare true UTV beadlock wheels from Valor, MetalFX, System 3, Raceline, Method, KMC and other off-road brands. Filter by fitment and size, then confirm bolt pattern and offset.
