How to Choose a UTV Carrier Bearing
UTV carrier bearing selection comes down to generation, greasability, and the driveline angle the bearing is designed to hold. Dunes 2 Dezert stocks SandCraft Gen 2 and Gen 3 carrier bearings and the matching rebuild kits.
Greasable vs. Sealed Carrier Bearings
Greasable carrier bearings accept fresh grease through a zerk fitting, which lets a rider purge water and silt after a wet ride. SandCraft carrier bearing assemblies are greasable. A sealed factory bearing cannot be serviced this way and is replaced once it fails.
Driveline Angle and the Auto Set Angle Design
Driveline angle determines how much load a UTV carrier bearing absorbs at speed. SandCraft carrier bearings use a patented auto set angle design that corrects driveline alignment as the assembly is torqued down. Correcting the angle is what removes the vibration a worn bearing produces.
Gen 2 and Gen 3 Fitment

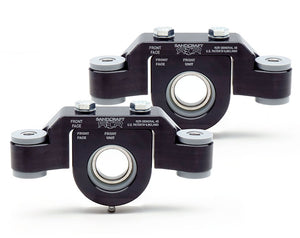

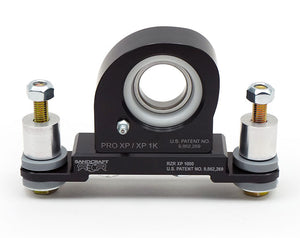

SandCraft Gen 2 carrier bearings fit the earlier Polaris RZR 900 and XP 900 platforms from 2012 and 2013. Gen 3 carrier bearings cover the later Polaris RZR XP 1000, General and Ranger machines. Match the generation to the model year before ordering.
UTV Carrier Bearing Fitment
UTV carrier bearing fitment is set by year, make, model, submodel and seat count, because two-seat and four-seat machines use different driveshaft lengths. Dunes 2 Dezert lists separate Polaris RZR Pro XP two-seat and four-seat carrier bearings for this reason.
UTV Carrier Bearing FAQs
What are the symptoms of a bad UTV carrier bearing?
A failing UTV carrier bearing produces driveline vibration that builds with speed and is felt through the floor and seat. A rumble or growl from under the machine between the transmission and rear differential is the other common sign. Play in the driveshaft at the carrier points the same direction.
Is a carrier bearing the same as a wheel bearing?
A carrier bearing is not the same as a wheel bearing. A carrier bearing supports the driveshaft partway along its length, while a wheel bearing sits at each corner and carries the vehicle load through the hub. The two parts fail differently and are not interchangeable.
How often should a UTV carrier bearing be greased?
A greasable UTV carrier bearing should be greased on a schedule set by riding conditions rather than by mileage. Machines run through water crossings and deep silt need grease purged more often than trail-only machines. Purging grease after a wet ride pushes contaminated grease out of the housing.
Can a carrier bearing be rebuilt instead of replaced?
A SandCraft carrier bearing can be rebuilt rather than replaced outright. Dunes 2 Dezert carries the SandCraft Gen 3 bearing replacement kit, which supplies the bearing and seals for an existing housing. Rebuilding is the cheaper path when the housing itself is undamaged.
