Can-Am Maverick X3 Fuel Tank Capacity: Stock Size and Upgrade Options
Aug 07, 2026
The Can-Am Maverick X3 holds 10.5 US gallons (40 litres). That figure is the same across the X3 line: the 64-inch Maverick X3 X, the 72-inch X3 X RS, and the four-seat X3 MAX X all carry 10.5 gallons. Adding seats or width does not add fuel. It is the single most common complaint about the platform, and it is why extended and auxiliary tanks are among the most-bought X3 upgrades — a drop-in replacement tank takes the X3 to 15.4 gallons, and auxiliary tanks can push a two-seat car past 19.
Capacity by trim
| Model | Fuel capacity | Overall width | Dry weight |
|---|---|---|---|
| Maverick X3 X (2026) | 10.5 gal (40 L) | 64 in. | 1,584 lb |
| Maverick X3 X RS (2026) | 10.5 gal (40 L) | 72.7 in. | 1,705 lb |
| Maverick X3 MAX X (2026, 4-seat) | 10.5 gal (40 L) | 64 in. | 1,838 lb |
| Maverick X3 X RS Turbo RR w/ Smart-Shox (2024) | 10.5 gal (40 L) | 72.7 in. | 1,699 lb |
Two-seat or MAX, 64-inch or 72-inch, Turbo or Turbo RR — 10.5 gallons. We have verified this against Can-Am’s published spec sheets for the 2024 and 2026 model years.
Where is the fuel tank on a Maverick X3?
The tank sits at the front of the machine, between the front footwells and the firewall, tucked underneath the plastic dash and the passenger-side glove box assembly. It is not behind the seats, which is where a lot of people go looking for it first.
To reach the top of the tank, the fuel pump, or the sending unit, you need to remove the passenger-side glove box and the plastic paneling directly above it.
The filler neck and gas cap sit on the exterior hood cowl area near the front hood and dash perimeter, so you refuel from outside the machine. Exact placement varies slightly depending on the specific model layout.
That front-mounted position is also why a drop-in replacement tank works the way it does — a direct-fit tank occupies the same cavity, so nothing has to be cut, moved, or fabricated.
How far can you extend it?
There are three ways to add range to an X3, and they stack differently.

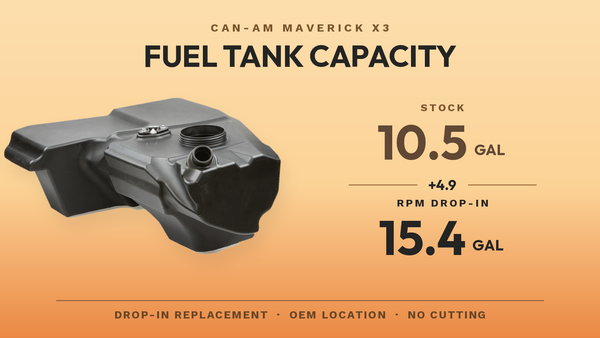

Replace the stock tank. A drop-in extended tank swaps into the OEM location with no cutting or fabrication. The RPM 15.4-gallon tank is the direct-fit option: +4.9 gallons over stock, a 47% increase, with no auxiliary plumbing to manage. This is the cleanest solution if you want more range without changing how the car is packaged.
Add an auxiliary tank. Auxiliary tanks mount alongside the stock tank and transfer fuel into it. A 4.5-gallon single-side kit takes you to 15 gallons total; running both driver and passenger sides gives you 9 extra gallons for 19.5 gallons total. This is the dunes-and-Baja answer, where the goal is maximum time between fuel stops.
Carry it. A 5-gallon spill-proof jug in the bed is the zero-install option and the standard backup for group rides.
| Setup | Total capacity | Gain over stock |
|---|---|---|
| Stock X3 | 10.5 gal | — |
| RPM 15.4-gallon drop-in tank | 15.4 gal | +4.9 gal |
| Stock + one 4.5-gal auxiliary tank | 15.0 gal | +4.5 gal |
| Stock + both 4.5-gal auxiliary tanks | 19.5 gal | +9.0 gal |
→ RPM Can-Am X3 15.4 Gallon Drop-In Fuel Tank — OEM-location replacement, no modifications. We covered the release here.
→ RPM Can-Am X3 9 Gallon Auxiliary Fuel Tank Kit — driver side, passenger side, or both.
→ Fuel and fluid jugs — spill-proof carry cans for the bed.
Running two tanks? You will also need the fuel tank add-on connection kit in the Can-Am X3 / Maverick R fitment.
Browse everything for the platform in Can-Am Maverick X3 parts and accessories.
Frequently asked questions
How many gallons does a Can-Am X3 hold?
10.5 US gallons, or 40 litres.
Where is the gas tank on a Can-Am Maverick X3?
At the front of the machine, between the front footwells and the firewall, under the plastic dash and passenger-side glove box — not behind the seats. To reach the top of the tank, the fuel pump or the sending unit, remove the passenger glove box and the panel directly above it. The filler neck and gas cap are on the exterior hood cowl near the front of the machine, so you fuel from outside.
Does the Maverick X3 MAX have a bigger fuel tank than the two-seat X3?
No. The four-seat X3 MAX X carries the same 10.5 gallons as the two-seat X3 X. It is a longer, heavier car on the same fuel capacity, so real-world range is shorter.
Does the 72-inch X3 X RS hold more fuel than the 64-inch X3 X?
No — both are 10.5 gallons.
What is the biggest fuel tank you can put in a Can-Am X3?
A 15.4-gallon drop-in replacement tank is the largest direct-fit option for the OEM location. Adding auxiliary tanks on both sides on top of the stock tank gets a two-seat X3 to 19.5 gallons total.
Can-Am X3 fuel capacity in litres?
40 litres.
