Honda Talon 1000R vs 1000X: What's the Difference?

The Honda Talon 1000R is 68.1 inches wide and the 1000X is 64.0 inches wide, a 4.1-inch difference. The R also has more suspension travel (17.6 in. front / 20.1 in. rear, against the X's 14.6 in. / 15.1 in.) and rides on 30-inch tires instead of 28s. Both use the same 999cc parallel-twin, six-speed DCT and 7.3-gallon tank.

Every meaningful difference between them is chassis, suspension and width. That is also why so many Talon suspension and wheel parts are model-specific rather than shared.

Honda Talon 1000R vs 1000X specs

The figures below are Honda's published specifications for the 2026 model year.

Two model-year notes worth knowing before you buy parts. First, Honda moved the 1000R to 30-inch tires for 2026 and lists it only as a FOX Live Valve model. The 2025 1000R used Showa shocks and 28-inch tires (28x9-15 front, 28x11-15 rear). Its width (68.1 in.), travel (17.6 / 20.1 in.) and ground clearance (13.2 in.) were the same as the 2026 car. Second, the 1000X comes in two suspension trims: a standard X with Showa shocks and a FOX Live Valve X with semi-active damping. Width, travel, wheelbase and clearance are the same on both X trims. The damping hardware is what changes, along with about 22 lb of curb weight.

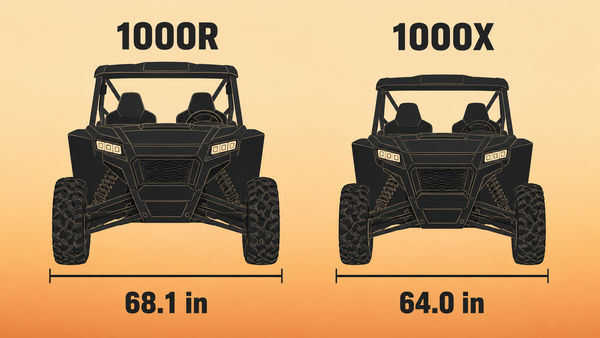

How wide is a Honda Talon?

Each Talon is either 64.0 inches or 68.1 inches wide. The 4-seat versions keep the width of the 2-seat model they are based on.

The 1000R-4 gets its own suspension numbers: 17.7 in. of front travel and 21.7 in. of rear travel. That is another reason 2-seat and 4-seat Talon suspension parts are sold separately.

Which one is right for you?

Choose the 1000R if you ride open terrain. Think dunes, desert washes, whoops and high speed. The extra 3 inches of front travel and 5 inches of rear travel are the whole point. They keep the chassis settled at speed instead of packing up. The 68.1-inch stance adds stability in off-camber and high-load corners.

Choose the 1000X if width is a constraint. At 64.0 inches, the X fits under the 64-inch width limit used on many tight, tree-lined and mountain trail systems. The 68.1-inch R will not fit those trails. The X is also easier to load, store and trailer. Its shorter 17.7-foot turning radius is a real advantage in tight switchbacks.

The engine and drivetrain are not part of this decision. They are identical.

Do 1000R and 1000X parts interchange?

Some do and some definitely do not. Getting it wrong costs money.

Usually shared: anything that mounts to the cab or cage rather than the suspension. Windshields, roofs, mirrors, door bags, light mounts, audio and cage accessories for the Talon 1000 platform generally fit both. Exhaust is often shared too, since the engine is the same.

Almost never shared: springs, shocks, radius rods, tie rods, limit straps, sway bar links, axles, and anything that depends on width, such as wheel offset and spacers. Different travel and a different rear suspension design mean different spring rates and different geometry. That is why spring makers sell separate kits for each model. For example, ZBroz offers a Talon 1000R Stage 1 spring kit and a separate Talon 1000X Stage 1 spring kit. A 1000R kit will not give the correct rates on a 1000X.

Model-specific by design: some products are built for one model only. Track systems, for example, are offered for the Talon X and not the R.

If you are buying suspension or wheels, filter by your exact model. For cab and cage accessories, fitment for the Talon platform as a whole is usually enough.

→ Shop Honda Talon parts and accessories. Filter by 1000R or 1000X so the fitment is right the first time.
→ Browse the full Honda Talon 1000 catalog for suspension, drivetrain, wheels and protection.
→ UTV wheels and tires. The R's 30-inch factory tires and extra width change which sizes and offsets make sense.

Buying wheels for either model? Our UTV wheel offset buyer's guide explains how the R's extra 4.1 inches of width changes which offset works. Our beadlock vs non-beadlock guide covers whether the way you ride calls for bead retention.

Frequently asked questions

How wide is a Honda Talon 1000R?
68.1 inches overall. The 4-seat Talon 1000R-4 is also 68.1 inches wide.

How wide is a Honda Talon 1000X?
64.0 inches overall. That applies to the standard 1000X, the 1000X FOX Live Valve and the 4-seat 1000X-4.

How much wider is the Talon 1000R than the 1000X?
4.1 inches. The R is 68.1 in. wide and the X is 64.0 in.

Is the Talon 1000R faster than the 1000X?
They share the same 999cc engine and the same six-speed DCT, so peak output is the same. The R is quicker over rough open ground because it has more suspension travel and a wider, longer chassis to use it. It does not make more power.

Do the Talon 1000R and 1000X have the same fuel capacity?
Yes. Both 2-seat models hold 7.3 gallons. The 4-seat 1000R-4 and 1000X-4 hold 7.7 gallons.

Is the Talon 1000X narrow enough for 64-inch trails?
Yes. The 1000X is exactly 64.0 inches wide. The 1000R, at 68.1 inches, is not.

What is the difference between the Talon 1000X and the 1000X FOX Live Valve?
Damping hardware. The Live Valve version uses FOX semi-active shocks that adjust compression damping at each wheel. The standard X uses Showa shocks. Width, travel, wheelbase and ground clearance are the same. Curb weight is 1,587 lb for the Live Valve X and 1,565 lb for the standard X.
