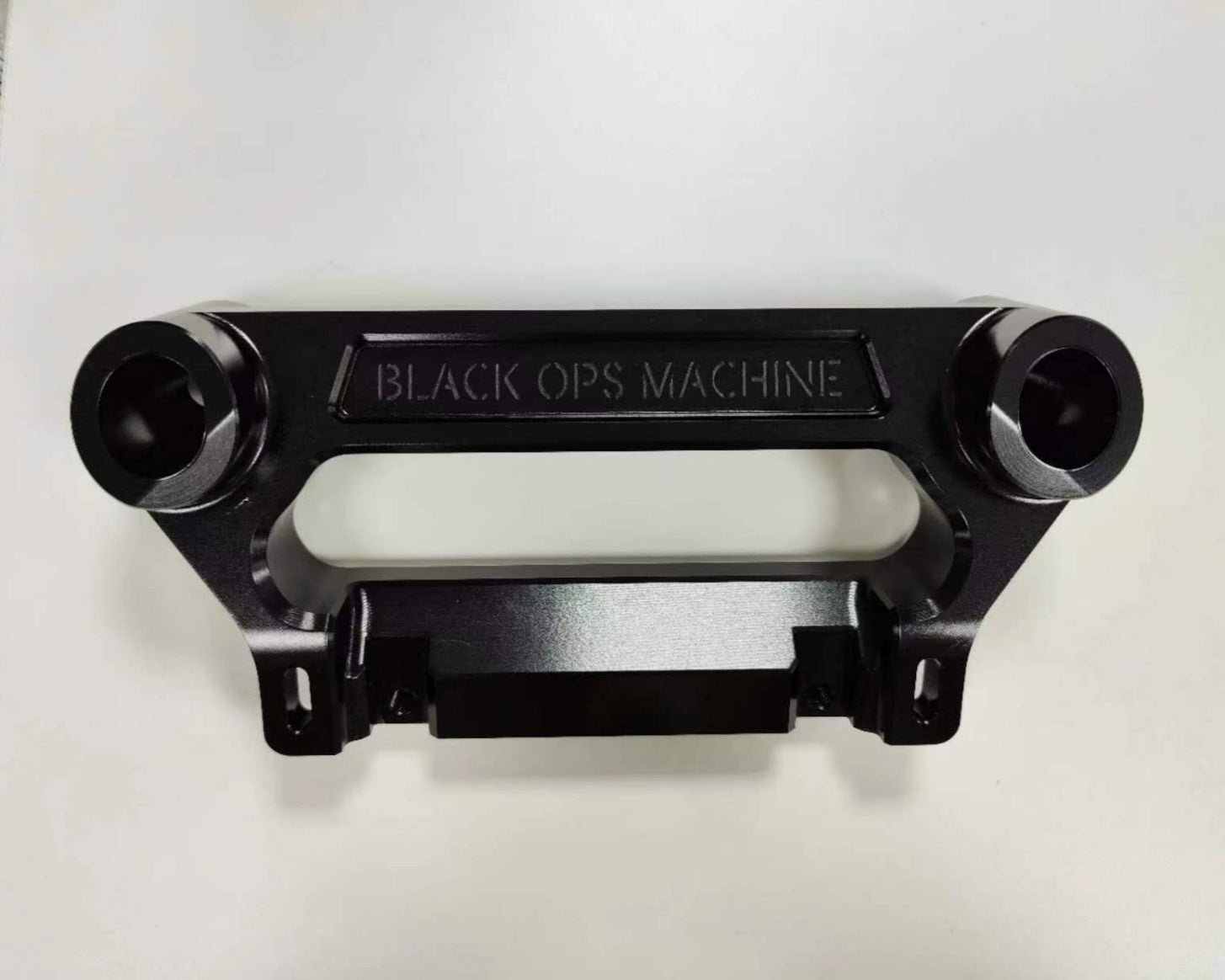

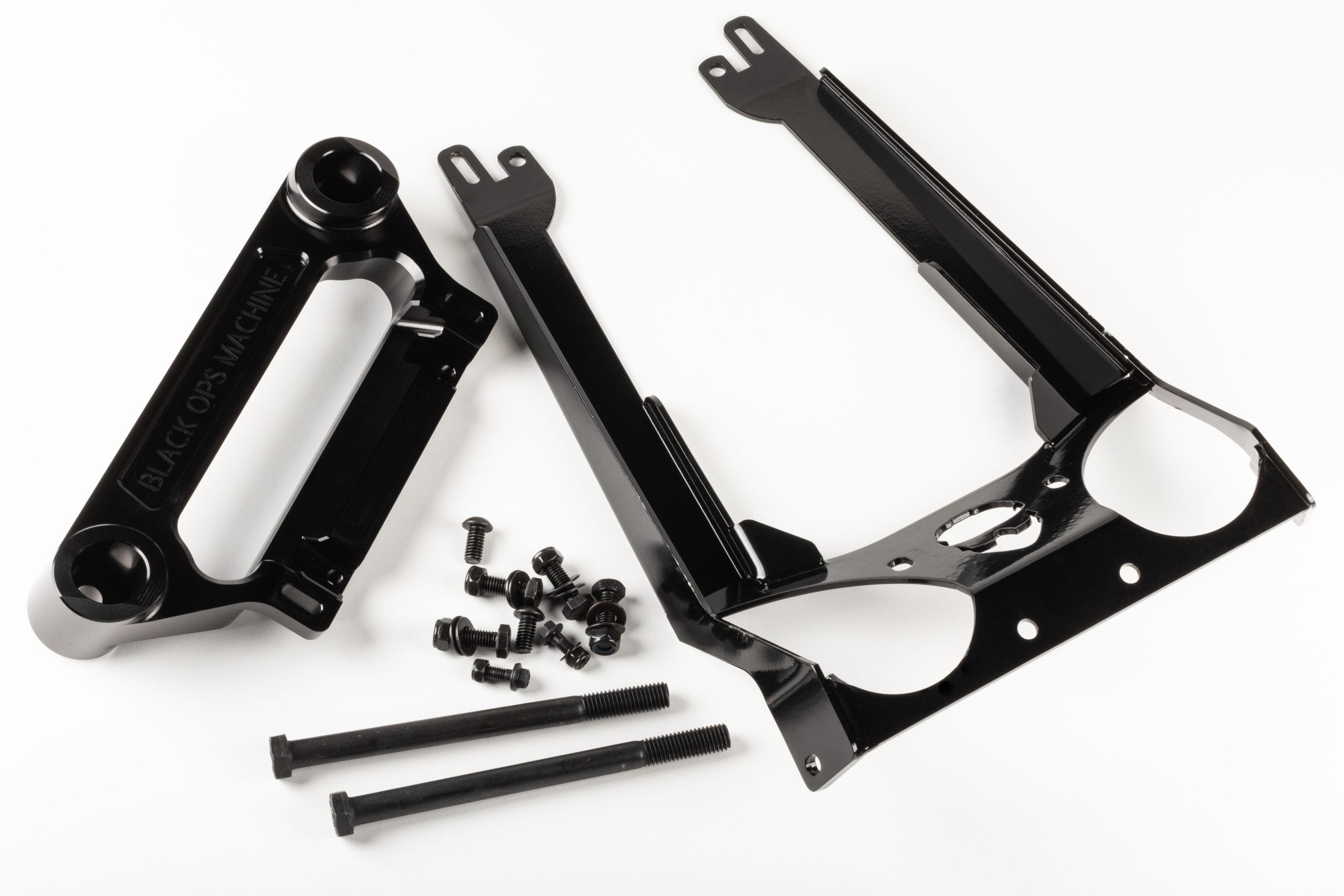

Can-Am X3 Front Shock Tower Brace

The Can-Am X3 Front Shock Tower Brace from Black Ops Machine is a true bolt-on upgrade designed to reinforce one of the most stressed components on the X3—your front shock tower. If you drive your Maverick X3 the way it was meant to be driven, OEM single-shear support simply isn’t enough.

This X3 shock tower brace converts the factory single-shear shock mount into a double-shear support, dramatically increasing strength, rigidity, and impact resistance. Built from a combination of mild steel and 6061 aluminum, this brace is engineered to handle aggressive terrain, hard landings, whoops, sand dunes, and high-speed trail abuse.

Unlike many suspension reinforcements, this Can-Am X3 front shock brace installs without rerouting radiator hoses, wiring, or factory components. It bolts directly to the top of the shock tower and secures to the frame using four mounting bolts, making it one of the easiest and most cost-effective front suspension upgrades available.

Later-model X3s added a top reinforcement from the factory, but the bottom of the shock tower remains vulnerable. The Black Ops Machine X3 front shock tower brace fills that gap by supporting the lower section of the tower—exactly where failures commonly occur under repeated abuse.

If you want to prevent shock mount fatigue, cracking, or catastrophic failure, this Can-Am X3 shock tower reinforcement is a must-have upgrade.

🔹 Key Features & Benefits

• Reinforces OEM front shock tower
• Converts single-shear to double-shear support
• Increases front suspension rigidity
• Reduces shock tower flex and fatigue
• Built from mild steel & 6061 aluminum
• True bolt-on installation
• No hose, wiring, or radiator relocation required
• Ideal for aggressive riding and hard landings
• Cost-effective preventative suspension upgrade

🔹 Installation Notes

• Non-Smart Shox X3: 100% bolt-on, no fabrication required
• Smart Shox X3: Minor trimming of the bracket may be required for clearance
• No welding or frame modification needed

🔹 Specifications

• Vehicle Compatibility: Can-Am Maverick X3
• Material: Mild steel & 6061 aluminum
• Mounting Style: Bolt-on
• Support Type: Double-shear
• Hardware: Included
• Finish: Black
• Installation Time: Approx. 1 hour

🔹 Why Install a Can-Am X3 Front Shock Tower Brace?

The factory X3 shock tower was never designed for repeated high-impact abuse. Hard landings and aggressive terrain place extreme stress on the lower shock mount. This X3 front shock tower brace distributes load across the frame, reduces flex, and protects against long-term damage—saving you from costly repairs or downtime.

🔹 Frequently Asked Questions

Q: Why should I install a front shock tower brace on my X3?
A: The OEM X3 shock tower uses single-shear support. Adding this brace converts it to double-shear, significantly increasing strength and reducing failure risk during aggressive driving.

Q: Is fabrication required for installation?
A: No fabrication is required on non-Smart Shox models. Smart Shox vehicles may need minor trimming for clearance.

Q: Does this brace require removing factory components?
A: No. Radiator hoses, wiring, and factory components remain untouched.

🔹 Final Notes

The Black Ops Machine Can-Am X3 Front Shock Tower Brace is one of the smartest preventative suspension upgrades you can make. It’s affordable, easy to install, and designed to keep your X3 on the trail—where it belongs.
