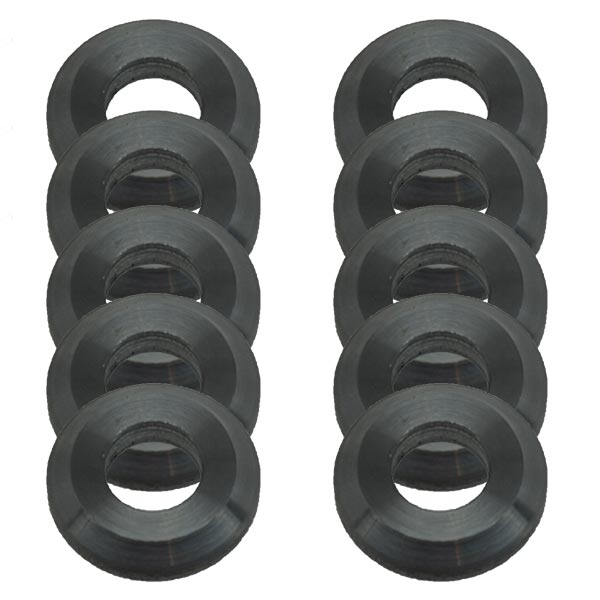

AJK Offroad Weld Washers, 10 Pack, 1.25 or 1.50-Inch OD product photo
AJK Offroad Weld Washers, 10 Pack, 1.25 or 1.50-Inch OD product photo

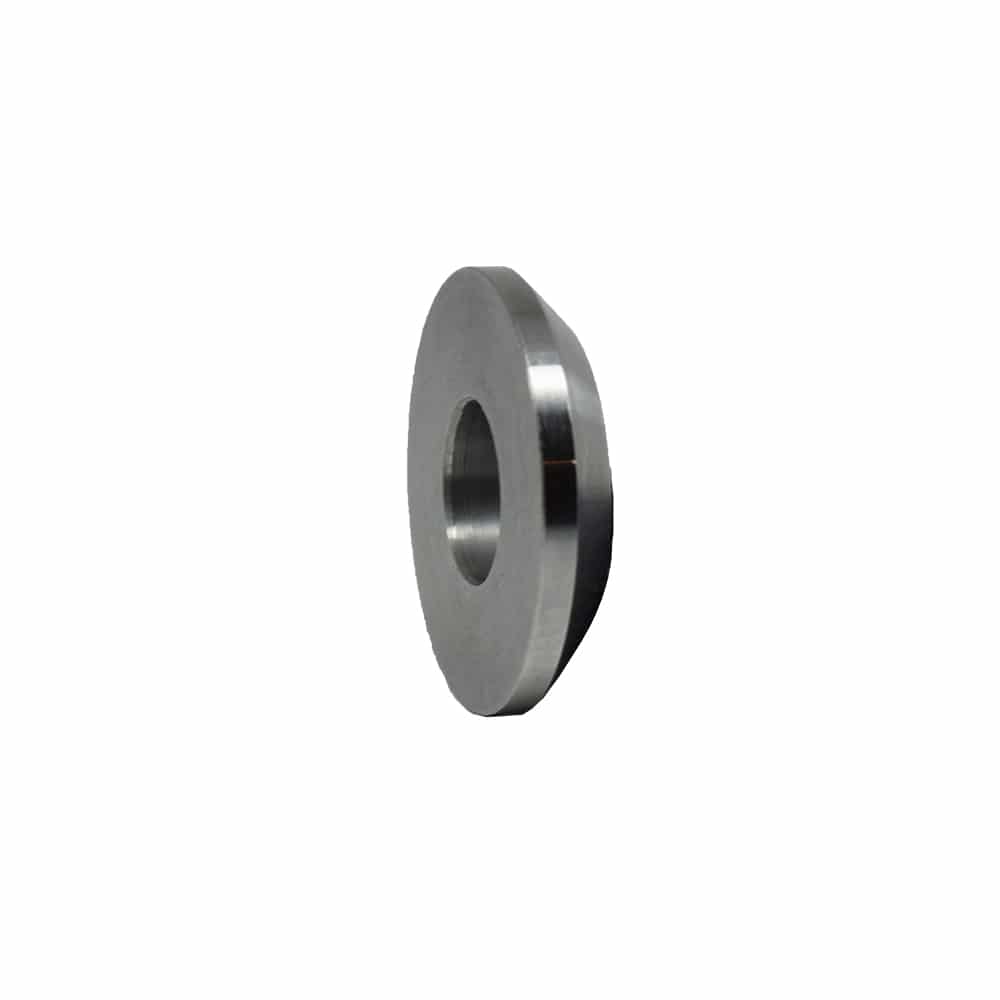

AJK Offroad Weld Washers, 10 Pack, 1.25 or 1.50-Inch OD, alternate view 2 of 7

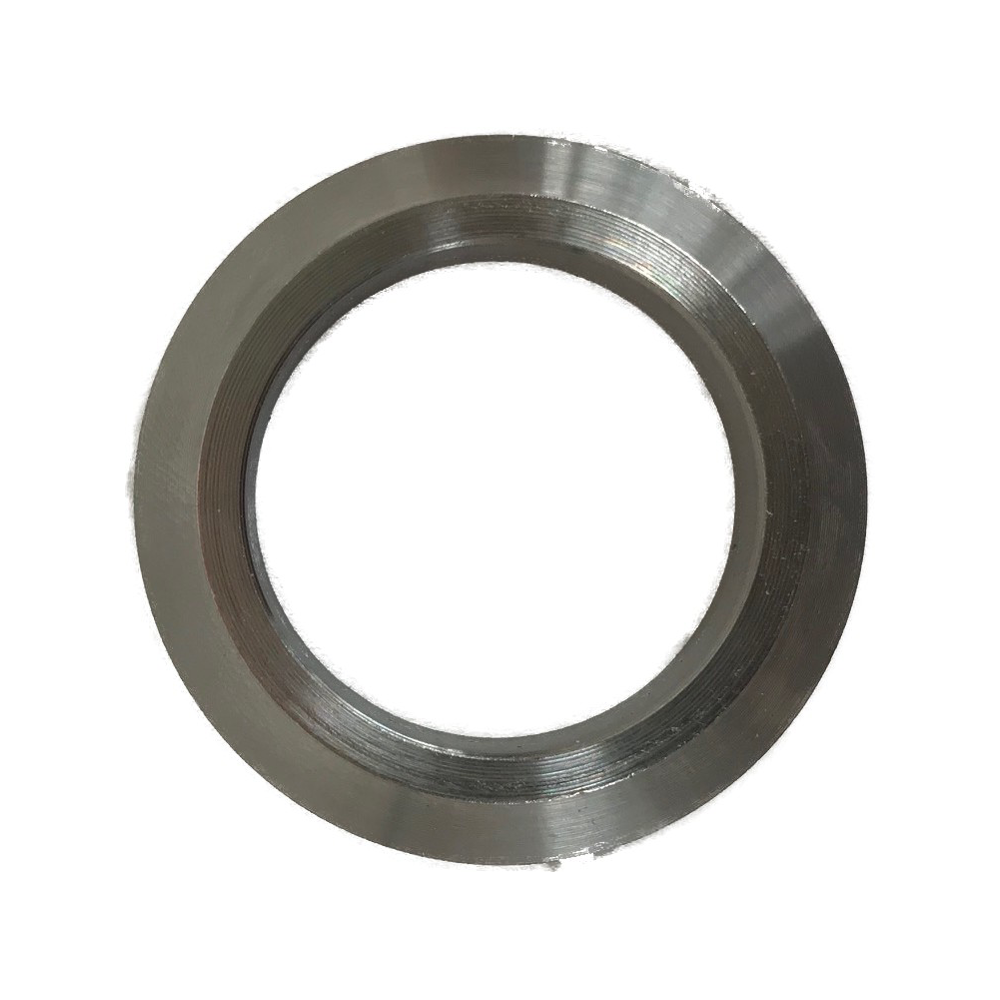

AJK Offroad Weld Washers, 10 Pack, 1.25 or 1.50-Inch OD, alternate view 3 of 7

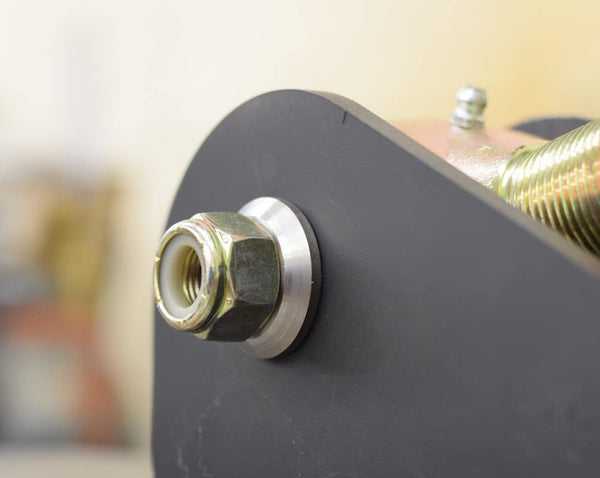

AJK Offroad Weld Washers, 10 Pack, 1.25 or 1.50-Inch OD, alternate view 4 of 7

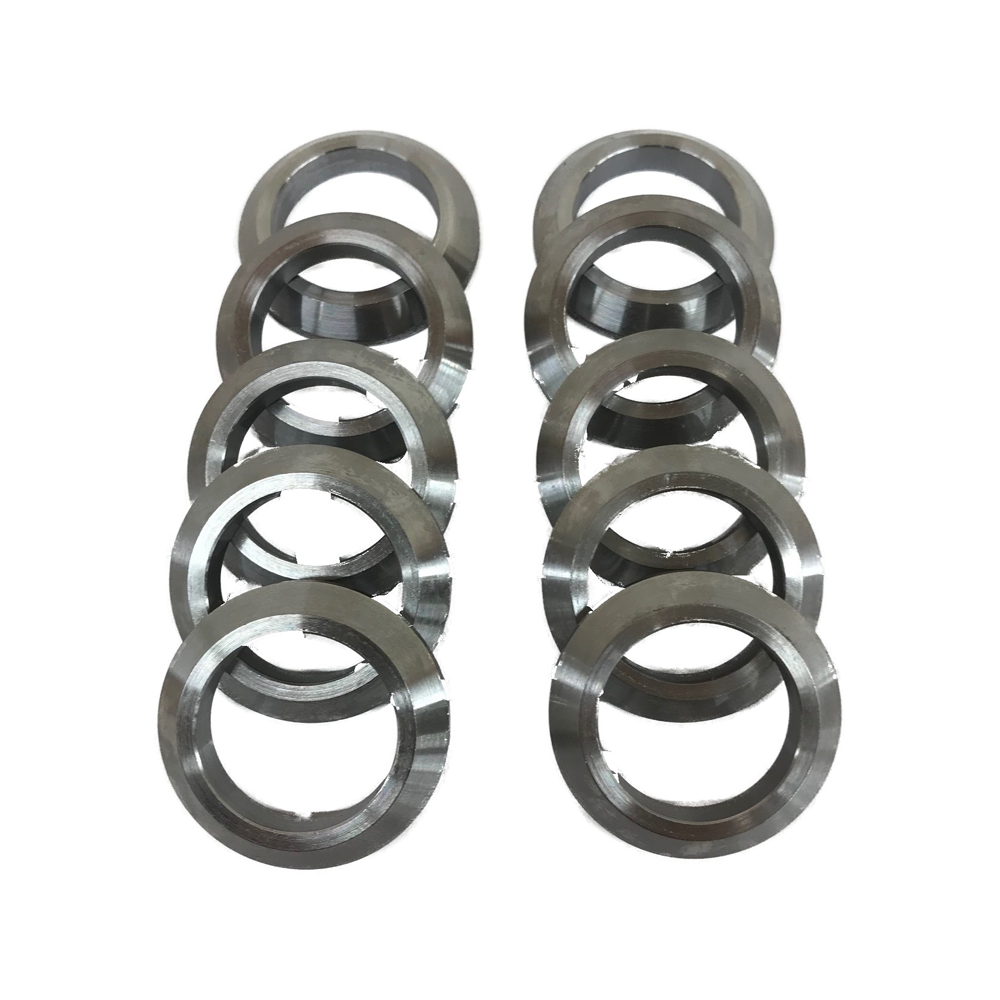

AJK Offroad Weld Washers, 10 Pack, 1.25 or 1.50-Inch OD, alternate view 5 of 7

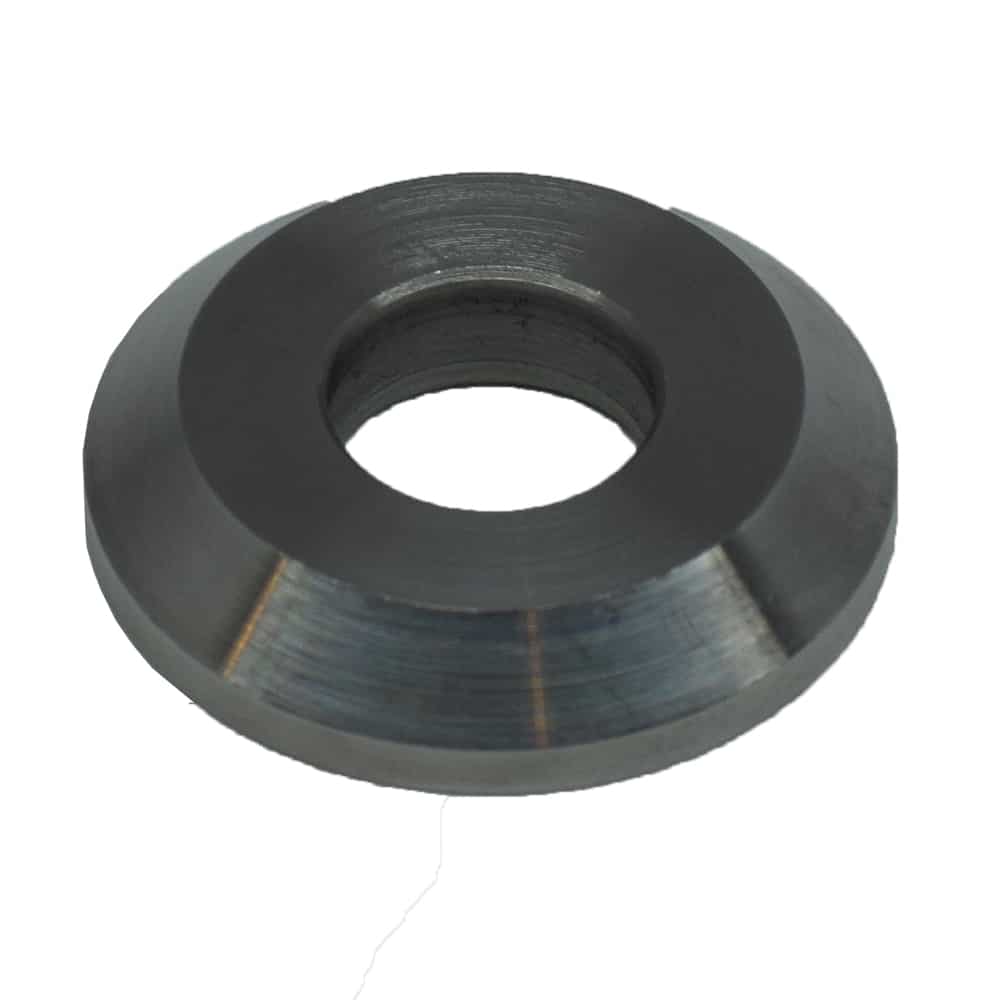

AJK Offroad Weld Washers, 10 Pack, 1.25 or 1.50-Inch OD, alternate view 6 of 7

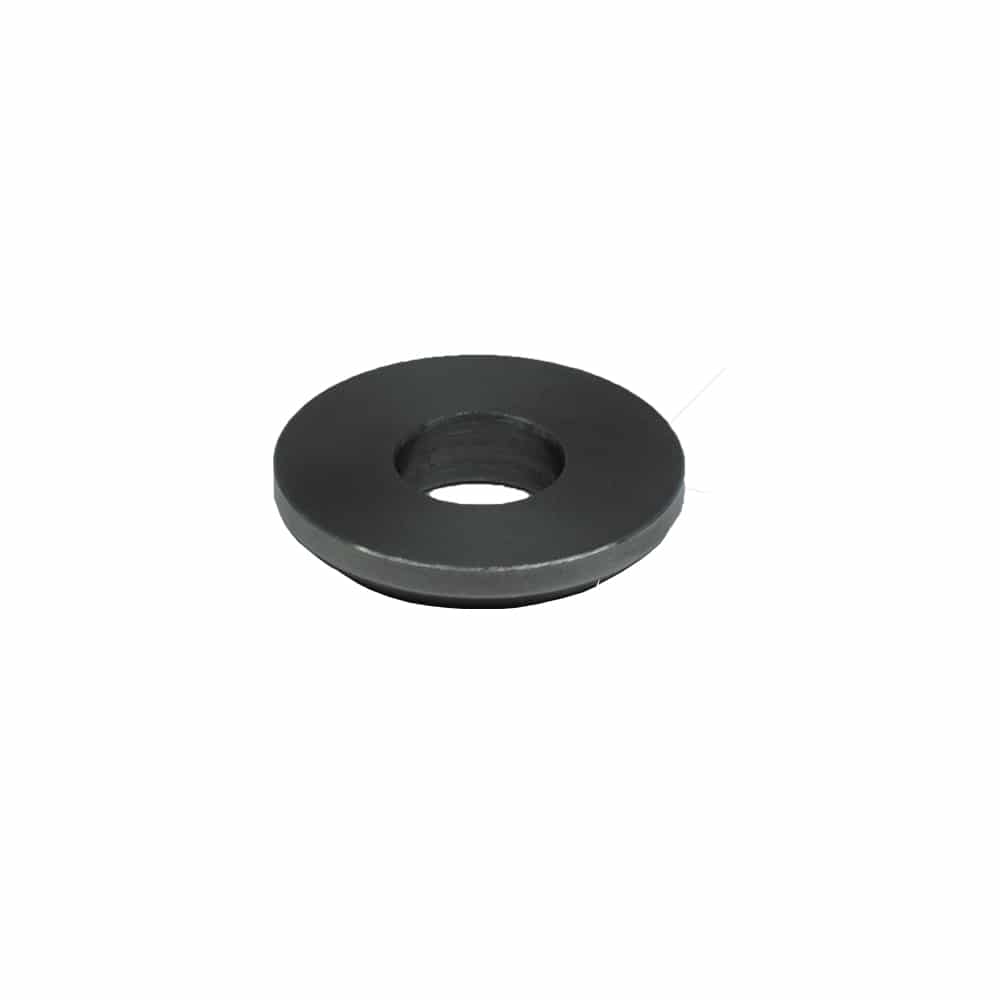

AJK Offroad Weld Washers, 10 Pack, 1.25 or 1.50-Inch OD, alternate view 7 of 7

AJK Offroad

AJK Offroad Weld Washers, 10 Pack, 1.25 or 1.50-Inch OD

Sale price $36.70

Shipping calculated at checkout

Inside Hole Diameter
Outside Diameter

In stock

AJK Offroad weld washers keep tab holes from wallowing out and come in packs of 10, a must for link bars.

Each weld washer has a 1.25 or 1.50-inch outside diameter and your choice of inside diameter: 1/2, 9/16, 3/4 or 1.0 inch, or 10, 12 or 14 mm. They are CNC machined from American-made 1018 steel with a large weld chamfer on one side and flat on the other, so you can weld either way. Weld them onto thinner tabs to keep the tab hole from wallowing out.

Key Features

  • Pack of 10
  • 1.25 or 1.50-inch OD
  • Choice of ID: 1/2 in to 14 mm
  • 1018 American-made steel
  • Weld chamfer one side
  • A must for link bars

Built To Solve: Worn-Out Tab Holes

  • Holes that wallow out
  • Thick tabs that add weight
  • Link bar mounts that loosen

Best For: Fabricators and DIY Off-Road Builders

  • Link bar and four-link builds
  • Shock and suspension tabs
  • Anyone welding thinner tabs

Specifications

  • OD: 1.25 or 1.50 inch
  • ID options: 1/2, 9/16, 3/4, 1.0 inch; 10, 12, 14 mm
  • Material: 1018 steel
  • Quantity: 10
  • Manufacturer Part Number: 200124-200481

Fitment

Universal fabrication part; check the material thickness, hole size and tubing size listed before ordering.

FAQ

What do AJK weld washers do?

Reinforce tab holes so they do not wallow out.

How many come in a pack?

10.

What sizes are offered?

1.25 or 1.50-inch OD with several inside diameters.

Which side do I weld?

Either; one side is chamfered, the other flat.

What are they made of?

1018 steel.

Is there a single washer?

Yes, sold individually too.

Why AJK Offroad

AJK Offroad CNC laser cuts and machines its fabrication tabs, gussets, plates, washers and recovery mounts in the USA from steel and billet aluminum. Builders use them on roll cages, bumpers, body panels, shock and link mounts and recovery points for side-by-sides, UTVs, tube buggies, rock bouncers and Jeeps, and Dunes 2 Dezert SXS carries the full AJK Offroad fabrication range in one place.
