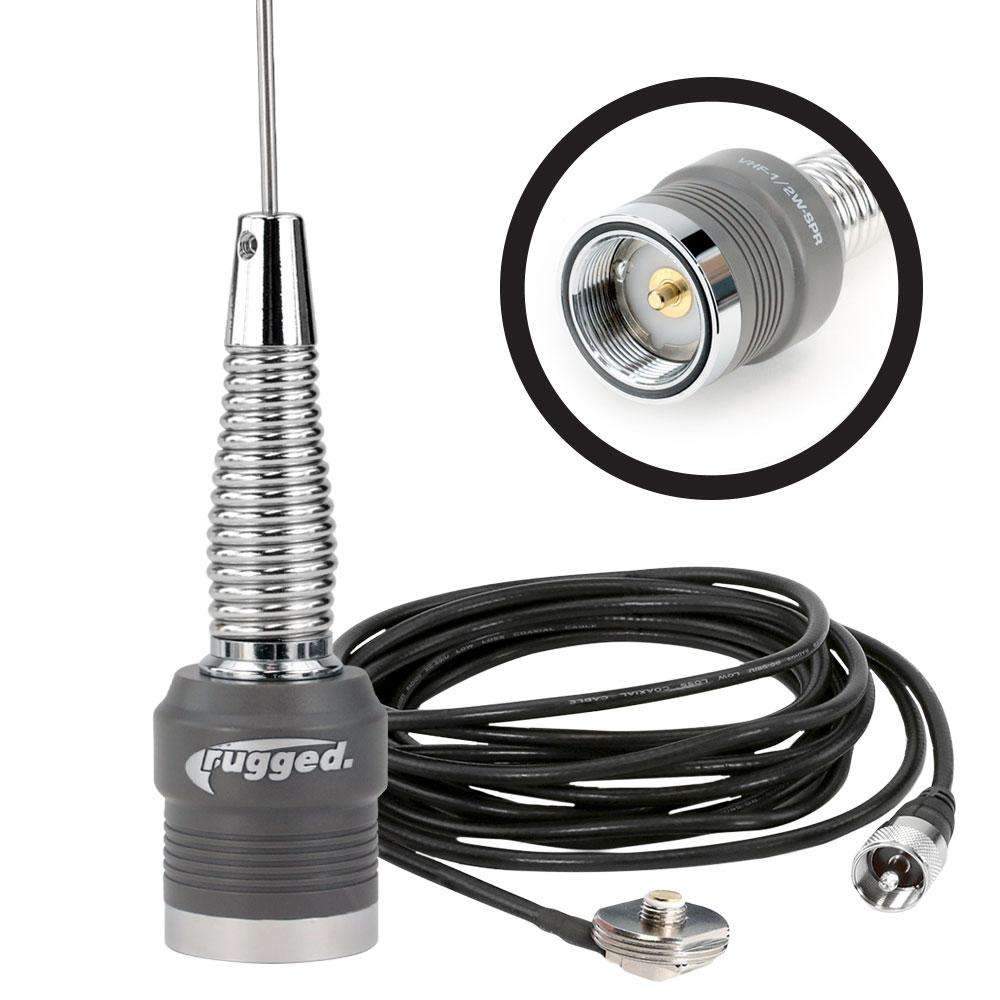

Replacing an antenna in the field can be difficult when there is no metal roof or large body panel available to act as a ground plane. Universal fit - not built for one specific make or model, so confirm mounting space and wiring on your machine before ordering. The Rugged Radios VHF whip antenna is pre-tuned and does not require a metal ground plane. A 3/8-inch NMO-style cable mount connects the antenna to 15 feet of cable.
Key Features
- Pre-tuned 1/2-wave VHF antenna
- No-ground-plane design works without attachment to a metal surface
- 3/8-inch NMO-style cable mount with 15 feet of cable
- 17-7PH stainless steel whip
- Molded high-heat ABS base with silver-soldered connections and gold-plated push-pin contacts
- 2.4 dB gain and 4 MHz VHF bandwidth
Built To Solve: VHF Antenna Replacement Without a Metal Ground Plane
- Replace a VHF antenna in the field with a pre-tuned whip.
- Mount the no-ground-plane antenna without relying on a metal roof or large body panel.
- Route the 15-foot cable from the 3/8-inch NMO-style mount.
- Reduce the risk of damaging the NMO stud by holding the wrench vertically when tightening the nut.
Best For: Radio Users Replacing a VHF Antenna in the Field
- Radio users who need a pre-tuned VHF whip antenna.
- Drivers mounting an antenna where a metal ground plane is unavailable.
- Teams keeping an antenna replacement on hand for field use.
- Buyers checking for a 3/8-inch NMO-style cable mount and 15 feet of cable.
Specifications
- VHF range: 144–174; unit not stated
- Gain: 2.4 dB
- VHF bandwidth: 4 MHz
- Power: 200 watts
- Whip material: 17-7PH stainless steel
- Whip length: 39.8 inches at 154 mHz, as stated
- Cable length: 15 feet
- Connector type: None
- Manufacturer part numbers: ANT-SPARE-KIT-V
What's in the Box
- 3/8-inch NMO-style cable mount with 15 feet of cable
Fitment
- Universal fit - not built for one specific make or model. Fitment is not guaranteed on unlisted applications, so confirm mounting space and wiring on your machine before ordering.
Fitment is based on current product data for this part and is not guaranteed on unlisted applications. If you don't see your exact setup, contact us and we'll confirm fitment before you order.
FAQ
Can I mount this antenna without a metal roof?
Yes. The no-ground-plane design does not have to be attached to a metal roof or larger body panel.
How should I tighten the NMO nut?
Hold the wrench vertically to reduce torque and avoid overtightening the NMO nut.
How long is the antenna cable?
The cable is 15 feet long.
Does the antenna work better with a ground plane?
A ground plane is preferable, although the antenna does not require attachment to a metal surface.
Is a connector type specified for the cable?
The connector type is listed as none. Check your radio connection before ordering.
Why Rugged Radios
Rugged Radios offers this pre-tuned VHF antenna with a no-ground-plane design and a 3/8-inch NMO-style cable mount.
Replace Your VHF Antenna in the Field
Choose the Rugged Radios VHF 1/2-wave antenna kit for a pre-tuned whip that does not require a metal mounting surface.
