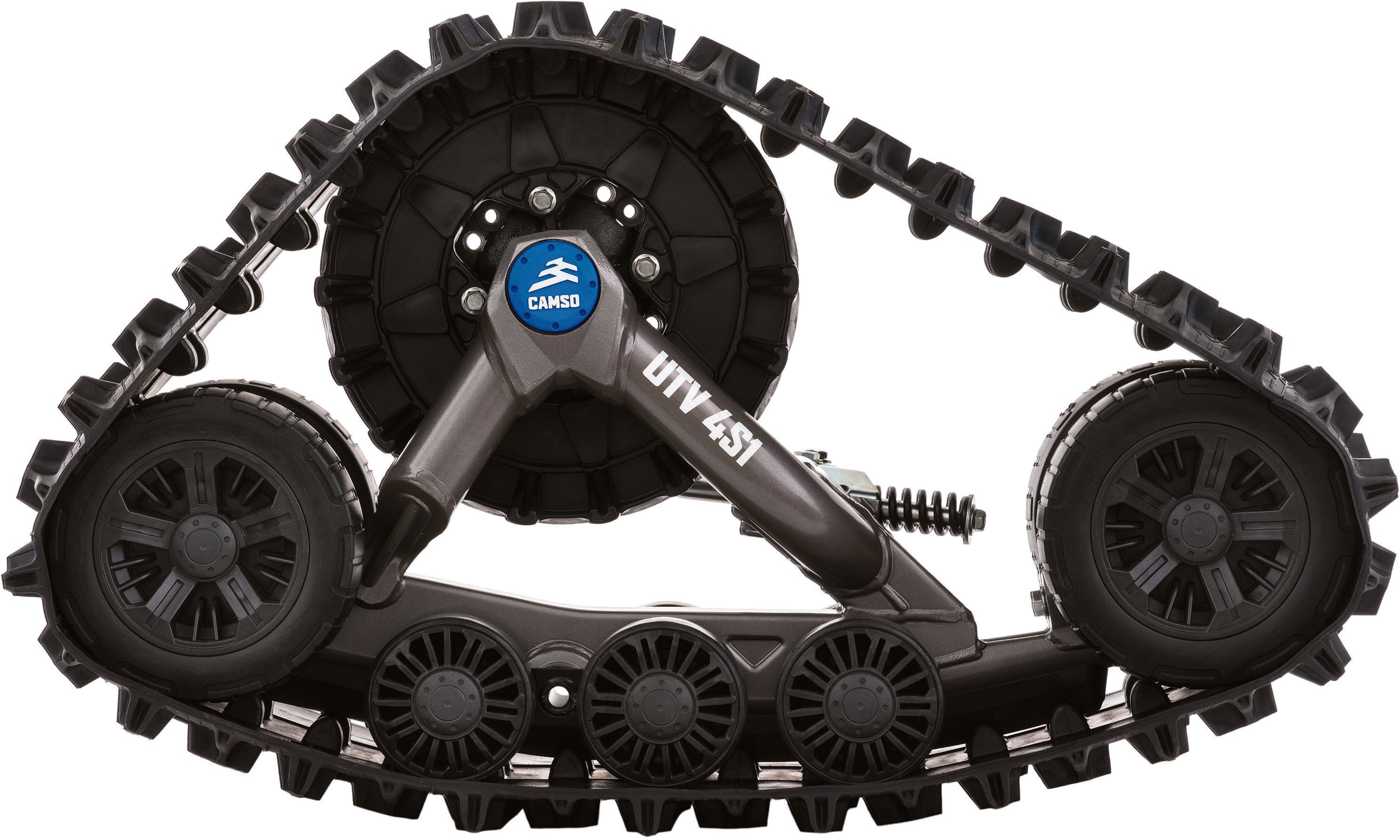

CAMSO UTV 4S1 Track System for John Deere 550, 560 & 590 Gator

Take your utility vehicle to the next level with the CAMSO UTV 4S1 Track System for John Deere 550, 560 & 590 Gator. Engineered for riders, landowners, and workers who demand superior performance in extreme terrain, this advanced Gator track system delivers unmatched traction, flotation, torque, and stability in snow, mud, swamps, and rugged backcountry environments.

With over 2520 sq. in. of ground contact and an additional 5 inches of ground clearance, the CAMSO 4S1 system makes it possible to traverse deep powder, rutted trails, broken ice, rocks, logs, and uneven surfaces with ease. The Flex-Track front design dramatically improves steering precision and stability, helping you maintain confident control on technical trails, steep 20° climbs, and challenging sidehills.

Built with a carbon-steel frame, flat-free high-density tires, oil-bath triple bearings, and sealed hubs, this track kit ensures exceptional durability with minimal maintenance. Whether you're hauling heavy loads, towing equipment through winter storms, or exploring remote trail systems, the CAMSO 4S1 Track System transforms your John Deere Gator into a true four-season machine.

Perfect for snow, mud, ice, wilderness access, ranch work, hunting terrain, and severe-weather utility use — this is the ultimate track upgrade for your 550, 560, or 590 Gator.

⭐ What’s Included

• (4) Track systems — 2 front & 2 rear
• Adapted mount kit for John Deere 550 / 560 / 590
• Anti-rotation spring & limiter components
• All required hardware and installation components

⭐ Top Performance Benefits

✔ Maximum Traction & Hill-Climbing Power

• Conquer steep 20° snow-covered hills
• Extra-wide contact patch for superior flotation
• 1.125" aggressive lugs grip in all terrain

✔ Smooth & Comfortable Ride

• Foam-filled idler wheels reduce jarring impacts
• Rubber-mounted shafts minimize vibration
• Flex-Track design maintains consistent ground contact

✔ Extreme Durability & Low Maintenance

• Rugged carbon-steel frame resists impacts and debris
• High-density flat-free tires reduce downtime
• Triple hub bearings with oil-bath lubrication
• Sealed hub design prevents moisture intrusion

✔ Improved Torque & Hauling / Towing Power

• Optimized sprocket ratio for better torque delivery
• Haul up to 1000 lbs
• Tow up to 2500 lbs across snow and ice

✔ Precision Steering & Enhanced Stability

• Curved Flex-Track geometry improves handling
• Optimized steering alignment for long rides
• Enhanced lateral stability for sidehills and uneven ground

📐 Technical Specifications

Drive & Frame

• Internal drive system
• Carbon-steel frame construction
• 15–18 tooth sprocket range
• Anti-rotation bar with progressive damper

Track Dimensions

• Front Track: 98.5" L × 12.5" W × 1.125" lugs
• Rear Track: 116.7" L × 14" W × 1.125" lugs

System Weights

• Front Track: 103 lbs
• Rear Track: 120 lbs
• Mount Kit: ~6.25 lbs

Wheels & Bearings

• 5.2" double-bearing mid-roller wheels
• 9.49" flat-free tires
• Forged steel triple hub bearing design

❓ Frequently Asked Questions

Q1: Will this track system fit my John Deere 550, 560, or 590 Gator?
Yes — this kit is designed specifically for these models.

Q2: How much ground clearance is added?
Approximately 5 inches, depending on your Gator setup.

Q3: Can the system handle steep climbs?
Absolutely — tested for 20° hill climbs and steep sidehills.

Q4: How much weight can I haul or tow?
• Hauling: up to 1000 lbs
• Towing: up to 2500 lbs on snow or ice

Q5: Is installation complex?
No. The included mount kit is designed for a straightforward, track-ready installation.

🚜 Fitment

John Deere 550 Gator XUV 4x4
• 2012–2016
• 550 S4 2012–2016

John Deere 560 XUV
• 2016–2024 — E, E S4

John Deere 590 XUVi
• 2016–2024 — Power Steering / E / M / Special Edition Black
• 2016–2024 — 590 S4 variants
