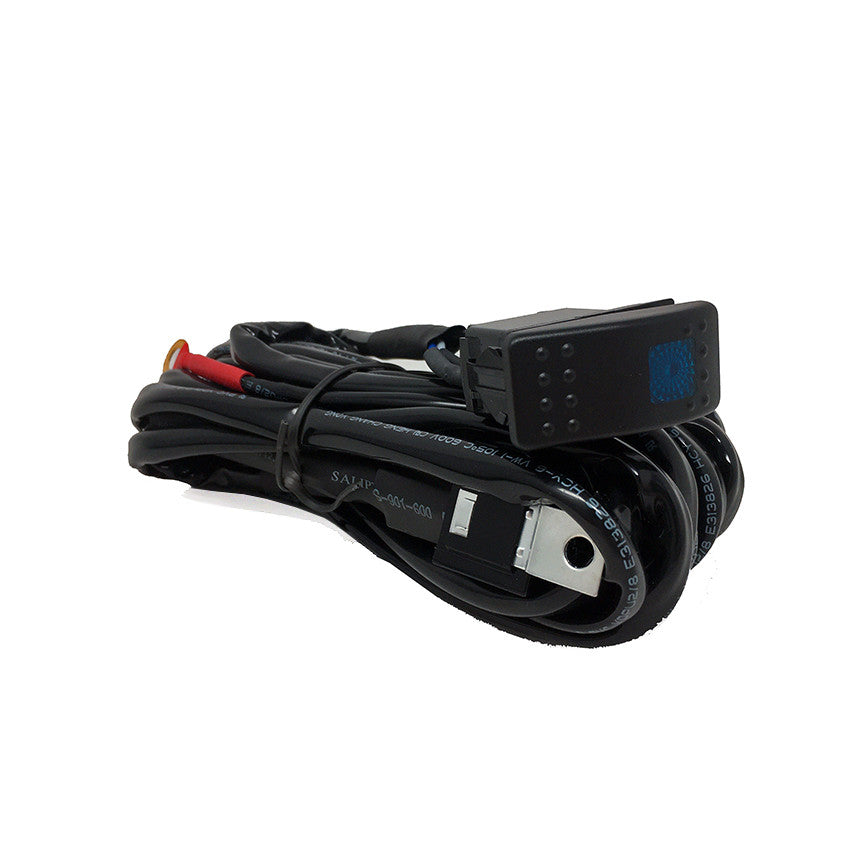

Installing Baja Designs lights on a UTV means routing wiring across the machine and finding a way to switch the lights on and off. Universal fit - not built for one specific make or model, so confirm mounting space and wiring on your machine before ordering. The Baja Designs UTV electrical harness uses a three-pin connection and an on/off switch to control compatible lights. Its wiring lengths are designed for a UTV.
Key Features
- Three-pin connection for compatible Baja Designs lights
- On/off switch control for the connected lights
- Wiring lengths designed for a UTV
- Splice connector terminal type
- Supports a Baja Designs light bar up to 30 inches
Built To Solve: UTV Light Wiring and Switch Control
- Route wiring sized for a UTV instead of guessing at harness length.
- Switch compatible three-pin lights on and off from the harness.
- Connect a supported OnX6, S8 or XL series light.
- Check the 30-inch light bar power limit before selecting a bar.
Best For: UTV Owners Wiring Baja Designs Lights
- UTV owners adding compatible three-pin Baja Designs lights.
- Riders wiring an S8 light bar up to 30 inches.
- Owners connecting an OnX6 light bar in the stated 10- to 20-inch application range.
- UTV builders looking for on/off switch control rather than selecting a separate switch.
Specifications
- Application: OnX6 10–20 inches; S8 10–30 inches
- Maximum light bar length: 30 inches
- Terminal connector: Three-pin connection
- Terminal type: Splice connectors
- Fitment type: Universal
- Manufacturer part numbers: 640129
What's in the Box
- On/off switch
Fitment
- Universal UTV application
Fitment is based on current product data for this part and is not guaranteed on unlisted applications. If you don't see your exact setup, contact us and we'll confirm fitment before you order.
FAQ
Does the harness come with mounting hardware?
No. Mounting hardware is not supplied.
What connection does the harness use at the light?
It uses a three-pin connection.
What light bar sizes are listed for OnX6 and S8?
The listed application is 10–20 inches for OnX6 and 10–30 inches for S8.
Can this harness power a Baja Designs light bar longer than 30 inches?
No. The stated power limit is a Baja Designs light bar up to 30 inches.
How do I decide if this harness suits my light?
Check that your light uses the three-pin connection. The harness is designed for three-pin lights such as OnX6 Plus, S8 and XL series lights.
Why Baja Designs
Baja Designs specifies this harness for its three-pin OnX6 Plus, S8 and XL series lights.
Wire Your Baja Designs UTV Lights
Choose the Baja Designs UTV on/off wiring harness for a compatible three-pin light.
