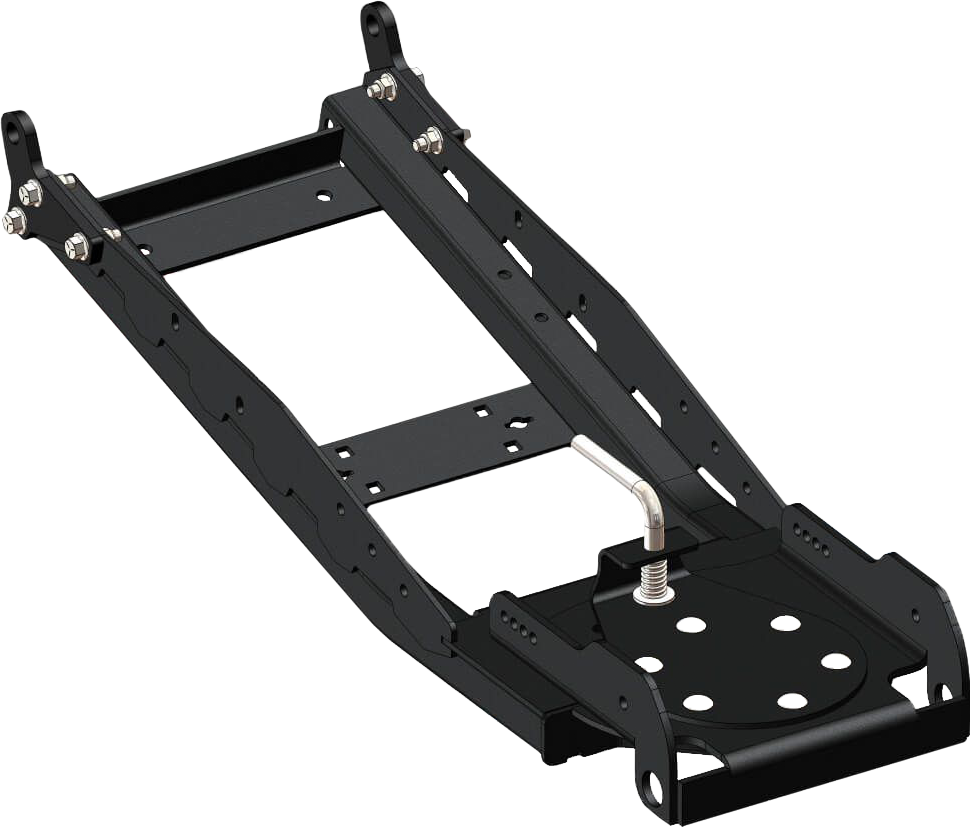

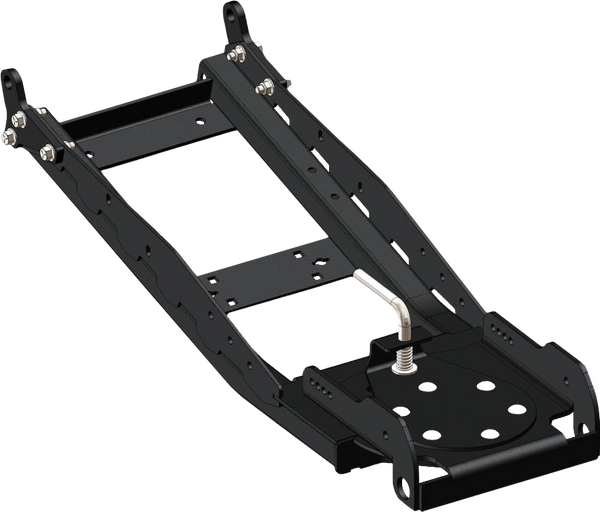

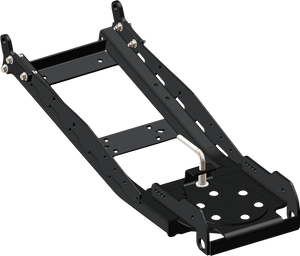

The KFI UTV Pro 2.0 Conversion Push Tube lets you run a Cycle Country plow blade on KFI's square-tube UTV plow system, so a Cycle Country UTV snow plow blade can mount to a KFI front plow mount. It is a Grade 50 steel push tube frame with blade mounting hardware included, built for UTV owners who already own or prefer a Cycle Country blade.
KFI designed this push tube to replace its discontinued Cycle Country conversion push tube and made it 2 inches longer. Heavy-duty 1-1/2 inch 12-gauge square steel tubing, a 6-inch rotator bushing, and an easy-pull pin angle adjustment give a Cycle Country plow a modern KFI push tube to work from. Browse more UTV snow plow accessories or the full snow plows lineup.
Key Features
- Designed to attach a Cycle Country plow blade to the KFI UTV Pro 2.0 square push tube system
- Works with all Cycle Country UTV plow blades, per KFI
- Grade 50 steel construction with heavy-duty 1-1/2 inch 12-gauge square steel tubing
- Shot blasted before powder coating, finished in black powder coat
- Front mount design with 30 inches or more of lift height
- Easy-pull pin blade angle adjustment with 3 positions that rotate the blade up to 25 degrees
- 6-inch diameter injection-molded POM rotator bushing
- Multi-position plow lift bracket
- 2 inches longer than KFI's previous Cycle Country conversion push tube
- Blade mounting hardware included; made in the USA
Built To Solve: Running a Cycle Country Blade on a KFI UTV Pro 2.0 Push Tube System
- You own a Cycle Country UTV plow blade but want to plow off a KFI front plow mount
- KFI's earlier Cycle Country conversion push tube is discontinued and you need its current replacement
- Your old Cycle Country push tube is bent, worn, or missing hardware and the blade still has life left
- Your winch cable runs at a steep angle from an upper-mounted winch; the multi-position lift bracket includes a hook position KFI specifies for that setup
- Changing blade angle should be a quick pin pull, not a wrench job
Best For: UTV Owners Running a Cycle Country Plow Blade on a KFI Mount
- Snow plow owners keeping a Cycle Country UTV blade while moving to a KFI UTV plow mount
- Owners replacing the discontinued KFI Cycle Country conversion tube with a current UTV plow push tube
- Driveway, lot, and property plowing with a winch-lifted UTV snow plow
- Not the right part if you run a KFI blade: choose KFI's standard Pro 2.0 square push tube instead
Specifications
- Product: KFI CC UTV Pro 2.0 Conversion Square Push Tube
- Blade compatibility: all Cycle Country UTV plow blades
- Material: Grade 50 steel; heavy-duty 1-1/2 inch 12-gauge square steel tubing
- Finish: shot blasted, black powder coat
- Lift height: 30 inches or more (front mount design)
- Blade angle: 3 positions, up to 25 degrees, easy-pull pin adjustment
- Rotator bushing: 6-inch diameter, injection-molded POM
- Lift bracket: multi-position plow lift bracket
- Length: 2 inches longer than the previous KFI push tube #105905, which this part replaces
- Pin attachment bracket bolt torque: 31 lb-ft (per KFI install manual)
- Country of origin: Made in the USA
- Manufacturer Part Number: 106310
What's In The Box
Per KFI's 106310 install manual parts list:
- UTV push tube frame weldment (1)
- UTV hybrid plow cradle (1)
- Pivot ring rotator bushing (1)
- Lift hook bracket (1) and lift lock latch assembly (1)
- 3/8-16 x 1-1/4 inch carriage bolts (6) and 3/8-16 flange lock nuts (6)
- UTV push tube parts kit: Cycle Country UTV hybrid kit with pivot bushings, angle adjust plates, spring attach brackets, 5/8 inch hitch pins and clips
- Plow springs (2) and pin attachment brackets (2)
- Blade mounting and assembly hardware kits
Not included: Cycle Country plow blade, vehicle-specific UTV plow mount, and winch for lifting the plow. KFI states the kit requires all three.
Fitment
This is a universal UTV plow part. It fits UTV plow setups that use a KFI vehicle-specific UTV plow mount and KFI's UTV Pro 2.0 square-tube push tube layout with a Cycle Country UTV plow blade; KFI's manual describes pinning the tube system to any KFI mount. KFI does not publish a vehicle make, model, or year list for this push tube, so match the plow mount to your machine first. It is designed for Cycle Country blades, not KFI blades. Fitment is not guaranteed on unlisted applications, including other brands' plow mounts or modified machines.
FAQ
Will this push tube work with a KFI plow blade?
No. KFI designed this conversion push tube to attach a Cycle Country plow blade to its UTV Pro 2.0 square push tube system. If you run a KFI blade, KFI's standard Pro 2.0 square push tube is the correct choice, and KFI lists that tube as working with all KFI plows.
Which Cycle Country plow blades does it fit?
KFI states this push tube works with all Cycle Country UTV plow blades. KFI does not list individual blade widths or models, so confirm your blade is a Cycle Country UTV blade rather than a KFI or other-brand blade.
Does it come with a plow mount, winch, or plow blade?
No. KFI's install manual states the kit also requires a Cycle Country plow blade, a vehicle-specific plow mount, and a winch for lifting the system. The box contains the push tube frame, cradle, rotator bushing, lift hardware, springs, pins, and blade mounting hardware.
How does it compare with KFI's earlier Cycle Country conversion push tube?
This push tube replaces KFI's discontinued Cycle Country conversion push tube, and KFI lists it as 2 inches longer than that previous tube. It also uses KFI's Pro 2.0 square-tube design with a multi-position plow lift bracket.
How much lift height and blade angle adjustment does it give?
KFI lists a front mount design with 30 inches or more of lift height. Blade angle is set with an easy-pull pin across 3 positions that rotate the blade up to 25 degrees.
How is the push tube installed?
KFI publishes an install manual for this kit. The blade is secured to the tube system with the supplied pivot bushing in the blade gusset hole, then the tube system is positioned under the UTV and pinned to your KFI plow mount with the included hitch pins and clips. KFI specifies 31 lb-ft for the pin attachment bracket bolts.
Why KFI
KFI builds UTV and ATV plow systems, mounts, and winch accessories, and this push tube is made in the USA from Grade 50 steel that is shot blasted before powder coating. Keeping a Cycle Country blade on a KFI push tube lets you reuse the blade you have while moving to KFI's current Pro 2.0 square-tube plow hardware.
Complete Your KFI Cycle Country UTV Plow Setup
Before you order this KFI Pro 2.0 push tube conversion, confirm you have a Cycle Country UTV plow blade, a KFI plow mount made for your exact UTV, and a winch to lift the plow. If your blade is a KFI blade, choose KFI's standard Pro 2.0 square push tube instead. Then check the related products on this page for replacement lift latch and tube ear parts, and visit our snow plow kits collection to find the mount for your machine.
