AJK Offroad Adjustable Clamp-Style Tube Hinge, 1.50 or 1.75 Inch
Shipping calculated at checkout
In stock

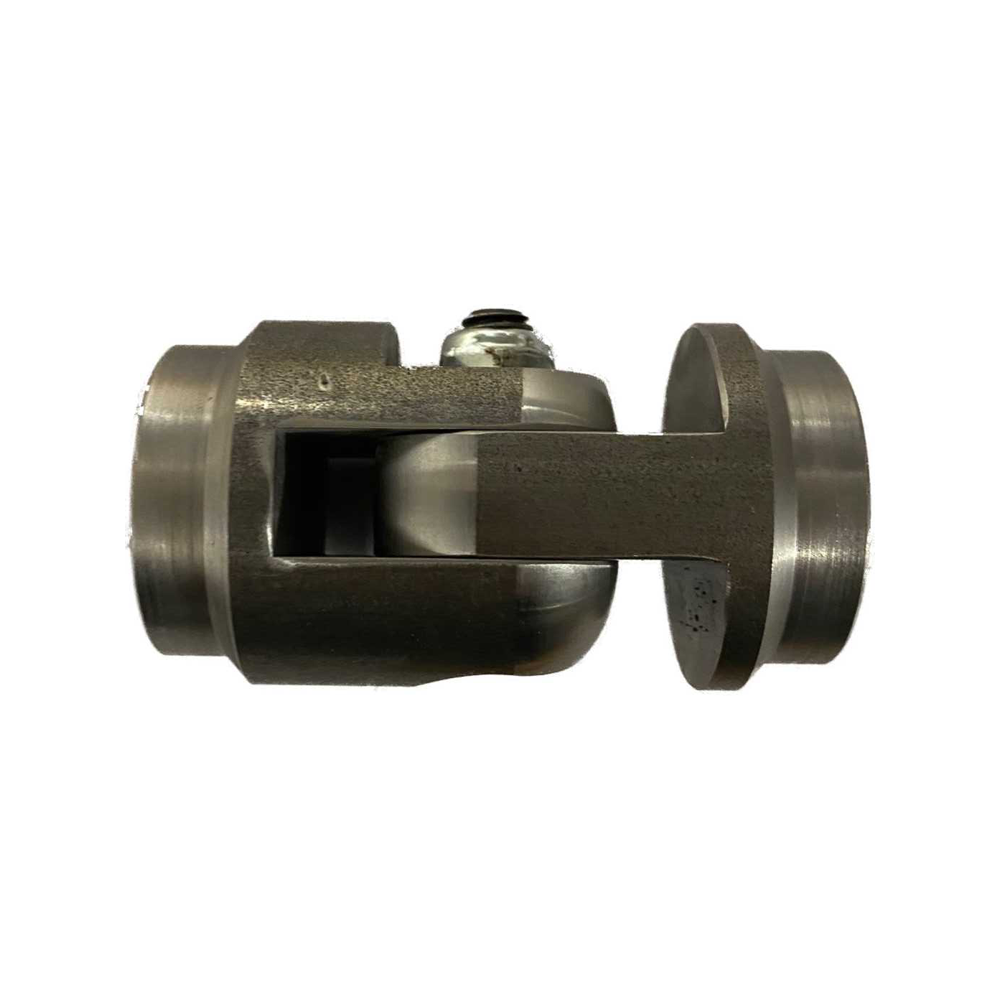

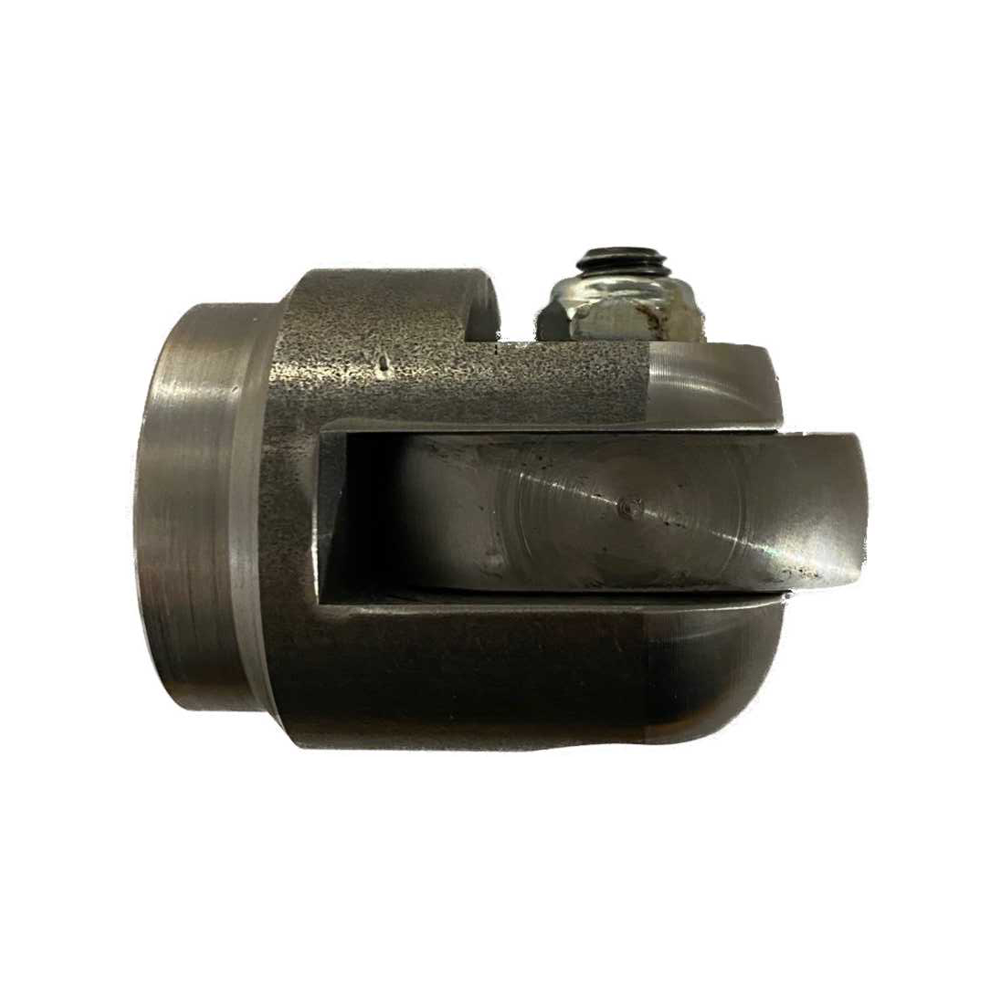

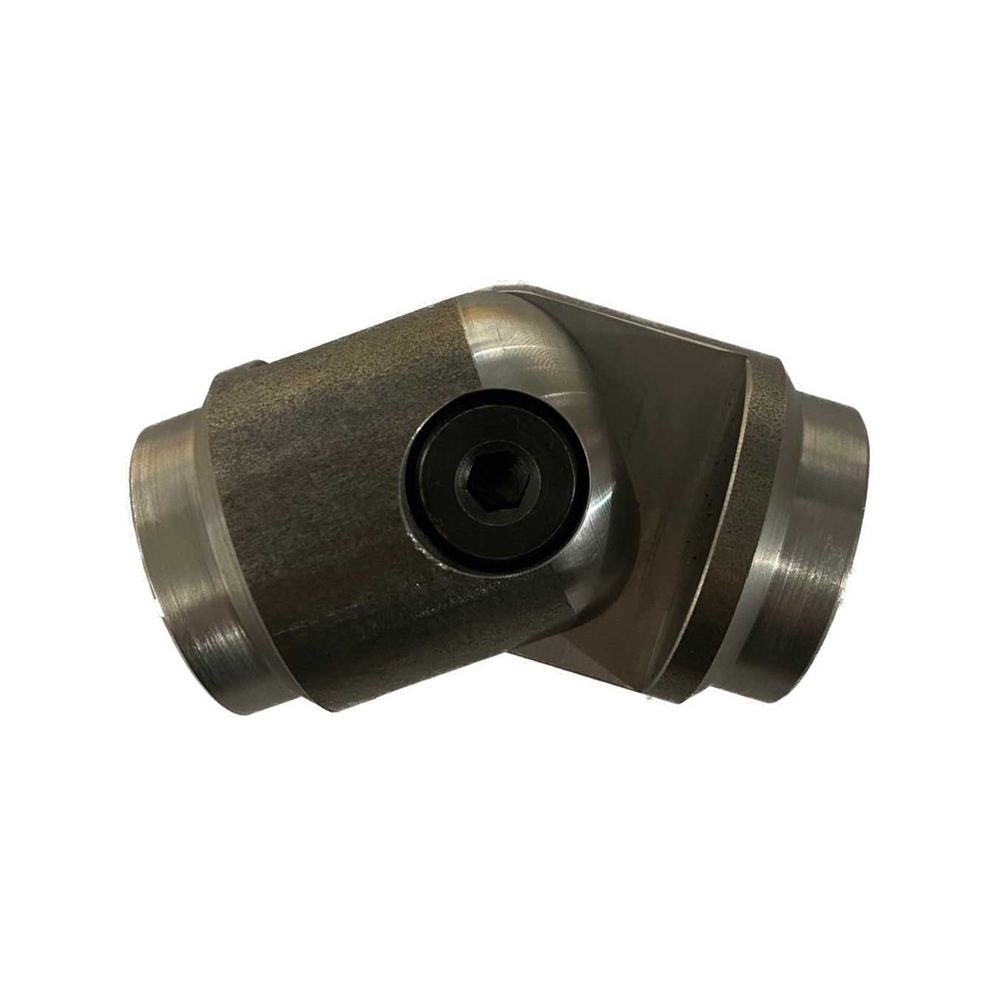

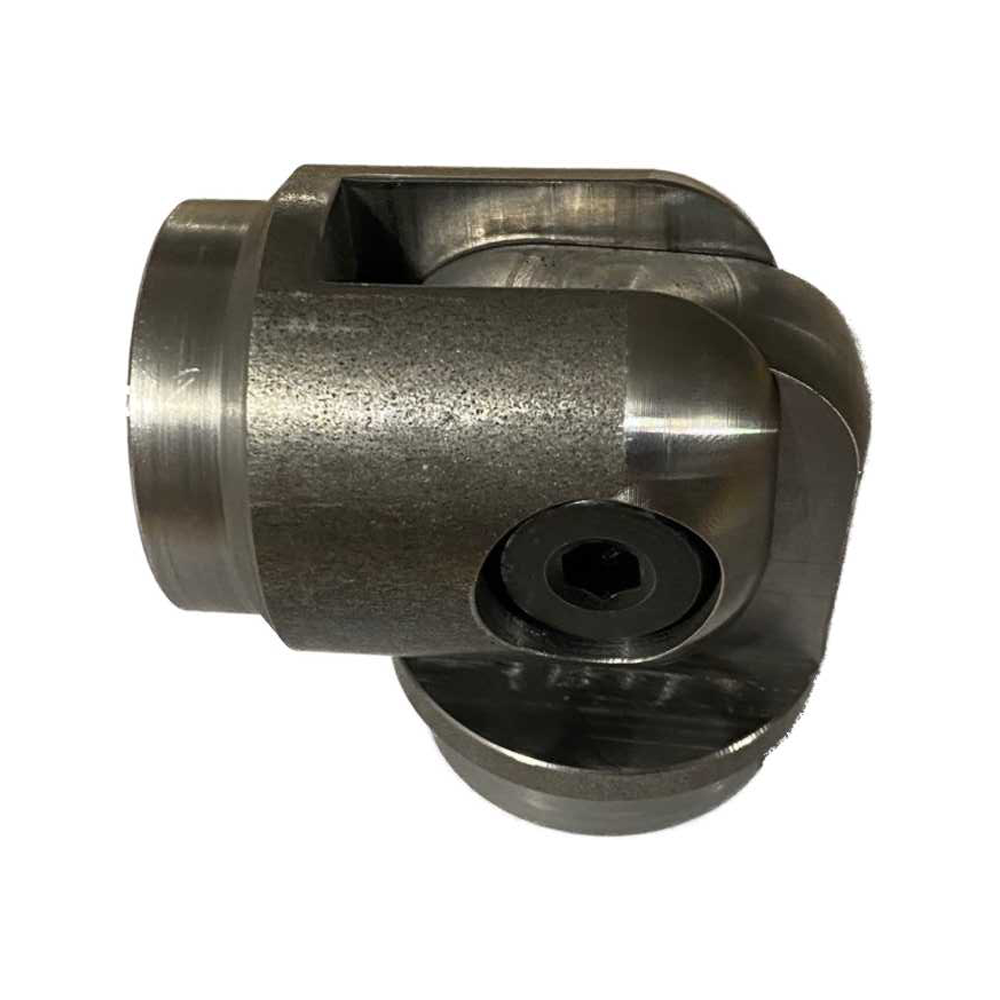

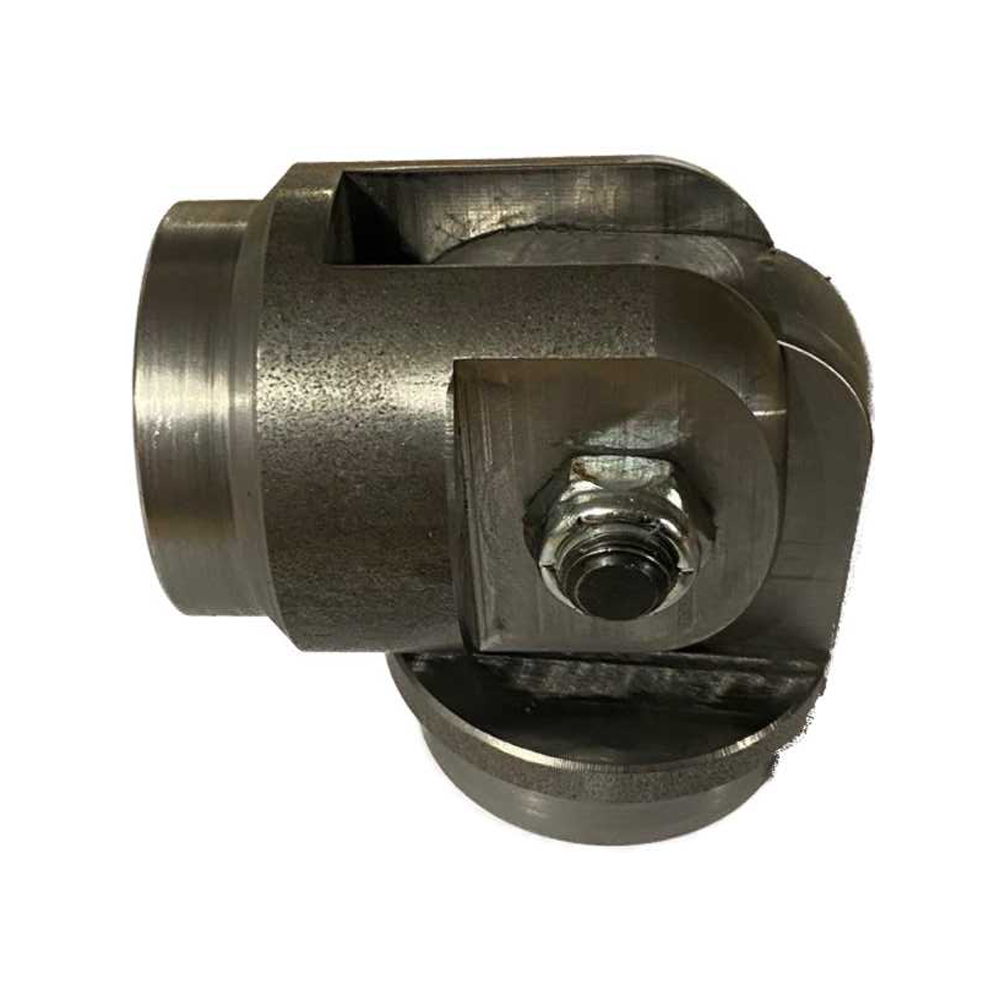

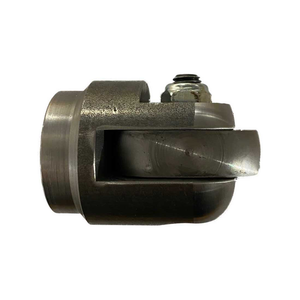

The AJK Offroad clamp-style tubing hinge uses a lock nut on the shoulder bolt so you can set the hinge resistance for SXS doors and tire carriers.

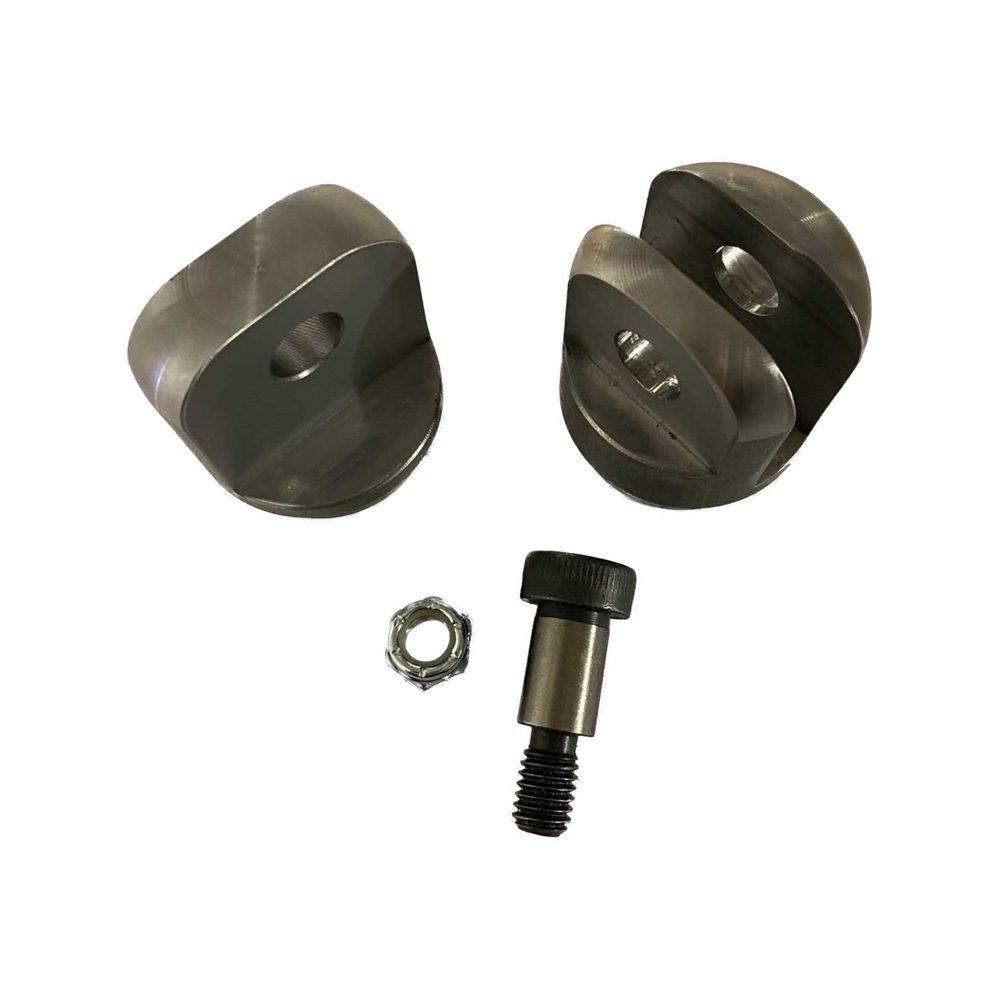

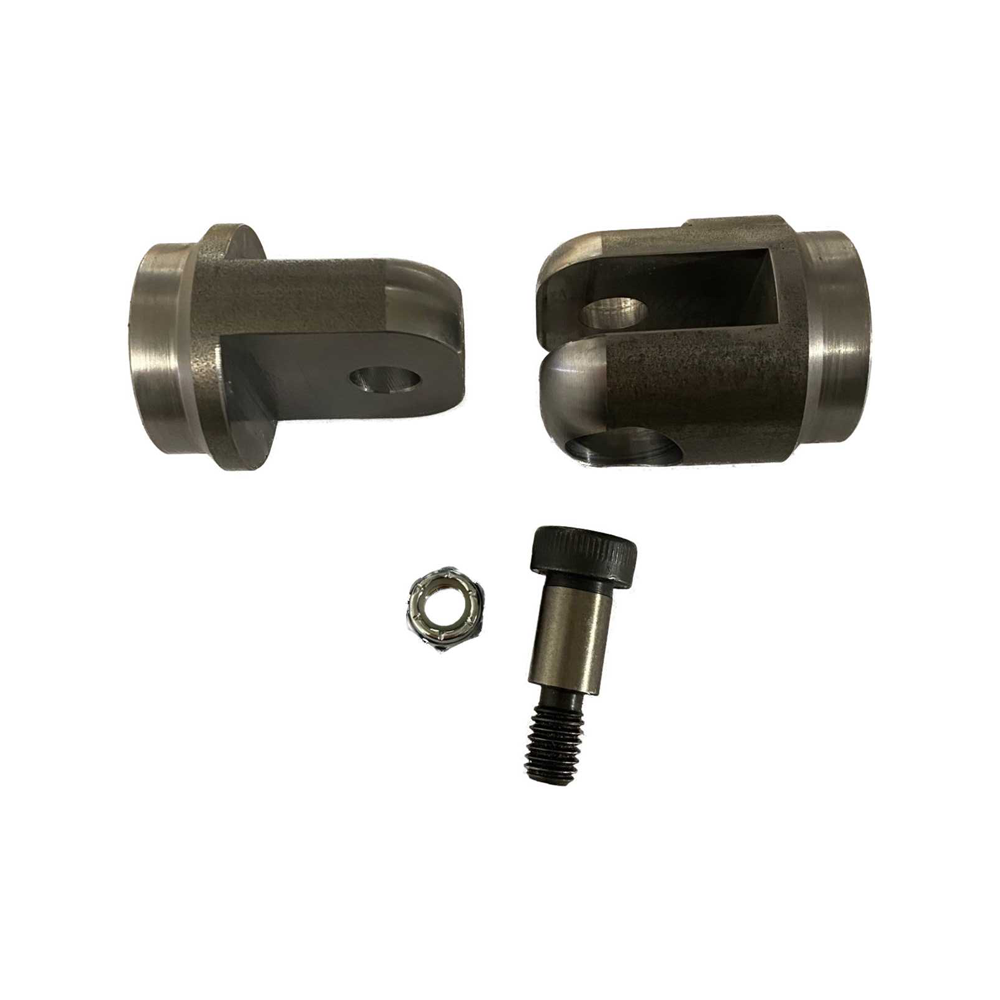

AJK CNC machines its tubing hinges from 1018 steel and uses a hardened 1/2-inch shoulder bolt as the pivot pin for great wear resistance; each rotates 180 degrees and has a weld chamfer to fit inside the tube. The lock nut lets you tighten the hinge to the right resistance. Designed for 1.50 or 1.75-inch OD tubing with a 0.120-inch wall.
Key Features
- Adjustable resistance
- 1/2-inch shoulder bolt with lock nut
- Rotates 180 degrees
- Nice weld chamfer
- 1.50 or 1.75-inch
- American made
Built To Solve: Building Doors and Swing-Outs
- Building doors and swing-out carriers
- Hinges that sag or wallow out
- Doors that will not stay shut
Best For: Fabricators and DIY Off-Road Builders
- SXS door builders
- Swing-out tire carriers
- Custom tube buggies and racks
Specifications
- Tube sizes: 1.50 or 1.75-inch OD, 0.120 wall
- Pivot: hardened 1/2-inch shoulder bolt with lock nut
- Rotation: 180 degrees
- Material: 1018 steel
- Made in USA
- Manufacturer Part Number: 200360 / 200361
Fitment
Universal fabrication part; match your tubing OD and wall thickness to the sizes listed before ordering.
FAQ
What makes the AJK clamp-style hinge different?
A lock nut lets you set its resistance.
How far does it rotate?
180 degrees.
What tubing fits?
1.50 or 1.75-inch OD, 0.120 wall.
What is it used for?
SXS doors and tire carriers.
What is it made of?
1018 steel with a hardened shoulder bolt.
Is it made in the USA?
AJK Offroad lists it as American made.
Why AJK Offroad
AJK Offroad CNC machines its fabrication parts in the USA from 1018 steel and 6061-T6 billet aluminum, with sizable weld chamfers and threads cut to standard specs. Builders use them for roll cages, bumpers, doors, tire carriers and removable racks on side-by-sides, UTVs, tube buggies, rock bouncers and Jeeps, and Dunes 2 Dezert SXS carries the full AJK Offroad fabrication range in one place.
Build Your Doors
Pick your size, then add the AJK Offroad door latch below.
