AJK Offroad Interlocking Tubing Disconnect, 2 Pack, 1.50 or 1.75 Inch
Shipping calculated at checkout
In stock

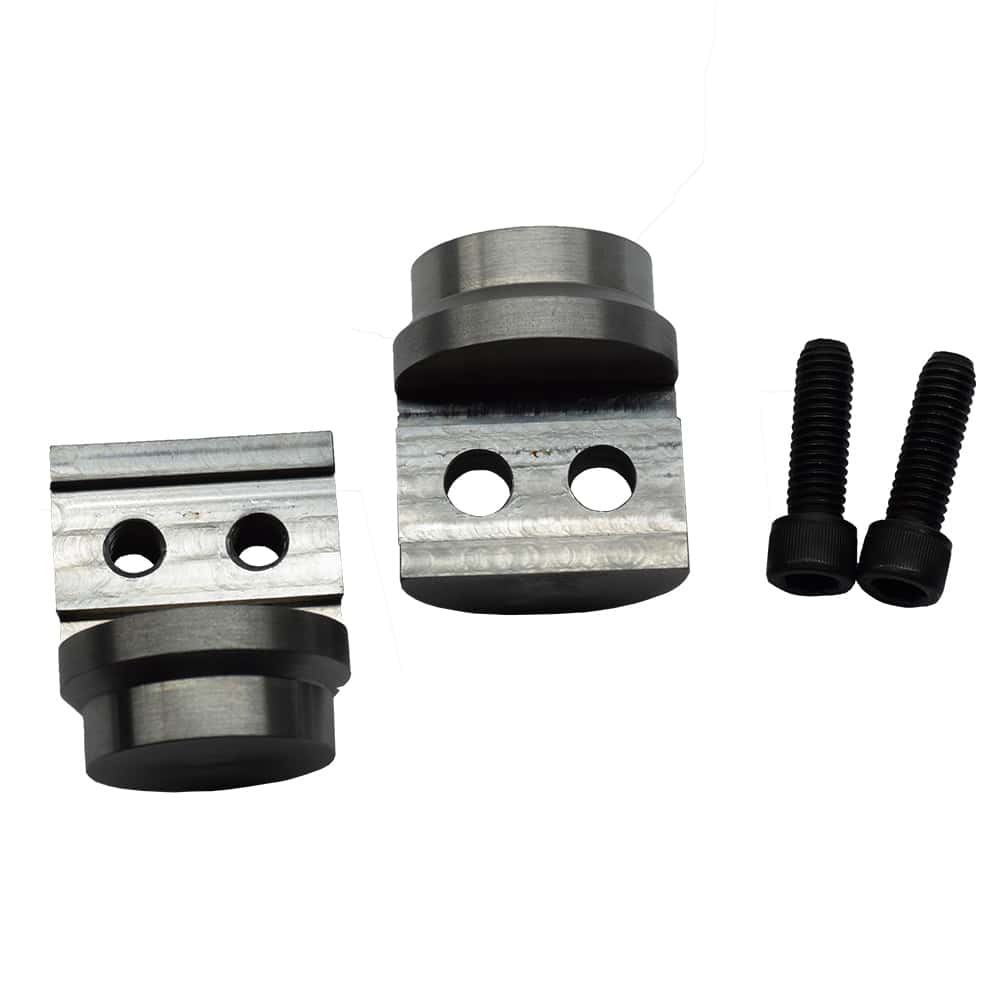

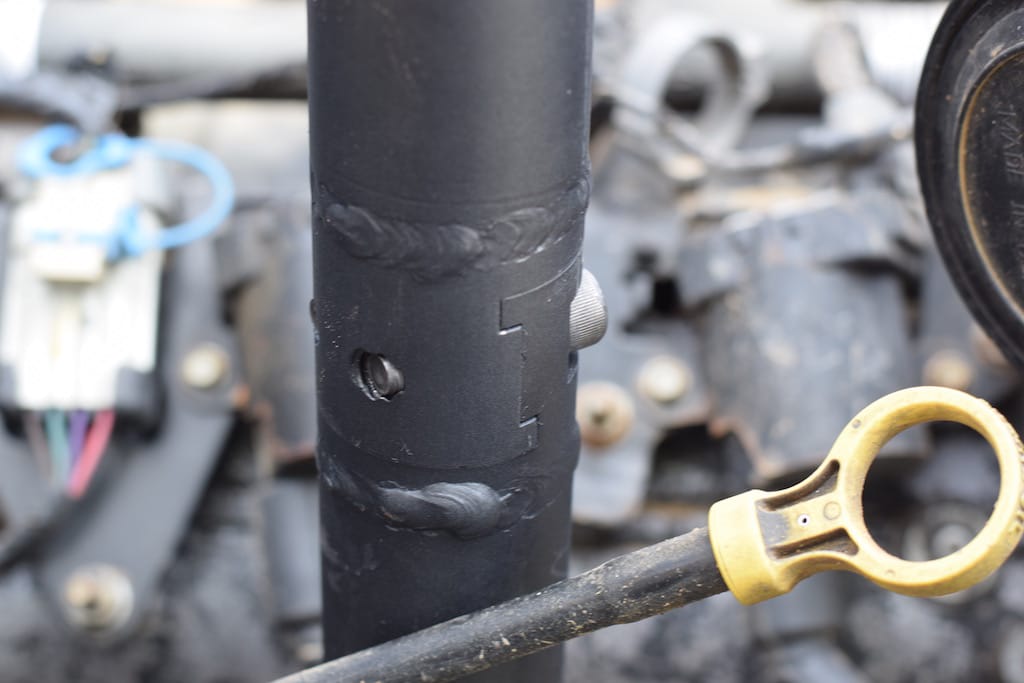

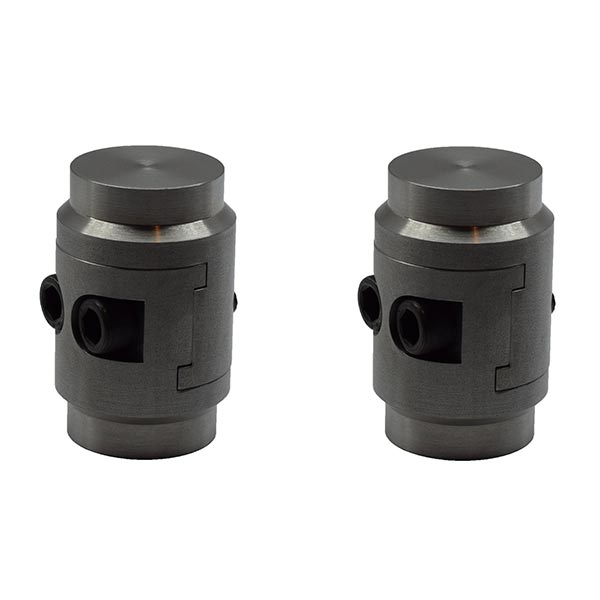

AJK Offroad interlocking tubing disconnects let you remove tubing to reach the motor or transmission and come in a 2-pack for 1.50 or 1.75-inch OD tubing with a 0.120-inch wall.

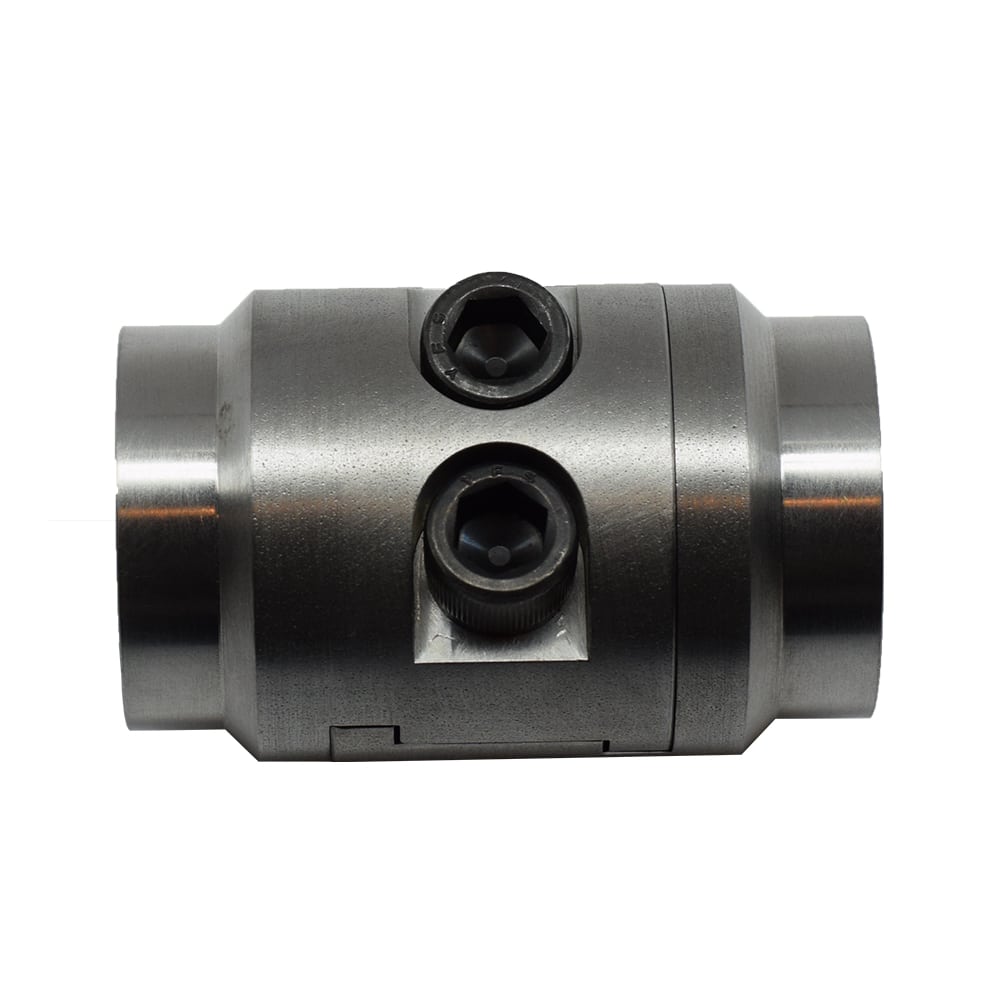

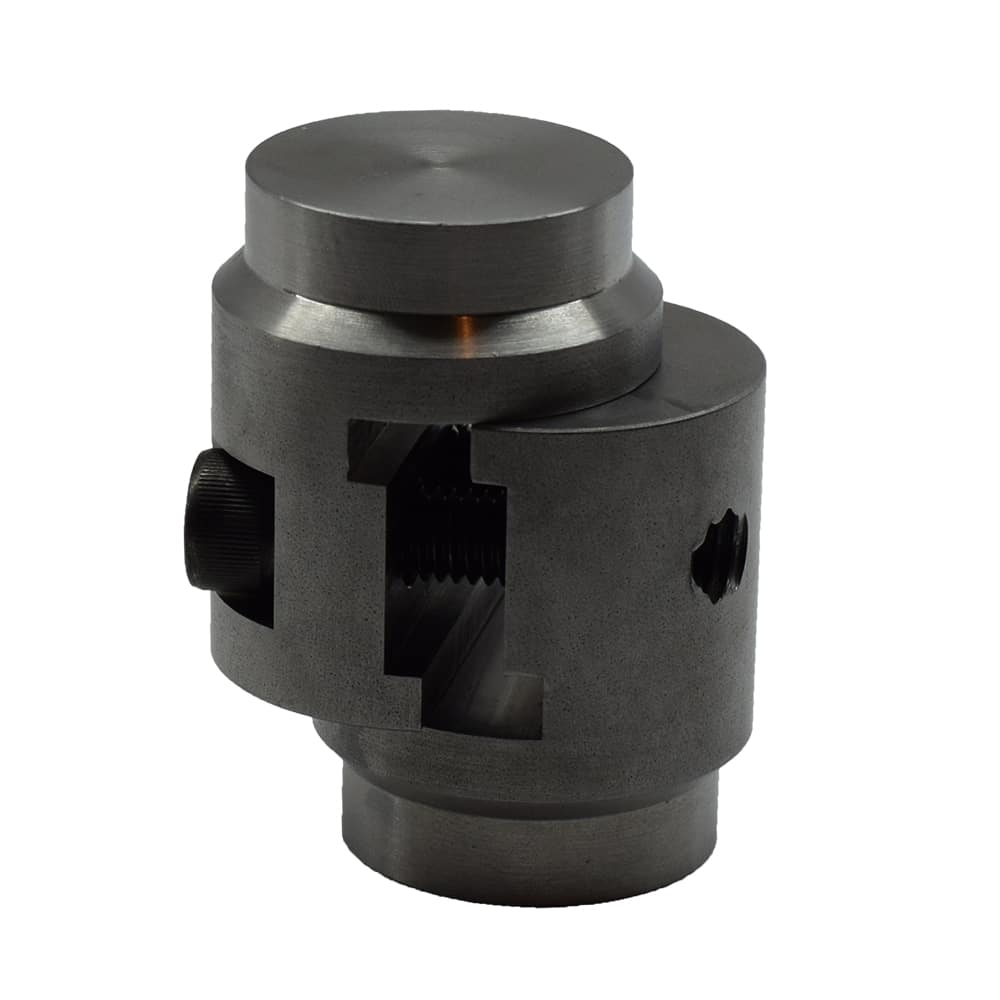

It locks together at three points, and the insert end has a large weld chamfer and enough length to align properly in the tube. AJK makes every interlocking disconnect from 1018 steel bought from US companies, drilled and tapped to standard bolt specs. Two 3/8-16 socket head cap screws per disconnect start from the same side, so you can mount it close to the components you protect. They work on bumpers, roll cages and removable racks.
Key Features
- Three-tier interlocking design
- Two 3/8-16 SHCS included
- Bolts start from the same side
- 1018 mild steel
- Sizable weld chamfers
- 2 pack, CNC machined in the USA
Built To Solve: Tubing You Cannot Remove
- Welded-in bumpers and bars you cannot remove
- No access to the engine or transmission
- Racks that cannot come off for service
Best For: Fabricators and DIY Off-Road Builders
- SXS bumper and roll cage builders
- Removable racks and engine guards
- Tube buggies, rock bouncers and Jeeps
Specifications
- Tube size: 1.50 or 1.75-inch OD, 0.120 wall
- Hardware: two 3/8-16 SHCS each
- Material: 1018 steel
- Quantity: 2 pieces
- CNC machined in the USA
- Manufacturer Part Number: 200112 / 200113
Fitment
Universal fabrication part; match your tubing OD and wall thickness to the sizes listed before ordering.
FAQ
How many come in the AJK tubing disconnect 2 pack?
Two complete disconnects.
What tubing do they fit?
1.50 or 1.75-inch OD with a 0.120-inch wall.
Why do the bolts start from one side?
So you can mount it close to the components you protect.
What is it made of?
1018 steel from US suppliers.
Is hardware included?
Yes, two 3/8-16 SHCS each.
Is it made in the USA?
Yes, CNC machined in the USA.
Why AJK Offroad
AJK Offroad CNC machines its fabrication parts in the USA from 1018 steel and 6061-T6 billet aluminum, with sizable weld chamfers and threads cut to standard specs. Builders use them for roll cages, bumpers, doors, tire carriers and removable racks on side-by-sides, UTVs, tube buggies, rock bouncers and Jeeps, and Dunes 2 Dezert SXS carries the full AJK Offroad fabrication range in one place.
Make Your Tubing Removable
Pick your tube size, then add AJK Offroad tubing end caps below.
