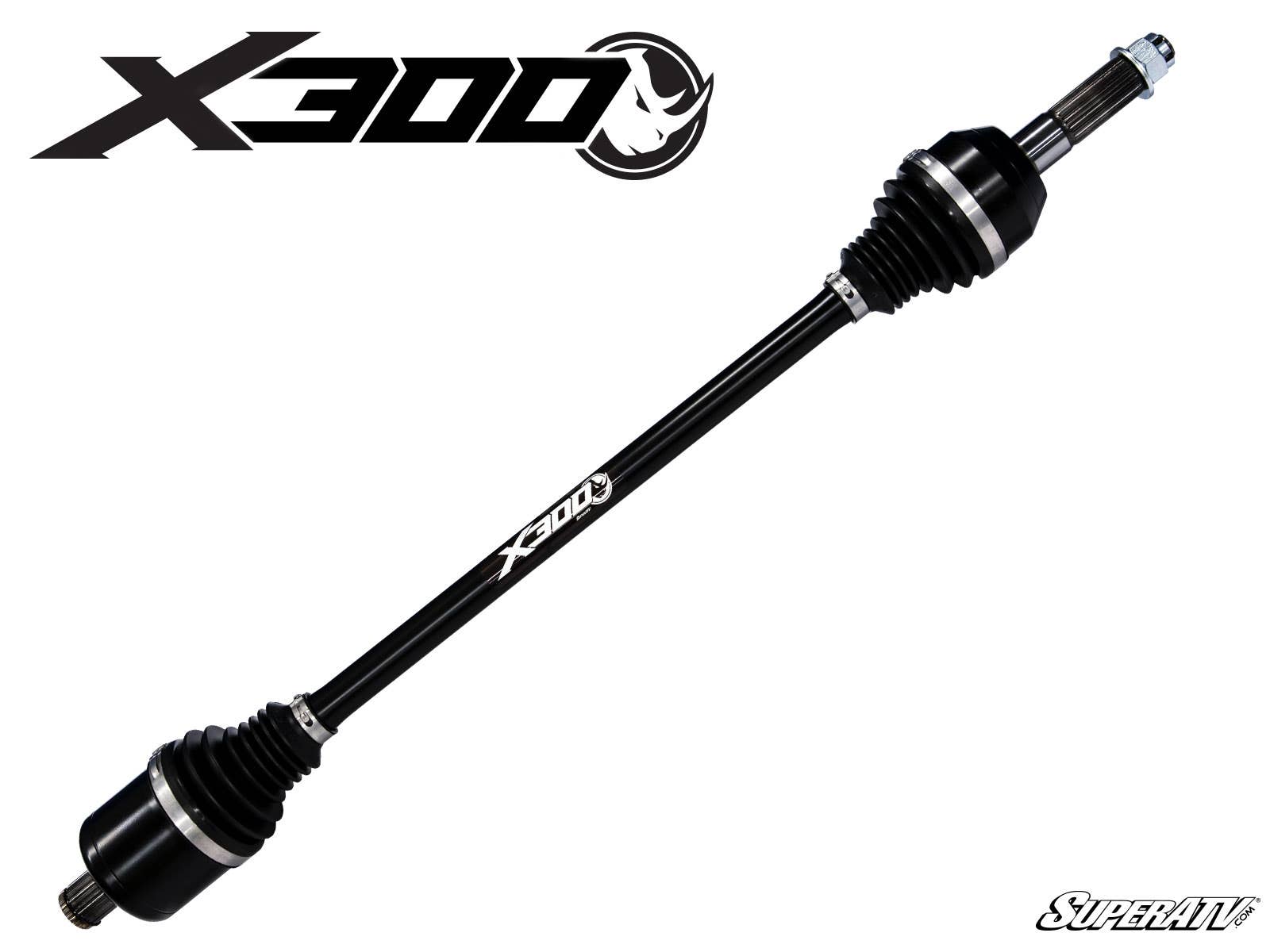

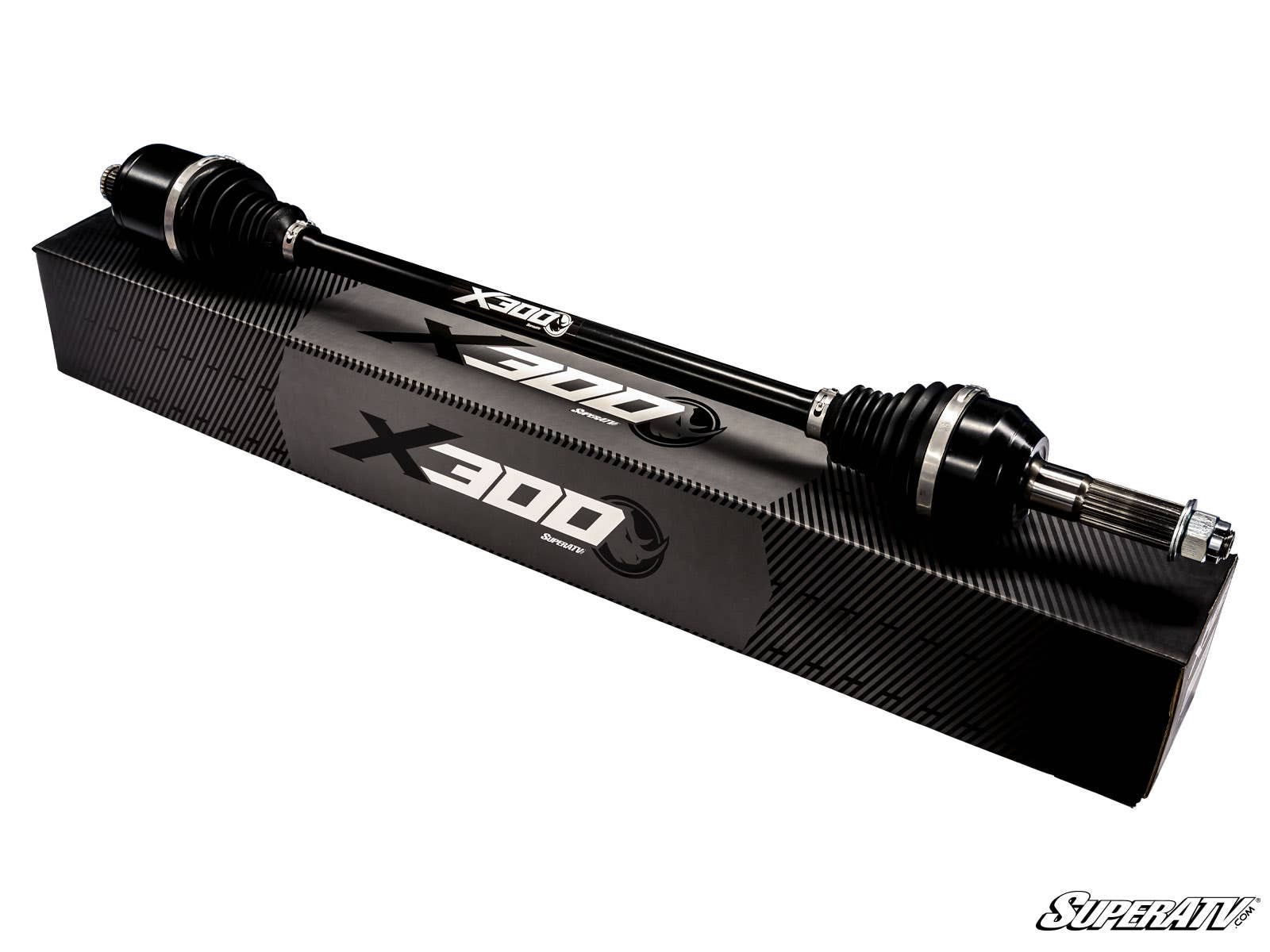

SuperATV X300 Big Lift Kit Axles are heavy-duty replacement axles for the 2017-2020 Polaris Ranger XP 1000 and Crew, including High Lifter, NorthStar, Back Country and Texas editions, and the 2015-2018 Ranger 1000 Diesel, running a 6 inch lift kit. They use a 300M alloy steel shaft with Flexshaft technology, CV components made of 300M and 4340 alloy steel, and a 3-year warranty.
Choose Front, Rear - Early Build or Rear - Late Build. The Fitment section shows which rear your machine takes. Each axle is sold individually.
These ranger xp 1000 lift kit axles are for lifted machines. Polaris ranger xp 1000 axles from the factory are not sized for 6 inches, and these ranger xp 1000 axles are. Among polaris ranger axles, this is the polaris ranger rear axle replacement and polaris ranger front axle for lifted XP 1000s. Riders asking for the best axles for polaris ranger 1000 builds with ranger 6 inch lift axles will find x300 axles are the heavy duty polaris ranger axles SuperATV offers.
Key Features

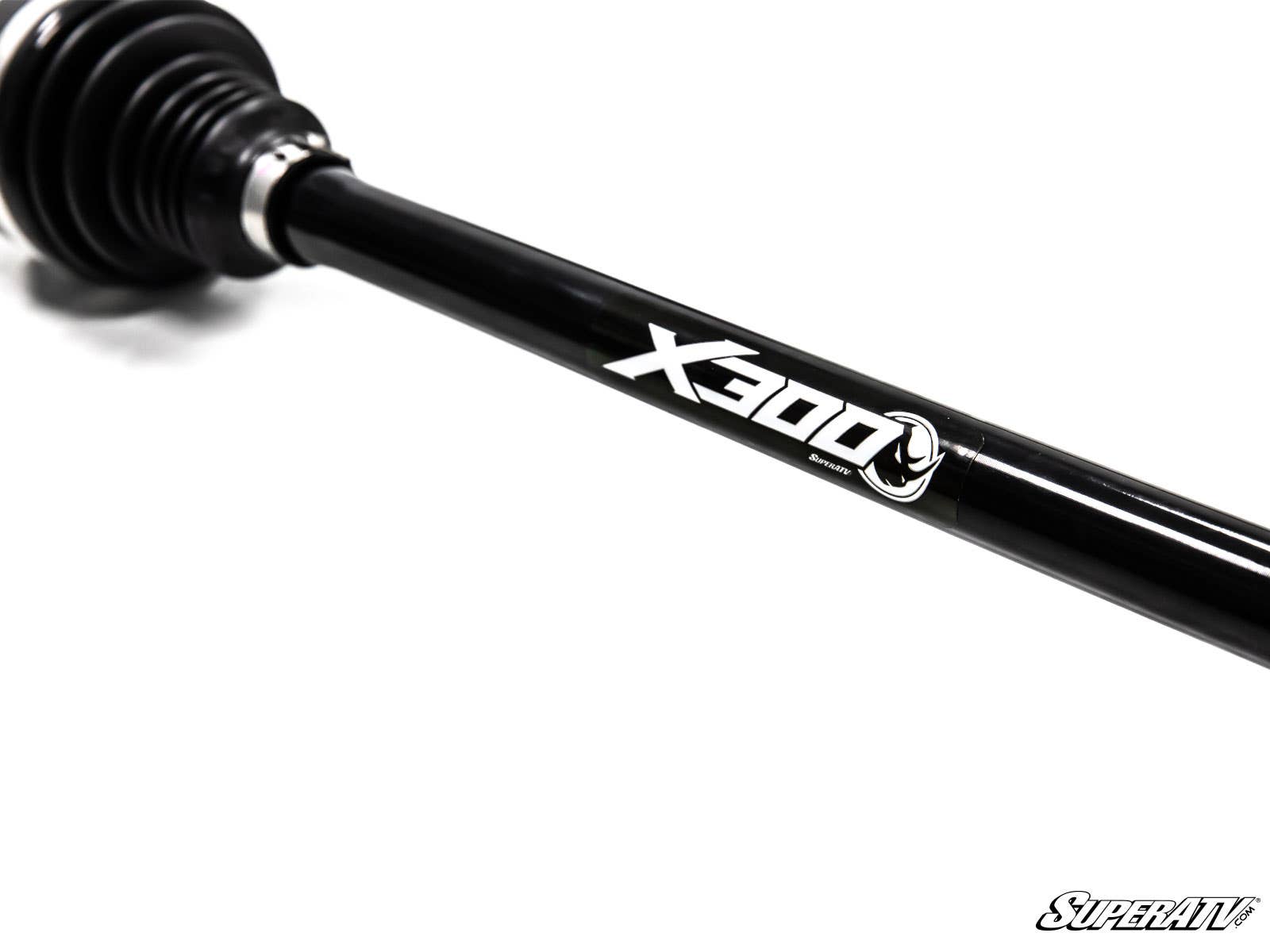

- 300M alloy steel shaft
- CV components made of 300M and 4340 alloy steel
- Maximized CV, spider and cage size for strength
- Flexshaft technology: the shaft flexes to absorb impact
- Reduces strain on CVs and drivetrain components
- CVs packed with proprietary high-temp grease
- 3-year warranty, which SuperATV calls the industry's best axle warranty
Built To Solve: Broken Axles on a Lifted Ranger XP 1000
- Stock-length axles binding or pulling apart after a big lift kit
- Stock axles snapping under big tires and hard landings
- CV joints failing from heat and high angles
- Replacing broken axles with more stock-strength parts
Best For: 2015-2020 Polaris Ranger XP 1000 Owners With a 6 Inch Lift
- 2017-2020 Ranger XP 1000 and Crew owners
- High Lifter, NorthStar, Back Country and Texas edition owners
- 2015-2018 Ranger 1000 Diesel owners
- Machines running a 6 inch lift kit
Specifications
- Brand: SuperATV
- Product line: X300 heavy-duty axle
- Shaft: 300M alloy steel with Flexshaft technology
- CV components: 300M and 4340 alloy steel
- Grease: proprietary high-temp
- Warranty: 3 years (manufacturing defects, original purchaser)
- Sold: individually
- Length: 6 inch lift kit
- Positions: front, rear (two rear versions)
- Manufacturer Part Number (front): AXW01-024F-1
- Manufacturer Part Number (rear, early build): AXW01-016R2
- Manufacturer Part Number (rear, late build): AXW-1-79-R-LK6-BT
Fitment
- Front, all models below: AXW01-024F-1
- Rear - Early Build (AXW01-016R2): Ranger XP 1000 2017-2018; Crew 2017-2019 built before 7/1/2018; High Lifter and High Lifter Crew 2017-2020; NorthStar 2017-2018; NorthStar Crew 2017-2019 built before 7/1/2018; Ranger 1000 Diesel and Crew 2015-2018
- Rear - Late Build (AXW-1-79-R-LK6-BT): Ranger XP 1000 2019-2020; Crew 2019-2020 built after 7/1/2018; NorthStar 2019-2020; NorthStar Crew 2019-2020 built after 7/1/2018; Back Country and Back Country Crew 2019; Texas Edition and Texas Crew 2020
Built for 6 inch lift kit applications; not for stock-height machines. Check your build date on 2019 Crew models. Fitment is not guaranteed on applications not listed above; confirm your year, model and cab before ordering.
FAQ
Which rear axle do I need?
It depends on model and build date. 2017-2018 standard, High Lifter (2017-2020), Diesel and early-build Crew models take the Early Build rear; 2019-2020 standard, Back Country, Texas and Crews built after 7/1/2018 take the Late Build rear.
What lift are they built for?
SuperATV lists these for a 6 inch lift kit.
Are they sold as a pair?
No. Each axle position is a separate part, sold individually. Order only the positions you need.
How do X300 axles compare to Rhino 2.0?
X300 uses a 300M alloy steel shaft and 300M/4340 CV components with a 3-year warranty. Rhino 2.0 uses 4340 chromoly with an 18-month warranty and costs less. We list both for the Ranger XP 1000.
Can I rebuild an X300 axle later?
Yes. We stock SuperATV X300 boot kits and X300 CV joint kits matched to X300 part numbers, so one worn end does not mean a whole new axle.
What warranty do X300 axles carry?
SuperATV backs each X300 axle with a 3-year warranty against manufacturing defects to the original purchaser.
Why SuperATV X300
SuperATV designs, engineers and tests its X300 axles in-house as the step above its Rhino 2.0 line. X300 swaps Rhino 2.0's 4340 chromoly shaft for 300M alloy steel and builds the CVs from 300M and 4340, and every X300 axle carries a 3-year warranty against manufacturing defects to the original purchaser, double the 18 months on Rhino 2.0.
Complete Your Ranger XP 1000 Driveline
If one Ranger axle has failed, check the others for the same wear before you ride again. Pair your X300 axles with the matching X300 boot or CV joint kit for future service, and confirm your year and model against the fitment list.
