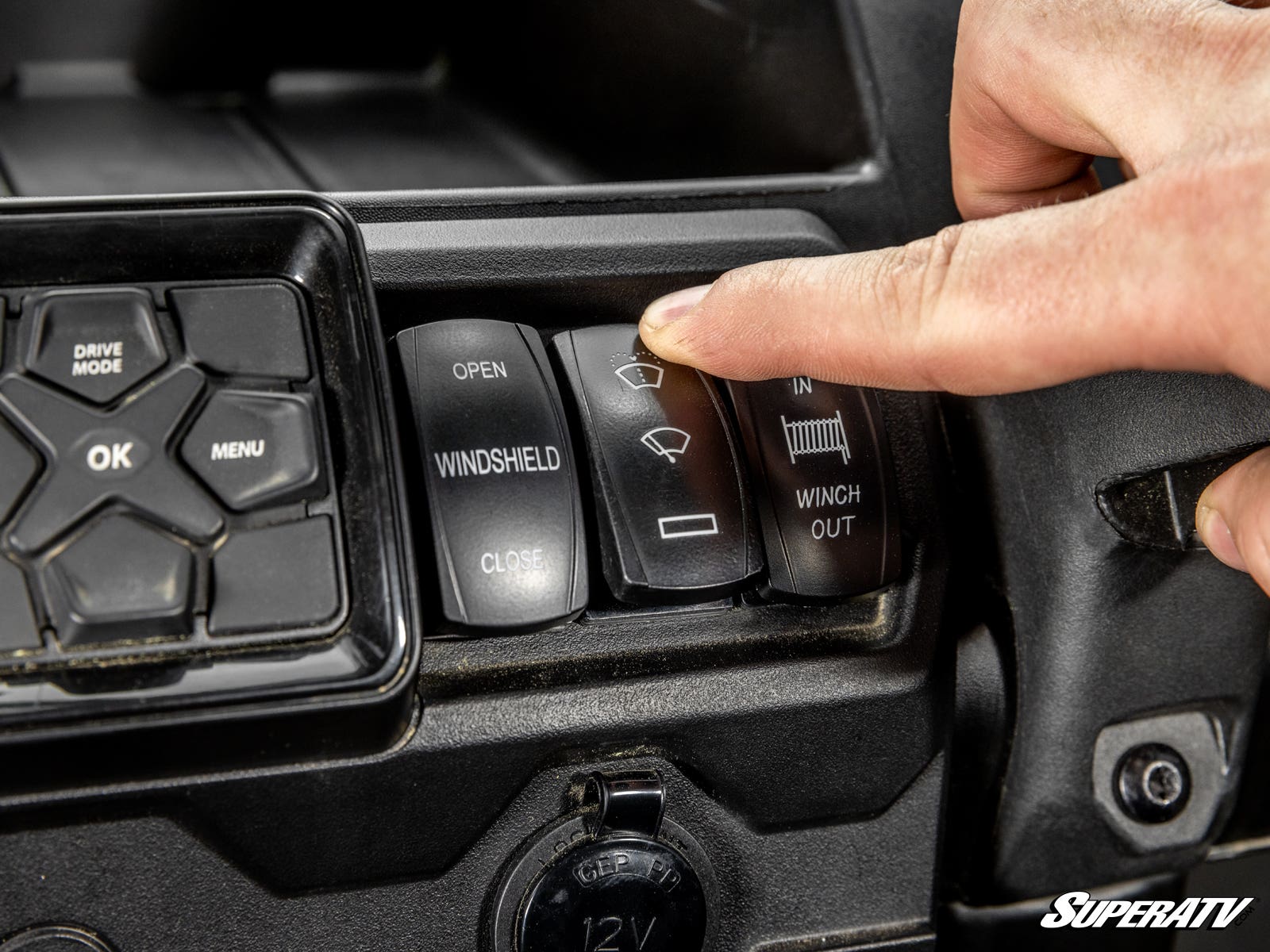

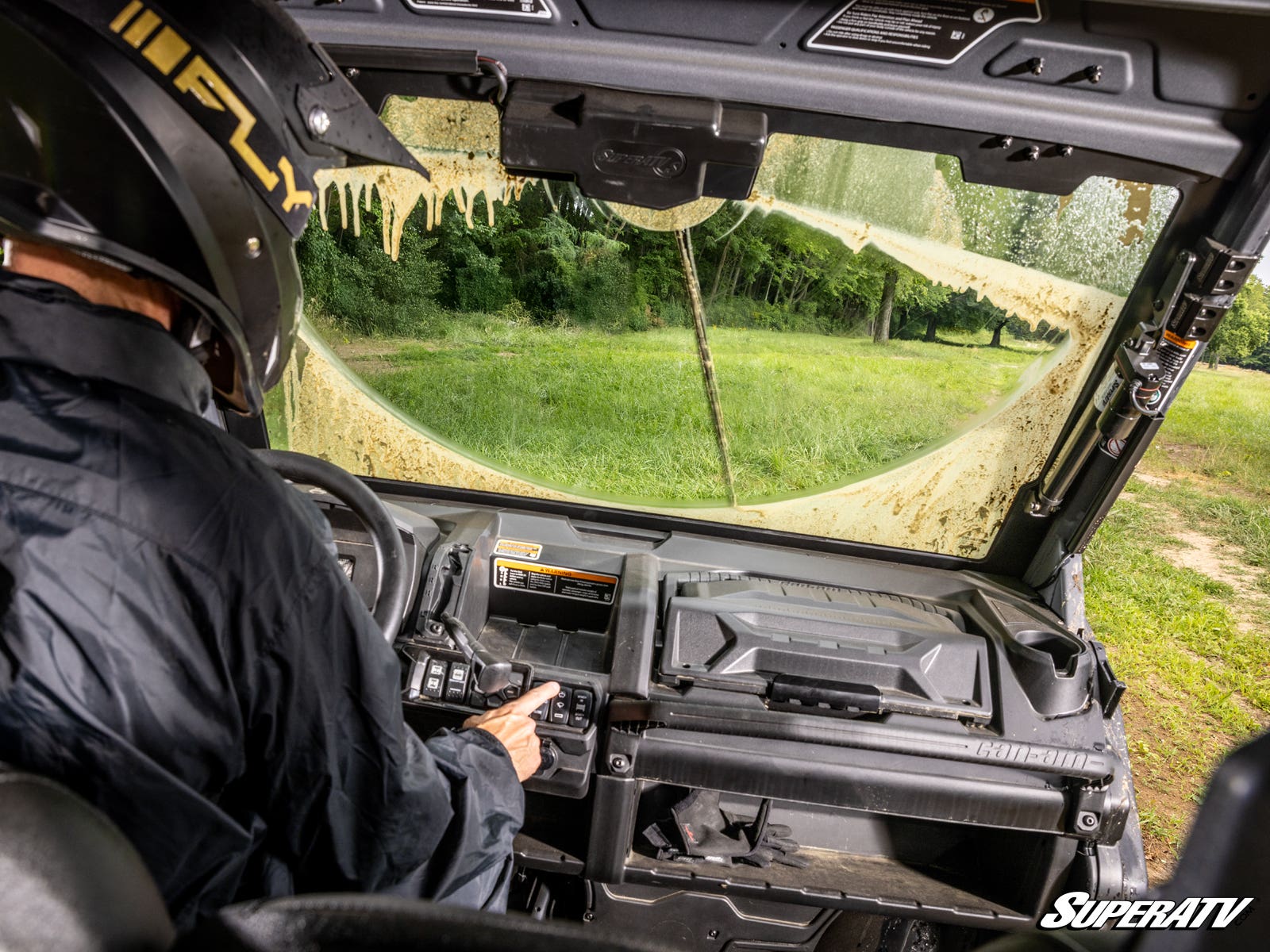

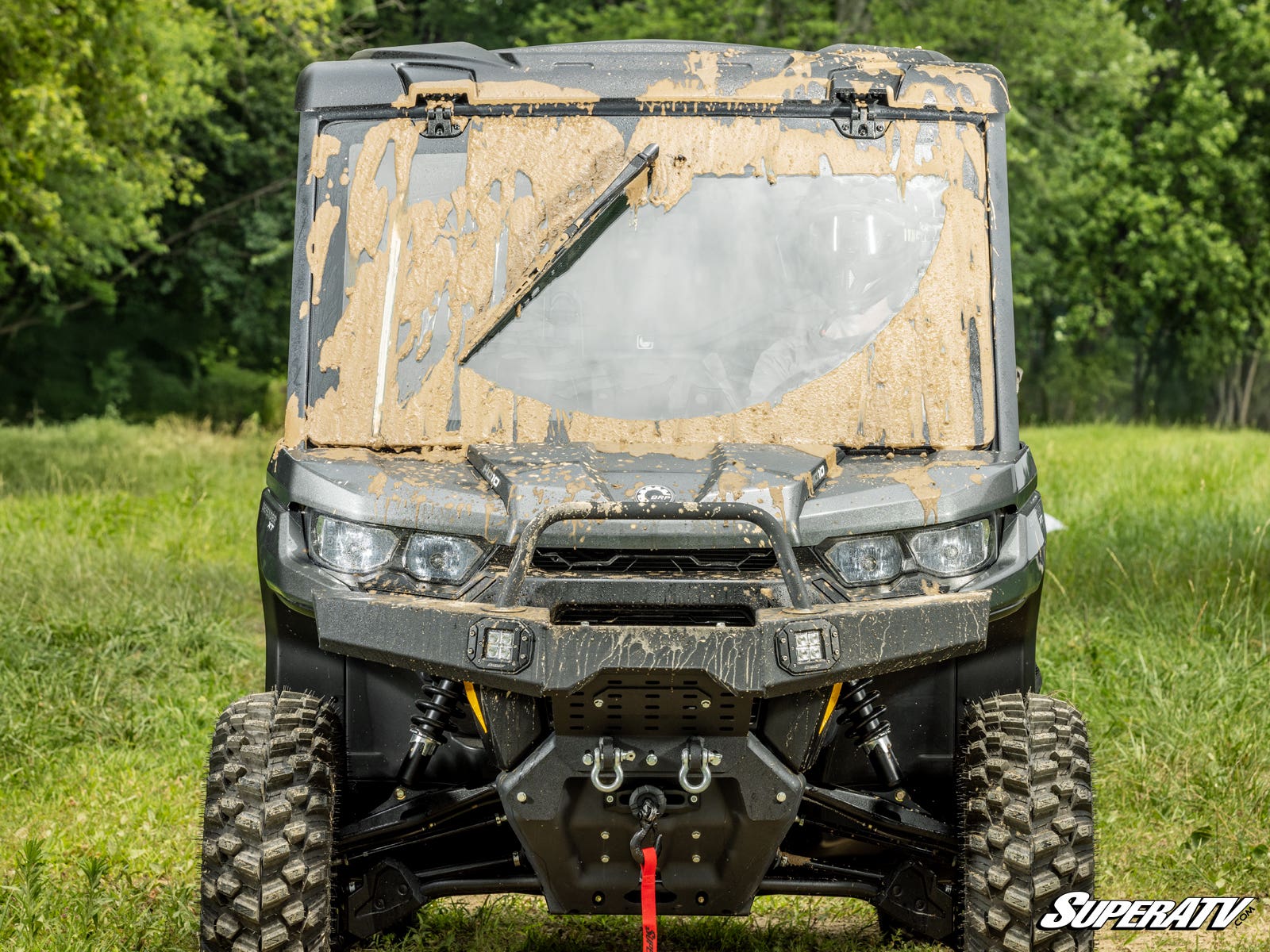

The SuperATV UTV Windshield Wiper Kit adds an electric wiper and washer to a SuperATV MaxDrive Power Flip Glass windshield, so rain, mud and dust do not leave you riding blind. A dash-mounted rocker switch runs the single-speed motorized wiper and the washer spray, and the blade parks itself out of your view when you turn it off.
This utv windshield wiper kit, also searched as a utv wiper kit, utv windshield wiper, side by side windshield wiper, utv windshield washer kit and electric windshield wiper for utv, is not universal. It needs a compatible SuperATV MaxDrive Power Flip Glass windshield, and you choose the kit by that windshield's part number.
Key Features
- Complete wiper assembly with a 20-inch wiper blade
- 14-inch to 18-inch adjustable radial wiper arm
- Single-speed motorized wiper

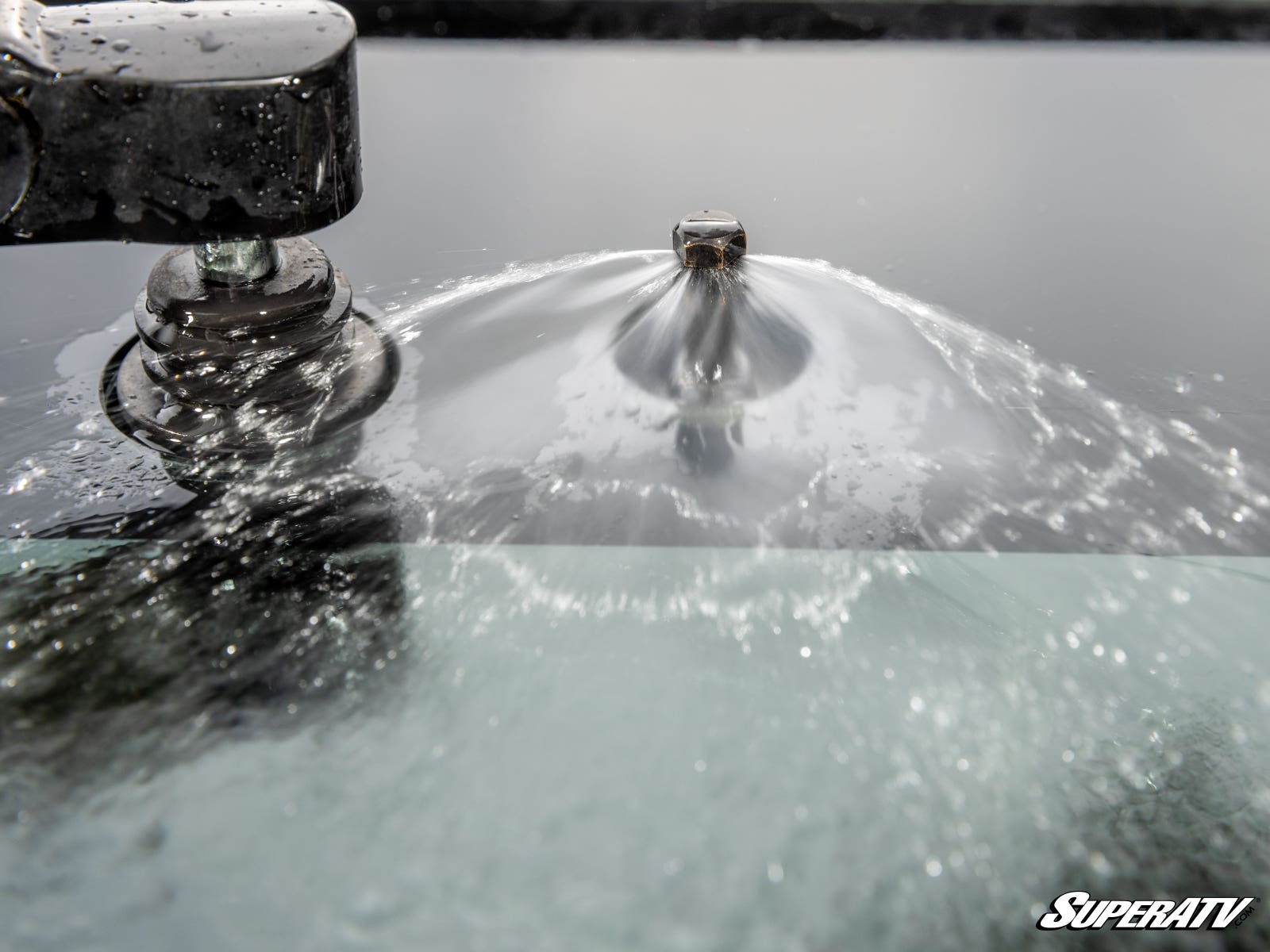

- Washer sprayer run from the same dash-mounted switch
- Blade automatically parks out of your field of view when switched off

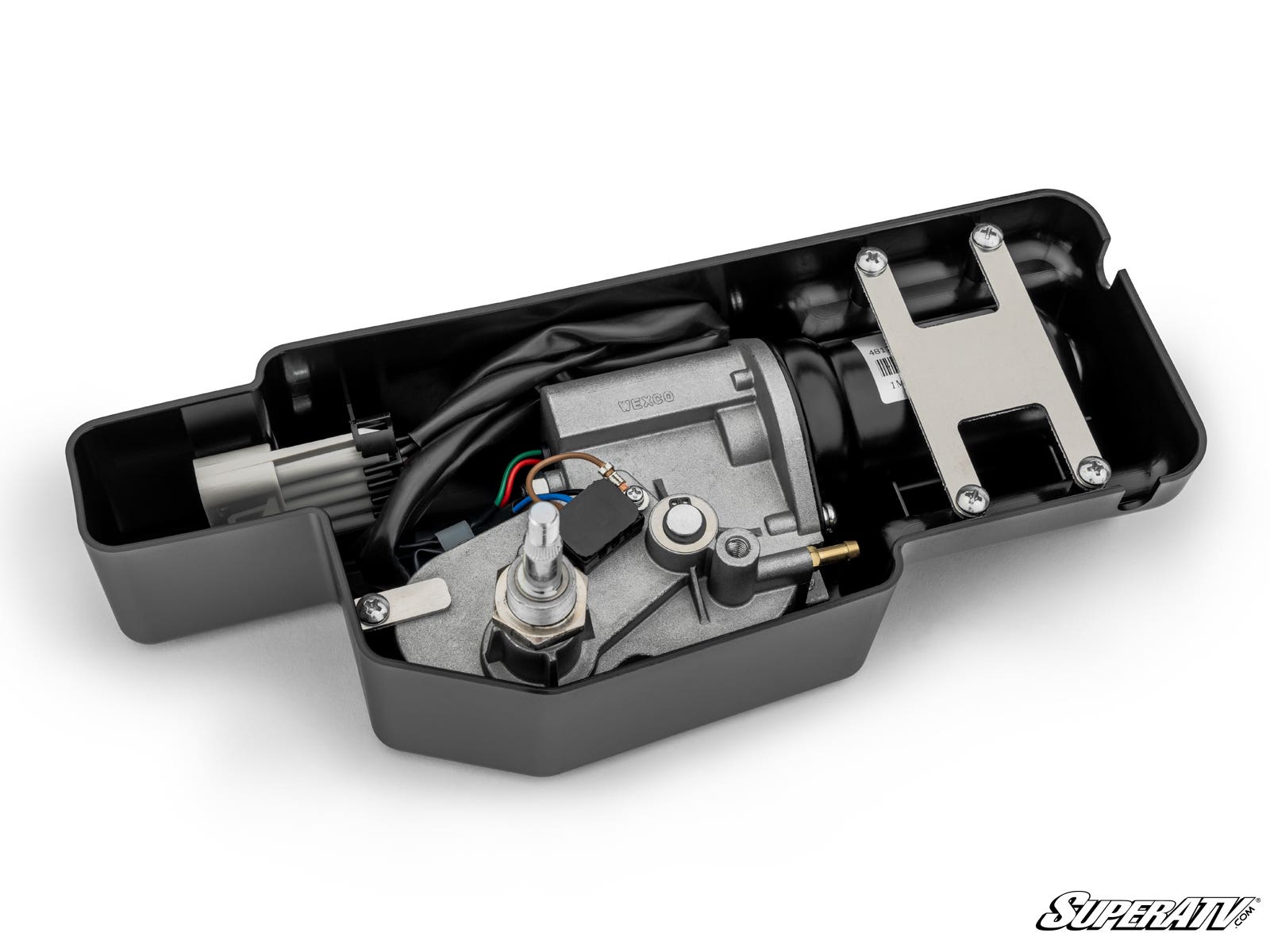

- Includes motor, washer fluid reservoir, flexible EPDM hose, mounting hardware, wiring harnesses and rocker switch
Built To Solve: Rain, Mud and Dust on a SuperATV Power Flip Glass Windshield
- Water and debris blocking your view on the trail
- Dried mud and dust that a dry blade only smears
- Stopping to wipe the glass by hand
Best For: Owners Running a SuperATV MaxDrive Power Flip Glass Windshield
- Riders who see rain, mud or dust and need a clear view
- Work and trail owners who want washer spray at the flip of a switch
- Owners of other windshields need a different wiper, since this kit fits only SuperATV MaxDrive Power Flip Glass
Specifications
- Type: electric wiper and washer kit
- Wiper: single speed, motorized, auto-park
- Blade: 20 inches
- Arm: 14-inch to 18-inch adjustable radial
- Control: dash-mounted rocker switch with washer
- Included: wiper blade and arm, wiper motor, washer fluid reservoir, flexible EPDM hose, mounting hardware, wiring harnesses, rocker switch
- Manufacturer Part Numbers: WWK-005 (for FGWS-CA-COM), WWK-002 (for FGWS-CA-DEF), WWK-003 (for FGWS-CF-UF1000), WWK-004 (for FGWS-P-GEN), WWK-006 (for FGWS-P-RAN1K)
Fitment
- SuperATV MaxDrive Power Flip Glass windshield FGWS-CA-COM: wiper kit WWK-005
- SuperATV MaxDrive Power Flip Glass windshield FGWS-CA-DEF: wiper kit WWK-002
- SuperATV MaxDrive Power Flip Glass windshield FGWS-CF-UF1000: wiper kit WWK-003
- SuperATV MaxDrive Power Flip Glass windshield FGWS-P-GEN: wiper kit WWK-004
- SuperATV MaxDrive Power Flip Glass windshield FGWS-P-RAN1K: wiper kit WWK-006
SuperATV designs this kit for its MaxDrive Power Flip Glass windshield only. Match the part number on your SuperATV windshield to the kit above. Fitment is not guaranteed on any other windshield; confirm your windshield part number before ordering.
Additional SuperATV install sheet: Install instructions, WWK-003.
FAQ
Will this wiper fit any UTV windshield?
No. SuperATV designs it for its MaxDrive Power Flip Glass windshield. You need one of the listed SuperATV windshields, matched by part number.
How do I pick the right kit?
Match the part number of your SuperATV MaxDrive Power Flip Glass windshield, such as FGWS-CA-COM or FGWS-CF-UF1000, to the kit option with the same windshield part number.
Does it include a washer?

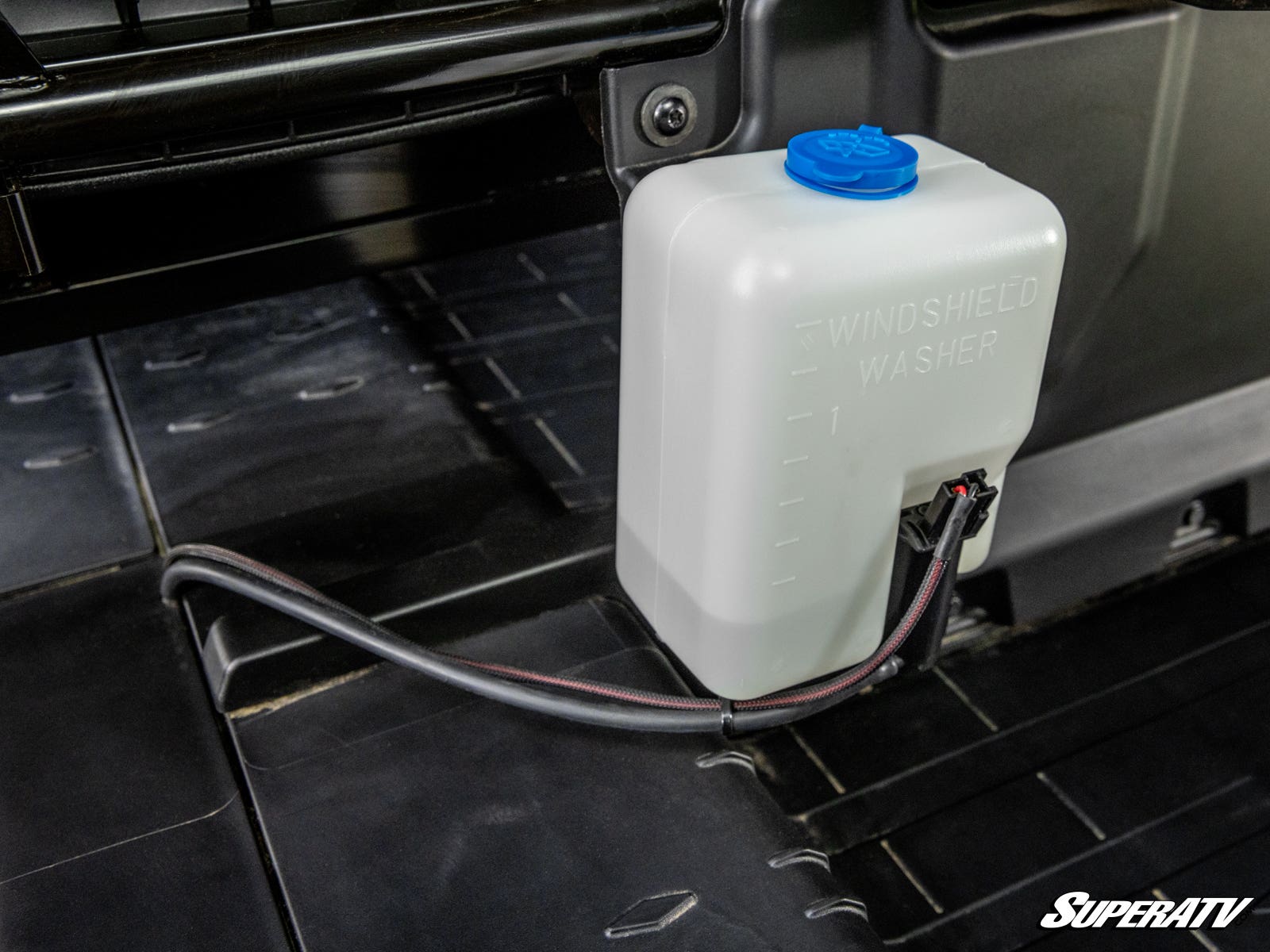

Yes. The kit includes a washer fluid reservoir, flexible EPDM hose and a sprayer that runs from the same dash switch as the wiper.

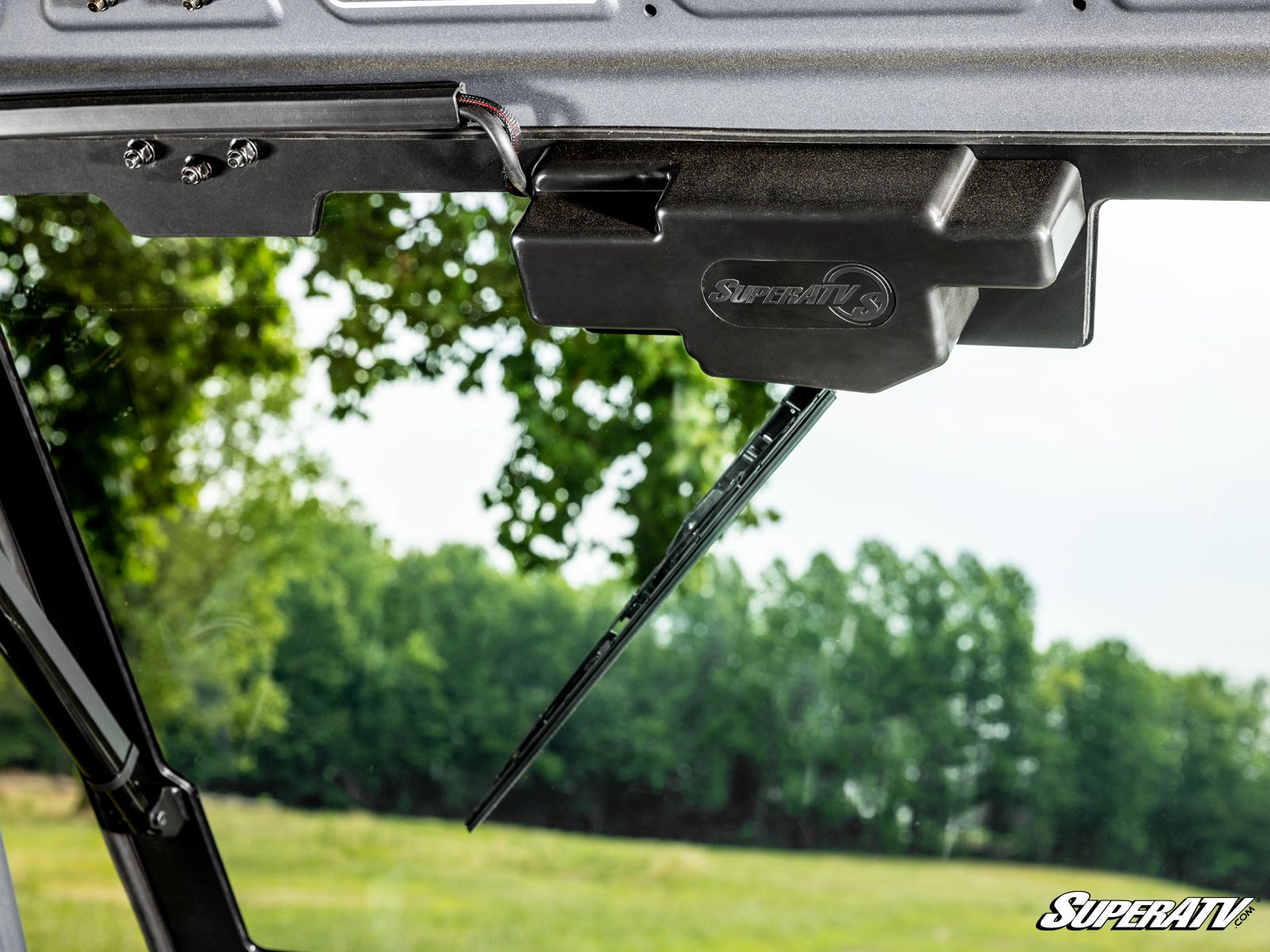

Where does the blade go when it is off?
SuperATV says the wiper automatically parks itself out of your field of view when you turn it off.

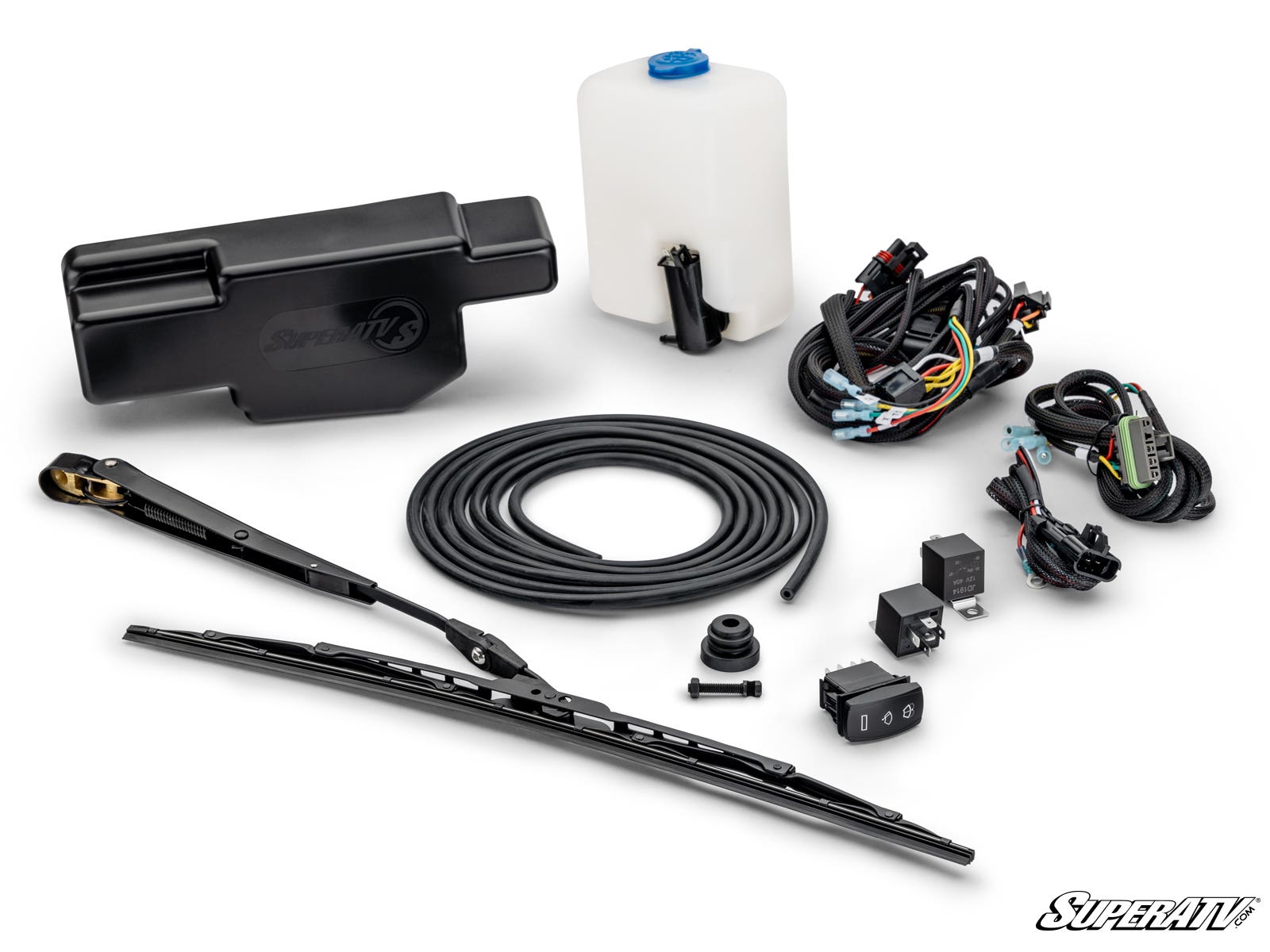

What comes in the box?
One wiper blade and arm, the wiper motor, washer fluid reservoir, flexible EPDM hose, mounting hardware, wiring harnesses and a rocker switch.
Is there an install sheet?
Yes. SuperATV publishes install instructions for this kit, linked on this page.
Why SuperATV
SuperATV builds this wiper and washer kit to match its own MaxDrive Power Flip Glass windshields, with an adjustable radial arm, a 20-inch blade and everything needed for the install in the box. Dunes 2 Dezert SXS ships SuperATV parts nationwide.
Complete Your SuperATV Power Flip Glass Windshield Setup
Check the part number on your SuperATV MaxDrive Power Flip Glass windshield, pick the matching kit, and plan where the dash switch and washer reservoir will mount on your machine.
