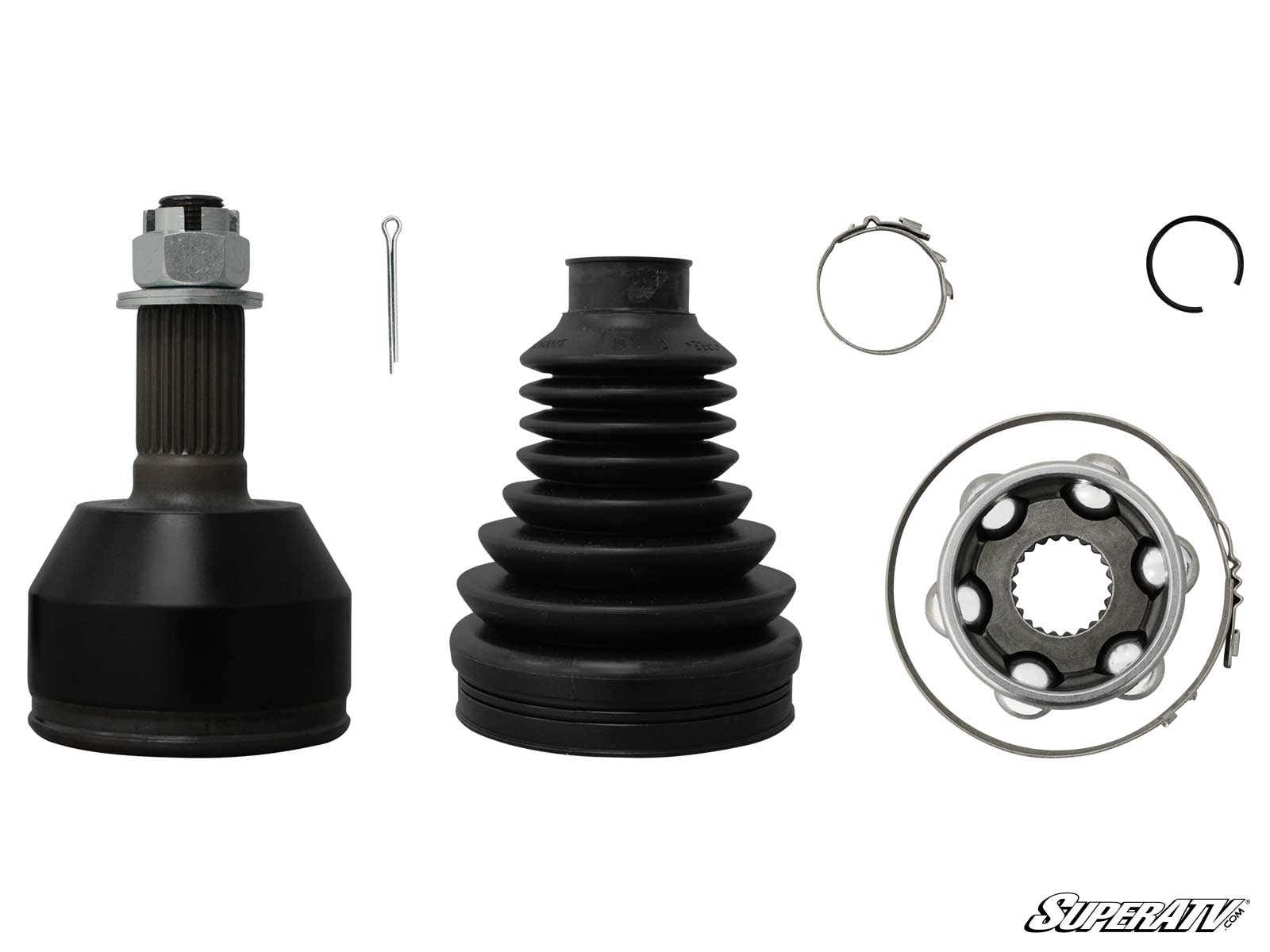

SuperATV Rhino 2.0 Polaris CV joint kit, product view
SuperATV Rhino 2.0 Polaris CV joint kit, product view

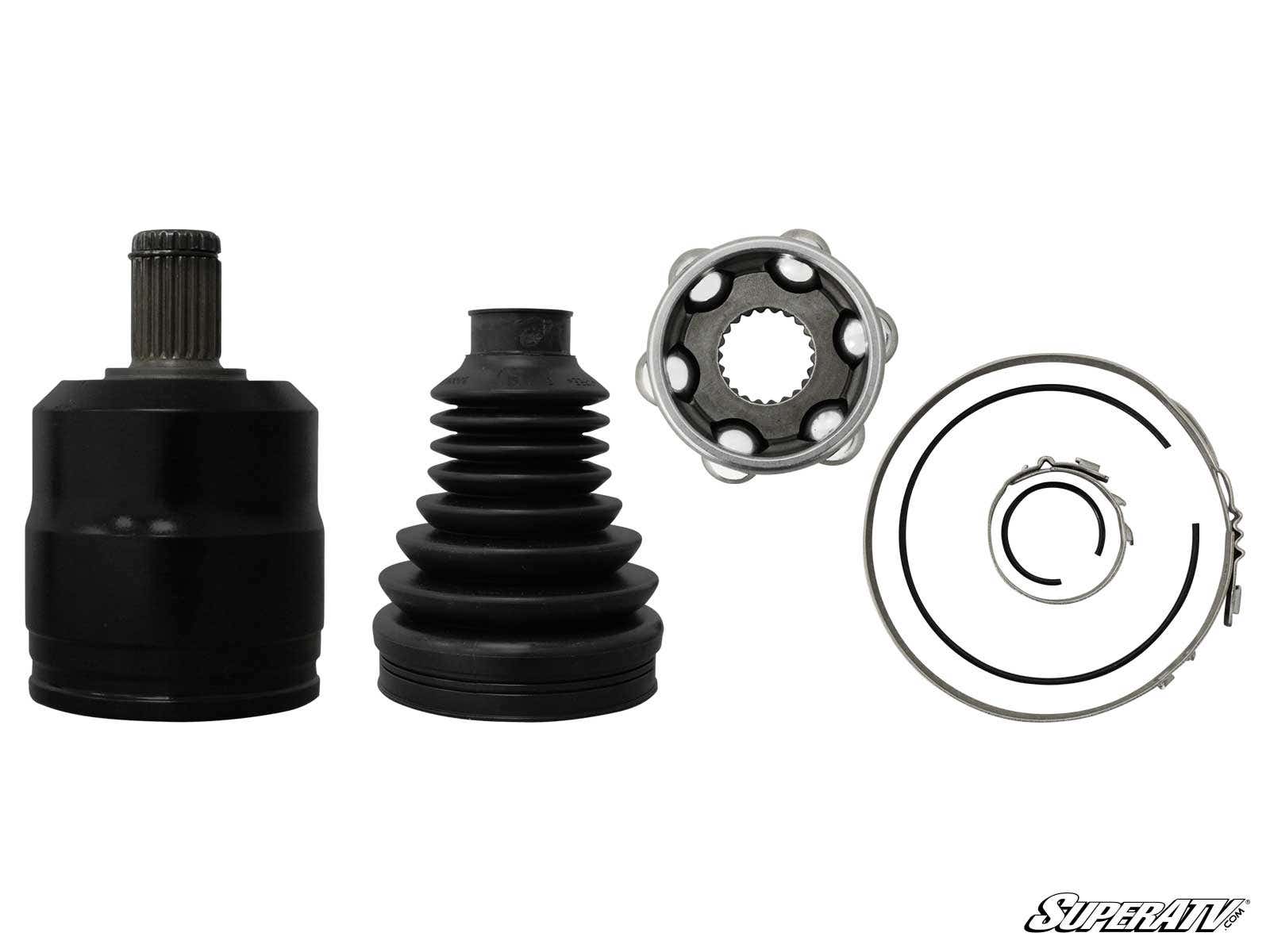

SuperATV Rhino 2.0 Polaris CV joint kit, alternate view 1

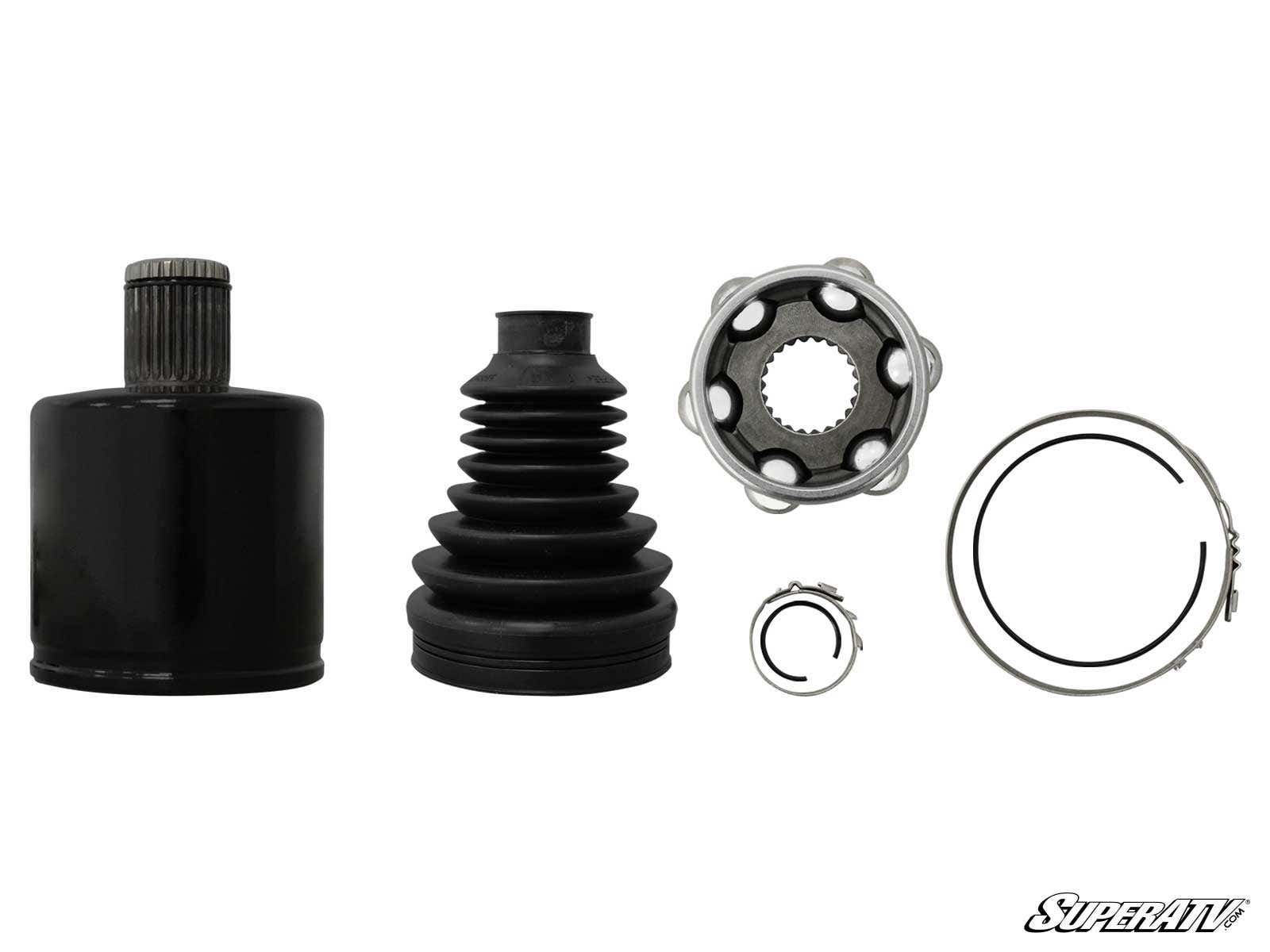

SuperATV Rhino 2.0 Polaris CV joint kit, alternate view 2

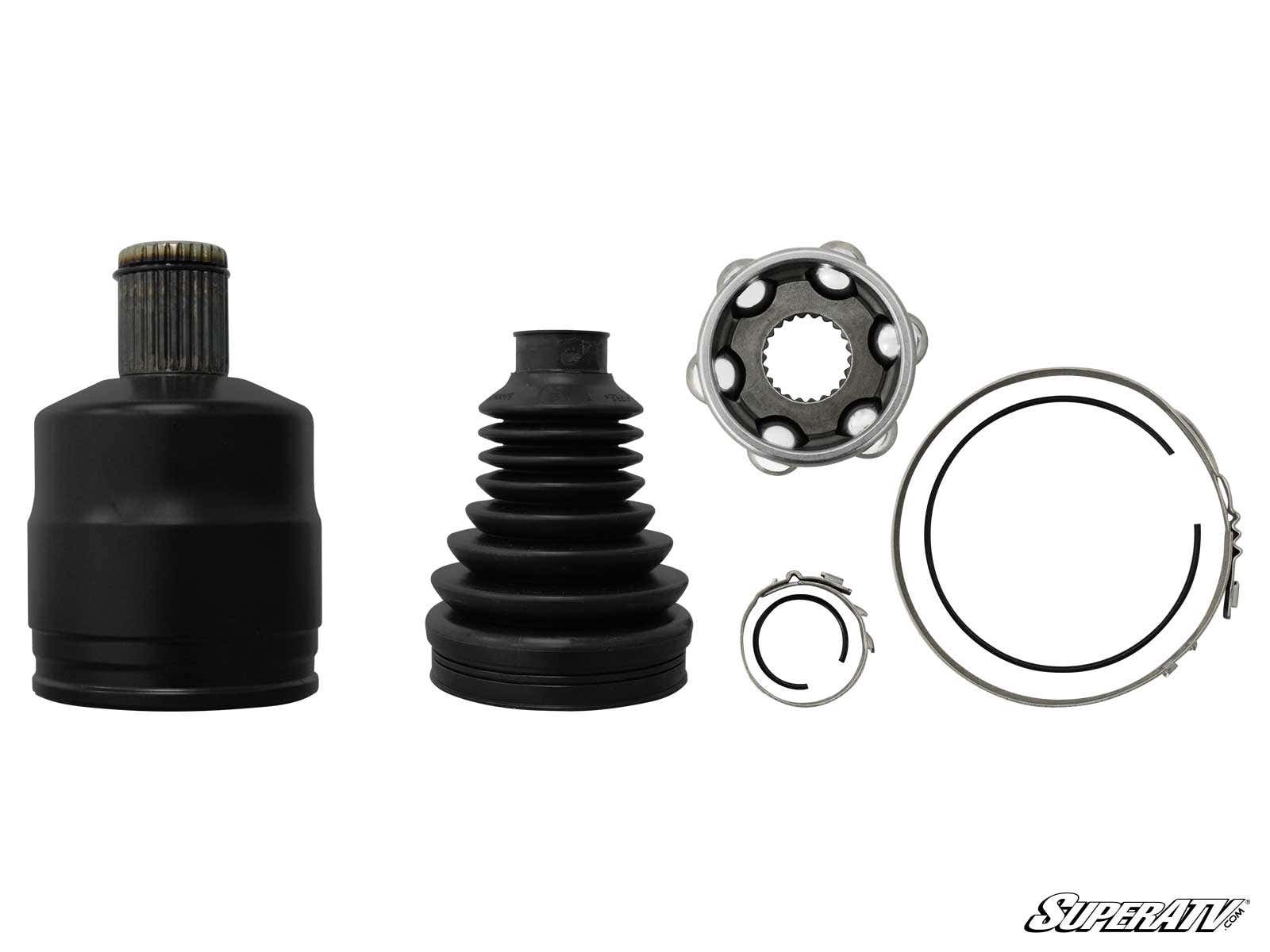

SuperATV Rhino 2.0 Polaris CV joint kit, alternate view 3

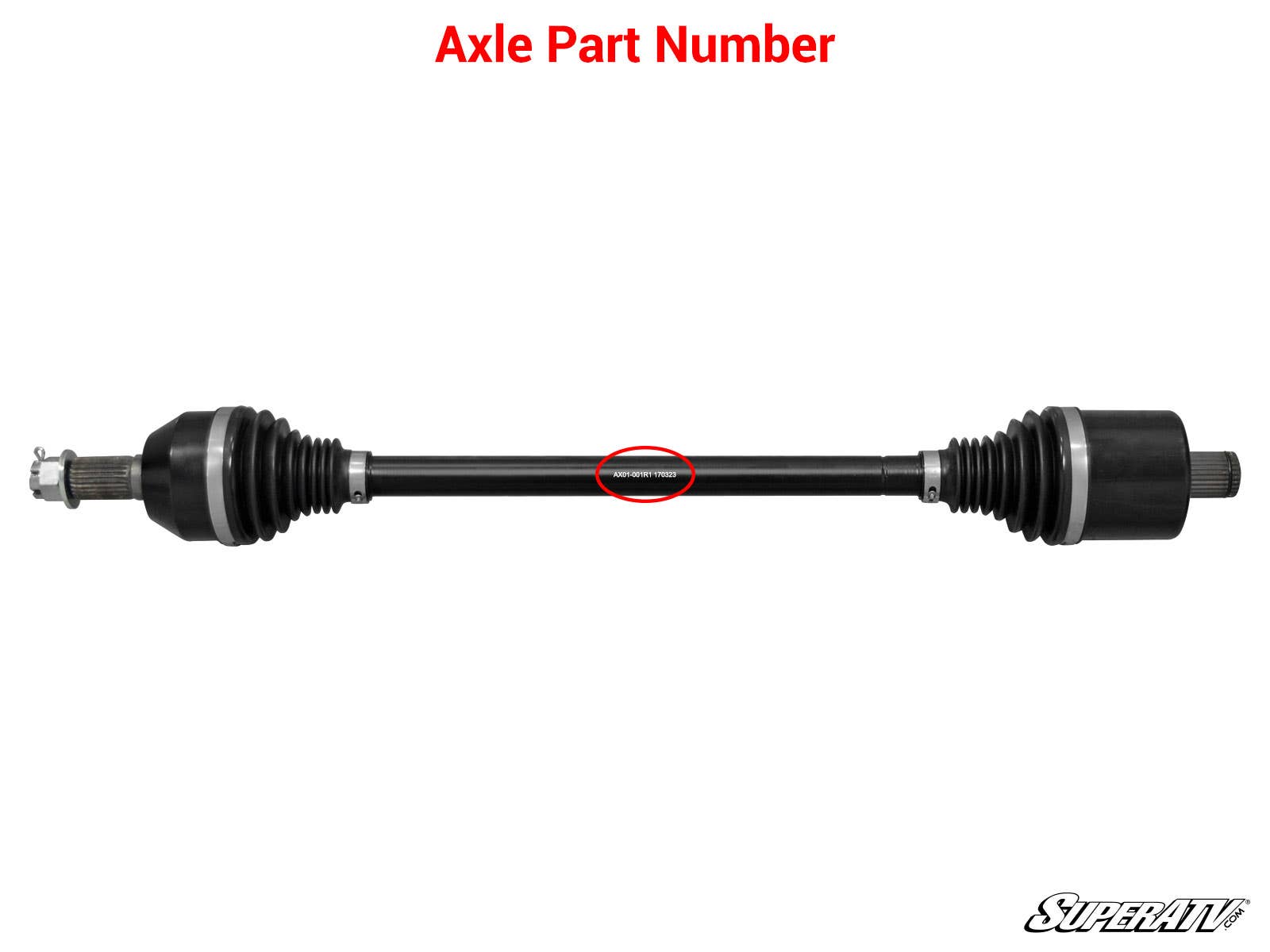

Where SuperATV prints the part number on the axle shaft

SuperATV

SuperATV Rhino 2.0 Polaris Replacement CV Joint Kit

Sale price $95.95

Shipping calculated at checkout

CV Kit

In stock

SuperATV Rhino 2.0 Polaris Replacement CV Joint Kit. Replacement CV joints for Polaris RZR, Ranger and General Rhino 2.0 axles, plus Rhino 2.0 axles for the Ace, Bobcat UV34 and Gravely Atlas JVS, sold one CV end per kit and matched to your axle part number. SuperATV builds each kit for its own Rhino 2.0 axles, so the fit matches the shaft it rides on.

Every SuperATV Rhino 2.0 axle takes a specific inner and outer CV joint kit. Find the part number printed on your axle shaft, look it up in the Fitment table below, and order the kit for the end you are rebuilding. Pair it with the matching boot kit if the old boot is torn.

This Polaris CV joint kit rebuilds one end of a SuperATV Rhino 2.0 axle. Polaris CV joints for the RZR, Ranger and General are matched by axle part number below, covering Polaris RZR CV joint replacement and Polaris Ranger CV joint replacement, with the Polaris front CV joint called out by position. Each cv joint kit is one CV end, an inner CV joint or an outer CV joint, so a failed Polaris RZR CV joint or Polaris Ranger CV joint does not mean a whole new axle.

Key Features

  • Maximized CV size for strength
  • High articulation angles
  • 4340 chromoly with a proprietary heat treatment
  • Precision-engineered cage and housing for reduced friction and a smooth range of motion
  • High-strength, flexible TPEE boot
  • Synthetic grease to keep CVs cool

Built To Solve: Worn CV Joints on Rhino 2.0 Axles

  • A clicking or binding CV joint does not always mean a whole new axle
  • Rebuild one end of a SuperATV axle with a joint built for that axle
  • Each kit is matched to one end of one SuperATV axle part number

Best For: Polaris Owners Running SuperATV Rhino 2.0 Axles

  • Owners of Polaris RZR, Ranger and General Rhino 2.0 axles, plus Rhino 2.0 axles for the Ace, Bobcat UV34 and Gravely Atlas JVS
  • Riders rebuilding one end of an axle instead of buying a new one
  • Shops keeping SuperATV axle service parts on hand

Specifications

  • Brand: SuperATV
  • Product line: Rhino 2.0 replacement CV joint kit
  • CV material: 4340 chromoly with a proprietary heat treatment (per SuperATV)
  • Boot: TPEE (thermoplastic elastomer)
  • Sold: one CV joint kit per order (one CV end)

Fitment

  • AX01-001R1: inner CVK-P-001, outer CVK-P-004
  • AX01-002R0: inner CVK-P-001, outer CVK-P-004
  • AX01-003F1: inner not offered, outer CVK-P-004
  • AX01-004F0: inner not offered, outer CVK-P-004
  • AX01-005F0: inner CVK-P-003, outer CVK-P-004
  • AX01-006R0: inner CVK-P-001, outer CVK-P-004
  • AX01-007F0: inner not offered, outer CVK-P-004
  • AX01-008R0: inner CVK-P-001, outer CVK-P-004
  • AX01-009F0: inner not offered, outer CVK-P-004
  • AX01-010F1: inner CVK-P-003, outer CVK-P-004
  • AX01-011F0: inner not offered, outer CVK-P-004
  • AX01-012F0: inner not offered, outer CVK-P-004
  • AX01-012F0S1: inner not offered, outer CVK-P-004
  • AX01-012F0S2: inner not offered, outer CVK-P-004
  • AX01-013F0: inner not offered, outer CVK-P-004
  • AX01-014F0: inner not offered, outer CVK-P-004
  • AX01-015R0: inner CVK-P-005, outer CVK-P-006
  • AX01-016R2: inner CVK-P-005, outer CVK-P-006
  • AX01-017R2: inner CVK-P-005, outer CVK-P-004
  • AX01-018R2: inner CVK-P-005, outer CVK-P-006
  • AX01-019R0: inner CVK-P-001, outer CVK-P-006
  • AX01-021R0: inner CVK-P-001, outer CVK-P-006
  • AX01-022R2: inner CVK-P-005, outer CVK-P-006
  • AX01-023F-2: inner CVK-P-007, outer CVK-P-004
  • AX01-024F-1: inner CVK-P-007, outer CVK-P-004
  • AX01-025R-0: inner CVK-P-010, outer CVK-P-009
  • AX01-026R-0: inner CVK-P-010, outer CVK-P-009
  • AX01-027F-2: inner CVK-P-008, outer CVK-P-004
  • AX-1-1-F-LT6-DT: inner not offered, outer CVK-P-004
  • AX-1-1-R-LT6-DT: inner CVK-P-010, outer CVK-P-009
  • AX-1-2-R-0-DT: inner CVK-P-001, outer CVK-P-006
  • AX-1-68-F-0-DT: inner CVK-P-002, outer CVK-P-019
  • AX-1-69-R-0-DT: inner CVK-P-001, outer CVK-P-006
  • AX-1-75-F-0-DT: inner CVK-P-001, outer CVK-P-004
  • AX-1-75-R-0-DT: inner CVK-P-001, outer CVK-P-004
  • AX-1-78-R-0-DT: inner CVK-P-012, outer not offered
  • AX-1-79-R-0-DT: inner CVK-P-012, outer CVK-P-006
  • AX-1-79-R-LK6-BT: inner CVK-P-013, outer CVK-P-006
  • AX-1-80-R-0-BT: inner CVK-P-013, outer not offered
  • AX-1-80-R-0-DT: inner CVK-P-012, outer not offered
  • AX-1-80-R-LK6-BT: inner CVK-P-013, outer not offered
  • AX-1-86-F-0-DT: inner CVK-P-018, outer CVK-P-015
  • AX-1-86-R-0-DT: inner CVK-P-017, outer CVK-P-015
  • AX-1-86-F-LK8-BT: inner not offered, outer CVK-P-015-R
  • AX-1-98-F-0-DT: inner not offered, outer CVK-P-021

Each line lists a SuperATV axle part number with the inner and outer kit it takes. Some axles list kits SuperATV does not currently sell (CVK-P-002, CVK-P-017, CVK-P-019, CVK-P-015-R); those are not available here. Covers 2008-2026 vehicles fitted with these SuperATV axles. Fitment is not guaranteed on applications not listed above; confirm your year, model and cab before ordering.

FAQ

Where do I find my axle part number?

SuperATV prints the part number on the axle shaft. Match it to the table in the Fitment section to see which inner and outer kit your axle uses.

Does one CV joint kit rebuild both ends of the axle?

No. Each kit is one CV end, inner or outer. The Fitment table lists the inner and outer kit for every axle.

Will this kit fit an OEM or other-brand axle?

SuperATV designs these kits for its Rhino 2.0 axles only. Match your SuperATV axle part number before ordering.

Do I need a new boot with the CV joint kit?

SuperATV supplies a boot with its CV joint kits. If you only need a boot on a healthy joint, order the matching SuperATV boot kit instead.

When should I replace the whole axle instead?

If the shaft is bent or twisted, or both ends are worn, a complete axle is usually the better fix. If one joint is worn and the shaft is straight, a CV joint kit is the cheaper repair.

Why SuperATV

SuperATV designs, engineers, manufactures and tests its axles and axle service parts in-house. Each kit is built for a specific SuperATV axle family, so the boot, clamps and grease match the CV joint they protect.

Rebuild Your Rhino 2.0 Axle

Order the inner and outer CV joint kits your axle needs, or browse complete SuperATV Rhino 2.0 axles if the shaft is damaged. Questions on fitment? Send us your axle part number.
