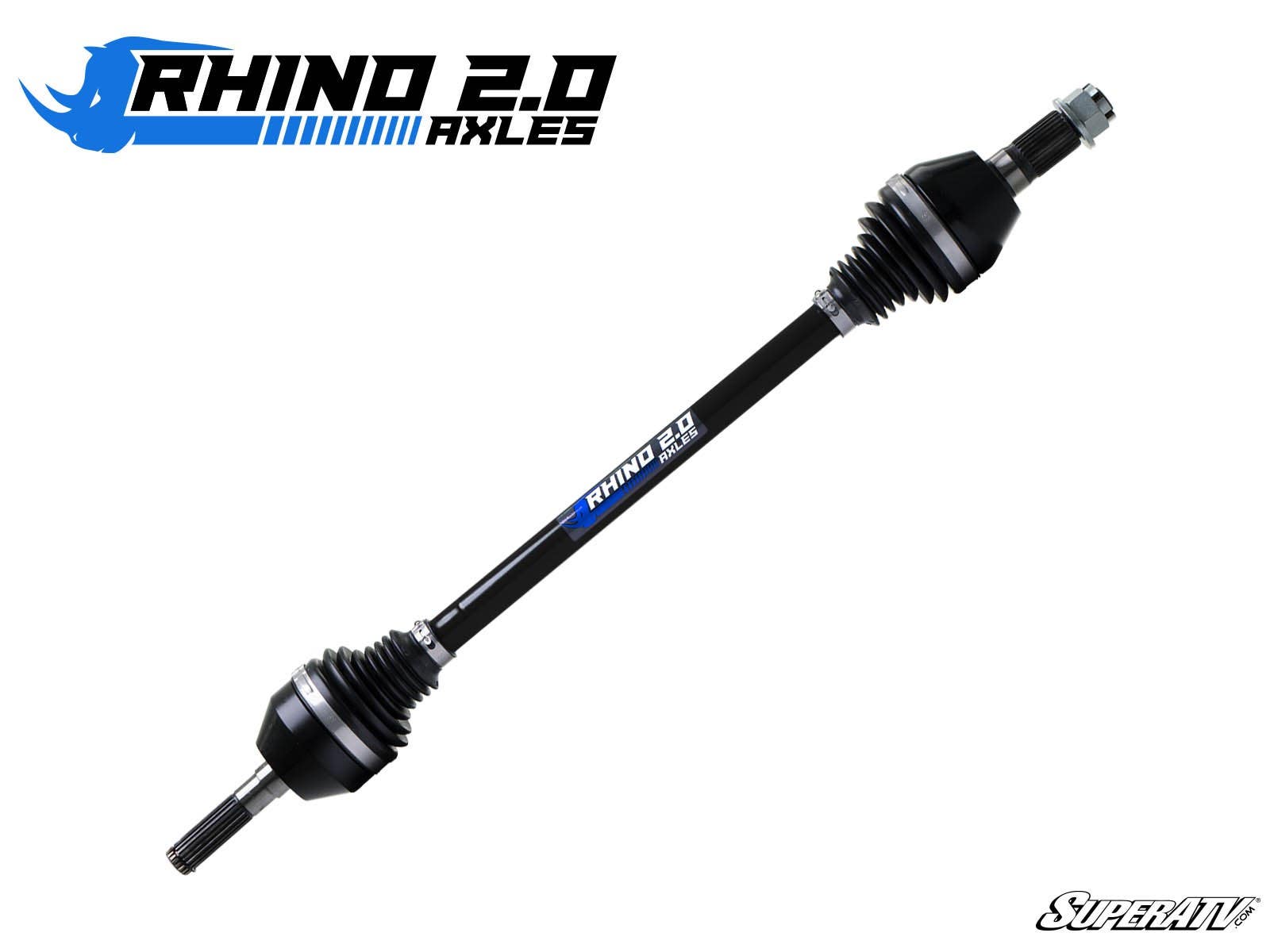

SuperATV Rhino 2.0 Heavy-Duty Axles are stock-length replacement axles for the 2011-2020 Can-Am Commander 800 and 1000 (including MAX) and the 2021+ Commander 700 and 1000R lineup. SuperATV rates them nearly two times stronger than stock, with end-to-end 4340 chromoly, a 4mm larger shaft, bigger CV joints and puncture-resistant boots.
Pick the axle position, your Commander model and year; each axle is sold individually. Rear axles for 2011-2020 machines are split at 2015 and 2016.
These Can-Am Commander axles cover front and rear on every listed trim. Looking for a Can-Am Commander rear axle, a Commander 1000 rear axle or a heavy duty Commander rear axle? Choose Rear, then your model and year. The same goes for a Commander rear CV axle, a Commander 1000 axle replacement or a single Can-Am Commander axle up front. Riders shopping the best axles for Can-Am Commander machines get the Rhino 2.0 axles Can-Am Commander owners know as Can-Am Commander Rhino axles.
Key Features
- Nearly two times stronger than stock, per SuperATV
- 4340 chromoly steel, end to end
- Proprietary heat treatment
- A massive 4mm increase in shaft size

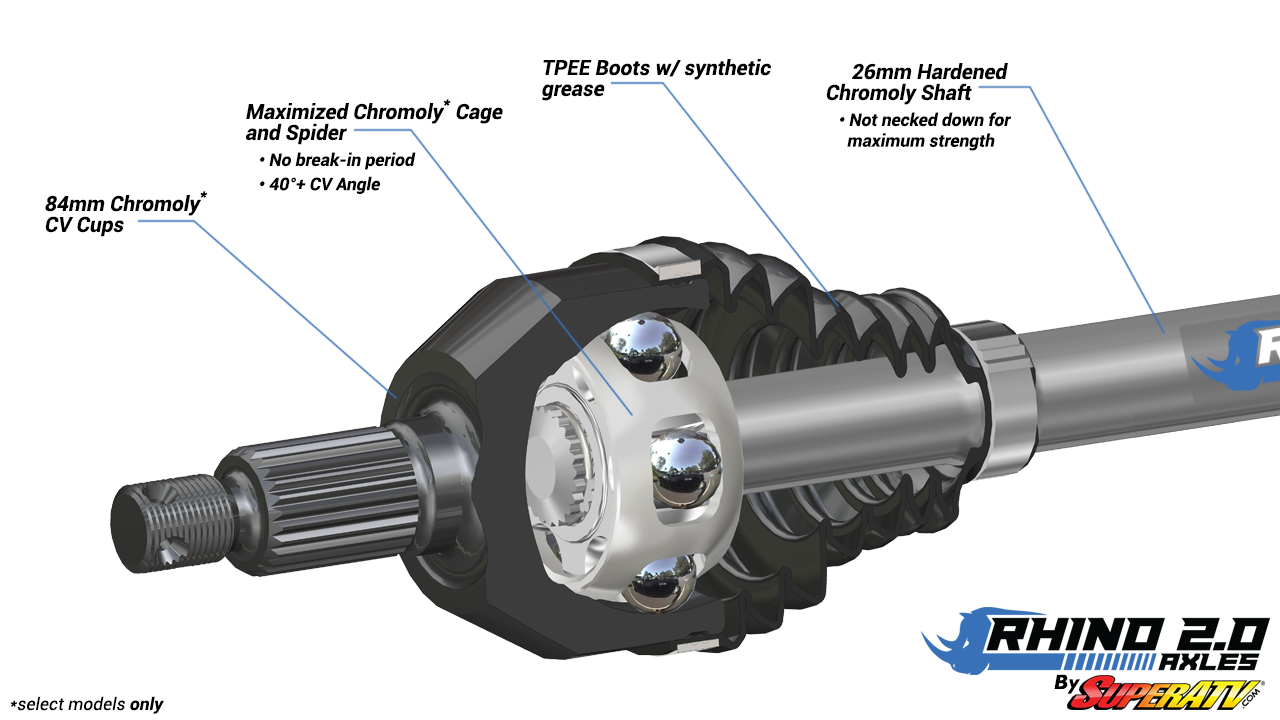

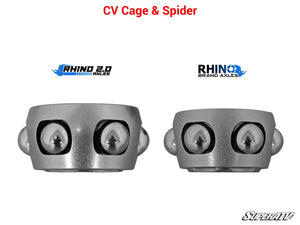

- Bigger CV joints that run at high articulation angles
- Puncture-resistant boots
- Field and lab tested; 18-month warranty
Built To Solve: Stock Axles Failing on a Can-Am Commander
- Stock axles failing under hard throttle and heavy loads
- CV joints overheating at high articulation
- Torn boots letting dirt into the joint
- Replacing a broken OE axle with another stock part
Best For: Can-Am Commander and Commander MAX Owners
- 2011-2020 Commander 800, 1000, 800 MAX and 1000 MAX owners
- 2021+ Commander 1000R DPS, XT 1000R, XT-P 1000R and XMR owners
- 2021+ Commander MAX 1000R DPS, XT 1000R and XT-P 1000R owners
- 2022+ Commander XT 700 owners
- Not for 2011-2020 rear axles with a locking rear differential, and not for ABS machines
Specifications
- Brand: SuperATV
- Product line: Rhino 2.0 Heavy-Duty Axle
- Material: 4340 chromoly steel, end to end, with a proprietary heat treatment
- Strength: nearly two times stronger than stock (per SuperATV)
- Shaft: 4mm larger than stock
- Warranty: 18 months
- Length: stock
- Boots: puncture resistant
- Positions: front driver side, front passenger side, rear
- Sold: individually
- Replaces OEM front: 705401105, 705401106, 705401653, 705401654, 705402030, 705402031, 705402282
- Replaces OEM rear: 705501481, 705502552, 705502757
Fitment
- Can-Am Commander XT 700: 2022+
- Can-Am Commander 800: 2011-2020
- Can-Am Commander 800 Max: 2011-2020
- Can-Am Commander 1000: 2011-2020
- Can-Am Commander 1000R DPS: 2021+
- Can-Am Commander XMR 1000: 2022+
- Can-Am Commander XT 1000R: 2021+
- Can-Am Commander XT-P 1000R: 2021+
- Can-Am Commander 1000 Max: 2011-2020
- Can-Am Commander Max 1000R DPS: 2021+
- Can-Am Commander Max XT 1000R: 2021+
- Can-Am Commander Max XT-P 1000R: 2021+
Rear axles do not fit 2011-2020 Commander 800/1000 models with a locking rear differential. Not compatible with Anti-Lock Brake Systems (ABS). Replaces OEM front 705401105, 705401106, 705401653, 705401654, 705402030, 705402031, 705402282; rear 705501481, 705502552, 705502757. SuperATV's fitment list shows the Commander XMR 1000 as 2022+, while its XMR axle options are labeled Commander XMR 1000R, 2021+. Fitment is not guaranteed on applications not listed above; confirm your year, model and option before ordering.
FAQ
Why are there so many options?
SuperATV builds a different axle by position, model and year range. Pick the position first, then your Commander model and year.
Do the rear axles fit a Commander with a locking rear differential?
Not on 2011-2020 machines. SuperATV says the rear axles do not fit 2011-2020 Commander 800/1000 models with a locking rear differential.
Which rear axle fits my 2011-2020 Commander?
SuperATV uses one rear axle for 2011-2015 and a different one for 2016-2020, so choose the year range that matches your machine.
Which OEM part numbers do they replace?
SuperATV lists OEM front 705401105, 705401106, 705401653, 705401654, 705402030, 705402031, 705402282 and rear 705501481, 705502552, 705502757.
Do they fit a lifted or long travel Commander?
These are stock length. See our Can-Am Commander Big Lift Kit and Long Travel Rear Rhino 2.0 axle listings for modified machines.
Do they work with ABS?
No. SuperATV lists these axles as not compatible with Anti-Lock Brake Systems (ABS).
Why SuperATV
SuperATV designs, engineers, manufactures and tests its Rhino 2.0 axles in-house, using CAD analysis, lab testing and real-world trail testing before release. Every Rhino 2.0 axle is backed by SuperATV's 18-month warranty, longer than the one-year norm SuperATV cites for the industry.
Complete Your Can-Am Commander Driveline
When one Commander axle fails, the others have usually seen the same abuse, so decide which positions you need. Confirm your model, year and rear differential type, make sure the machine does not have ABS, and shop more Can-Am Commander parts or all SuperATV Rhino 2.0 axles.
