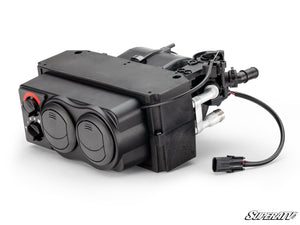

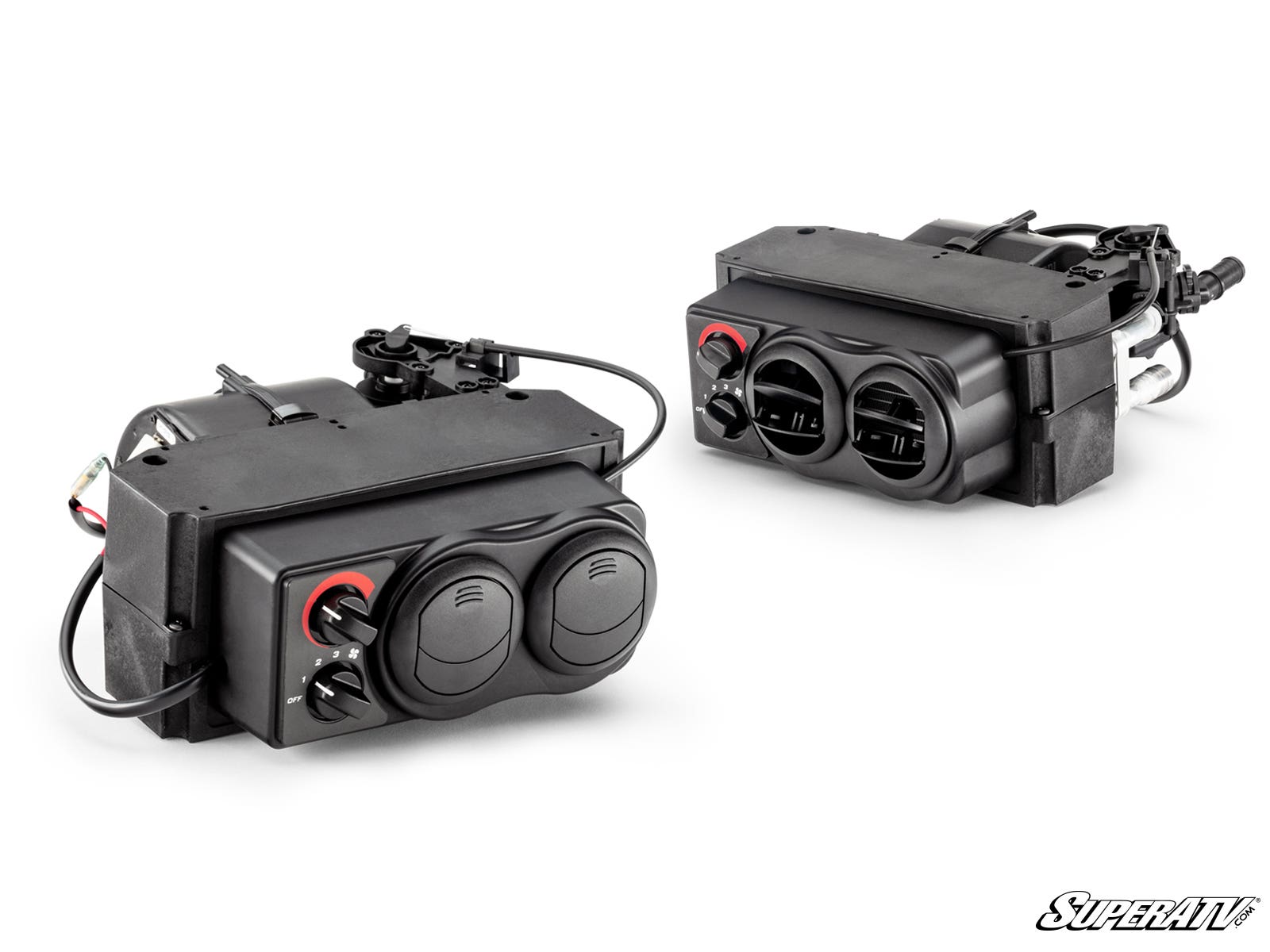

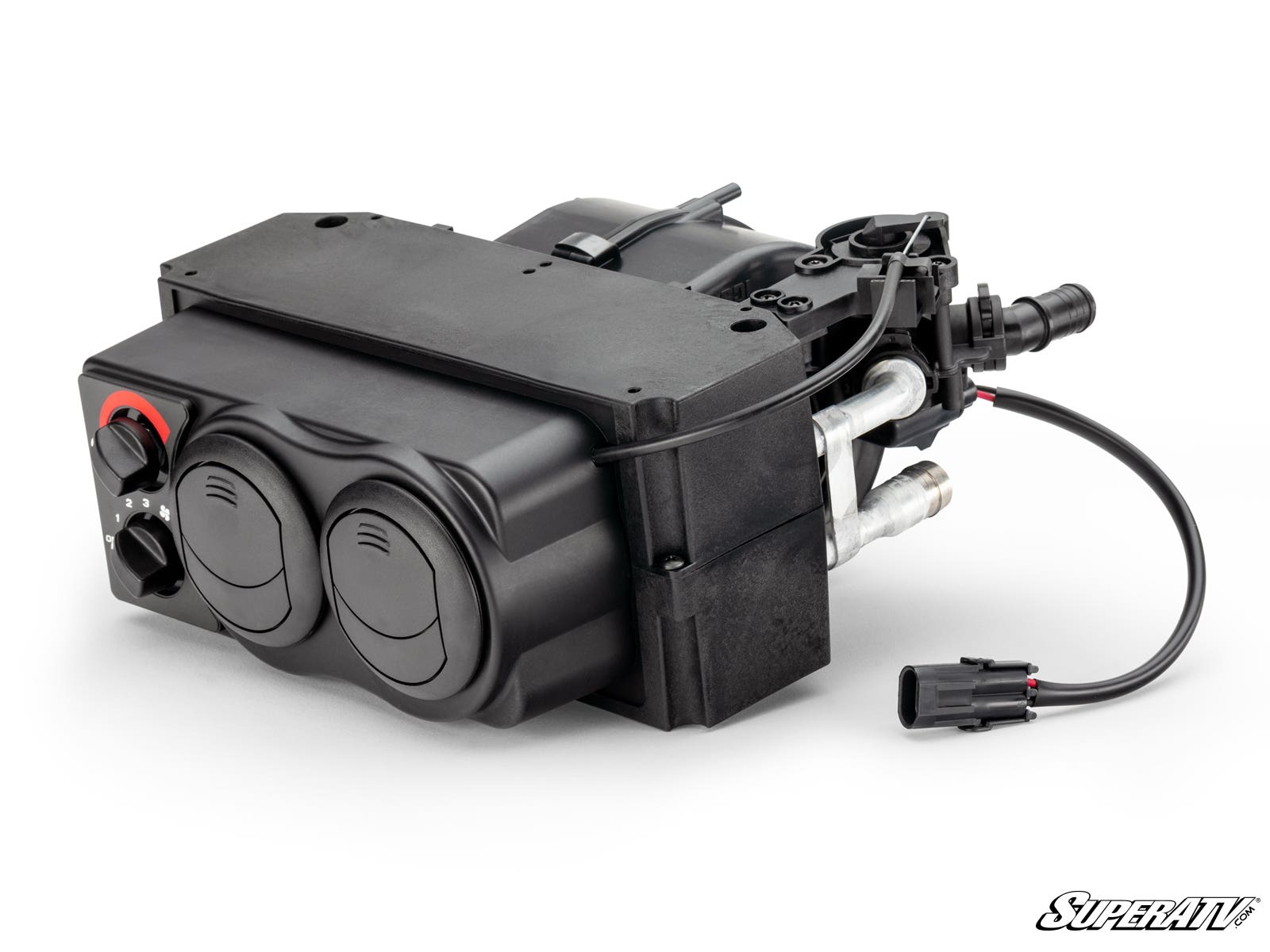

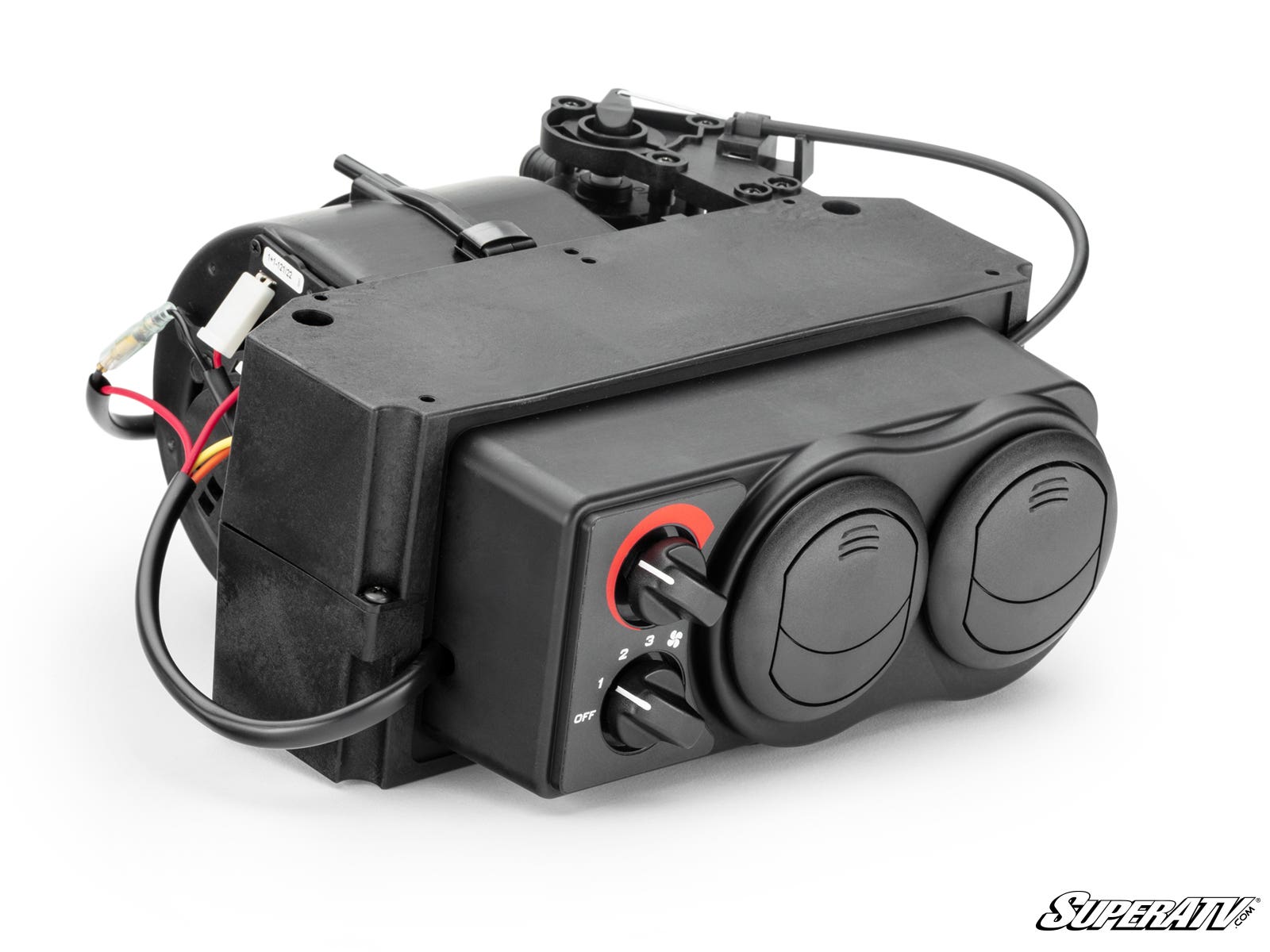

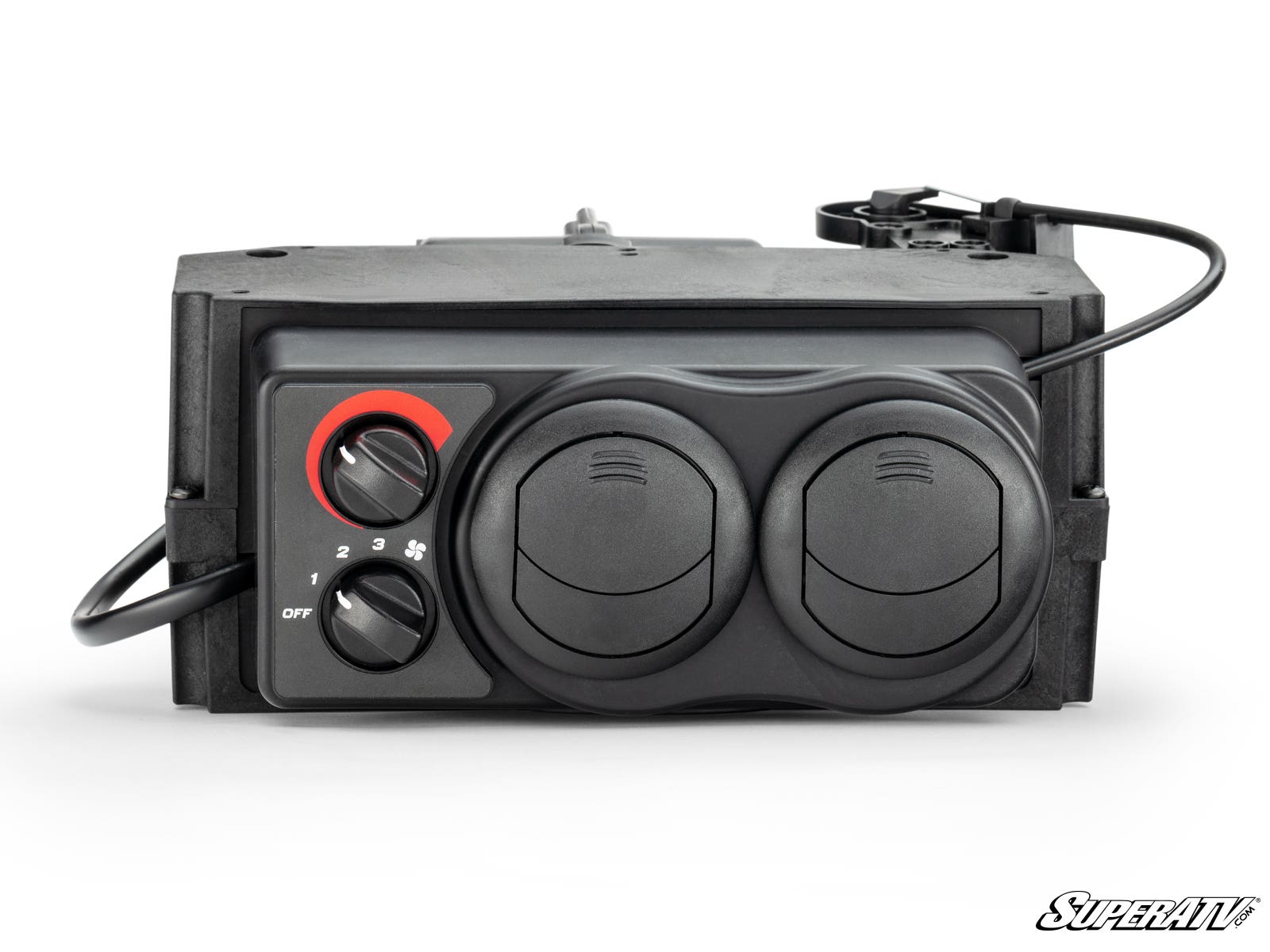

The SuperATV Polaris RZR XP 1000 cab heater draws heat from the coolant lines to warm your cab like a traditional car heater. It mounts under the dash between the seats, out of the way of the driver and passenger, and wires to the RZR's own key-on and power terminals.
The kit includes hoses, drill bits, RZR-specific mounting plates and two defrost vents with hoses. Pick your model-year range, then add a quick-start flow valve or idle flow pump for faster heat.
Key Features
- Mounts under the dash between the seats
- Capable of 14,600 BTU at 135 CFM
- Adjustable temperature and fan speeds
- Two 360° adjustable vents on the unit

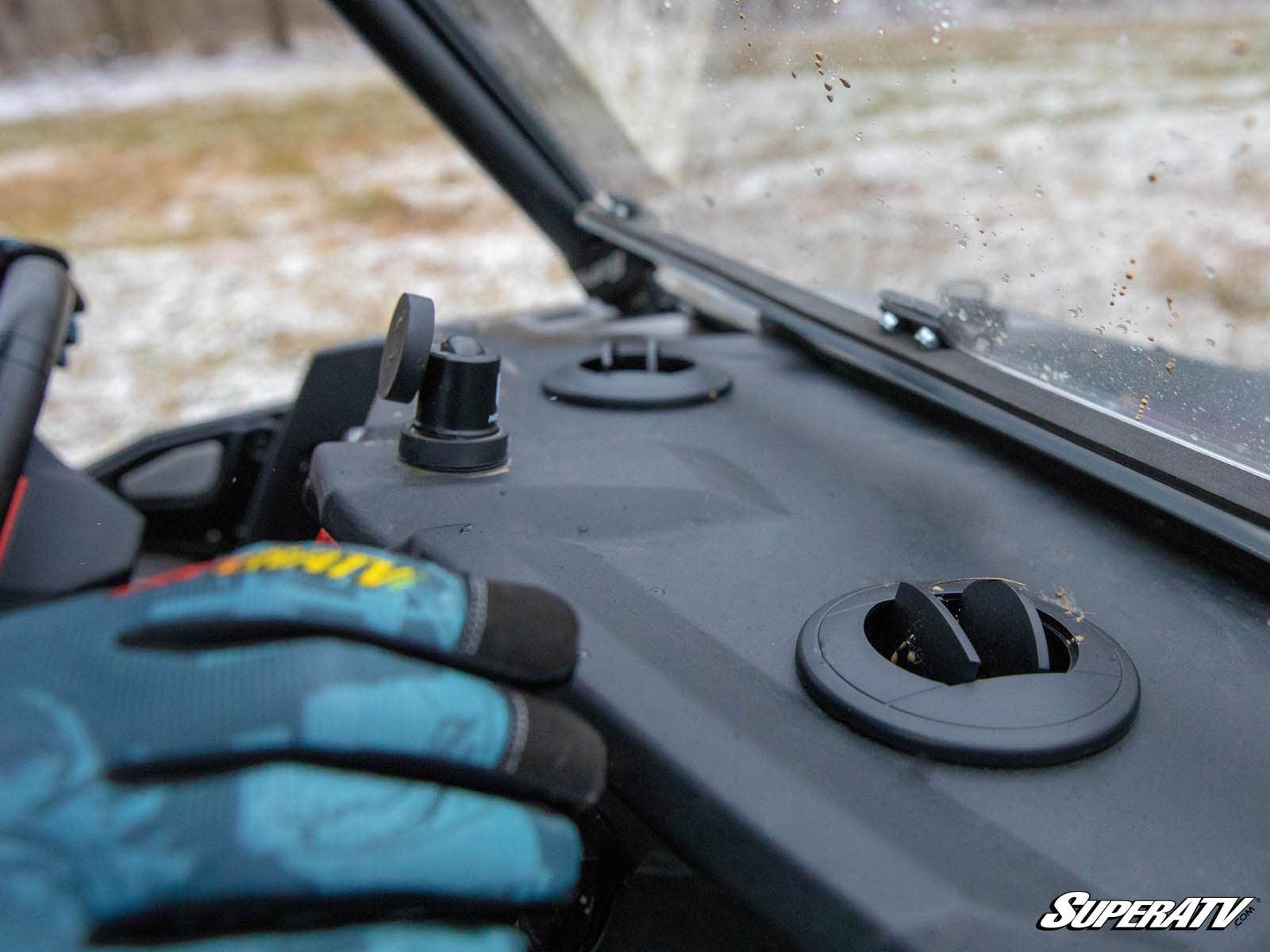

- Two defrost vents and hoses, routed through the dash
- High-grade radiator hoses rated from -40°F to 285°F
- Built-in shutoff valve
- Wires to the RZR XP 1000's key-on and power terminals
- Includes hoses, drill bits, mounting plates and instructions
- Optional quick-start flow valve and idle flow pump
Built To Solve: A Cold Cab on the Polaris RZR XP 1000
- Cold winter rides that cut the season short
- Snow, ice and fog on the windshield
- Slow heater warm-up at idle or low speed, solved with the optional flow valve and idle pump
Best For: RZR XP 1000 and XP 4 1000 Owners Riding Year-Round
- Winter trail riders and snow riders
- Hunters heading out in the cold
- RZR XP 4 1000 owners carrying passengers
- Owners running a roof and front and rear windshields
Specifications
- Heat source: engine coolant
- Mounting: under the dash between the seats
- Output: capable of 14,600 BTU at 135 CFM
- Current draw: 3.4 amps at 13.7 volts
- Heater control box: 10" x 4.5" x 11.75"
- Vents: two 360° adjustable vents plus two defrost vents
- Hose rating: -40°F to 285°F
- Manufacturer Part Number: HTR-P-RZR1K#AA (2014-2018), HTR-P-RZRXPTS#AA (2019-2023)
Fitment
Fits the following Polaris RZR models:
- Polaris RZR XP 1000: 2014-2023
- Polaris RZR XP 4 1000: 2014-2023
Choose the Year option that matches your machine; the 2014-2018 and 2019-2023 kits use different parts and instructions. Not compatible with machines that have a speaker under the glove box. Fitment is not guaranteed on models not listed.
FAQ
How much heat does this RZR XP 1000 cab heater put out?
SuperATV rates it as capable of 14,600 BTU at 135 CFM, drawing heat from the engine coolant like a car heater.
Where does it mount?

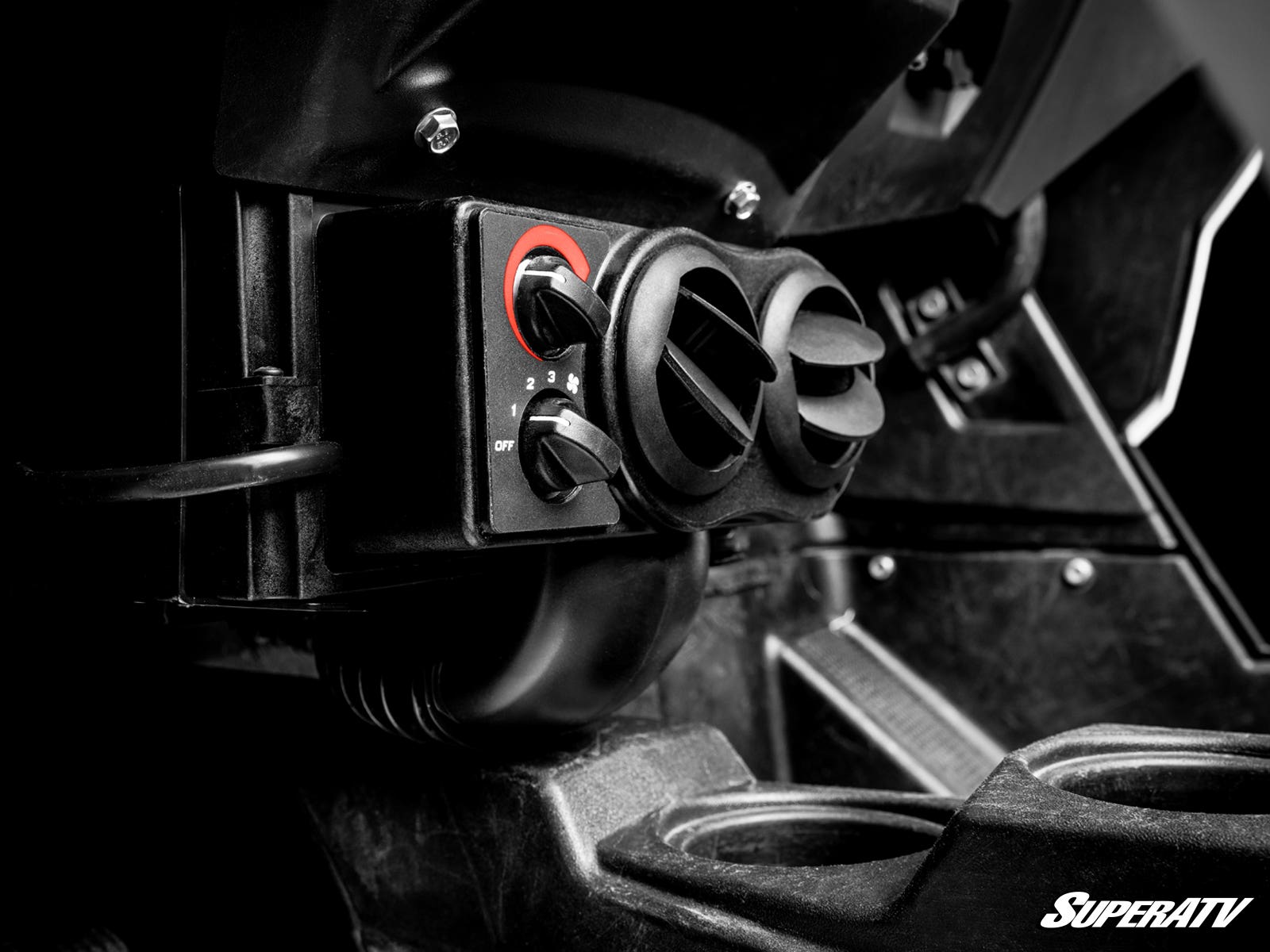

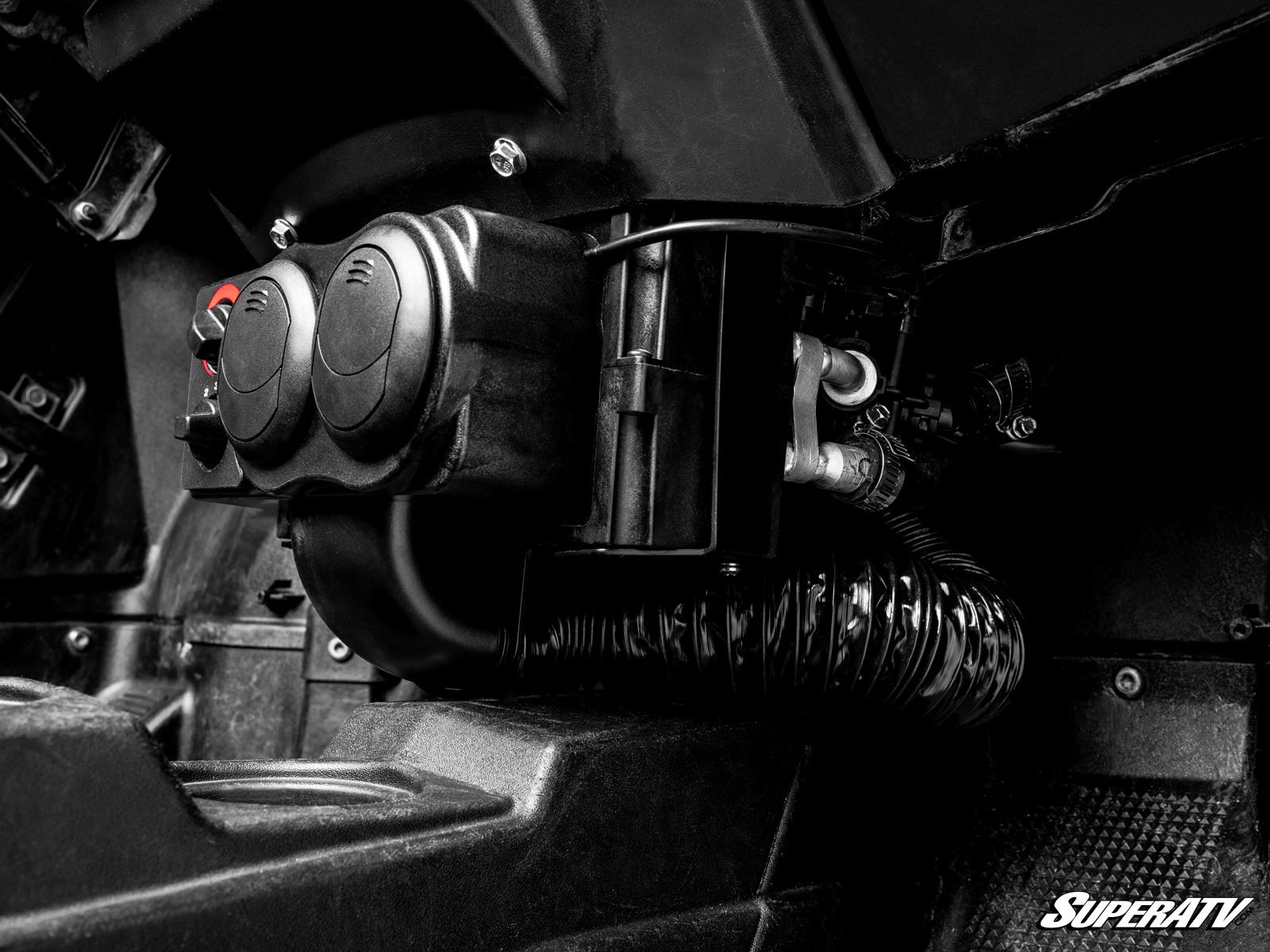

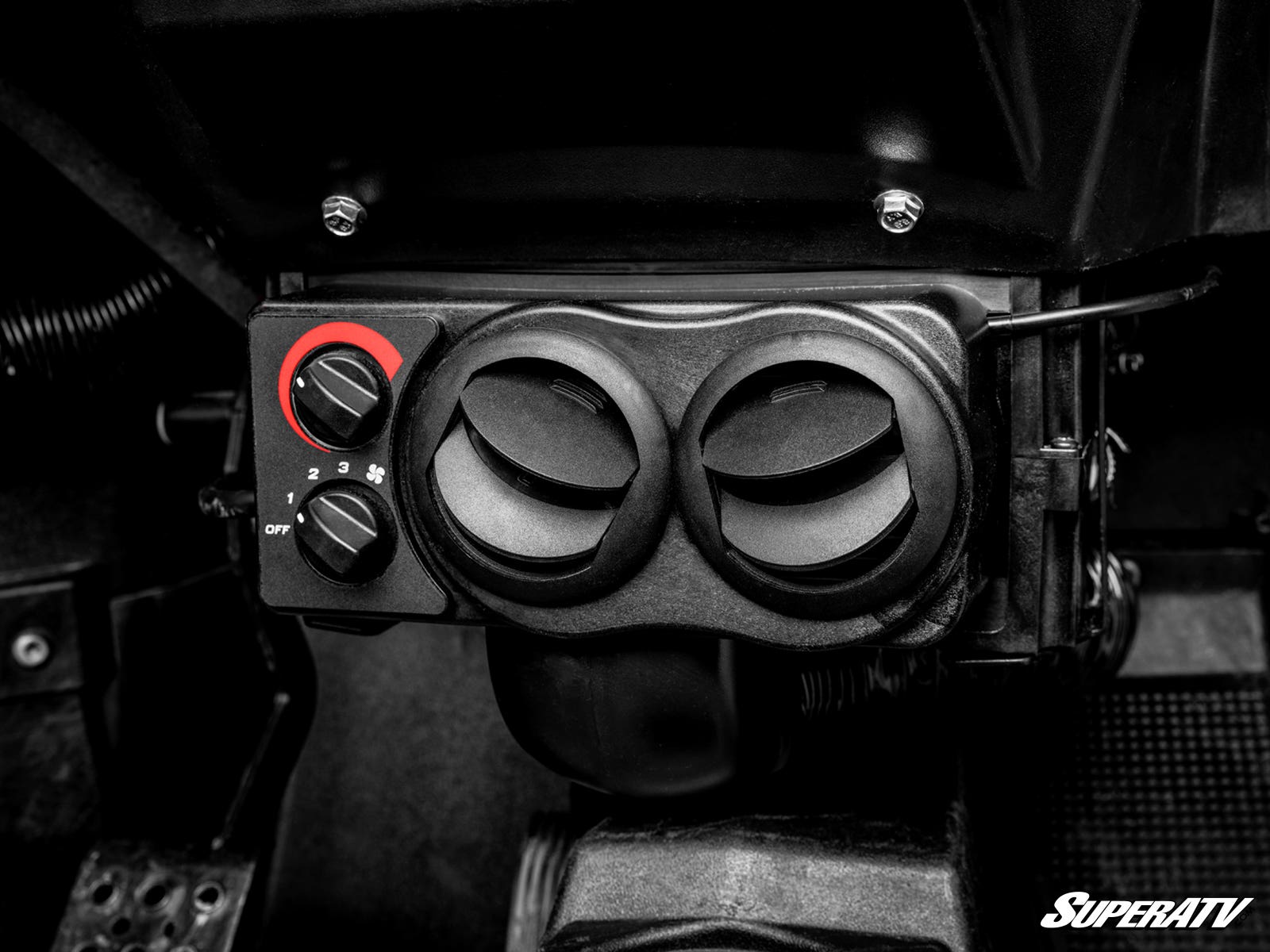

It mounts under the dash between the seats, where it stays out of the way for both the driver and passenger. The defrost vents route through the dash.
Which RZR models does it fit?
SuperATV lists the Polaris RZR XP 1000 and RZR XP 4 1000 from 2014 through 2023. Choose the 2014-2018 or 2019-2023 option for your year. It is not compatible with a speaker under the glove box.
Is this the same as the RZR in-dash heater?
No. This is SuperATV's under-dash cab heater rated at 14,600 BTU. It is a separate product from an in-dash heater.
How much power does it draw?
The heater draws 3.4 amps at 13.7 volts and wires to the RZR's own key-on and power terminals.
Quick-start flow valve or idle flow pump: which one do I need?
The quick-start flow valve sends all engine coolant to the heater core at low engine temps and cuts warm-up time roughly in half, then opens on its own once the engine is warm. The idle flow pump actively circulates coolant so you get heat in about 30 seconds, even at idle or slow speeds. SuperATV recommends combining them for the fastest heat.
Why SuperATV
SuperATV builds this kit around the RZR XP 1000, with RZR-specific mounting plates and separate kits and instructions for the 2014-2018 and 2019-2023 machines, so the install fits your year. The heater is backed by SuperATV's 1-year limited warranty against manufacturing defects to the original purchaser.
Seal Up Your RZR XP 1000 for Winter
Choose your model-year range, then pair the heater with a roof and front and rear windshields so the cab holds the heat.
