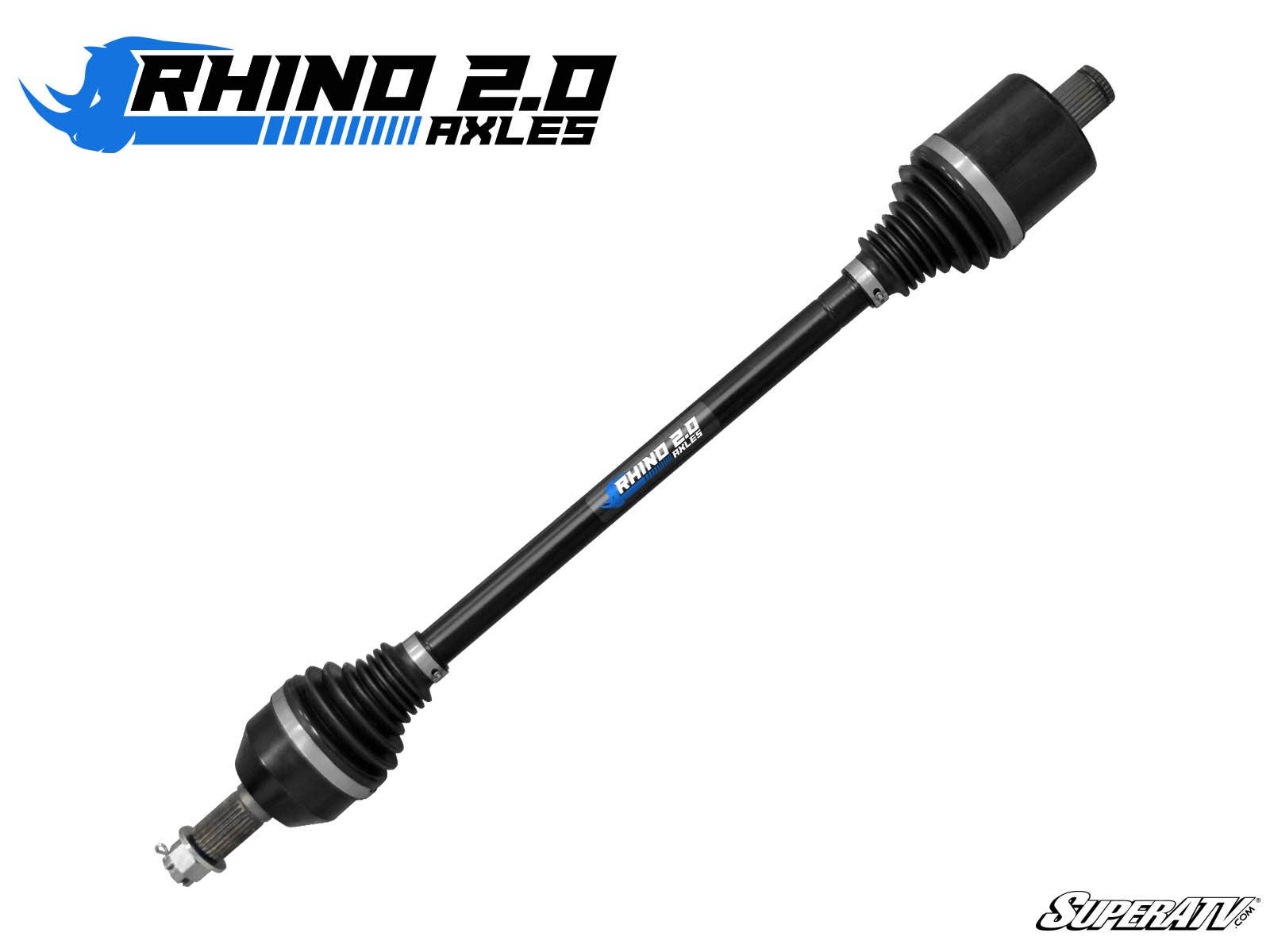

SuperATV Rhino 2.0 axles are heavy-duty front and rear replacements for the 2015-2018 Polaris RZR 4 900 and 2018 RZR S4 900. The 4 900 rolls through ditches and over logs easily, at least until you blow an axle. Rhino 2.0 axles are nearly two times stronger than stock and keep you moving forward.
Tip to tip, Rhino 2.0 uses an all-chromoly construction with bigger shafts and CV joints, and the joints stay cool even at high articulation angles. SuperATV also notes they are built to break before your expensive differential does. They are sold individually: choose Front or Rear.
These RZR 4 900 axles (also Polaris RZR 4 900 axles and RZR S4 900 axles) are sold as the RZR 4 900 front axle and the RZR 4 900 rear axle. If you are shopping RZR 900 axles or Polaris RZR 900 axles for the four-seat model, this is the matching set, and the RZR 900 rear axle here is a Polaris RZR 900 rear axle replacement in chromoly from SuperATV's line of Rhino 2.0 RZR axles.
Key Features
- Nearly two times stronger than stock, per SuperATV
- 4340 chromoly steel, end to end
- Proprietary heat treatment for strength and longevity

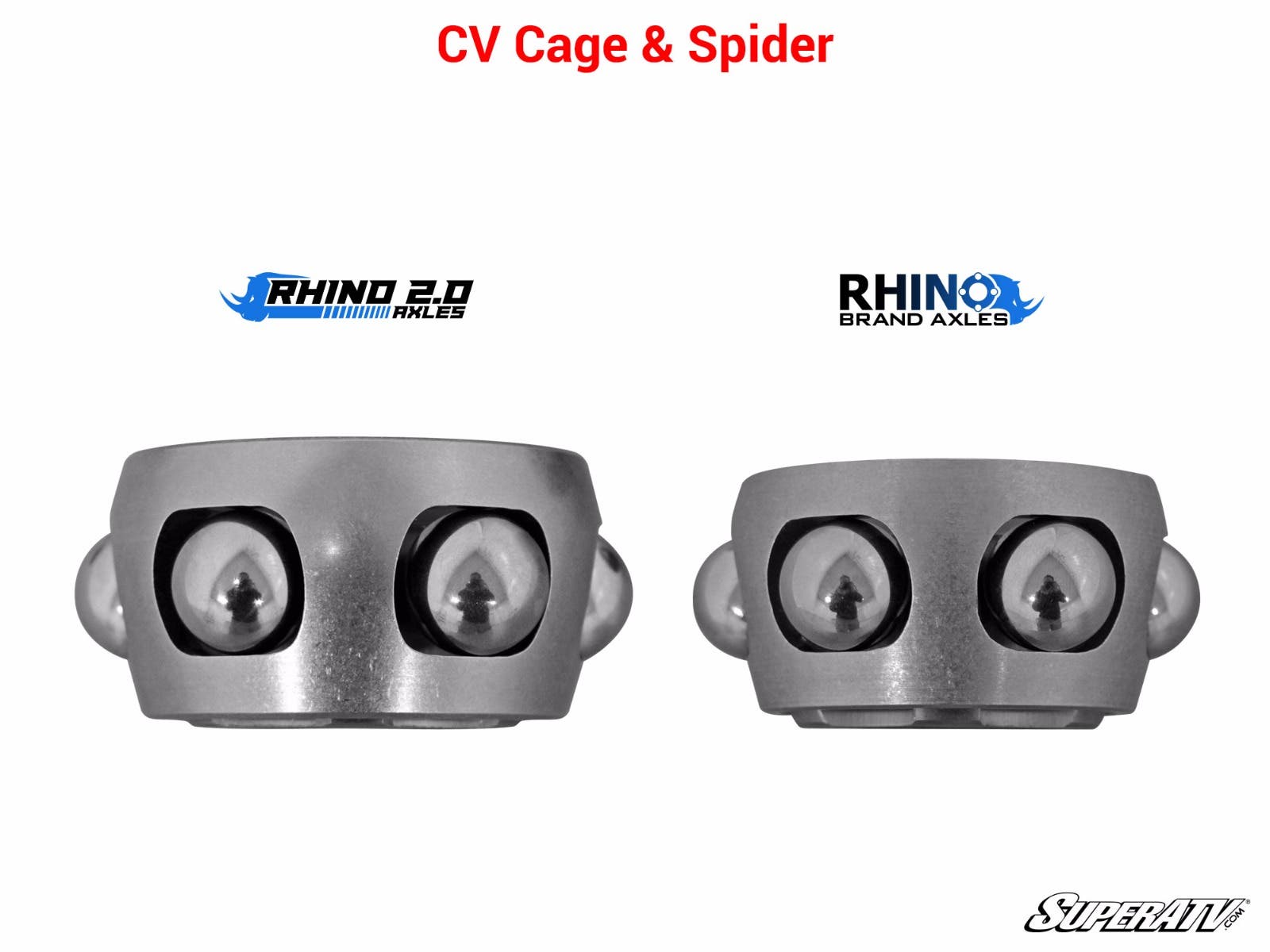

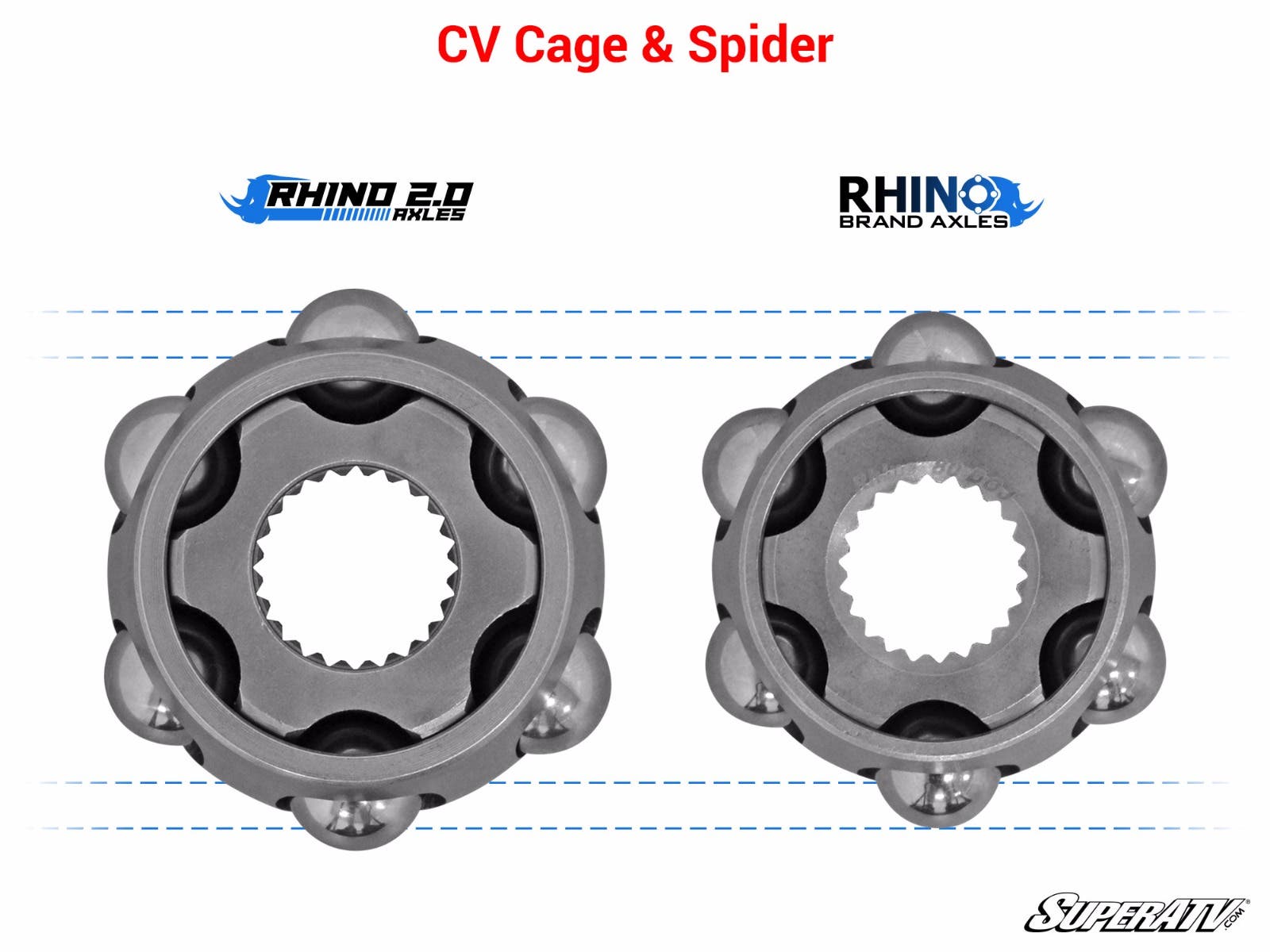

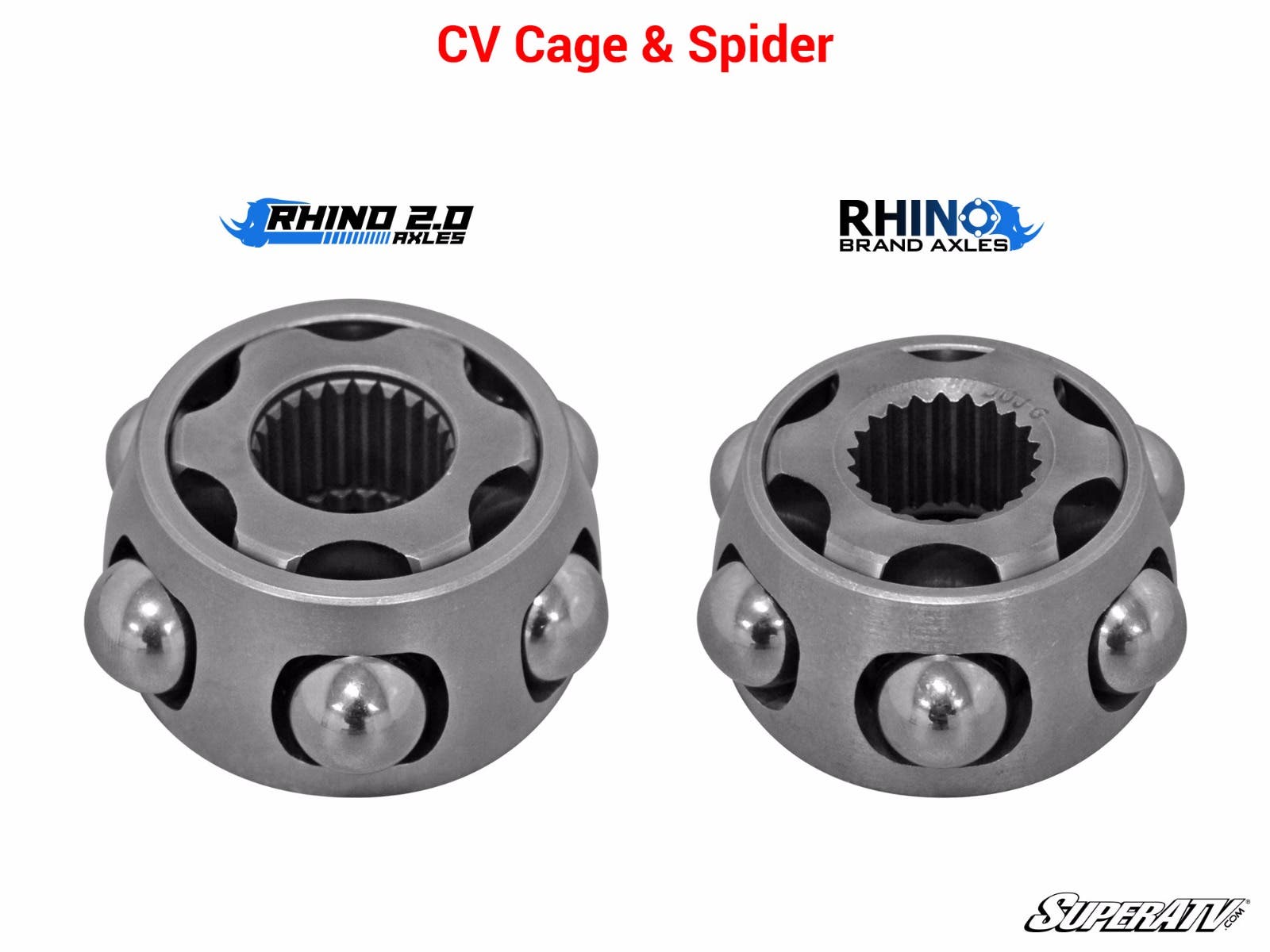

- A massive 4mm increase in shaft size, with larger CV joints
- Operates at high CV angles and runs cool
- Field and lab tested for strength and endurance
- Built to break before the differential does, per SuperATV
- Industry-leading 18-month warranty
Built To Solve: Blown Axles on the RZR 4 900
- Stock axles blowing out in ditches, logs and rough trails
- CVs wearing out at high articulation angles
- Wanting a stronger axle without risking the differential
- Replacing a broken OE axle with another stock part
Best For: RZR 4 900 and S4 900 Owners Who Ride Hard
- 2015-2018 Polaris RZR 4 900 owners
- 2018 RZR S4 900 owners
- Riders replacing a broken or clicking front or rear axle
- Not for ABS-equipped machines
Specifications
- Brand: SuperATV
- Product line: Rhino 2.0 Heavy-Duty Axle
- Material: 4340 chromoly steel, proprietary heat treatment
- Strength: nearly 2x stock (per SuperATV)
- Shaft size: 4mm larger than stock
- Warranty: 18 months
- Sold: individually, front or rear
- Replaces Polaris OE front axle number(s): 1333263, 1333946
- Replaces Polaris OE rear axle number(s): 1333081, 1333947
- Manufacturer Part Number (front): AX01-007F0#AA
- Manufacturer Part Number (rear): AX01-006R0
Fitment
- 2015-2018 Polaris RZR 4 900
- 2018 Polaris RZR S4 900
Not compatible with Anti-Lock Brake Systems (ABS). Fitment is not guaranteed on applications not listed above; confirm your year, model and cab before ordering.
FAQ
Why do RZR 4 900 axles break?
The 4 900 has plenty of power, and stock axles tend to blow out on rough trails. Rhino 2.0 axles are 4340 chromoly with a 4mm larger shaft and are rated by SuperATV at nearly twice the strength of stock.
Do they fit the RZR S4 900?
Yes. SuperATV lists the 2018 RZR S4 900 along with the 2015-2018 RZR 4 900.
Will a stronger axle hurt my differential?
SuperATV says it designed these axles to break before your expensive differential does.
Do they work with ABS?
No. SuperATV lists these axles as not compatible with Anti-Lock Brake Systems (ABS).
Which OEM part numbers do they replace?
SuperATV lists front 1333263 and 1333946, and rear 1333081 and 1333947.
What warranty do they carry?
SuperATV backs Rhino 2.0 axles with an 18-month warranty, longer than the one-year norm SuperATV cites for the industry.
Why SuperATV
SuperATV designs, engineers, manufactures and tests its Rhino 2.0 axles in-house, using CAD analysis, lab testing and real-world trail testing before release. Every Rhino 2.0 axle is backed by SuperATV's 18-month warranty, longer than the one-year norm SuperATV cites for the industry.
Complete Your RZR 4 900 Driveline Upgrade
When one RZR 4 900 axle fails, the others have usually seen the same abuse, so decide whether you need the front axle, the rear axle or both. Confirm your model and year against the fitment list, and make sure the machine does not have ABS.
