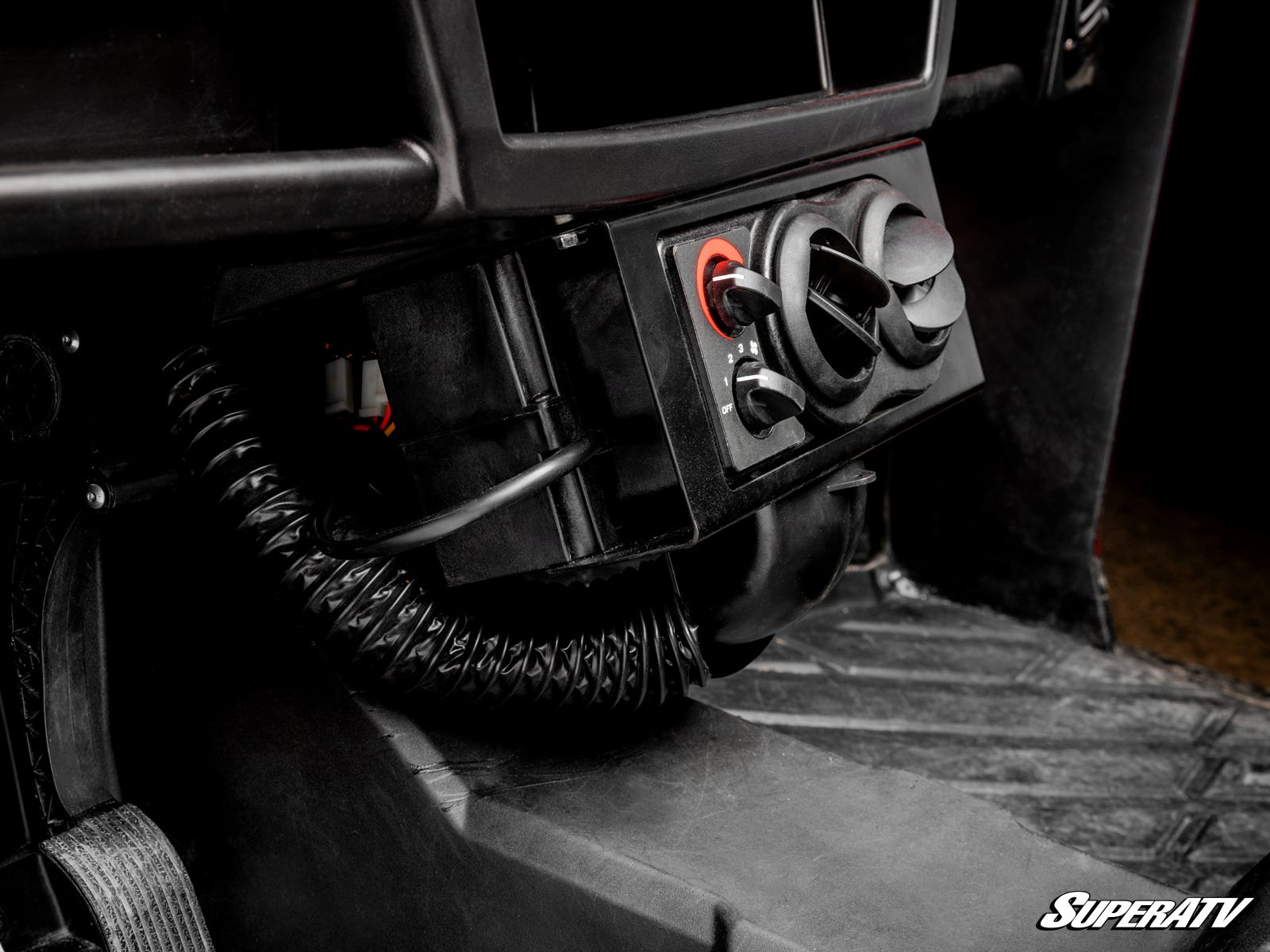

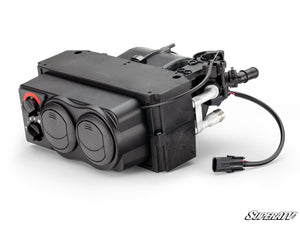

The SuperATV Polaris Ranger XP 900 cab heater draws heat from the engine coolant lines to warm your cab like a car heater. It mounts under the dash between the seats, out of the way of the driver and passenger, with adjustable temperature and fan speeds and defrost vents to keep the windshield clear.
Choose a front heater, a second-row heater for the Ranger Crew XP 900, or both. Add a quick-start flow valve or idle flow pump for faster heat.
Key Features
- Mounts under the dash between the seats
- Capable of 14,600 BTU at 135 CFM

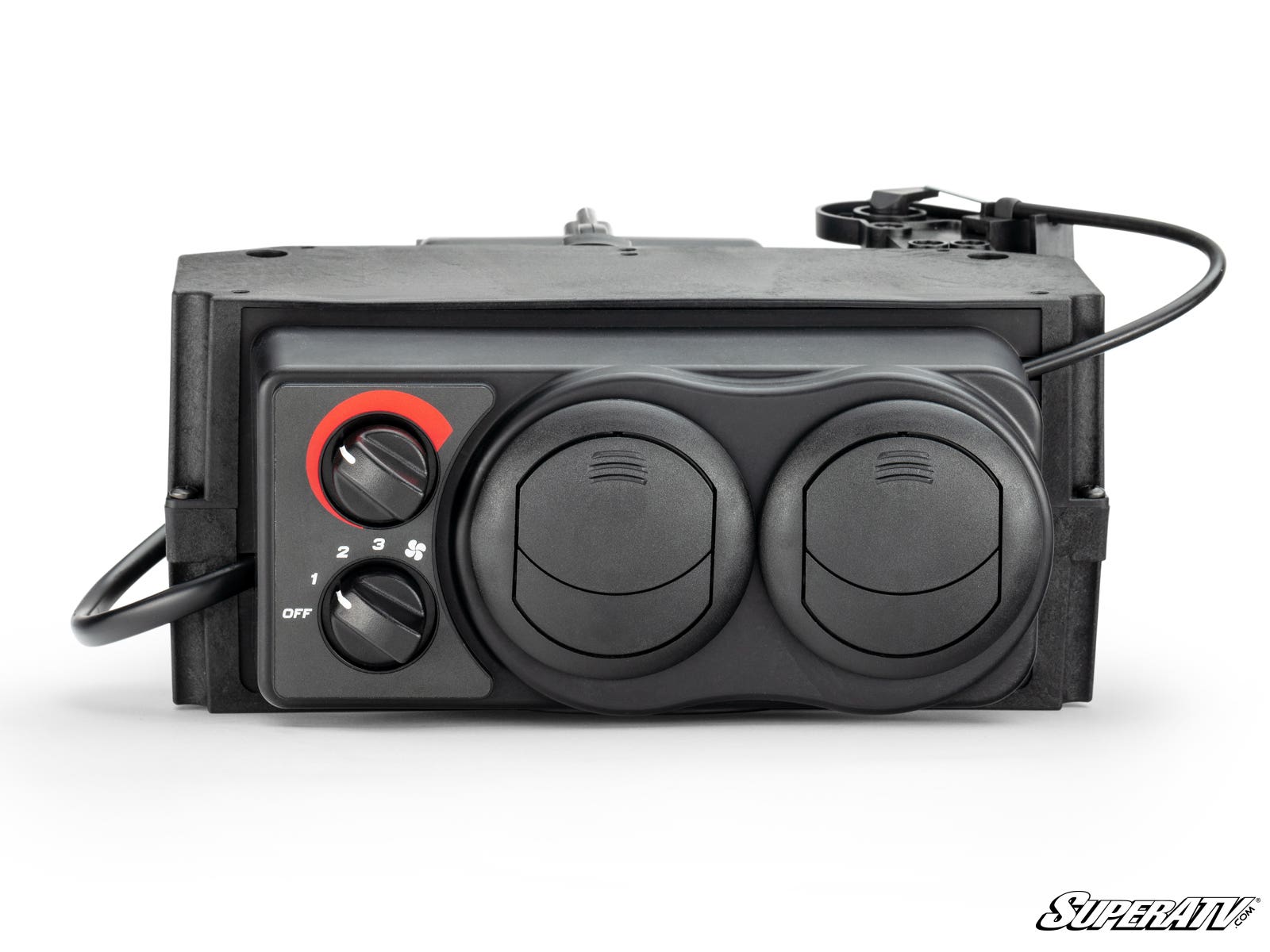

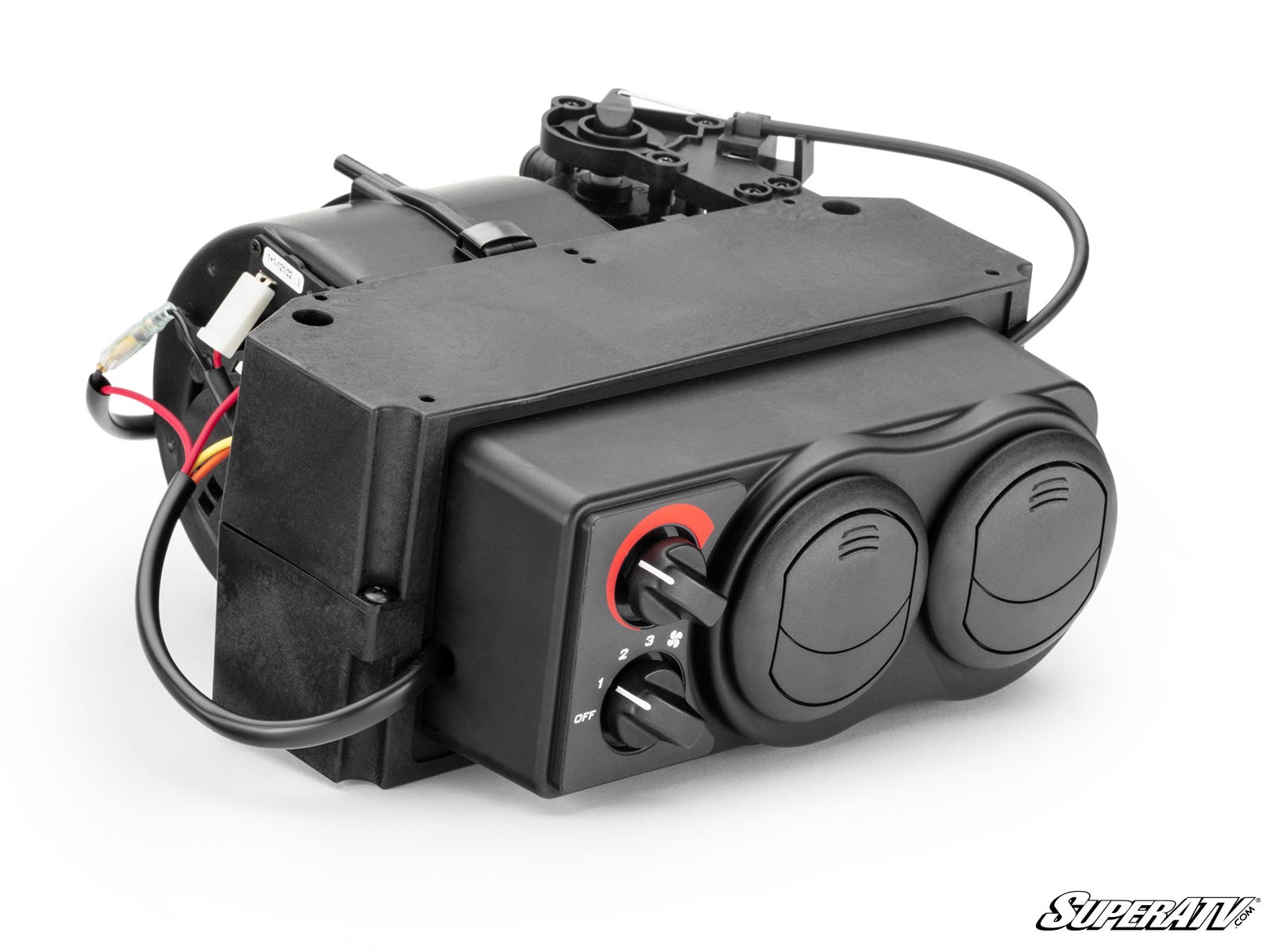

- Adjustable temperature and fan speeds
- 360° adjustable vents
- Defrost hoses and vents included, routed through the dash
- High-grade radiator hoses rated from -40°F to 285°F
- Built-in shutoff valve

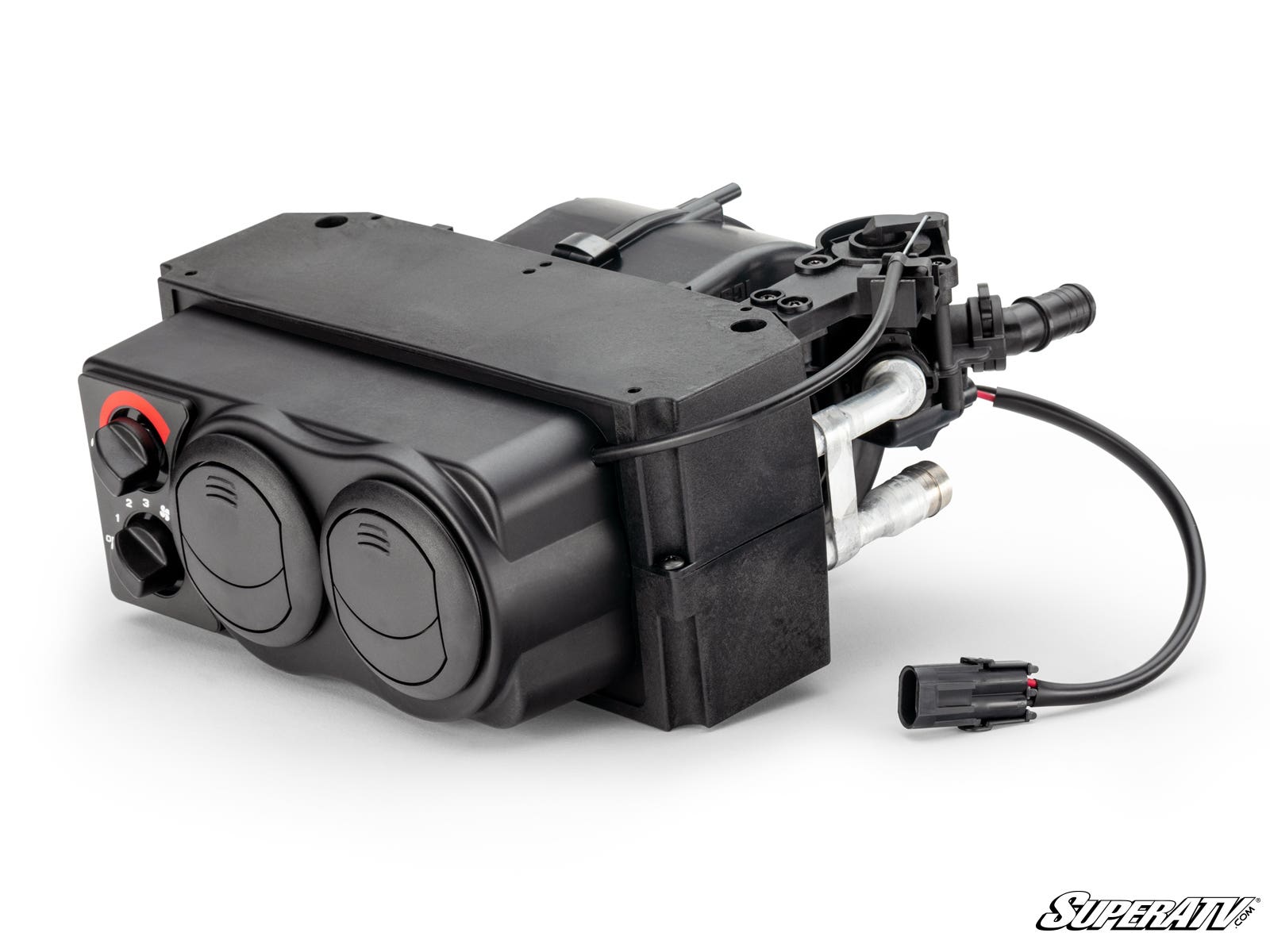

- Heater control box measures 10" x 4.5" x 11.75"

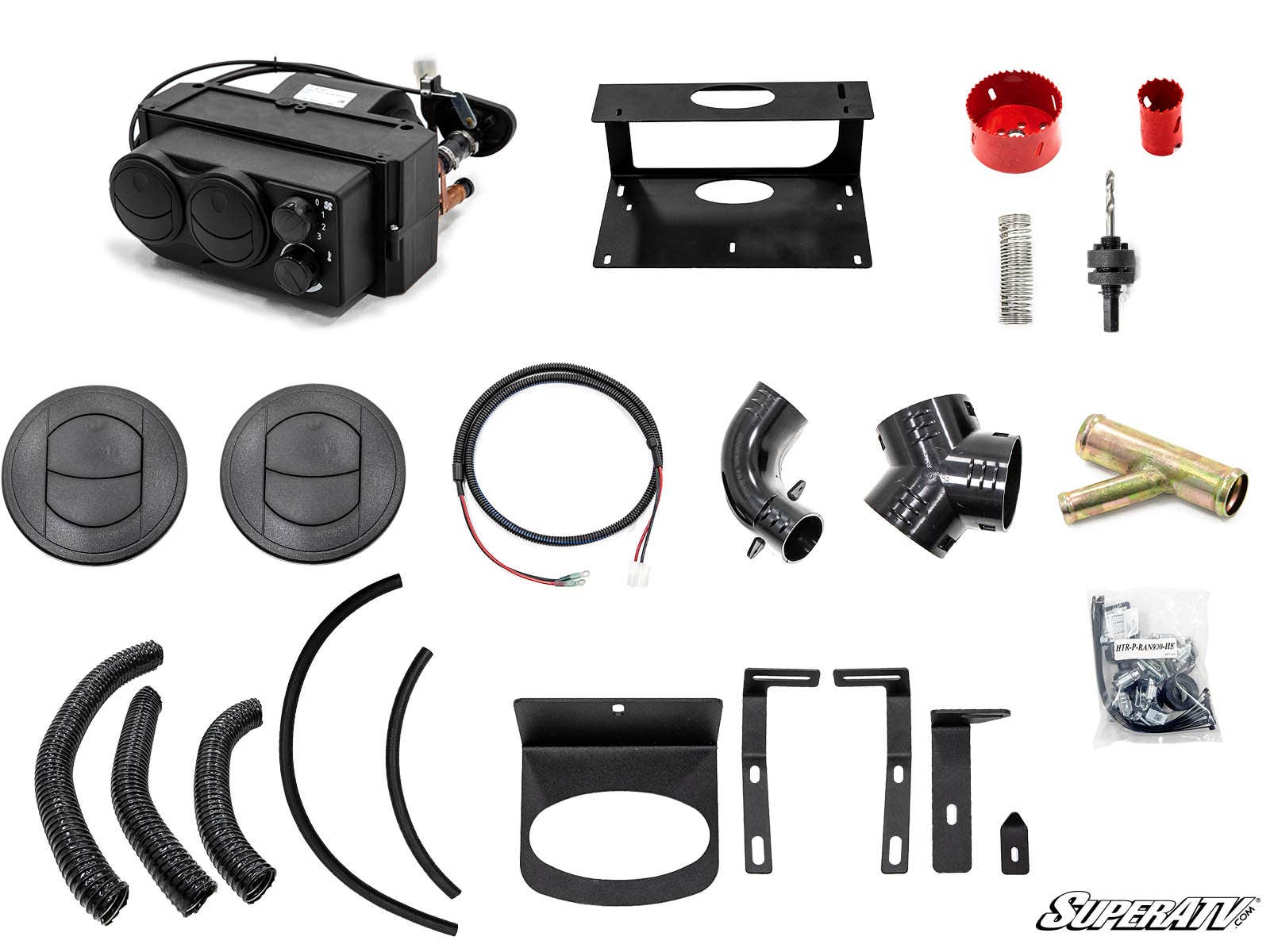

- Includes hoses, drill bits and mounting plates

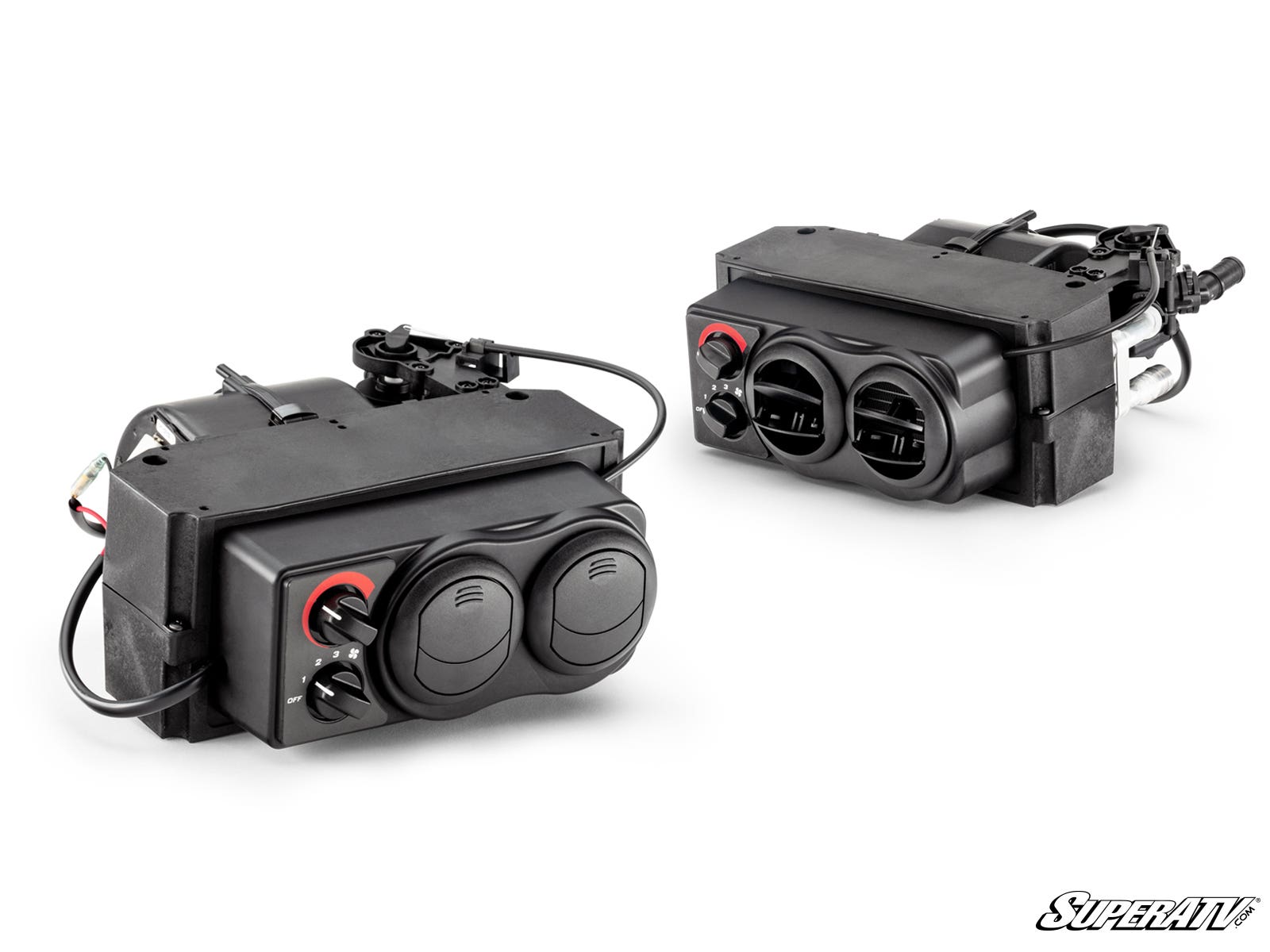

- Optional second-row heater for the Ranger Crew XP 900, with its own temperature and fan controls
- Optional quick-start flow valve and idle flow pump
Built To Solve: A Cold Cab on the Polaris Ranger XP 900
- Cold winter rides and chores that cut the season short
- Snow, ice and fog on the windshield
- Back-seat passengers left out of the heat in the Ranger Crew XP 900
- Slow warm-up on cold mornings, solved with the optional flow valve and idle pump
Best For: Ranger XP 900 Owners Who Ride and Work Through Winter
- Farm, ranch and property owners who use the Ranger XP 900 year-round
- Hunters heading out on cold mornings
- Snow plow operators who need a clear windshield
- Owners with a windshield, roof and doors installed
- Crew XP 900 owners carrying back-seat passengers
Specifications
- Heat source: engine coolant

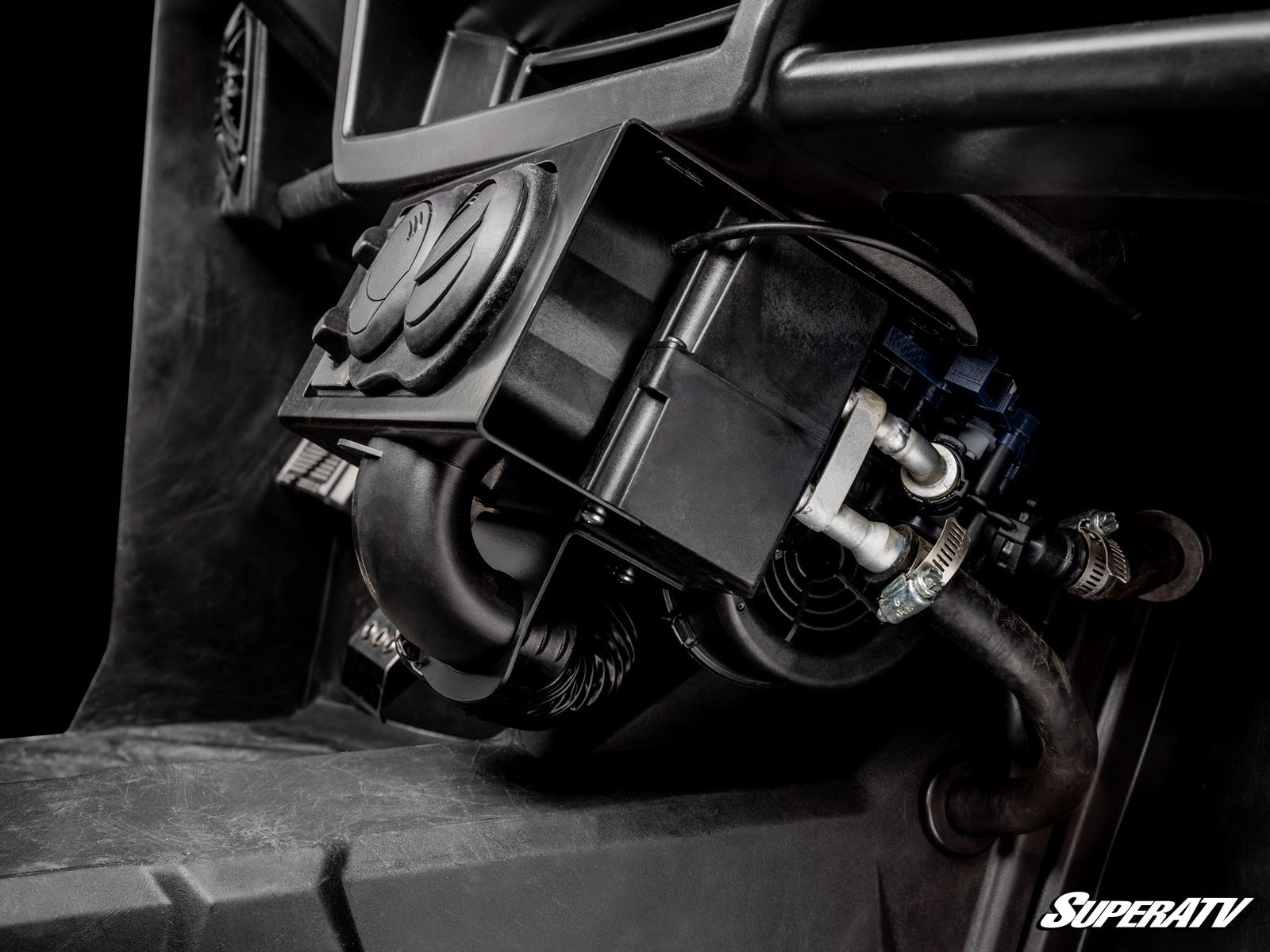

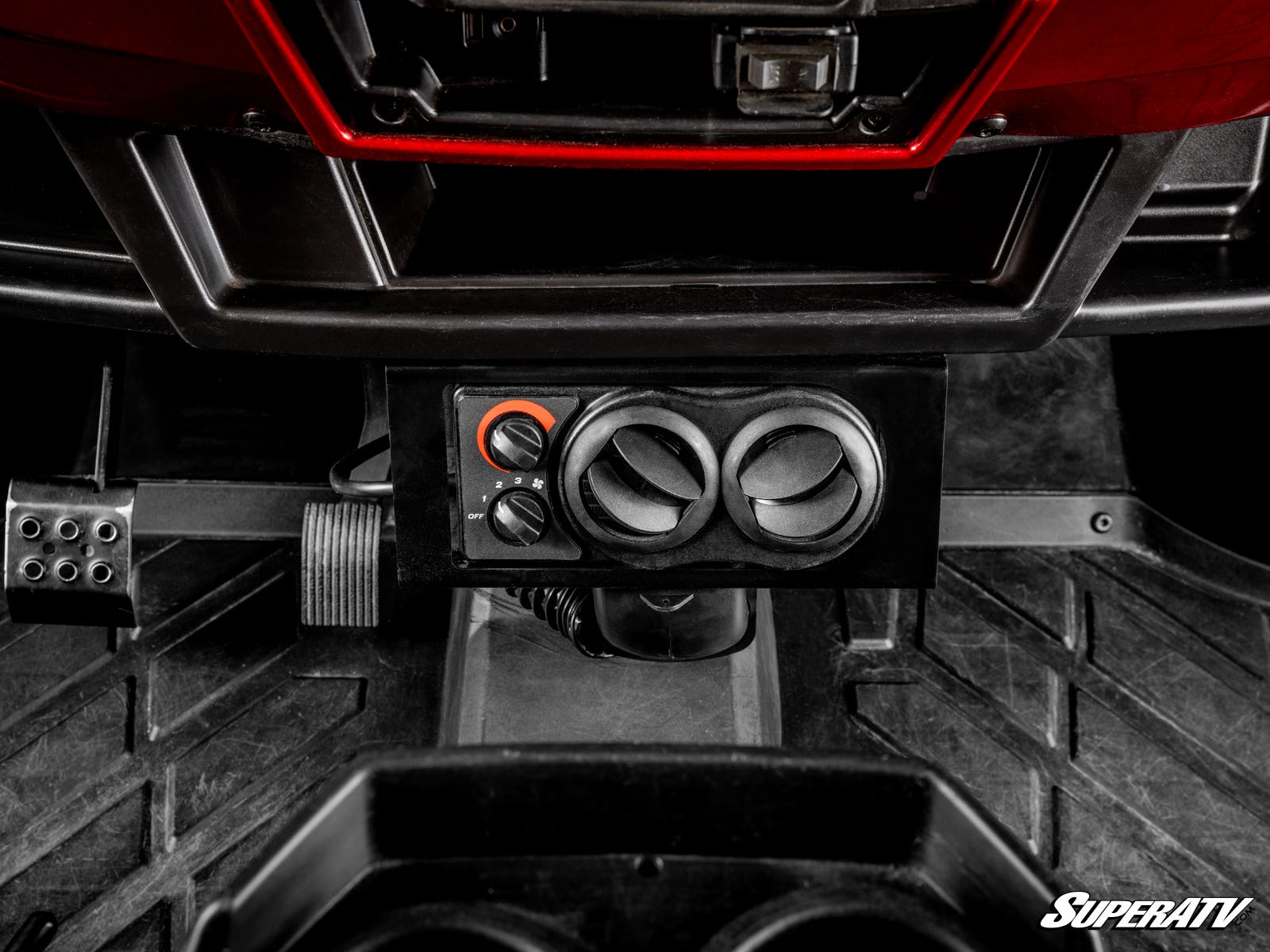

- Mounting: under the dash, between the driver and passenger
- Output: capable of 14,600 BTU at 135 CFM
- Current draw: 3.4 amps at 13.7 volts
- Heater control box: 10" x 4.5" x 11.75"
- Hose rating: -40°F to 285°F
- Wiring: uses the Ranger 900's own key-on and power terminals
- Manufacturer Part Number: HTR-P-RAN900, HTR-P-RAN9004
Fitment
Fits the following Polaris Ranger models:
- Polaris Ranger XP 900: 2013-2019
- Polaris Ranger XP 900 Crew: 2014-2019
Rear (2nd Row) packages are for crew-cab models only. Fitment is not guaranteed on models not listed.
FAQ
How much heat does this Ranger XP 900 cab heater put out?
SuperATV rates the heater as capable of 14,600 BTU at 135 CFM. It draws heat from the engine coolant, like a car heater, so it keeps putting out hot air as long as the engine runs.
Does it defrost the windshield?

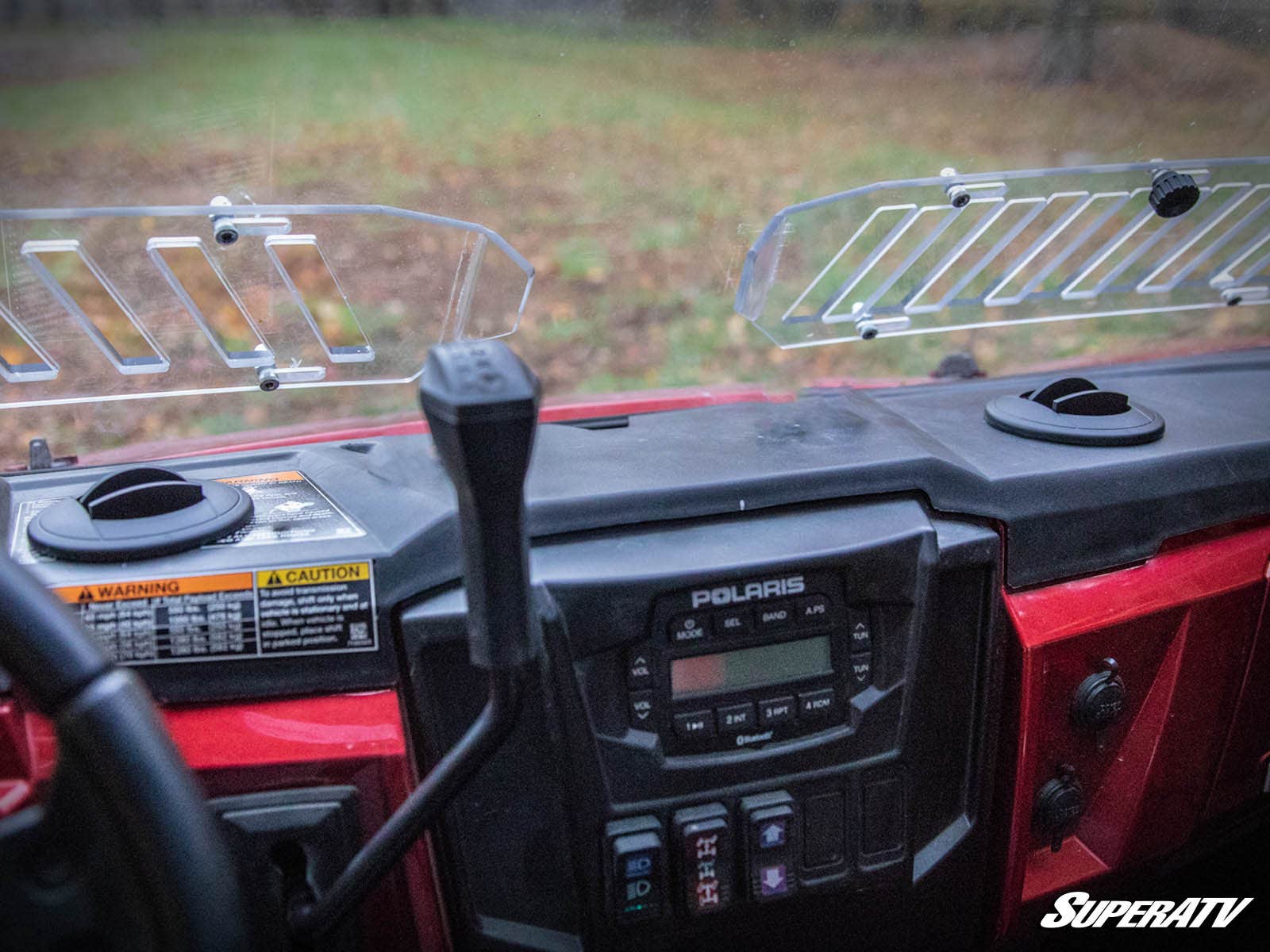

Yes. The kit includes defrost vents and hoses that route through the dash to keep the windshield clear of snow, ice and fog.
Which Ranger XP 900 models does it fit?
SuperATV lists Polaris Ranger XP 900: 2013-2019; Polaris Ranger XP 900 Crew: 2014-2019.
Is drilling required?
Yes. Installation requires drilling through plastic and the firewall, and SuperATV includes the bits you need.
What does the second-row heater add?
The second-row heater warms the back seat of the Ranger Crew XP 900 with its own adjustable temperature and fan speeds. Choose the Rear (2nd Row) package to add it to a front heater you already have, or Front and Rear (2nd Row) to get both.
Quick-start flow valve or idle flow pump: which one do I need?
The quick-start flow valve sends all engine coolant to the heater core at low engine temps and cuts warm-up time roughly in half, then opens on its own once the engine is warm. The idle flow pump actively circulates coolant so you get heat in about 30 seconds, even at idle or slow speeds. SuperATV recommends combining them for the fastest heat.
Install Video
Watch SuperATV's official install walkthrough: How to install the SuperATV cab heater in a Polaris Ranger.
Why SuperATV
SuperATV builds this heater kit around the Ranger XP 900: every kit ships with the hoses, drill bits, machine-specific mounting plates and instructions to get it running. The heater is backed by SuperATV's 1-year limited warranty against manufacturing defects to the original purchaser.
Make Your Ranger XP 900 a Year-Round Machine
Confirm your Ranger XP 900 model in the fitment list, choose your heater package, and pair it with a windshield, roof and doors to seal the cab.
