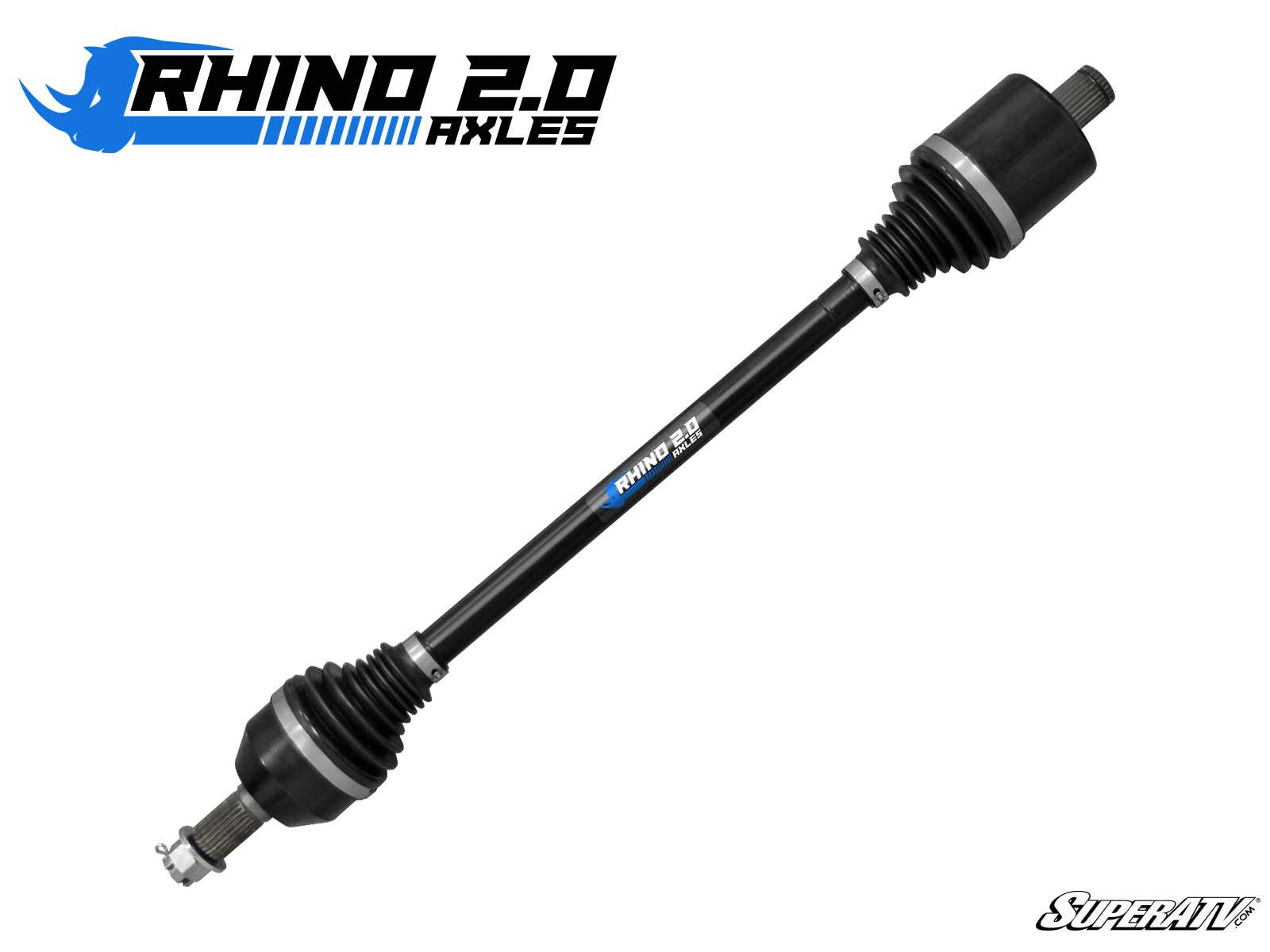

SuperATV Rhino 2.0 big lift kit axles are extended-length front and rear axles for the Polaris Ranger XP 1000 and Crew (2017-2023) and the Ranger 1000 Diesel and Diesel Crew (2015-2018) running SuperATV's 6" lift kit. Maximized shafts and CVs in heat-treated 4340 chromoly handle 40°+ axle angles without binding or overheating, so your Ranger can be the work horse and the trail machine it was built to be.
SuperATV states these axles only work with its Polaris Ranger XP 1000 6" Lift Kit and Polaris Ranger 1000 Diesel 6" Lift Kit. SuperATV also points to the high twist yield of 4340 steel: the shaft is designed to flex and return rather than pass the shock to the differential. They are sold individually: choose Front or Rear, your edition (Standard, Crew, High Lifter, NorthStar, Back Country, Texas, Trail Boss, Waterfowl, Big Game or Diesel) and the model-year bracket, because SuperATV uses different axles across those years.
These Ranger XP 1000 lift kit axles are the Ranger XP 1000 big lift kit axles SuperATV sizes for its own kit, also searched as Ranger XP 1000 6 inch lift axles. They cover Ranger Crew XP 1000 lift axles, Ranger XP 1000 High Lifter lift axles and Ranger 1000 Diesel lift kit axles, sold as the Ranger XP 1000 front axle lift version or the Ranger XP 1000 rear axle lift version. For Polaris Ranger XP 1000 lifted axles, these Rhino 2.0 lift kit axles are the chromoly option.
Key Features
- Extended axle length matched to SuperATV big-lift suspension
- 4340 chromoly construction with SuperATV's proprietary heat treatment

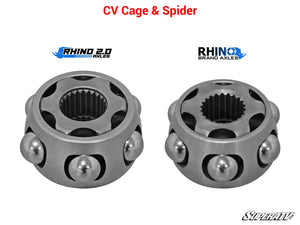

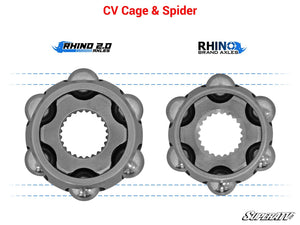

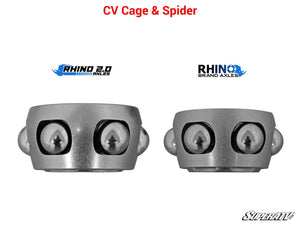

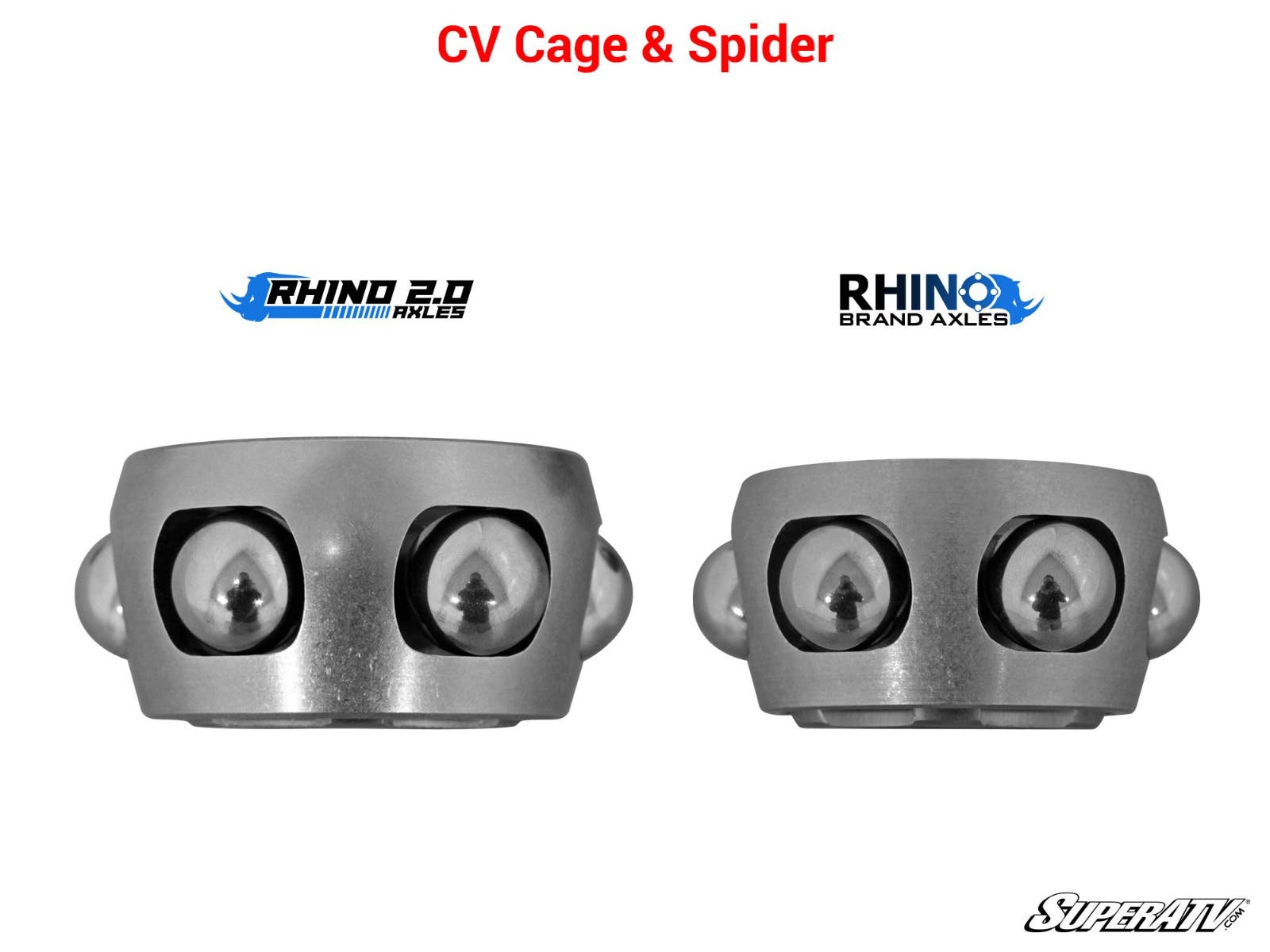

- Larger shaft and CV components, built stronger than stock
- Operates at 40°+ CV angles, keeping CV joints cooler through demanding suspension travel
- Twice as strong as stock, per SuperATV
- Shaft designed to flex and return rather than break the differential, per SuperATV
- Field and lab tested, CAD drawn
- Industry-leading 18-month Rhino 2.0 warranty
Built To Solve: Stock Axles Failing on a Lifted Ranger XP 1000
- Stock axles that cannot handle the angles of SuperATV's 6" lift
- Snapped axles under massive torque on a lifted, loaded Ranger
- CV heat and binding through long suspension travel
- Shock loads that would otherwise reach the differential
Best For: Ranger XP 1000 and 1000 Diesel Owners With SuperATV's 6" Lift
- 2017-2023 Ranger XP 1000 and Crew owners, including High Lifter, NorthStar, Back Country, Texas, Trail Boss, Waterfowl and Big Game editions
- 2015-2018 Ranger 1000 Diesel and Diesel Crew owners
- Riders running SuperATV's 6" lift with bigger tires
- Not for stock-height Rangers, other brands of lift kit, or ABS-equipped Rangers
Specifications
- Brand: SuperATV
- Product line: Rhino 2.0 Big Lift Kit Axle
- Material: 4340 chromoly steel, proprietary heat treatment
- Strength: twice as strong as stock (per SuperATV)
- CV operating angle: 40°+
- Length: extended for a 6" lift kit
- Warranty: 18 months
- Sold: individually, front or rear
- Requires: SuperATV Polaris Ranger XP 1000 6" Lift Kit or Ranger 1000 Diesel 6" Lift Kit
- Manufacturer Part Numbers (front): AX01-024F-1, AX-1-91-F-LK6-BT and AX-1-98-F-LK6-BT series by edition and year
- Manufacturer Part Numbers (rear): AX01-016R2, AX-1-79-R-LK6-BT and AX-1-98-R-LK6-BT series by edition and year
Fitment
- 2017-2023 Polaris Ranger XP 1000 and XP 1000 Crew
- 2017-2023 Ranger XP 1000 High Lifter Edition and High Lifter Edition Crew
- 2017-2023 Ranger XP 1000 NorthStar Edition and NorthStar Edition Crew
- 2019 Ranger XP 1000 Back Country Edition and Back Country Crew Edition
- 2019-2023 Ranger XP 1000 Texas Edition and Texas Edition Crew
- 2021-2023 Ranger XP 1000 Trail Boss, Waterfowl Edition and Big Game Edition, plus Crew versions
- 2015-2018 Polaris Ranger 1000 Diesel and Diesel Crew
Not compatible with Anti-Lock Brake Systems (ABS). Only works with SuperATV's Polaris Ranger XP 1000 6" Lift Kit or Ranger 1000 Diesel 6" Lift Kit. The axle changes by edition and model year (including 2019 models built before vs after 7/1/2018), so pick the matching option. Fitment is not guaranteed on applications not listed above; confirm your year, model and cab before ordering.
FAQ
Why does a lifted Ranger XP 1000 need different axles?
A 6" lift changes axle length and angles. These Rhino 2.0 axles are extended for SuperATV's kit and handle 40°+ angles without binding or overheating.
Will they work with another brand of lift kit?
SuperATV states they only work with its Polaris Ranger XP 1000 6" Lift Kit and Ranger 1000 Diesel 6" Lift Kit.
Do they fit the Ranger Crew XP 1000?
Yes. Every listed edition is offered in 2-seat and Crew versions. Select your edition and year bracket so you receive the correct axle.
Do they fit the Ranger 1000 Diesel?
Yes, the 2015-2018 Ranger 1000 Diesel and Diesel Crew with SuperATV's 6" lift kit.
Do they work with ABS?
No. SuperATV lists these axles as not compatible with Anti-Lock Brake Systems (ABS).
How do they compare to the standard Ranger XP 1000 Rhino 2.0 axle?
Both are Rhino 2.0 chromoly axles with an 18-month warranty. This version is lengthened for SuperATV's 6" lift kit.
Why SuperATV
SuperATV designs, engineers, manufactures and tests its Rhino 2.0 axles in-house, using CAD analysis, lab testing and real-world trail testing before release. Every Rhino 2.0 axle is backed by SuperATV's 18-month warranty, longer than the one-year norm SuperATV cites for the industry.
Complete Your Lifted Ranger XP 1000 Build
Confirm your Ranger has SuperATV's 6" lift kit and no ABS, then choose front or rear, your edition and your model-year bracket. Lifted machines are harder on ball joints and tie rods, so check those with the axles.
