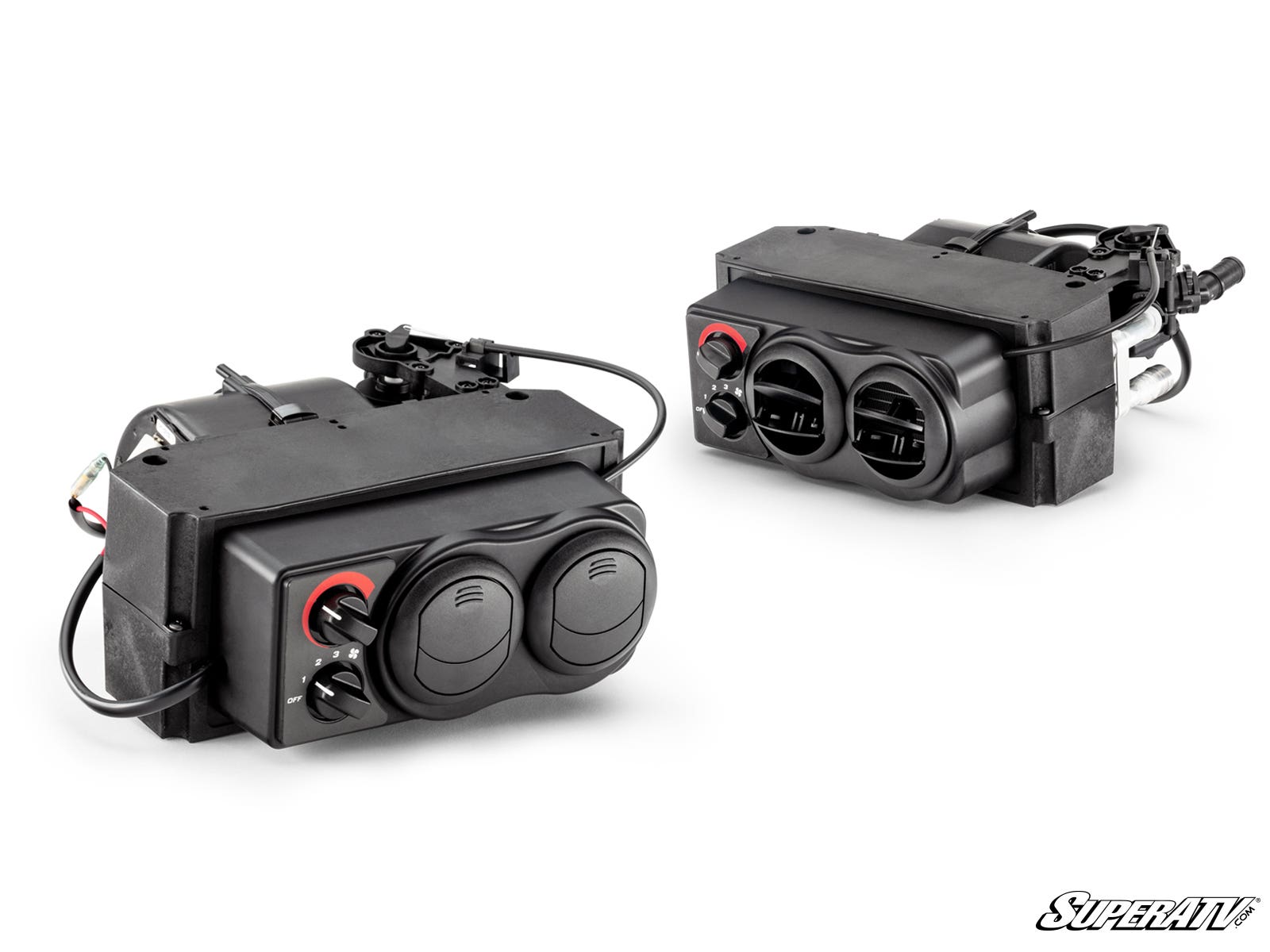

The SuperATV Polaris Ranger XP 1000 cab heater draws heat from the engine coolant lines to warm your cab like a car heater. It mounts under the dash between the seats, out of the way of the driver and passenger, with adjustable temperature and fan speeds and defrost vents to keep the windshield clear.
Choose a front heater, a second-row heater for the Ranger Crew XP 1000, or both, with or without a grille cover. Add a quick-start flow valve or idle flow pump for faster heat.
Key Features

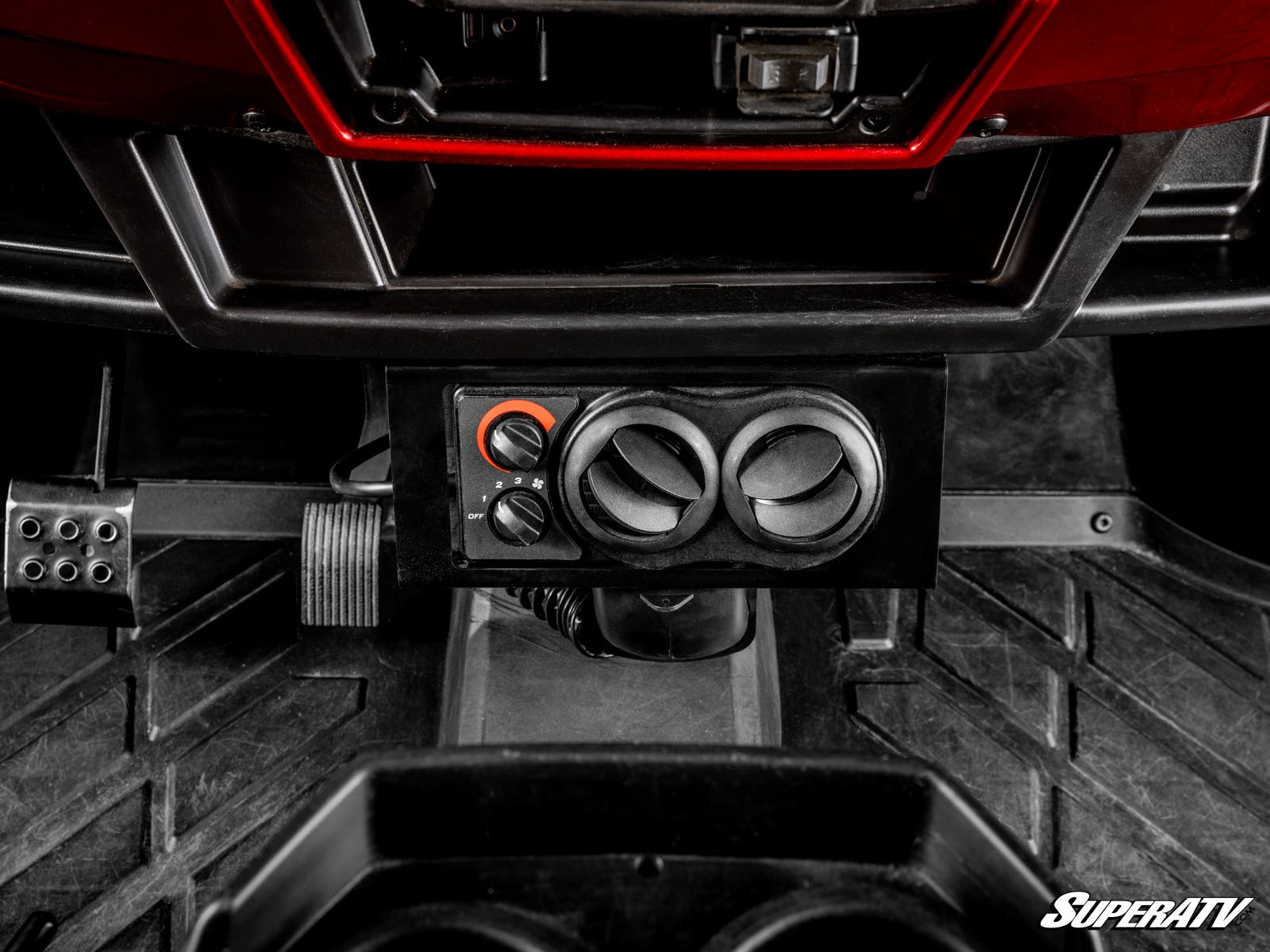

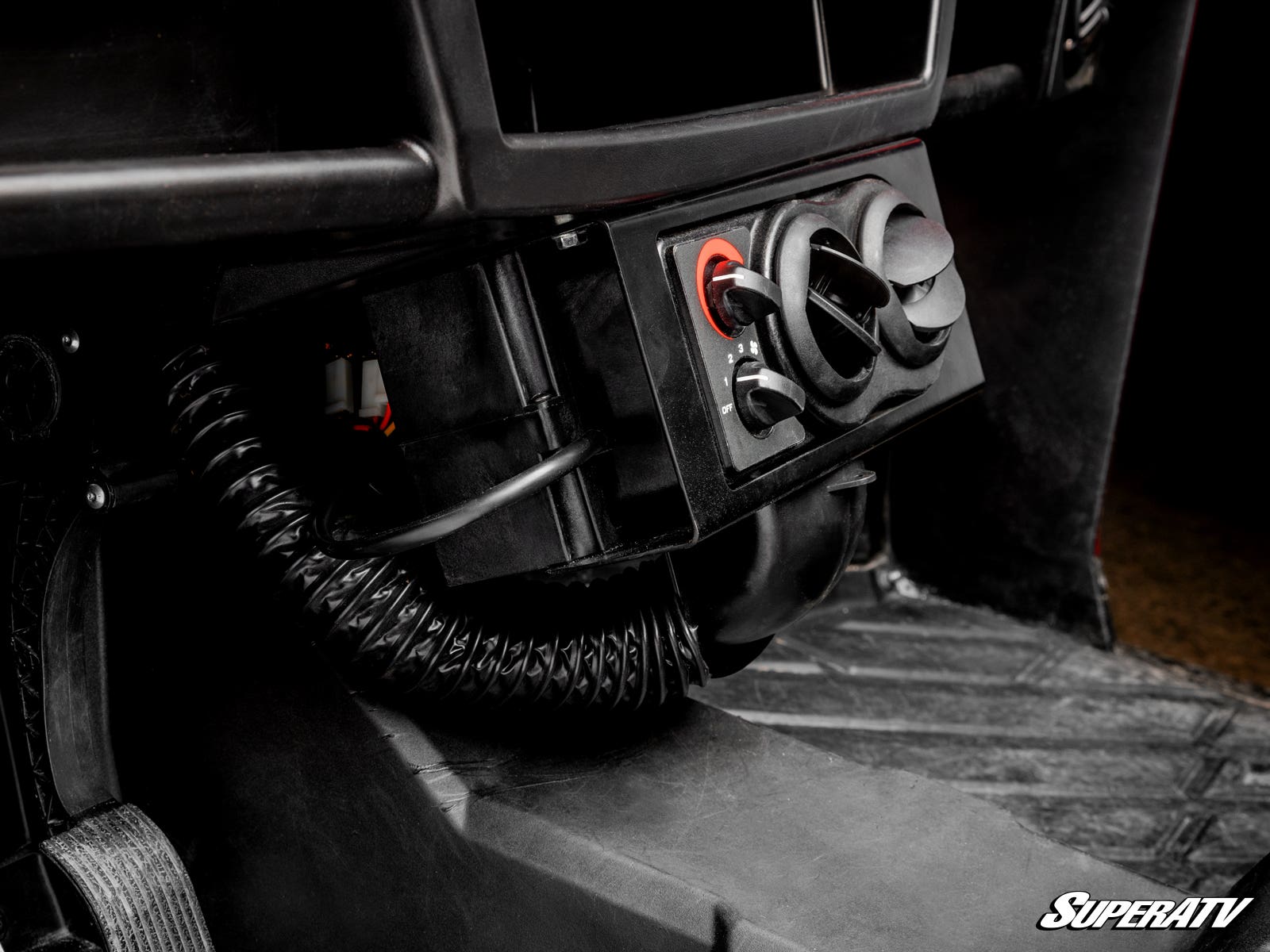

- Mounts under the dash between the seats
- Capable of 14,600 BTU at 135 CFM

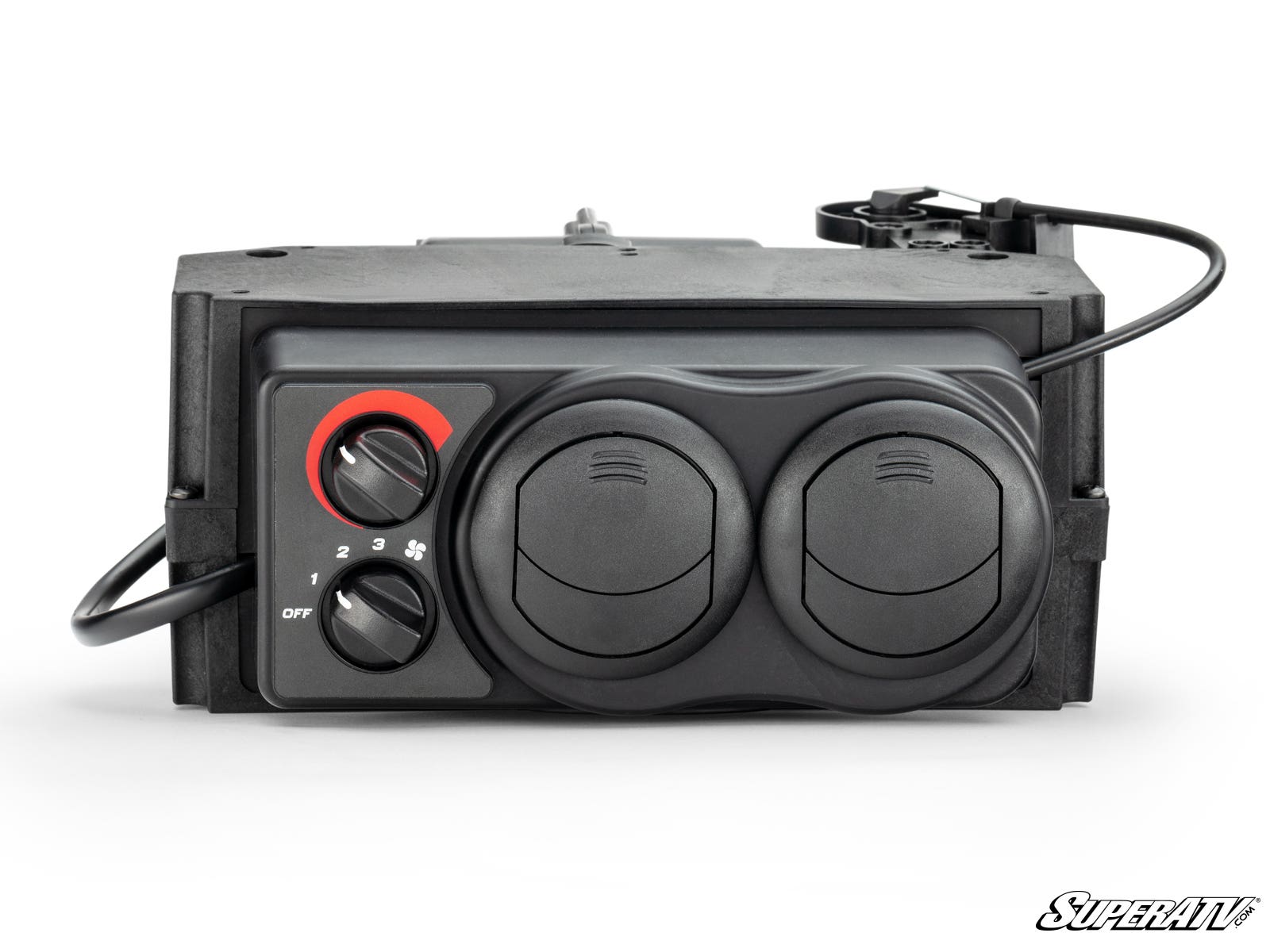

- Adjustable temperature and fan speeds
- 360° adjustable vents

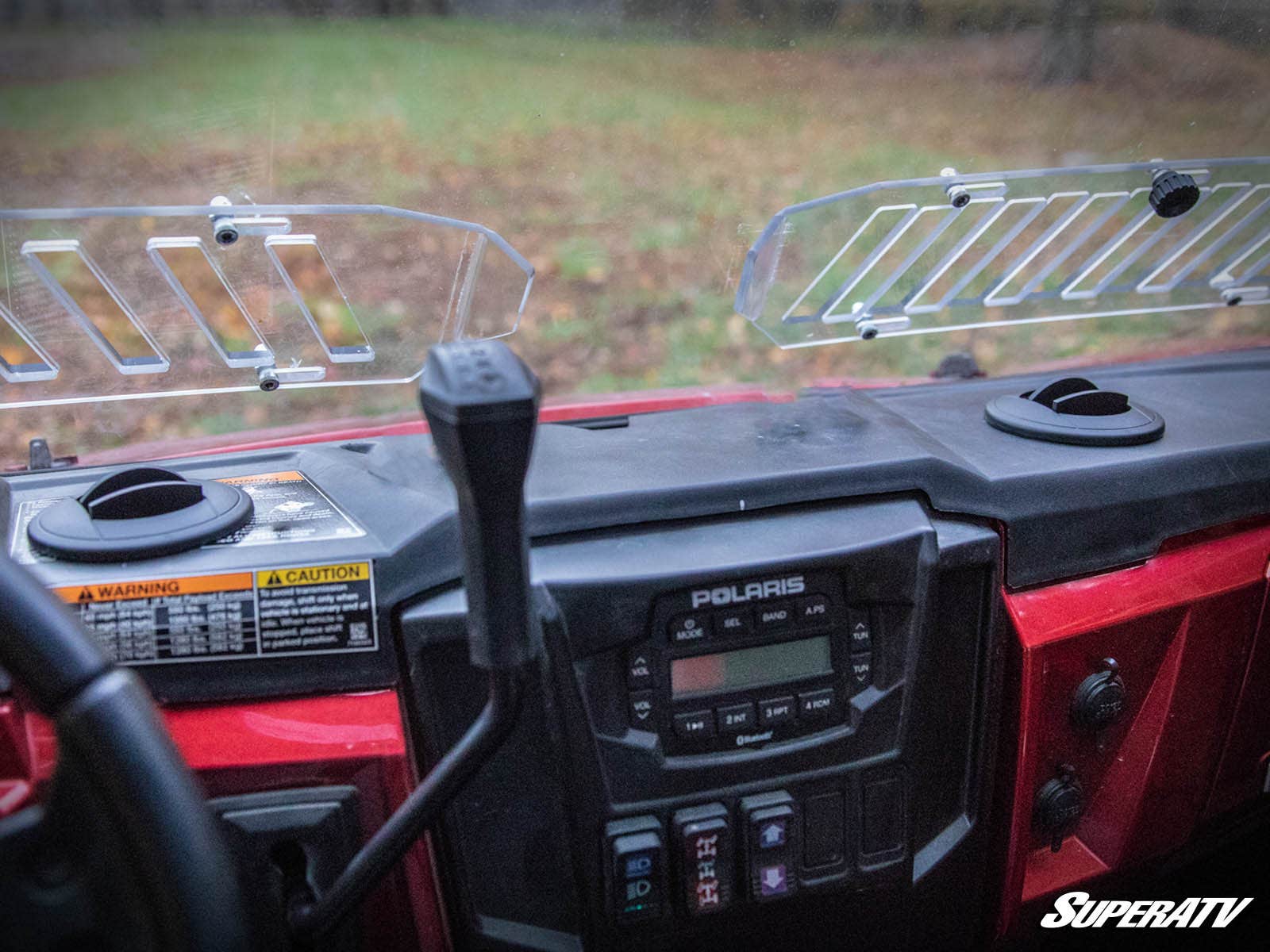

- Defrost hoses and vents included, routed through the dash
- High-grade radiator hoses rated from -40°F to 285°F
- Built-in shutoff valve

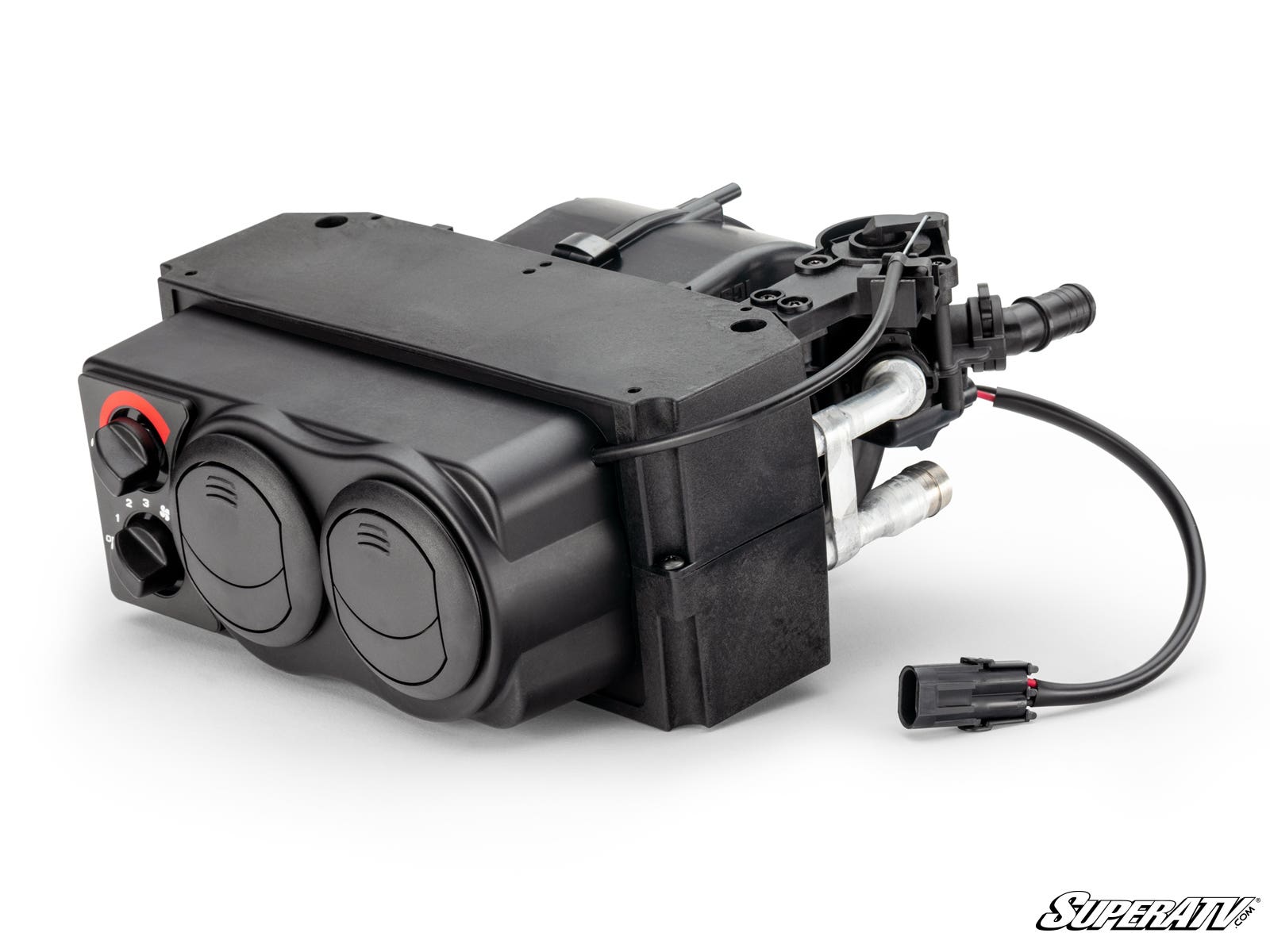

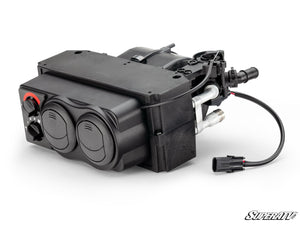

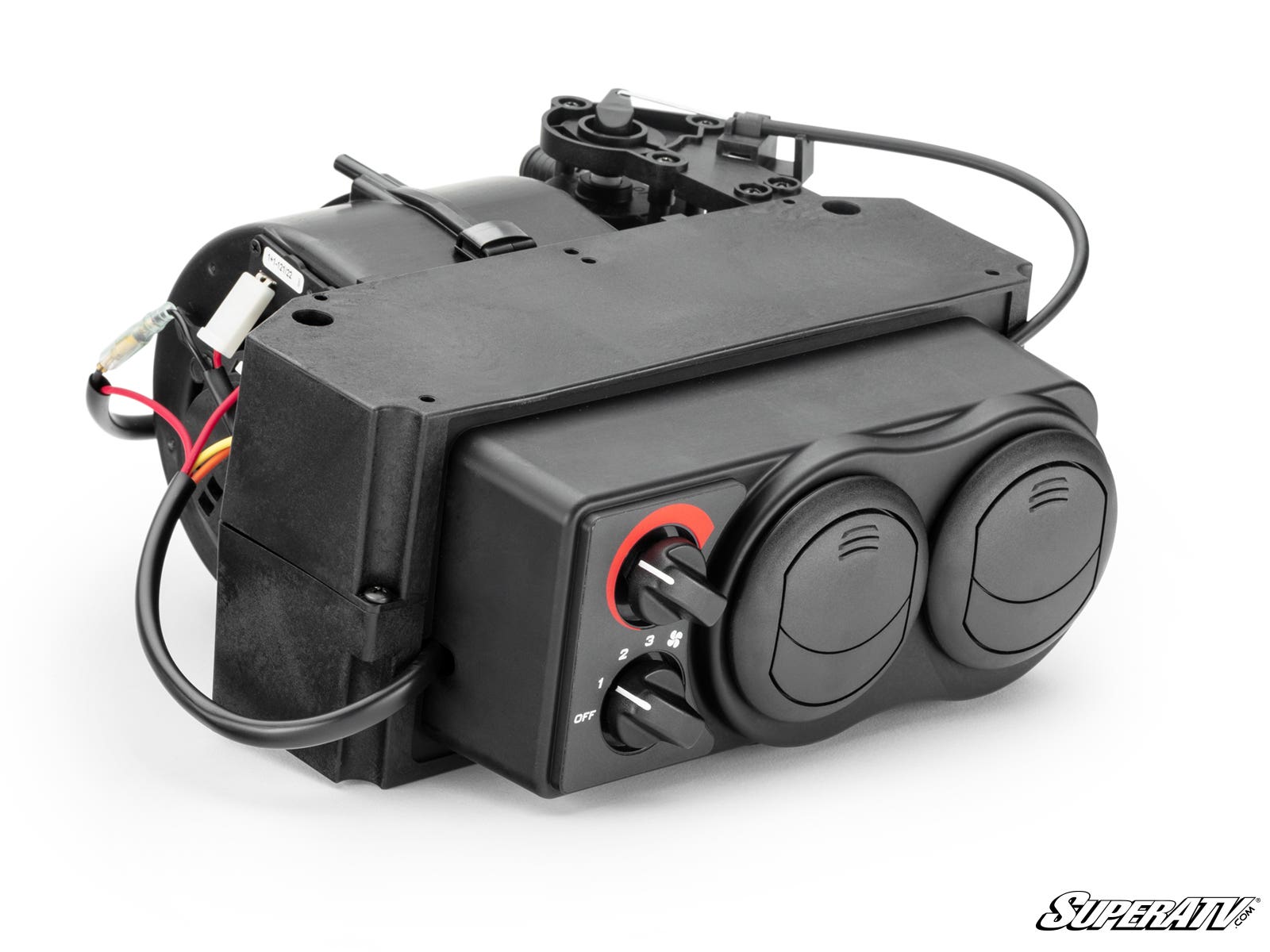

- Heater control box measures 10" x 4.5" x 11.75"

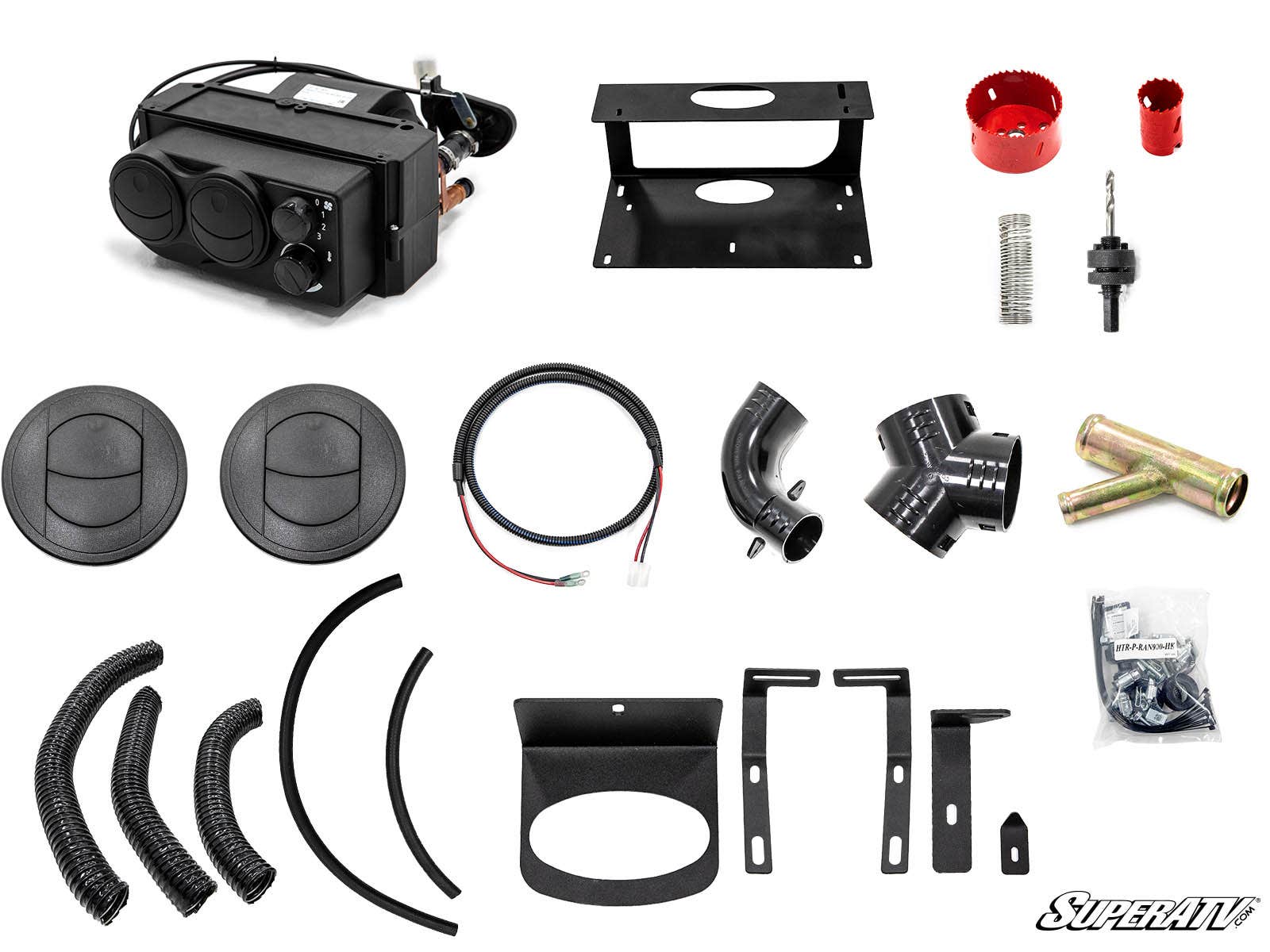

- Includes hoses, drill bits and Ranger-specific mounting plates
- Optional second-row heater for the Ranger Crew XP 1000, with its own temperature and fan controls
- Optional grille cover that SuperATV says boosts heat output by 41%
- Optional quick-start flow valve and idle flow pump
Built To Solve: A Cold Cab on the Polaris Ranger XP 1000
- Cold winter rides and chores that cut the season short
- Snow, ice and fog on the windshield
- Back-seat passengers left out of the heat in the Ranger Crew XP 1000
- Slow warm-up on cold mornings, solved with the optional flow valve and idle pump
Best For: Ranger XP 1000 Owners Who Ride and Work Through Winter
- Farm, ranch and property owners who use the Ranger XP 1000 year-round
- Hunters heading out on cold mornings
- Snow plow operators who need a clear windshield
- Owners with a windshield, roof and doors installed
- Crew XP 1000 owners carrying back-seat passengers
Specifications
- Heat source: engine coolant

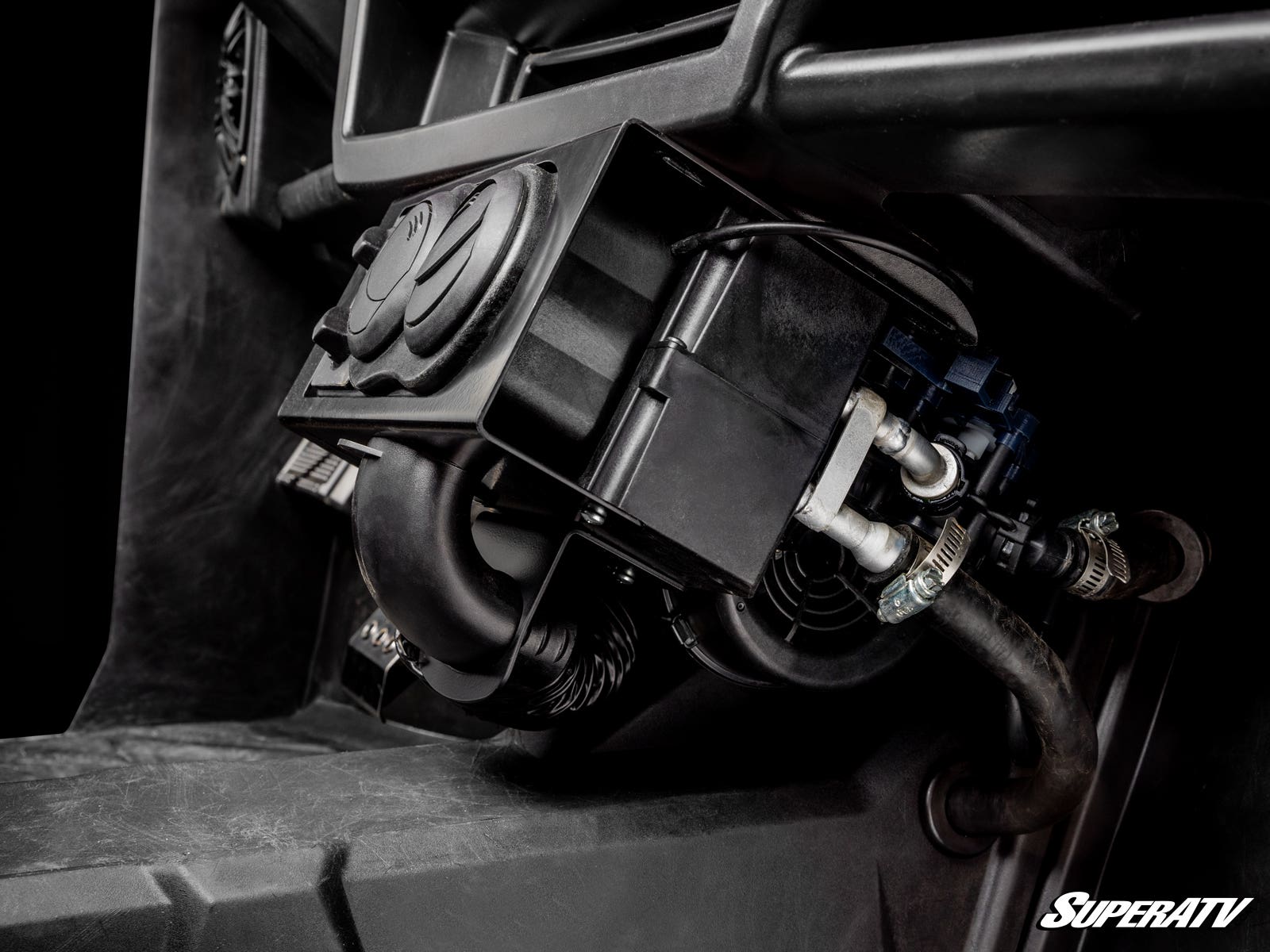

- Mounting: under the dash, between the driver and passenger
- Output: capable of 14,600 BTU at 135 CFM
- Current draw: 3.4 amps at 13.7 volts
- Heater control box: 10" x 4.5" x 11.75"
- Hose rating: -40°F to 285°F
- Wiring: uses the Ranger's own key-on and busbar terminals
- Manufacturer Part Number: HTR-P-RAN1K, HTR-P-RAN900, HTR-P-RAN1K4
Fitment
Fits the following Polaris Ranger models:
- Polaris Ranger XP 1000: 2017+
- Polaris Ranger XP 1000 Crew: 2017+
- Polaris Ranger XP 1000 Back Country Edition and Crew: 2019
- Polaris Ranger XP 1000 High Lifter Edition and Crew: 2019+
- Polaris Ranger XP 1000 Texas Edition and Crew: 2020+
- Polaris Ranger XP 1000 Big Game Edition and Crew: 2021+
- Polaris Ranger XP 1000 Trail Boss and Crew: 2021+
- Polaris Ranger XP 1000 Waterfowl Edition and Crew: 2021+
Not compatible with the Polaris Tip-Out Full Glass Windshield (OEM Part # 2889020). Pick the Model & Year option that matches your machine. The grille cover option is offered on 2018+ Standard and 2019+ Crew models only. Rear (2nd Row) packages are for crew-cab models only. Fitment is not guaranteed on models not listed.
FAQ
How much heat does this Ranger XP 1000 cab heater put out?
SuperATV rates the heater as capable of 14,600 BTU at 135 CFM. It draws heat from the engine coolant, like a car heater, so it keeps putting out hot air as long as the engine runs.
Does it defrost the windshield?
Yes. The kit includes defrost vents and hoses that route through the dash to keep the windshield clear of snow, ice and fog.
Which Ranger XP 1000 models does it fit?
SuperATV lists Polaris Ranger XP 1000: 2017+; Polaris Ranger XP 1000 Crew: 2017+; Polaris Ranger XP 1000 Back Country Edition and Crew: 2019; Polaris Ranger XP 1000 High Lifter Edition and Crew: 2019+; Polaris Ranger XP 1000 Texas Edition and Crew: 2020+; Polaris Ranger XP 1000 Big Game Edition and Crew: 2021+; Polaris Ranger XP 1000 Trail Boss and Crew: 2021+; Polaris Ranger XP 1000 Waterfowl Edition and Crew: 2021+. Not compatible with the Polaris Tip-Out Full Glass Windshield (OEM Part # 2889020). Pick the Model & Year option that matches your machine. The grille cover option is offered on 2018+ Standard and 2019+ Crew models only.
Is drilling required?
Yes. Installation requires drilling through plastic and the firewall, and SuperATV includes the bits you need.
What does the second-row heater add?
The second-row heater warms the back seat of the Ranger Crew XP 1000 with its own adjustable temperature and fan speeds. Choose the Rear (2nd Row) package to add it to a front heater you already have, or Front and Rear (2nd Row) to get both.
What does the grille cover do?
The grille cover blocks airflow through the radiator so the coolant stays warmer. SuperATV says it boosts the cab heater output by 41%, raising temperatures by an average of 26 degrees. Use it only in freezing weather.
Quick-start flow valve or idle flow pump: which one do I need?
The quick-start flow valve sends all engine coolant to the heater core at low engine temps and cuts warm-up time roughly in half, then opens on its own once the engine is warm. The idle flow pump actively circulates coolant so you get heat in about 30 seconds, even at idle or slow speeds. SuperATV recommends combining them for the fastest heat.
Install Video
Watch SuperATV's official install walkthrough: How to install the SuperATV cab heater in a Polaris Ranger.
Why SuperATV
SuperATV builds this heater kit around the Ranger XP 1000: the kit uses the Ranger's key-on and busbar terminals for simple wiring and ships with hoses, drill bits, Ranger-specific mounting plates and instructions. The heater is backed by SuperATV's 1-year limited warranty against manufacturing defects to the original purchaser.
Make Your Ranger XP 1000 a Year-Round Machine
Confirm your Ranger XP 1000 model in the fitment list, choose your heater package, and pair it with a windshield, roof and doors to seal the cab.
