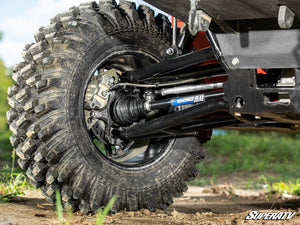

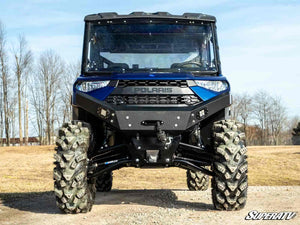

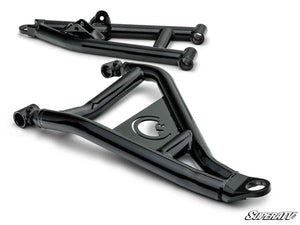

SuperATV Polaris Ranger XP 1000 Atlas Pro 2" Forward Offset A-Arms give your Polaris Ranger XP 1000 a 2-inch forward offset and 1.5 inches of extra ground clearance. Built from 1.5-inch x .138-inch wall DOM tubing that is stronger than the stock arms, they make room for up to 33-inch tires, and a UV-resistant powder coat finish keeps them looking good after hard rides on trails, farm roads and washouts.
Choose a preinstalled ball joint option and SuperATV presses the joints in before the arms ship, or reuse your existing ball joints. The adjustable 24 mm pivot blocks let you dial in camber after adding a lift or bigger tires.
If you are shopping for polaris ranger xp 1000 forward a arms, this SuperATV Atlas Pro set is built specifically for the Polaris Ranger XP 1000 models listed below. It is also the right match if you searched for 2021 polaris ranger xp 1000 forward a arms, atlas pro a arms.
Key Features
- Adds 2" of forward offset
- Fits up to 33" tires

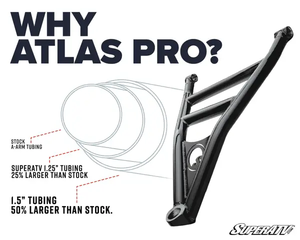

- Made with 1.5" x .138" wall steel DOM tubing
- 0.5" larger than stock
- 0.25" larger than SuperATV's standard High-Clearance 2" Forward Offset A-Arms
- Adjustable 24 mm pivot blocks for full camber adjustability
- Does not include bushings - compatible with OEM or SuperATV bushings
- UV-resistant powder coat finish
- Backed by a lifetime warranty
- Optional preinstalled Super Duty 300M, Heavy-Duty 4340 Chromoly, Standard Duty or Keller Performance ball joints (choose Reuse Existing to keep your current ball joints)
- Heavy-duty tie rods included where listed under Included in the specifications below
Built To Solve: Stock Arms Holding Your Ranger XP 1000 Back
- Stock arms that leave no room for bigger tires
- Low-hanging arms that catch rocks, stumps and ruts
- Thin stock tubing that bends on hard hits
- Camber that drifts out of spec after a lift or bigger tires
Best For: Polaris Ranger XP 1000 Owners
- Polaris Ranger XP 1000 owners (2017+)
- XP 1000 owners stepping up to 33-inch tires
- Riders who want a lifetime warranty on their suspension arms
Specifications
- Offset: 2-inch forward
- Added ground clearance: 1.5 inches
- Maximum tire size: 33-inch tires
- Tubing: 1.5-inch x .138-inch wall DOM steel
- Camber adjustment: adjustable 24 mm pivot blocks
- Bushings: not included
- Finish: UV-resistant powder coat
- Warranty: lifetime warranty on the A-arms against manufacturing defects to the original purchaser; ball joints and tie rod ends are wear items and are not covered by the lifetime warranty
- Manufacturer part numbers: each of the 116 configurations carries its own SuperATV part number, shown as the SKU when you select your options
- Included: 2-inch forward offset Atlas Pro A-arms and steering stops; most configurations also include a heavy-duty solid steel tie rod assembly, and select early configurations add two Rhino axles. Ball joints are sold separately unless you choose a preinstalled ball joint option. Anything not listed here, such as axles or tie rods unless noted, is not included.
- Installation instructions: AA-P-RAN1K2-001 (PDF), AA-P-RAN1KOHC-001 (PDF), AA-P-RAN9-OHC (PDF), AA-P-RAN9-OHCHL (PDF), AA-P-RAN1KOHC-004 (PDF)
Fitment
- Polaris Ranger XP 1000 (2017+)
- Polaris Ranger XP 1000 Crew (2017+)
- Polaris Ranger XP 1000 Back Country (2019)
- Polaris Ranger XP 1000 Back Country Crew (2019)
- Polaris Ranger XP 1000 Big Game (2021+)
- Polaris Ranger XP 1000 Big Game Crew (2021+)
- Polaris Ranger XP 1000 High Lifter (2017+)
- Polaris Ranger XP 1000 High Lifter Crew (2017+)
- Polaris Ranger XP 1000 NorthStar (2017+)
- Polaris Ranger XP 1000 NorthStar Crew (2017+)
- Polaris Ranger XP 1000 Texas (2020+)
- Polaris Ranger XP 1000 Texas Crew (2020+)
- Polaris Ranger XP 1000 Trail Boss (2021+)
- Polaris Ranger XP 1000 Trail Boss Crew (2021+)
- Polaris Ranger XP 1000 Waterfowl (2021+)
- Polaris Ranger XP 1000 Waterfowl Crew (2021+)
Pick your edition, cab and year from the options so you get the correct arm set.
SuperATV lists these applications by model and year. Fitment is not guaranteed on models or years not listed above; confirm your exact model before ordering.
FAQ
Which machines does this fit?
The Polaris Ranger XP 1000 models and years listed in the fitment section above (2017+). Confirm your exact model before ordering.
What tire size will these A-arms clear?
Up to 33-inch tires, per SuperATV.
What does the offset do?
The 2-inch forward offset moves the wheel forward, which lengthens the wheelbase for stability and opens up room for larger tires.
Are bushings included?
No. Bushings are not included, so plan to reuse your OEM bushings or order new ones.
Do they come with ball joints?
Only if you select a preinstalled ball joint option. Choose Reuse Existing to press in your current ball joints yourself.
Are tie rods included?
Most configurations include a heavy-duty solid steel tie rod assembly, and select early configurations also include two Rhino axles. Contact us with your year, cab and edition before ordering if you need to confirm what ships with your configuration.
