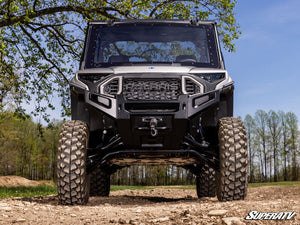

SuperATV Polaris Ranger XD 1500 Atlas Pro 1" Forward Offset A-Arms give your Polaris Ranger XD 1500 a 1-inch forward offset. Built from 1.5-inch x .25-inch wall DOM tubing that is stronger than the stock arms, they make room for up to 34-inch tires, and a UV-resistant powder coat finish keeps them looking good after hard rides on trails, farm roads and washouts.
Choose a preinstalled ball joint option and SuperATV presses the joints in before the arms ship, or reuse your existing ball joints. The adjustable pivot blocks let you dial in camber after adding a lift or bigger tires.
This SuperATV Atlas Pro set is built specifically for the Polaris Ranger XD 1500 models listed below, so the geometry matches your machine.
Key Features
- Adds 1" of forward offset
- Fits up to 34" tires
- Made with 1.5" x .25" wall steel DOM tubing
- 0.5" larger than stock
- Adjustable pivot blocks for full camber adjustability
- UHMW bushings included
- UV-resistant powder coat finish
- Backed by a lifetime warranty
- Optional preinstalled Super Duty 300M, Heavy-Duty 4340 Chromoly or Keller Performance ball joints (choose Reuse Existing to keep your current ball joints)
Built To Solve: Stock Arms Holding Your Ranger XD 1500 Back
- Stock arms that leave no room for bigger tires
- Low-hanging arms that catch rocks, stumps and ruts
- Thin stock tubing that bends on hard hits
- Camber that drifts out of spec after a lift or bigger tires
Best For: Polaris Ranger XD 1500 Owners
- Polaris Ranger XD 1500 owners (2024+)
- Work and hunting rigs running 34-inch tires
- Riders who want a lifetime warranty on their suspension arms
Specifications
- Offset: 1-inch forward
- Maximum tire size: 34-inch tires
- Tubing: 1.5-inch x .25-inch wall DOM steel
- Camber adjustment: adjustable pivot blocks
- Bushings: UHMW bushings included
- Finish: UV-resistant powder coat
- Warranty: lifetime warranty on the A-arms against manufacturing defects to the original purchaser; ball joints and tie rod ends are wear items and are not covered by the lifetime warranty
- Manufacturer Part Number (Reuse Existing): AA-P-RANXD-OHC-02
- Manufacturer Part Number (Heavy-Duty 4340 Chromoly): AA-P-RANXD-OHC-BH-02
- Manufacturer Part Number (Super Duty 300M): AA-P-RANXD-OHC-BSD-02
- Manufacturer Part Number (Keller Performance): AA-P-RANXD-OHC-BK-02
- Included: upper and lower front A-arms for both sides with UHMW bushings. Ball joints are sold separately unless you choose a preinstalled ball joint option. Anything not listed here, such as axles or tie rods unless noted, is not included.
Fitment
- Polaris Ranger XD 1500 Premium (2024+)
- Polaris Ranger XD 1500 NorthStar Premium (2024+)
- Polaris Ranger XD 1500 NorthStar Ultimate (2024+)
- Polaris Ranger Crew XD 1500 Premium (2024+)
- Polaris Ranger Crew XD 1500 NorthStar Premium (2024+)
- Polaris Ranger Crew XD 1500 NorthStar Ultimate (2024+)
SuperATV lists these applications by model and year. Fitment is not guaranteed on models or years not listed above; confirm your exact model before ordering.
FAQ
Which machines does this fit?
The Polaris Ranger XD 1500 models and years listed in the fitment section above (2024+). Confirm your exact model before ordering.
What tire size will these A-arms clear?
Up to 34-inch tires, per SuperATV.
What does the offset do?
The 1-inch forward offset moves the wheel forward, which lengthens the wheelbase for stability and opens up room for larger tires.
Are bushings included?
Yes. Self-lubricating UHMW bushings are included at no extra cost.
Do they come with ball joints?
Only if you select a preinstalled ball joint option. Choose Reuse Existing to press in your current ball joints yourself.
Can I adjust camber?
Yes. The adjustable pivot blocks let you set camber, and SuperATV presets them to stock specs.
Why SuperATV
SuperATV designs and tests its A-arms in-house, publishes model-specific install instructions and backs the arms with a lifetime warranty against manufacturing defects. Dunes 2 Dezert SXS ships SuperATV suspension parts nationwide.
