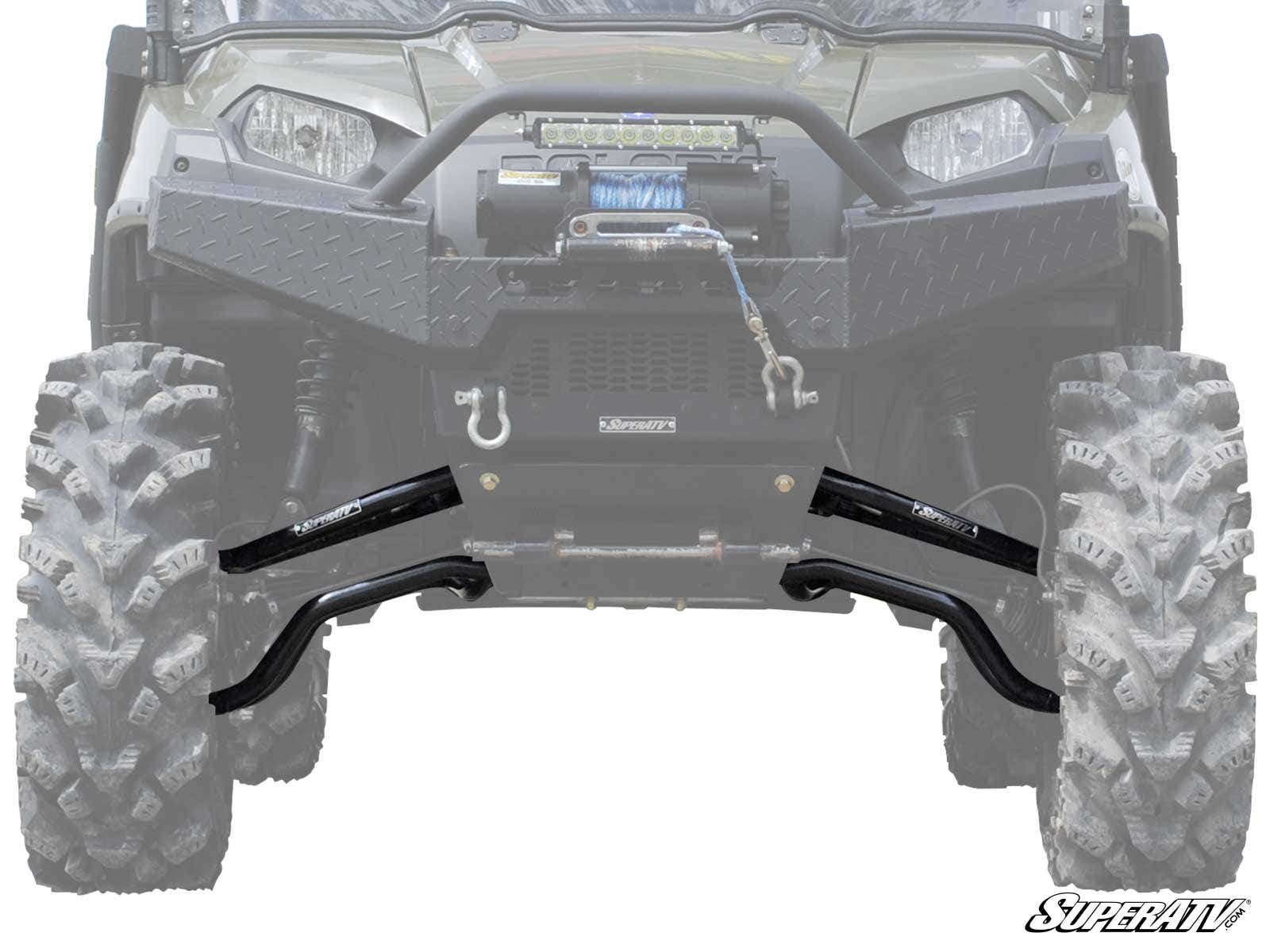

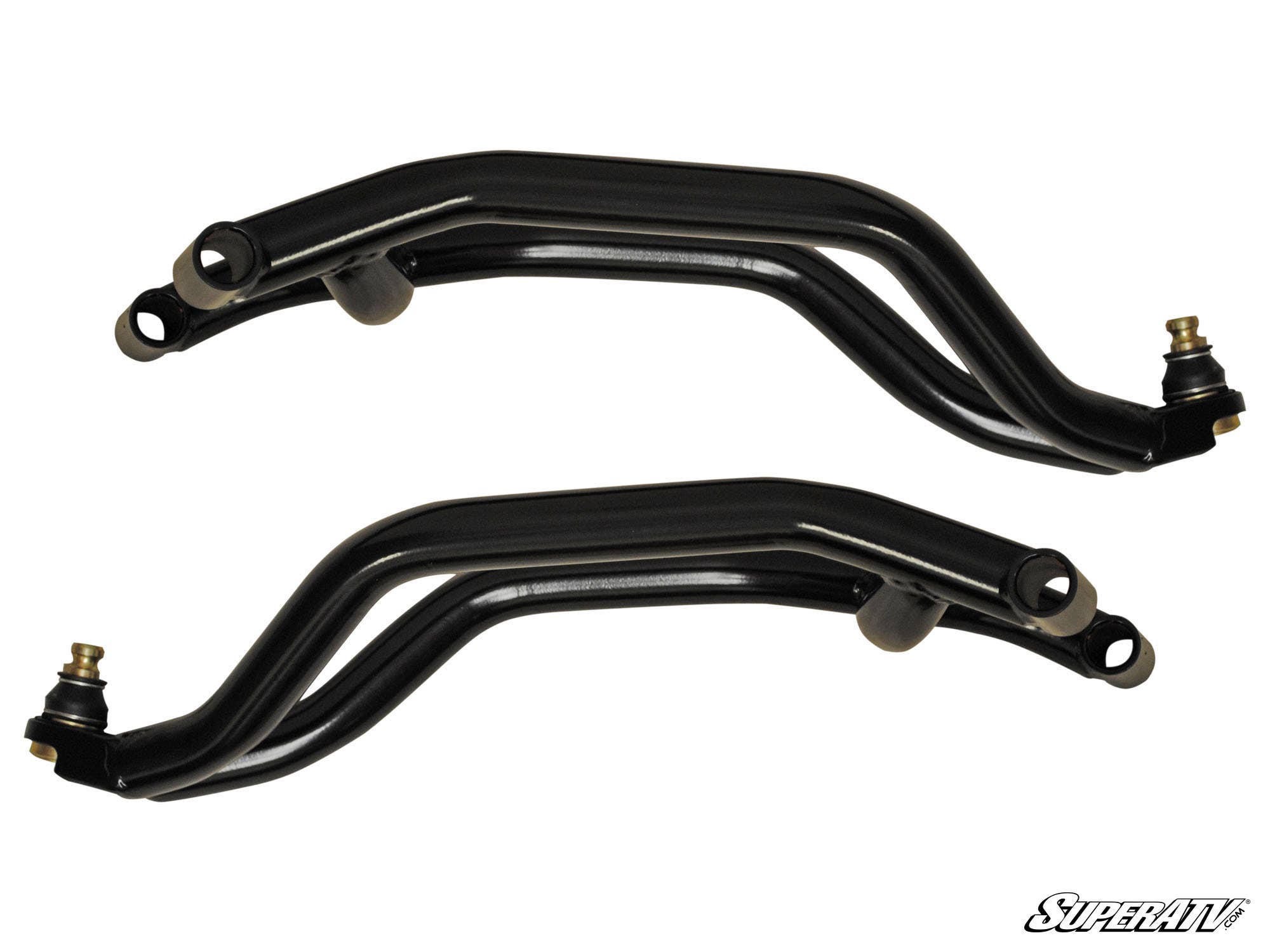

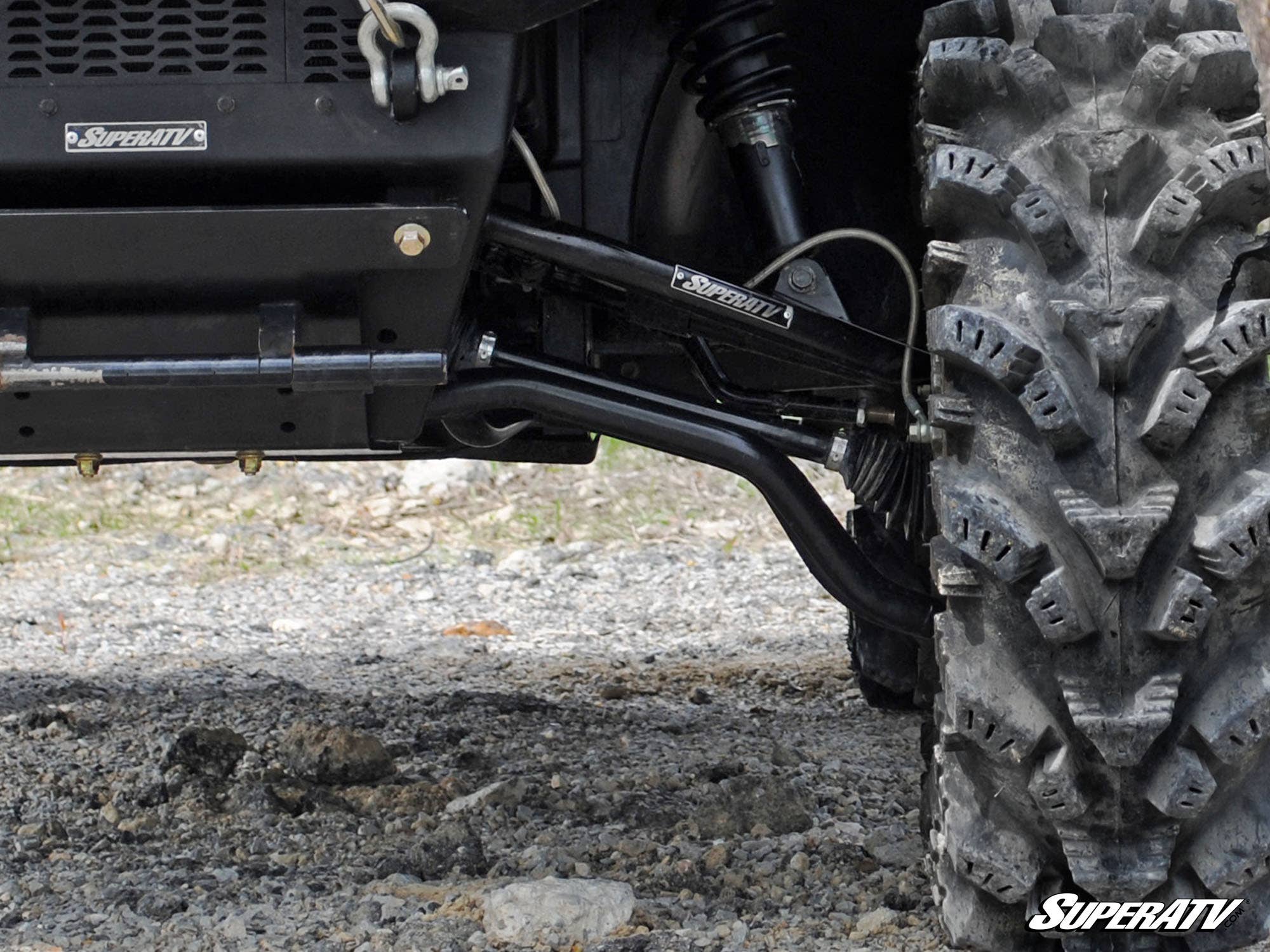

SuperATV Polaris Ranger 900 Diesel High Clearance 1" Forward Offset A-Arms give your Polaris Ranger 900 Diesel a 1-inch forward offset. Built from 1.25-inch tubing that is stronger than the stock arms, they make room for up to 28-inch tires, and a UV-resistant powder coat finish keeps them looking good after hard rides on trails, farm roads and washouts.
Choose a preinstalled ball joint option and SuperATV presses the joints in before the arms ship, or reuse your existing ball joints. The adjustable upper pivot block lets you dial in camber after adding a lift or bigger tires.
This SuperATV High-Clearance set is built specifically for the Polaris Ranger 900 Diesel models listed below, so the geometry matches your machine.
Key Features
- Adds 1" of forward offset
- Fits up to 28" tires
- 1.25" tubing is 25% larger than stock
- Adjustable upper pivot block for full camber adjustability
- UV-resistant powder coat finish
- Backed by a lifetime warranty
- Optional preinstalled Super Duty 300M, Heavy-Duty 4340 Chromoly, Standard Duty or Keller Performance ball joints (choose Reuse Existing to keep your current ball joints)
Built To Solve: Stock Arms Holding Your Ranger 900 Diesel Back
- Stock arms that leave no room for bigger tires
- Low-hanging arms that catch rocks, stumps and ruts
- Thin stock tubing that bends on hard hits
- Camber that drifts out of spec after a lift or bigger tires
Best For: Polaris Ranger 900 Diesel Owners
- Polaris Ranger 900 Diesel owners (2011-2014)
- 900 Diesel work machines
- Riders who want a lifetime warranty on their suspension arms
Specifications
- Offset: 1-inch forward
- Maximum tire size: 28-inch tires
- Tubing: 1.25-inch steel
- Camber adjustment: adjustable upper pivot block
- Finish: UV-resistant powder coat
- Warranty: lifetime warranty on the A-arms against manufacturing defects to the original purchaser; ball joints and tie rod ends are wear items and are not covered by the lifetime warranty
- Manufacturer Part Number (Super Duty 300M): AA-P-RAN-09XP-HC-BSD-02#RD
- Manufacturer Part Number (Heavy-Duty 4340 Chromoly): AA-P-RAN-09XP-HC-BH-02#RD
- Manufacturer Part Number (Standard Duty): AA-P-RAN-09XP-HC-BS-02#RD
- Manufacturer Part Number (Reuse Existing): AA-P-RAN-09XP-HC-02#RND
- Manufacturer Part Number (Keller Performance): AA-P-RAN-09XP-HC-BK-02#RD

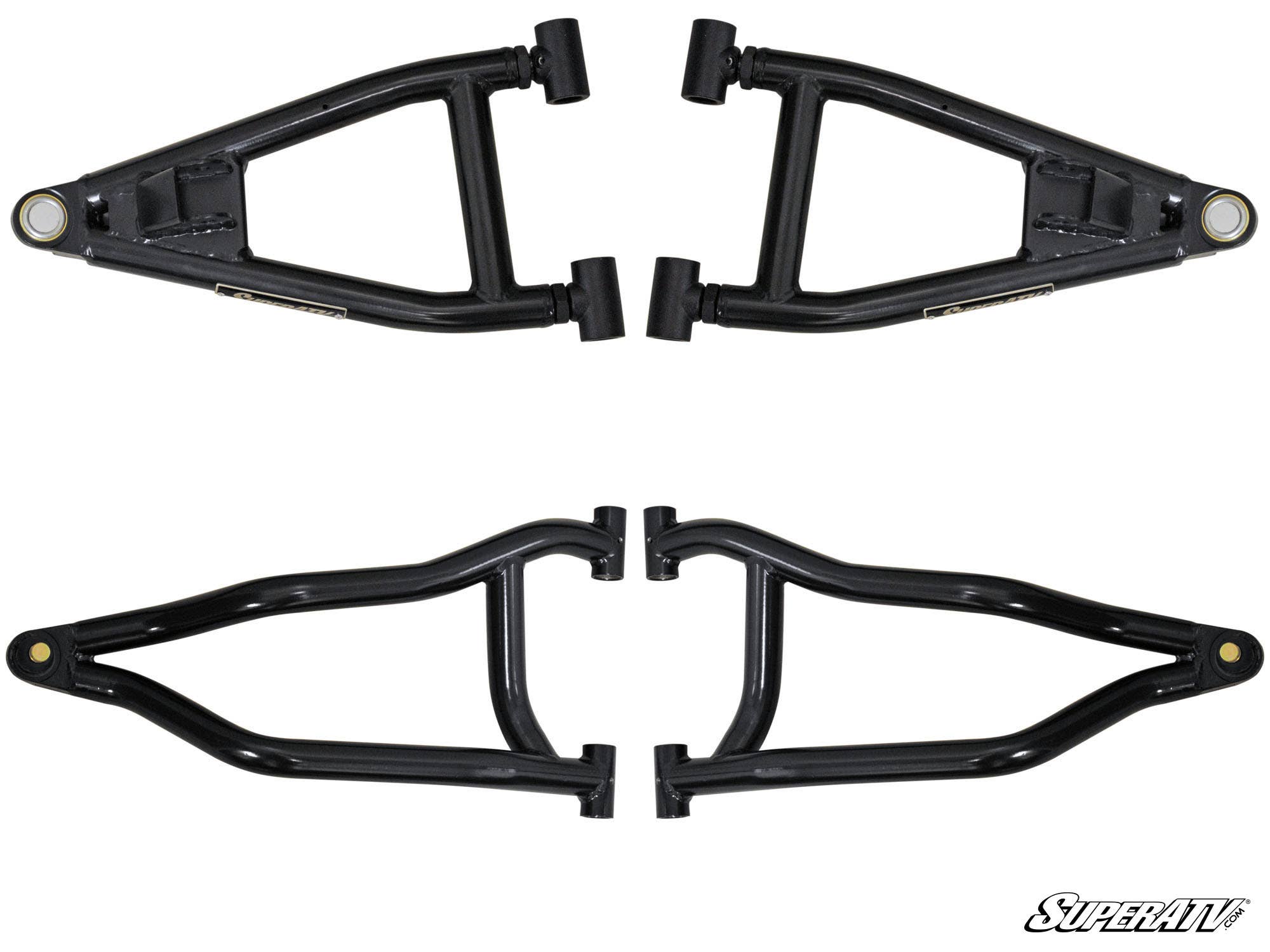

- Included: upper and lower front A-arms for both sides. Ball joints are sold separately unless you choose a preinstalled ball joint option. Anything not listed here, such as axles or tie rods unless noted, is not included.
Fitment
- Polaris Ranger 900 Diesel (2011-2014)
- Polaris Ranger 900 Diesel Crew (2012-2014)
SuperATV lists these applications by model and year. Fitment is not guaranteed on models or years not listed above; confirm your exact model before ordering.
FAQ
Which machines does this fit?
The Polaris Ranger 900 Diesel models and years listed in the fitment section above (2011-2014). Confirm your exact model before ordering.
What tire size will these A-arms clear?
Up to 28-inch tires, per SuperATV.
What does the offset do?
The 1-inch forward offset moves the wheel forward, which lengthens the wheelbase for stability and opens up room for larger tires.
Do they come with ball joints?
Only if you select a preinstalled ball joint option. Choose Reuse Existing to press in your current ball joints yourself.
Can I adjust camber?
Yes. The adjustable upper pivot block lets you set camber, and SuperATV presets them to stock specs.
What warranty do they carry?
SuperATV backs the A-arms with a lifetime warranty against manufacturing defects to the original purchaser. Ball joints and tie rod ends are wear items and are not covered by the lifetime warranty.
Why SuperATV
SuperATV designs and tests its A-arms in-house, publishes model-specific install instructions and backs the arms with a lifetime warranty against manufacturing defects. Dunes 2 Dezert SXS ships SuperATV suspension parts nationwide.
Upgrade Your Ranger 900 Diesel Suspension
Confirm your Polaris Ranger 900 Diesel model and year above, choose your options and add the A-arms to your cart.
