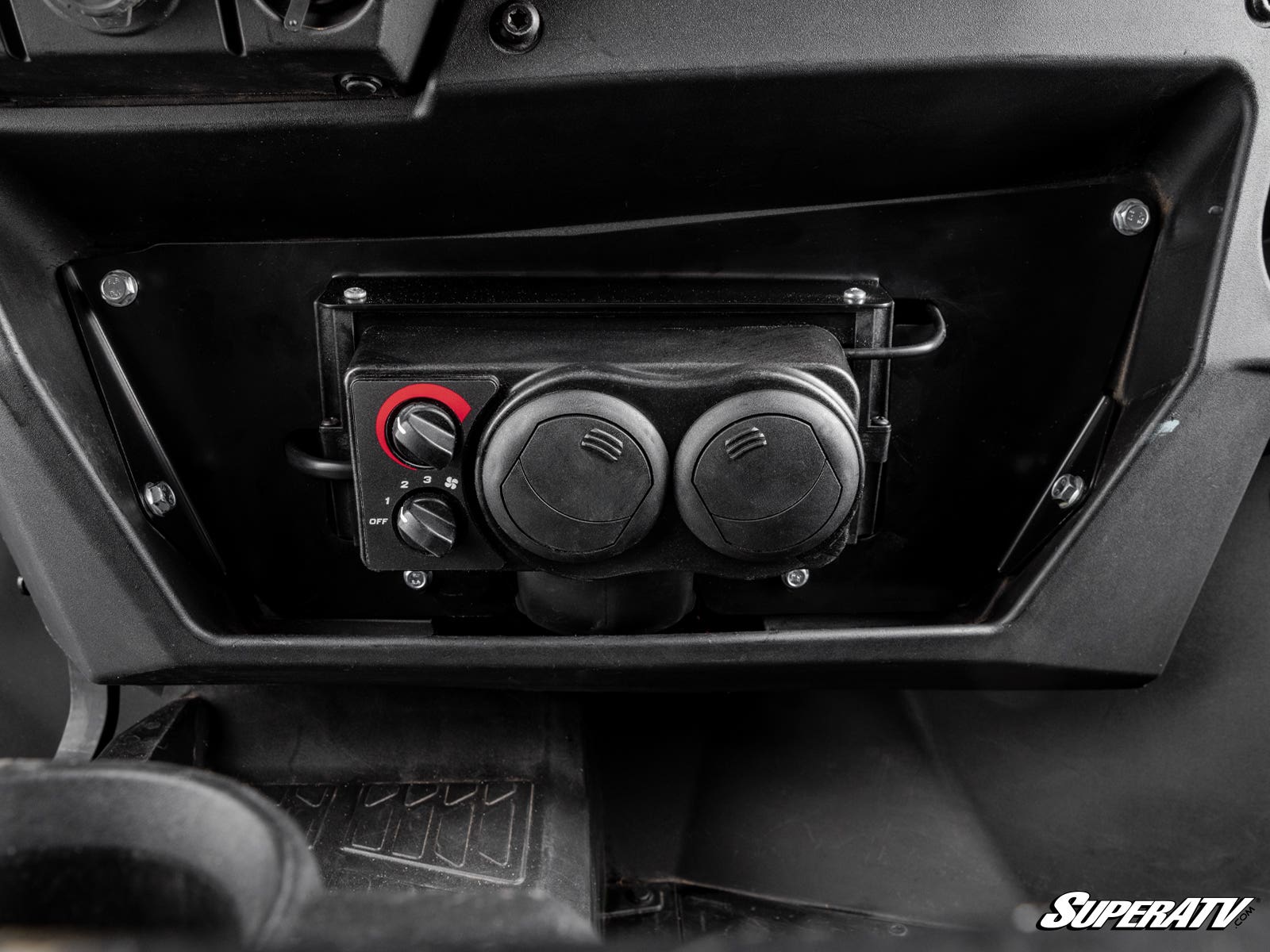

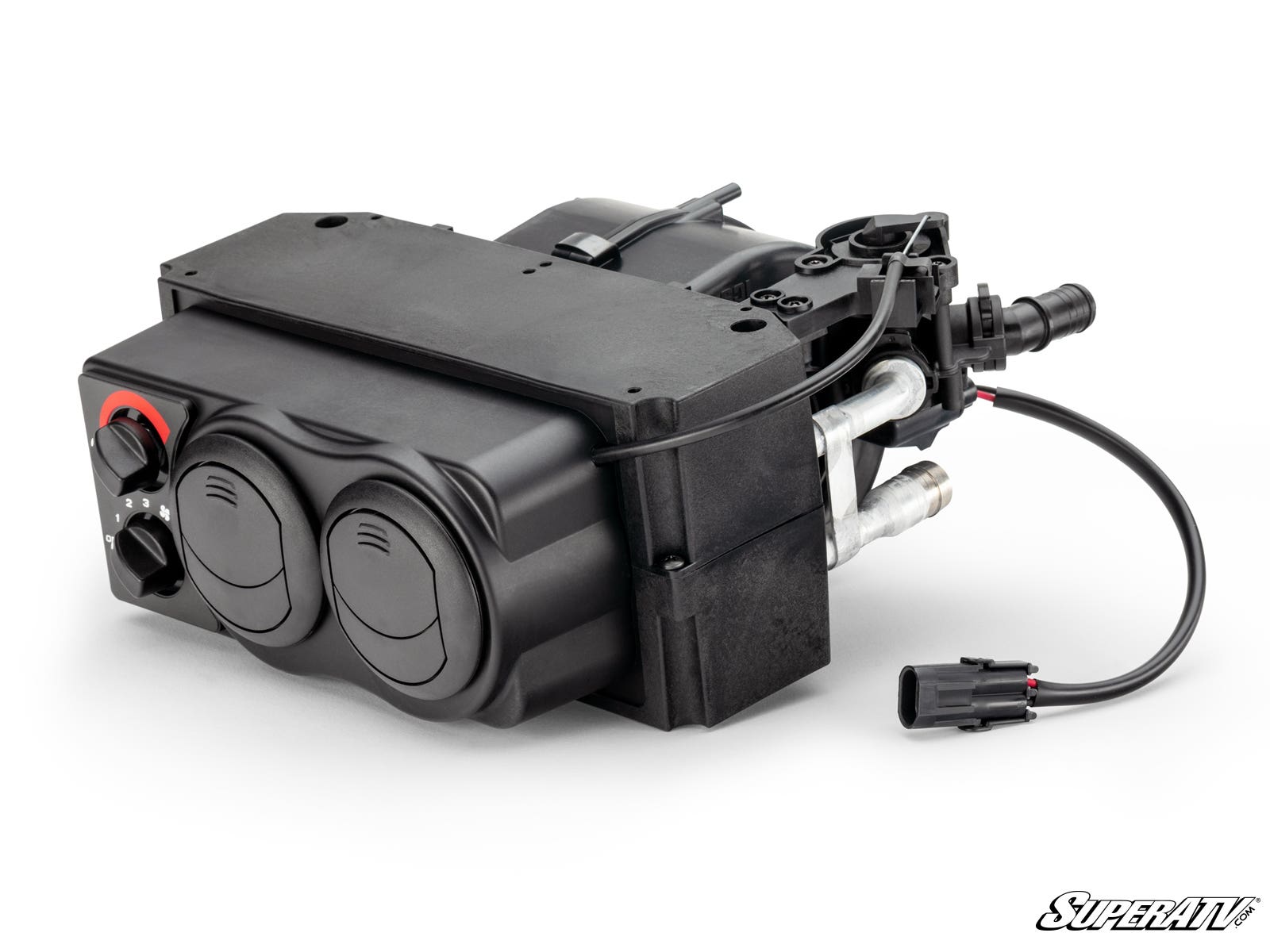

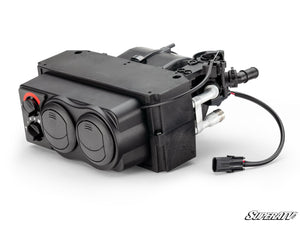

The SuperATV Polaris Ranger 1000 cab heater draws heat from the engine coolant lines to warm your cab like a car heater. It mounts under the dash between the seats, out of the way of the driver and passenger, with adjustable temperature and fan speeds and defrost vents to keep the windshield clear.
Choose a front heater, a second-row heater for the Ranger Crew 1000, or both. Add a quick-start flow valve or idle flow pump for faster heat.
Key Features

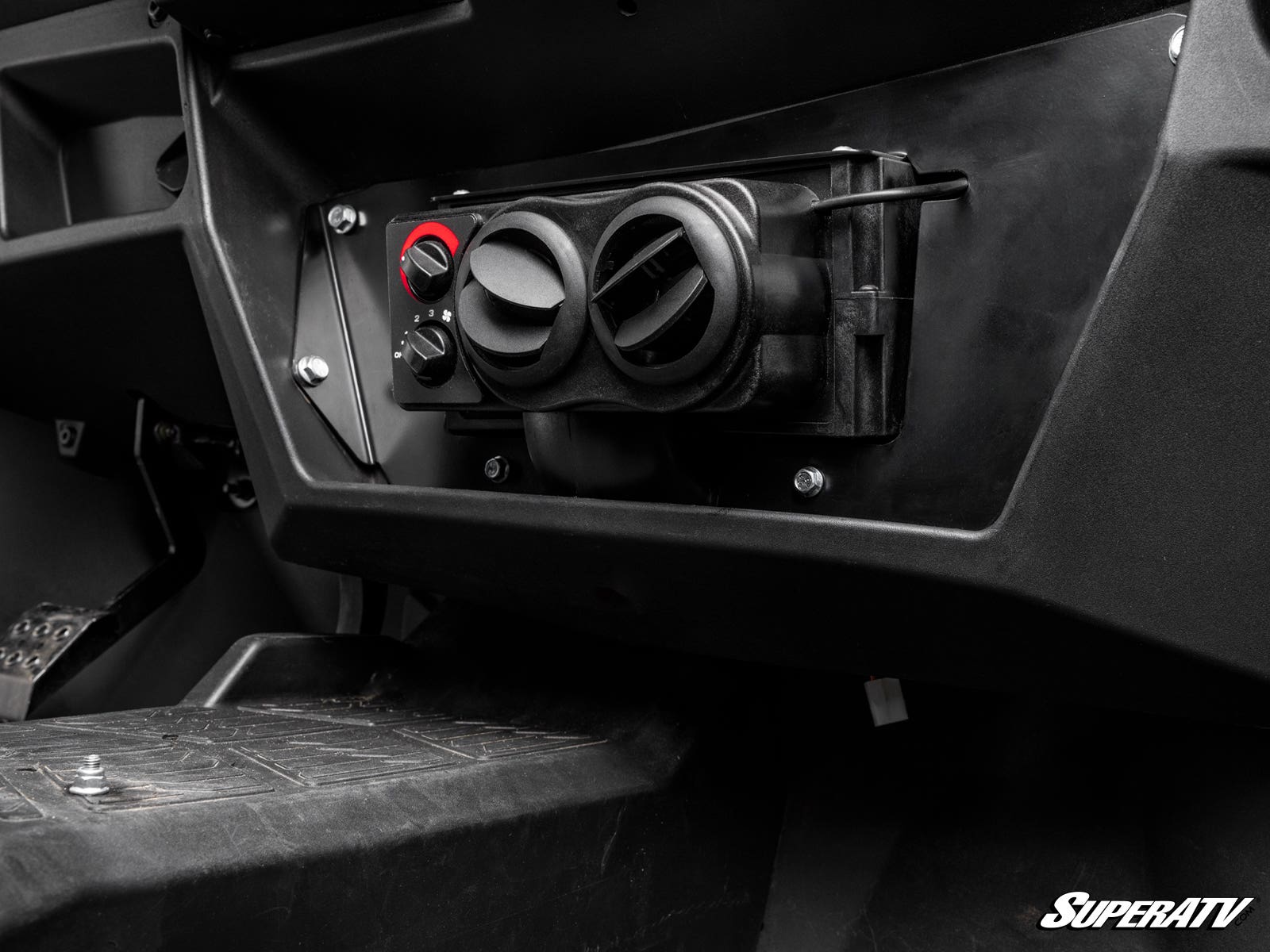

- Mounts under the dash between the seats
- Capable of 14,600 BTU at 135 CFM

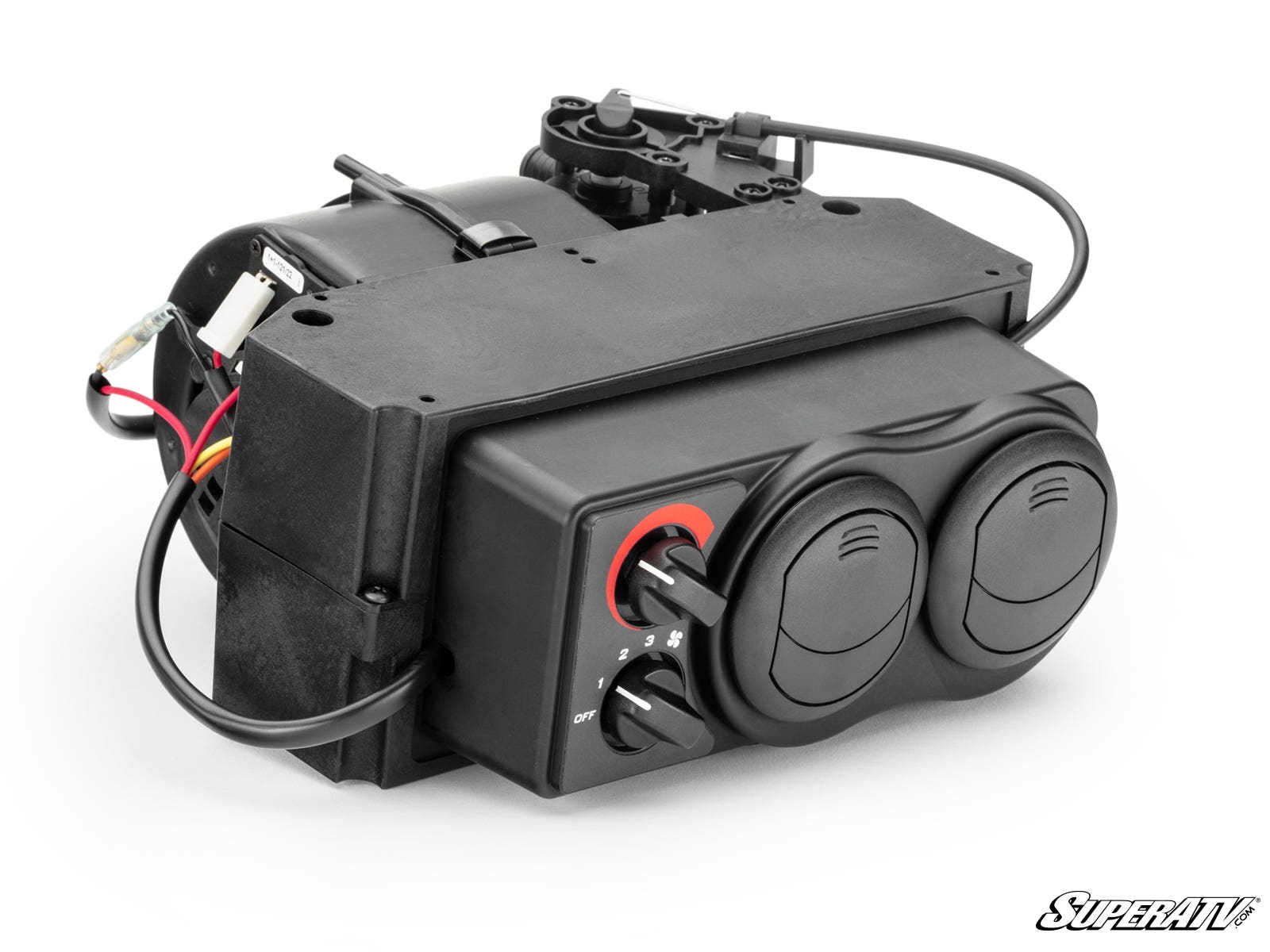

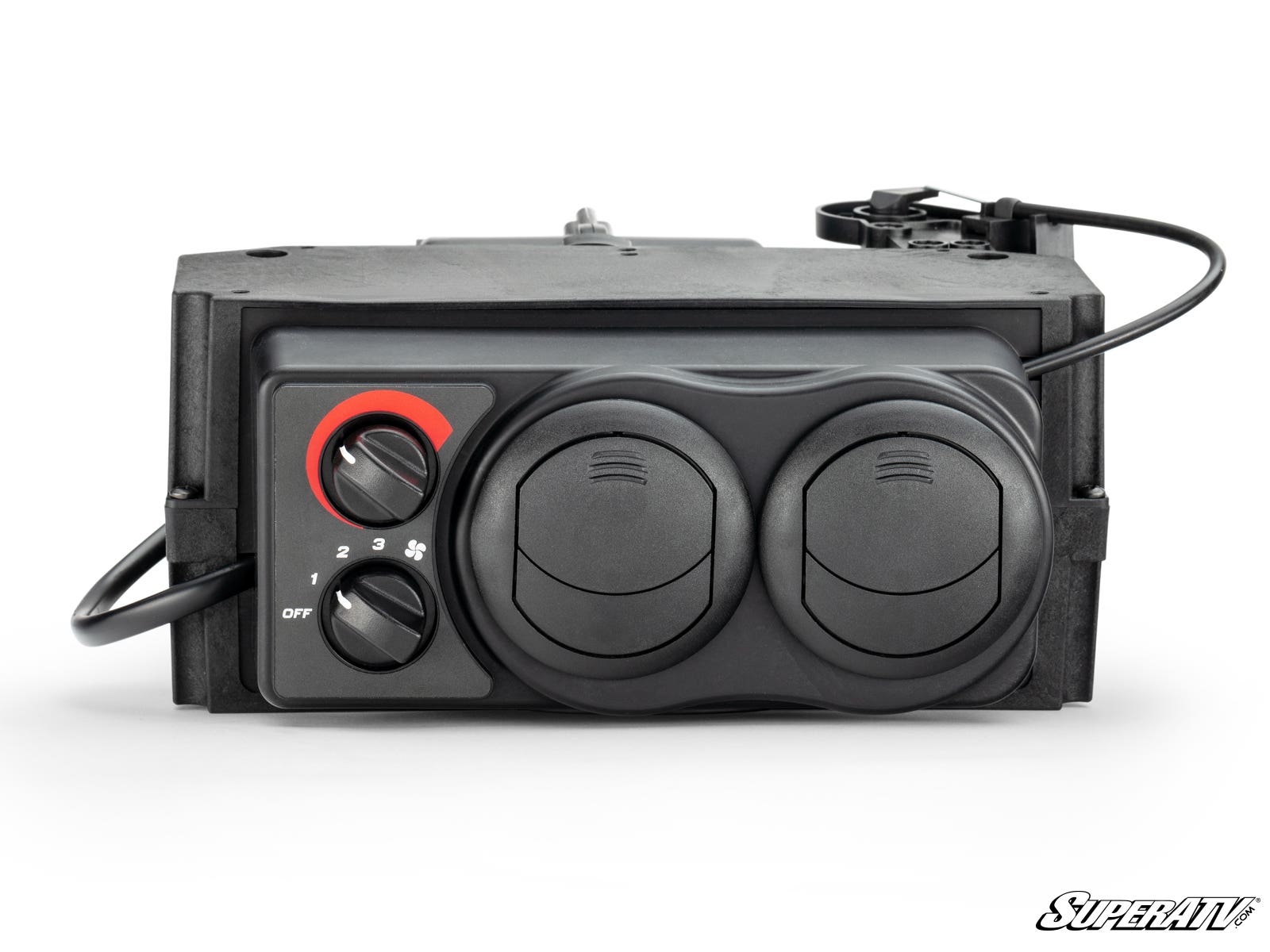

- Adjustable temperature and fan speeds
- 360° adjustable vents

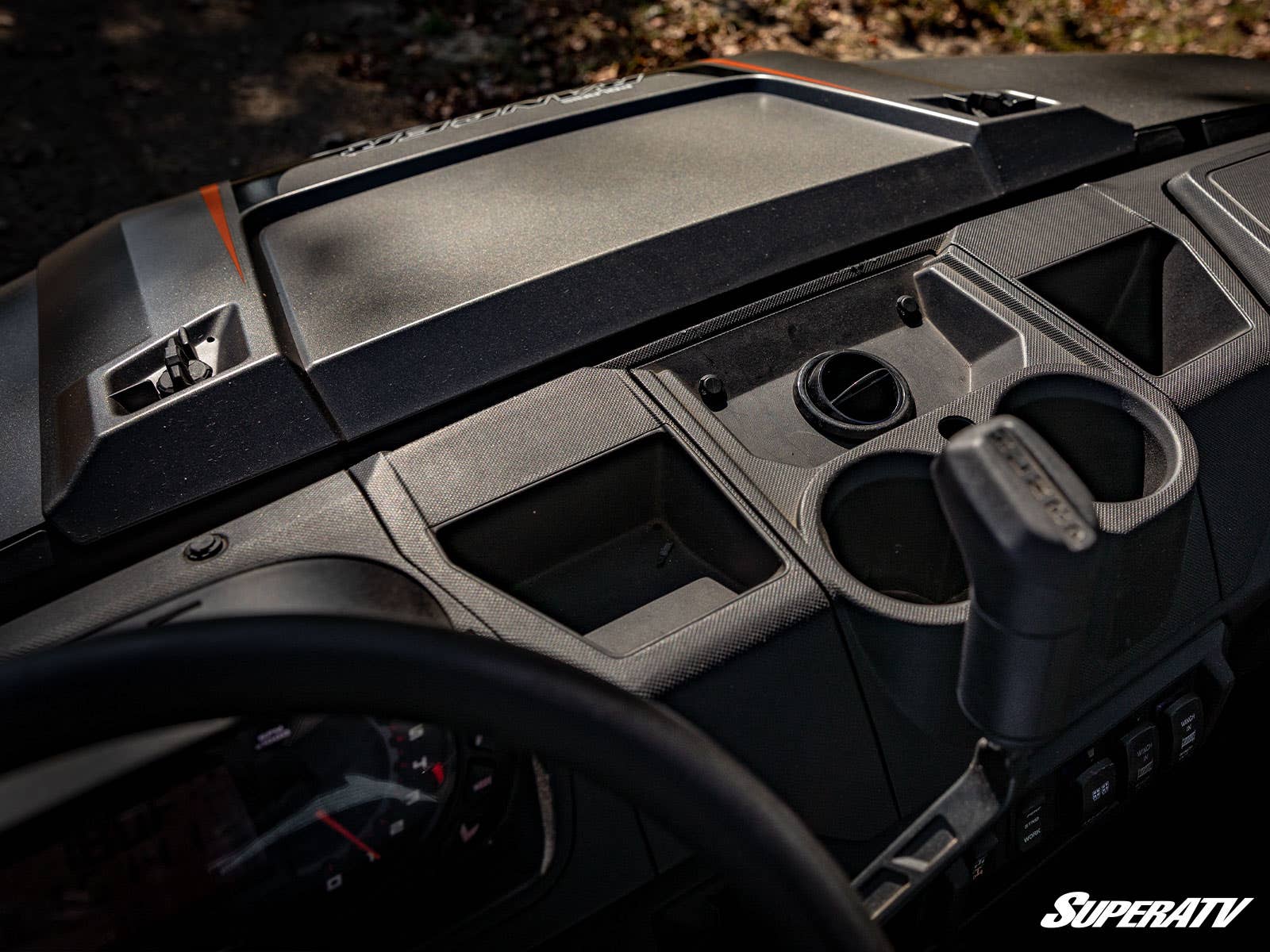

- Defrost hoses and vents included, routed through the dash
- High-grade radiator hoses rated from -40°F to 285°F
- Built-in shutoff valve
- Heater control box measures 10" x 4.5" x 11.75"

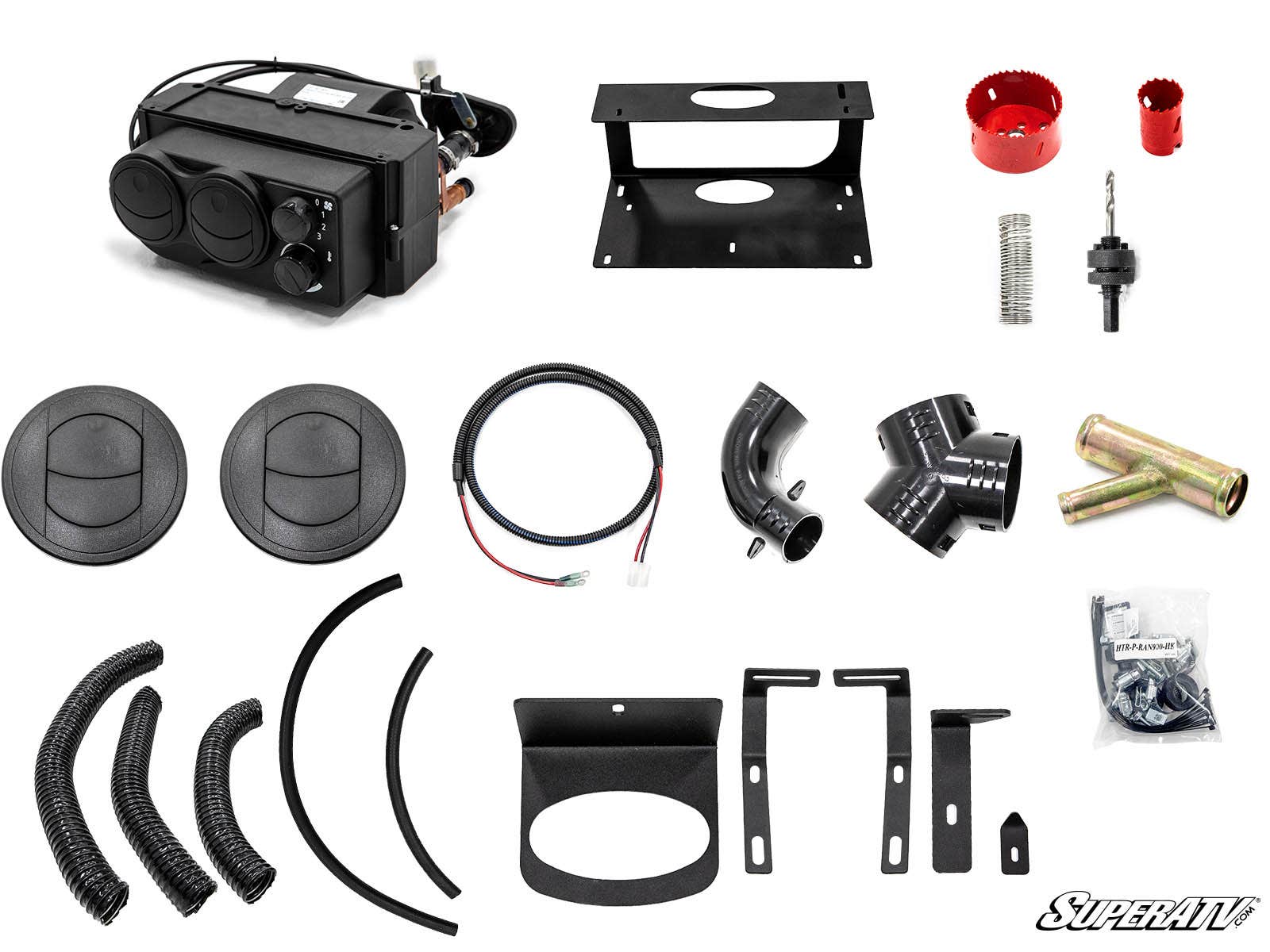

- Includes every hose, clamp, hole saw and hose plier needed

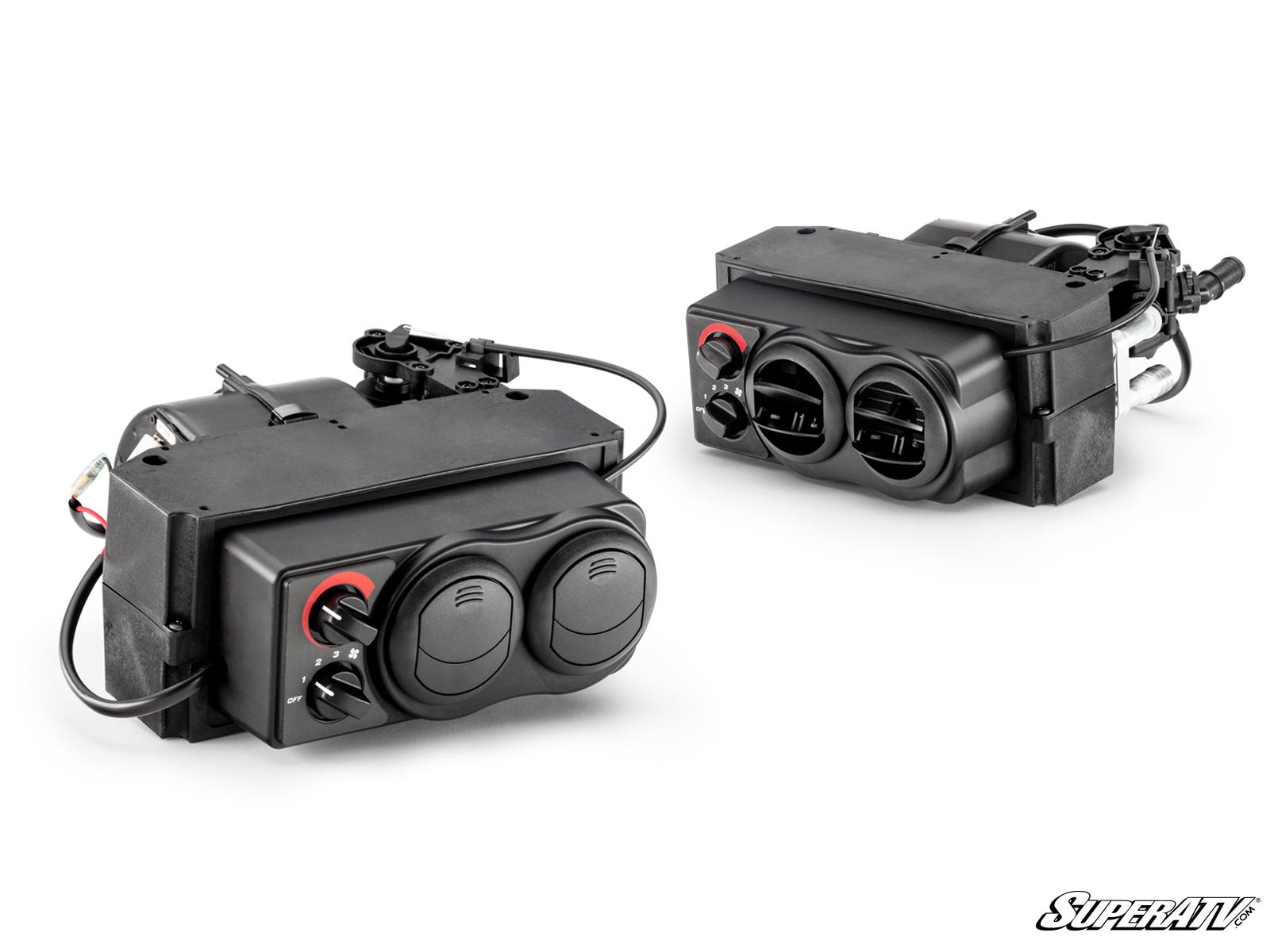

- Optional second-row heater for the Ranger Crew 1000, with its own temperature and fan controls
- Optional quick-start flow valve and idle flow pump
Built To Solve: A Cold Cab on the Polaris Ranger 1000
- Cold winter rides and chores that cut the season short
- Snow, ice and fog on the windshield
- Back-seat passengers left out of the heat in the Ranger Crew 1000
- Slow warm-up on cold mornings, solved with the optional flow valve and idle pump
Best For: Ranger 1000 Owners Who Ride and Work Through Winter
- Farm, ranch and property owners who use the Ranger 1000 year-round
- Hunters heading out on cold mornings
- Snow plow operators who need a clear windshield
- Owners with a windshield, roof and doors installed
- Crew 1000 owners carrying back-seat passengers
Specifications
- Heat source: engine coolant

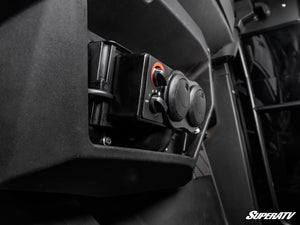

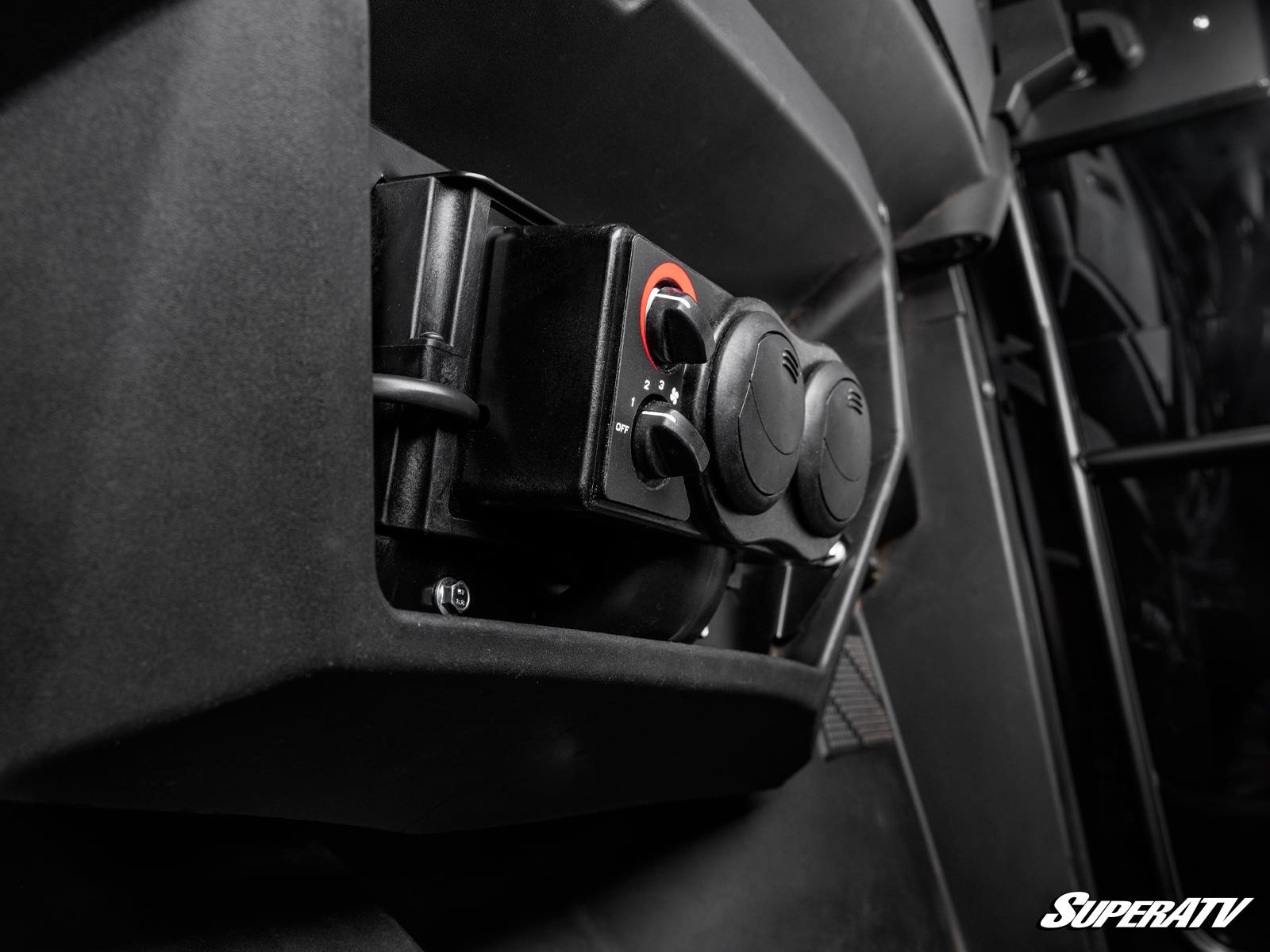

- Mounting: under the dash, between the driver and passenger
- Output: capable of 14,600 BTU at 135 CFM
- Current draw: 3.4 amps at 13.7 volts
- Heater control box: 10" x 4.5" x 11.75"
- Hose rating: -40°F to 285°F
- Manufacturer Part Number: HTR-P-RAN1K, HTR-P-RAN1K4
Fitment
Fits the following Polaris Ranger models:
- Polaris Ranger 1000: 2020+
- Polaris Ranger 1000 Crew: 2020+
Not compatible with the Polaris Tip-Out Full Glass Windshield (OEM Part # 2889020). Rear (2nd Row) packages are for crew-cab models only. Fitment is not guaranteed on models not listed.
FAQ
How much heat does this Ranger 1000 cab heater put out?
SuperATV rates the heater as capable of 14,600 BTU at 135 CFM. It draws heat from the engine coolant, like a car heater, so it keeps putting out hot air as long as the engine runs.
Does it defrost the windshield?
Yes. The kit includes defrost vents and hoses that route through the dash to keep the windshield clear of snow, ice and fog.
Which Ranger 1000 models does it fit?
SuperATV lists Polaris Ranger 1000: 2020+; Polaris Ranger 1000 Crew: 2020+. Not compatible with the Polaris Tip-Out Full Glass Windshield (OEM Part # 2889020).
Is drilling required?
Yes. Installation requires drilling through plastic and the firewall, and SuperATV includes the bits you need.
What does the second-row heater add?
The second-row heater warms the back seat of the Ranger Crew 1000 with its own adjustable temperature and fan speeds. Choose the Rear (2nd Row) package to add it to a front heater you already have, or Front and Rear (2nd Row) to get both.
Quick-start flow valve or idle flow pump: which one do I need?

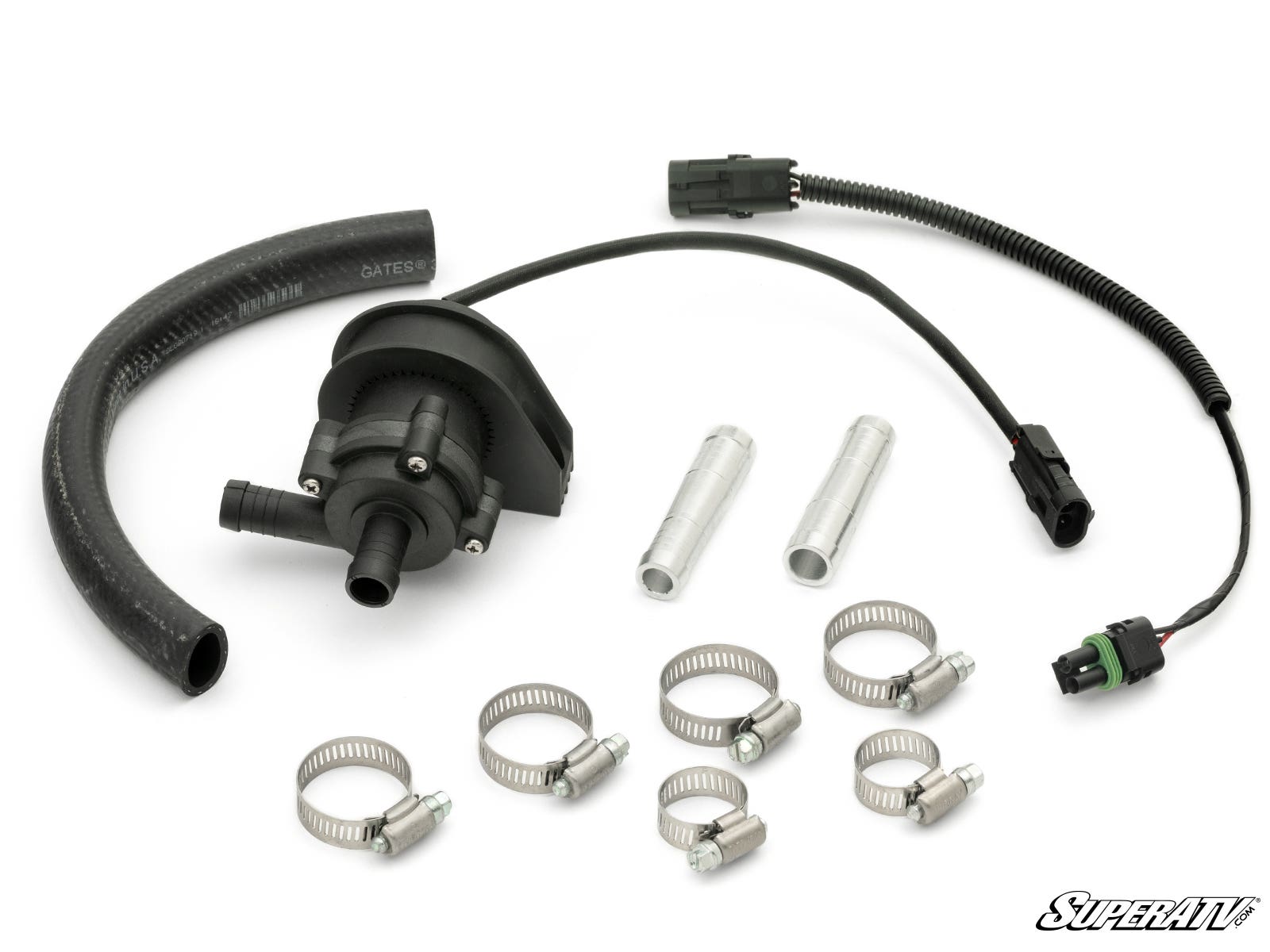

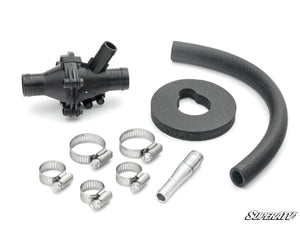

The quick-start flow valve sends all engine coolant to the heater core at low engine temps and cuts warm-up time roughly in half, then opens on its own once the engine is warm. The idle flow pump actively circulates coolant so you get heat in about 30 seconds, even at idle or slow speeds. SuperATV recommends combining them for the fastest heat.
Install Video
Watch SuperATV's official install walkthrough: How to install the SuperATV cab heater in a Polaris Ranger.
Why SuperATV
SuperATV builds this heater kit around the Ranger 1000: the kit comes with every hose, clamp, hole saw and hose plier you need, plus instructions. The heater is backed by SuperATV's 1-year limited warranty against manufacturing defects to the original purchaser.
Make Your Ranger 1000 a Year-Round Machine
Confirm your Ranger 1000 model in the fitment list, choose your heater package, and pair it with a windshield, roof and doors to seal the cab.
