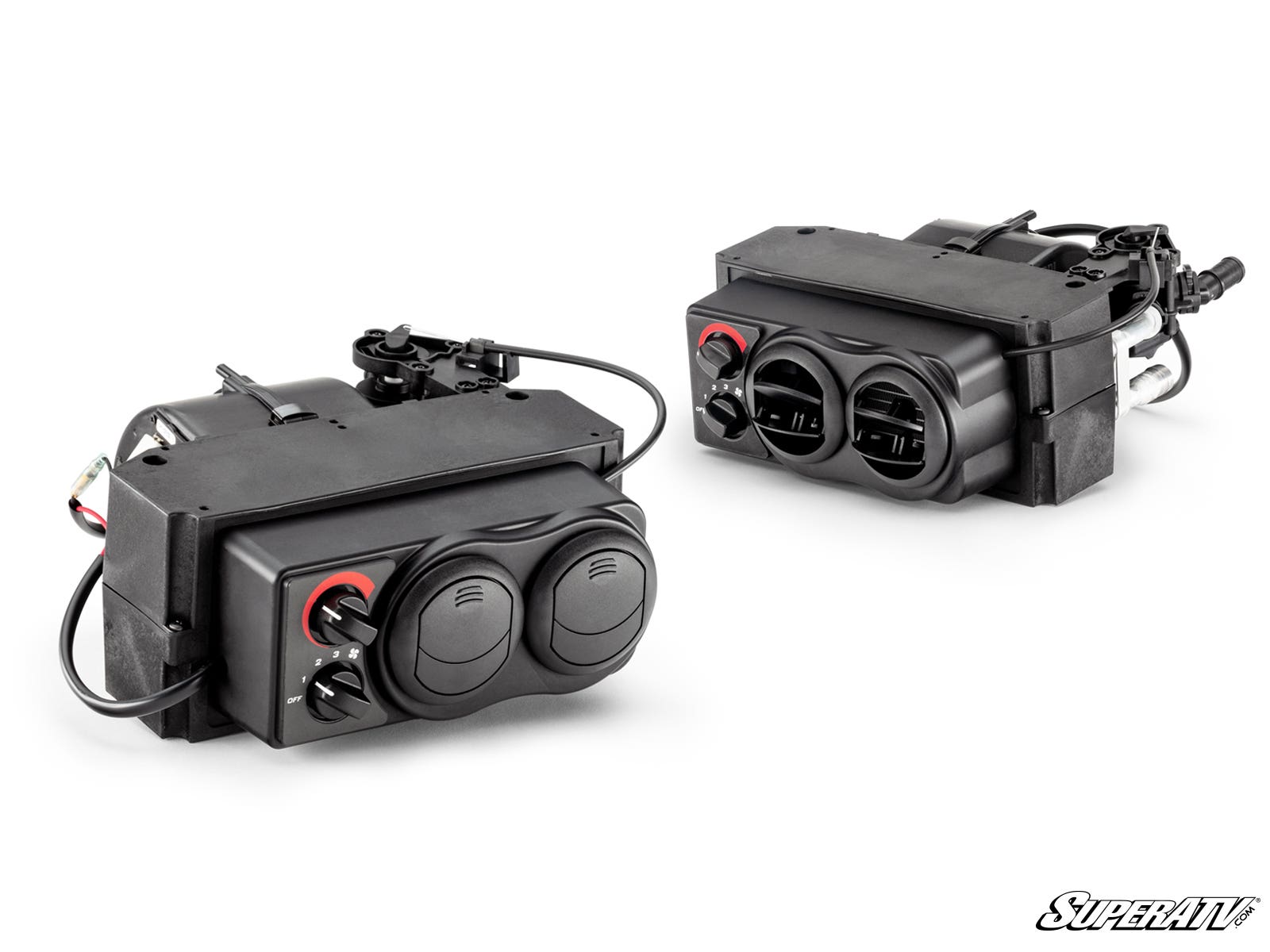

The SuperATV Kawasaki Teryx S cab heater draws heat from the engine coolant lines to warm your cab like a car heater. It mounts under the dash between the seats, out of the way of the driver and passenger, with adjustable temperature and fan speeds and defrost vents to keep the windshield clear.
Choose a front heater, a second-row heater for the Teryx 4 S, or both. Add a quick-start flow valve or idle flow pump for faster heat.
Key Features
- Mounts under the dash between the seats
- Capable of 14,600 BTU at 135 CFM

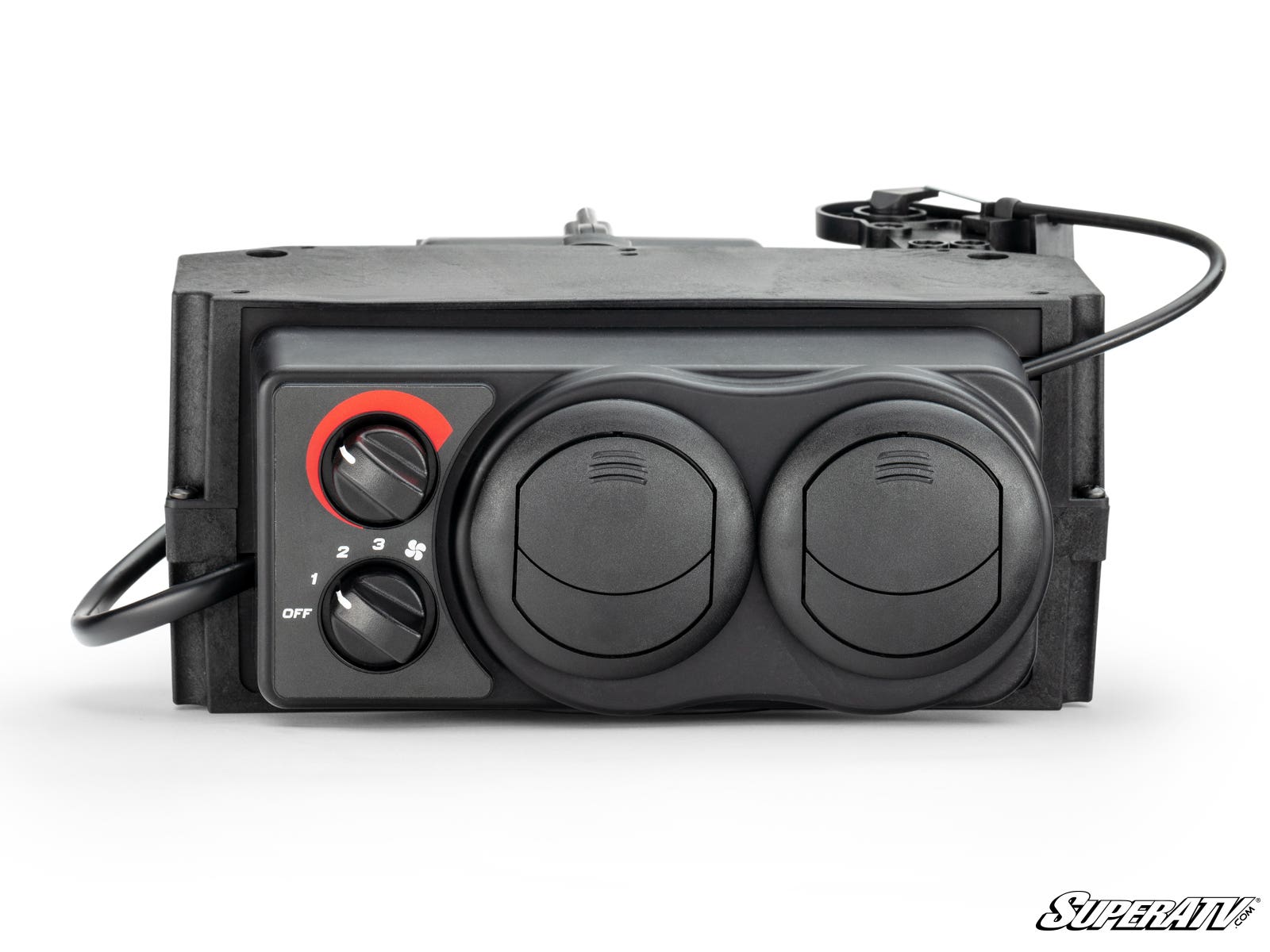

- Adjustable temperature and fan speeds
- 360° adjustable vents
- Defrost hoses and vents included, routed through the dash
- High-grade radiator hoses rated from -40°F to 285°F
- Built-in shutoff valve

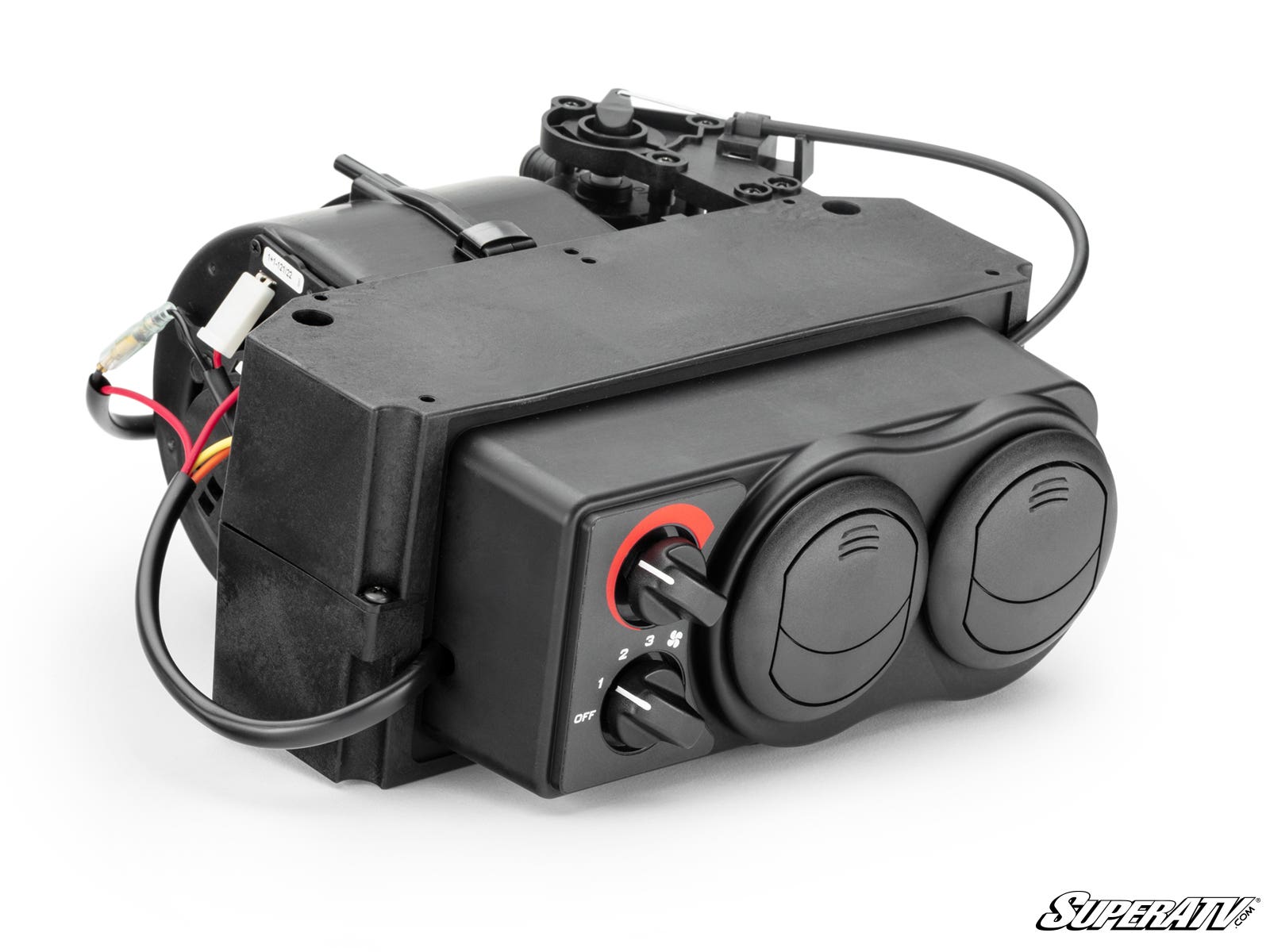

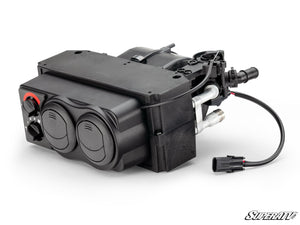

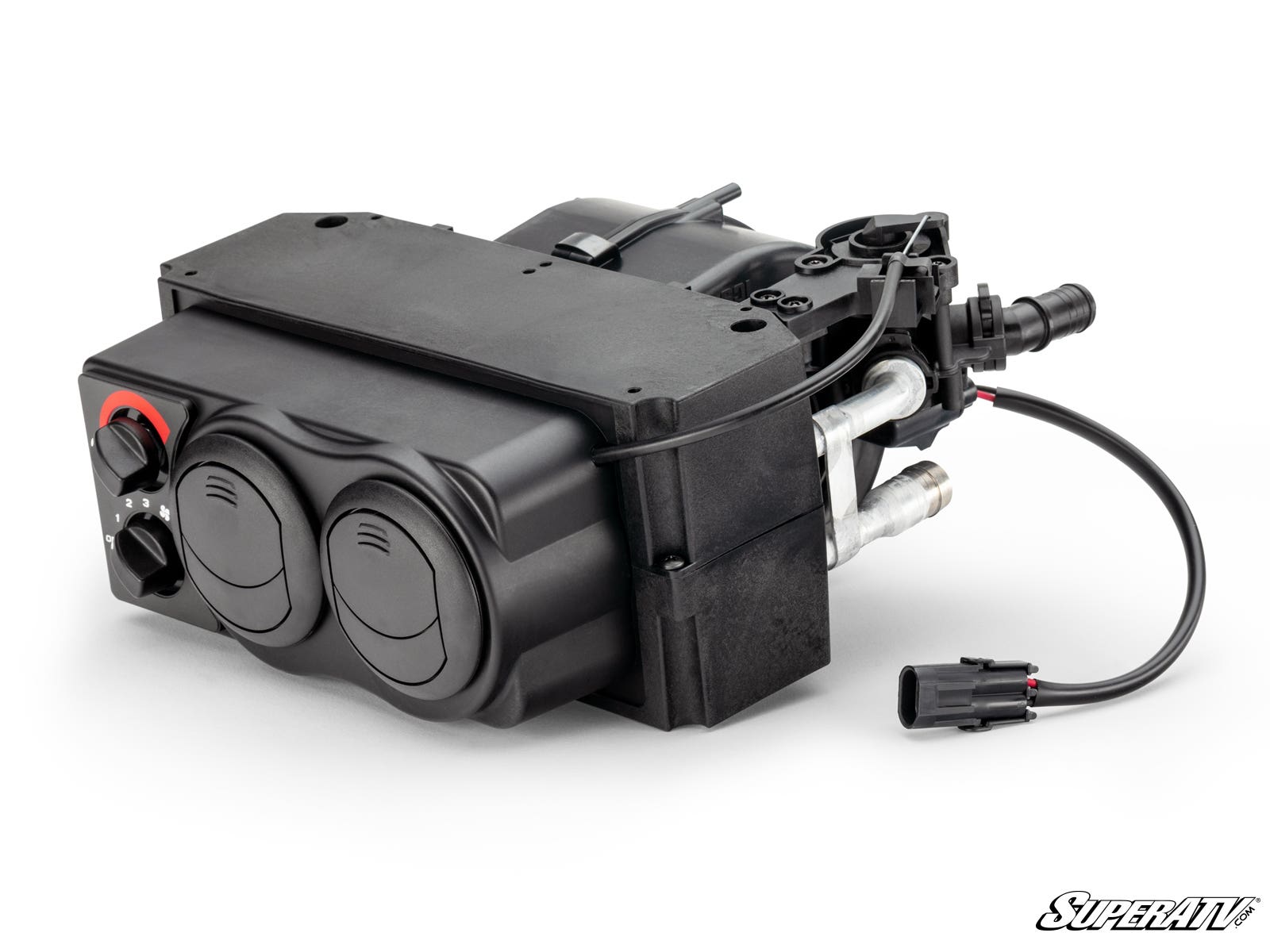

- Heater control box measures 10" x 4.5" x 11.75"
- Includes hoses, hole saws, pliers, drill bits and machine-specific mounting plates
- Optional second-row heater for the Teryx 4 S, with its own temperature and fan controls
- Optional quick-start flow valve and idle flow pump
Built To Solve: A Cold Cab on the Kawasaki Teryx S
- Cold winter rides and chores that cut the season short
- Snow, ice and fog on the windshield
- Back-seat passengers left out of the heat in the Teryx 4 S
- Slow warm-up on cold mornings, solved with the optional flow valve and idle pump
Best For: Teryx S Owners Who Ride and Work Through Winter
- Farm, ranch and property owners who use the Teryx S year-round
- Hunters heading out on cold mornings
- Riders pulling sleds or plowing on snow days
- Owners with a windshield, roof and doors installed
- Teryx 4 S owners carrying back-seat passengers
Specifications
- Heat source: engine coolant

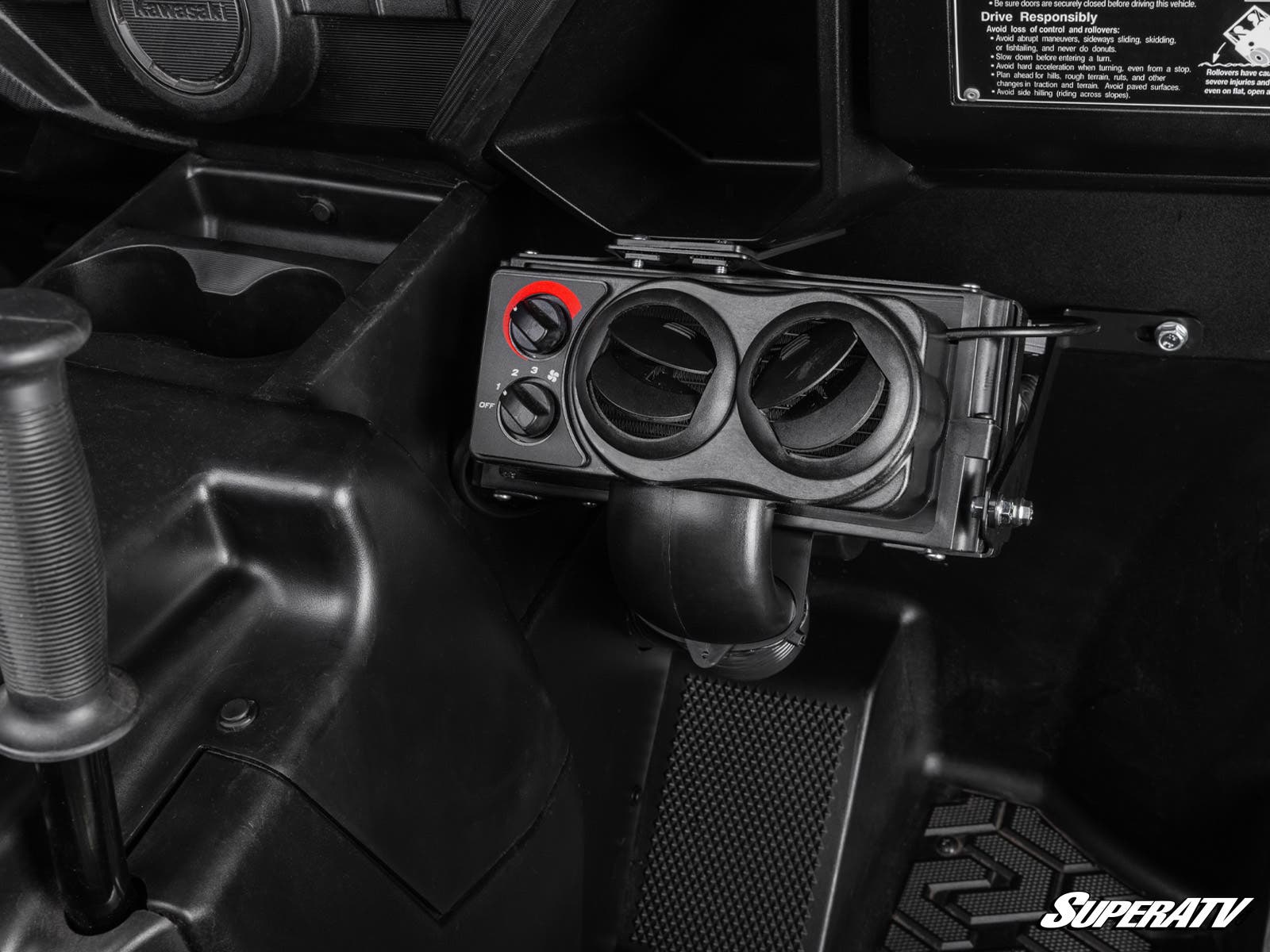

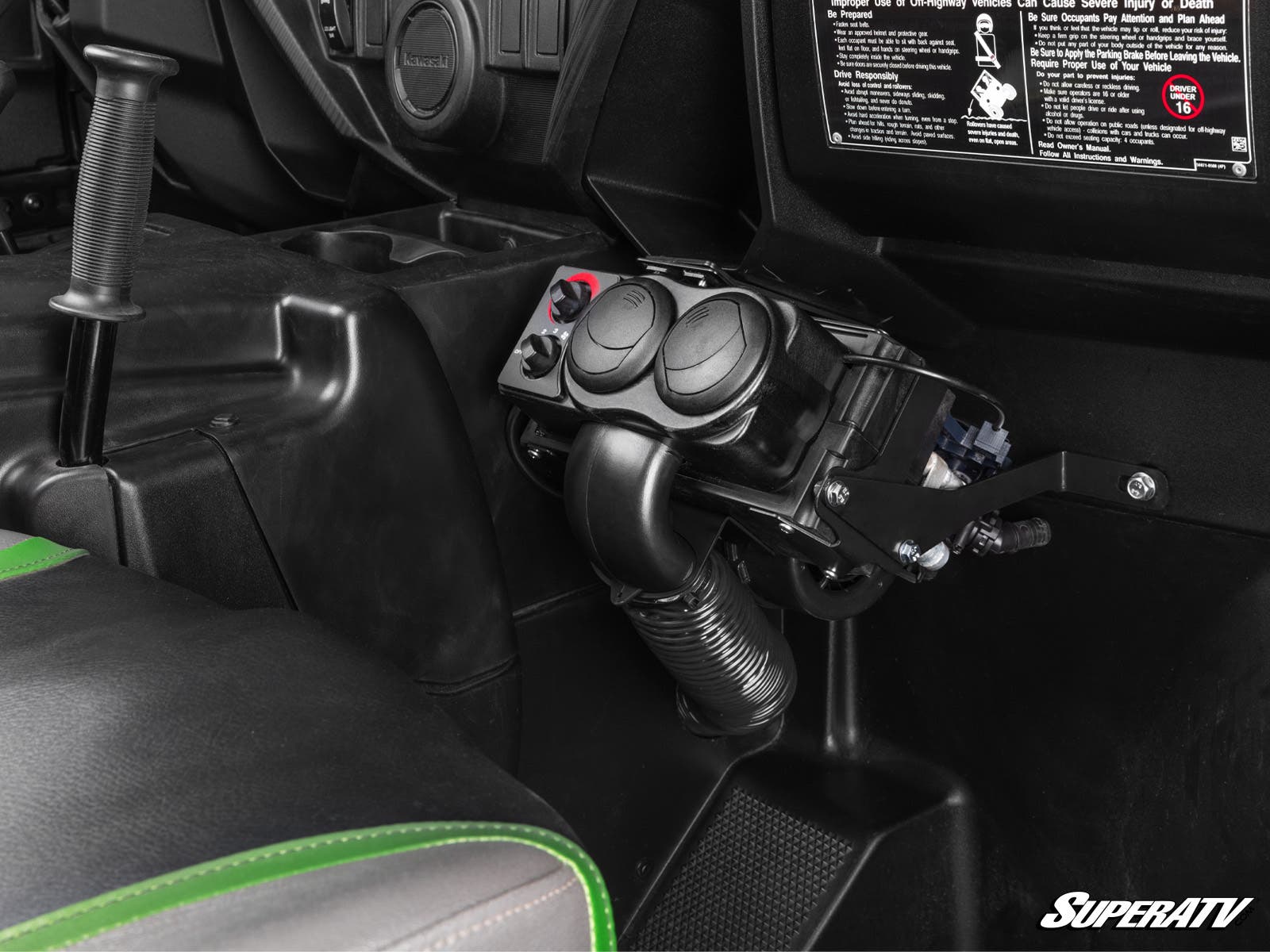

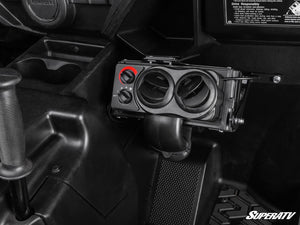

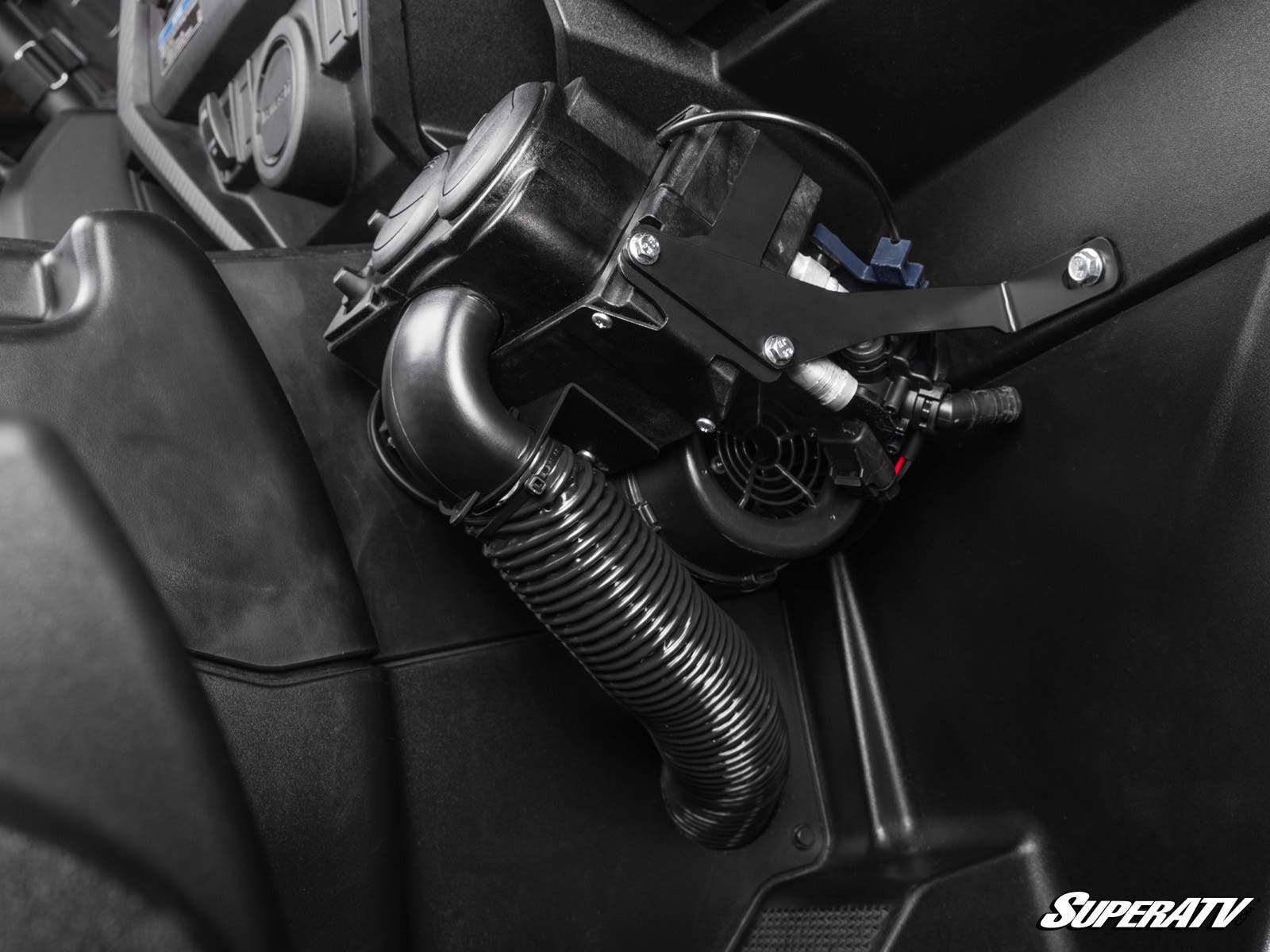

- Mounting: under the dash, between the driver and passenger
- Output: capable of 14,600 BTU at 135 CFM
- Current draw: 3.4 amps at 13.7 volts
- Heater control box: 10" x 4.5" x 11.75"
- Hose rating: -40°F to 285°F
- Manufacturer Part Number: HTR-K-TRX4, HTR-K-TRX4-001
Fitment
Fits the following Kawasaki Teryx models:
- Kawasaki Teryx S: 2021
- Kawasaki Teryx 4 S: 2021
Rear (2nd Row) packages are for crew-cab models only. Fitment is not guaranteed on models not listed.
FAQ
How much heat does this Teryx S cab heater put out?
SuperATV rates the heater as capable of 14,600 BTU at 135 CFM. It draws heat from the engine coolant, like a car heater, so it keeps putting out hot air as long as the engine runs.
Does it defrost the windshield?
Yes. The kit includes defrost vents and hoses that route through the dash to keep the windshield clear of snow, ice and fog.
Which Teryx S models does it fit?
SuperATV lists Kawasaki Teryx S: 2021; Kawasaki Teryx 4 S: 2021.
Is drilling required?
Yes. Installation requires drilling through plastic and the firewall, and SuperATV includes the bits you need.
What does the second-row heater add?
The second-row heater warms the back seat of the Teryx 4 S with its own adjustable temperature and fan speeds. Choose the Rear (2nd Row) package to add it to a front heater you already have, or Front and Rear (2nd Row) to get both.
Where does the second-row heater mount?
It mounts to the Teryx 4 S with heavy-duty brackets, bolts and hose clamps, and has its own fan settings for back-seat riders.
Quick-start flow valve or idle flow pump: which one do I need?
The quick-start flow valve sends all engine coolant to the heater core at low engine temps and cuts warm-up time roughly in half, then opens on its own once the engine is warm. The idle flow pump actively circulates coolant so you get heat in about 30 seconds, even at idle or slow speeds. SuperATV recommends combining them for the fastest heat.
Why SuperATV
SuperATV builds this heater kit around the Teryx S: every kit ships with the hoses, hole saws, pliers, drill bits, machine-specific mounting plates and instructions. The heater is backed by SuperATV's 1-year limited warranty against manufacturing defects to the original purchaser.
Make Your Teryx S a Year-Round Machine
Confirm your Teryx S model in the fitment list, choose your heater package, and pair it with a windshield, roof and doors to seal the cab.
