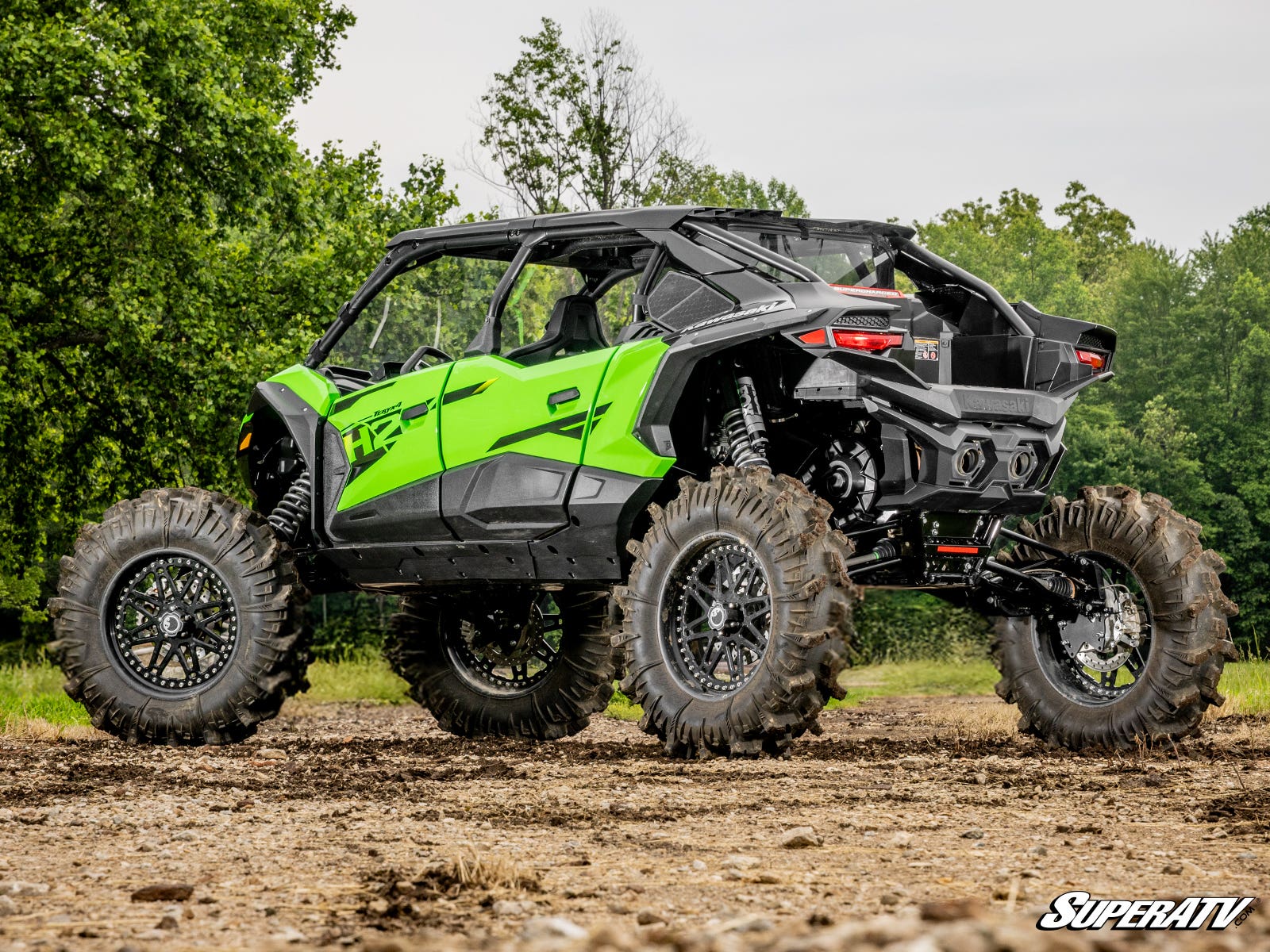

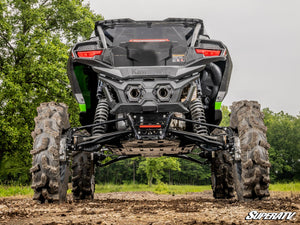

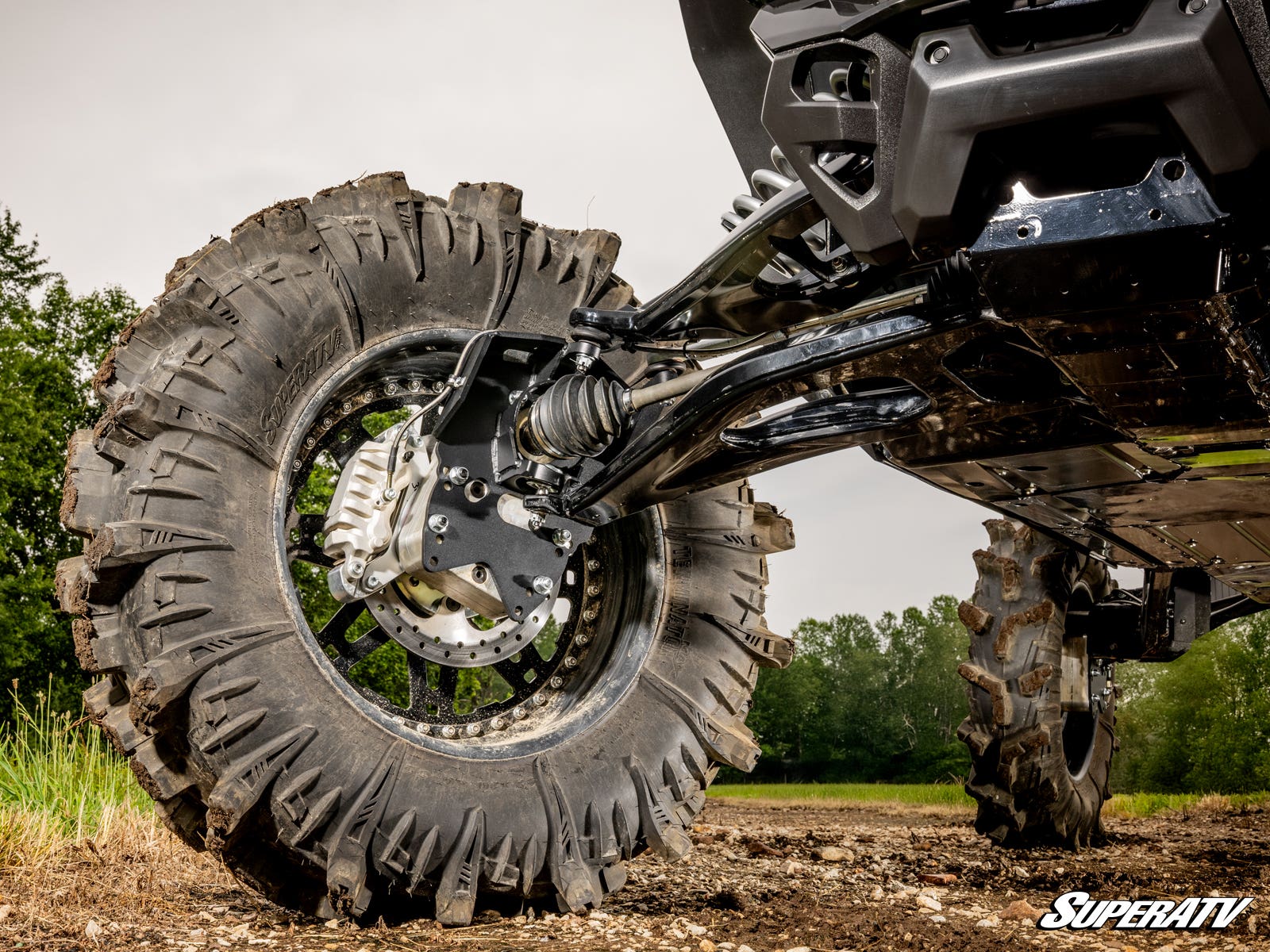

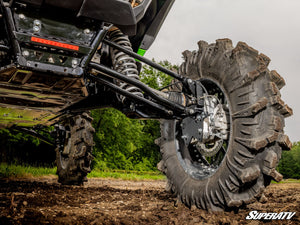

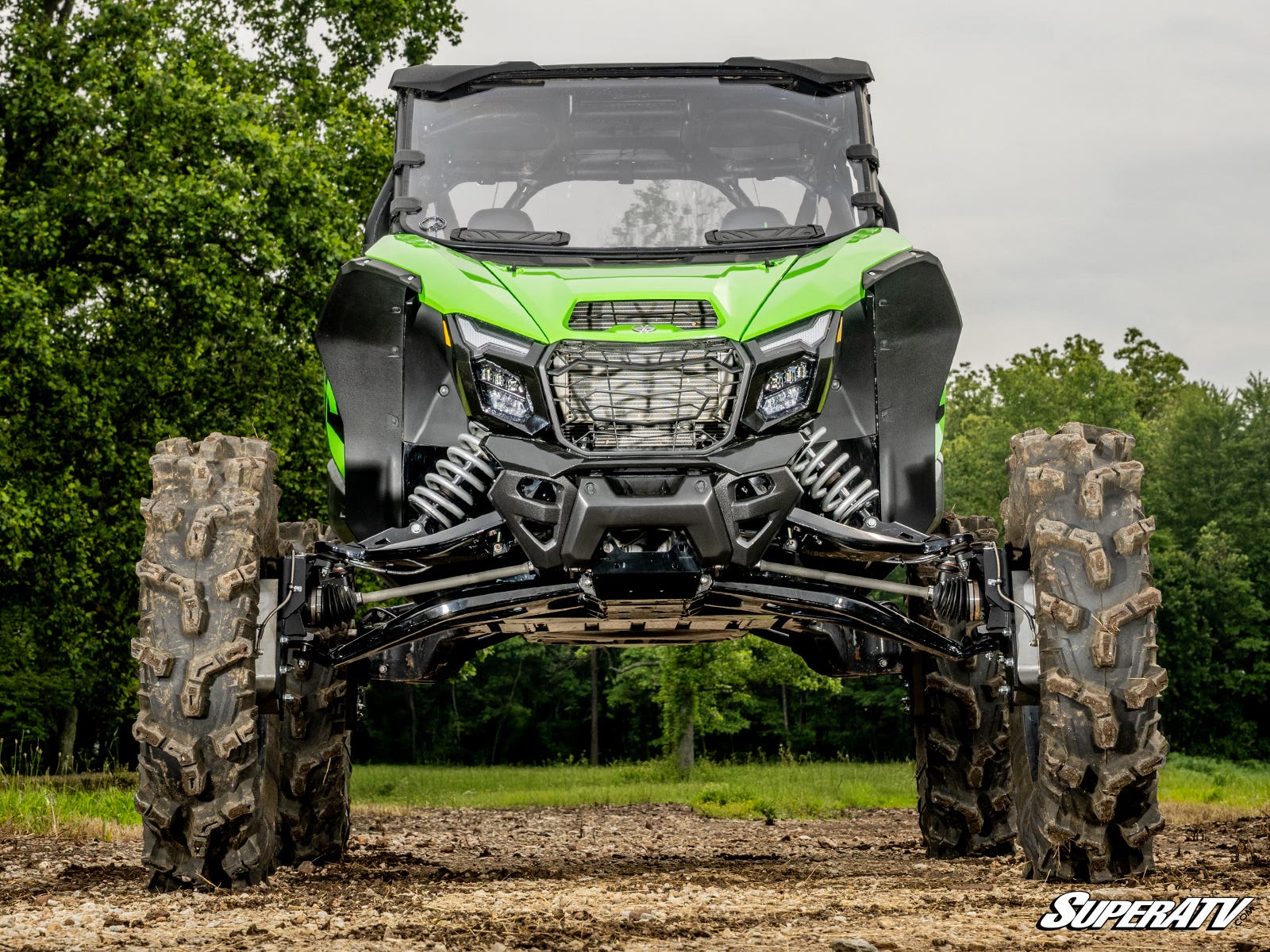

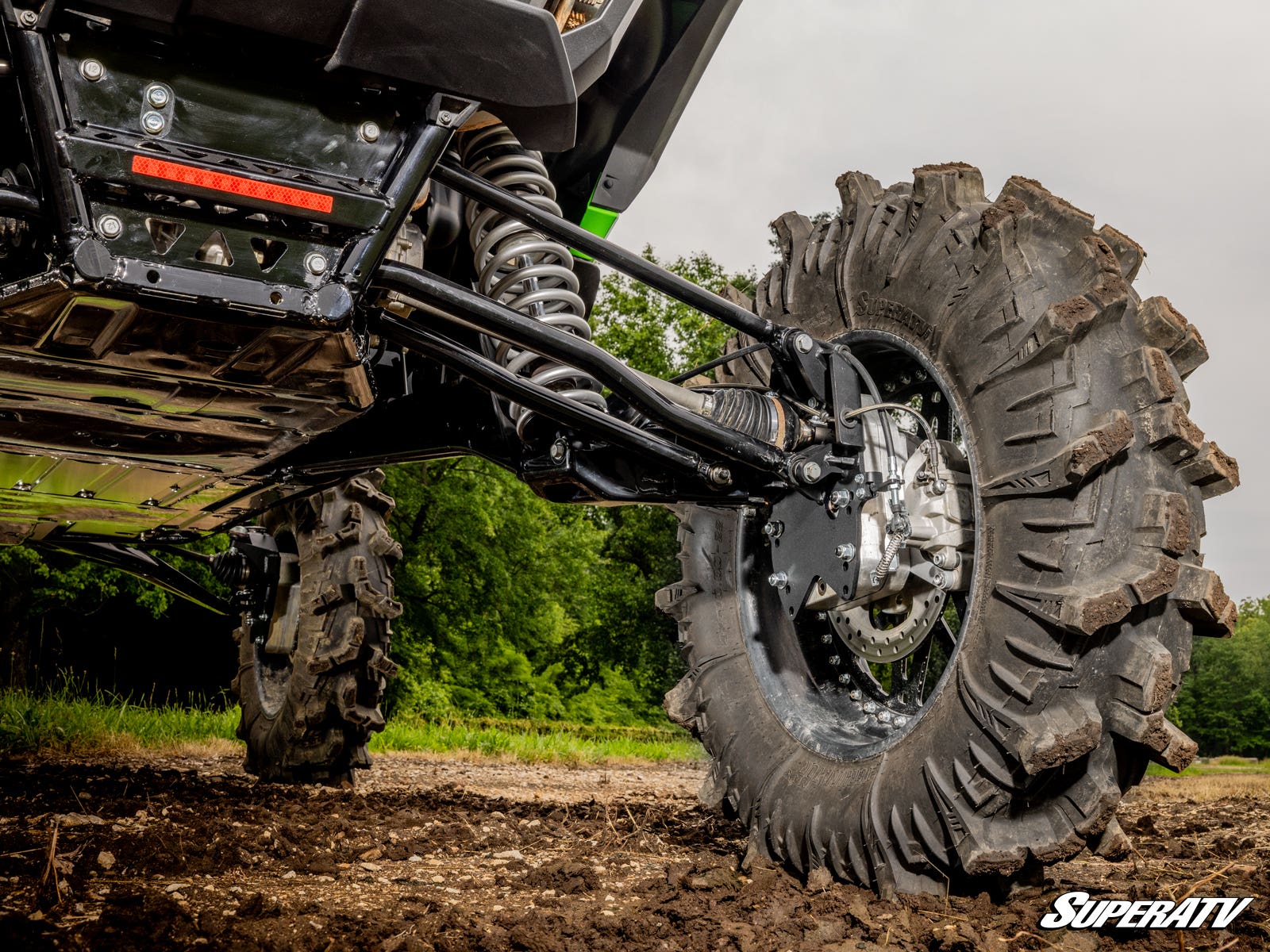

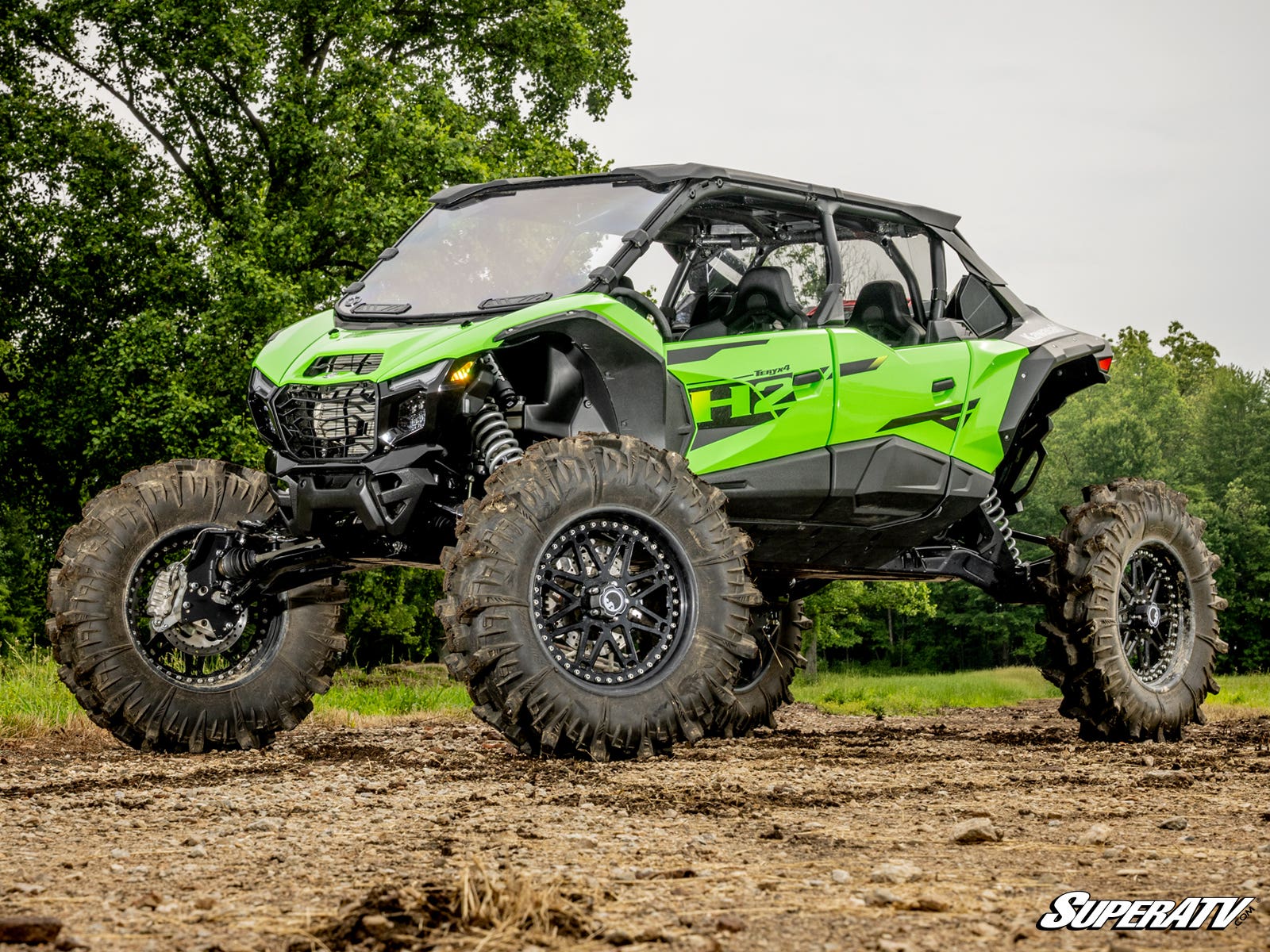

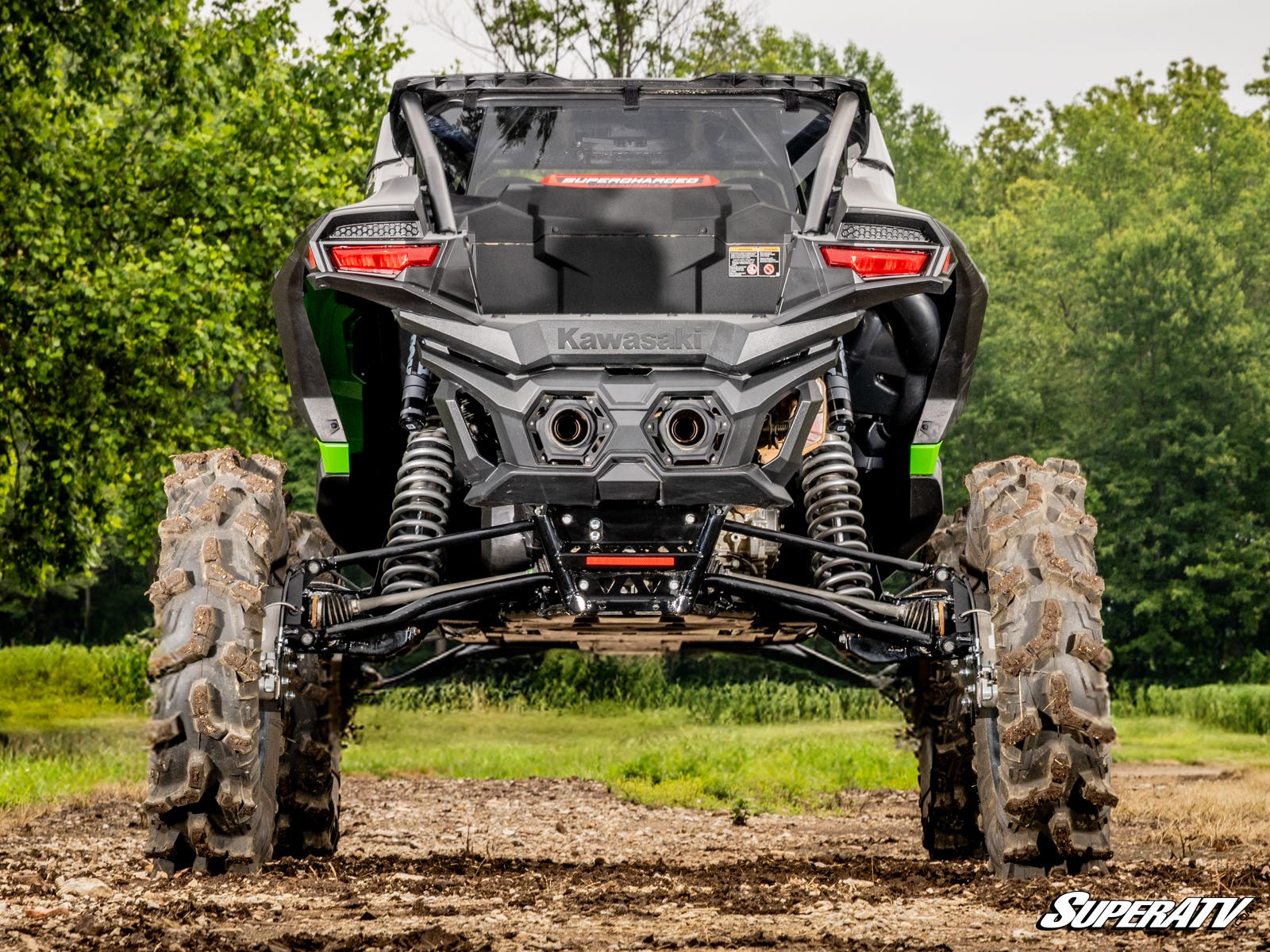

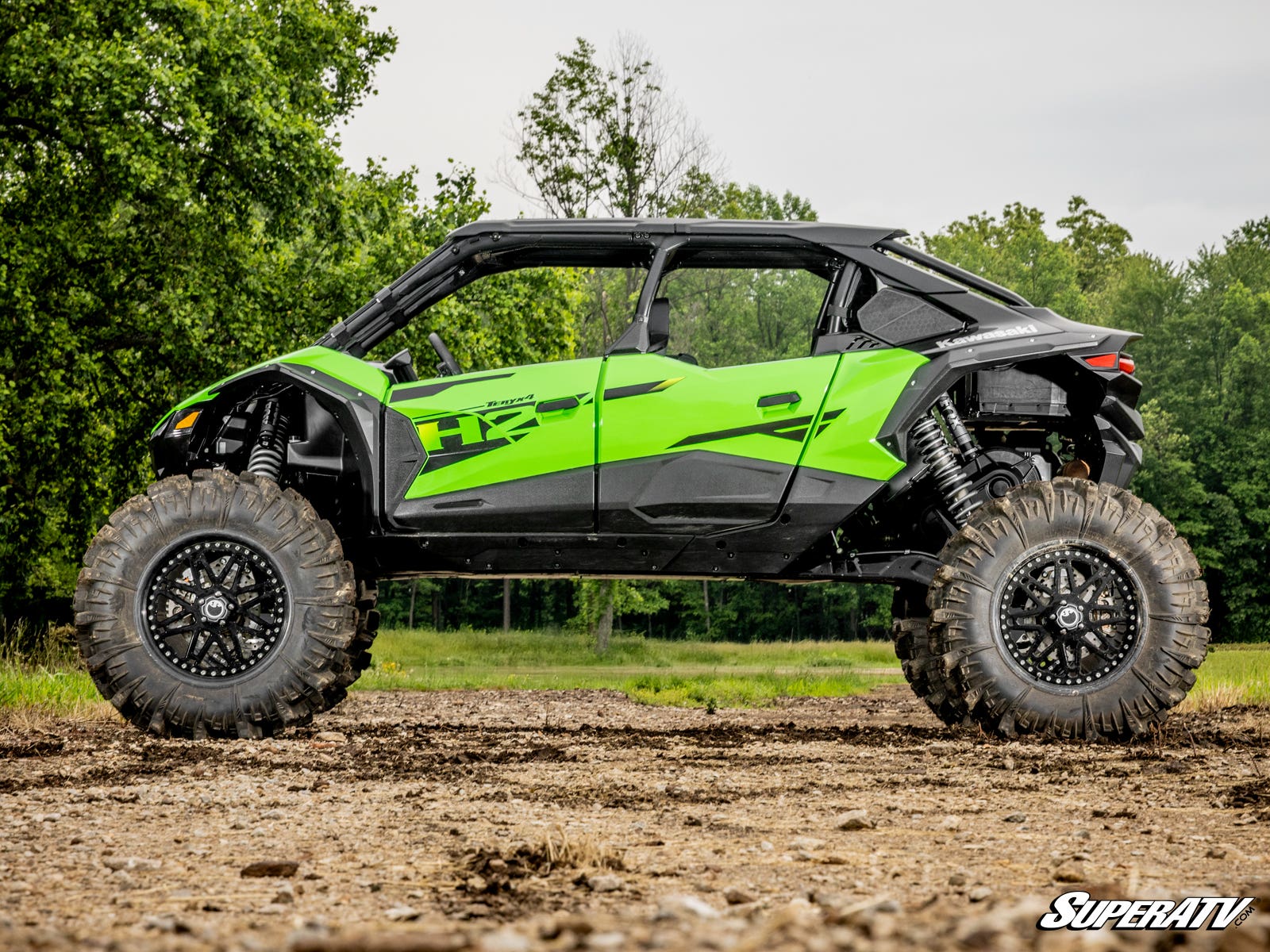

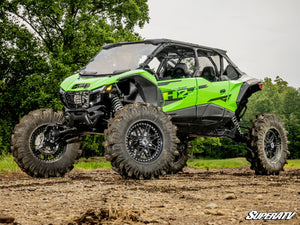

The SuperATV Kawasaki Teryx H2 6" Portal Gear Lift gives the 2026+ Teryx4 H2 and Teryx5 H2 6 inches of lift and a built-in 30%, 45% or 60% gear reduction for maximum torque and clearance. Dual idler gears and billet aluminum housings make it SuperATV's strongest portal setup for the H2, backed by a lifetime warranty.
Heavy-duty 5/16-inch advanced steel alloy backing plates, precision-ground 9310 gears and fully sealed housings keep the portals running in mud and rocks. The kit includes axle spacers, shims, brake cable brackets, brake pad retaining clips, extended brake lines and a ball joint tool. It requires 18-inch or larger wheels.
Key Features
- 6 inches of lift
- 30%, 45% or 60% gear reduction
- Dual idler configuration
- Billet aluminum housings
- 5/16-inch advanced steel alloy backing plates
- Precision-ground 9310 alloy steel gears
- Hubs with 5x4.5 and 4x156 bolt patterns
- Lifetime warranty
Built To Solve: Maximum Clearance and Torque on the Teryx H2
- Stock clearance limiting deep mud and big rock lines
- Monster tires overwhelming stock gearing
- Drivetrain damage from oversized tires
- 4-inch kits that do not offer enough reduction
Best For: Teryx H2 Owners Building a Mud or Rock Machine
- Teryx4 H2, Teryx4 H2 Deluxe eS and Teryx5 H2 Deluxe eS owners
- Mud riders wanting 45% or 60% reduction
- Riders running 18-inch or larger wheels
- Owners wanting the most lift and strength available
Specifications
- Portal size: 6-inch
- Gear reduction: 30%, 45% or 60%
- Housing: billet aluminum
- Idler: dual
- Backing plates: 5/16-inch advanced steel alloy
- Drive shaft: 1.5-inch 4340 hardened steel
- Hub bolt patterns: 5x4.5 and 4x156
- Wheels: 18-inch or larger; 18-inch wheels max 4-1/2-inch backspacing, 20-inch and larger max 5-inch
- Includes: (4) portal hubs, (4) universal hubs with stainless slotted rotors and lugs, (4) backing plates, (4) caliper plates, (4) axle spacers, (8) shims, ball joint tool, brake cable brackets, pad clips, line clips, extended brake lines and hardware
- Warranty: lifetime
- Manufacturer Part Numbers: PGH6D-4-121-301-B (30%), PGH6D-4-121-451-B (45%), PGH6D-4-121-601-B (60%)
Fitment
- Kawasaki Teryx4 H2 (2026+)
- Kawasaki Teryx4 H2 Deluxe eS (2026+)
- Kawasaki Teryx5 H2 Deluxe eS (2026+)
- Wheel requirements: 18-inch or larger; 18-inch max 4-1/2-inch backspacing, 20-inch and larger max 5-inch backspacing
Fitment is not guaranteed on models, trims or years not listed above, or on machines with modified chassis or aftermarket parts in the way; confirm your exact model before ordering.
FAQ
How much lift does this kit add?
It adds 6 inches of lift along with the gear reduction.
Which gear reduction should I choose?
30% keeps quicker speeds with torque, 45% adds power for big tires on rough trails, and 60% is the choice for the ultimate mud machine.
What wheels are required?
18-inch or larger wheels; 18-inch wheels cannot exceed 4-1/2 inches of backspacing and 20-inch or larger cannot exceed 5 inches.
What warranty comes with it?
SuperATV backs these portals with a lifetime warranty.
Does it fit the Teryx5 H2?
Yes. The Teryx5 H2 Deluxe eS (2026+) is listed with the Teryx4 H2 models.
6-inch or 4-inch portals?
The 6-inch kit adds more lift and deeper reduction options but needs 18-inch or larger wheels; the 4-inch kit works with 14-inch and larger wheels.
Why SuperATV
SuperATV's GDP portals are built around precision CNC-ground 9310 steel gears, advanced steel alloy backing plates and an optional patented dual idler design, with a dedicated portal tech support team behind them. Dunes 2 Dezert SXS ships SuperATV portal gear lifts nationwide with fitment checked against SuperATV's own list.
Build the Ultimate Kawasaki Teryx H2
Choose 30%, 45% or 60% reduction, confirm you will run 18-inch or larger wheels with the right backspacing, and protect the build with A-arm guards, a full skid plate and upgraded bumpers.
