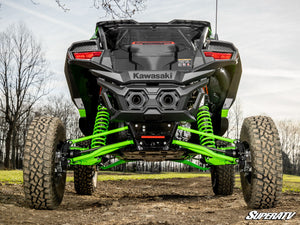

The SuperATV Kawasaki Teryx H2 4" Portal Gear Lift combines extra ground clearance with a built-in 15% or 30% gear reduction so the 2026+ Teryx4 H2 and Teryx5 H2 can clear up to 40-inch tires. It comes with billet aluminum housings and dual idler gears for maximum durability.
The reduction sits at the hubs, so the axles, prop shaft, differential and transmission do less work. GDP's precision-ground 9310 gears, sealed input gear and double-lipped output seal keep things quiet and leak free. The kit includes parking brake brackets, extended brake lines and a ball joint tool.
Key Features
- Billet aluminum housings
- Dual idler configuration for maximum strength
- 15% or 30% gear reduction
- Precision-ground 9310 alloy steel gears
- 1.5-inch 4340 hardened steel drive shaft
- Hubs with 5x4.5 and 4x156 bolt patterns
- Clears up to 40-inch tires
- Extended brake lines with parking brake brackets included
Built To Solve: Clearance and Gearing for Big Tires on the Teryx H2
- Stock gearing struggling with oversized tires
- Ground clearance limits in rocks and ruts
- Drivetrain wear from big tires
- Lifts that add height but no torque
Best For: Teryx H2 Owners Building for 35 to 40-Inch Tires
- Teryx4 H2, Teryx4 H2 Deluxe eS and Teryx5 H2 Deluxe eS owners
- Riders who want to keep speed (15%) or maximize torque (30%)
- Owners who want billet and dual idler from the start
- Riders wanting more lift should compare the 6-inch portal kit
Specifications
- Portal size: 4-inch
- Gear reduction: 15% or 30%
- Housing: billet aluminum
- Idler: dual
- Gears: precision-ground 9310 alloy steel
- Drive shaft: 1.5-inch 4340 hardened steel
- Hub bolt patterns: 5x4.5 and 4x156
- Wheels: 14-inch or larger, max 5-inch backspacing, 1.25-inch spacer required for stock wheels, not compatible with dual beadlock wheels
- Includes: (4) portal hub boxes, (4) universal hubs with stainless slotted rotors and lugs, (4) backing plates, (4) caliper plates, (4) shims, (2) parking brake brackets, extended brake lines, hardware, castle nut socket and ball joint tool
- Manufacturer Part Numbers: PGHD-4-121-151-B (15%), PGHD-4-121-301-B (30%)
Fitment
- Kawasaki Teryx4 H2 (2026+)
- Kawasaki Teryx4 H2 Deluxe eS (2026+)
- Kawasaki Teryx5 H2 Deluxe eS (2026+)
- Wheel requirements: 14-inch or larger, max 5-inch backspacing, 1.25-inch spacer required for stock wheels, not compatible with dual beadlock wheels
Fitment is not guaranteed on models, trims or years not listed above, or on machines with modified chassis or aftermarket parts in the way; confirm your exact model before ordering.
FAQ
How big a tire can I run?
SuperATV says this kit lets the Teryx H2 clear up to 40-inch tires.
Which gear reduction should I choose?
15% keeps higher speeds with plenty of torque; 30% turns bigger tires through more demanding terrain.
Do I need wheel spacers?
Yes. A 1.25-inch wheel spacer is required with stock wheels.
What bolt patterns do the hubs use?
The hubs carry both 5x4.5 and 4x156 bolt patterns.
Is the housing cast or billet?
This kit uses billet aluminum housings with dual idler gears.
4-inch or 6-inch portals?
The 4-inch kit works with 14-inch and larger wheels; the 6-inch kit adds more lift and reduction options but requires 18-inch or larger wheels.
Why SuperATV
SuperATV's GDP portals are built around precision CNC-ground 9310 steel gears, advanced steel alloy backing plates and an optional patented dual idler design, with a dedicated portal tech support team behind them. Dunes 2 Dezert SXS ships SuperATV portal gear lifts nationwide with fitment checked against SuperATV's own list.
Plan Your Kawasaki Teryx H2 Portal Build
Choose 15% or 30% reduction, confirm wheel size, backspacing and spacers, and pair the portals with upgraded A-arms, A-arm guards and a skid plate for big-tire trail use.
