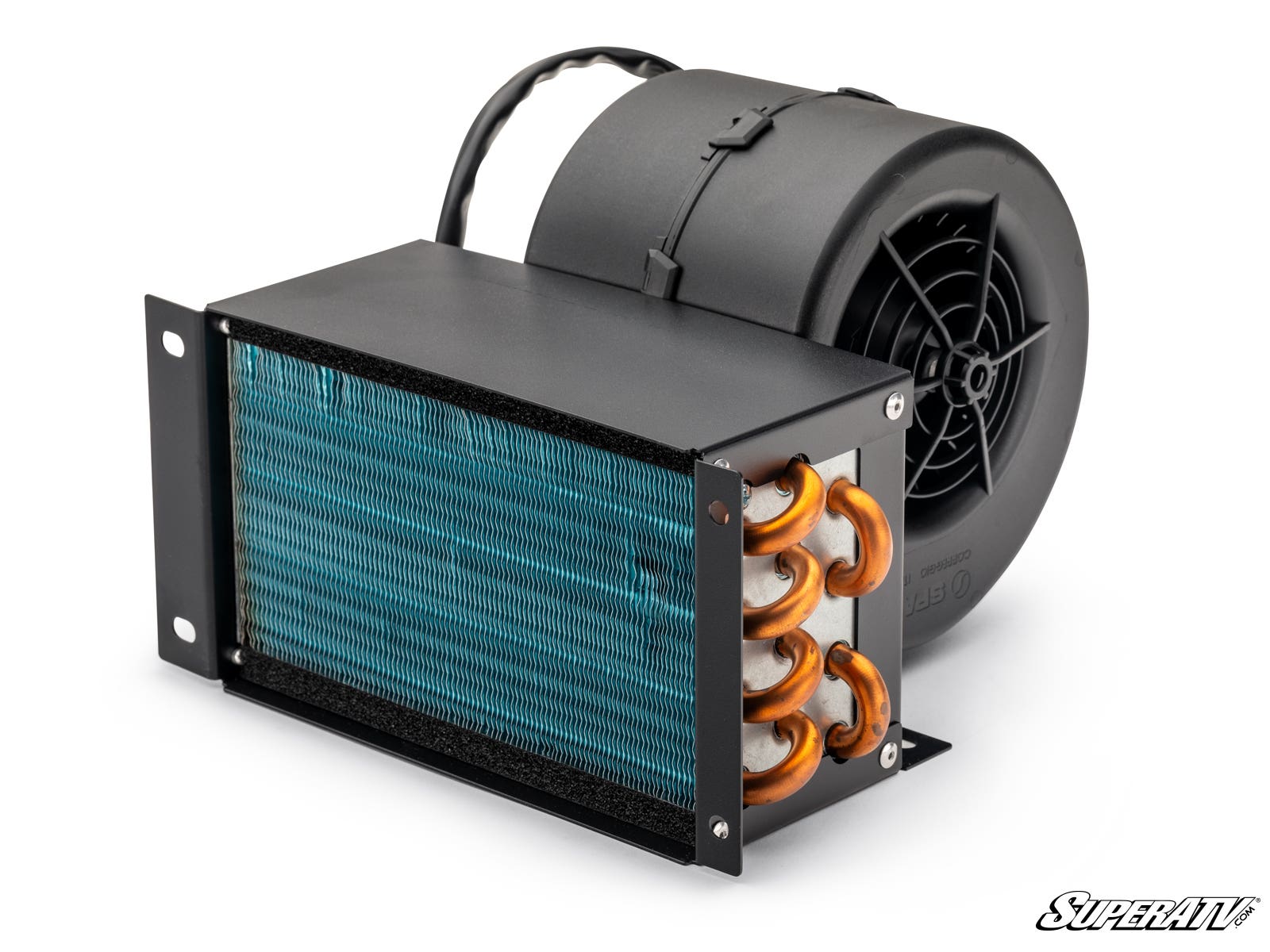

The SuperATV John Deere Gator XUV 835/865 in-dash heater mounts inside the dash and draws heat from the engine coolant to warm your cab. It is rated at 20,000 BTU at 135 CFM, has multiple fan settings, and keeps hoses out of the footwell.
One heater kit covers the models in the fitment list. Add an idle flow pump for faster heat.
Key Features
- Mounts inside the dash for a clean, factory-style look
- Capable of 20,000 BTU at 135 CFM

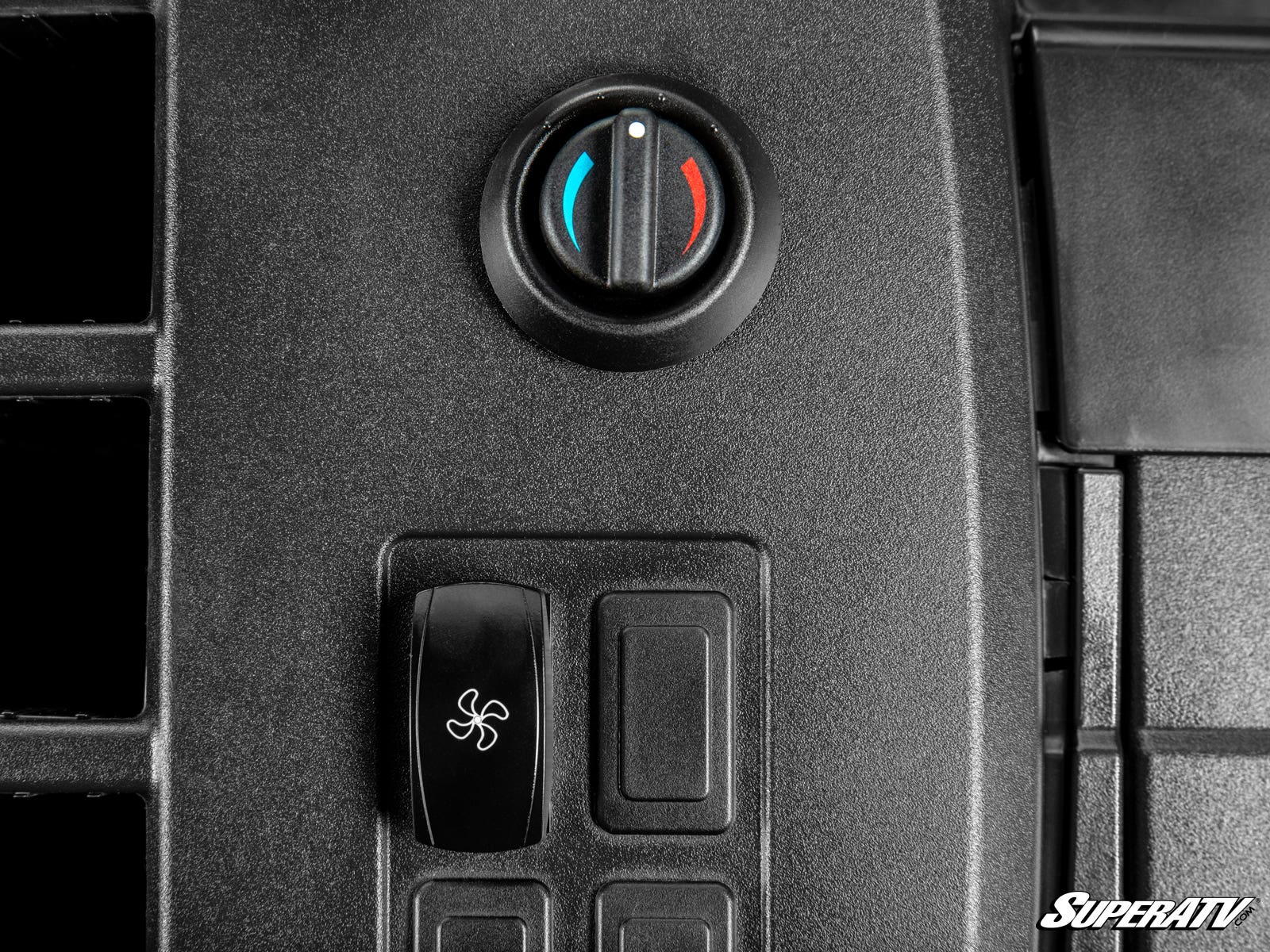

- Adjustable fan speeds

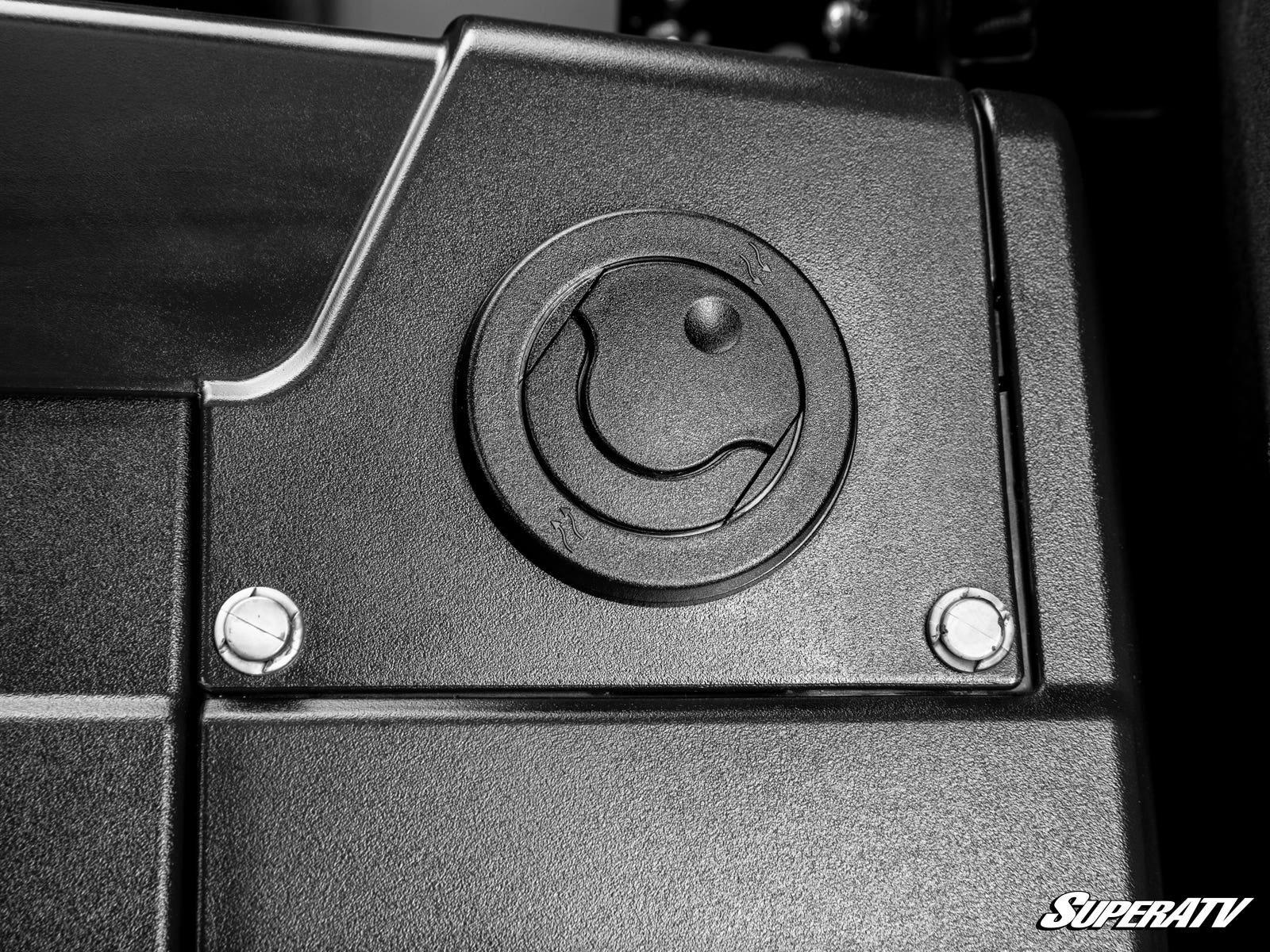

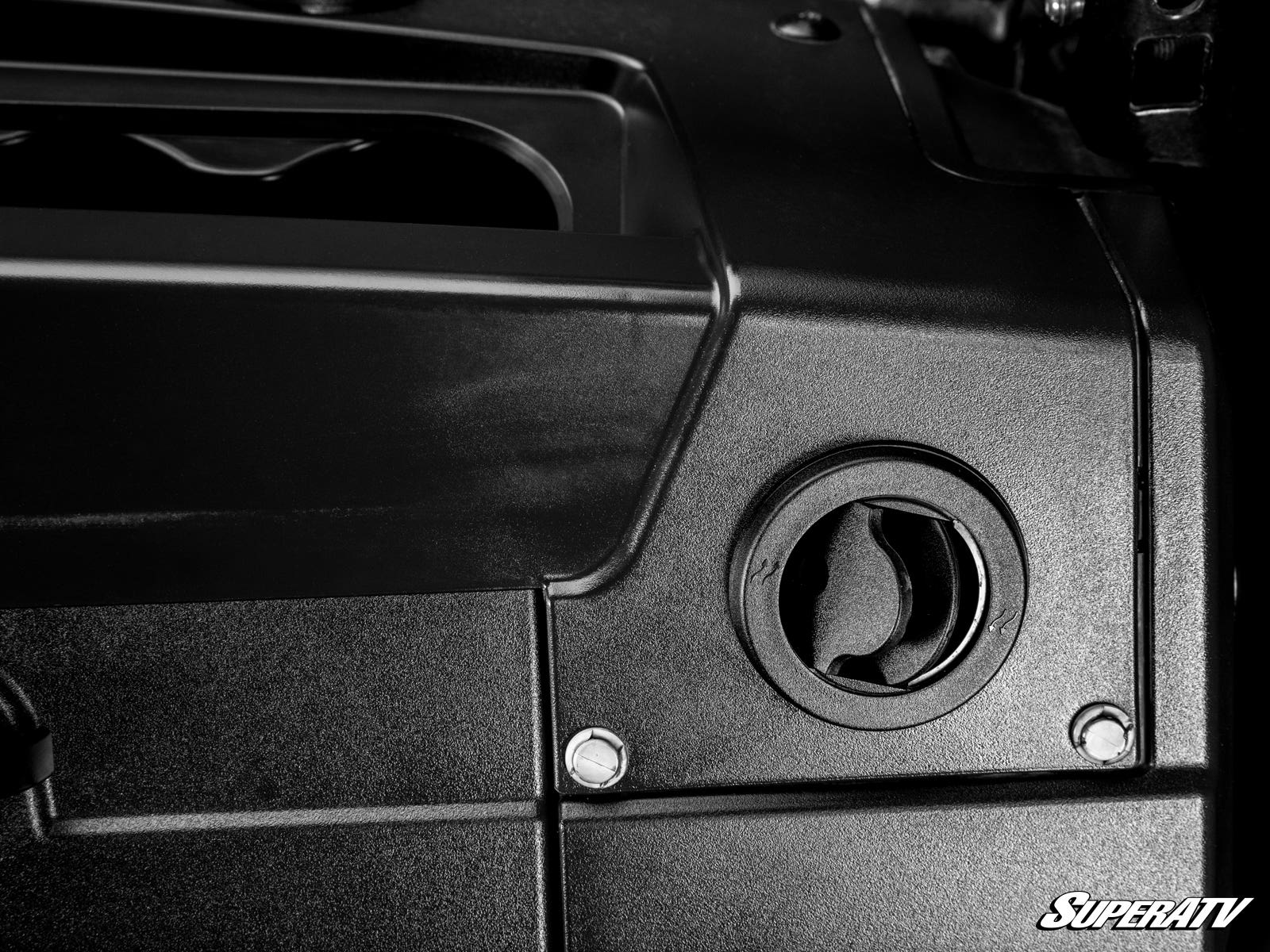

- 360° adjustable vents

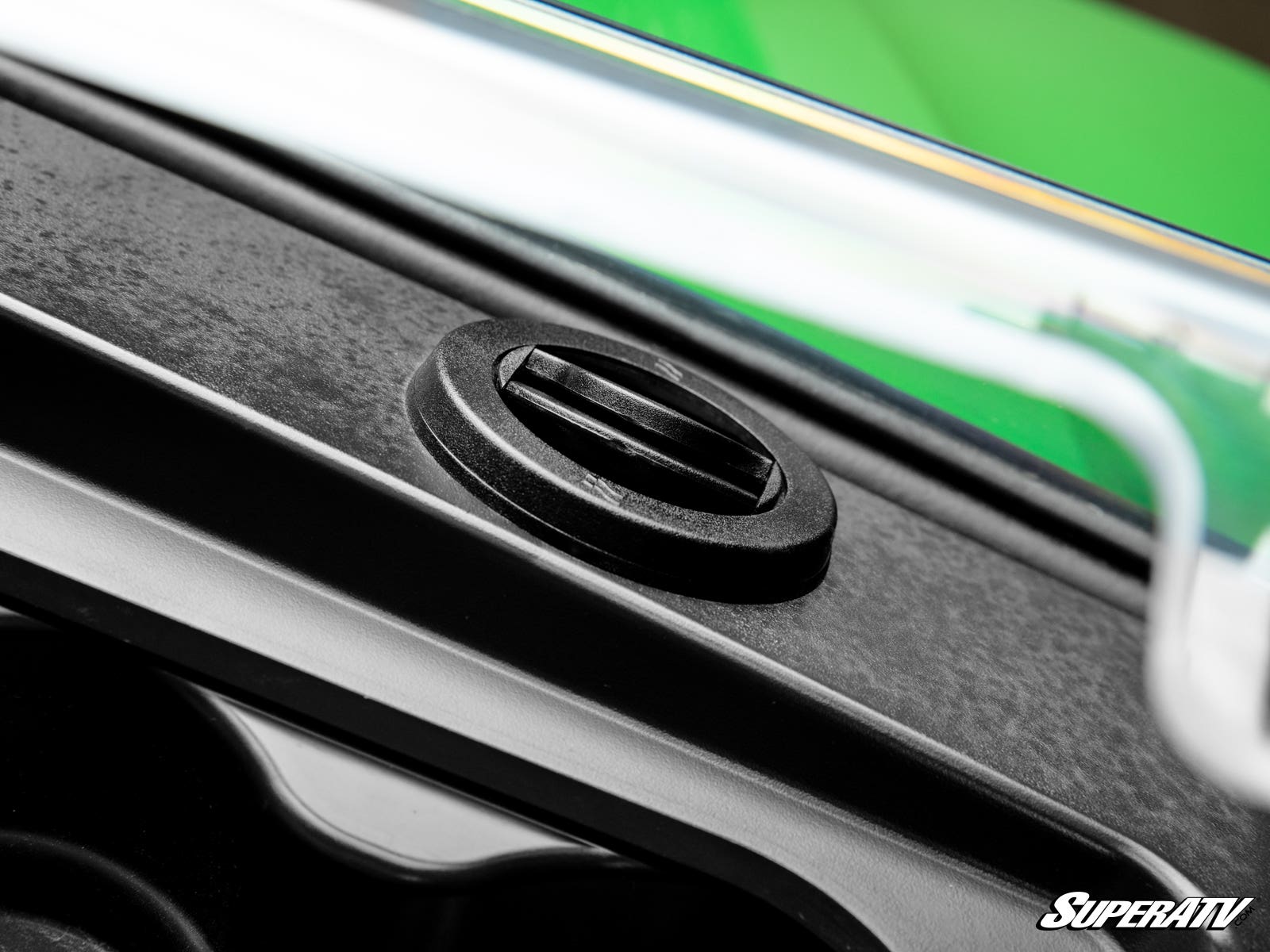

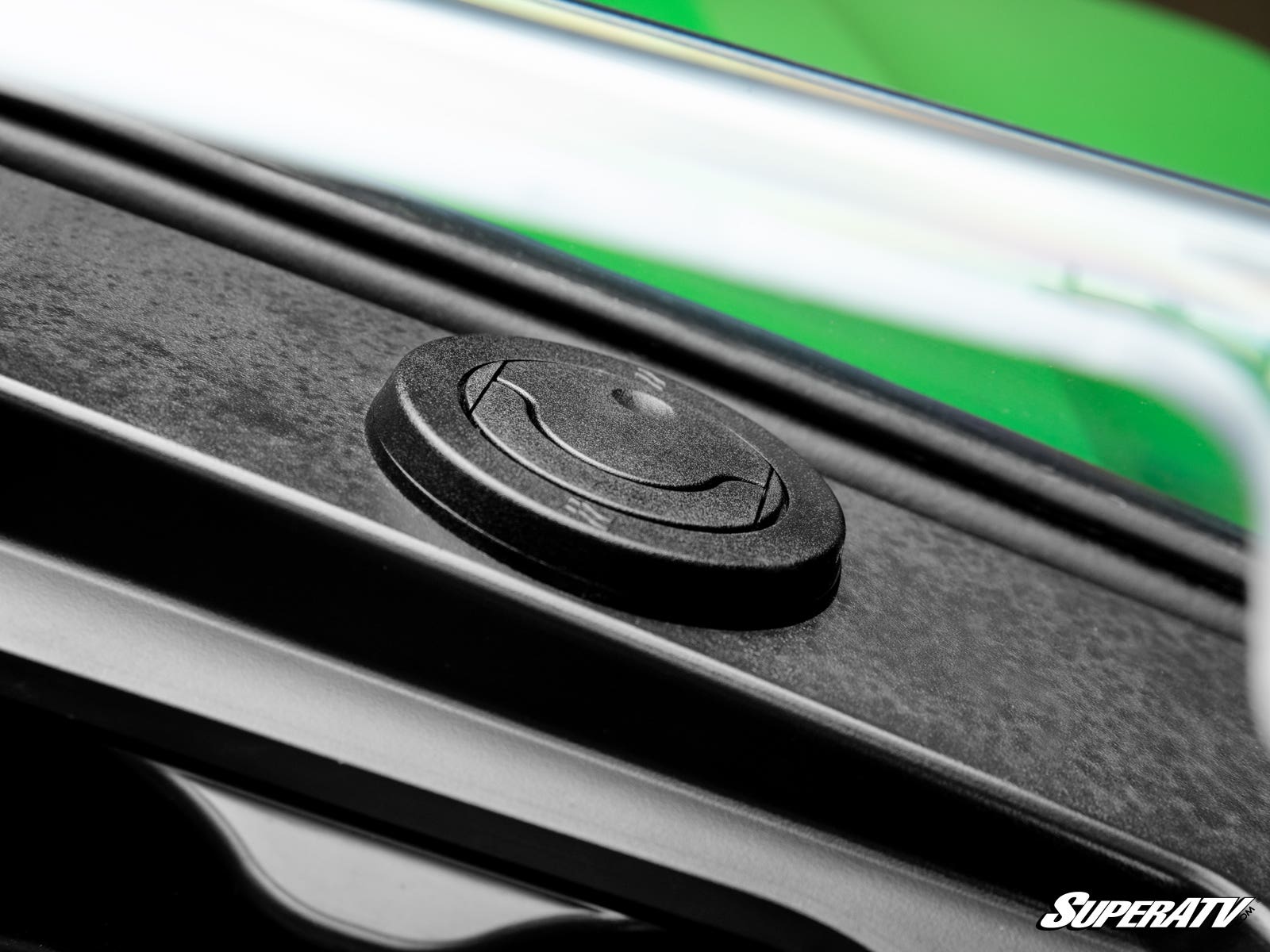

- Defrost hoses and vents included
- High-grade radiator hoses rated from -40°F to 285°F
- IP67 rating
- Built-in shutoff valve

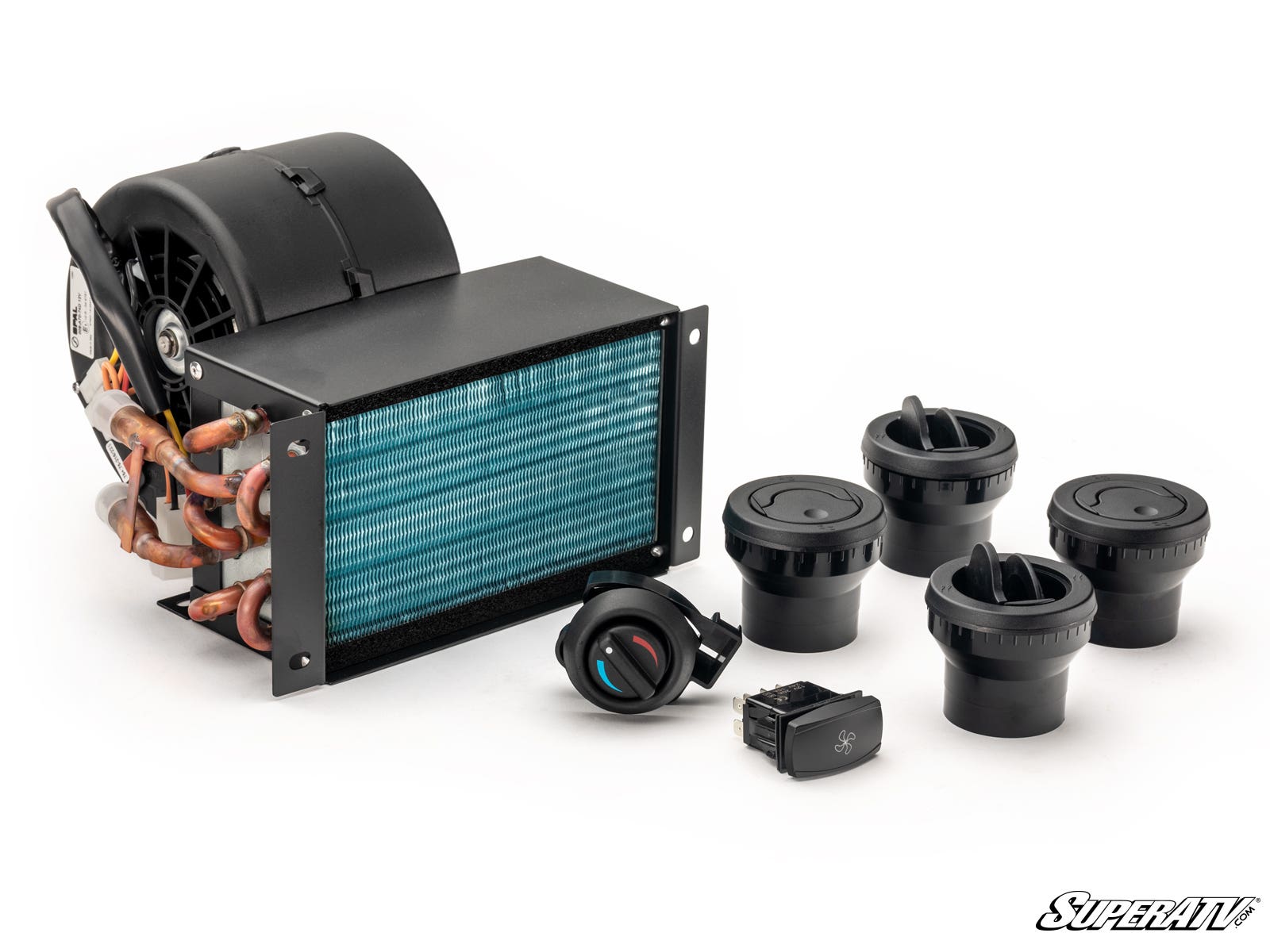

- Includes the hardware and instructions
- Optional idle flow pump
Built To Solve: A Cold Cab on the John Deere Gator XUV 835/865
- Cold winter rides and chores that cut the season short
- Snow, ice and fog on the windshield
- Heater hoses and boxes eating up leg room, solved by mounting inside the dash
- Slow warm-up on cold mornings, solved with the optional idle flow pump
Best For: Gator XUV Owners Who Ride and Work Through Winter
- Farm, ranch and property owners who use the Gator year-round
- Snow plow operators clearing driveways and lots
- Crews working cold job sites
- Owners with a windshield, roof and doors installed
Specifications
- Heat source: engine coolant
- Mounting: in dash
- Output: capable of 20,000 BTU at 135 CFM
- Current draw: 5.2 amps at 13.6 volts
- Vents: 360° adjustable vents plus defrost hoses and vents
- Hose rating: -40°F to 285°F
- Rating: IP67

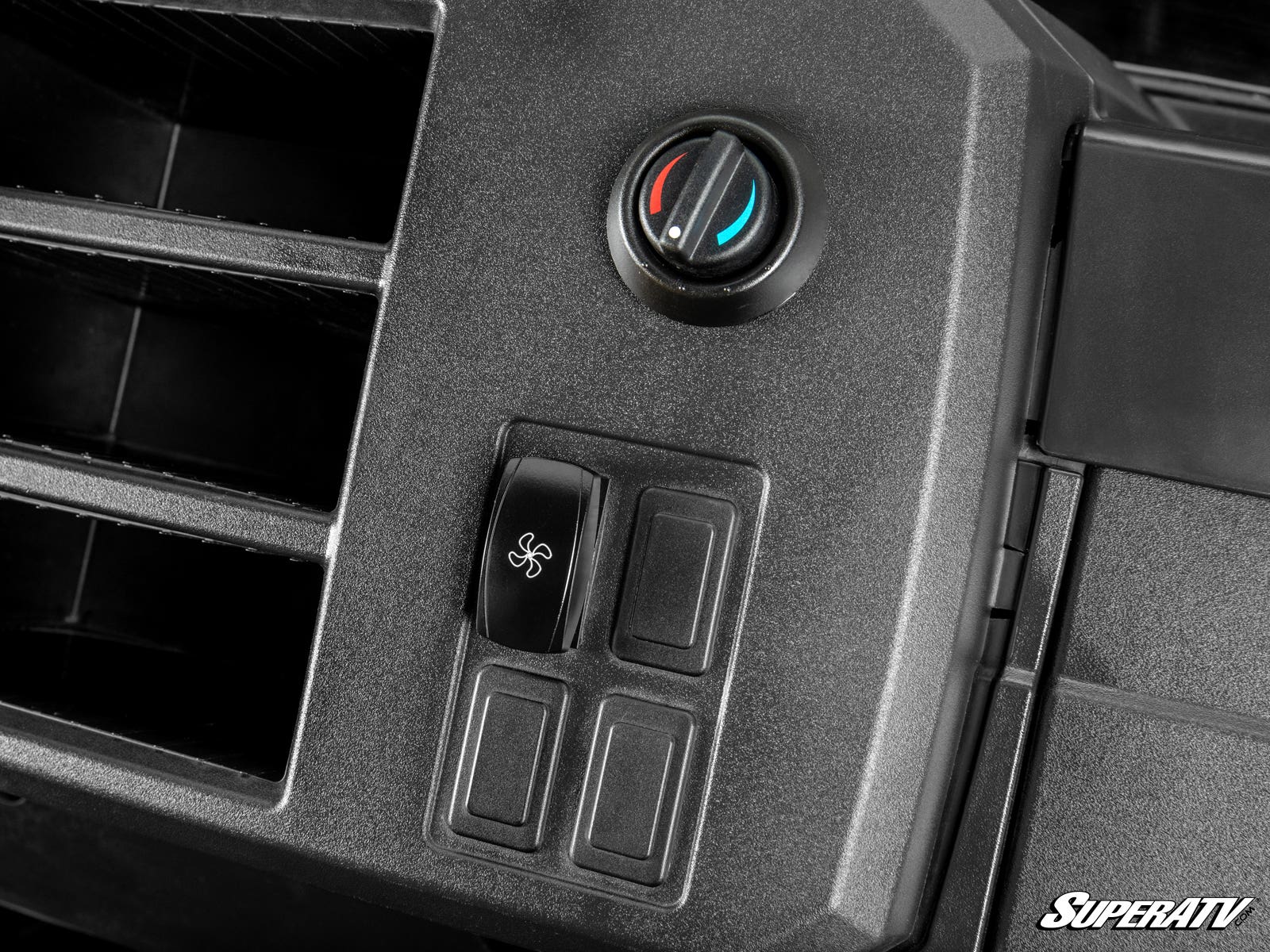

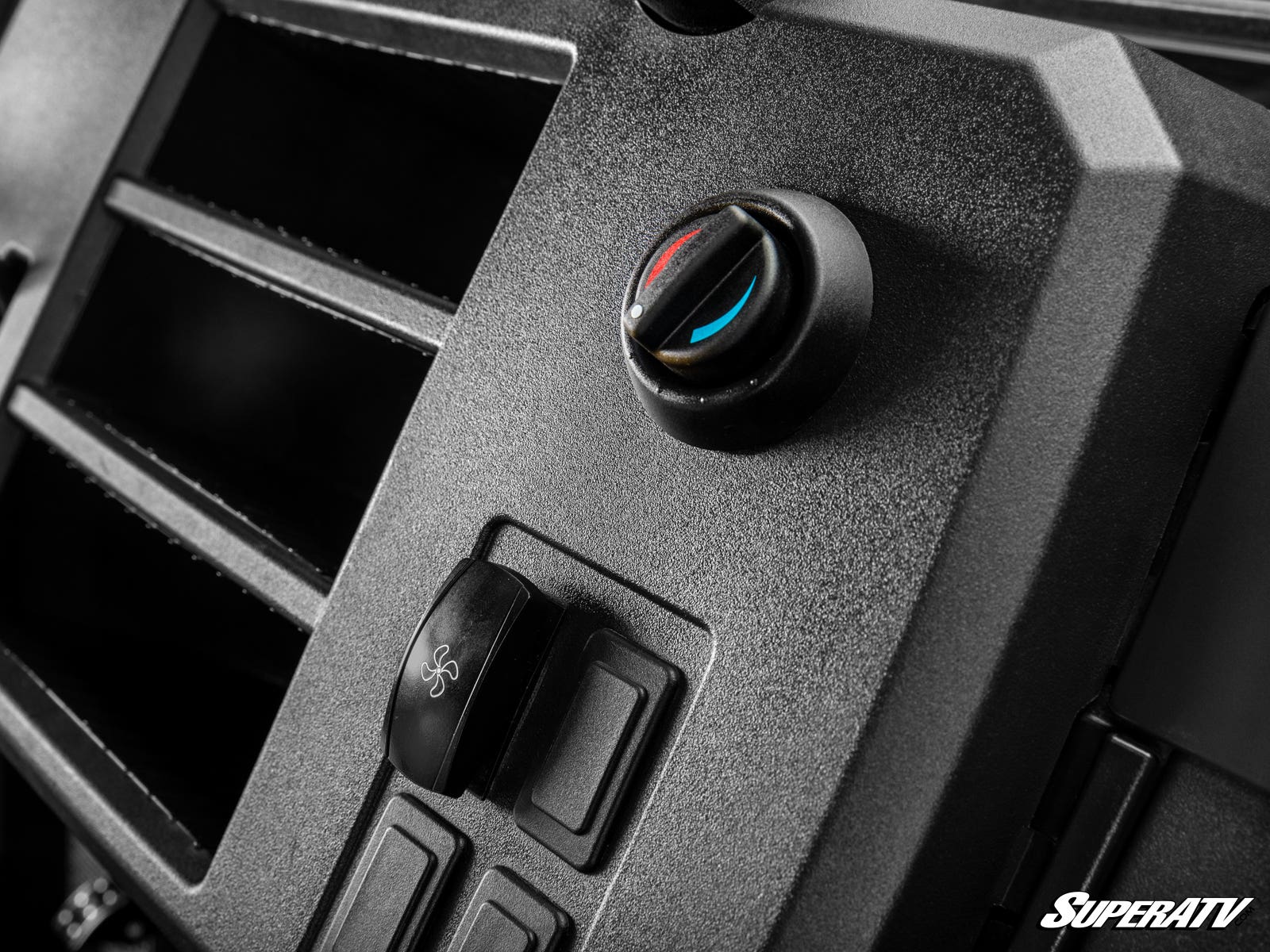

- Controls: adjustable fan speeds
- Manufacturer Part Number: HTR-JD-835M-ID
Fitment
Fits the following John Deere Gator models:
- John Deere Gator XUV 865E: 2018+
- John Deere Gator XUV 865M: 2018+
- John Deere Gator XUV 835E: 2018+
- John Deere Gator XUV 835M: 2018+
Does not fit any of the diesel models. Fitment is not guaranteed on models not listed.
FAQ
How much heat does this Gator XUV in-dash heater put out?
SuperATV rates it as capable of 20,000 BTU at 135 CFM. It draws heat from the engine coolant, so it keeps putting out hot air as long as the engine is running.
Does it defrost the windshield?
Yes. The kit includes defrost vents and hoses in addition to the vents on the heater itself.
Which Gator XUV models does it fit?
SuperATV lists John Deere Gator XUV 865E: 2018+; John Deere Gator XUV 865M: 2018+; John Deere Gator XUV 835E: 2018+; John Deere Gator XUV 835M: 2018+. Does not fit any of the diesel models.
How much power does it draw?
The heater draws 5.2 amps at 13.6 volts and carries an IP67 rating.
What does the idle flow pump do?
The idle flow pump keeps coolant moving through the system, so the heater blows hot air in about 30 seconds and keeps warming the cab even when you are idling or moving slowly.
Why SuperATV
SuperATV builds this in-dash heater kit around the Gator XUV, with the hoses, wiring, defrost vents and instructions in the box. The heater is backed by SuperATV's 1-year limited warranty against manufacturing defects to the original purchaser.
Make Your Gator XUV a Year-Round Machine
Confirm your Gator XUV model in the fitment list, choose your heat upgrades, and pair the heater with a windshield, roof and doors to seal the cab.
