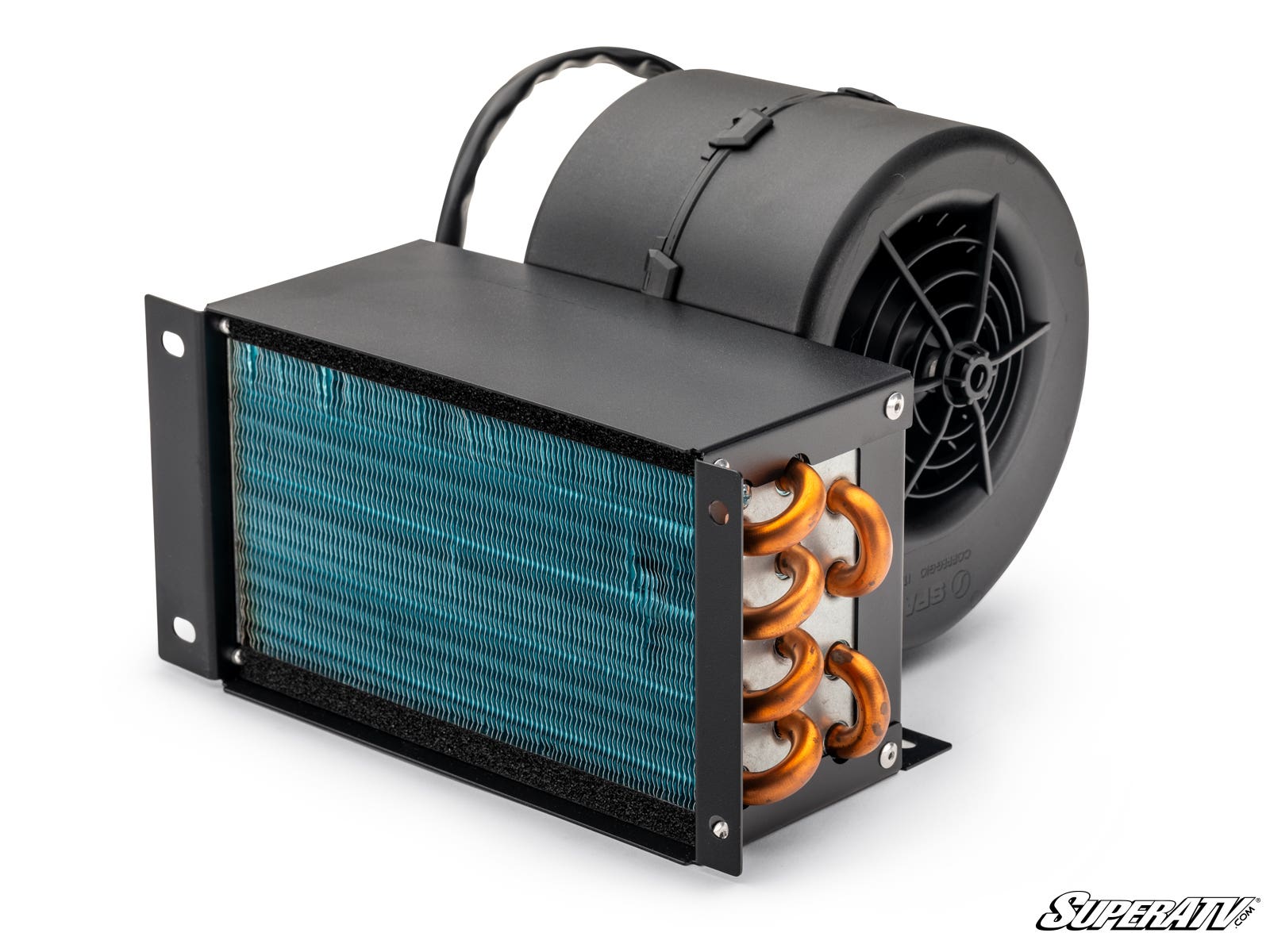

The SuperATV Honda Talon 1000 in-dash heater mounts inside the dash and draws heat from the engine coolant to warm your cab. It is rated at 20,000 BTU at 135 CFM, has multiple fan settings, and keeps hoses out of the footwell.
One heater kit covers the models in the fitment list. Add a quick-start flow valve, an idle flow pump, or both for faster heat.
Key Features

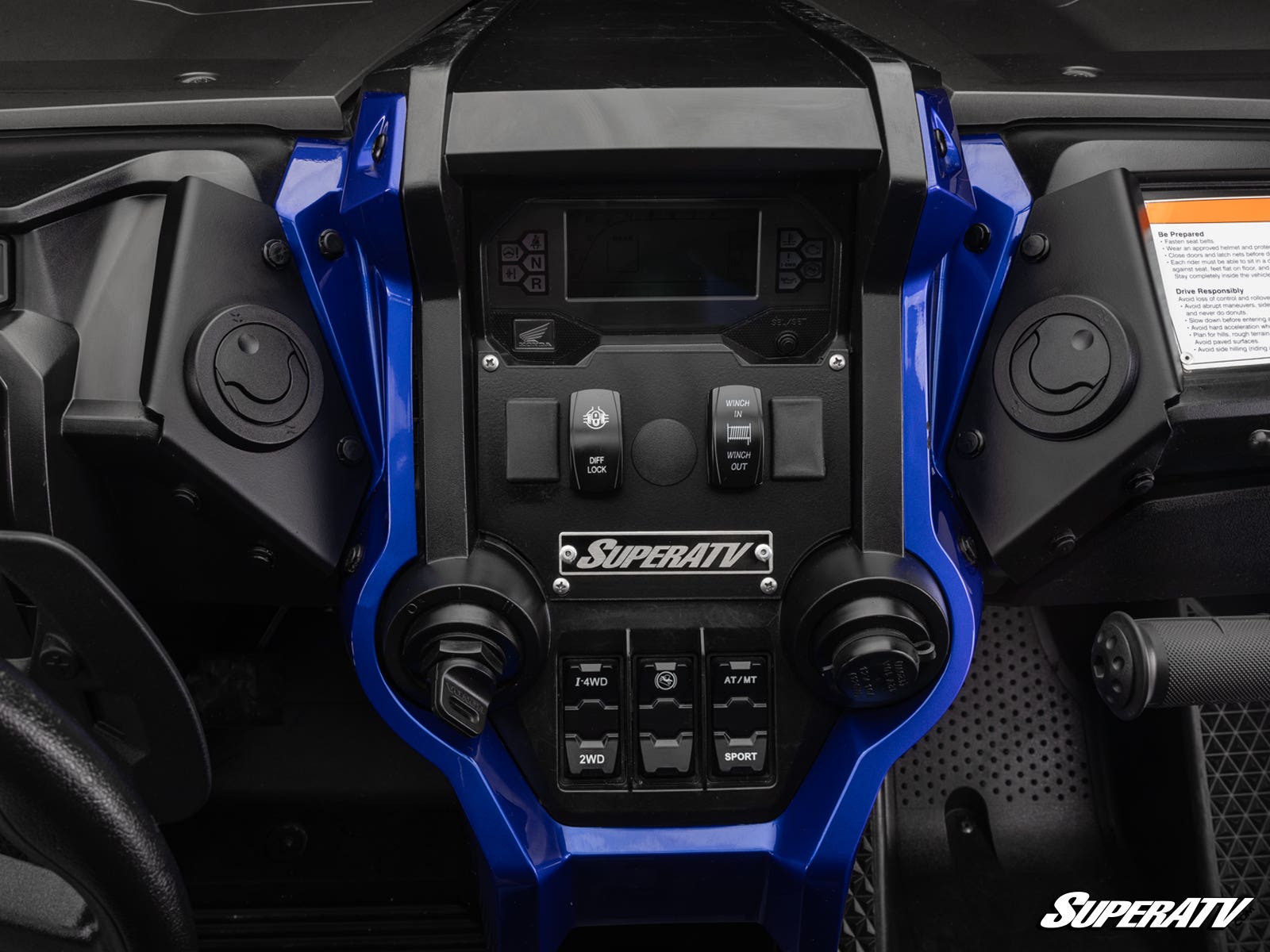

- Mounts inside the dash for a clean, factory-style look
- Capable of 20,000 BTU at 135 CFM
- Adjustable fan speeds

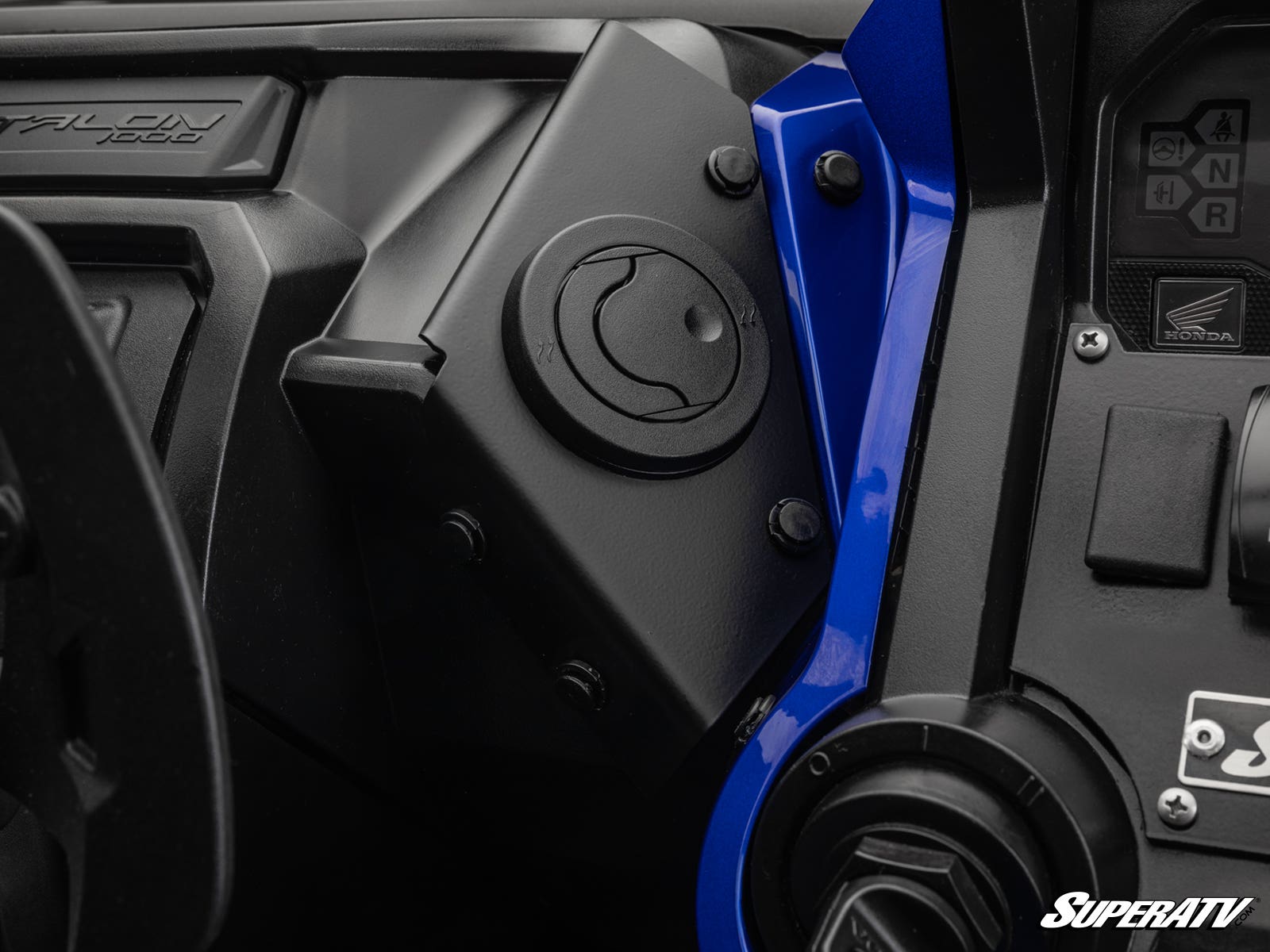

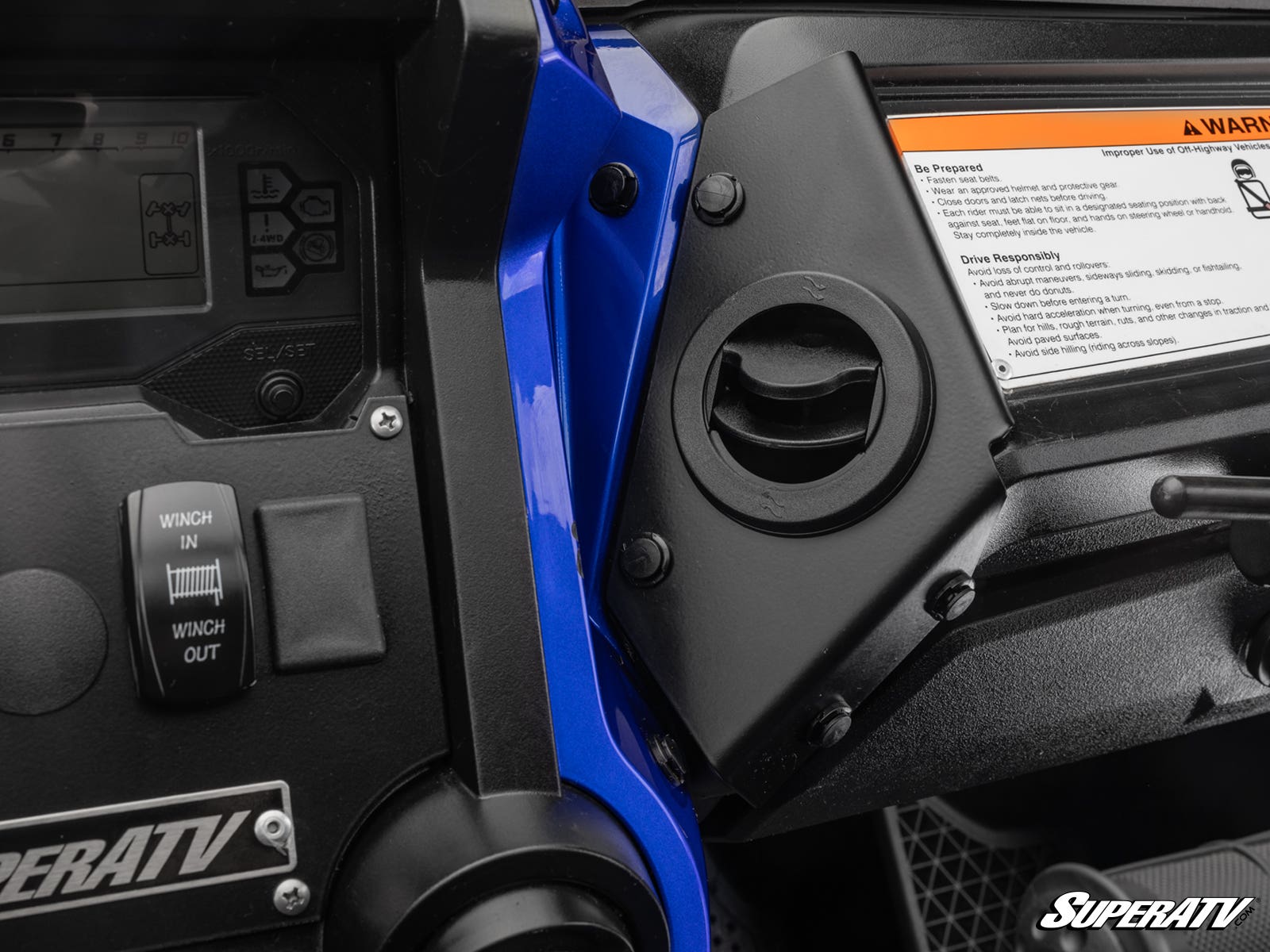

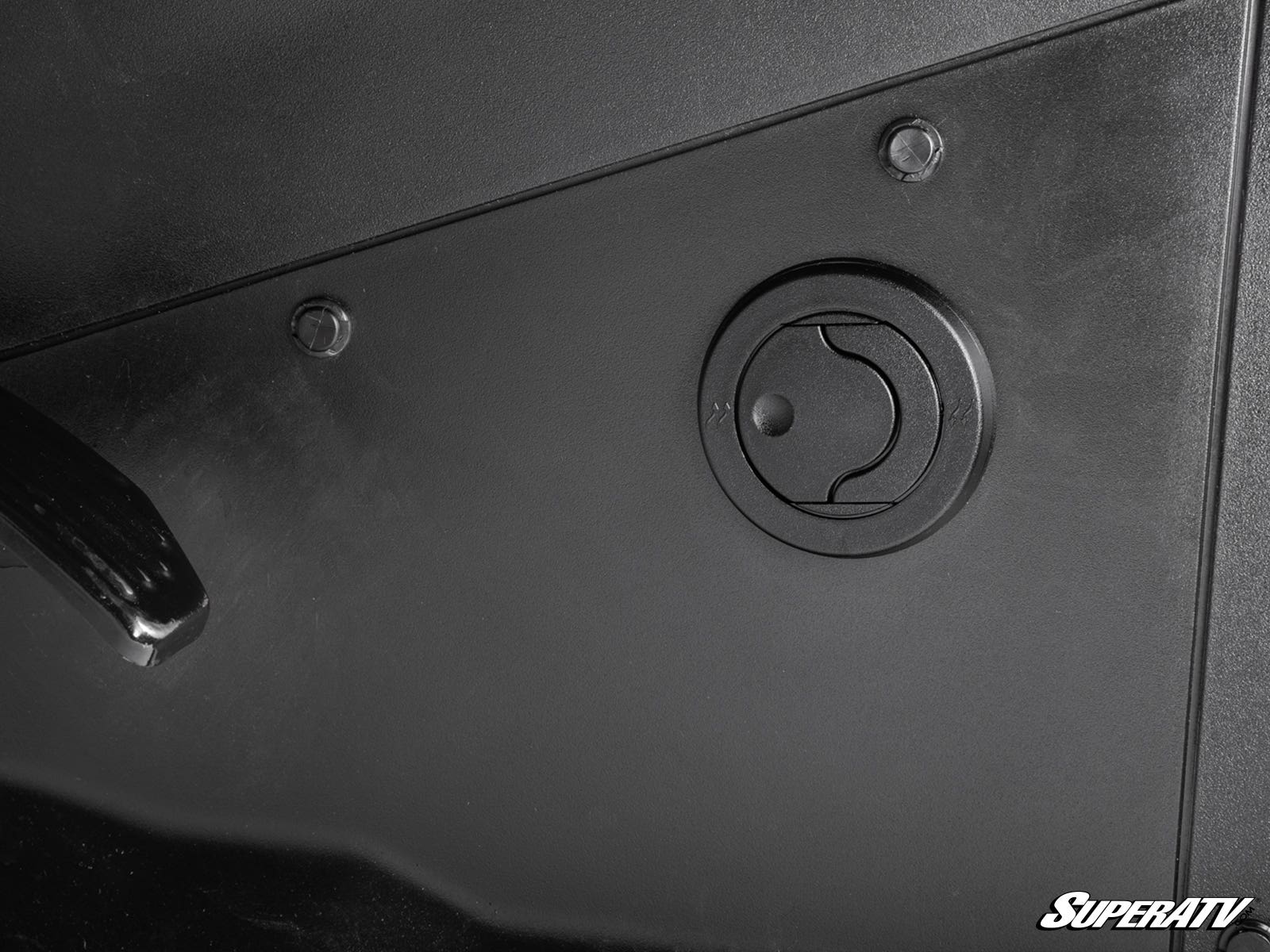

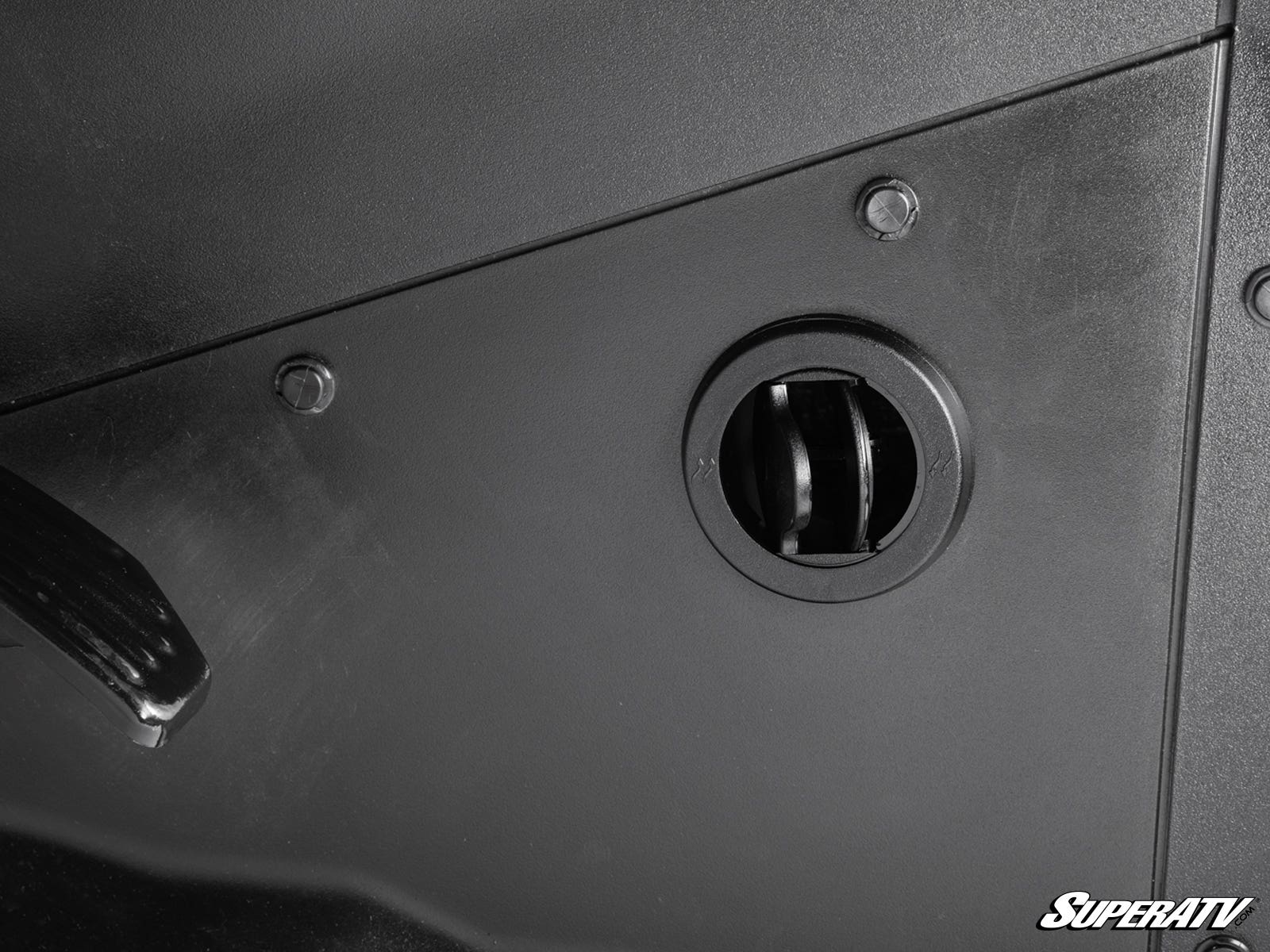

- 360° adjustable vents
- Defrost hoses and vents included
- High-grade radiator hoses rated from -40°F to 285°F
- IP67 rating
- Built-in shutoff valve

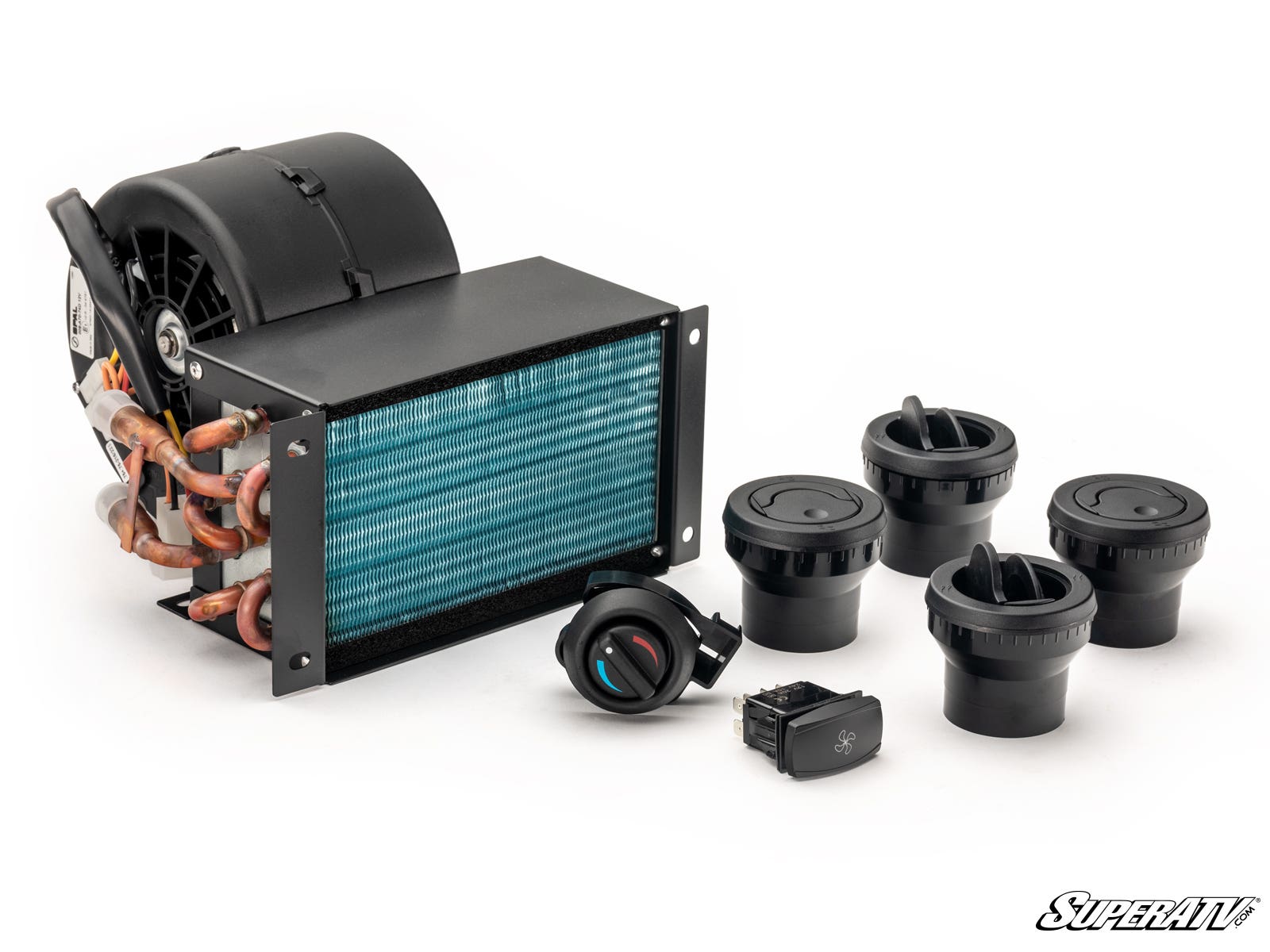

- Includes the hardware and instructions
- Optional quick-start flow valve and idle flow pump
Built To Solve: A Cold Cab on the Honda Talon 1000
- Cold winter rides and chores that cut the season short
- Snow, ice and fog on the windshield
- Heater hoses and boxes eating up leg room, solved by mounting inside the dash
- Slow warm-up on cold mornings, solved with the optional flow valve and idle pump
Best For: Talon 1000 Owners Who Ride and Work Through Winter
- Talon owners who keep riding through winter
- Riders plowing or hauling on snow days
- Riders who want heat without losing leg room
- Owners with a windshield, roof and doors installed
Specifications
- Heat source: engine coolant
- Mounting: in dash
- Output: capable of 20,000 BTU at 135 CFM
- Current draw: 5.2 amps at 13.6 volts
- Vents: 360° adjustable vents plus defrost hoses and vents
- Hose rating: -40°F to 285°F
- Rating: IP67

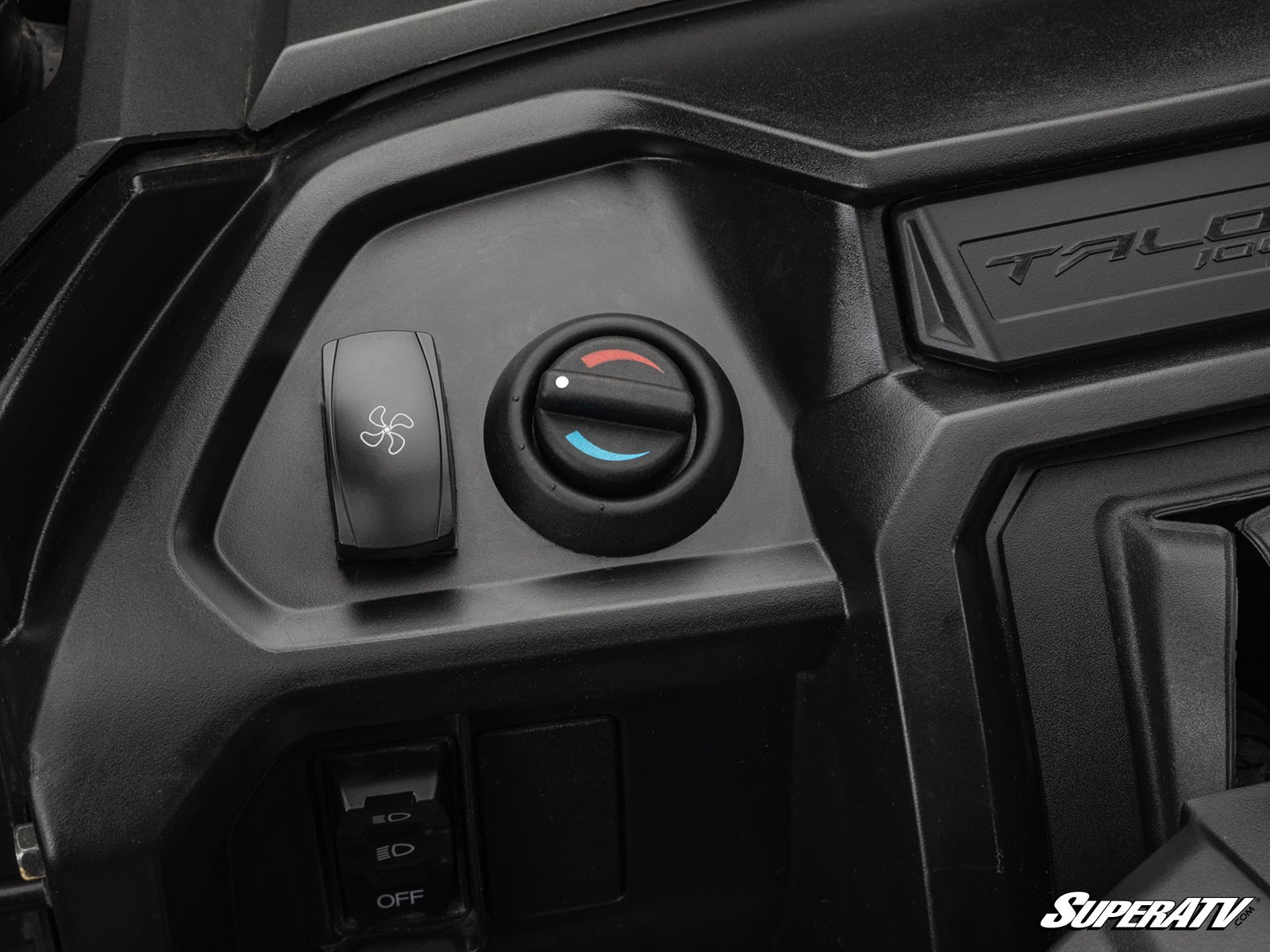

- Controls: adjustable fan speeds
- Manufacturer Part Number: HTR-H-TALR-ID
Fitment
Fits the following Honda Talon 1000 models:
- Honda Talon 1000R: 2019+
- Honda Talon 1000X: 2019+
- Honda Talon 1000R-4: 2023+
- Honda Talon 1000X-4: 2020+
Not compatible with machines that have Live Valve or with the OEM windshield wiper. Fitment is not guaranteed on models not listed.
FAQ
How much heat does this Talon 1000 in-dash heater put out?
SuperATV rates it as capable of 20,000 BTU at 135 CFM. It draws heat from the engine coolant, so it keeps putting out hot air as long as the engine is running.
Does it defrost the windshield?
Yes. The kit includes defrost vents and hoses in addition to the vents on the heater itself.
Which Talon 1000 models does it fit?
SuperATV lists Honda Talon 1000R: 2019+; Honda Talon 1000X: 2019+; Honda Talon 1000R-4: 2023+; Honda Talon 1000X-4: 2020+. Not compatible with machines that have Live Valve or with the OEM windshield wiper.
How much power does it draw?
The heater draws 5.2 amps at 13.6 volts and carries an IP67 rating.
Quick-start flow valve or idle flow pump: which one do I need?
The quick-start flow valve sends all engine coolant to the heater core at low engine temps and cuts warm-up time roughly in half, then opens on its own once the engine is warm. The idle flow pump actively circulates coolant so you get heat in about 30 seconds, even at idle or slow speeds. SuperATV recommends combining them for the fastest heat.
Why SuperATV
SuperATV builds this in-dash heater kit around the Talon 1000, with the hoses, wiring, defrost vents and instructions in the box. The heater is backed by SuperATV's 1-year limited warranty against manufacturing defects to the original purchaser.
Make Your Talon 1000 a Year-Round Machine
Confirm your Talon 1000 model in the fitment list, choose your heat upgrades, and pair the heater with a windshield, roof and doors to seal the cab.
