The SuperATV Honda Pioneer 1000 cab heater draws heat from the engine coolant lines to warm your cab like a car heater. It mounts under the dash between the seats for balanced heat, with adjustable temperature and fan speeds and defrost vents to keep the windshield clear.
One heater kit covers the Pioneer 1000 models in the fitment list. Add a quick-start flow valve or idle flow pump for faster heat.
Key Features

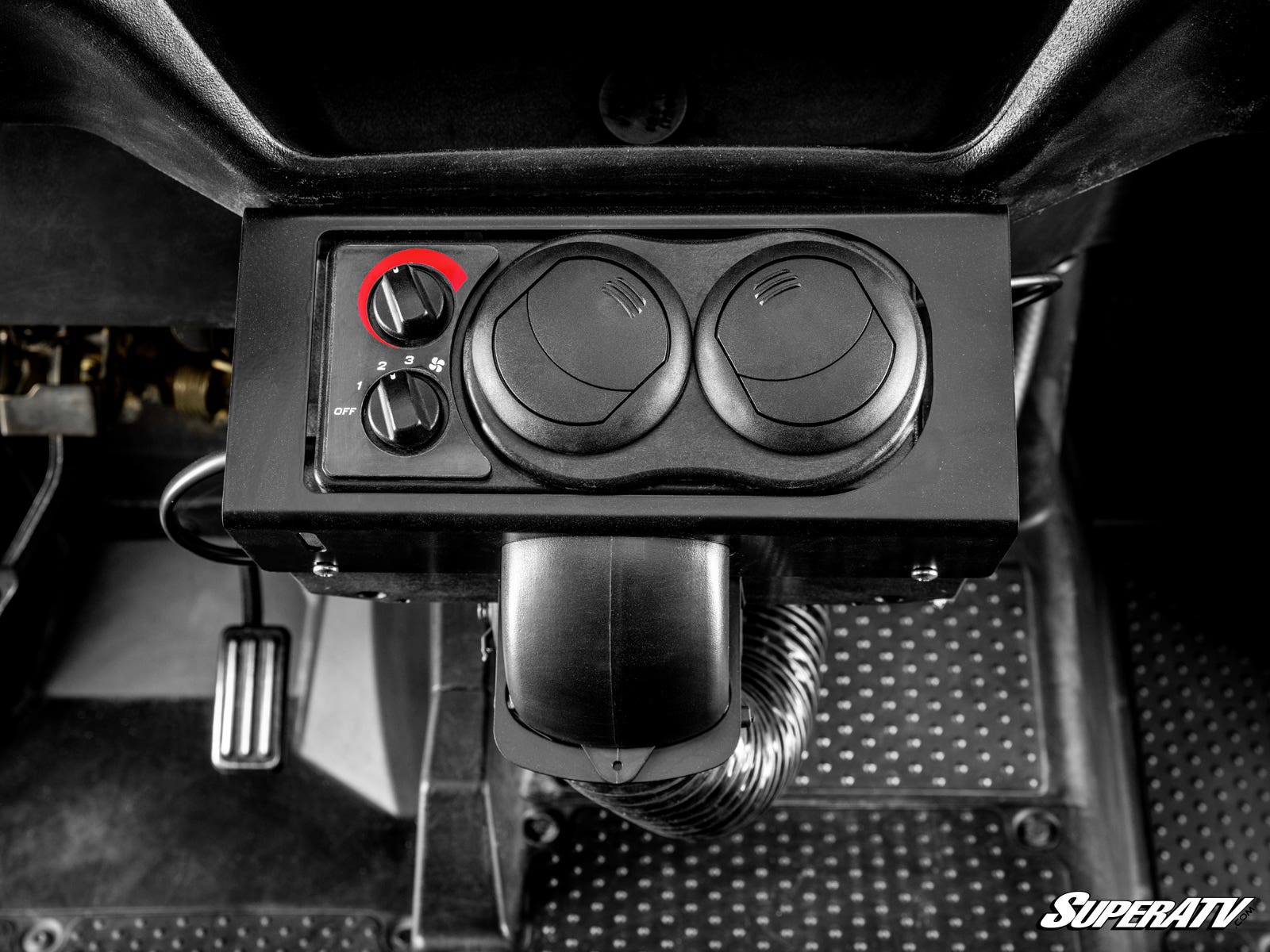

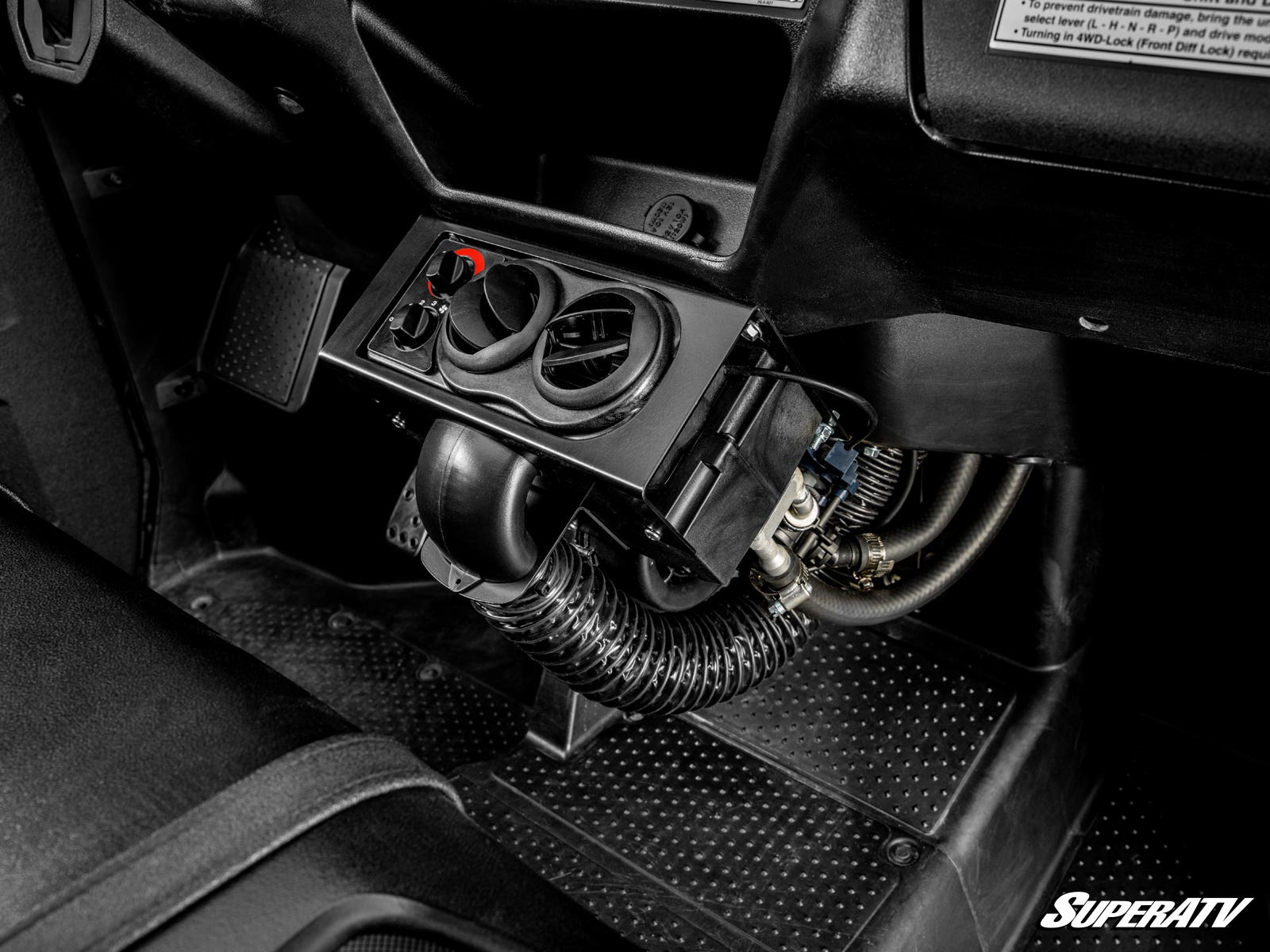

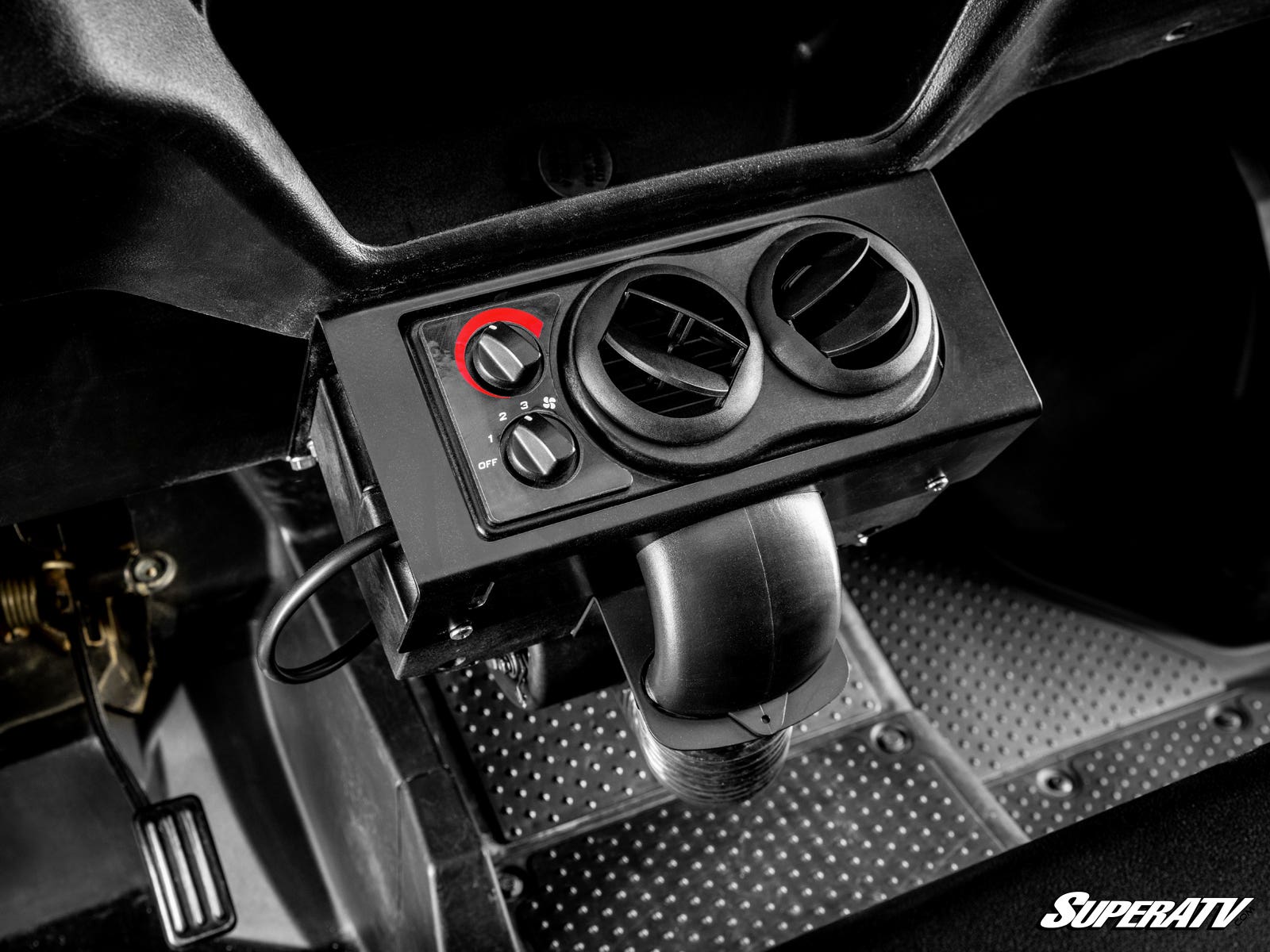

- Mounts under the dash between the seats
- Capable of 14,600 BTU at 135 CFM
- Adjustable temperature and fan speeds
- 360° adjustable vents
- Defrost hoses and vents included, routed through the dash
- High-grade radiator hoses rated from -40°F to 285°F
- Built-in shutoff valve
- Heater control box measures 10" x 4.5" x 11.75"
- Includes hoses, drill bits and Pioneer-specific mounting plates
- Optional quick-start flow valve and idle flow pump
Built To Solve: A Cold Cab on the Honda Pioneer 1000
- Cold winter rides and chores that cut the season short
- Snow, ice and fog on the windshield
- Slow warm-up on cold mornings, solved with the optional flow valve and idle pump
Best For: Pioneer 1000 Owners Who Ride and Work Through Winter
- Farm, ranch and property owners using the Pioneer year-round
- Hunters heading out on cold mornings
- Pioneer 1000-5 and 1000-6 owners hauling a crew
- Owners with a windshield, roof and doors installed
Specifications
- Heat source: engine coolant
- Mounting: under the dash, between the seats
- Output: capable of 14,600 BTU at 135 CFM
- Current draw: 3.4 amps at 13.7 volts
- Heater control box: 10" x 4.5" x 11.75"
- Hose rating: -40°F to 285°F
- Manufacturer Part Number: HTR-H-PIO1K, HTR-H-PIO1K-002
Fitment
Fits the following Honda Pioneer models:
- Honda Pioneer 1000, Deluxe: 2016-2025
- Honda Pioneer 1000 Limited Edition: 2017-2025
- Honda Pioneer 1000-5, Deluxe: 2016-2025
- Honda Pioneer 1000-5 Limited Edition: 2017-2025
- Honda Pioneer 1000-6: 2023-2025
Limited Edition models require the lower dash storage unit to be removed or modified. Pick the Year option that matches your machine (2016-2022 or 2023-2025). Fitment is not guaranteed on models not listed.
FAQ
How much heat does this Pioneer 1000 cab heater put out?
SuperATV rates the heater as capable of 14,600 BTU at 135 CFM. It draws heat from the engine coolant, like a car heater, so it keeps putting out hot air as long as the engine runs.
Does it defrost the windshield?
Yes. The kit includes defrost vents and hoses that route through the dash to keep the windshield clear of snow, ice and fog.
Which Pioneer 1000 models does it fit?
SuperATV lists Honda Pioneer 1000, Deluxe: 2016-2025; Honda Pioneer 1000 Limited Edition: 2017-2025; Honda Pioneer 1000-5, Deluxe: 2016-2025; Honda Pioneer 1000-5 Limited Edition: 2017-2025; Honda Pioneer 1000-6: 2023-2025. Limited Edition models require the lower dash storage unit to be removed or modified. Pick the Year option that matches your machine (2016-2022 or 2023-2025).
Is drilling required?
Yes. Installation requires drilling through plastic and the firewall, and SuperATV includes the bits you need.
Quick-start flow valve or idle flow pump: which one do I need?
The quick-start flow valve sends all engine coolant to the heater core at low engine temps and cuts warm-up time roughly in half, then opens on its own once the engine is warm. The idle flow pump actively circulates coolant so you get heat in about 30 seconds, even at idle or slow speeds. SuperATV recommends combining them for the fastest heat.
Why SuperATV
SuperATV builds this heater kit around the Pioneer 1000: every kit ships with the hoses, drill bits, Pioneer-specific mounting plates and instructions. The heater is backed by SuperATV's 1-year limited warranty against manufacturing defects to the original purchaser.
Make Your Pioneer 1000 a Year-Round Machine
Confirm your Pioneer 1000 model in the fitment list, choose your heater package, and pair it with a windshield, roof and doors to seal the cab.
