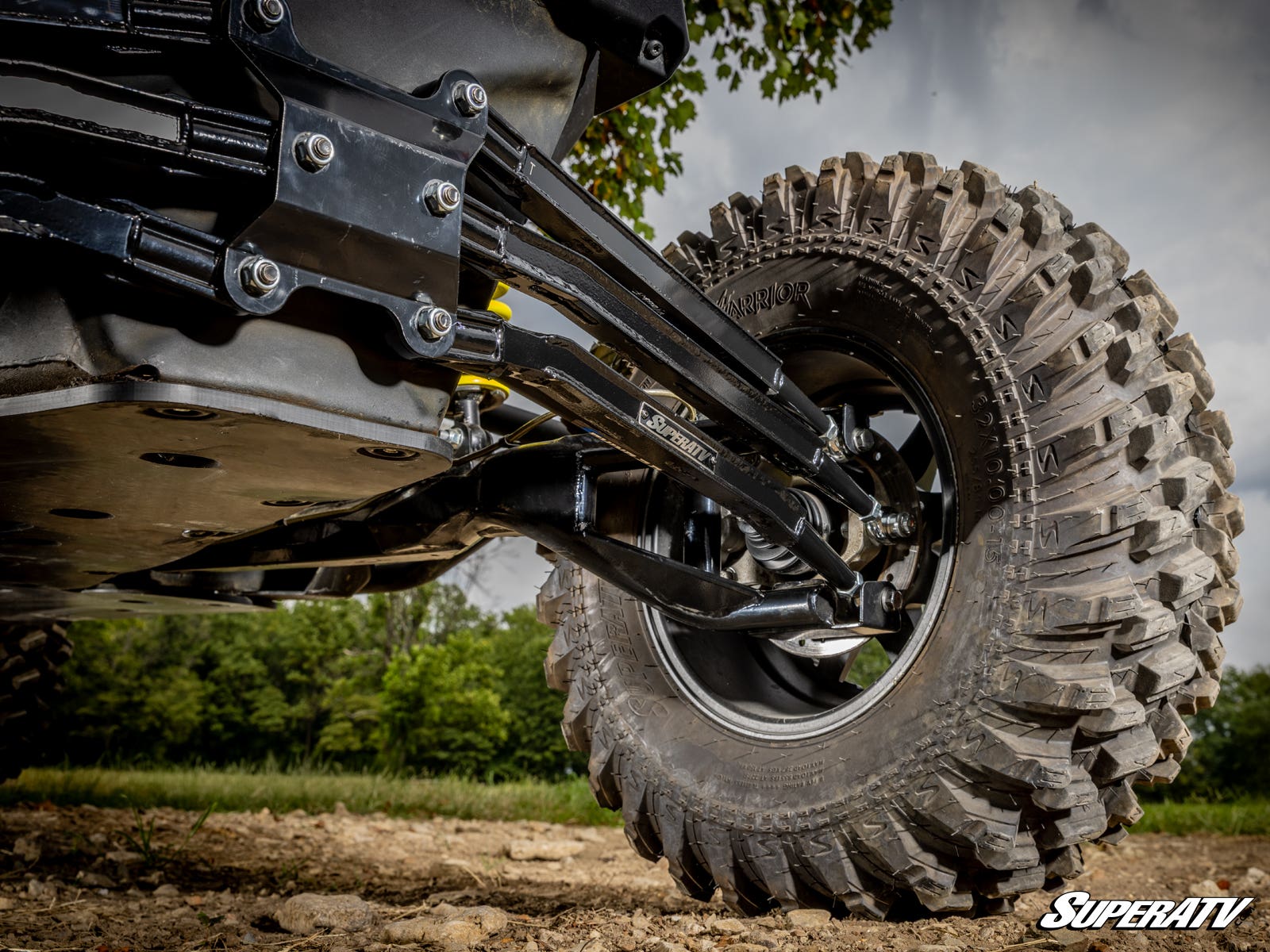

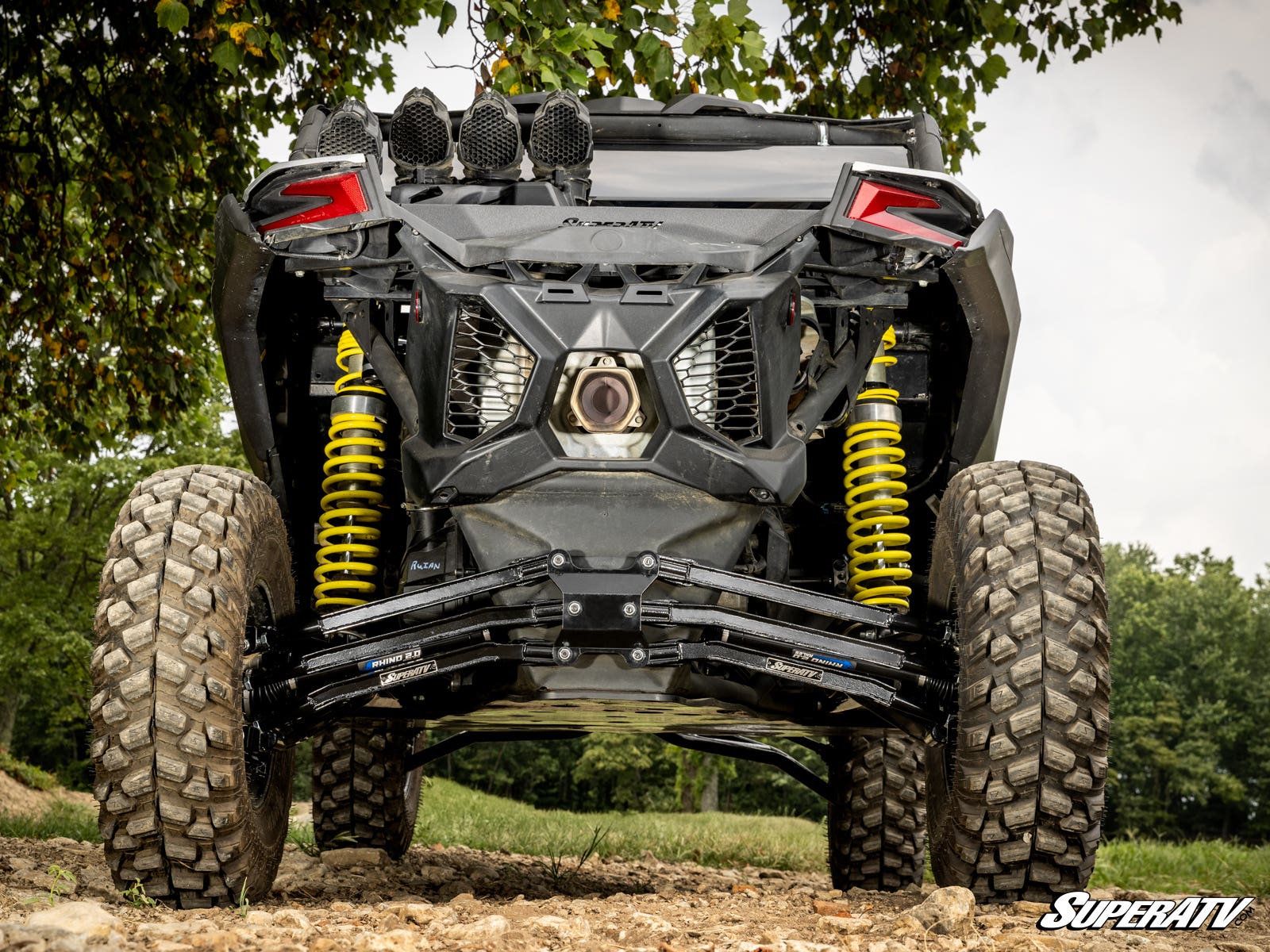

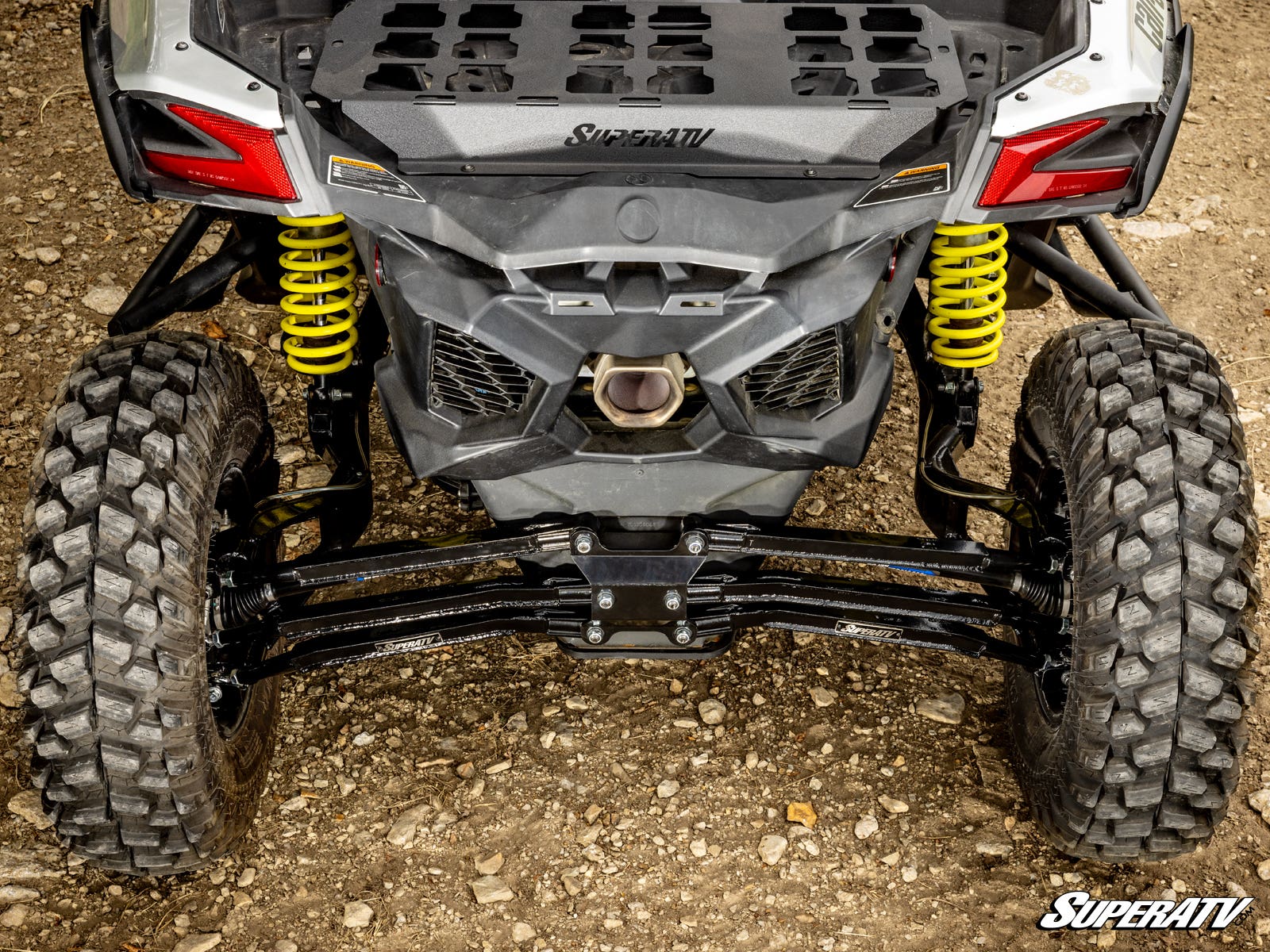

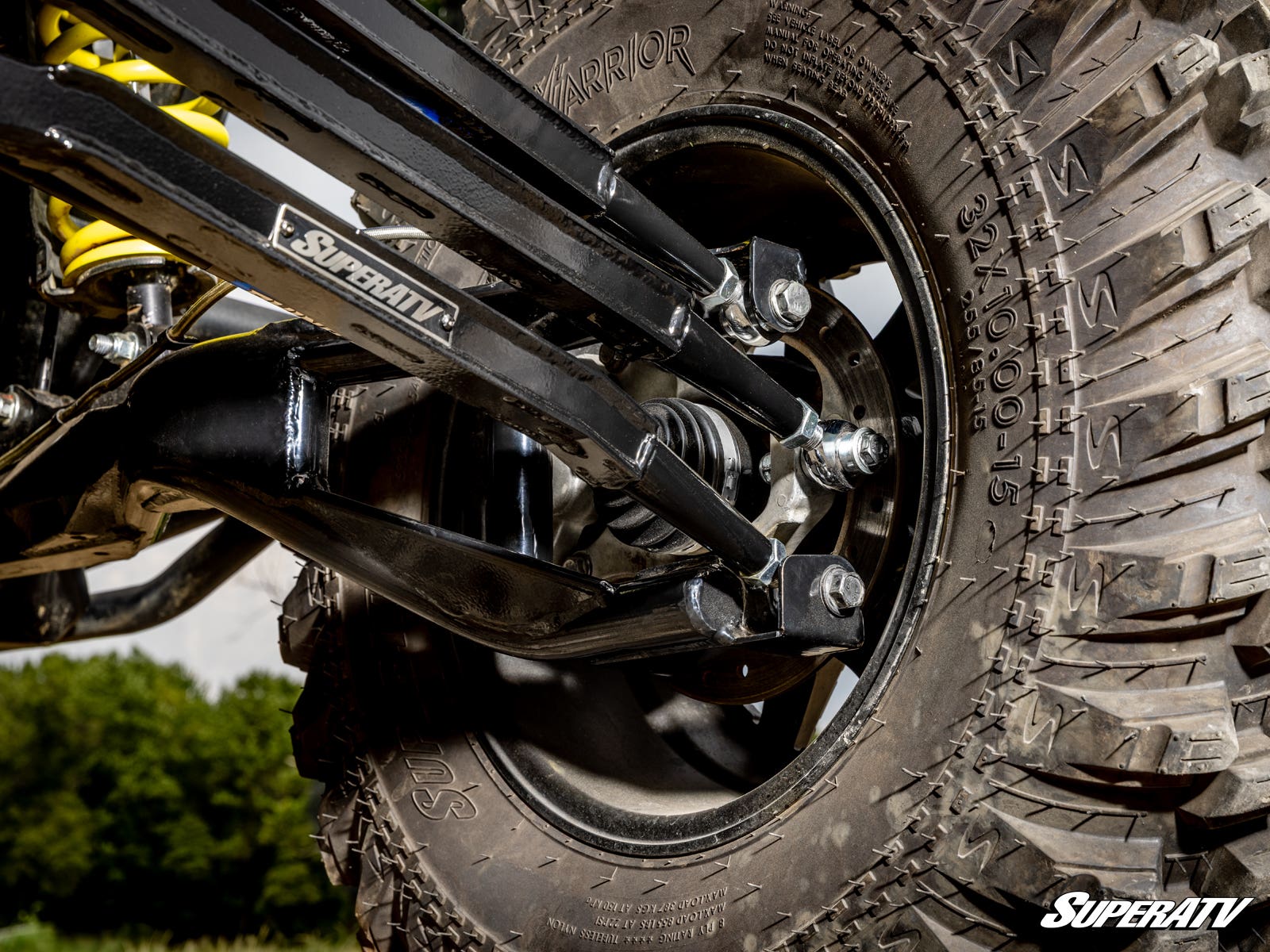

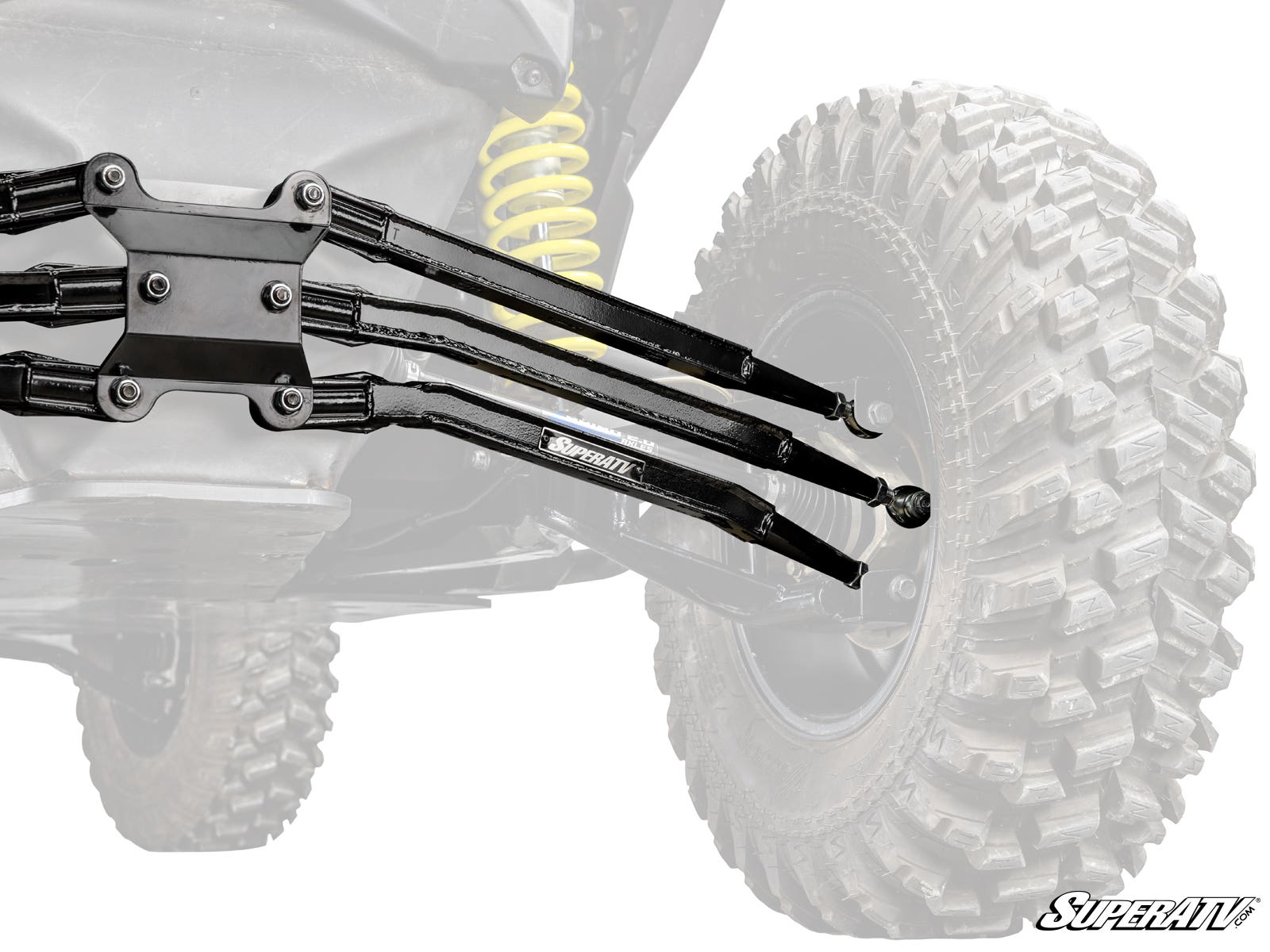

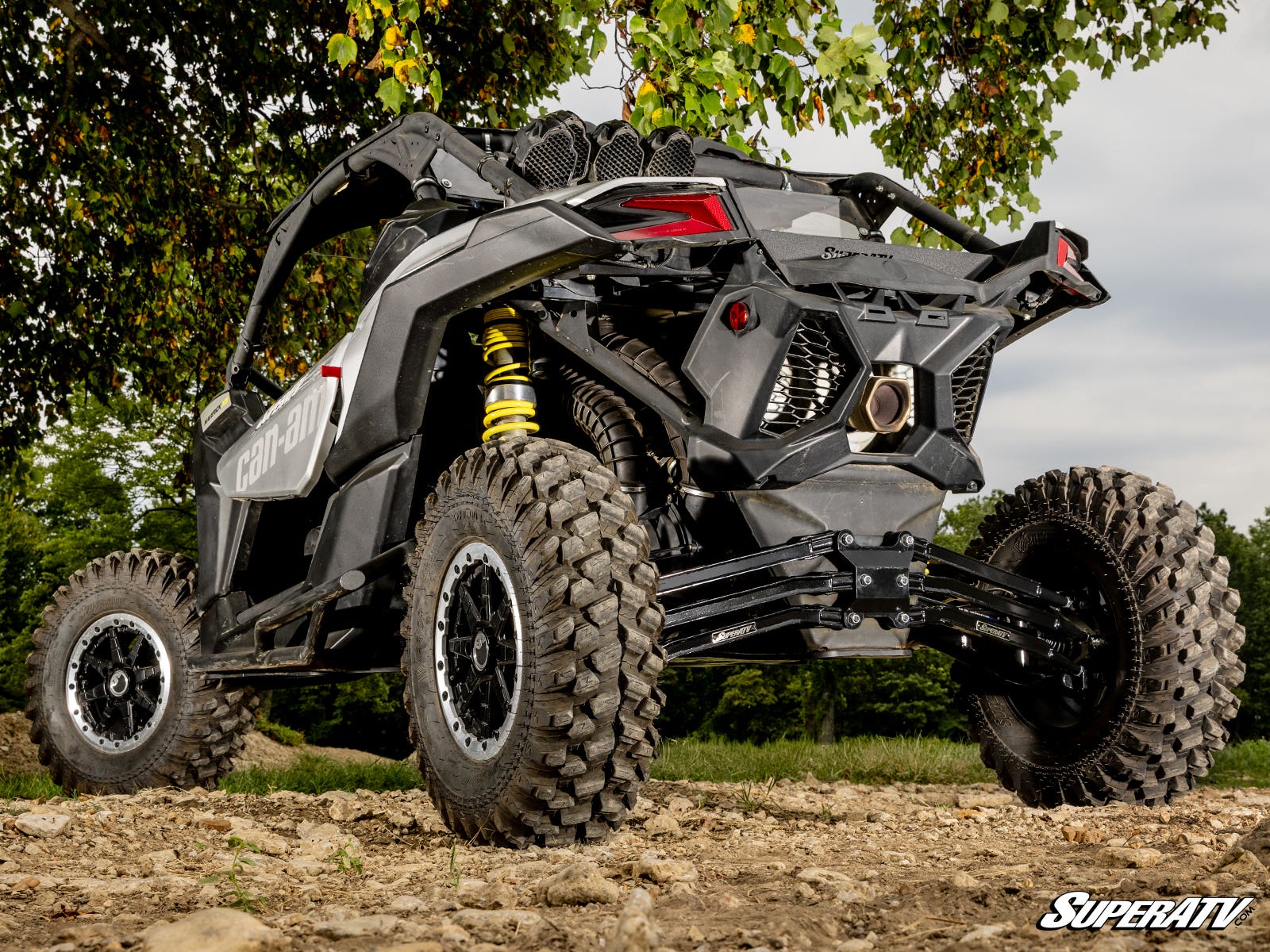

The SuperATV High-Clearance Boxed Radius Rods give your Can-Am Maverick X3 more ground clearance, so you cruise over bumps, rocks and ruts without getting hung up on the rear suspension. They combine high-clearance bends with 1/8-inch steel plate, internal gussets and reinforced pivot joints, and they arrive pre-adjusted to OEM specs with all new bushings.
The I-beam boxed design and gusseted pivot joints beef up the areas that take the most stress, and the heavy-duty frame mounts are built for hard use. Because the 5/8 x 18 heim joints are set to factory specs out of the box, you can bolt them on and ride, then adjust camber later if you add other upgrades. They are finished in UV-resistant powder coat.
Key Features
- 1/8-inch heavy-duty steel plating
- High-clearance design for improved ground clearance
- Internal gusseting for maximum strength
- Reinforced pivot joints in high-stress areas

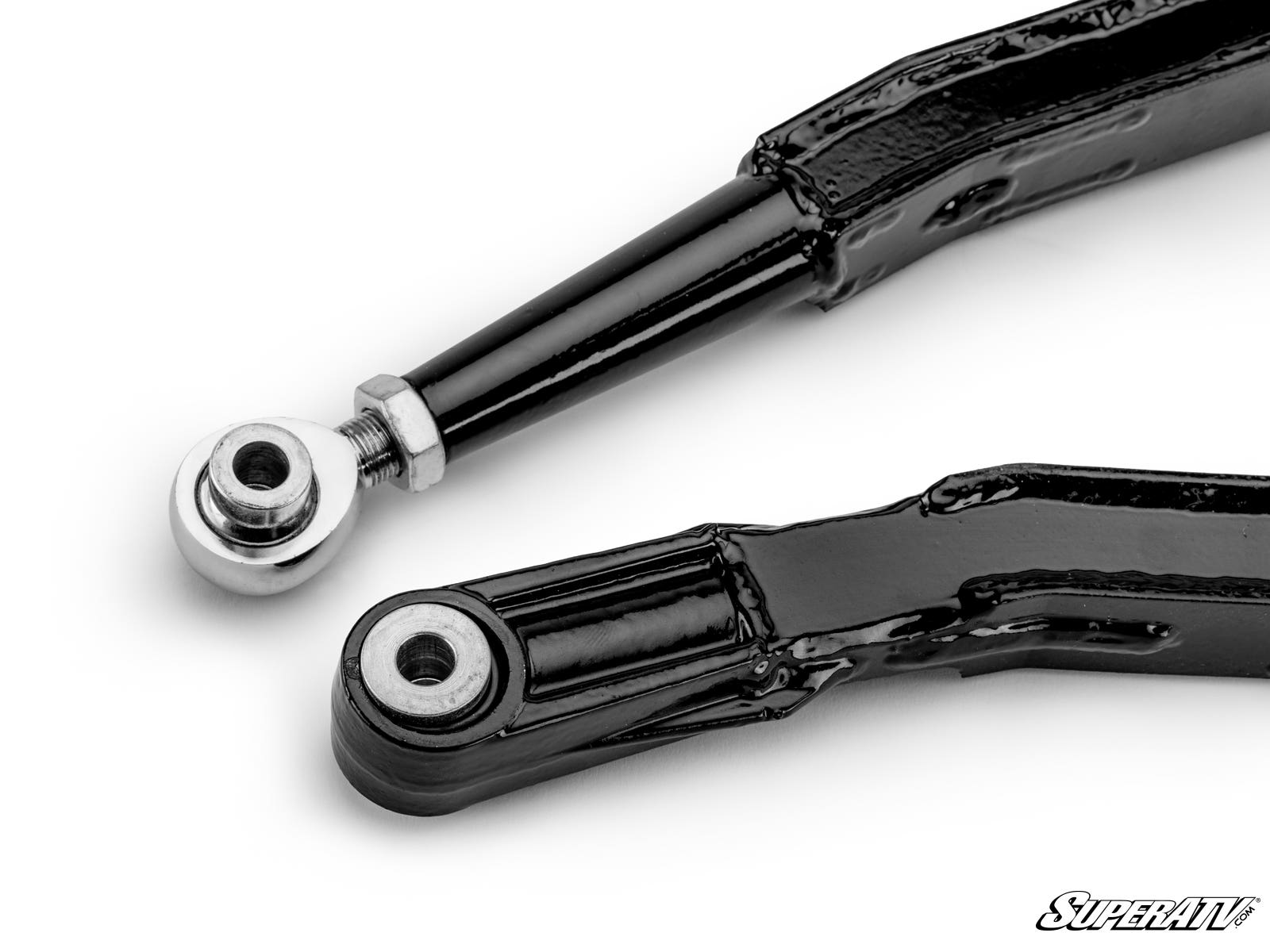

- Heavy-duty 5/8 x 18 heim joints
- Heim joints pre-adjusted to factory specs
- Includes all new bushings

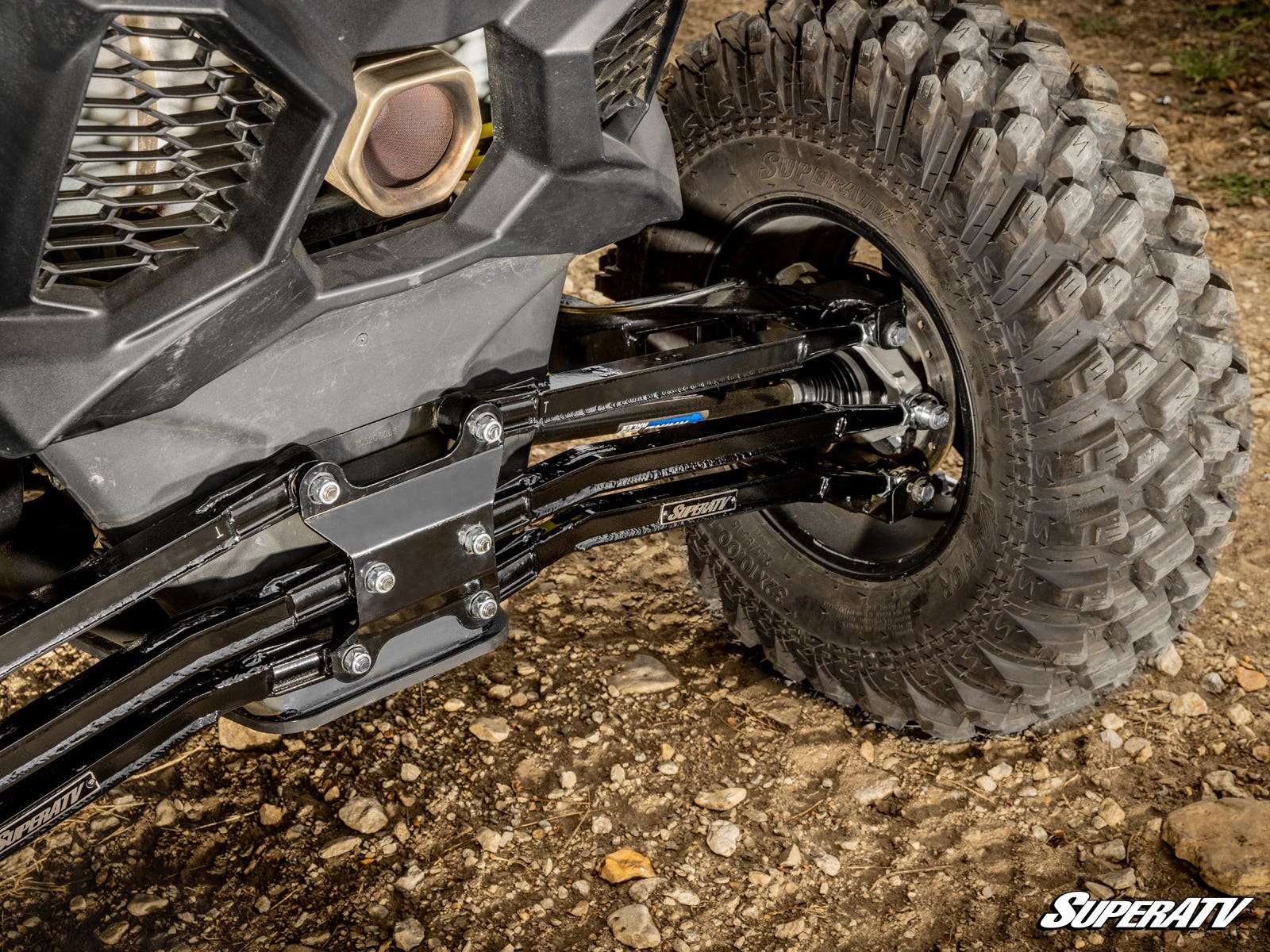

- Heavy-duty frame mount design
- UV-resistant powder coating
Built To Solve: Stock Maverick X3 Radius Rods Hanging Up and Bending
- Rear radius rods dragging on rocks, ledges and rut edges
- Bent or tweaked stock rods after hard hits
- Limited clearance in rock gardens and on big climbs
- Setup time lost adjusting new rods before the first ride
Best For: Maverick X3 Owners Riding Rocks, Whoops and Jumps
- Rock crawlers and trail riders who need more clearance under the rear suspension
- Desert and dune riders who take big hits and jumps
- Owners replacing worn or bent factory radius rods
- Choose the 64-inch or 72-inch version to match your X3's width
Specifications

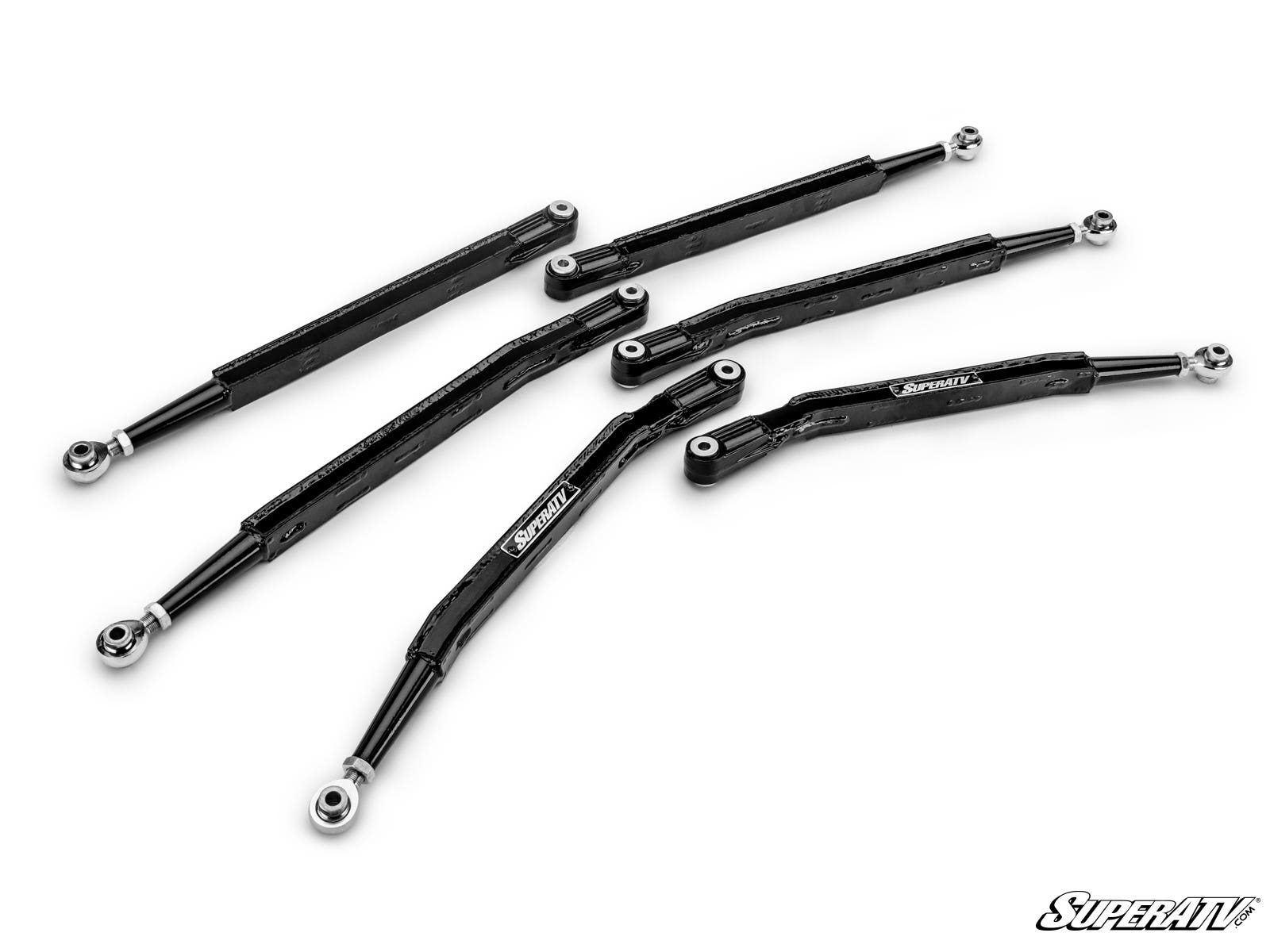

- Material: 1/8-inch steel plate, boxed I-beam design with internal gussets
- Heim joints: 5/8 x 18, pre-adjusted to factory specs
- Bushings: all new bushings included
- Finish: UV-resistant powder coat
- Versions: 64-inch wide and 72-inch wide models
- Manufacturer Part Numbers: RA-CA-X3-004-HC-02 (64-inch), RA-CA-X3RS-BX-002-02 (72-inch)
Fitment
- 64-inch models: Maverick X3 900 (2018), Turbo (2017-2020), Turbo R (2018-2020), DS Turbo R (2021), DS Turbo 64 and DS Turbo RR 64 (2022+)
- 64-inch models: X DS Turbo R (2017-2020), X DS Turbo RR (2020-2021), X DS Turbo RR 64 (2022+), X MR Turbo (2018-2021), X MR Turbo RR 64 (2022+), X RC Turbo (2018-2021), X RC Turbo RR 64 (2022+)
- 64-inch MAX models: MAX Turbo (2017-2020), MAX Turbo R (2018-2020), MAX DS Turbo R (2021), MAX DS Turbo 64 and MAX DS Turbo RR 64 (2022+), MAX X DS Turbo (2017-2019), MAX X DS Turbo R (2020), MAX X DS Turbo RR 64 (2022+)
- 72-inch models: RS Turbo R (2021), RS Turbo RR 72 (2022+), X MR Turbo R (2018-2019), X MR Turbo RR (2020-2021), X MR Turbo RR 72 (2022+), X RC Turbo R (2018-2020), X RC Turbo RR (2020-2021), X RC Turbo RR 72 (2022+)
- 72-inch models: X RS Turbo R (2017-2020), X RS Turbo RR (2020-2021), X RS Turbo RR 72 and X RS Turbo RR with Smart-Shox 72 (2022+)
- 72-inch MAX models: MAX RS Turbo R (2021), MAX RS Turbo RR 72 (2022+), MAX X DS Turbo RR (2020-2021), MAX X MR Turbo R (2019-2021), MAX X MR Turbo RR (2020-2021), MAX X MR Turbo RR 72 (2022+), MAX X RS Turbo (2017-2020), MAX X RS Turbo R (2018-2020), MAX X RS Turbo RR (2020-2021), MAX X RS Turbo RR 72 and MAX X RS Turbo RR with Smart-Shox 72 (2022+)
Pick the 64-inch or 72-inch version to match your Maverick X3's width; the two are not interchangeable.
Fitment is not guaranteed on models, trims or years not listed above, or on machines with modified chassis or aftermarket parts in the way; confirm your exact model before ordering.
FAQ
Why upgrade the stock Maverick X3 radius rods?
These rods use a high-clearance bend and boxed, gusseted 1/8-inch steel, so they sit higher out of the way and resist bending on rocks, ledges and hard landings.
Do I need an alignment after installing them?
SuperATV pre-adjusts the heim joints to match stock specs, so they are ready to install. If you change other suspension parts later, you can adjust camber with the heims.
Which version fits my X3?
Choose 64-inch for 64-inch-wide Maverick X3 and MAX models and 72-inch for 72-inch-wide models such as the X RS, X MR, X RC and RS RR 72 versions. Check the fitment list for your exact trim and year.
Are new bushings included?
Yes. Each set comes with all new bushings installed.
Do they fit the Smart-Shox X3 models?
Yes. SuperATV lists the X RS Turbo RR with Smart-Shox 72 and MAX X RS Turbo RR with Smart-Shox 72 (2022+) under the 72-inch version.
How do these compare to high-clearance trailing arms?
Radius rods locate the rear hub fore and aft alongside the trailing arms. Pairing them with high-clearance trailing arms gives you more clearance across the whole rear suspension.
Why SuperATV
SuperATV designs, tests and builds its UTV parts in-house and backs this part with a 1-year limited warranty against manufacturing defects. Dunes 2 Dezert SXS ships SuperATV parts nationwide, so you get vehicle-specific fitment without hunting across sites.
Finish Your Maverick X3 Rear Suspension Upgrade
Confirm whether your Maverick X3 is a 64-inch or 72-inch model, then pick the matching radius rods. For full rear clearance, pair them with SuperATV high-clearance trailing arms, and check your heim and bushing hardware if you are also adding a long-travel or lift kit.
