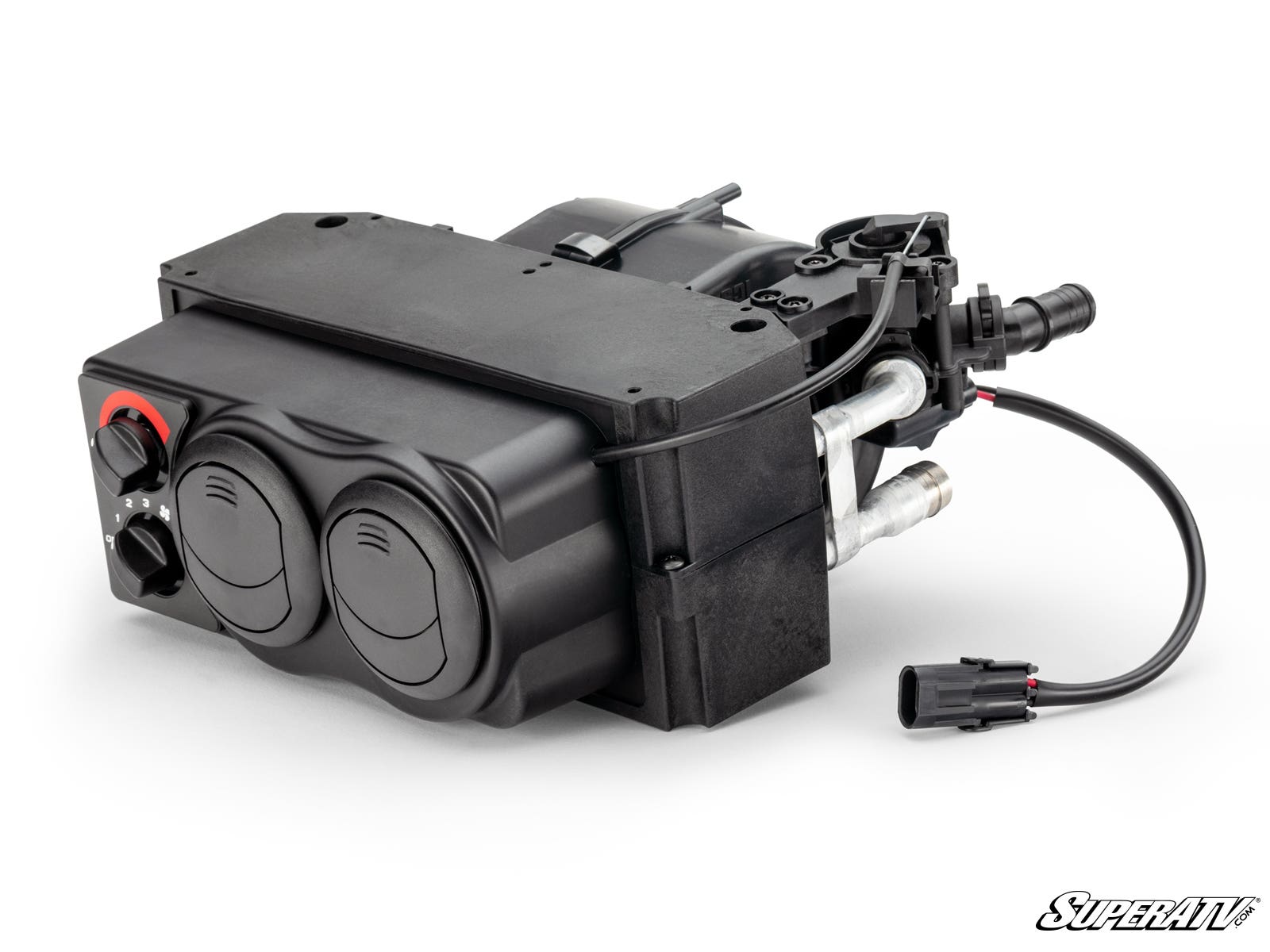

The SuperATV Can-Am Defender heater for HD10 models pulls heat straight from the engine coolant lines to warm your cab and defrost the windshield, just like a car heater. It mounts under the dash, runs on the Defender's key-on power, and gives you adjustable temperature and fan speed so cold-weather rides stay comfortable.

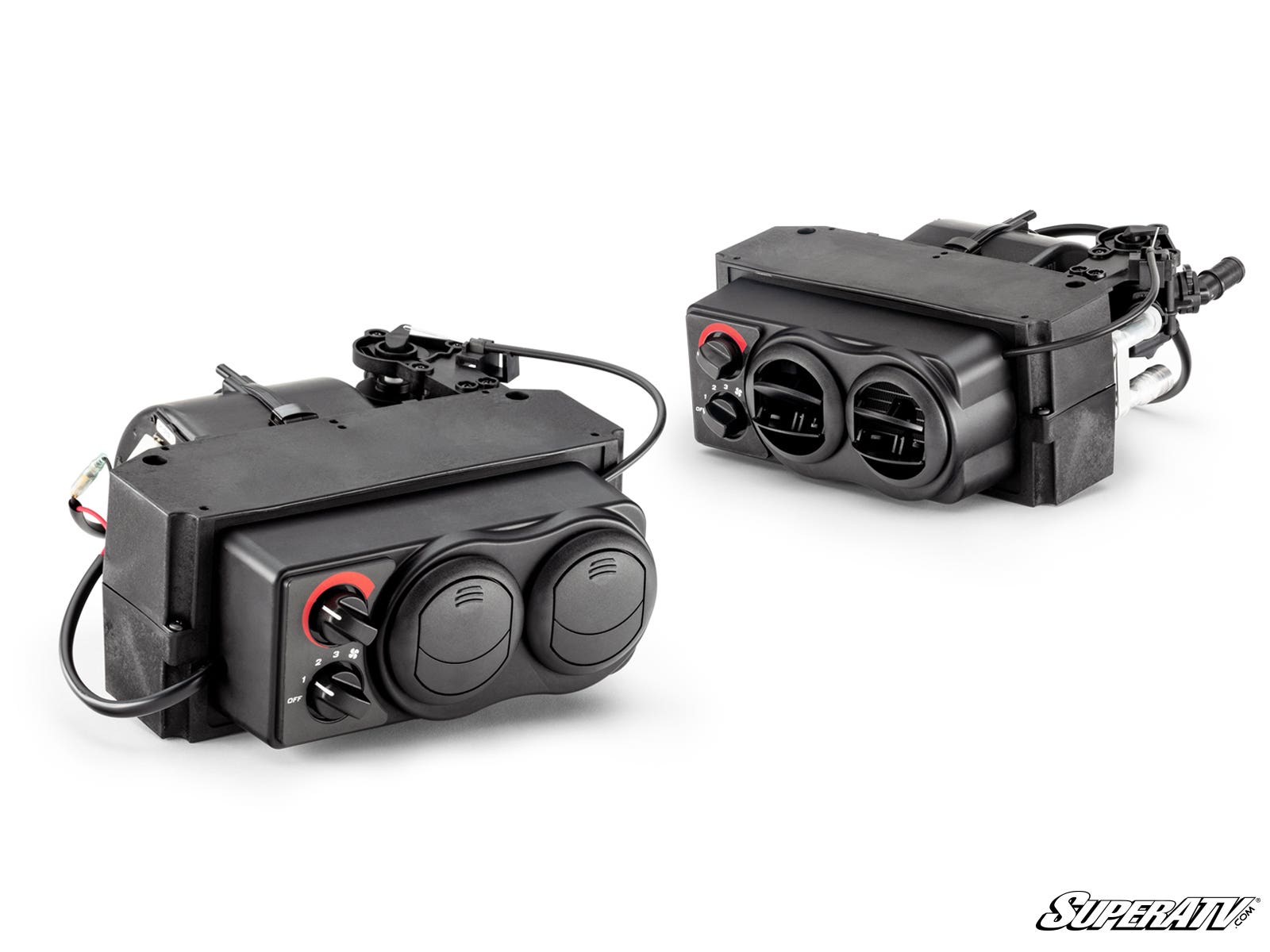

This Can-Am Defender HD10 heater kit includes the heater unit, high-grade radiator hoses, a defrost vent and hose, drill bits and Defender HD10-specific mounting plates. Options let you add a second-row Can-Am Defender MAX heater for rear passengers, a grille cover, a quick-start flow valve and an idle flow pump.
Key Features

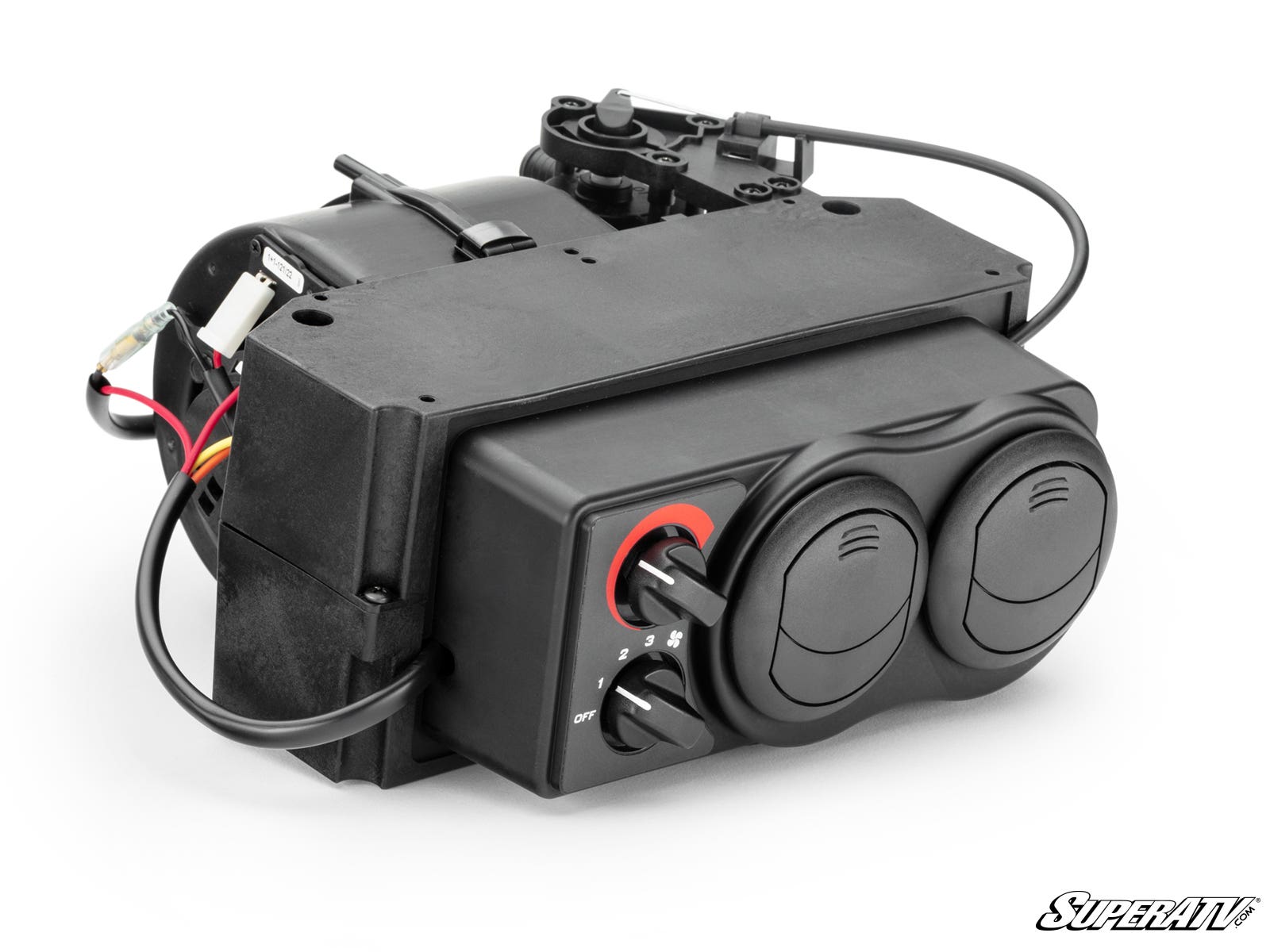

- Capable of 14,600 BTU at 135 CFM
- Adjustable temperature and fan speeds

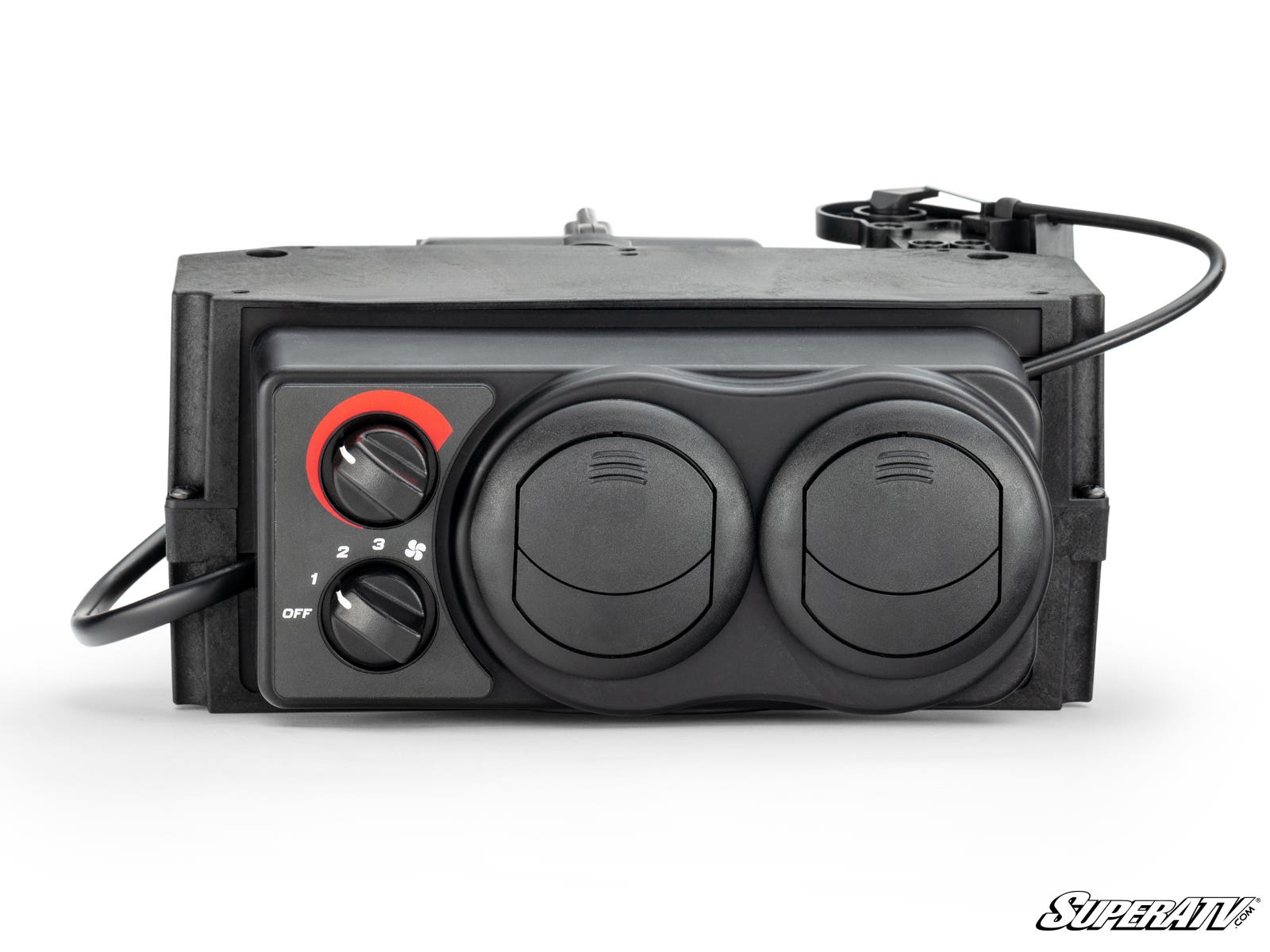

- Can-Am Defender heater vents: two 360° adjustable vents on the unit
- Defrost vent and hose included, routed through the dash for a factory look

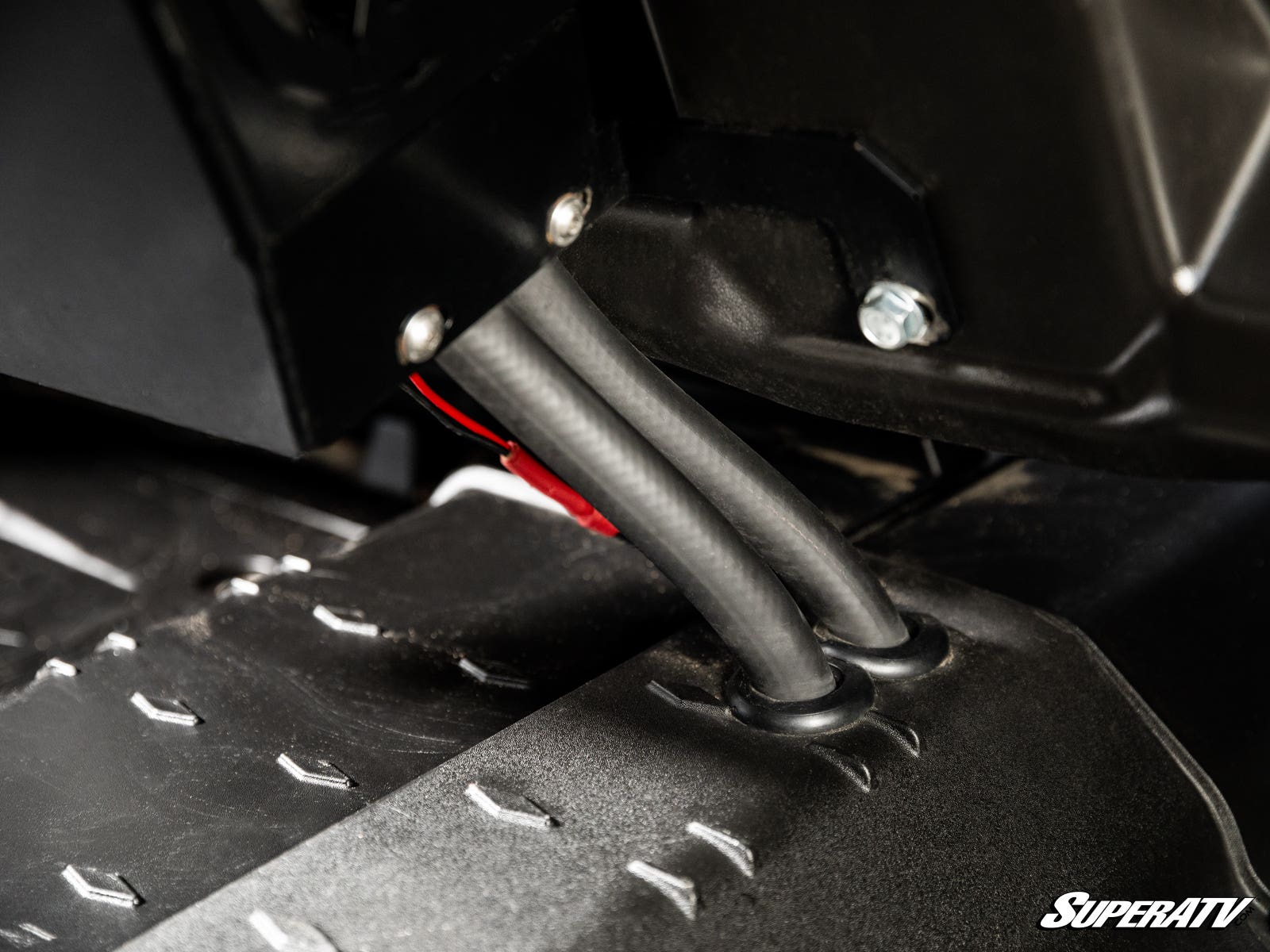

- High-grade radiator hoses rated from -40°F to 285°F
- Built-in shutoff valve
- Wires to the Defender's key-on and power terminals
- Includes installation hardware, drill bits and instructions

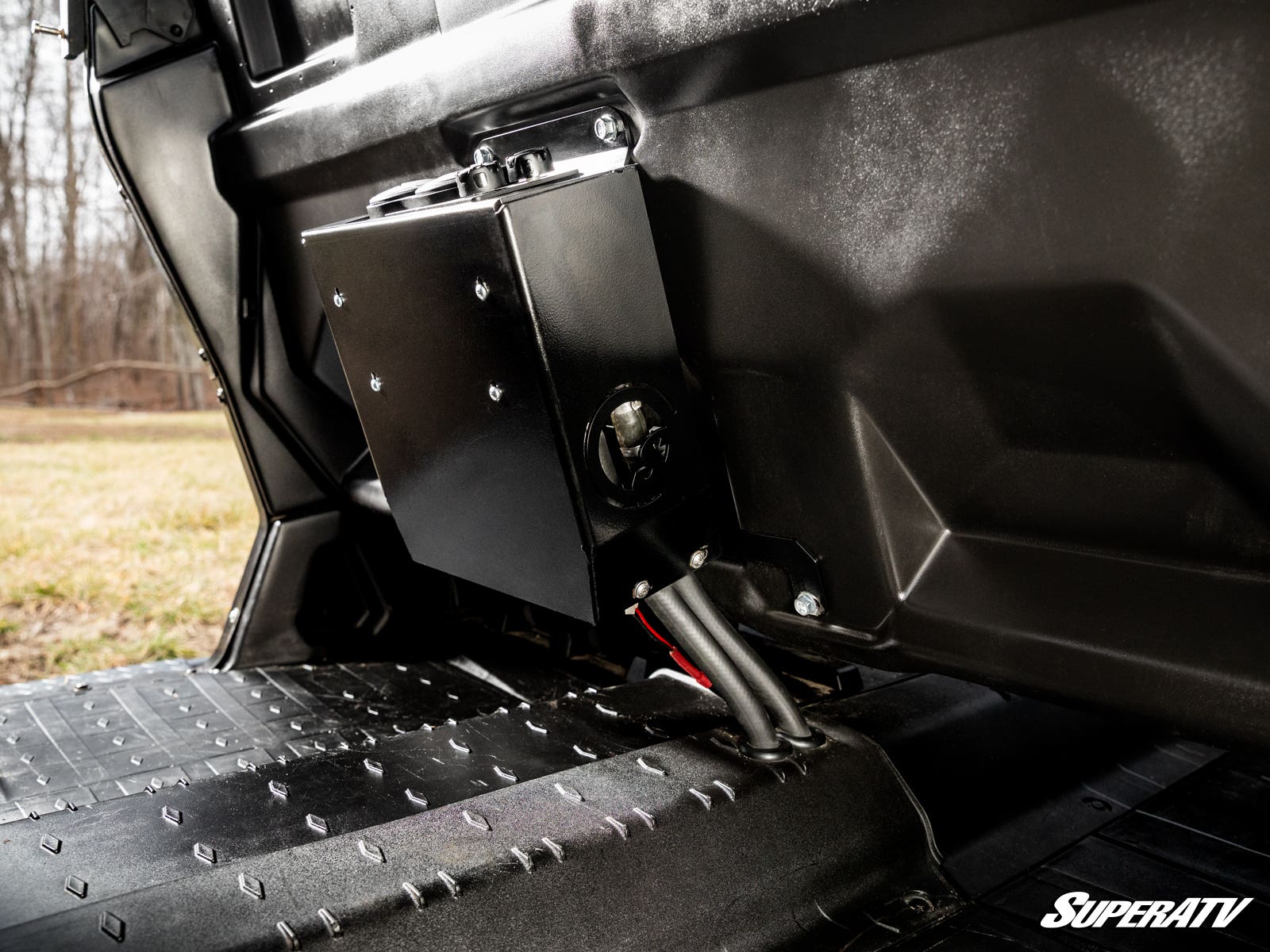

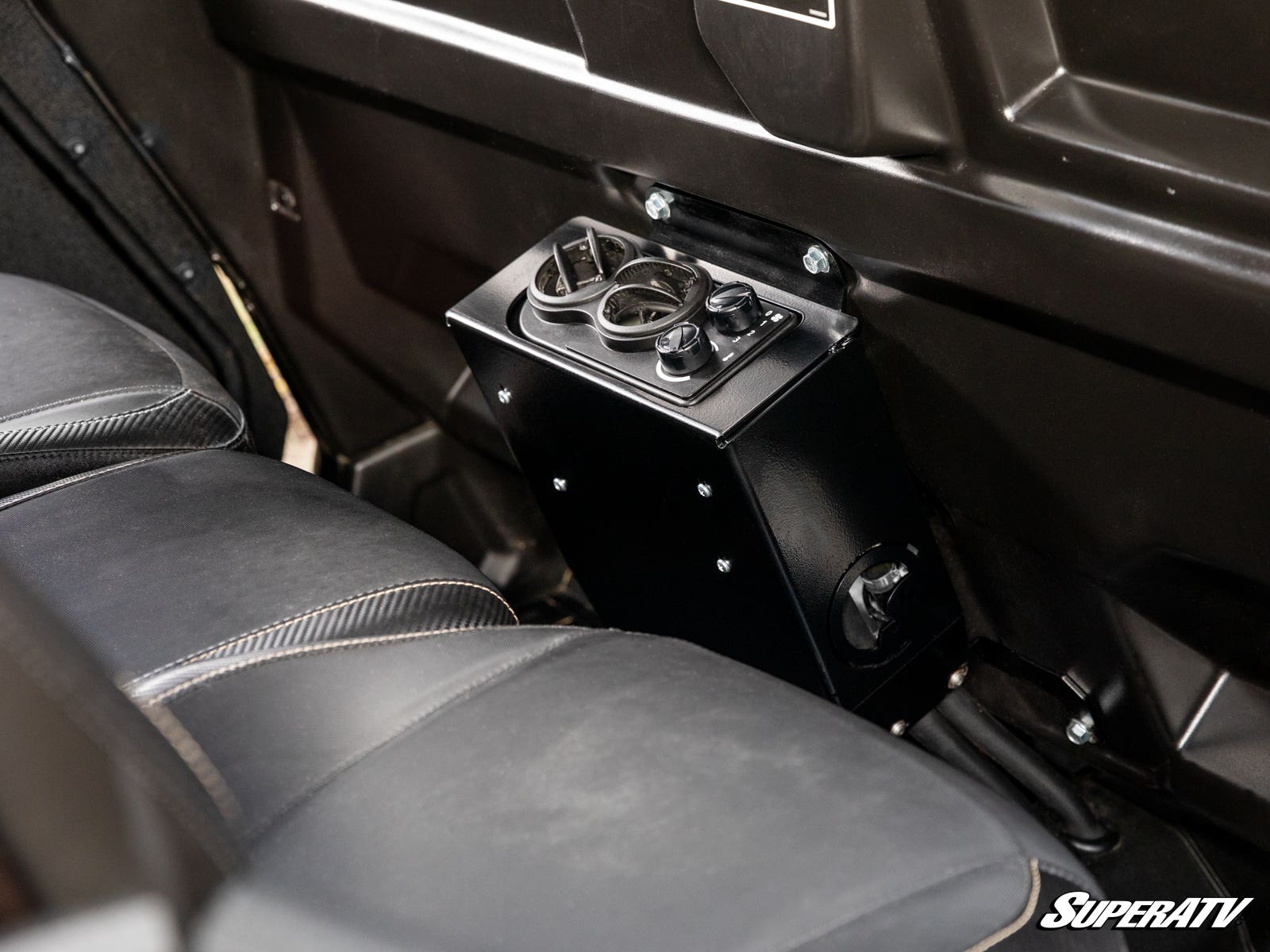

- Optional second-row heater mounts in front of the middle rear seat
- Optional grille cover, quick-start flow valve and idle flow pump for faster heat
Built To Solve: A Cold Cab and Fogged Windshield on the Can-Am Defender HD10
- Freezing cab air on winter work days, hunting trips and plow runs
- Windshield fog, frost and ice that cut visibility once a front windshield is installed
- Rear-seat passengers in a Defender MAX HD10 left out of the heat
- Slow warm-up at idle or low speed, solved with the optional flow valve and idle pump

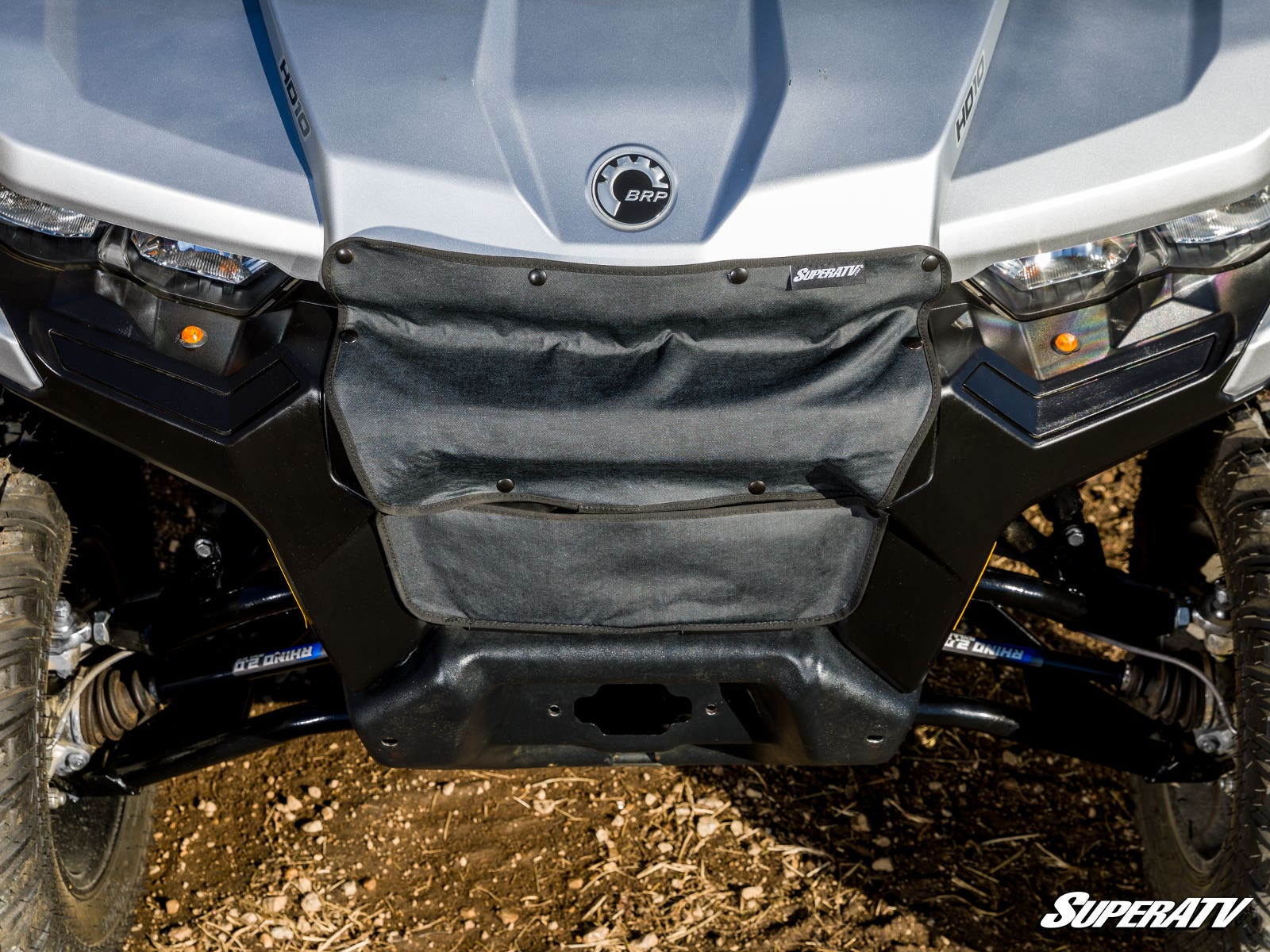

- Cold air across the radiator in sub-freezing weather, solved with the optional grille cover
Best For: Defender HD10 Owners Riding Through Winter
- Farm, ranch and property owners who use the Defender every day of the year
- Hunters and ice fishermen heading out before sunrise
- Snow plow operators who need a clear windshield
- Defender MAX HD10 families carrying rear-seat passengers (choose the Front and Rear option)
- Owners with doors, a roof and windshields installed, where a sealed cab holds the heat
- Riders who want a factory-style cab heater for Can-Am Defender HD10 and MAX HD10 models
Specifications

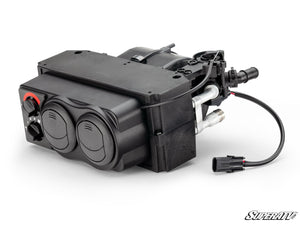

- Heat source: engine coolant (connects to the Defender's coolant lines)
- Output: capable of 14,600 BTU at 135 CFM
- Current draw: 3.4 amps at 13.7 volts
- Heater control box: 10" x 4.5" x 11.75"
- Vents: two 360° adjustable vents plus defrost vent
- Hose rating: -40°F to 285°F

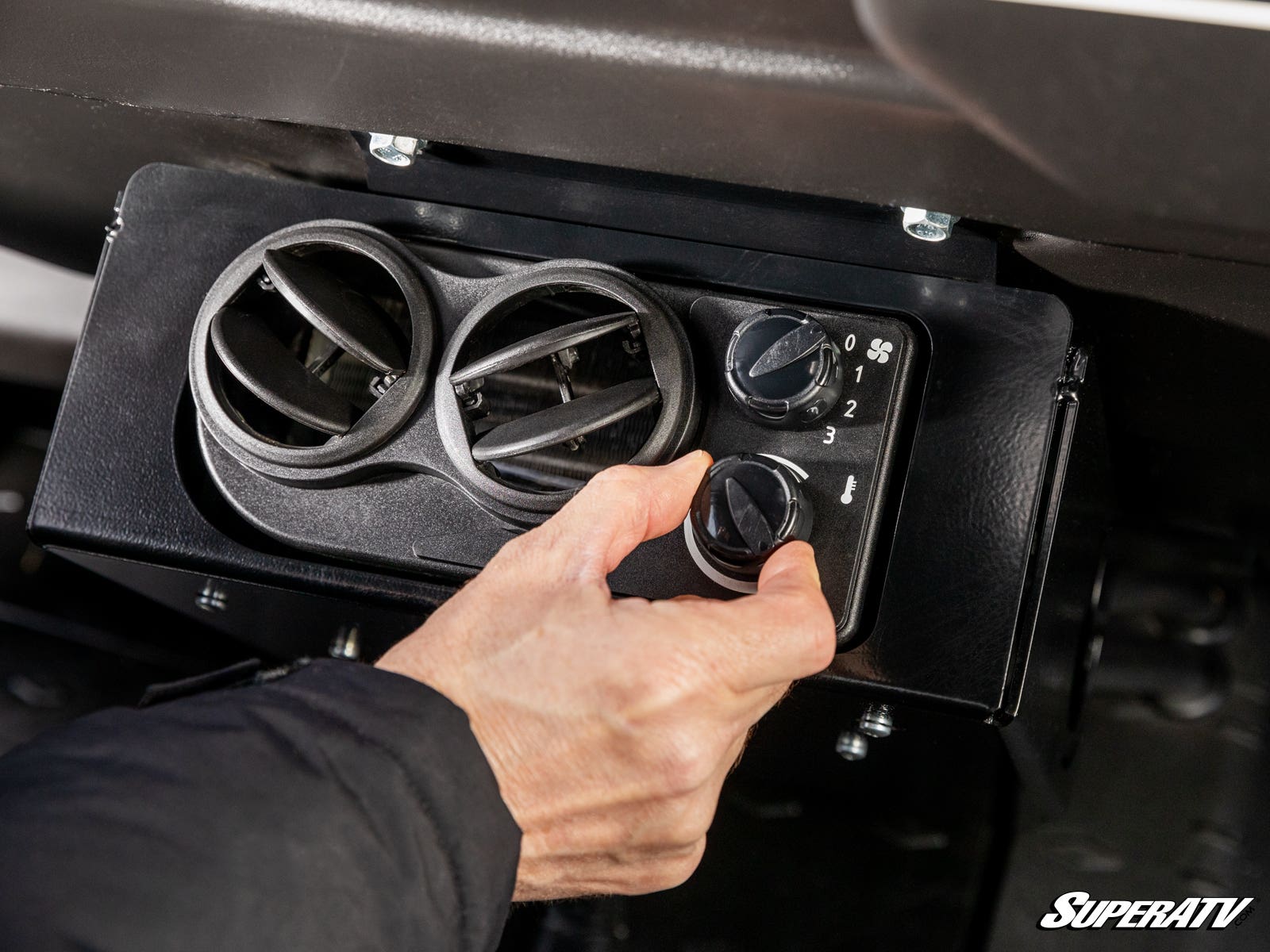

- Controls: adjustable temperature and fan speed

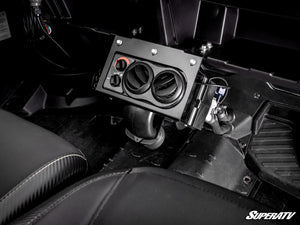

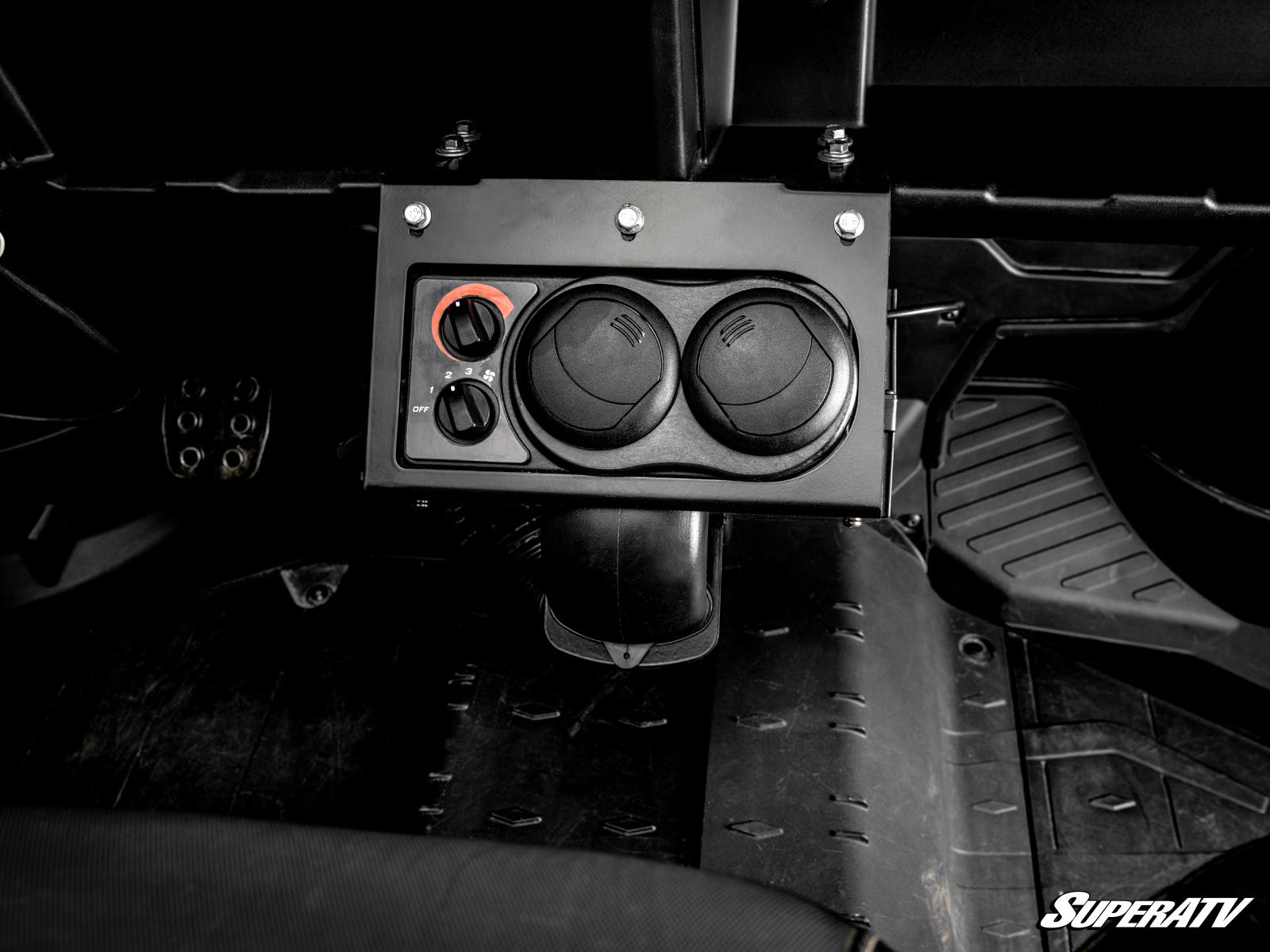

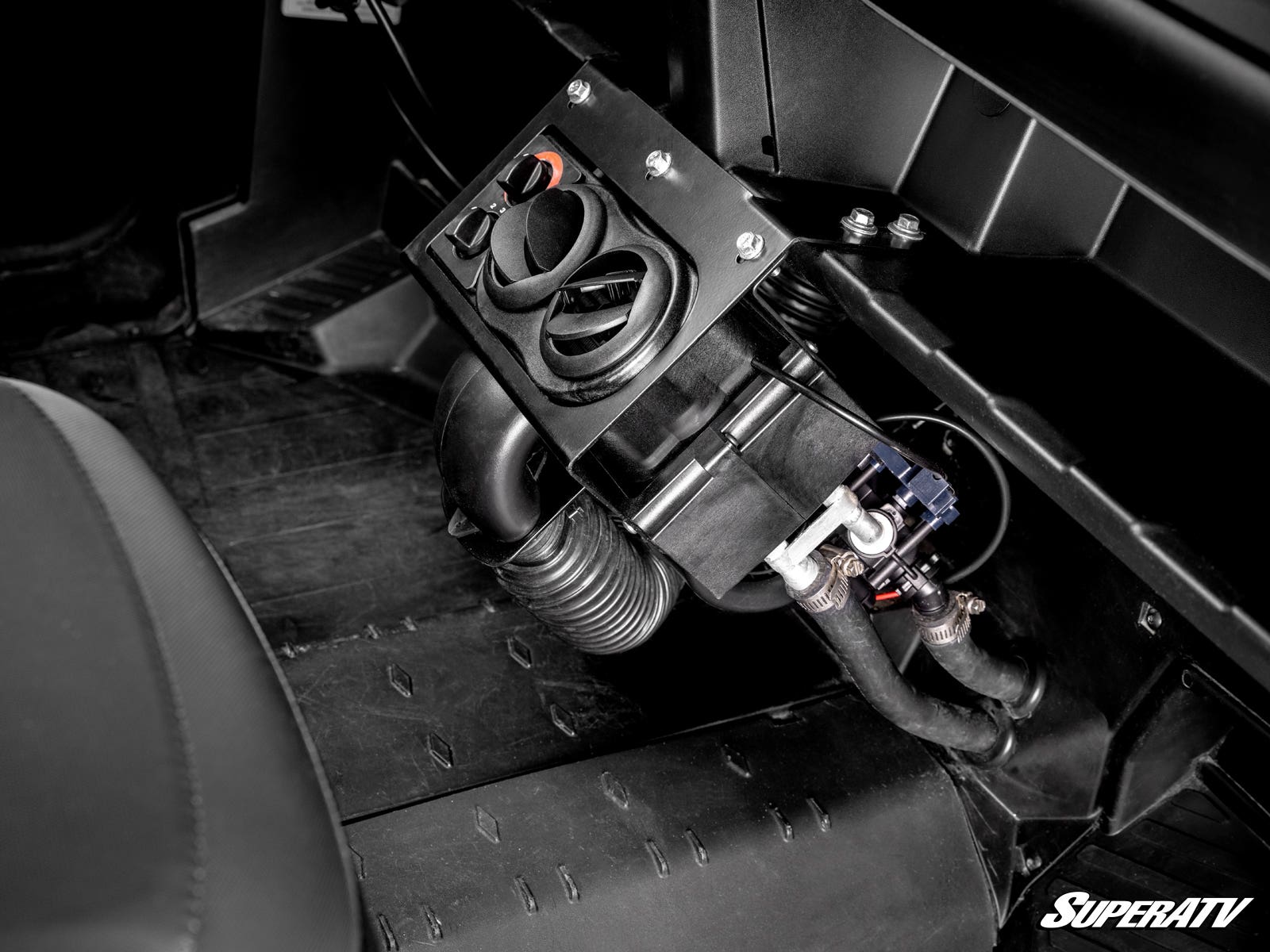

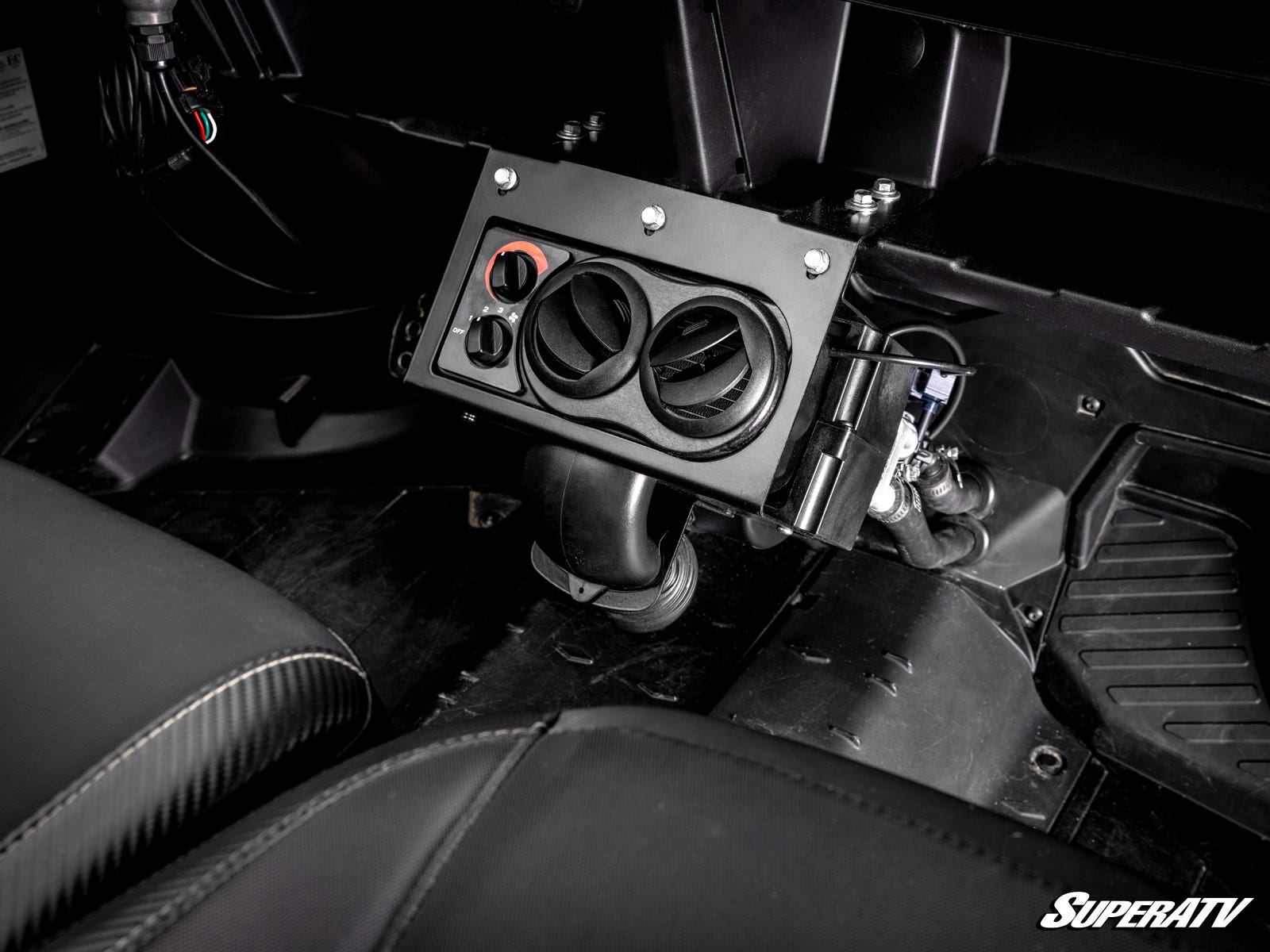

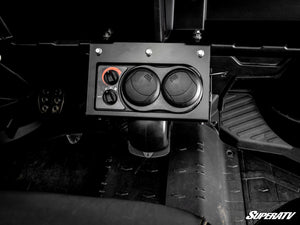

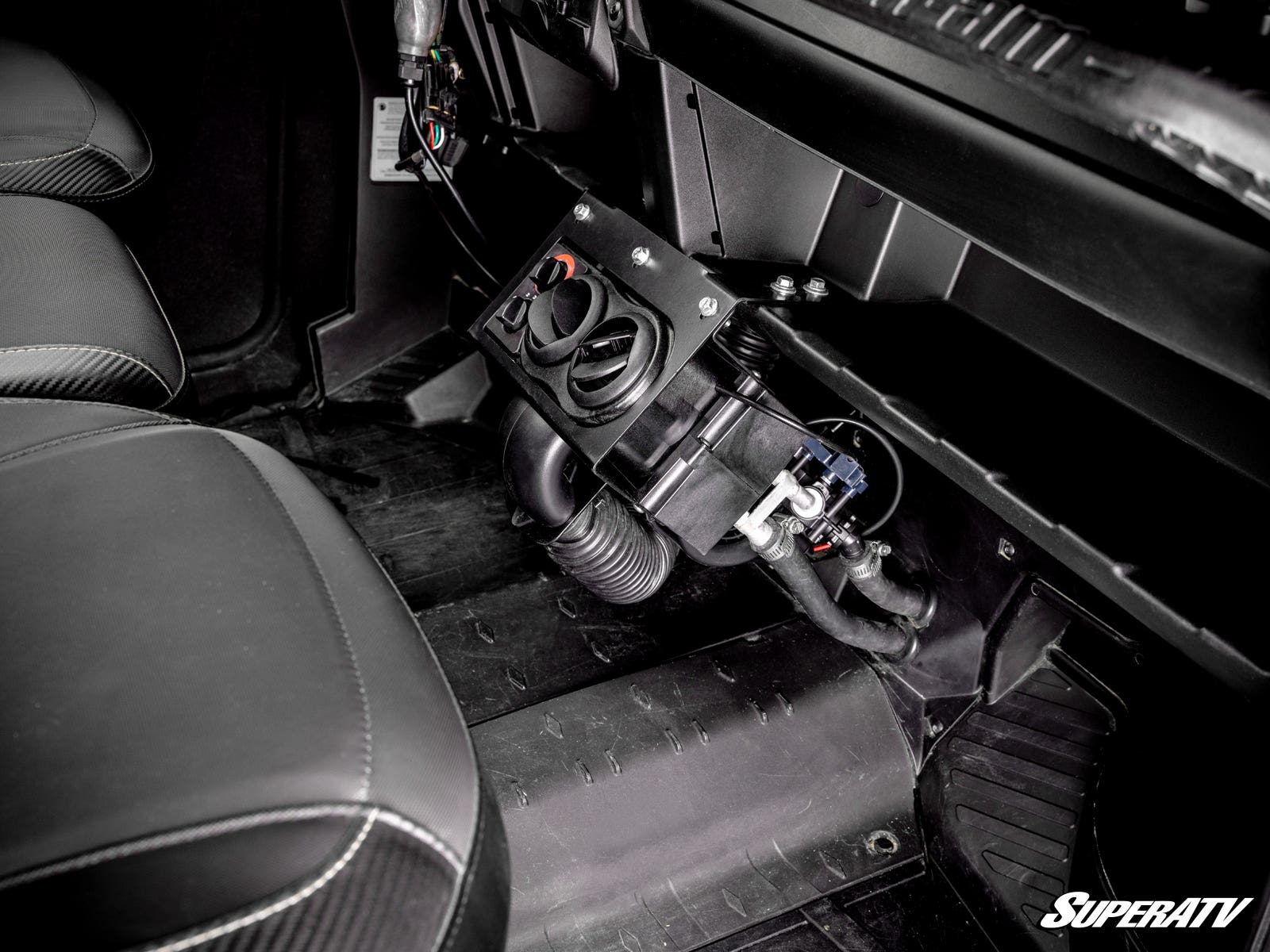

- Front heater mounting: under the dash

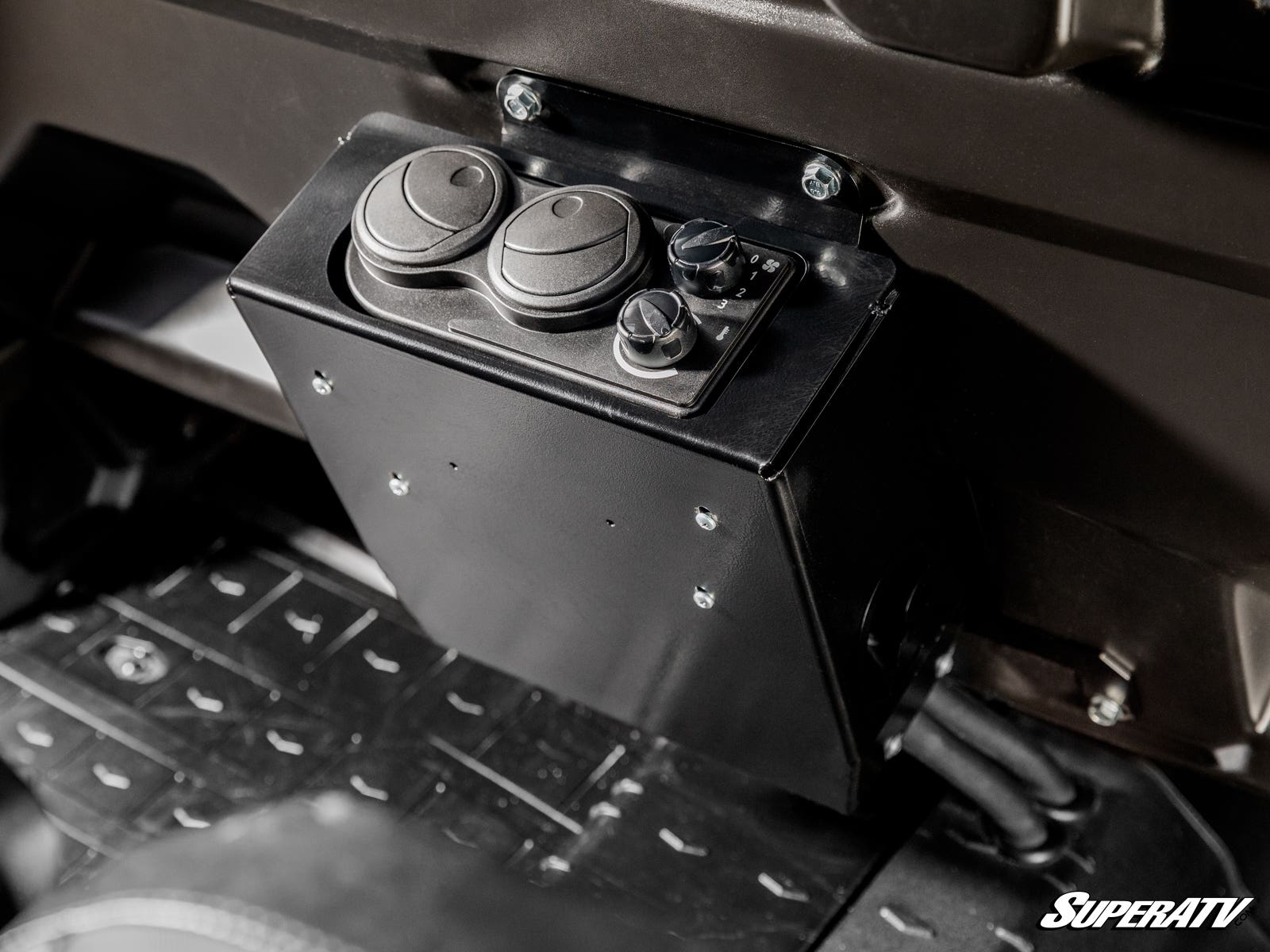

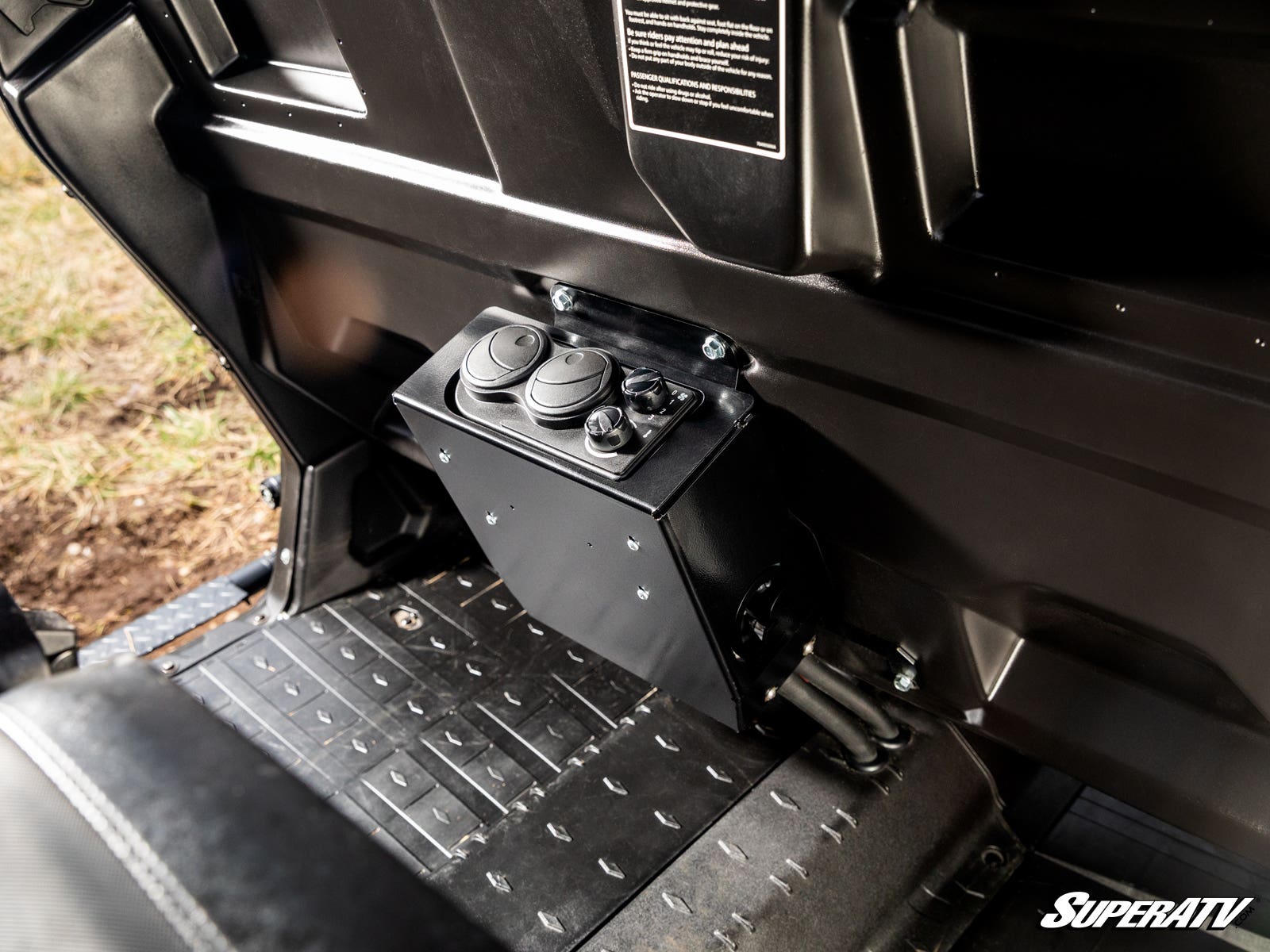

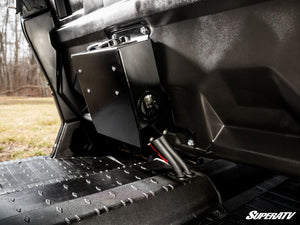

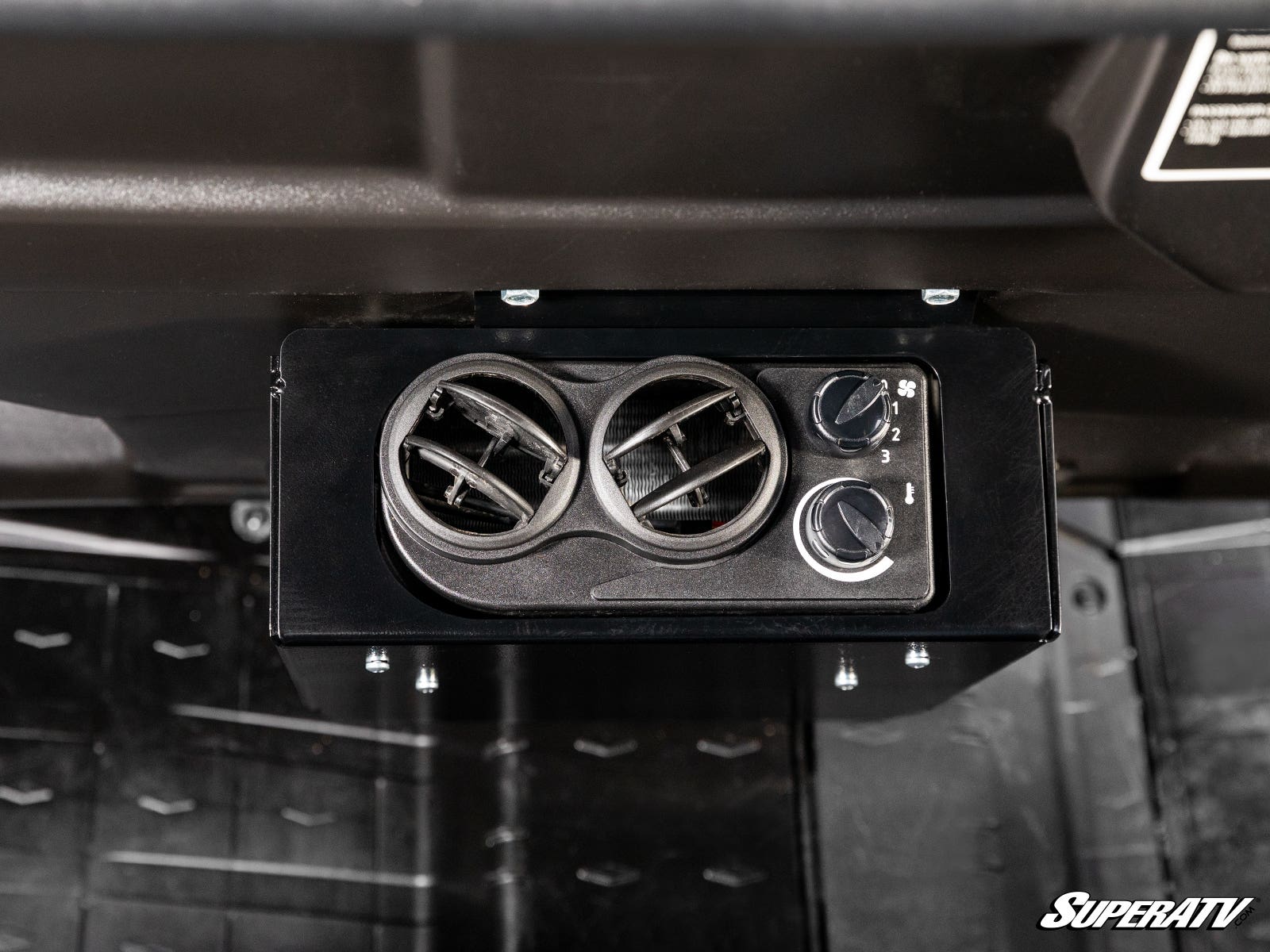

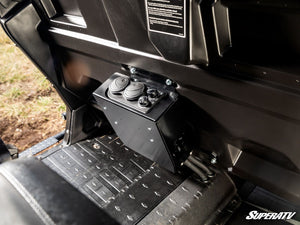

- Second-row heater mounting: in front of the middle rear seat
- Grille cover material: PVC-backed polyester
- Warranty: 1-year limited warranty against manufacturing defects
- Manufacturer Part Number: HTR-CA-DEF (front heater), HTR-CA-DEFMAX (second-row heater)
Fitment
Fits the following Can-Am Defender HD10 and Defender MAX HD10 models:
- Can-Am Defender HD10 DPS, XT and XT Cab: 2016+
- Can-Am Defender HD10 Mossy Oak, XMR and XTP: 2018+
- Can-Am Defender HD10 6x6, Limited HD10 and Pro HD10: 2020+
- Can-Am Defender MAX HD10 DPS, XT and XT Cab: 2017+
- Can-Am Defender MAX HD10 Lone Star Edition: 2018+
- Can-Am Defender MAX HD10 XMR: 2019+
- Can-Am Defender MAX HD10 Limited: 2020+
Notes: drilling through plastic is required, and all necessary bits are included. The second-row heater may limit space for the center rear passenger. Rear (2nd Row) options are for Defender MAX HD10 models. Do not run the grille cover above freezing, because it can overheat the machine. Fitment is not guaranteed on models not listed.
FAQ
How much heat does this Can-Am Defender cab heater put out?
SuperATV rates the heater as capable of 14,600 BTU at 135 CFM. It draws heat from the Defender's engine coolant, the same way a car or truck heater works, so output builds as the engine warms up.
Will this heater keep my Defender windshield clear of fog and ice?
Yes. Along with the two 360° adjustable vents on the unit, the kit includes a defrost vent and hose. The defrost vent is routed through the dash to keep snow, ice and fog off the windshield while you drive.
Which Can-Am Defender models does this cab heater fit?
SuperATV lists the Defender HD10 DPS, XT, XT Cab (2016+), Mossy Oak, XMR and XTP (2018+), HD10 6x6, Limited and Pro HD10 (2020+), plus the Defender MAX HD10 DPS, XT and XT Cab (2017+), Lone Star Edition (2018+), XMR (2019+) and Limited (2020+). Fitment on unlisted models is not guaranteed.
How much power does it draw, and will it drain my battery?
The heater draws 3.4 amps at 13.7 volts. The kit wires into the Defender's own key-on and power terminals, so the heater only runs when the machine is switched on.
Do I have to drill for the Can-Am Defender heater install?
Yes. Installation requires drilling through plastic in a few spots. SuperATV includes the drill bits, hoses, Defender HD10-specific mounting plates and instructions, and the official install guide is linked on this page.
Quick-start flow valve or idle flow pump: which one do I need?

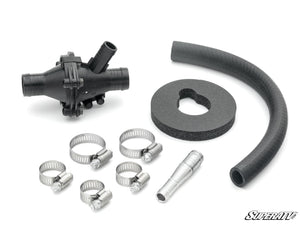

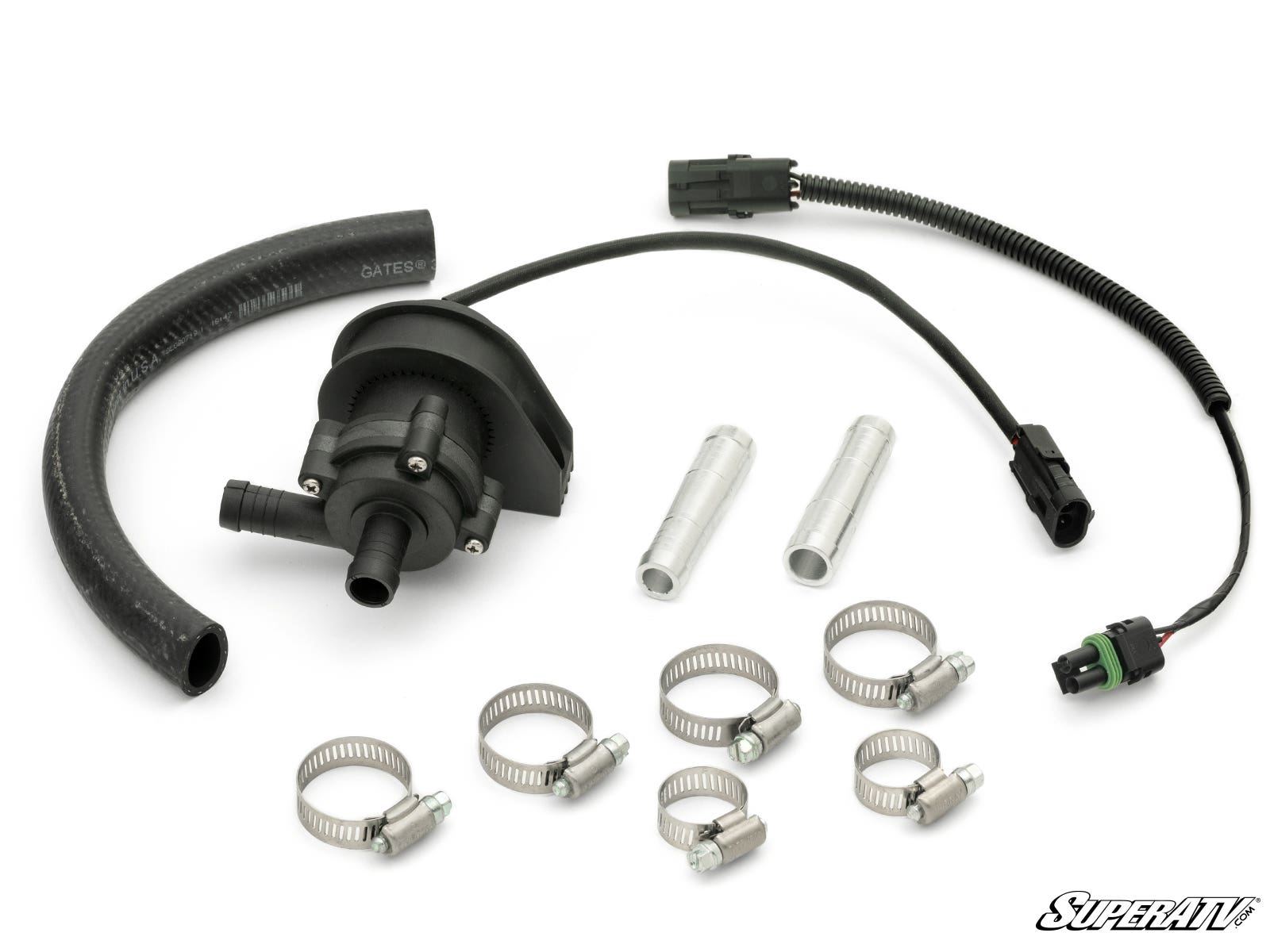

The quick-start flow valve sends all engine coolant to the heater core at low engine temps and cuts warm-up time roughly in half. The idle flow pump actively circulates coolant so heat moves in as little as 30 seconds, even at idle or slow speeds. One of each serves both the front and second-row heaters, and SuperATV recommends combining them for the fastest heat.
Why SuperATV
SuperATV builds each Can-Am heater kit around the machine it fits, with Defender HD10-specific mounting plates and wiring that uses the Defender's own key-on and power terminals. Like every SuperATV UTV cab heater, it is backed by a 1-year limited warranty, and SuperATV's Virtual Mechanic service can put an expert on a video call if you want help during installation.
Complete Your Can-Am Defender HD10 Cold-Weather Cab
A cab heater works best in an enclosed cab. Before you order this Can-Am Defender heater kit, confirm your Defender model and year in the fitment list, and choose the Front and Rear option if you ride a Defender MAX HD10 with rear passengers. Pair the heater with doors, a roof and front and rear windshields to seal the cab, and add the quick-start flow valve and idle flow pump if you spend a lot of time at idle or low speed.
