SmartWire Backup / Reverse Light Kit for Can-Am Maverick X3 (2020+)

The SmartWire Backup / Reverse Light Kit for Can-Am Maverick X3 (2020–current) is a plug-and-play reverse lighting controller designed for fast installation and reliable performance. Unlike traditional aftermarket lighting systems that require cutting wires, installing switches, or complicated wiring, this system connects directly to the vehicle’s diagnostic CAN port and communicates with the ECU.

The SmartWire controller reads ECU signals in real time and automatically activates reverse lights the moment the vehicle is shifted into reverse. This eliminates manual switches and complex wiring while delivering precise and dependable lighting operation.

This base kit includes the SmartWire controller and wiring harness only. Lights are not included, allowing riders to install their preferred reverse lighting setup.

Key Benefits

• True plug-and-play installation through the vehicle’s diagnostic CAN port
• No wire cutting, splicing, or complicated wiring required
• Automatically activates reverse lights when the vehicle shifts into reverse
• ECU-driven logic ensures accurate and reliable operation
• Clean factory-style installation without switches or additional wiring
• Controller-only option allows use of customer-supplied reverse lights

Manual Override Mode

Need extra light without shifting into reverse?

The SmartWire system includes a manual override mode that allows reverse lights to be activated when needed.

• Shift the vehicle into neutral
• Press and hold the brake pedal for two seconds
• Reverse lights will automatically activate and remain illuminated

To turn them off, repeat the same process.

This integrated feature works directly through the vehicle’s controls — no switches or extra wiring required.

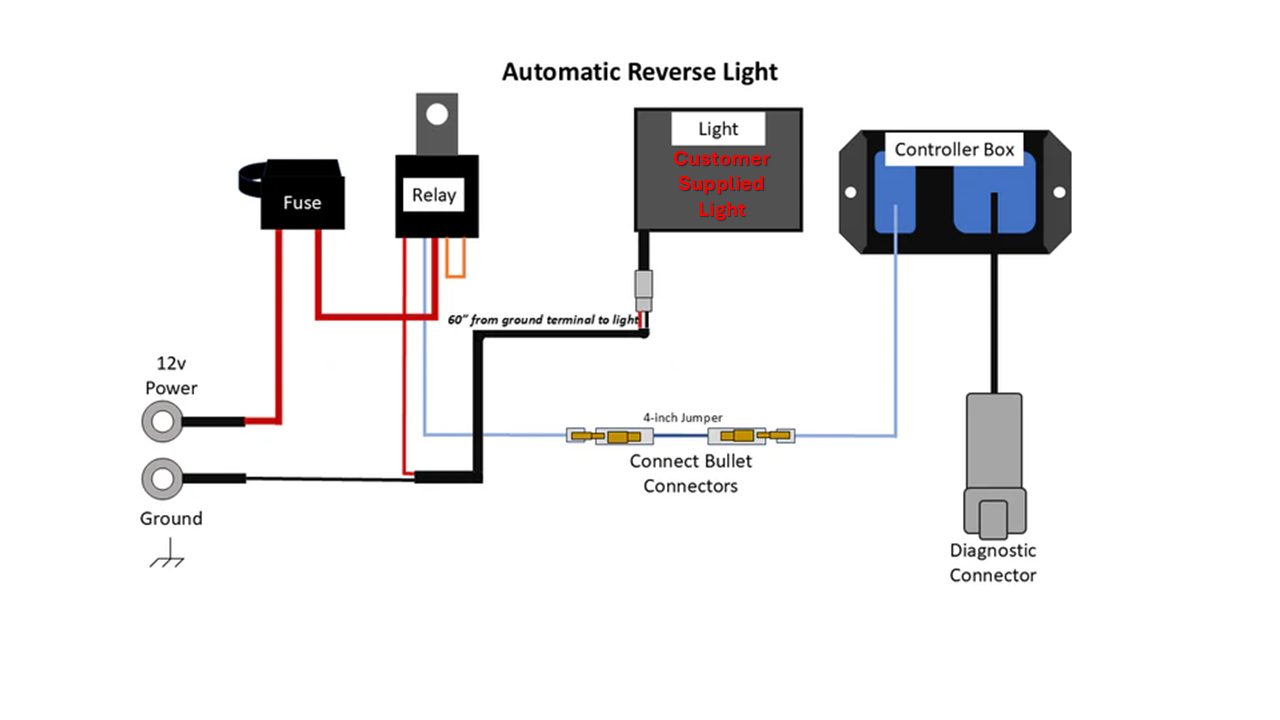

System Overview

The SmartWire system offers a smarter approach to reverse lighting control. Instead of tapping into factory wiring or installing switches, the controller reads vehicle data directly through the CAN network.

Benefits include:

• Faster installation
• Cleaner wiring setups
• Automatic reverse light activation
• Reliable ECU-controlled operation

What’s Included

SmartWire Controller
Plug-and-Play Wiring Harness

Important: Lights are NOT included with this kit.
Customers must install their own reverse lights compatible with the SmartWire controller.

Fitment

• Can-Am Maverick X3
  Model Years: 2020 – Current

Frequently Asked Questions

Does this kit include reverse lights?
No. This kit includes the SmartWire controller and wiring harness only. Reverse lights must be purchased separately.

Is installation difficult?
No. The system plugs directly into the vehicle’s diagnostic CAN port and requires no cutting or splicing.

Do the lights activate automatically?
Yes. The controller reads ECU signals and automatically activates reverse lights when the vehicle is shifted into reverse.

Can I manually activate the lights?
Yes. The manual override feature allows activation by shifting into neutral and holding the brake pedal for two seconds.

Upgrade your Can-Am Maverick X3 reverse lighting system with the SmartWire plug-and-play controller for simple installation and reliable ECU-controlled performance.
