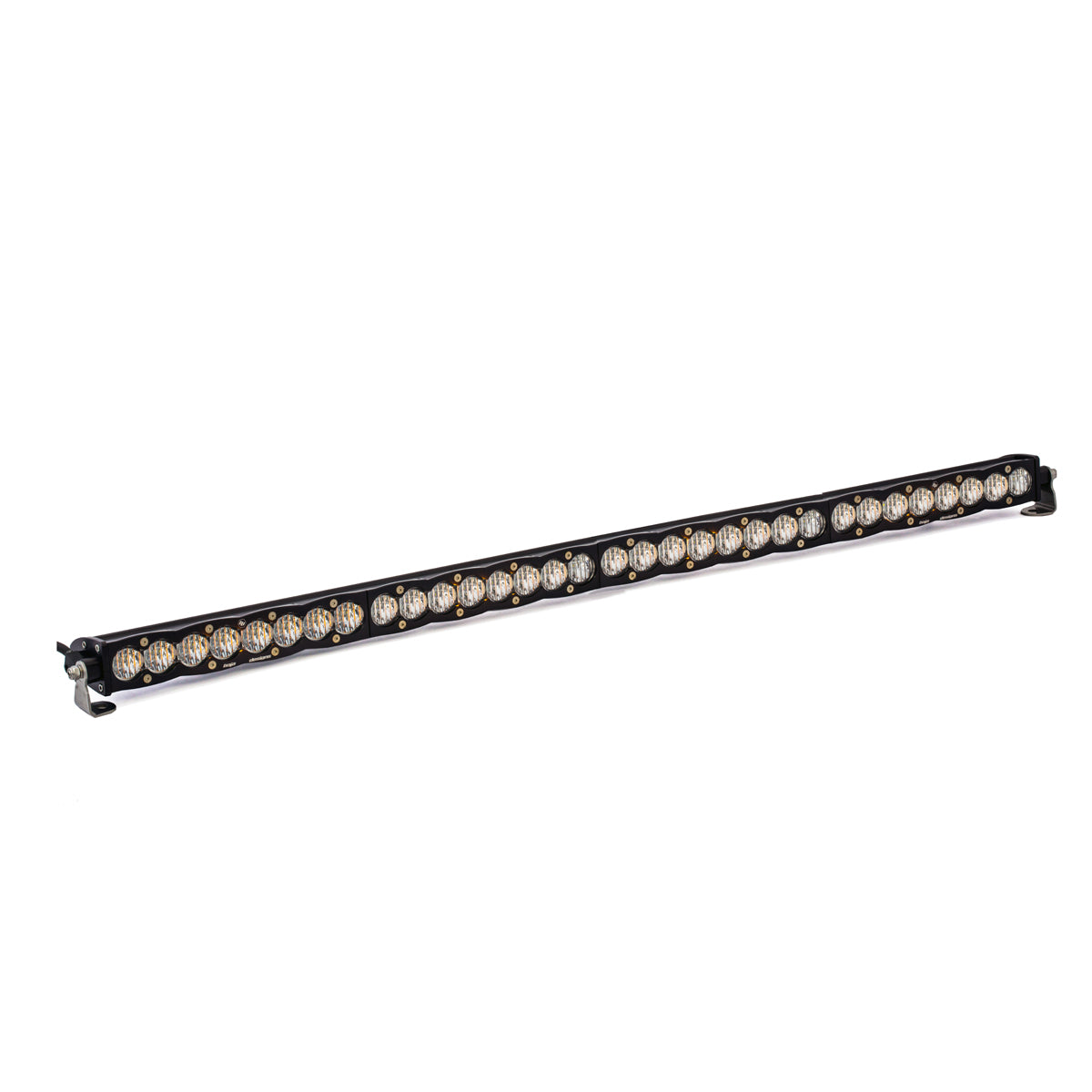

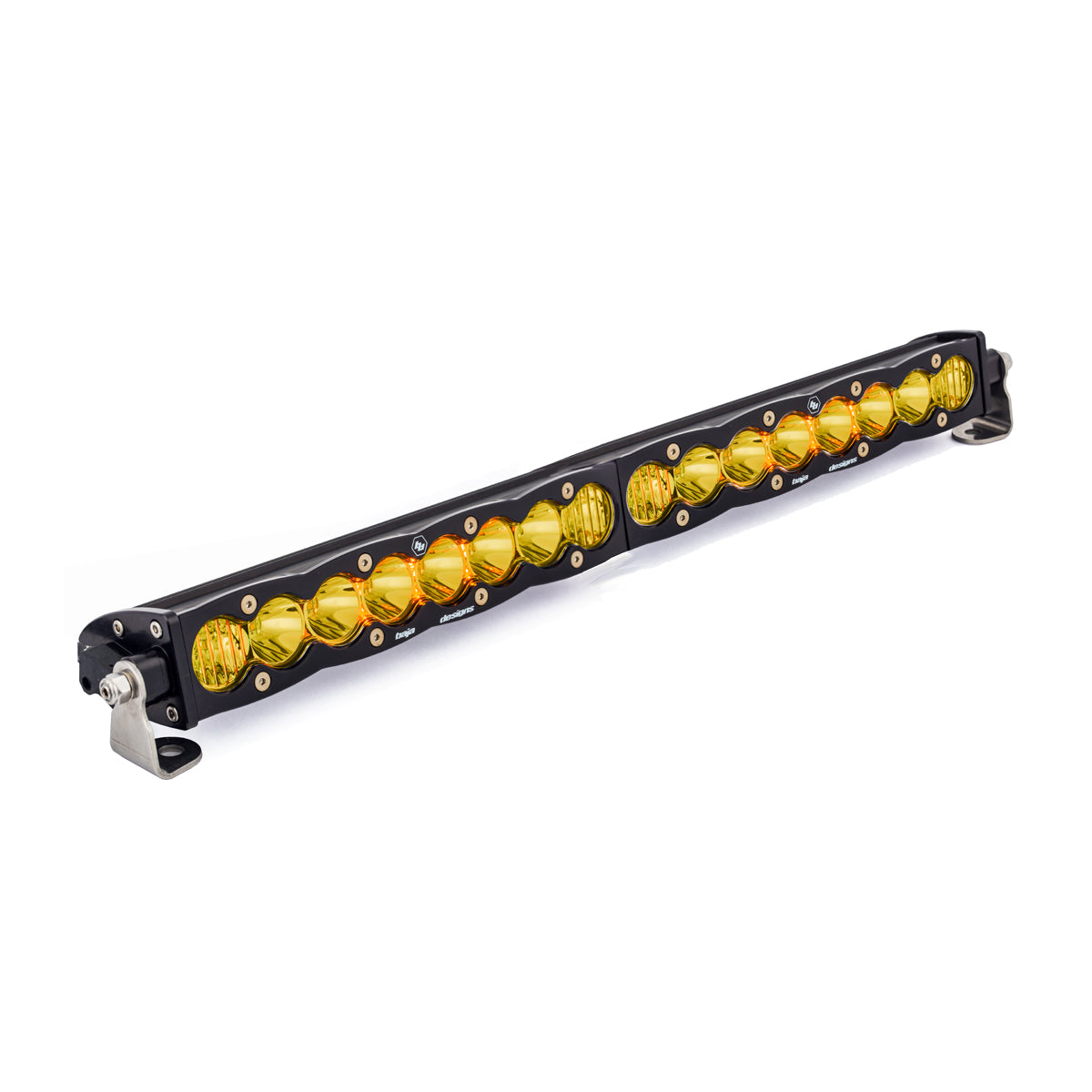

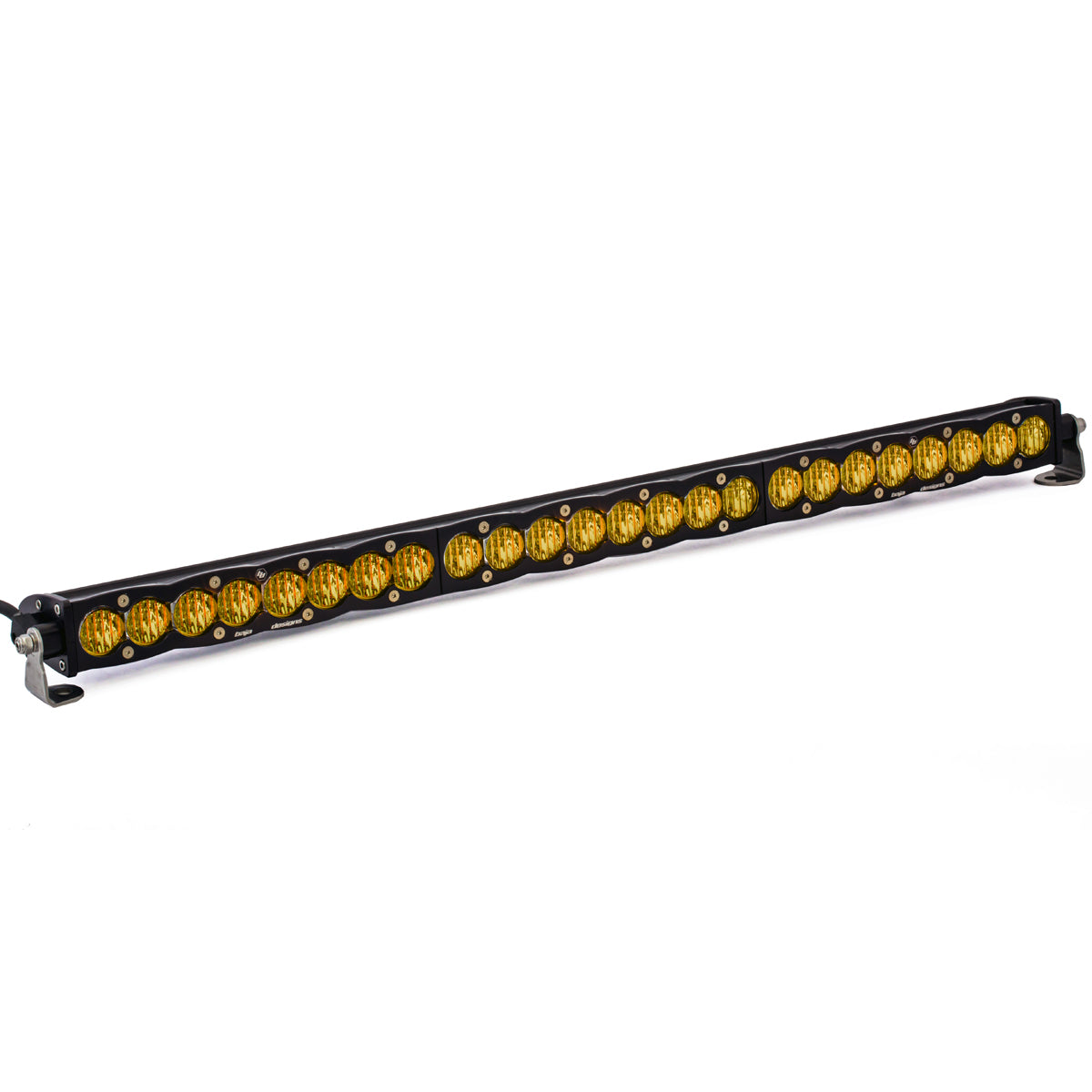

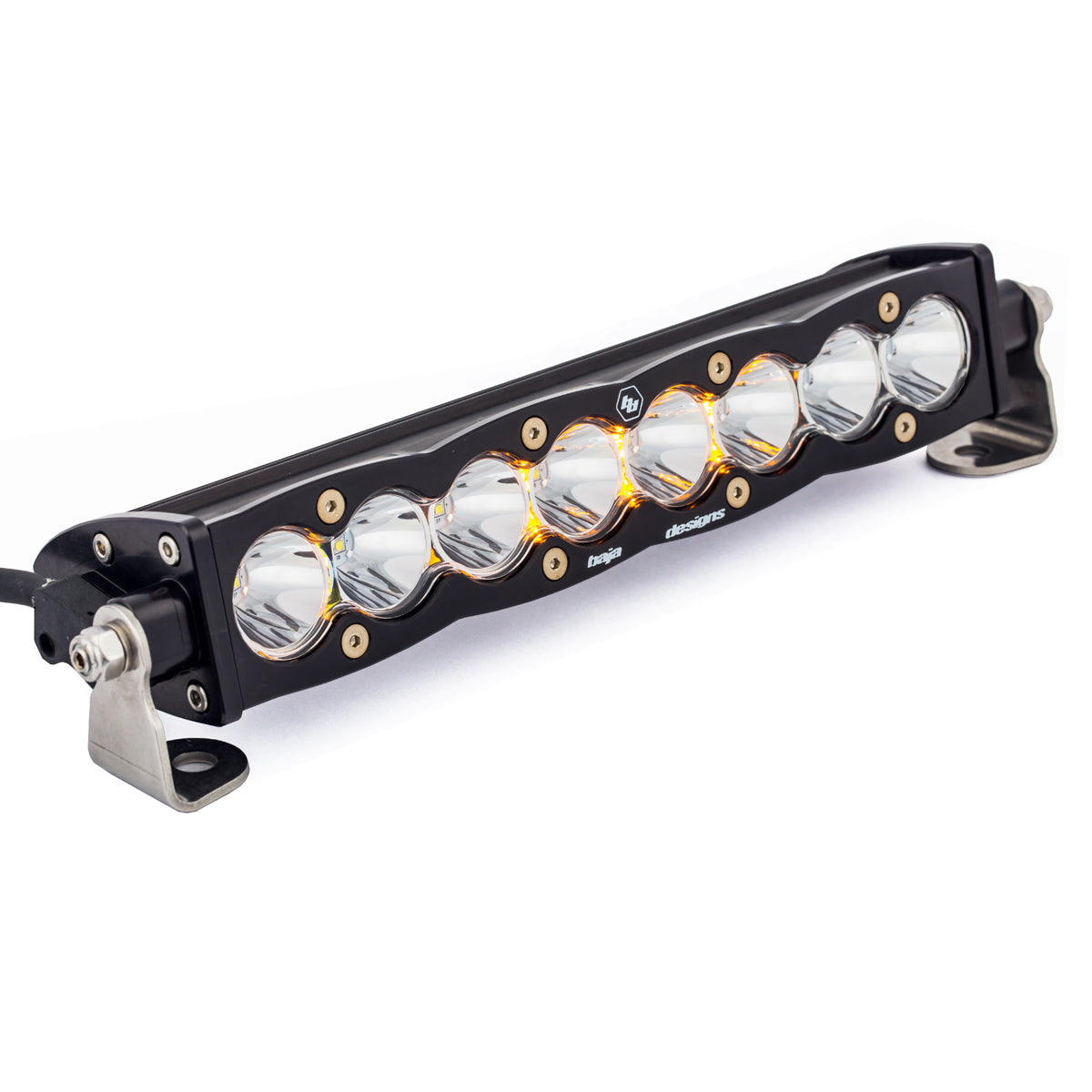

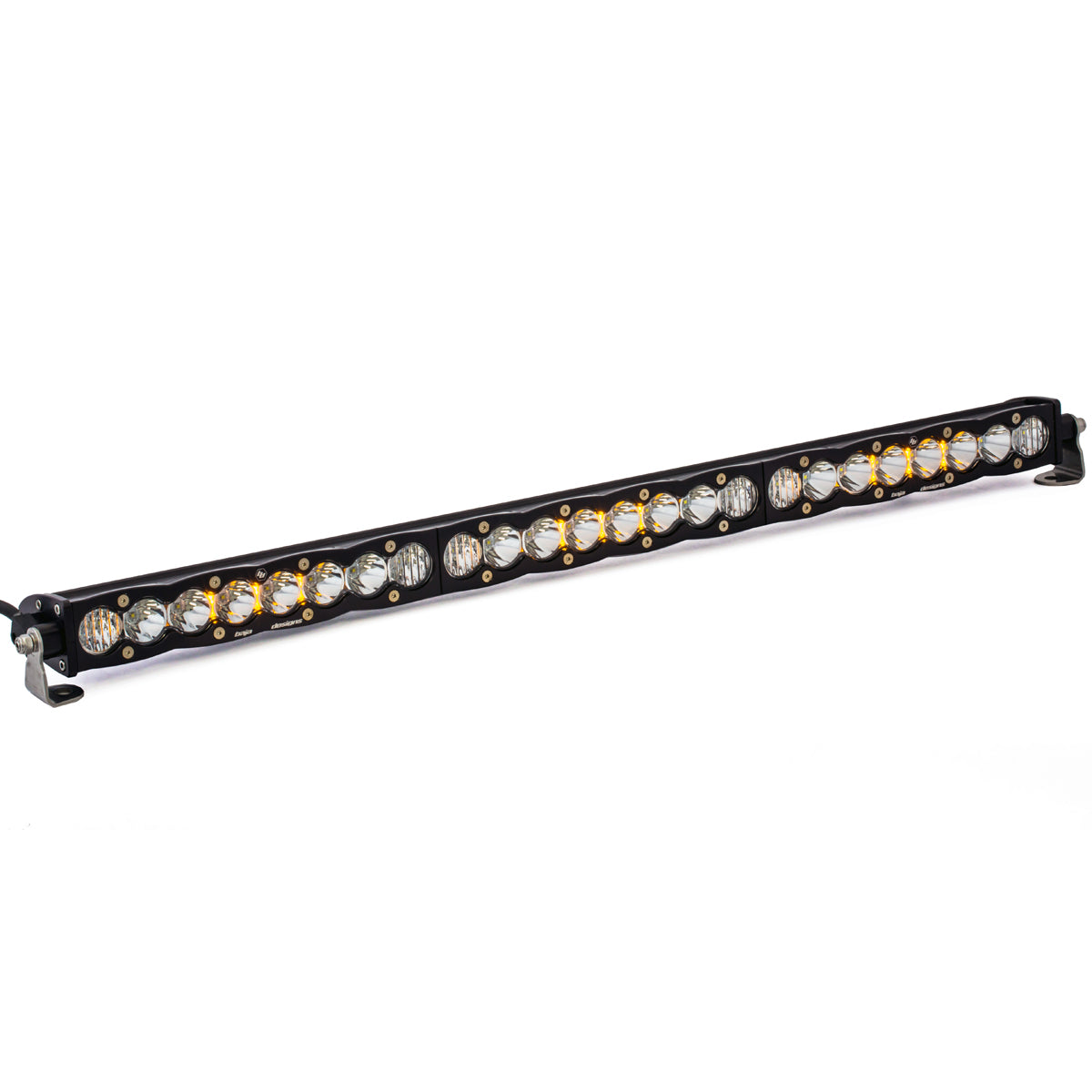

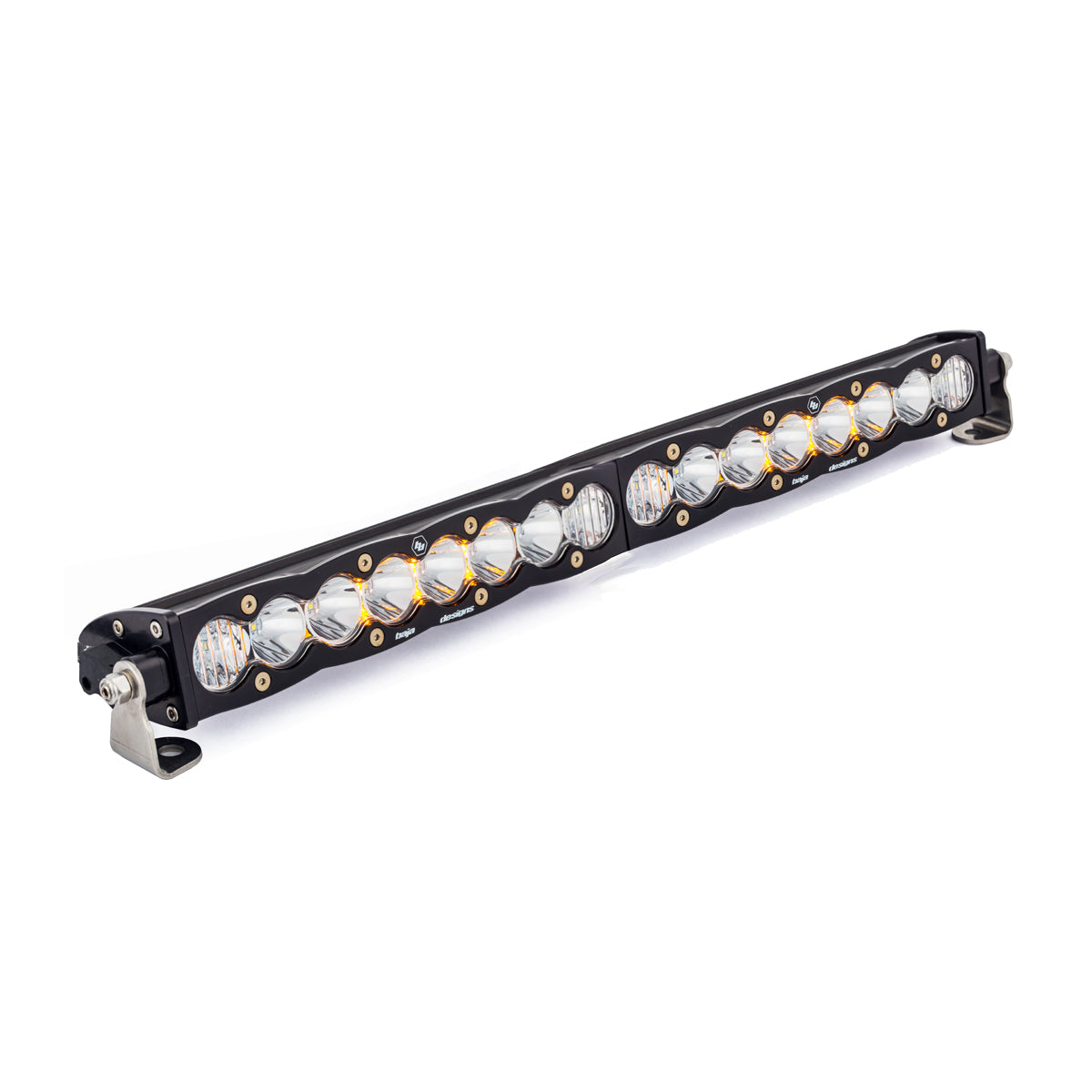

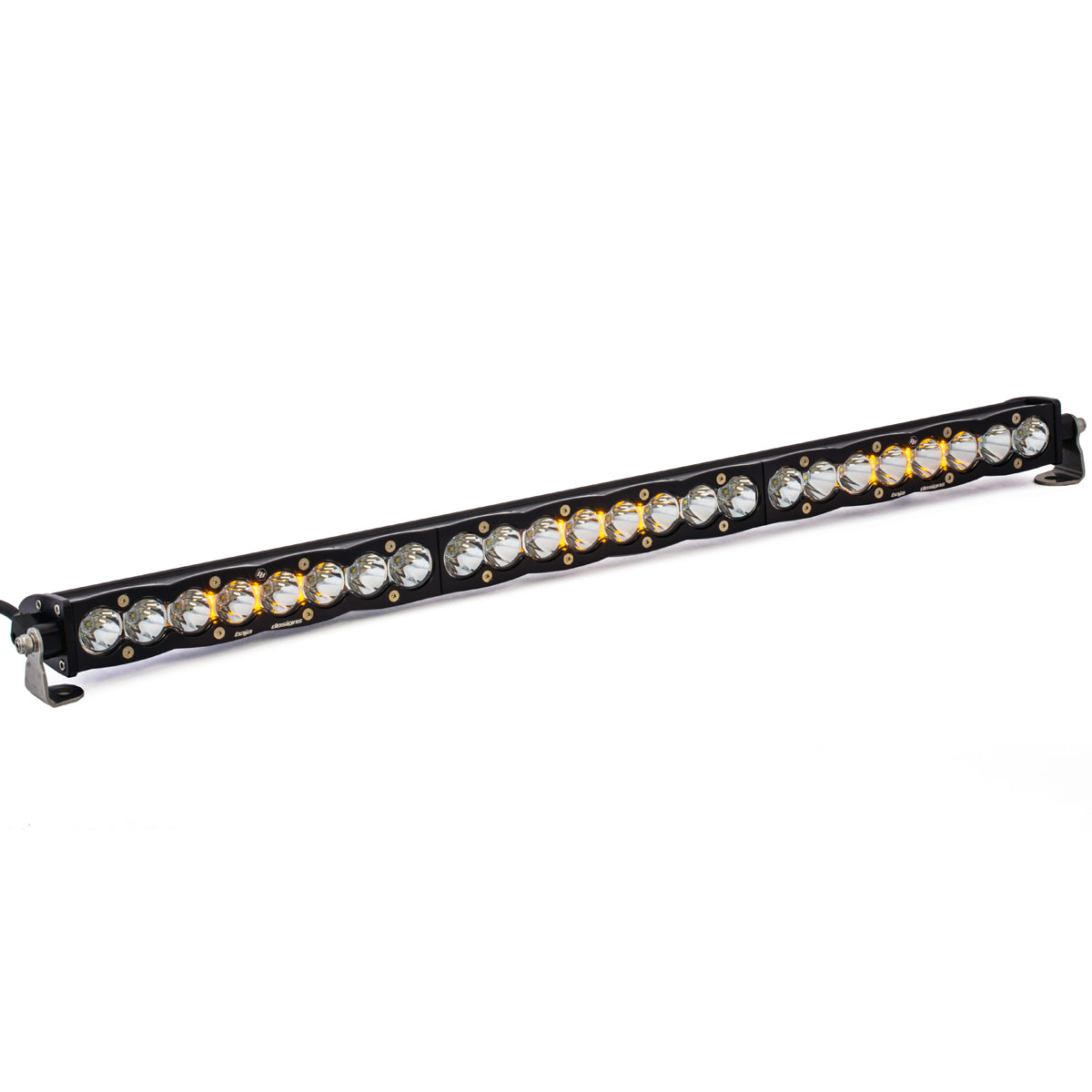

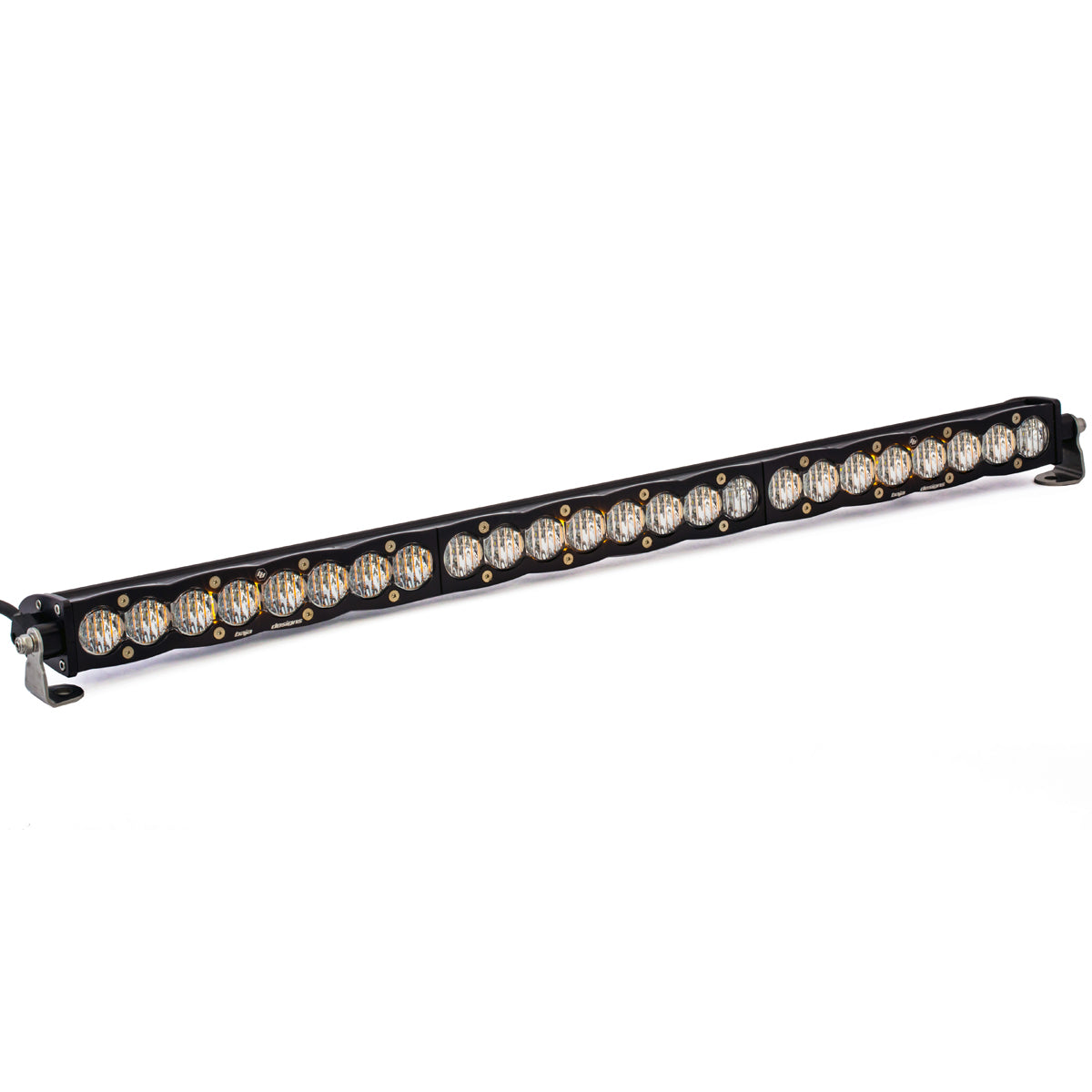

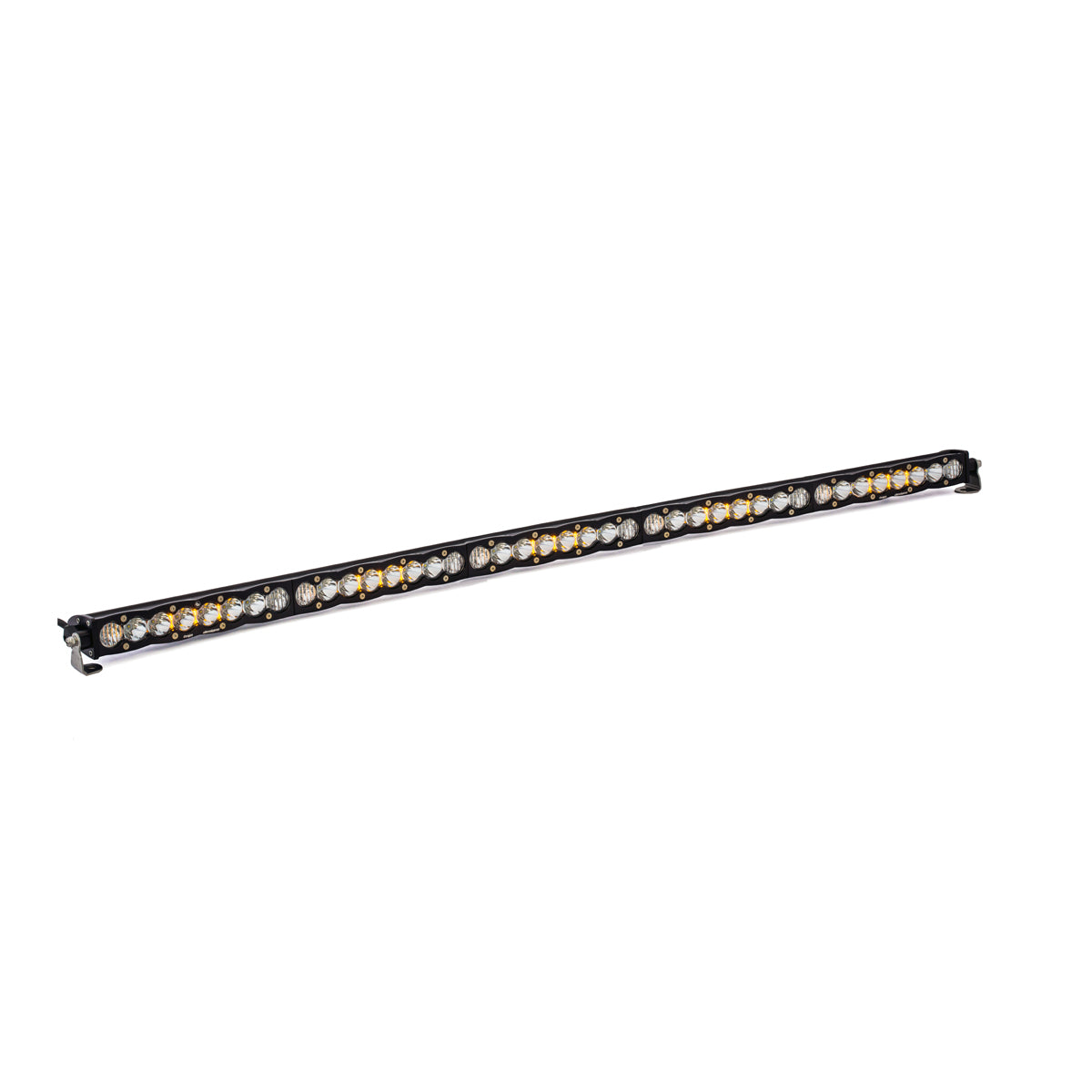

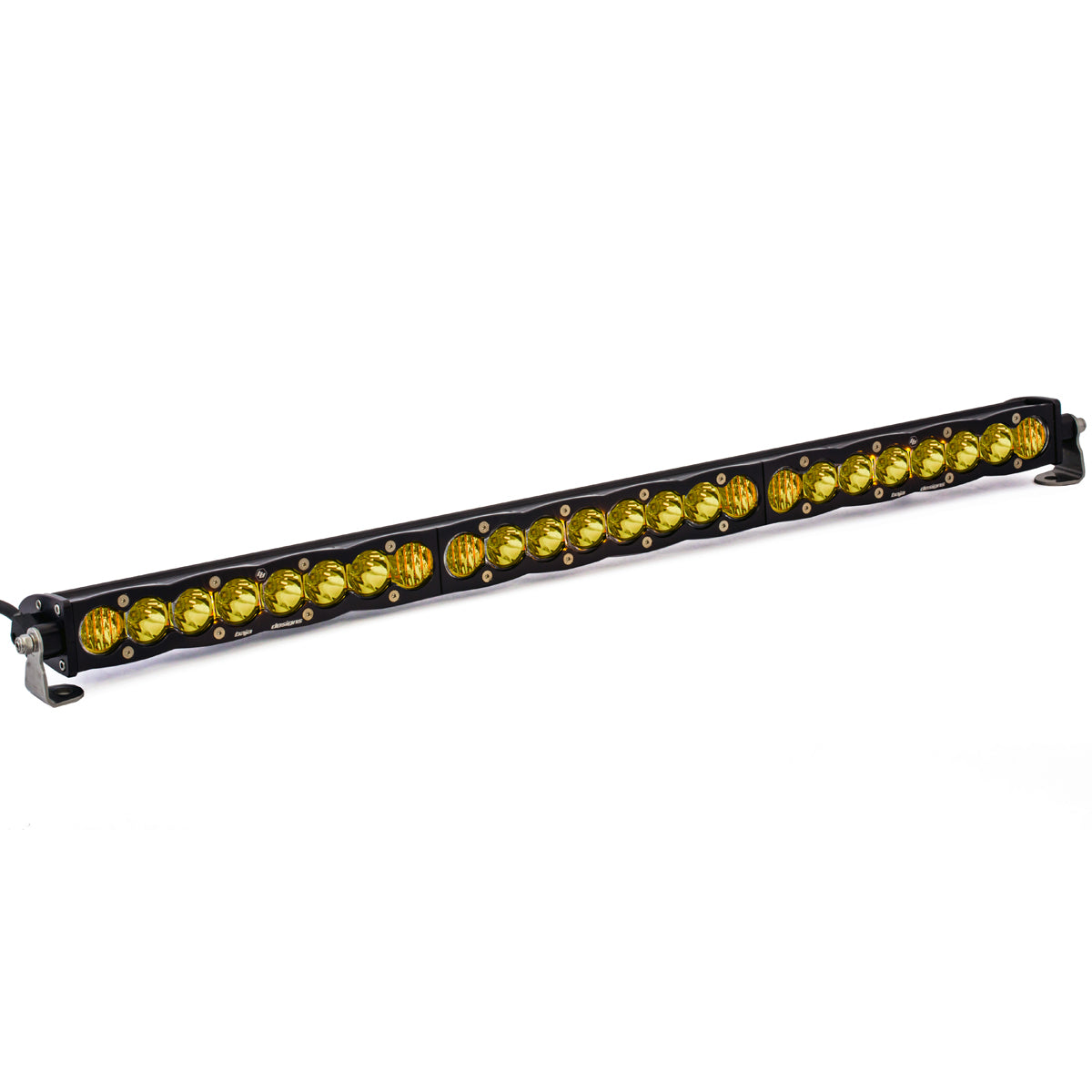

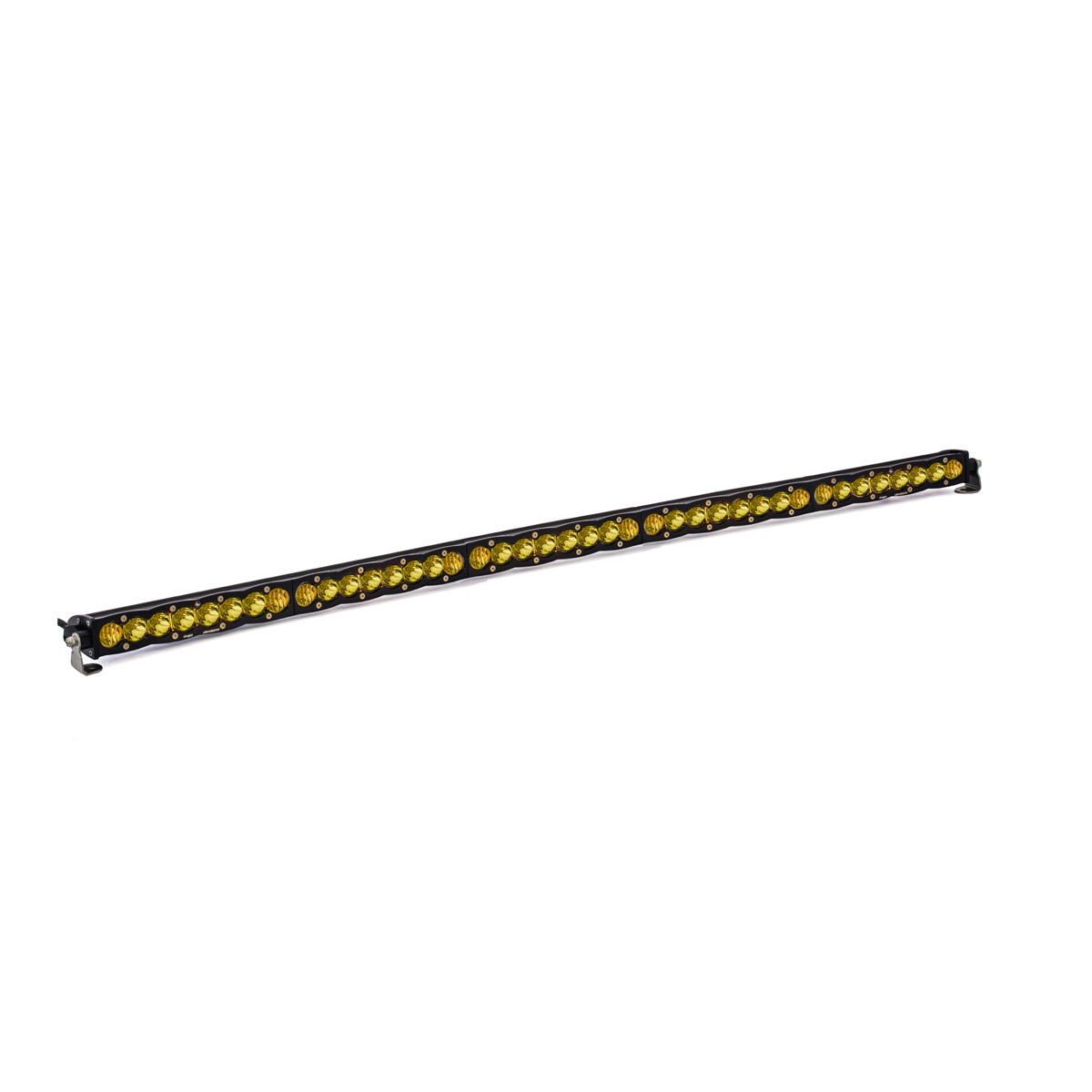

Adding forward lighting to a UTV means finding room for a light bar and choosing a beam pattern for the job. Universal fit - not built for one specific make or model, so confirm mounting space and wiring on your machine before ordering. The Baja Designs S8 UTV LED light bar uses eight LEDs per 10-inch section and has an amber backlight. Replaceable lenses and optics let you service the light bar.
Key Features
- Slim S8 LED light bar with eight LEDs per 10-inch section
- Amber backlight alongside the forward beam
- Spot, Driving/Combo and Wide Cornering beam options
- Lengths from 10 to 50 inches
- Replaceable lenses and optics through the uService design
- Billet machined aluminum bezel and hard-anodized aluminum housing
- Stainless steel mounting brackets
Built To Solve: UTV Forward Lighting and Mounting Space
- Choose an S8 length from 10 to 50 inches to suit the available mounting space.
- Select a Spot, Driving/Combo or Wide Cornering beam pattern.
- Use the amber backlight as a separate lighting mode.
- Replace lenses and optics rather than treating them as fixed parts.
- Plan for a separate wiring harness before installing the bar.
Best For: UTV Riders Choosing a Universal Light Bar
- UTV owners measuring space for a 10- to 50-inch light bar
- Riders choosing between Spot, Driving/Combo and Wide Cornering beams
- Builders who want an amber backlight on the light bar
- Owners who want replaceable lenses and optics
Specifications
- Length range: 10–50 inches
- LED density: Eight LEDs per 10-inch section
- 40-inch Driving/Combo dimensions: 40 inches long, 3 inches deep, 1.6 inches high
- 40-inch Driving/Combo output: 25,400 lumens
- 40-inch Driving/Combo power: 240 watts; 16.0 amps
- Housing: Hard-anodized aircraft-grade aluminum
- Lens material: Hardcoated polycarbonate
- Warranty: Limited lifetime warranty
What's in the Box
- Stainless steel mounting brackets
Fitment
- Universal fit - not built for one specific make or model. Fitment is not guaranteed on unlisted applications, so confirm mounting space and wiring on your machine before ordering.
Fitment is based on current product data for this part and is not guaranteed on unlisted applications. If you don't see your exact setup, contact us and we'll confirm fitment before you order.
FAQ
Does the S8 come with a wiring harness?
No. The wiring harness must be obtained separately.
How does the S8 mount?
The light bar mounts with stainless steel brackets. Check the mounting space on your vehicle before choosing a length.
How many LEDs does the S8 have?
The S8 uses eight LEDs per 10-inch section.
Can the three-pin harness be used with every S8 length?
The listed three-pin on/off harness is for one 10- to 30-inch light.
Which beam patterns are listed for the 10-inch clear S8?

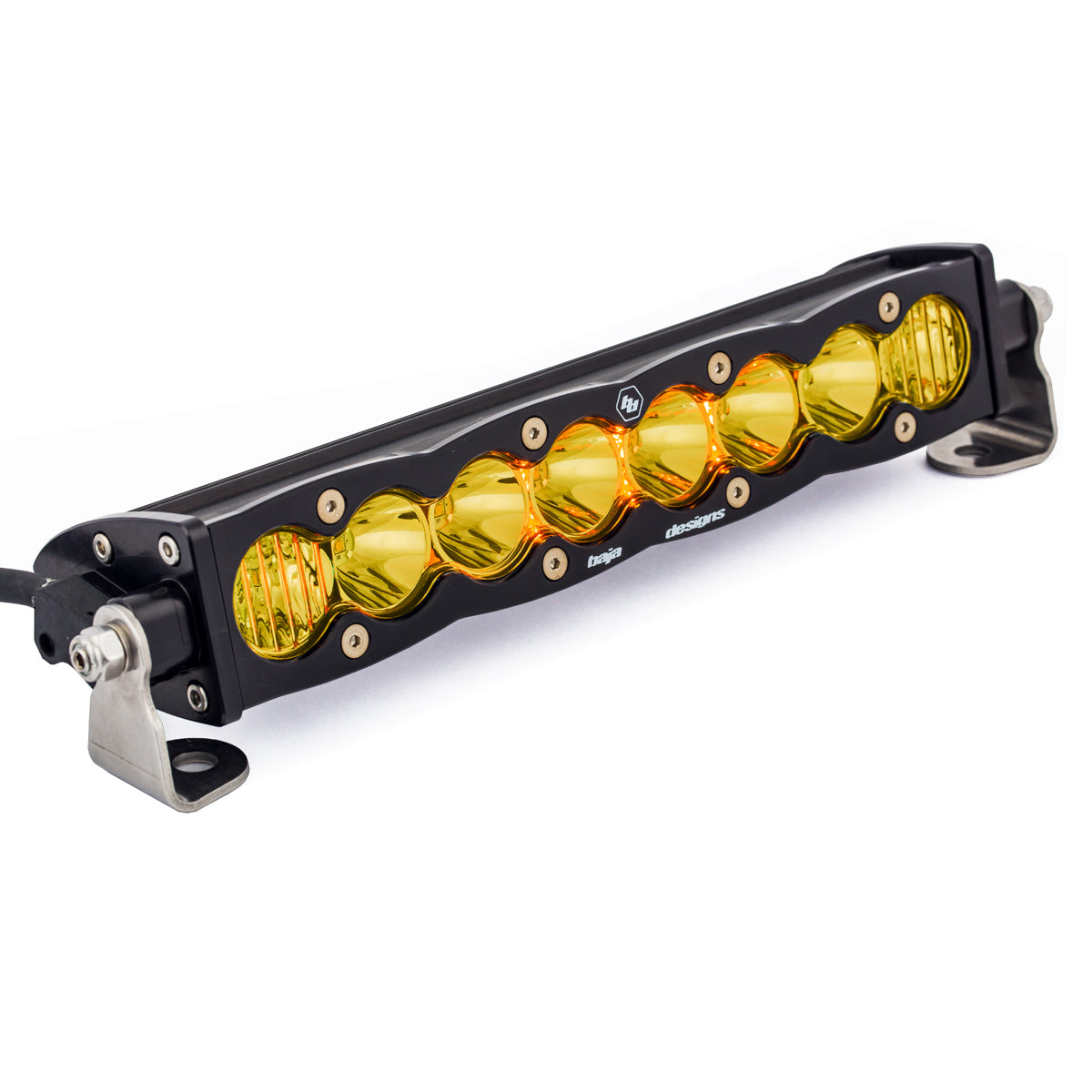

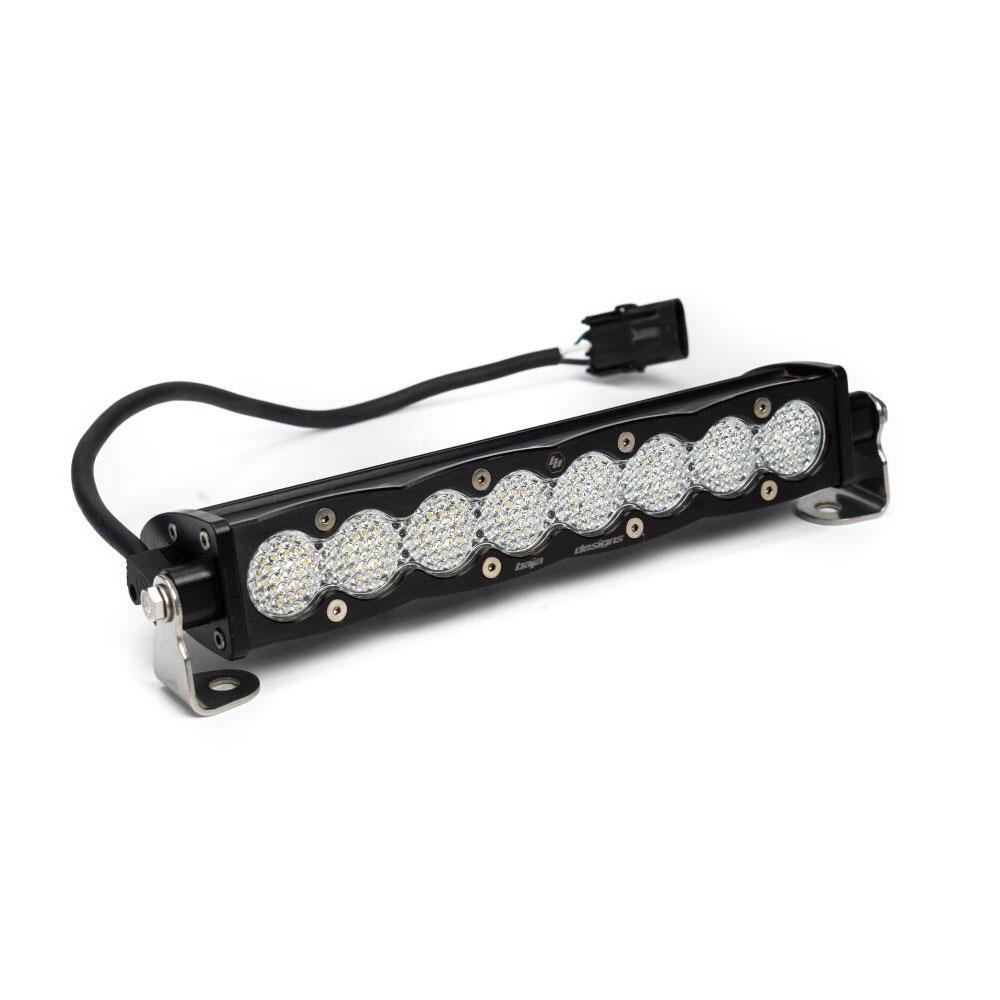

The 10-inch clear S8 is listed in Driving/Combo, Spot and Wide Cornering patterns.
Why Baja Designs
Baja Designs uses its uService design on the S8 so the lenses and optics can be replaced.
Choose Your S8 LED Light Bar
Select your S8 length, beam pattern and lens color, then plan for a separate wiring harness.
