Baja Designs S8 Series Backlight Add-On Wiring Harness

An existing harness without a backlight wiring solution leaves the S8 Series light's backlighting without a connection. Listed for: Baja Designs S8 Series lights. Fitment is not guaranteed on unlisted applications. The Baja Designs wiring harness adds backlight wiring to an existing harness, with length to reach the fuse panel or splice to keyed power.

Key Features

• Designed for S8 Series light backlighting
• Adds backlight wiring to an existing harness
• Length to reach the fuse panel
• Alternate connection to keyed power by splice
• Four common fuse taps
• Bullet terminal connectors

Built To Solve: S8 Series Backlight Wiring

• Add backlight wiring when the existing harness has no backlight solution.
• Reach the fuse panel with the add-on harness.
• Use the alternate splice connector for a keyed-power connection.
• Choose from four common fuse taps for the fuse-panel connection.

Best For: S8 Series Light Owners Adding Backlighting

• Owners whose existing harness lacks backlight wiring
• S8 Series light users connecting backlighting at a fuse panel
• Installers choosing a splice to keyed power
• Buyers looking for a universal S8 Series backlight add-on harness

Specifications

• Application: S8 Series
• Product type: S8 backlit add-on kit
• Terminal connectors: Bullet connectors
• Application type: Universal
• Switch: Not included
• Manufacturer part numbers: 640177

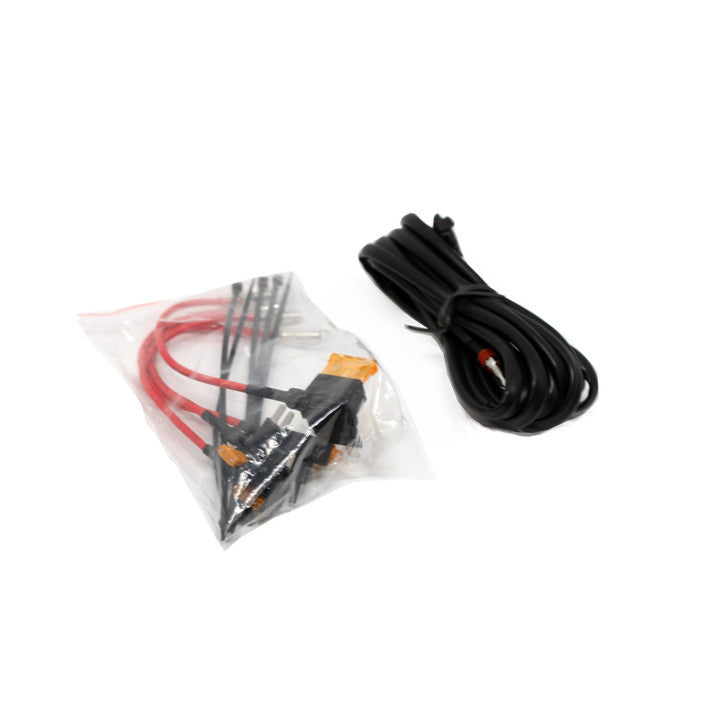

What's in the Box

• Detailed instructions
• Four common fuse taps
• Alternate splice connector
• Zip ties

Fitment

• Baja Designs S8 Series lights

Fitment is based on current product data for this part and is not guaranteed on unlisted applications. If you don't see your exact setup, contact us and we'll confirm fitment before you order.

FAQ

Does this harness have a switch?

No switch is supplied with the harness.

Where can the backlight harness connect to power?

The harness has length to reach the fuse panel, or it can be spliced to keyed power.

How many fuse taps are provided?

There are four common fuse taps.

Which lights is this harness designed for?

It is designed for S8 Series light backlighting.

When should I choose this add-on harness?

Choose it when your current harness has no backlight wiring solution and you want to add one.

Why Baja Designs

Baja Designs designed this harness to add backlight wiring to an existing S8 Series light harness.

Connect S8 Series Backlighting

Order the Baja Designs S8 Series backlight harness from Dunes 2 Dezert SXS.
