PRP Quad Layered Limit Straps – 10,000 lb Off-Road Suspension Protection
Protect your suspension and drive with confidence using the PRP Quad Layered Limit Straps, designed to prevent shock overextension and CV damage on high-performance off-road vehicles. Whether you're jumping dunes or crawling rocks, these PRP limit straps are a must-have upgrade to extend the life of your shocks, axles, and drivetrain components.
🔧 Why You Need PRP Limit Straps:
- Prevents damage during full suspension droop
- Reduces stress on shocks, axles, and CV joints
- Helps maintain safe CV angles in long travel setups
- Absorbs unsprung weight forces during hard landings
🏁 Key Features:

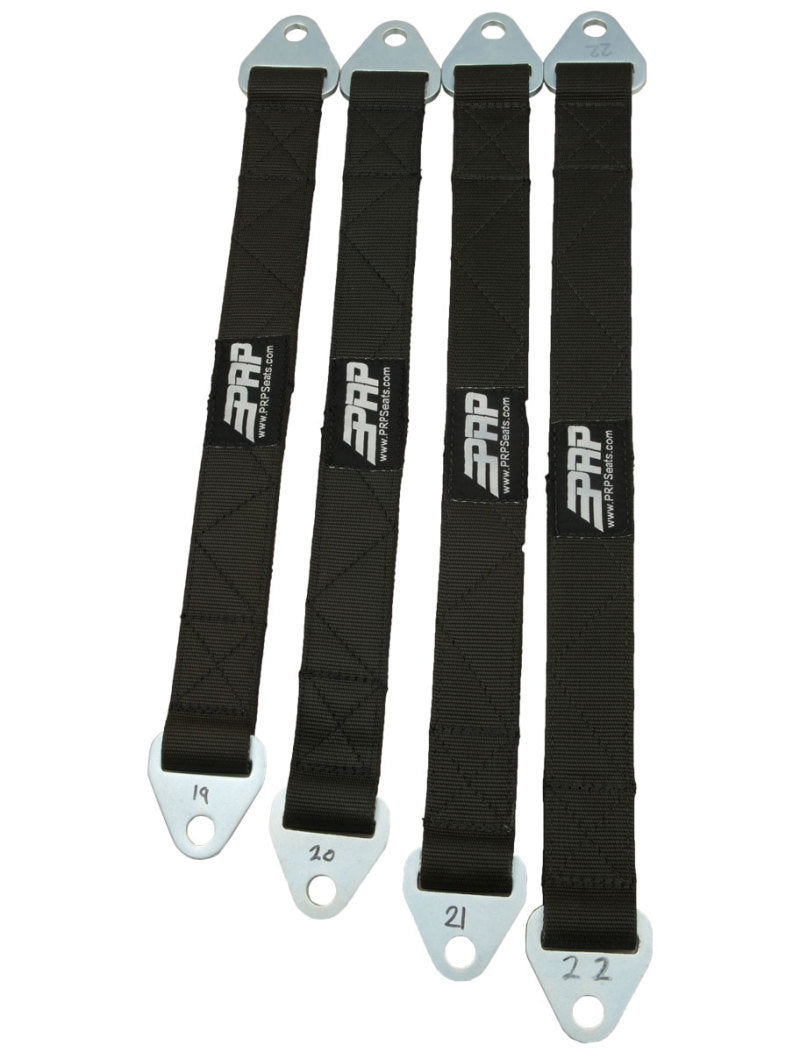

- Available lengths: 6" to 44" (in 1-inch increments)

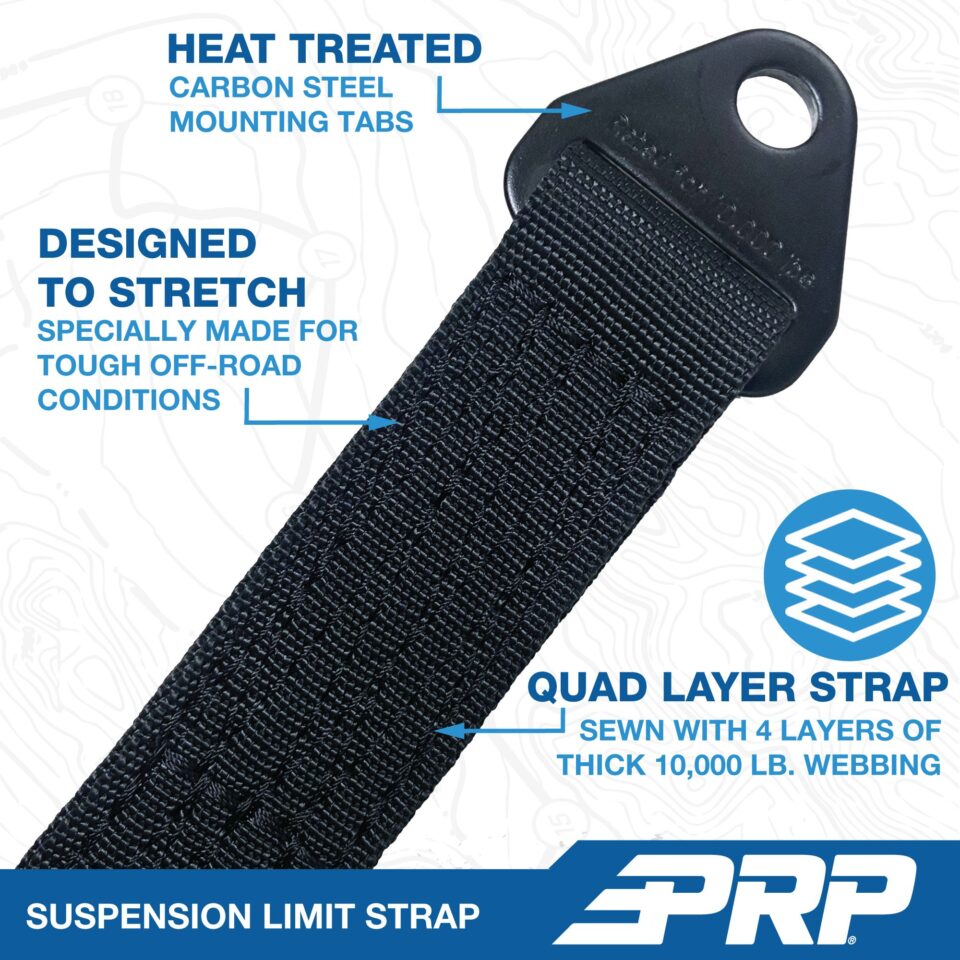

- Made with quad-layered webbing rated to 10,000 lbs
- Heat-treated steel end tabs with 1/2" bolt holes
- Black coated ends for stealthy, clean look
- Length measured from center eyelet to eyelet
- +/- 0.25” tolerance to allow for new stretch
⚙️ Installation & Fitment Notes:
- Sold individually
- Compatible with UTVs, sand cars, buggies, trucks, Jeeps, and more
- Perfect for use with Adjustable Clevis Mounts
- Bolt-on or weld-on mounting options available
- Works with long travel and OEM suspension setups
📏 How to Measure PRP Limit Straps:
- Measure max droop between suspension mounting points
- Subtract 1” of length for every 12” of strap to account for stretch
- Example: 24" span = order a 22" strap
- Check CV joint angles during full droop to prevent binding
Optional: Use Adjustable Clevis to fine-tune tension as the strap stretches over time.
✅ Benefits of PRP Limit Straps:
- Protects your expensive shocks and CV joints
- Allows you to drive harder, faster, and safer
- Maintains ideal suspension geometry under load
- Tried and tested in Baja 1000, KOH, and desert racing
Don’t let full droop destroy your suspension. Choose PRP Quad Layered Limit Straps for proven durability, adjustability, and off-road performance.
🛠️ Order your exact length today and drive with peace of mind.
