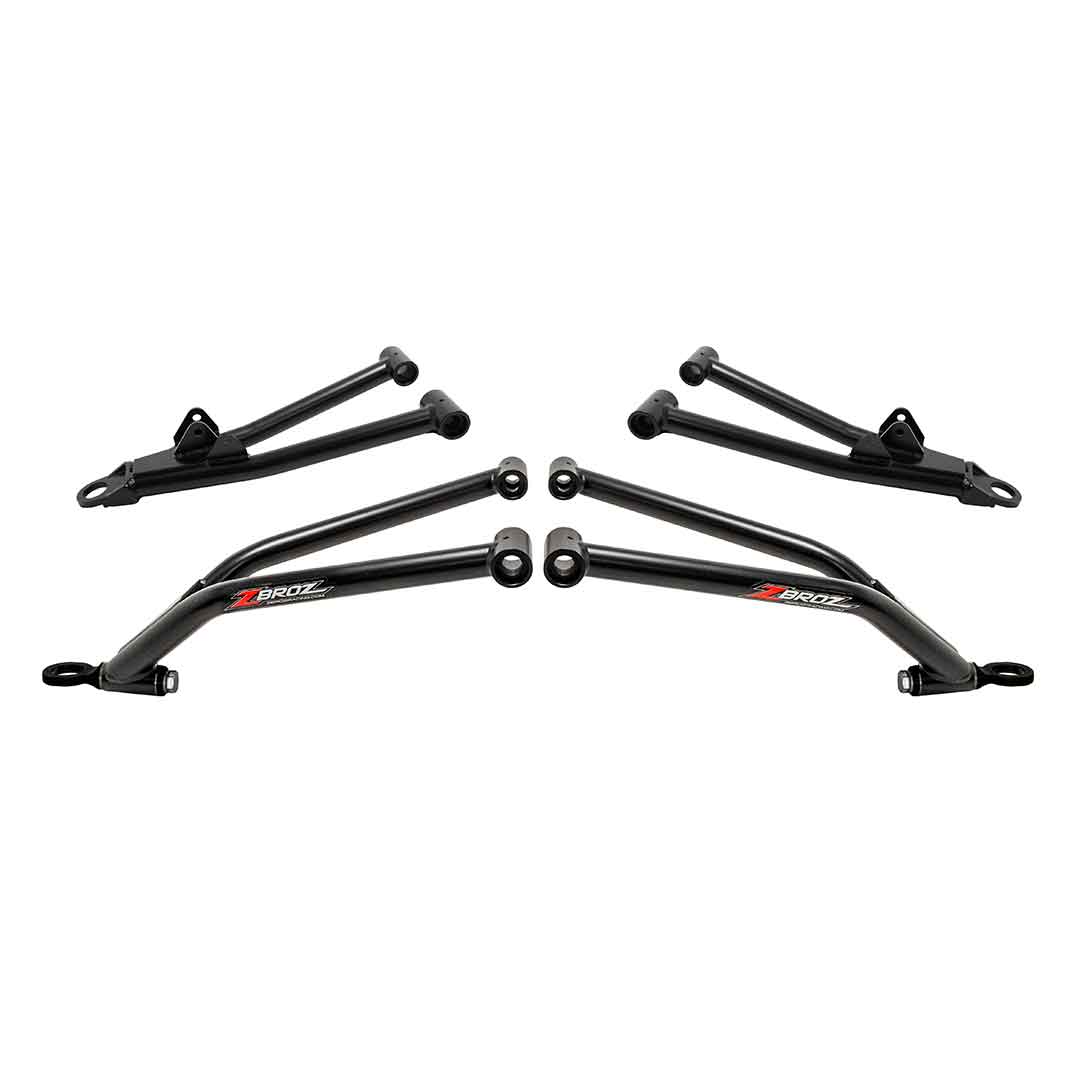

Polaris Ranger XP 1000/Crew +2 Forward A-Arm Kit by ZBroz Racing

The ZBroz HD Pro +2 Forward A-Arm Kit for Polaris Ranger XP 1000/Crew was built to take on any terrain or load you can throw at it. Maximum Ground Clearance design gives you the advantage of running larger wheels and tires while still protecting your front axles from a-arm snagging obstacles.

Built from 1.25" DOM steel tube with precision TIG welding at every connection and crossbar point, this kit uses pre-installed Delrin bushings with grease zerks at every pivot point for longer life under heavy off-road abuse. The camber adjustable lower A-arm housing ships at −1° camber and includes shims for fine-tuning (1° per shim) — ideal for serious mountain trails, rock crawling, and desert/dune riding.

Key Features

• 1.25" diameter DOM steel tube — precision TIG-welded at every connection and crossbar, stronger than OEM
• +2" forward design — extends wheelbase 2" without changing steering geometry, stays within OEM steering specs
• Maximum Ground Clearance design — protects front axles, clears a-arm snagging obstacles

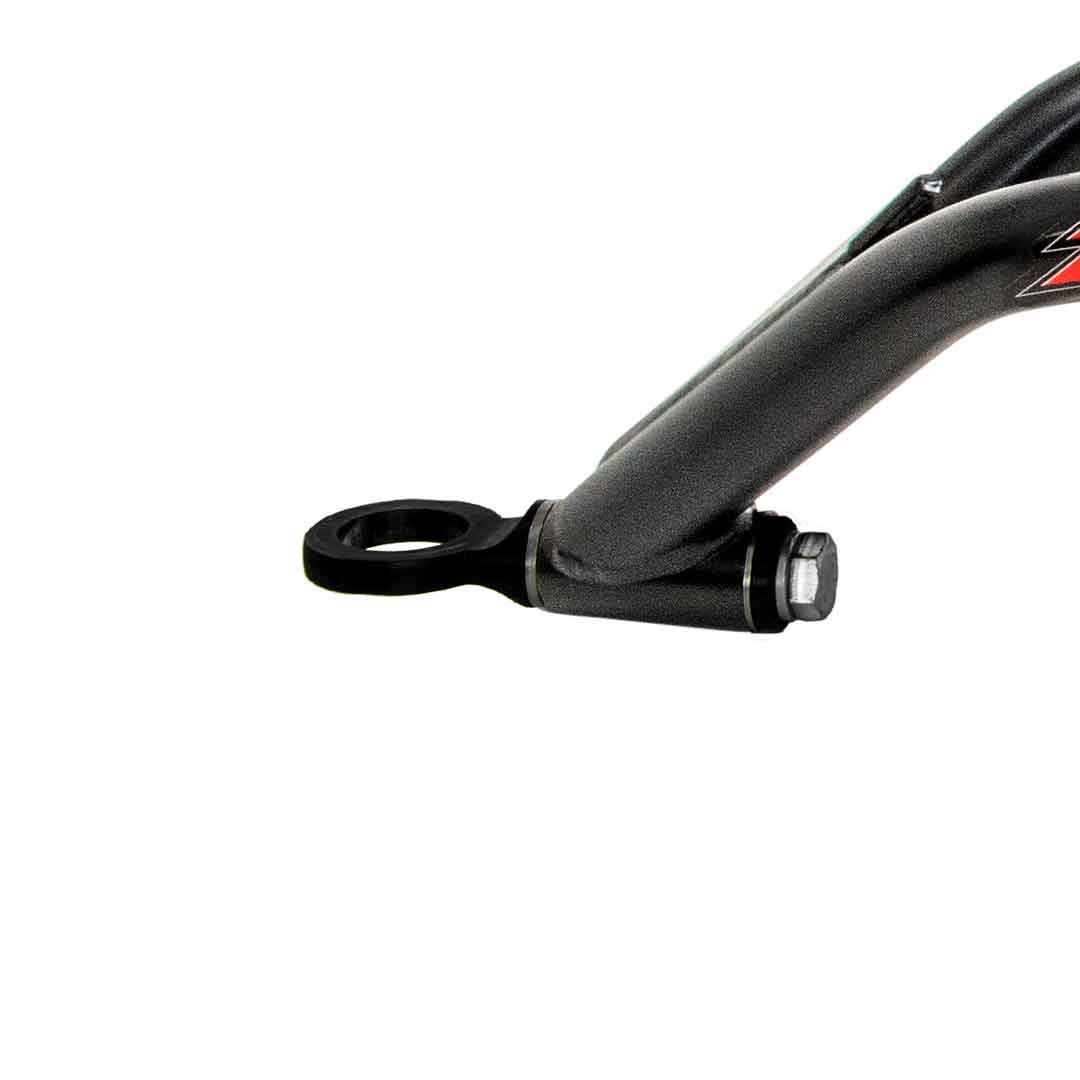

• Camber adjustable lower ball joint housing — ships at −1° camber, includes shims (1° per shim)

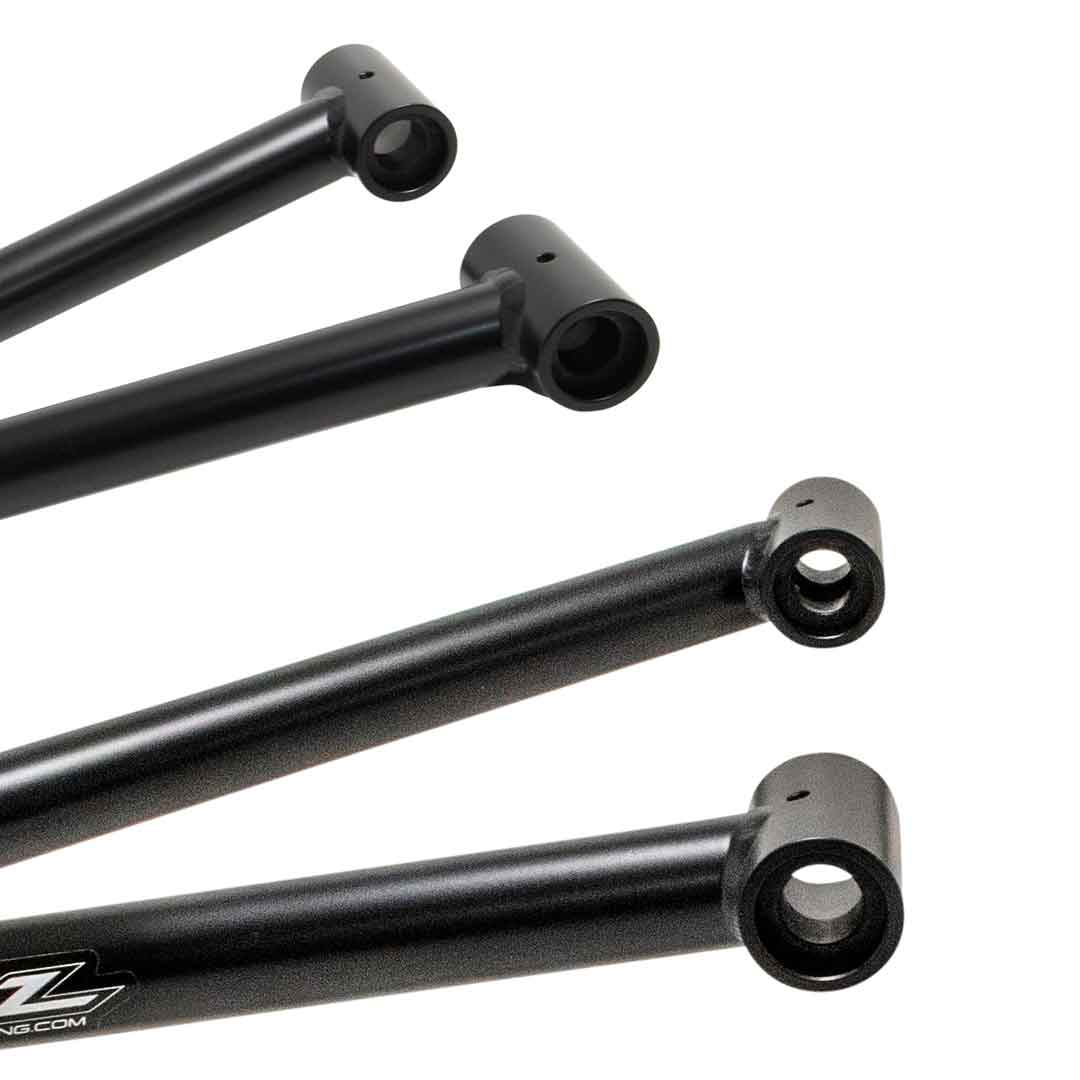

• Pre-installed Delrin bushings with grease zerks at all pivot points
• Accommodates larger wheels & tires without modification
• Compatible with OEM Sway Bars
• Ball joints NOT included — designed to reuse your OEM ball joints; ball joint housings are compatible with most aftermarket ball joints (recommended upgrade: K37-4602-0 lower + K37-4875-0 upper)
• Made in the USA (Logan, Utah)

Specifications

• Material: 1.25" DOM steel tube
• Construction: Precision TIG-welded pivot tubes
• Bushings: Pre-installed Delrin with grease zerks
• Ball joints: NOT included (reuse OEM or use compatible aftermarket)
• Camber: Adjustable, ships at −1°, 1° per shim included
• Forward offset: +2" (wheelbase extension)
• Finish: Black powder coat
• Reuse: OEM Upper Pivot Caps and Pivot Shaft, OEM Lower Pivot Caps and Lower Pivot Shafts
• Country of origin: USA

Fitment

Fits 2021-2025 Polaris Ranger XP 1000 chassis, including 2-seat and Crew (4-seat) variants. Trim coverage includes:

• Polaris Ranger XP 1000 (Premium, Northstar, Premium Crew, etc.)
• Polaris Ranger Crew XP 1000 (all 4-seat trims of the above)

Frequently Asked Questions

Are ball joints included?

No — the Ranger XP 1000 +2 Forward A-Arm Kit ships without ball joints. The kit is designed to reuse your OEM ball joints, and the ball joint housings are compatible with most aftermarket ball joints. Recommended ZBroz upgrades: K37-4602-0 (lower) and K37-4875-0 (upper) Titan Series Heavy Duty Ball Joints.

What does +2" Forward mean?

The +2 Forward A-arm design moves the wheel forward 2 inches, extending the wheelbase without changing steering geometry. This stays within all OEM steering component specs while improving stability and giving you the clearance to run larger tires.

Can I keep my OEM sway bar?

Yes — the HD Pro A-arm kit is fully compatible with OEM Polaris Ranger sway bars. No sway bar swap required.

Is camber adjustable?

Yes — the lower a-arm uses a camber adjustable ball joint housing. Kits ship at −1° camber with shims included for fine-tuning at 1° per shim. You can dial in each side independently without removing the housing.

What years and trims does this fit?

This kit fits the 2021-2025 Polaris Ranger XP 1000 chassis across all trims (Premium, Northstar, etc.) including Ranger Crew XP 1000 (4-seat) variants.

Why ZBroz Racing

ZBroz Racing pioneered the Maximum Ground Clearance A-arm design for ATVs and snowmobiles in 2002, then brought that proven MGC platform to UTVs in 2008. Every ZBroz Ranger XP 1000 HD Pro A-arm is engineered and built in Logan, Utah by the same team that has been winning races since 1998. When you buy ZBroz, you're investing in a legacy of performance, precision, and trust — engineered by racers who know exactly what your machine needs to conquer any terrain.
