AJK Offroad Polaris RZR Pro R Cage Bung Set, Domed Style
Shipping calculated at checkout
In stock

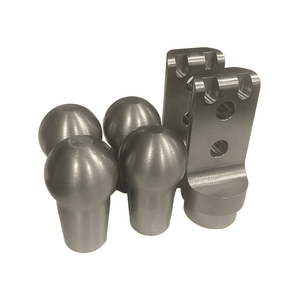

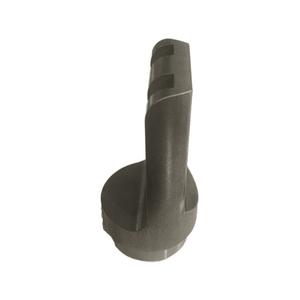

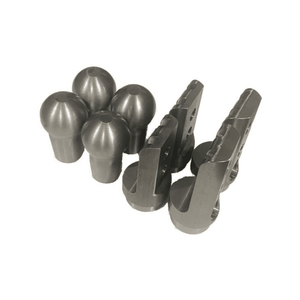

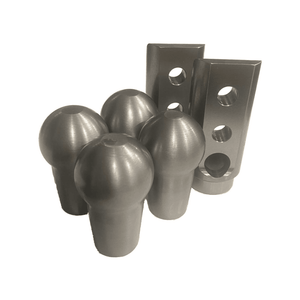

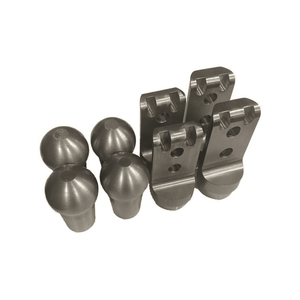

The AJK Offroad Polaris Pro R domed style cage bung set fits directly in the stock frame for fabricating a custom roll cage with back pillar bungs machined with a radius that mates to your tubing at any angle.

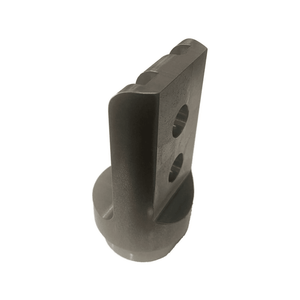

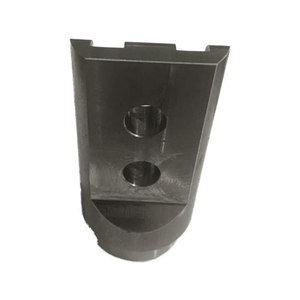

AJK Offroad redesigned the back two bungs with a radius because the factory bungs capture a nut. The A-pillar mount has a wire hole, and the 4-seat B-pillar uses AJK's standard RZR bung. All bungs are CNC machined in the USA from 1018 steel. Choose 1.75-inch OD with 0.120 wall or 2.00-inch OD with 0.095 wall, in a 2-seat set of 6 or a 4-seat set of 8.
Key Features

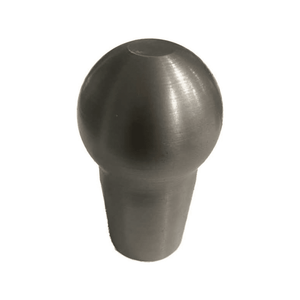

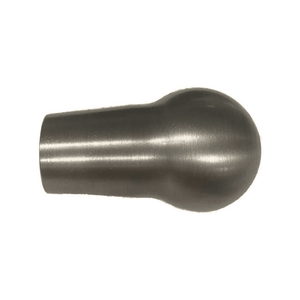

- Domed C and D pillar bungs mate at any angle
- Fits the stock Pro R frame
- 1.75 OD 0.120 wall or 2.00 OD 0.095 wall

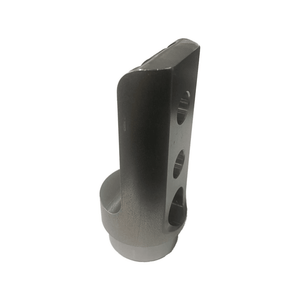

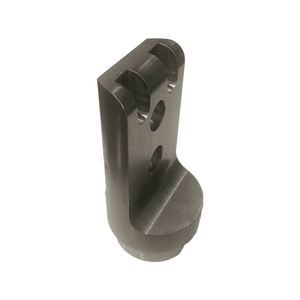

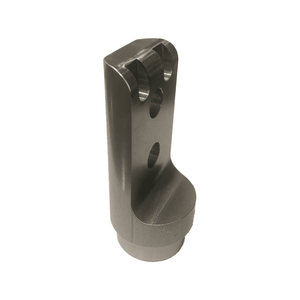

- A-pillar bung with wire hole
- CNC machined 1018 steel
- Set of 6 or 8, made in USA
Built To Solve: Fitting Cage Tubes at Custom Angles on the RZR Pro R
- Factory-angle bungs limiting your design
- Captured-nut factory bungs
- Running 2-inch tubing
Best For: RZR Pro R Owners Building Custom Cage Designs
- Fabricators using custom tube angles
- Builds running 2-inch tubing
- 2-seat and 4-seat Pro R cages
Specifications
- Fitment: Polaris RZR Pro R 2-seat and 4-seat
- Tubing: 1.75 OD 0.120 wall or 2.00 OD 0.095 wall
- Style: weld-on; domed C and D pillars
- Material: 1018 steel, CNC machined
- Quantity: 6 (2-seat) or 8 (4-seat)
- Made in USA
- Manufacturer Part Number: 200168 / 200419-200421 / 200451-200453
Fitment
Fits the stock frame on the Polaris RZR Pro R, 2-seat or 4-seat. Fitment is not guaranteed on unlisted applications.
FAQ
What is different about the domed style bungs?
The back bungs have a radius that mates to your tubing at any angle.
What tubing sizes are offered?
1.75 OD 0.120 wall or 2.00 OD 0.095 wall.
How many bungs are in the set?
6 for the 2-seat or 8 for the 4-seat.
What are they made of?
1018 steel, CNC machined in the USA.
Does the A-pillar bung have a wire hole?
Yes.
Why not factory style?
AJK Offroad notes the factory back bungs capture a nut, so it redesigned them with a radius.
Why AJK Offroad
AJK Offroad builds its Polaris RZR Pro series parts in the USA from CNC laser-cut, bent and machined steel and aluminum, finished in powder coat. The line covers fabrication parts for builders, like cage bungs, tabs and tree kicker studs, along with bolt-on protection, storage and styling, and Dunes 2 Dezert SXS carries the full AJK Offroad RZR Pro R, Turbo R and Pro XP range in one place.
Build Your Custom Cage
Choose your tubing size and seat count, then compare the factory style set and builder tab kit below.
