XTC Yamaha YXZ1000R Power Control System (2017-2020)

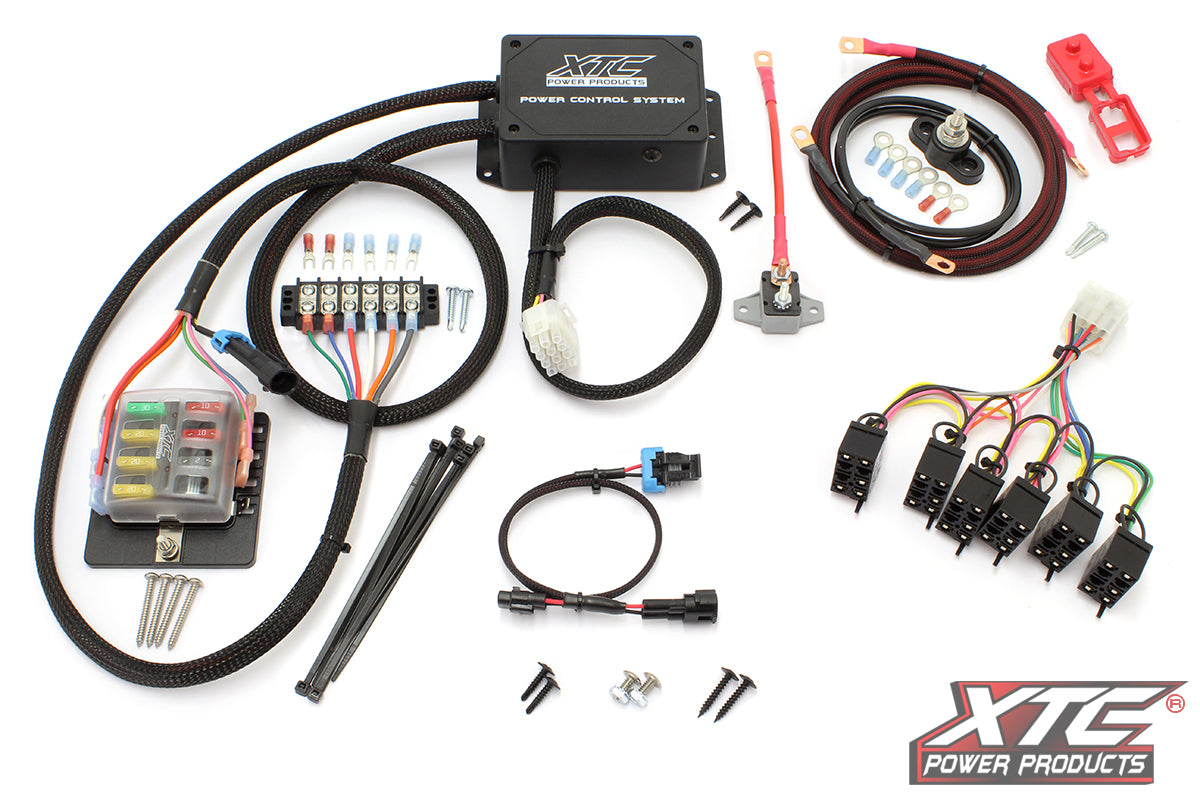

Adding multiple accessories to a Yamaha YXZ1000R means routing power and troubleshooting separate connections. The factory dash has rocker switch positions, but accessory circuits still need power and fuse protection. Listed for: Yamaha YXZ1000R 2017 - 2020; Yamaha YXZ 2017 - 2020. Fitment is not guaranteed on unlisted applications. The system routes accessory power through four relayed circuits and two direct-switch circuits. A color-coded barrier strip gives each circuit a screw point for connecting and troubleshooting accessories.

Key Features

• One 30-amp and three 20-amp relayed circuits with diode protection
• Two 10-amp direct-switch circuits for lower-power accessories
• Individual fuse protection with a blown-fuse LED indicator
• Eight-gauge power cable and 50-amp main circuit breaker at the battery
• Six rocker switch harness positions arranged for the center dash
• Molex connector links the switch harness to the power control system
• Modular fuse-box connector plugs inline with ignition power

Built To Solve: Yamaha YXZ1000R Accessory Power and Wiring

• Connect accessories at color-coded barrier-strip screw points.
• Trace a circuit from its switch harness wire to its corresponding fuse-box wire.
• Use the blown-fuse LED indicator to help identify a fuse fault.
• Reduce voltage spikes from relay field collapse with diode protection.
• Route lower-power accessories through the two 10-amp direct circuits.

Best For: Yamaha YXZ1000R Riders Adding Accessories

• Riders adding lower-power rock lights or whip lights
• Installers using the center-dash rocker switch positions
• Builders who want barrier-strip screw points for future connections and troubleshooting

Specifications

• Relayed circuits: One 30-amp and three 20-amp circuits
• Direct-switch circuits: Two 10-amp circuits
• Power cable: 8 gauge
• Main circuit breaker: 50 amp
• Switch harness positions: Six
• Manufacturer part numbers: PCS-64-YXZ-NS

What's in the Box

• 50-amp main circuit breaker
• Barrier strip

Fitment

• Yamaha YXZ1000R 2017 - 2020
• Yamaha YXZ 2017 - 2020

Fitment is based on current product data for this part and is not guaranteed on unlisted applications. If you don't see your exact setup, contact us and we'll confirm fitment before you order.

FAQ

Are laser-etched custom rocker switches supplied with this system?

Laser-etched custom rocker switches are available separately.

How does the switch harness connect to the power control system?

A Molex connector links the switch harness to the main power control system.

How many high-current circuits does the system provide?

There are four relayed high-current circuits: one rated at 30 amps and three rated at 20 amps.

Does the wiring system work with the ignition off?

Yes. The wiring system works with or without vehicle ignition power, although the lower LED on available custom rocker switches lights only when the ignition key is on.

Which circuits are intended for rock lights or whip lights?

The two 10-amp direct-wire circuits are intended for lower-power accessories such as rock lights or whip lights.

Why XTC Power Products

XTC uses a vehicle-specific power connector and a rocker switch harness sized for the Yamaha YXZ factory pre-cut switch positions.

Wire Your Yamaha YXZ1000R Accessories

Order the XTC power control system from Dunes 2 Dezert SXS.
