XTC Can-Am Maverick X3 Power Control System (2017-2027)

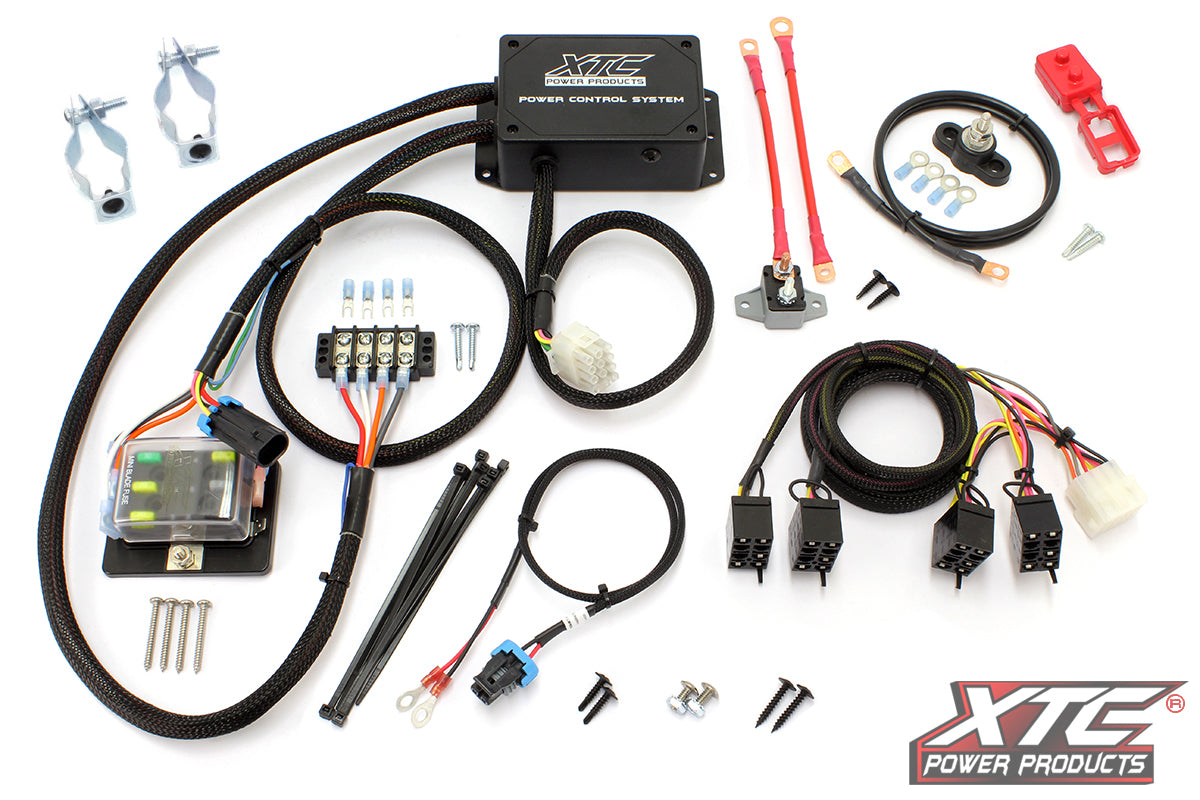

Adding several accessories to a Can-Am Maverick X3 means finding a way to distribute power, protect each circuit and route switch wiring through the cab. Listed for: Can-Am Maverick R 2024 - 2027; Can-Am Maverick R Max 2024 - 2027; Can-Am Maverick X3 2017 - 2027; Can-Am Maverick X3 64 2017 - 2027; Can-Am Maverick X3 72 2017 - 2027; Can-Am Maverick X3 Max 2017 - 2027. Fitment is not guaranteed on unlisted applications. The XTC power control system routes four relayed circuits through a UTV fuse block and a screw-terminal barrier strip. Its rocker switch harness uses factory pre-cut switch positions.

Key Features

• One 30-amp and three 20-amp relayed circuits
• Individual circuit fuses with a blown-fuse LED indicator
• Diode protection reduces voltage spikes from field collapse
• Eight-gauge power cable with a 50-amp breaker at the battery
• Color-coded barrier strip connections correspond to the fuse box and switch harness
• Molex connector links the switch harness to the main power control system
• Custom rocker switch lower lighting operates with the ignition on

Built To Solve: Maverick X3 Accessory Power Distribution

• Route four accessory circuits through relays rather than wiring each directly to a switch.
• Protect each switch circuit with its own fuse.
• Use the color-coded barrier strip to add connections and troubleshoot wiring.
• Use the battery-mounted 50-amp breaker to supply the power control system.

Best For: Can-Am Maverick Riders Wiring Accessories

• Maverick X3 owners adding multiple powered accessories
• Riders who want separate fuses for four switch circuits
• Installers using the factory pre-cut rocker switch positions
• Builders who want screw terminals for future wiring changes

Specifications

• Circuit ratings: One 30-amp circuit and three 20-amp circuits
• Power cable: 8 gauge
• Circuit protection: Individual fuses and relay diode protection
• Manufacturer part numbers: PCS-44-MAV-NS

Fitment

• Can-Am Maverick R 2024 - 2027
• Can-Am Maverick R Max 2024 - 2027
• Can-Am Maverick X3 2017 - 2027
• Can-Am Maverick X3 64 2017 - 2027
• Can-Am Maverick X3 72 2017 - 2027
• Can-Am Maverick X3 Max 2017 - 2027

Fitment is based on current product data for this part and is not guaranteed on unlisted applications. If you don't see your exact setup, contact us and we'll confirm fitment before you order.

FAQ

Are LED-lit custom rocker switches supplied?

No. LED-lit custom rocker switches are sold separately.

Where can the Maverick X3 switch harness be mounted?

Two rocker switch positions mount in the center console, one in the center dash, and the last next to the steering wheel or in the center dash. A custom arrangement is also possible.

How many accessory circuits does the system control?

Four: one rated at 30 amps and three rated at 20 amps.

Does the wiring system operate with the ignition off?

Yes. The wiring system works with or without ignition power, but the lower LED on a custom rocker switch illuminates only when the ignition key is on.

Should I choose custom rocker switches for lower-row lighting?

Choose the separately sold LED-lit custom rocker switches if you want lower-row lighting.

Why XTC Power Products

XTC uses a vehicle-specific power connector and a rocker switch harness designed for factory pre-cut switch positions.

Wire Maverick X3 Accessories

Order the XTC power control system from Dunes 2 Dezert SXS.
