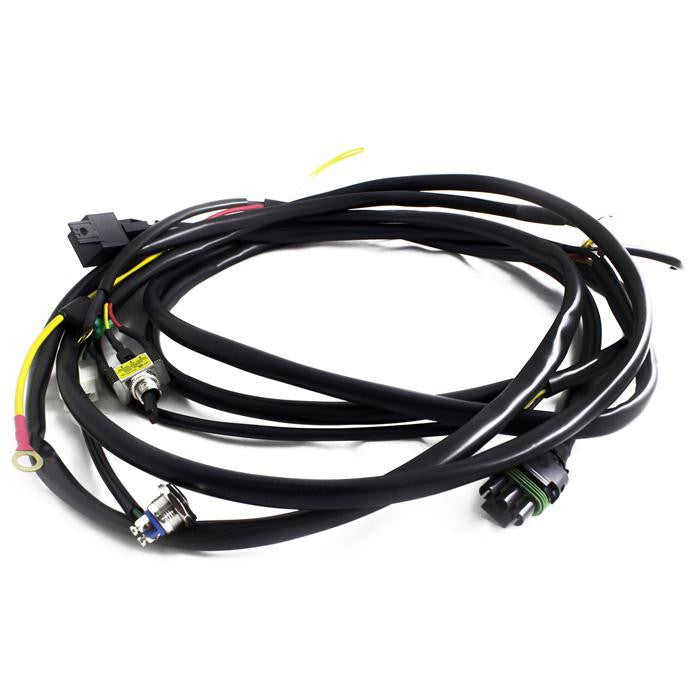

Baja Designs OnX6/Hybrid/Laser/S8 Wiring Harness

Controlling a light bar and its secondary backlight or laser function separately calls for more than a single on/off control. Universal fit - not built for one specific make or model, so confirm mounting space and wiring on your machine before ordering. The Baja Designs wiring harness uses separate on/off switches for the primary light bar and secondary function. Battery ring terminals and a 100-inch wire run connect the power end to the weatherpack.

Key Features

• Separate on/off control for the primary light bar
• Second on/off switch for the amber backlight or laser function
• Heavy-duty wire gauge for any size bar
• 100-inch wire run between battery ring terminals and weatherpack
• Three-pin connections and splice connectors
• Universal harness listed for OnX6, Hybrid, Laser and S8

Built To Solve: OnX6 and S8 Light Bar Mode Control

• Switch the primary light bar separately from the amber backlight or laser function.
• Use the 100-inch wire run for bumper or roof mounting.
• Connect the power end using battery ring terminals.
• Route the heavy-duty wiring through protective sheathing.

Best For: OnX6, Hybrid, Laser and S8 Light Bar Buyers

• Owners wiring one listed Baja Designs light bar.
• Buyers who want separate control of a secondary light function.
• Installers planning a bumper- or roof-mounted light bar.
• Buyers looking for a universal light bar wiring harness.

Specifications

• Application: OnX6/Hybrid/Laser/S8
• Harness configuration: 1 bar; mode switch
• Wire length: 100 inches between battery ring terminals and weatherpack
• Terminal connector: Three-pin connections
• Terminal type: Splice connectors
• Application type: Universal
• Mounting hardware: Not included
• Manufacturer part numbers: 640122

What's in the Box

• Primary on/off toggle switch
• Secondary on/off switch
• Battery ring terminals
• Relay
• Sheathing
• Fuse

Fitment

• Universal; listed for OnX6, Hybrid, Laser and S8 light applications

Fitment is based on current product data for this part and is not guaranteed on unlisted applications. If you don't see your exact setup, contact us and we'll confirm fitment before you order.

FAQ

Does the harness come with mounting hardware?

No. Mounting hardware is not supplied.

How does the harness connect at the battery?

The harness uses battery ring terminals at the power end.

How long is the wire run?

It measures 100 inches between the battery ring terminals and the weatherpack.

How many light bars is the harness configured for?

The harness is described as a one-bar configuration.

Why choose a harness with a separate mode switch?

Choose it when you want separate on/off control of the primary light bar and the secondary amber backlight or laser function.

Why Baja Designs

Baja Designs lists this universal harness for its OnX6, Hybrid, Laser and S8 light applications, with separate primary and secondary controls.
