Moose Offroad Can-Am Maverick X3 Upper Ball Joint (2017-2025)
Shipping calculated at checkout
In stock

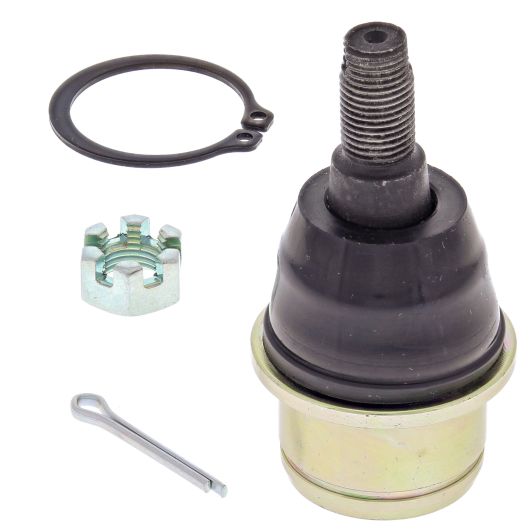

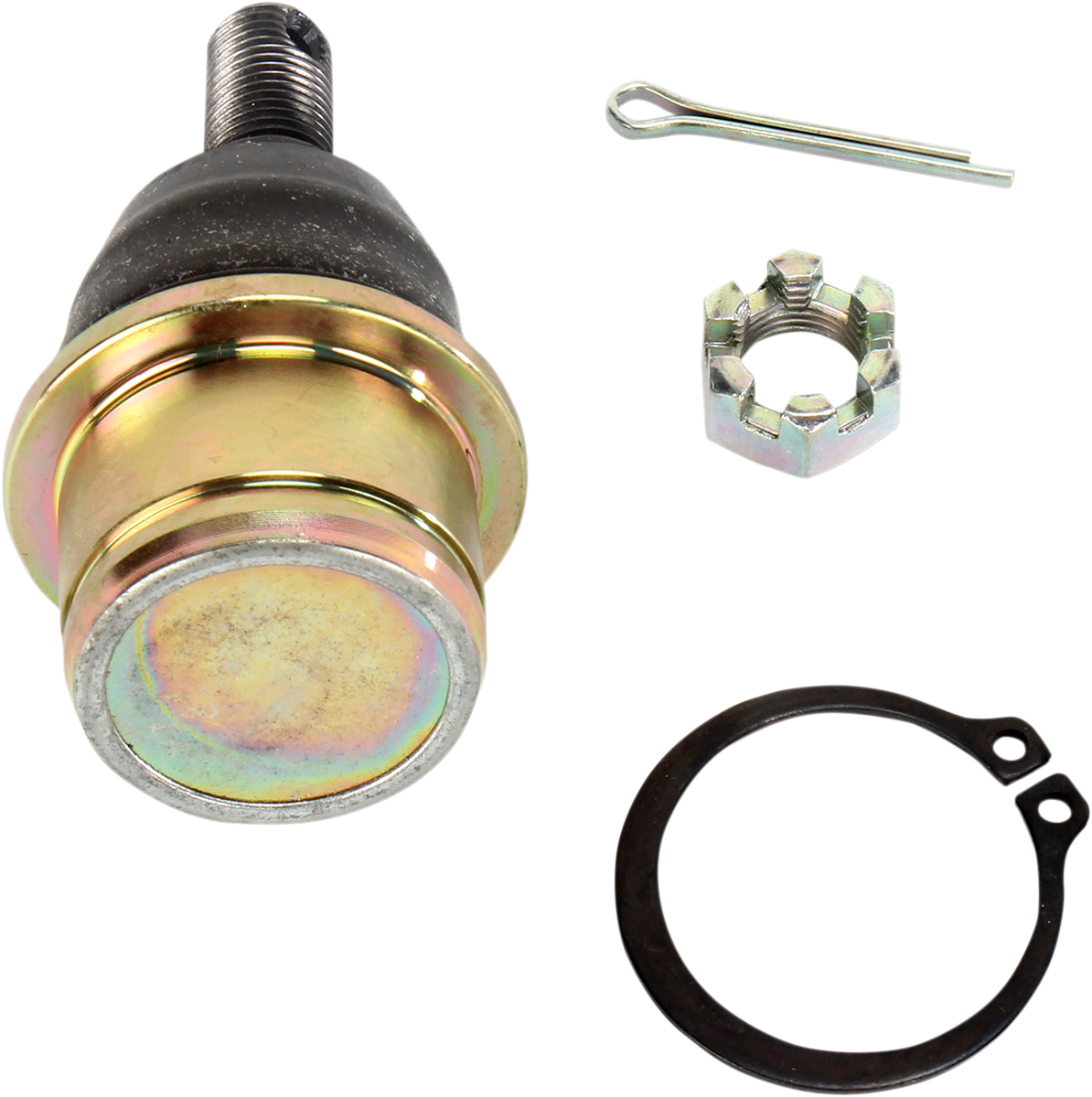

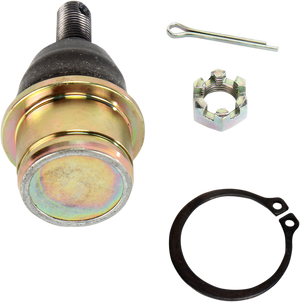

The Moose Offroad Can-Am Maverick X3 upper ball joint replaces a worn factory upper ball joint to remove front-end play and clunking. It is sold per A-arm with a snap ring and cotter pin, and it also fits Can-Am Defender, Commander, Maverick Sport, Maverick Trail and Maverick R models.
A heavy-duty steel case and POM-M90 bearing are built for long service in dirt, water and hard hits.
Key Features
- Heavy-duty steel case
- POM-M90 bearing material
- Sold per A-arm
- Includes snap ring and cotter pin
- Replaces Can-Am OEM part numbers 706201370, 706201394, 706201575 and more
Built To Solve: Worn Can-Am Upper Ball Joints
- Clunking from the front end over bumps
- Play when you rock the front tire top to bottom
- Torn ball joint boots and dry, worn joints
- Uneven tire wear and wandering steering
Best For: Can-Am UTV Owners Refreshing The Front End
- Maverick X3 riders who are hard on the front end
- Defender and Commander owners doing work and farm duty
- Owners replacing ball joints during routine front-end service
- Most owners replace upper and lower together; see the Moose lower ball joint (42-1042)
Specifications
- Product type: upper ball joint
- Quantity: one per A-arm
- Includes: snap ring and cotter pin
- Case: heavy-duty steel
- Bearing: POM-M90
- Replaces Can-Am OEM part numbers 706201370, 706201394, 706201575, 706202044, 706202801
- Parts Unlimited number: 0430-0738
- Manufacturer Part Number: 42-1043
Fitment
Fitment below is from the Parts Unlimited fitment table for this part, including the mounting position for each machine. Years and machines added from the WPS (Western Power Sports) listing use the same mounting position as the matching machine above.
| Machine | Years | Position |
|---|---|---|
| Can-Am Maverick X3 | 2017-2025 | Front upper |
| Can-Am Maverick X3 Max | 2017-2025 | Front upper |
| Can-Am Maverick R | 2024-2025 | Front lower |
| Can-Am Maverick R Max | 2025 | Front lower |
| Can-Am Maverick Sport | 2019-2025 | Front upper |
| Can-Am Maverick Sport Max | 2019-2025 | Front upper |
| Can-Am Maverick Trail | 2018-2025 | Front upper |
| Can-Am Commander | 2011-2025 | Front upper |
| Can-Am Commander Max | 2014-2025 | Front upper |
| Can-Am Defender HD5 | 2017-2021 | Front upper |
| Can-Am Defender HD7 | 2022-2025 | Front upper |
| Can-Am Defender HD8 | 2016-2021 | Front upper |
| Can-Am Defender HD9 | 2022-2025 | Front upper |
| Can-Am Defender HD10 | 2016-2025 | Front upper |
| Can-Am Defender PRO HD10 | 2020-2025 | Front upper |
| Can-Am Defender HD10 6x6 | 2020-2025 | Front upper |
| Can-Am Defender MAX HD7 | 2022-2025 | Front upper |
| Can-Am Defender MAX HD8 | 2017-2021 | Front upper |
| Can-Am Defender MAX HD9 | 2022-2025 | Front upper |
| Can-Am Defender MAX HD10 | 2017-2025 | Front upper |
| Can-Am Maverick 1000 | 2013-2015 | Front upper |
| Can-Am Maverick 1000R | 2013-2018 | Front upper |
| Can-Am Maverick Max 1000 | 2014-2018 | Front upper |
| Can-Am Maverick Turbo | 2015-2016 | Front upper |
| Can-Am Maverick X package | 2014 | Front upper |
Fitment is not guaranteed on unlisted applications. Confirm your model, trim, year and the position you are replacing against the table above before ordering.
FAQ
How do I know my Can-Am upper ball joint is bad?
Clunking over bumps, play when you rock the tire top to bottom, torn boots and uneven tire wear are the common signs.
How many ball joints do I need?
This is sold per A-arm. Order one for each A-arm you are servicing; most riders replace both sides at once.
Does it fit the Can-Am Defender and Commander?
Yes. Parts Unlimited and WPS list the Defender HD5, HD7, HD8, HD9, HD10, PRO HD10, HD10 6x6 and MAX HD7 through MAX HD10, plus the Commander (2011-2025) and Commander Max (2014-2025).
Is a snap ring included?
Yes. Each ball joint includes a snap ring and cotter pin.
Do I need a press to install it?
Yes. Ball joints are pressed into the A-arm, so a ball joint press or a shop is needed.
Is this an upper ball joint on the Maverick R?
No. On the 2024-2025 Maverick R and 2025 Maverick R Max, Parts Unlimited lists this part in the front lower position. Check the table for your machine.
Why Moose Offroad
Moose Offroad is the Parts Unlimited utility and replacement-parts brand, building bearings, seals, steering and suspension parts to OEM-replacement specs for riders who keep their machines working instead of parked.
Rebuild Your Can-Am Front End The Right Way
Count your A-arms and order one ball joint per arm, and confirm your model and year against the fitment list. Pair this with the Moose lower ball joint (42-1042) and the A-arm bearing kit for a complete Can-Am front-end rebuild.
