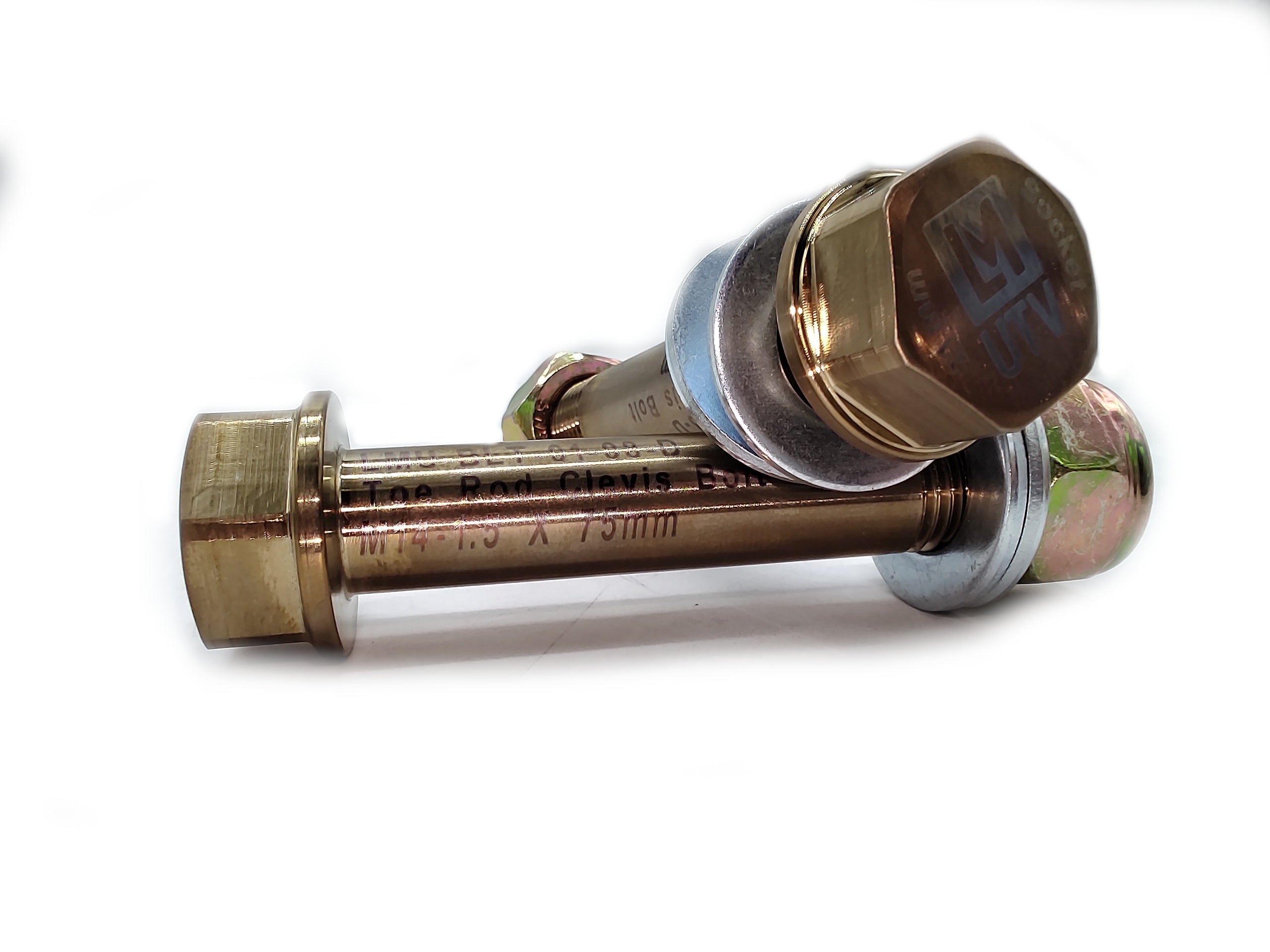

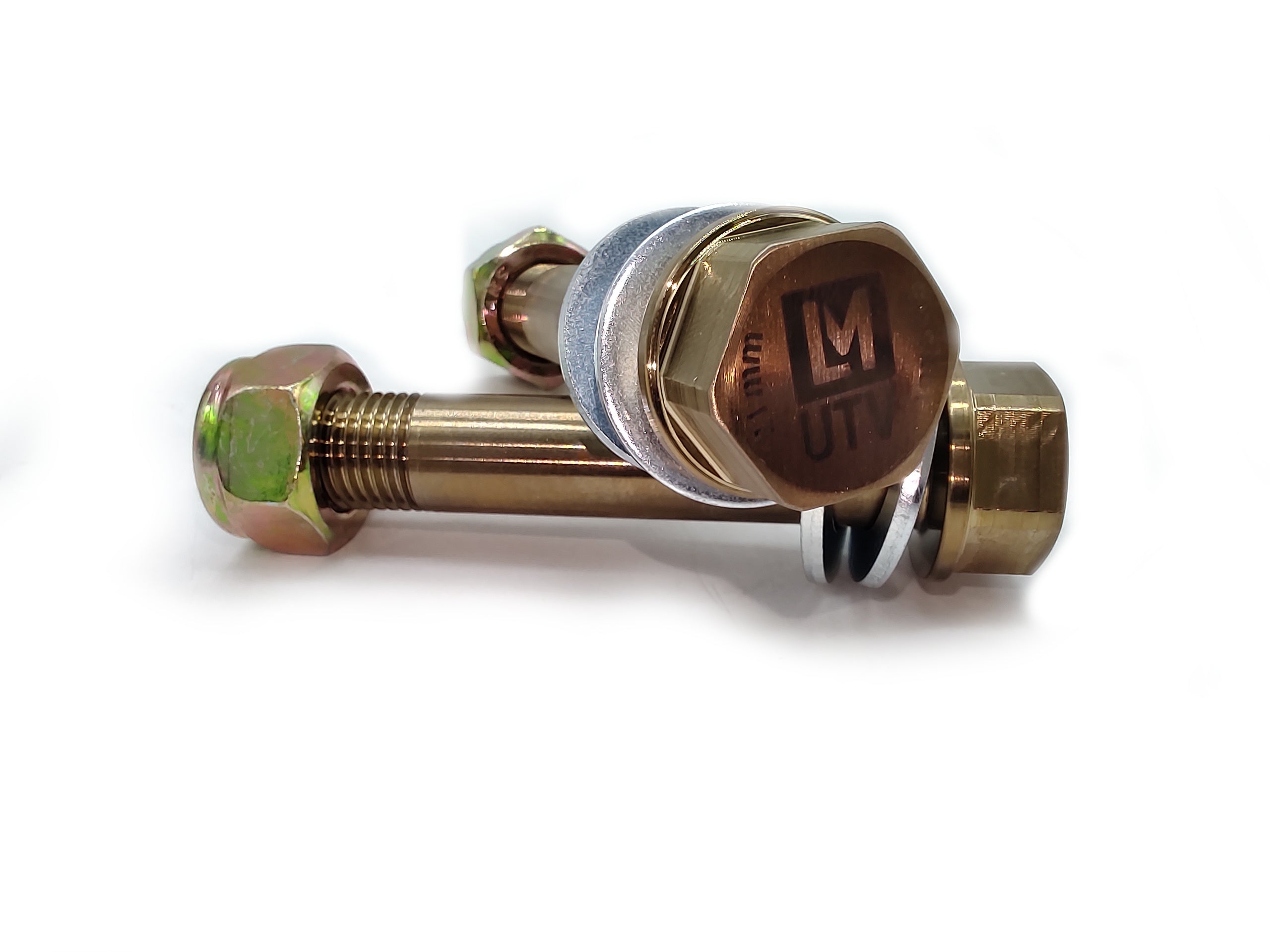

This is the LM UTV high strength rear toe rod bolt kit for the Polaris RZR Pro R and Turbo R. It is made from aircraft grade 17-4 stainless steel and heat treated, with the correct shoulder and thread length. The kit includes bolts, washers and nylon locking nuts, and the bolts carry individual install locaitons.
This is the toe rod hardware only — the rear radius rods on the same machine take a different kit, LMU-BLT-01-08.
Key Features
- Rear toe rod bolt kit for the Polaris RZR Pro R and Turbo R
- Made from aircraft grade 17-4 stainless steel and heat treated
- Correct shoulder and thread length
- Includes bolts, washers and nylon locking nuts
- Laser-etched logo and individual install locaitons on the bolts
- Fits all Pro R and Turbo R models
- Made in the USA
Built To Solve: Worn Rear Toe Rod Hardware On The Polaris RZR Pro R And Turbo R
- A stretched toe rod bolt that lets rear toe wander. Once the bolt has yielded, the joint moves even though the nut still torques.
- Alignment that will not hold after a hard landing. Play at the toe rod mount shows up as a car that steps out.
- Ordering the wrong bolts. Toe rod and radius rod hardware are separate kits, and this one is the toe rods.
Best For: Pro R And Turbo R Owners Servicing The Rear Toe Rods
- Pro R, Pro R 4, Turbo R and Turbo R 4 owners replacing toe rod bolts
- Riders installing aftermarket toe rods who want new bolts
- If you are replacing rear radius rod bolts, this is the wrong kit — order the Pro R Radius Rod Bolt Kit, LMU-BLT-01-08
Specifications
- Kit contents: bolts, washers and nylon locking nuts (counts not published)
- Material: aircraft grade 17-4 stainless steel
- Treatment: heat treated
- Length: correct shoulder and thread length
- Position: rear toe rods
- Marking: laser-etched logo and individual install locaitons
- Origin: Made in the USA
- Manufacturer Part Number: LMU-BLT-01-08-Toe
Fitment
Fits 2022-2027 Polaris RZR Pro R, Pro R 4, Turbo R and Turbo R 4 models — LM UTV states it fits all Pro R and Turbo R models. It covers the rear toe rods only; the radius rods use LMU-BLT-01-08. Fitment is not guaranteed on applications not listed here.
FAQ
Is this the toe rod kit or the radius rod kit?
The toe rod kit. LM UTV's bullet list repeats a line from its radius rod kit, but this part is the toe rod hardware. For radius rod bolts, order LMU-BLT-01-08.
Which machines does it fit?
Pro R, Pro R 4, Turbo R and Turbo R 4 models from 2022 through 2027.
How many bolts and washers are in the kit?
Not published. LM UTV's parts list reads "Includes # bolts, # washers and nylon locking nuts" and the counts were never filled in. We will not guess — contact the store for a count.
What are the bolts made from?
Aircraft grade 17-4 stainless steel, heat treated, cut to the correct shoulder and thread length.
How do I know which bolt goes where?
The bolts carry individual install locaitons marking each position.
Are nuts and washers included?
Yes, washers and nylon locking nuts are included.
Why LM UTV
LM UTV makes this kit in the USA from aircraft grade 17-4 stainless steel and heat treats it, then etches install locaitons onto the individual bolts.
Order The Rear Toe Rod Bolt Kit For Your Pro R Or Turbo R
Check first that it is the toe rods you are servicing and not the radius rods — two different kits for the same machine. Then use new heat treated stainless instead of reusing season-old bolts.
