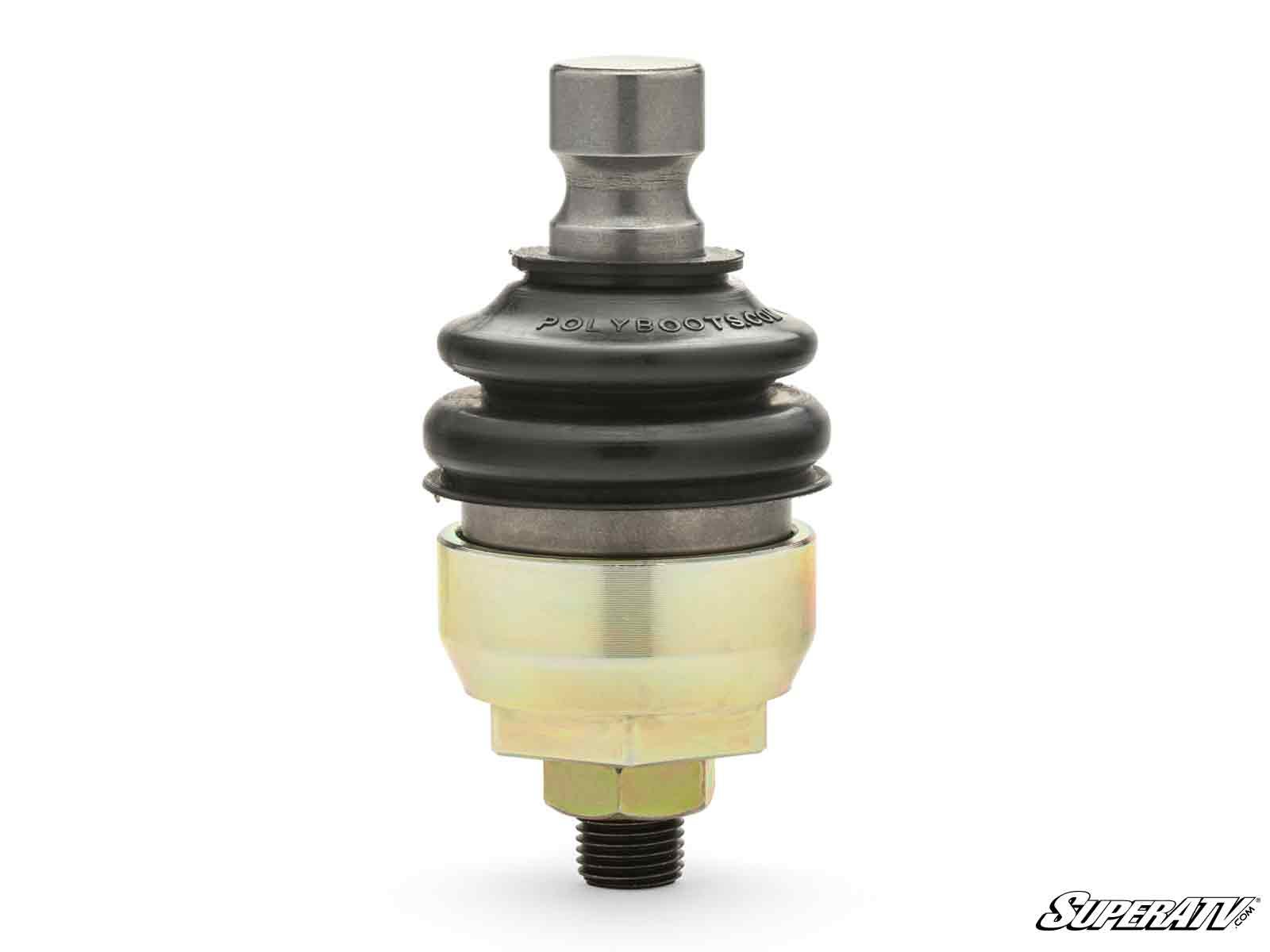

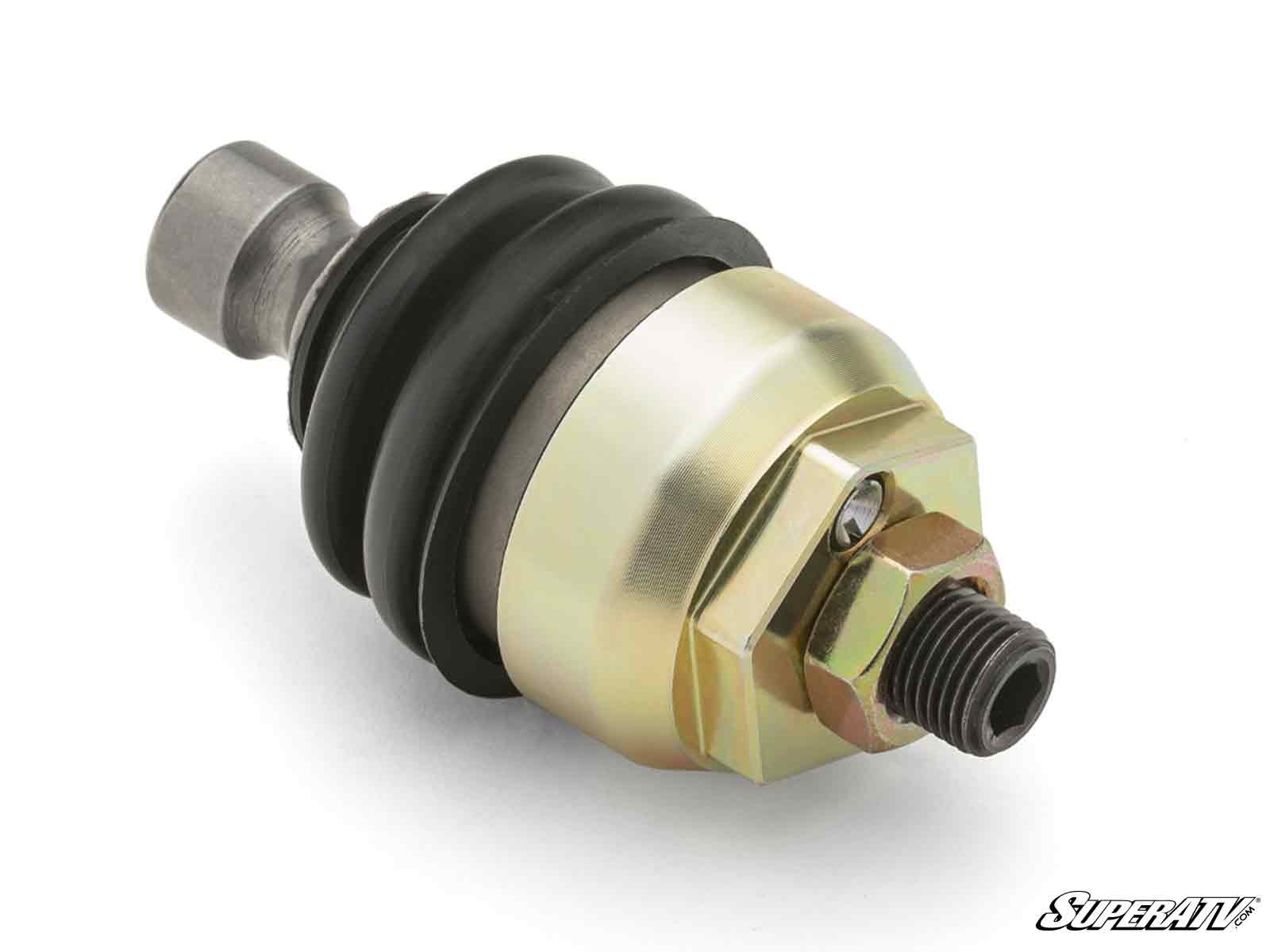

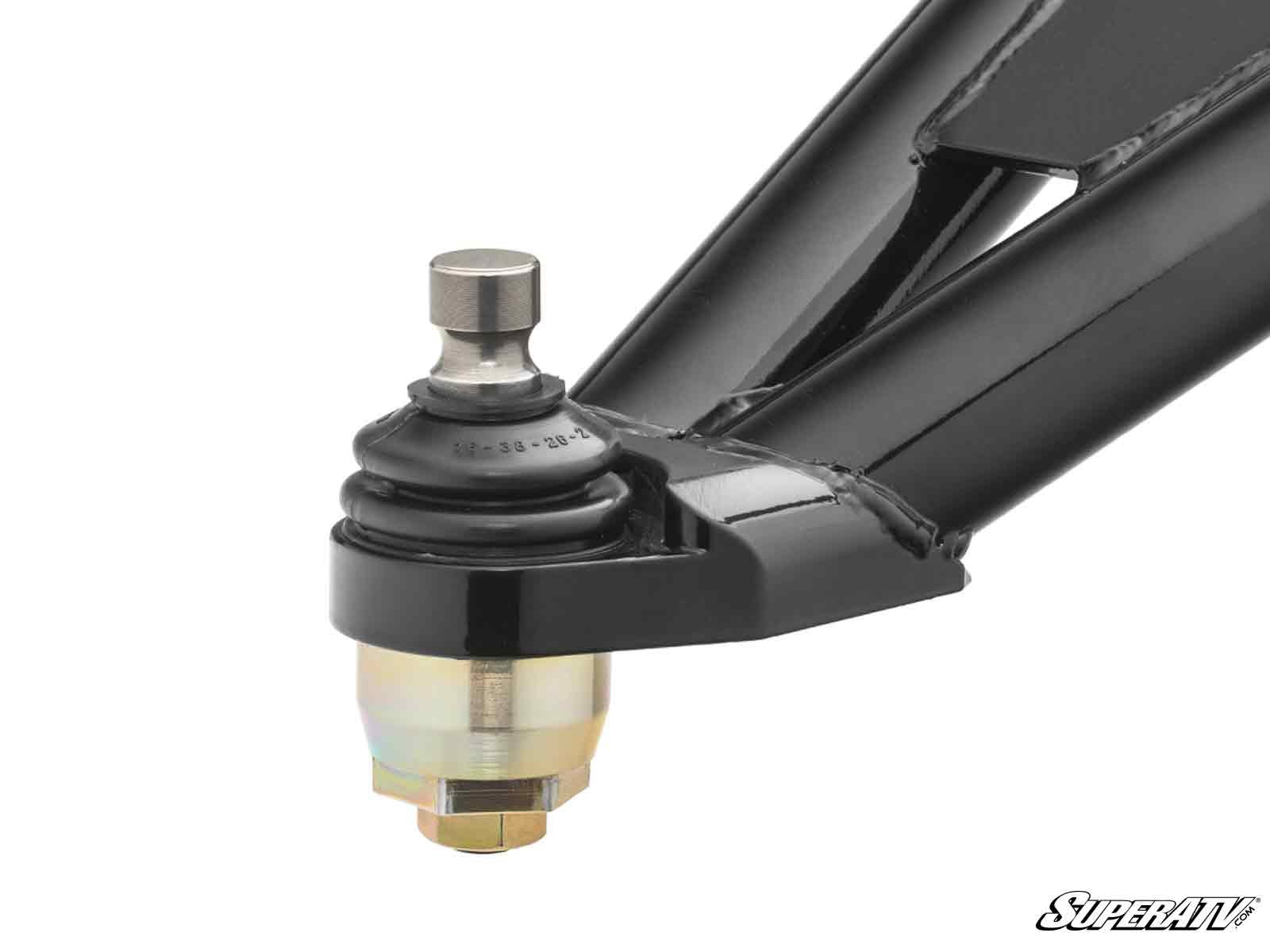

Polaris Ranger XP 1000 ball joints fail at the snap ring, and a machine that hauls, tows and works loaded finds that weak point faster than a sport car does. That thin retaining clip is all that holds a factory joint in the A-arm, and steady load plus the extra leverage of bigger tires is enough to deform or shear it. Keller ball joints remove it entirely — the two-piece housing threads into the arm like a nut and bolt. Hardened 4340 chromoly, greaseable, adjustable and rebuildable.
Read this before you order. The Ranger XP 1000 is really two different front ends under one name. Polaris changed the joint for 2021, and Standard Cab and Crew Cab take different parts on top of that — so you need three things right: your cab, your model year, and the position you are replacing. The options below are arranged in that order.
Key Features
- Two-piece threaded housing eliminates the OEM snap ring
- 4340 hardened chromoly steel housings and studs
- Adjustable and greaseable for correct stud articulation over years of service
- Rebuildable — a worn joint is serviced, not replaced
- Robust boot retaining ring to keep water and mud out
- Correct parts for both the earlier and the 2021-onward front end, Standard Cab and Crew Cab
- Limited lifetime warranty against manufacturing defects
- Made in USA
Built To Solve: Ranger XP 1000 Ball Joint Pull-Out and Snap Ring Failure
- Snap ring shearing and letting the joint separate from the A-arm
- Clunking or knocking from the front end on rough ground and washboard
- Play in the wheel when rocked top-to-bottom on a jack
- Repeat joint failures on a machine that spends its life loaded or towing
- Torn boots admitting water, mud and grit so the joint wears from the inside
- Downtime on a machine that has a job to do
Best For: Working And Big-Tire Ranger XP 1000 Machines
- Ranger XP 1000 and Crew XP 1000 owners who work the machine rather than park it
- Property, ranch and job-site use with a loaded bed or trailer
- Owners running larger tires or added lift
- Crew owners carrying more weight through the front end
- Anyone who has already replaced a factory joint more than once
Specifications
- Material: 4340 hardened chromoly steel, stud and housing
- Design: two-piece threaded housing, no snap ring
- Serviceability: adjustable, greaseable and rebuildable
- Boot: robust retaining ring to prevent water intrusion
- A-arm modification: not required
- Positions: upper and lower use different joints on this platform
- Generations: the 2021-onward machine uses a different joint family from the earlier one
- Warranty: limited lifetime against manufacturing defects, original purchaser
Fitment
- Polaris Ranger XP 1000: 2017 onward
- Polaris Ranger Crew XP 1000: 2017 onward
Coverage is open on current models, but the exact year band differs by cab and by position, which is why the year selector offers more than one earlier option:
- Standard Cab upper: 2017-2020
- Standard Cab lower, and any kit containing a lower: 2017
- Crew Cab upper: 2017-2020
- Crew Cab lower, and any kit containing a lower: 2017-2018
- Both cabs, all positions: 2021 onward
If a combination you expect is unavailable, SuperATV does not list that joint for that cab and year. Fitment is not guaranteed on applications not listed above.
FAQ
Why are there so many options on this listing?
Because the Ranger XP 1000 is three separate questions, not one. Polaris changed the front end for 2021, Standard Cab and Crew Cab take different parts, and the upper and lower are different joints. Pick your cab, then your year, then the position — in that order — and the correct part is the one left standing.
Why do Ranger XP 1000 ball joints pull out of the A-arm?
The factory joint is retained by a snap ring seated in a groove. The steady load a working Ranger puts through the front end can deform or shear that ring, and once it goes the joint has nothing holding it. Keller joints thread into the A-arm instead, so there is no clip to fail.
My machine is a 2019 Standard Cab and the lower is not available. Why?
SuperATV lists the Standard Cab lower for 2017 only, while the Crew Cab lower runs to 2018. That is the vendor's own fitment, not an oversight on our part — the uppers cover 2017-2020 on both cabs.
Are the upper and lower joints different?

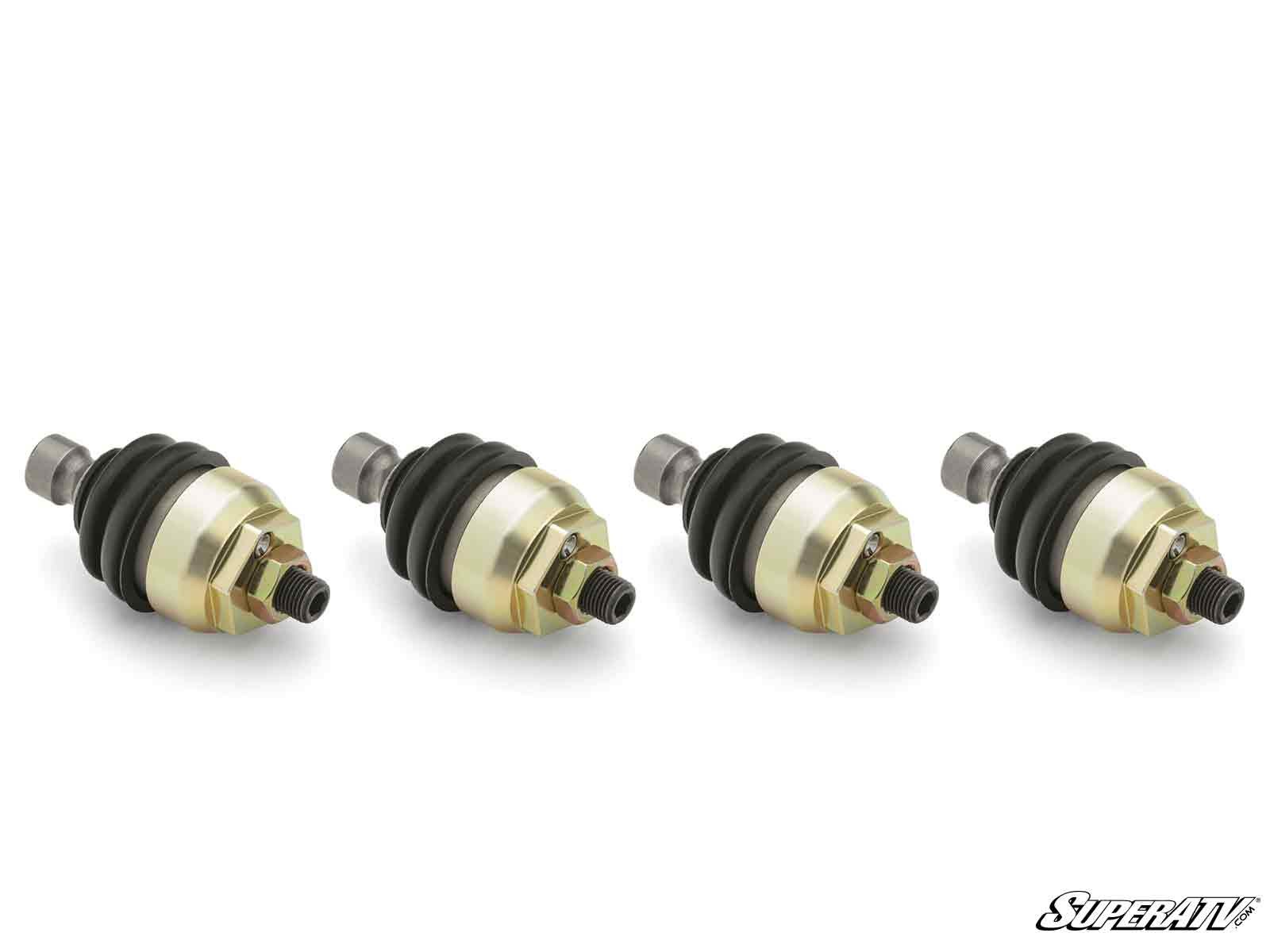

Yes, on every year and both cabs. Select the position you are replacing, or take a kit: Upper + Lower covers one corner, and the full front end covers all four.
Do Keller ball joints require A-arm modification?
No. Keller joints thread into the factory arm as supplied, so no machining is needed.
Can these be rebuilt instead of replaced?
Yes. They grease and adjust, and the Keller ball joint rebuild kit for Polaris services them with a new cup, boot and pin when the internals eventually wear — that kit carries separate options for the earlier and the 2021-onward lowers.
Why Keller

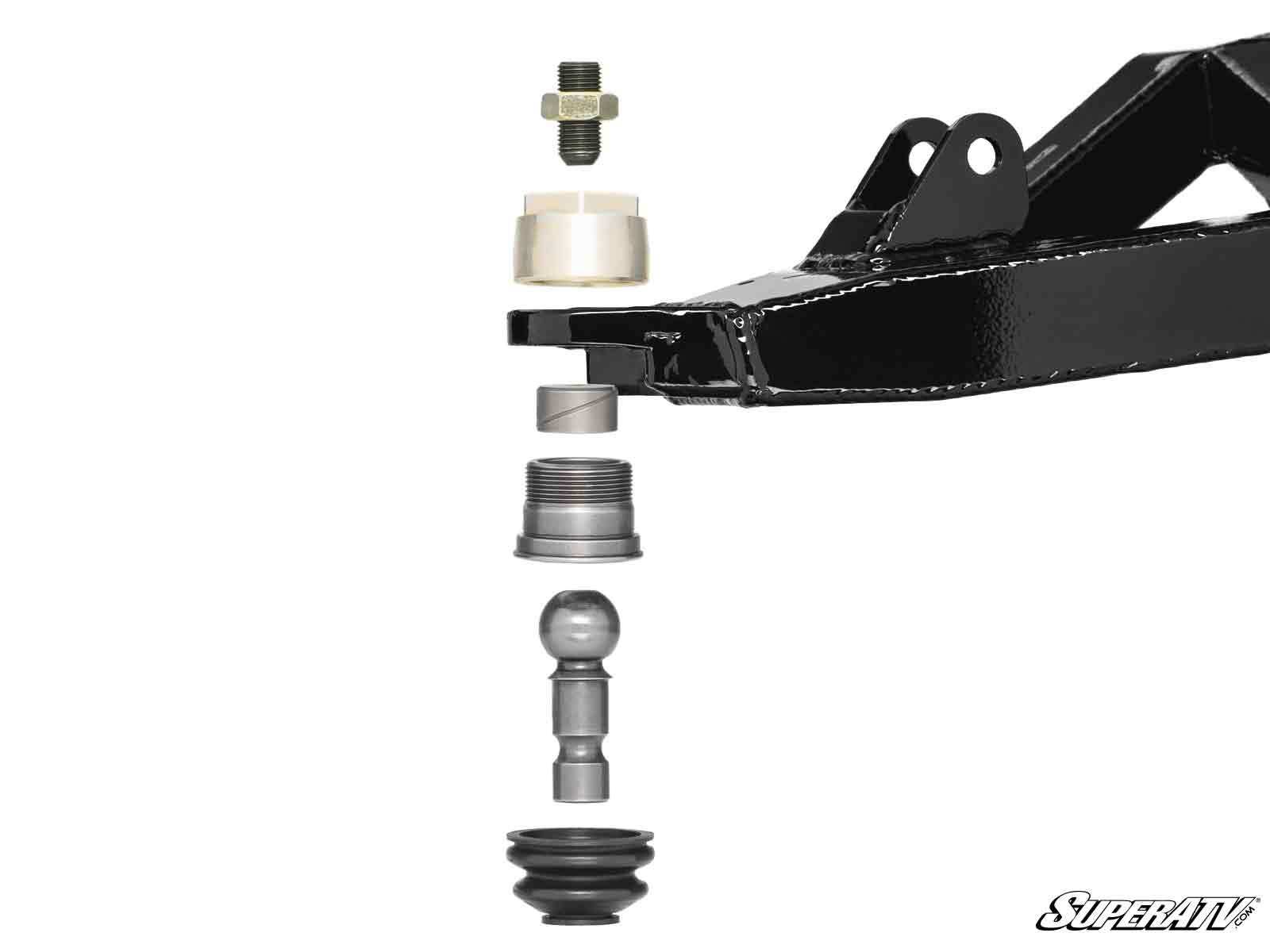

Todd Keller designed the two-piece threaded ball joint to fix the one part of a stock front end that keeps failing, and SuperATV now builds and backs the line. The design has barely changed because it does not need to: thread the housing in like a nut and bolt, use a chromoly stud, and make the whole assembly serviceable so a worn joint gets rebuilt rather than binned.
Keep Your Ranger XP 1000 Working
Before ordering, confirm three things in order: Standard Cab or Crew, your model year, and which position has failed. The full front end option covers all four corners and is the usual choice on a high-hour work machine. If the boots are torn but the joints are sound, the Keller boot replacement kit is the cheaper fix. If the joints are worn but the housings are good, the Keller rebuild kit for Polaris services them. Tie rods and A-arm bushings are worth inspecting while everything is apart.
Installation Video
Official SuperATV installation walkthrough with Todd Keller: How To Install Keller Ball Joints
