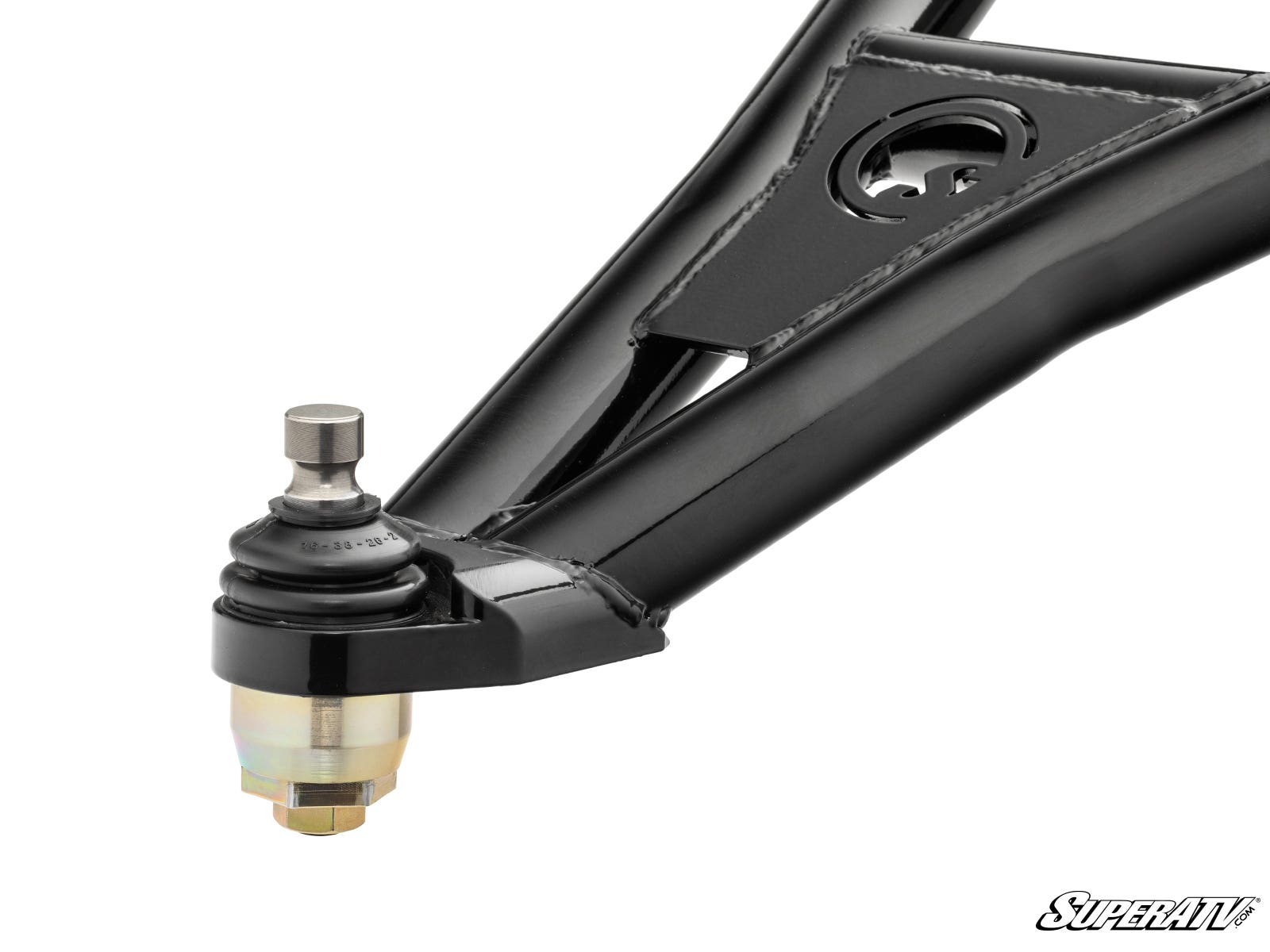

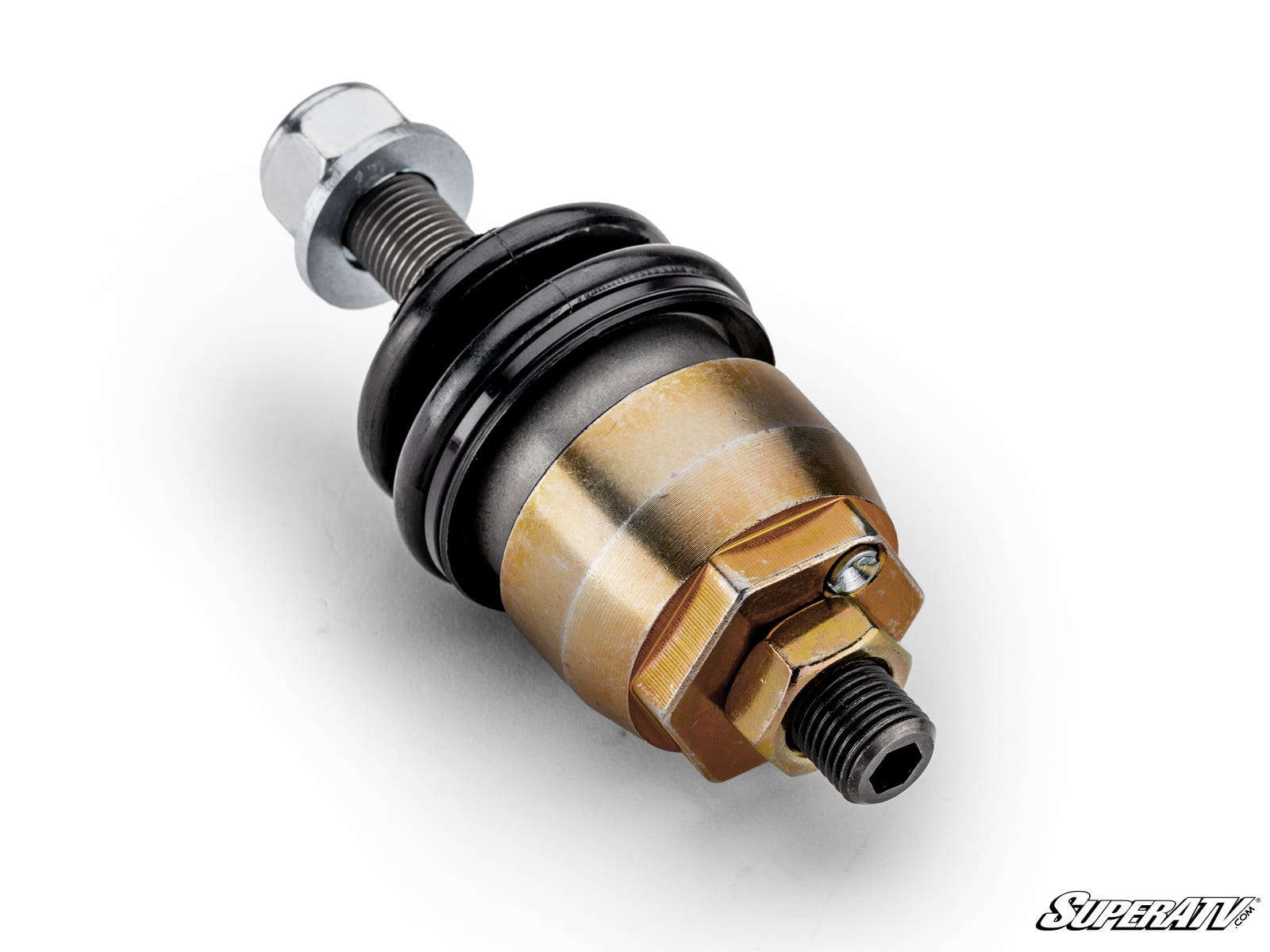

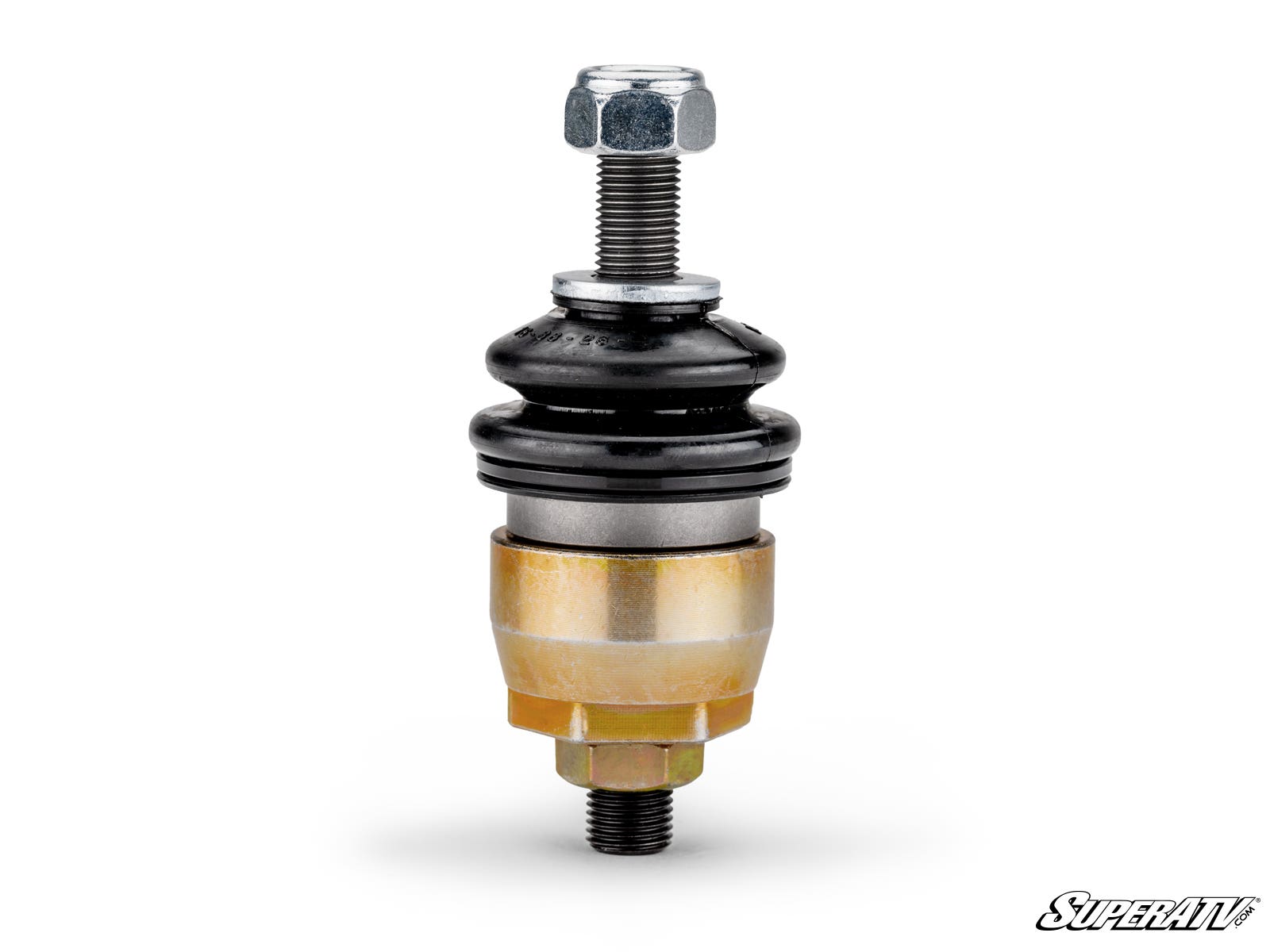

Keller CFMOTO UForce U10 Pro Ball Joints replace the factory upper and lower ball joints with a threaded two-piece 4340 chromoly design that eliminates the OEM snap ring. One side presses in and the other threads on like a nut and bolt, which makes them virtually impossible to pull out on the 2025+ U10 Pro and U10 Pro XL.
Hardened chromoly housings and studs, a robust boot retaining ring to keep water out, and an adjustable, rebuildable, greaseable design keep them running longer than stock. Order upper, lower or both, in single, two or four-joint quantities. They install as easily as stock and carry a lifetime warranty.
Key Features
- 4340 hardened chromoly steel construction
- Two-piece threaded design, no snap ring
- Adjustable, rebuildable and greaseable
- Boot retaining ring prevents water intrusion
- Upper, lower or full sets
- Lifetime warranty
Built To Solve: Ball Joint Failure on the CFMOTO UForce U10 Pro
- Ball joints pulling out of the A-arm under load
- Worn stock joints from work and trail use
- Water getting past the boot
- Replacing sealed joints that cannot be serviced
Best For: CFMOTO UForce U10 Pro and U10 Pro XL Owners
- U10 Pro and U10 Pro Highland owners (2025+)
- U10 Pro XL and U10 Pro XL Highland owners (2025+)
- Owners running bigger tires or heavy loads
- Riders who want a serviceable, greaseable joint
Specifications
- Material: 4340 hardened chromoly steel housing and stud
- Design: two-piece threaded, no snap ring
- Service: adjustable, rebuildable, greaseable
- Replaces OEM part numbers: 9030-050600-10000 (upper), 9060-050900-10000 (lower)
- Options: upper, lower or upper and lower; 1, 2 or 4 joints
- Warranty: lifetime
- Manufacturer Part Numbers: BJK-CF-U10-U (upper), BJK-CF-U10-L (lower), BJK-CF-U10-K-4 (full set of 4)
Fitment
- CFMOTO UForce U10 Pro and U10 Pro Highland (2025+)
- CFMOTO UForce U10 Pro XL and U10 Pro XL Highland (2025+)
Fitment is not guaranteed on models, trims or years not listed above, or on machines with modified chassis or aftermarket parts in the way; confirm your exact model before ordering.
FAQ
What OEM part numbers do these replace?
They replace OEM 9030-050600-10000 (upper) and 9060-050900-10000 (lower).
Why is there no snap ring?

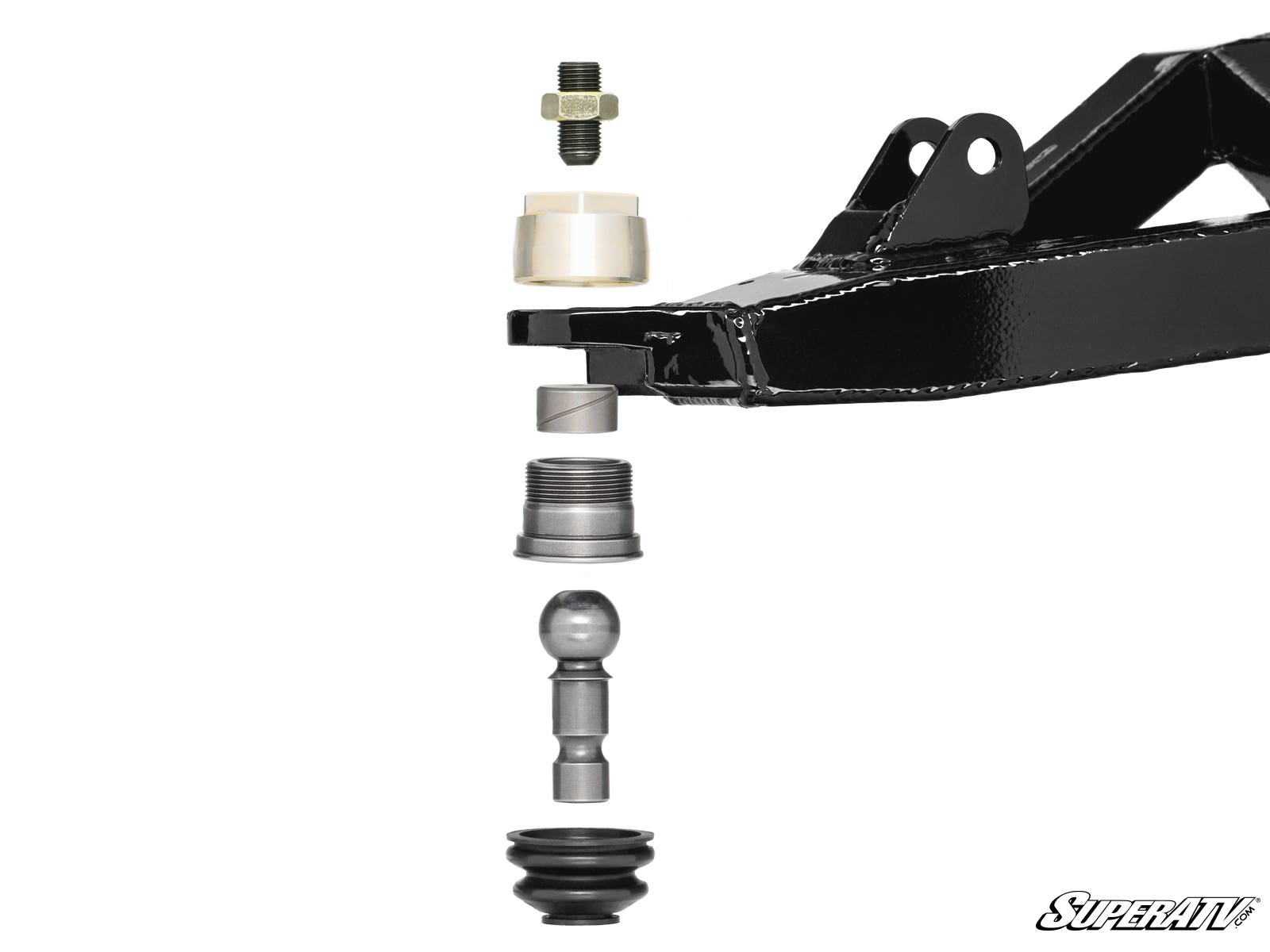

Keller's two-piece design threads onto the A-arm like a nut and bolt, so a snap ring is not needed and the joint is virtually impossible to pull out.
Can I grease them?
Yes. They are greaseable, adjustable and rebuildable.
How many do I need for a full set?
The U10 Pro uses upper and lower joints on each side; the four-joint option covers the full front set.
Do they fit the U10 Pro XL?
Yes. The U10 Pro XL and U10 Pro XL Highland (2025+) are listed.
Are they harder to install than stock?
Keller says the two-piece design is just as easy to install as stock.
Why Keller
Keller Ball Joints were developed by Todd Keller around a threaded two-piece design that removes the OEM snap ring, and they carry a lifetime warranty. Keller is now part of SuperATV, and Dunes 2 Dezert SXS ships Keller ball joints nationwide with fitment checked against the manufacturer's list.
Upgrade Your CFMOTO U10 Pro Front End
Choose upper, lower or the full set of four for your U10 Pro or U10 Pro XL. If you are planning a long travel kit or bigger tires, install Keller joints at the same time.
