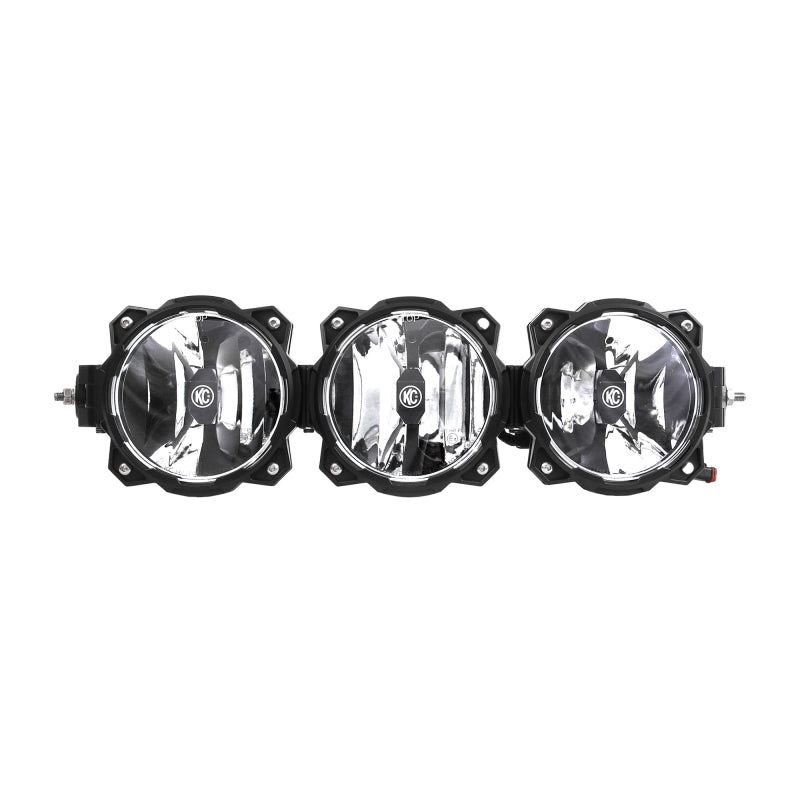

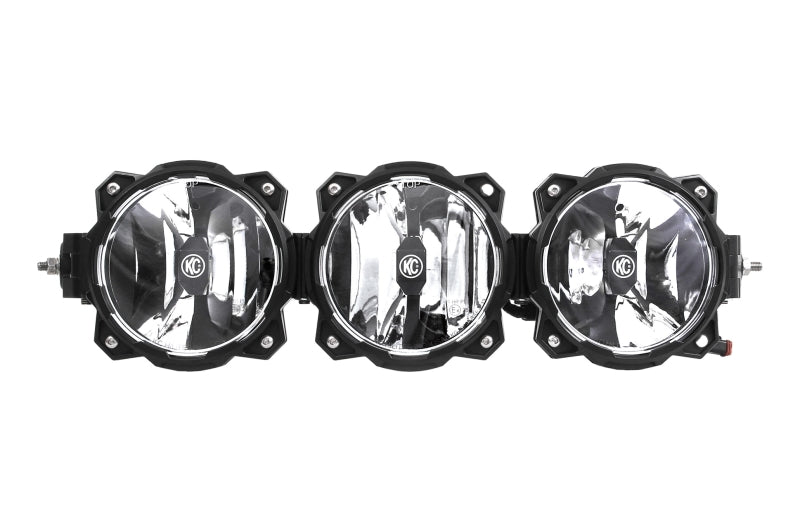

KC HiLiTES 20" Pro6 Gravity LED 3-Light Combo Beam Bar

KC HiLiTES 20" Pro6 Gravity LED Light Bar – Compact Power, Modular Versatility

The KC HiLiTES Pro6 20-inch Gravity LED 3-Light Bar delivers big lighting performance in a compact package. Engineered with three Gravity G6 LED optical inserts, this 60W combo beam bar offers 6,900 lumens of optimized light output for off-road adventures, trail riding, and rugged terrain navigation.

Thanks to the Infinity Ring™ system, you can easily configure your light bar in straight or radius form, customizing your light spread without sacrificing strength or rigidity.

✅ Key Features:

• G6 Gravity LED Optics
  Delivers focused, efficient lighting using patented Gravity Reflective Diode (GRD) technology.
• Infinity Ring™ System
  Modular design allows you to link, expand, or curve the bar for tailored beam placement.
• Combo Beam Pattern
  Includes Driving and Wide-40 G6 inserts for distance and peripheral coverage.
• Race-Tested Durability
  Built with die-cast aluminum housings and polycarbonate lenses to withstand extreme off-road conditions.
• Universal Mounting Compatibility
  Designed to attach to most KC mounts, including UTVs, trucks, and Jeeps.

💡 Light Performance:

• Raw Lumens: 6,900 lm
• Lux @ 10m: 2,794 lx
• Candela: 279,400 cd
• Beam Distance: 1,057 meters

⚙️ Specifications:

• Wattage: 60W
• Amp Draw: 5.0A
• Voltage: 9–32V
• Dimensions: 6.06" H × 3.33" D × 20.325" W

📦 What’s Included:

• (1) Pro6 LED 3-Light Bar
• (1) Deluxe Plug-N-Play Wiring Harness with 30A LED Switch

⚡ The KC Pro6 20” 3-Light Combo Bar gives you pro-level lighting with full control and compact versatility—ideal for tight installs or auxiliary setups.
