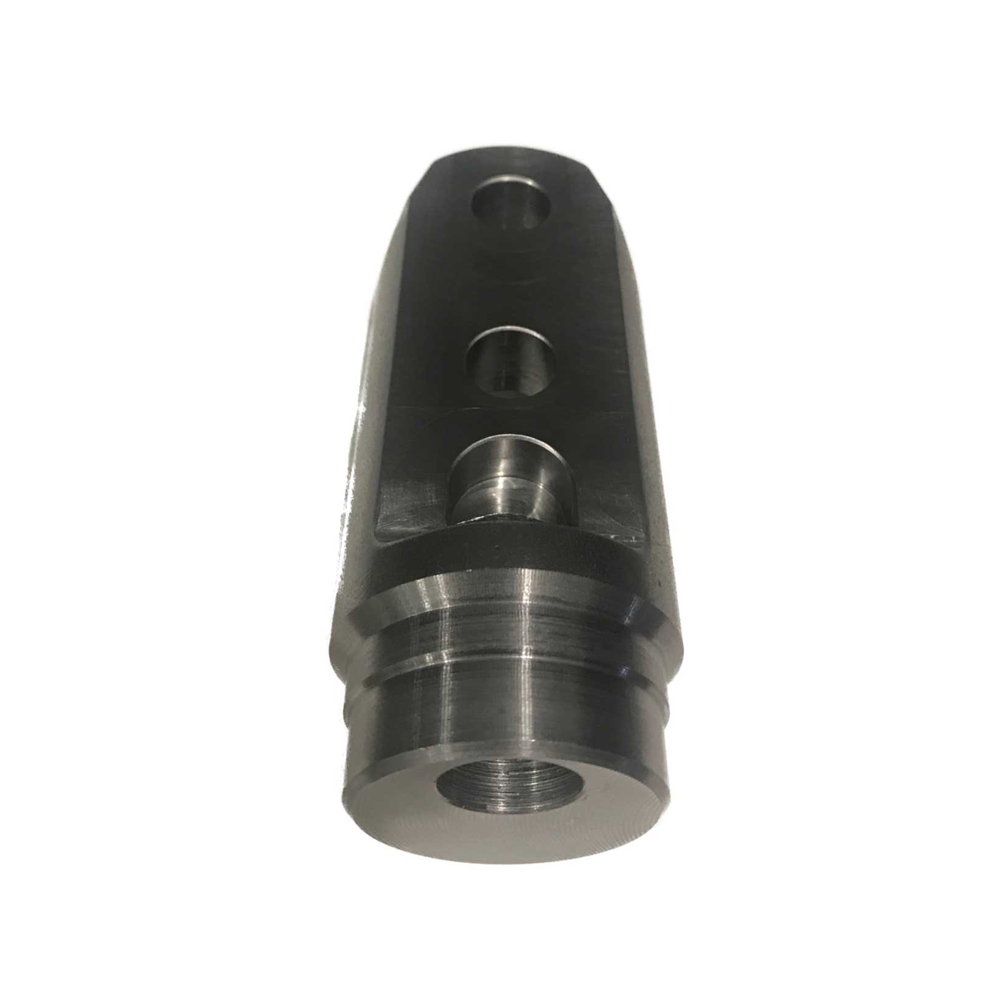

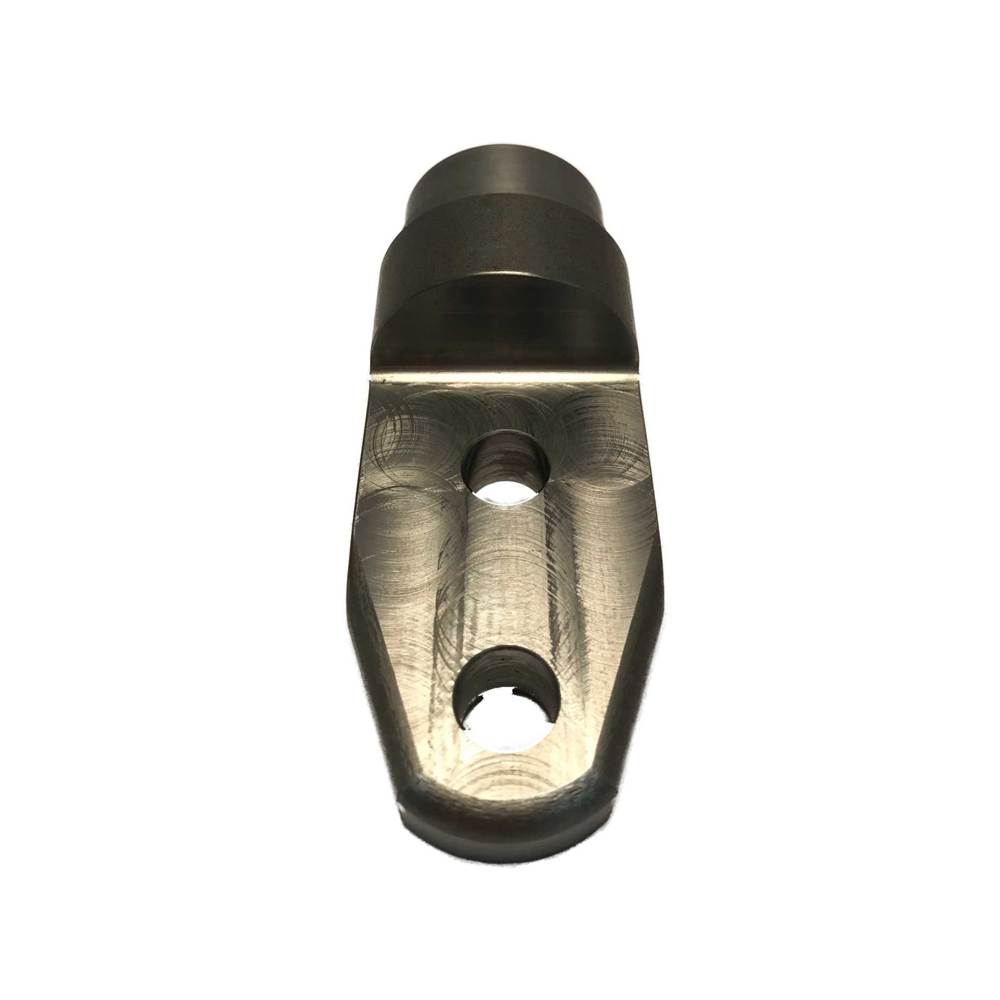

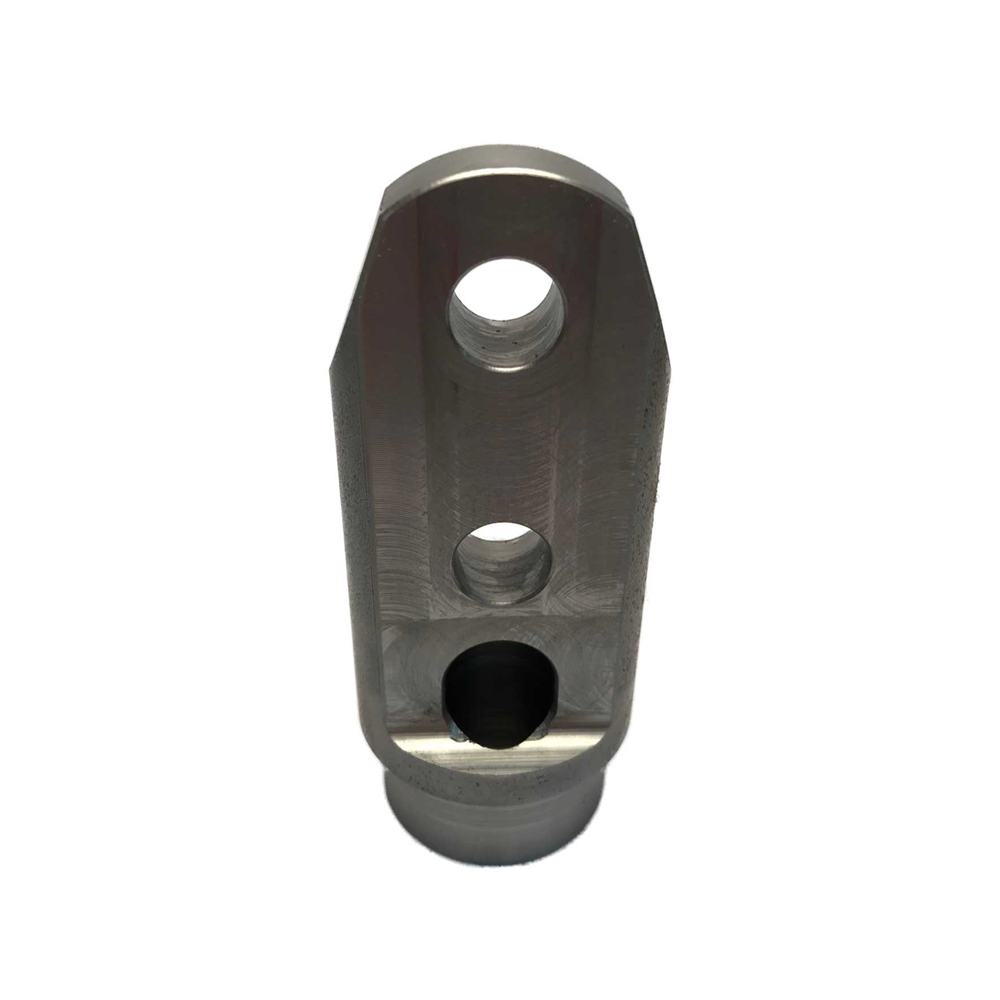

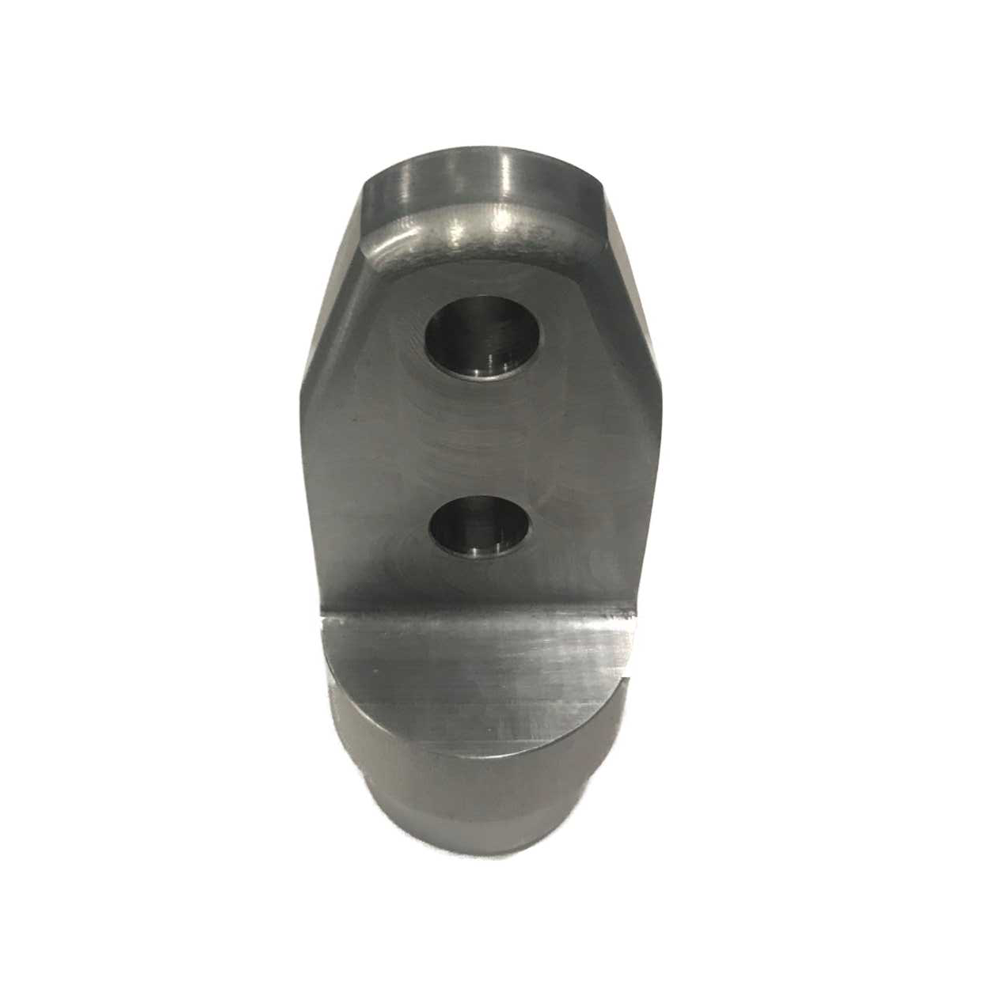

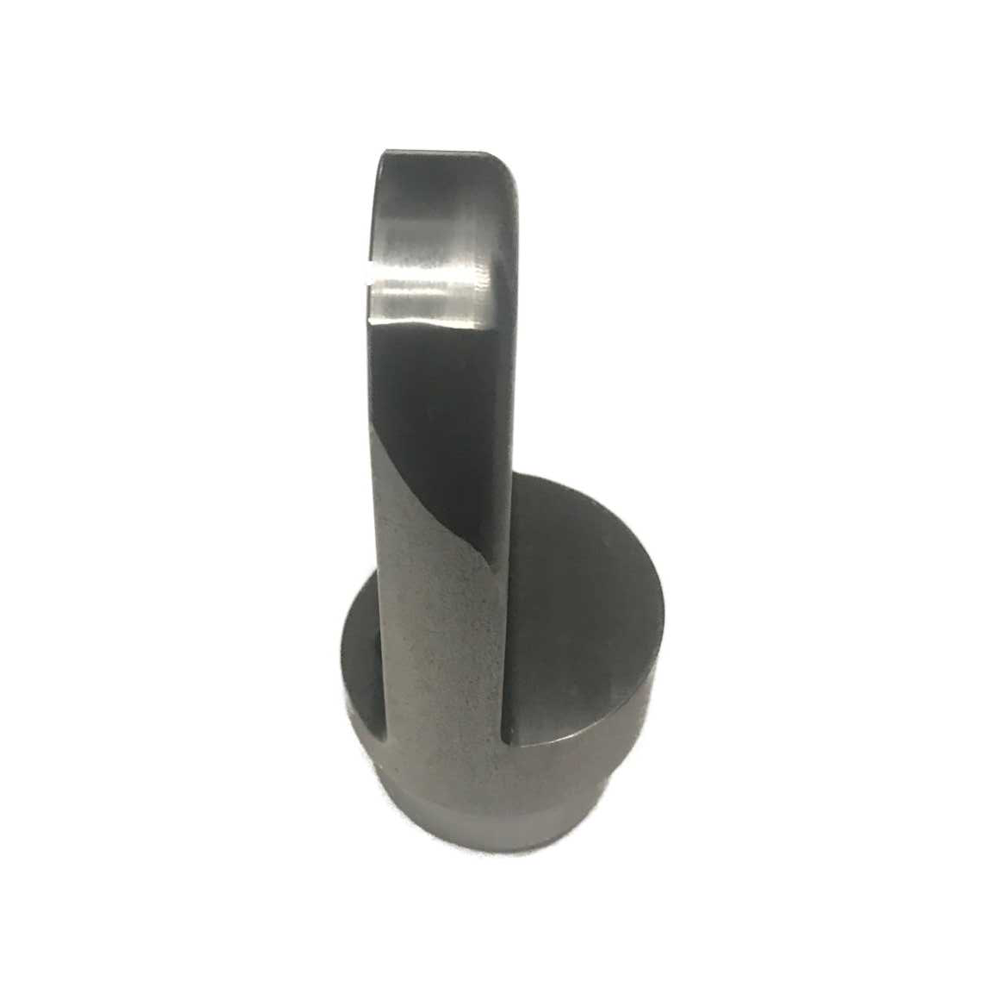

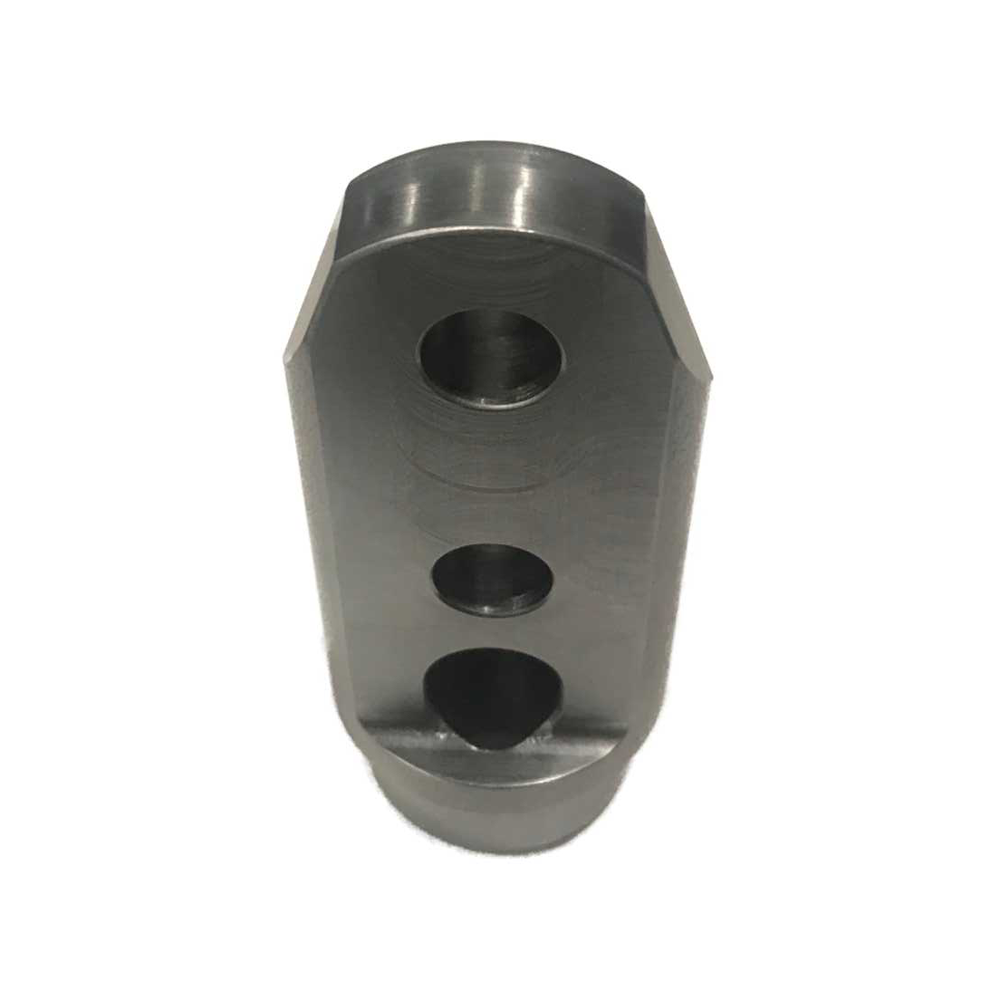

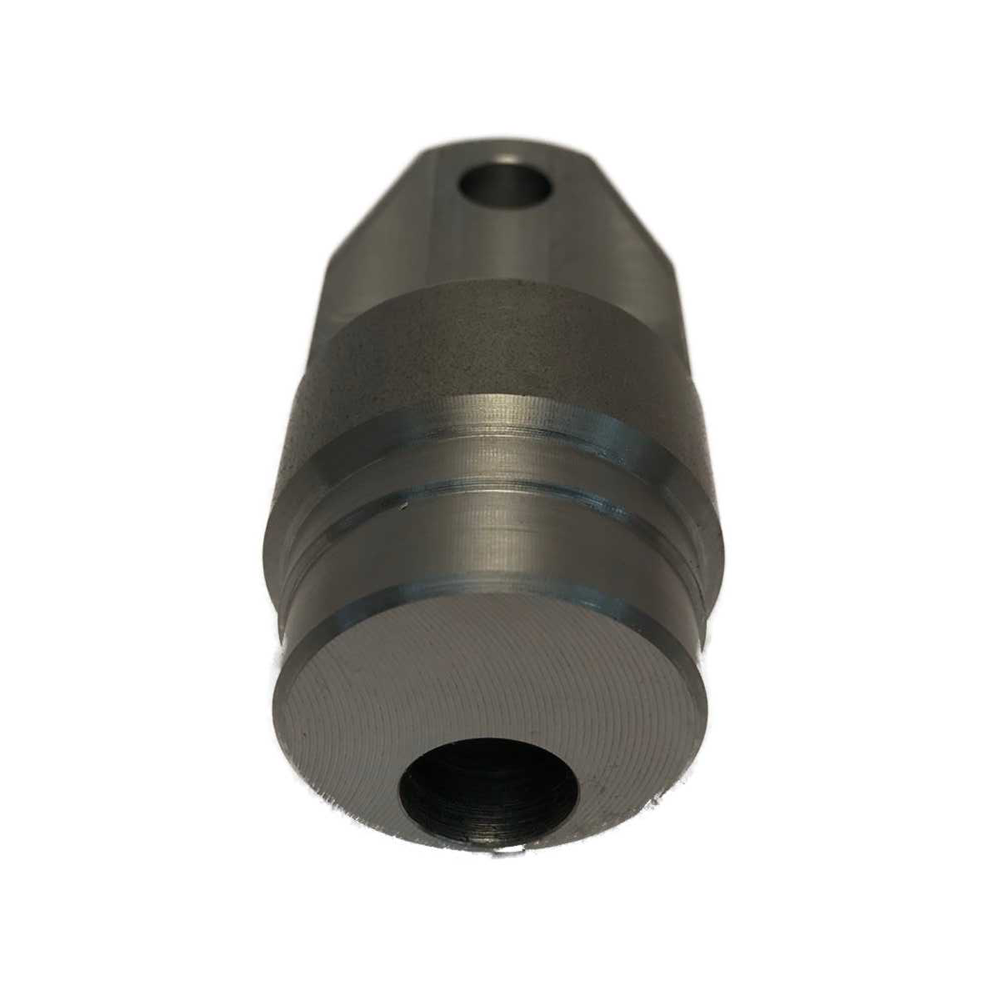

AJK Offroad Kawasaki KRX Roll Cage Bung – With Wire Hole
The AJK Offroad Kawasaki KRX Roll Cage Bung with wire hole is a precision CNC machined reproduction of the factory KRX cage bung — the essential building block for any custom Kawasaki Teryx KRX 1000 roll cage build. Available in .120" and .090" wall thickness, this bung features a weld chamfer for clean installation and a built-in wire hole for routing electrical through the cage tube. Sold individually so you can order exactly what your KRX cage build requires. Made in the USA by AJK Offroad.
Key Features & Benefits
- KRX-Specific Geometry — CNC machined to match the factory KRX cage bung dimensions for a consistent, repeatable fit on every Teryx KRX 1000 build
- Wire Hole Included — Built-in hole for routing electrical wiring internally through the cage tube — essential for clean builds with lights, cameras, or accessories
- Weld Chamfer — Chamfered weld prep surface for clean, strong TIG or MIG welds with full root penetration
- .120" and .090" Wall Thickness Options — Match the bung wall to your cage tubing for the correct fit and weld
- Sold Individually — Order exactly the quantity your build requires
- Made in USA — Designed and manufactured by AJK Offroad
Specs & Fitment
| Spec | Detail |
|---|---|
| Wire Hole | Yes |
| Wall Thickness Options | .120" or .090" |
| Weld Chamfer | Yes |
| Sold As | Individually |
| Manufacturer | AJK Offroad — Made in USA |
Vehicle Fitment — Kawasaki:
- Teryx KRX 1000 (all years)
- Teryx KRX 1000 4-seat (all years)
Frequently Asked Questions
What is the difference between .120" and .090" wall?
.120" wall is heavier and stronger — the standard choice for primary structural cage nodes. .090" wall is slightly lighter and used at less critical positions. Match the bung wall to the wall thickness of your cage tubing for the best fit and weld quality.
How is this different from the No Wire Hole version?
This version has a built-in wire hole for routing electrical through the cage tube. Use this version at A pillar and B pillar cage locations where light, camera, or accessory wiring needs to run inside the tube. Use the no wire hole version at locations where internal routing is not needed.
Is this compatible with the KRX 4-seat model?
Yes — the KRX and KRX 4-seat use the same cage bung geometry at the primary structural nodes.
How many do I need for a complete cage?
The AJK Kawasaki H2 / KRX Bung Kit is available on the site for riders who want a complete set for a full cage build. Individual bungs like this are for supplementing a kit or ordering specific quantities for a custom build layout.
What welding process works best?
Either MIG or TIG is acceptable. TIG produces the cleanest, most refined weld on CNC machined components. Always clean the tube surface before welding for best penetration.
