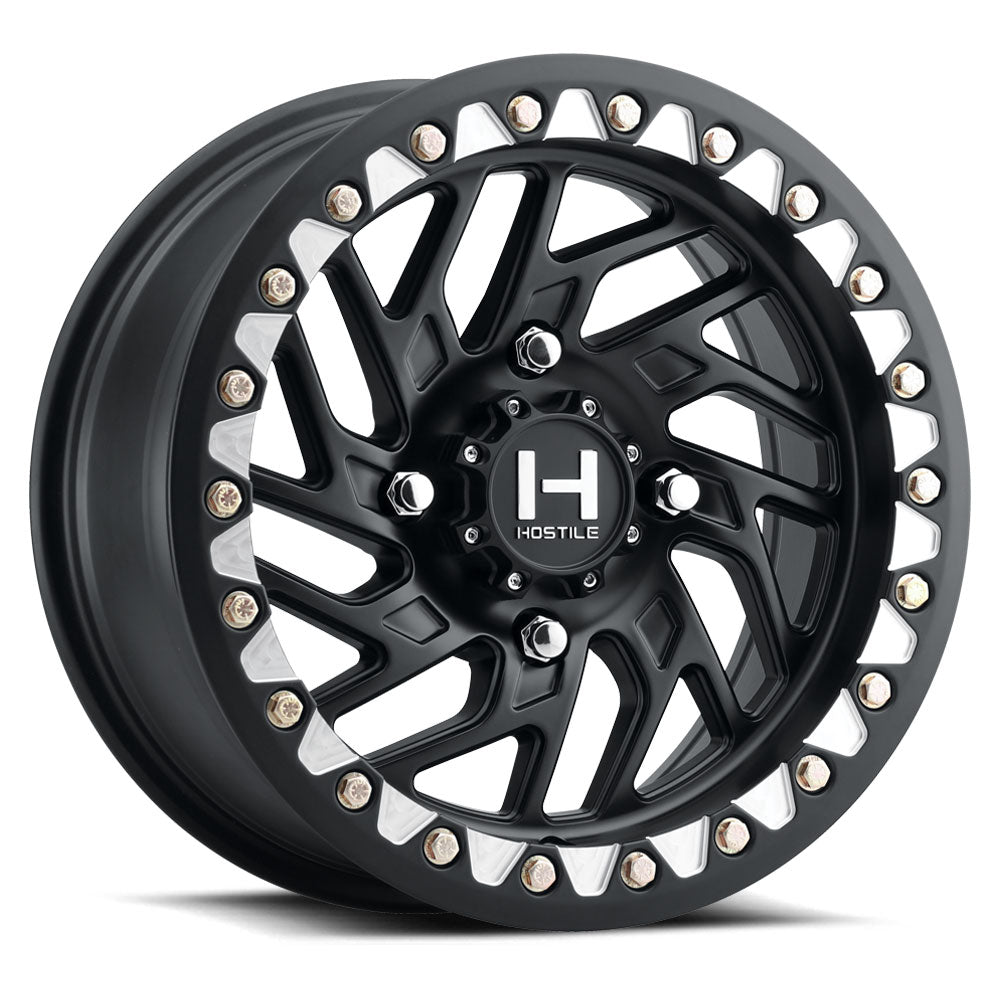

Jigsaw Beadlock Asphalt 15" UTV Wheel 4-Lug | Hostile

Can-Am Maverick X3, Honda Talon, Polaris RZR, Yamaha YXZ1000R, and Kawasaki riders on 4x137/4x136 or 4x156 fitment who air down get a Jigsaw beadlock in one wide-coverage wheel. The Hostile H316 Jigsaw Beadlock in Asphalt is a cast UTV wheel with a satin black face and 15x7, 15x8, and 15x10 sizing across both 4-lug patterns.

Key Features

• True beadlock Jigsaw design for lower tire-pressure bead retention.
• Asphalt satin black finish for a stealth look.
• Cast aluminum construction.
• Covers both 4x137/4x136 and 4x156 four-lug patterns — select your variant.
• 15x7, 15x8, and 15x10 width options. 1000 lb load rating per wheel.

Built To Solve

• Losing a bead at low sand or rock pressure.
• Wanting one beadlock design across a mixed 4-lug garage.
• A stealth satin face instead of a machined one.
• Matching the correct 4x137 or 4x156 offset and bore.

Best For

• Can-Am Maverick X3, Trail, Sport, Commander, and Defender on 4x137.
• Honda Talon 1000 and Pioneer 1000.
• Polaris RZR XP 1000, XP Turbo, S 1000, and General on 4x156.
• Yamaha YXZ1000R, Kawasaki Teryx KRX 1000, and Arctic Cat Wildcat XX.
• Drivers who run low pressure and will service beadlock hardware.

Specifications

• Brand: Hostile Wheels
• Model: H316 Jigsaw Beadlock
• Finish: Asphalt (Satin Black)
• Construction: Cast aluminum
• Wheel Type: True beadlock
• Diameter: 15 inch
• Bolt Patterns: 4x137/4x136 and 4x156
• Bore: 4x137/4x136 = 110.2mm; 4x156 = 132mm
• Load Rating: 1000 lb per wheel

Available Variants

Fitment

This 4-lug Hostile H316 Jigsaw Beadlock wheel is limited to the listed applications. Choose the variant that matches your bolt pattern. Fitment is not guaranteed on unlisted vehicles.

• 4x137/4x136: Can-Am Maverick X3, Maverick Trail, Maverick Sport, Commander, Defender HD5-HD11; Honda Talon 1000, Pioneer 1000; Kawasaki Teryx (non-KRX), Mule.
• 4x156: Polaris RZR XP 1000, XP Turbo, S 1000, General; Yamaha YXZ1000R; Kawasaki Teryx KRX 1000; Arctic Cat Wildcat XX.

Fitment Check Before Ordering

Confirm year, model, bolt pattern, offset, bore, brake clearance, tire clearance, lug hardware, and beadlock service requirements before ordering.

FAQ

Which bolt patterns does this 4-lug Jigsaw Beadlock cover?

It covers both 4x137/4x136 and 4x156 — choose the variant that matches your machine.

What does the beadlock ring do?

It clamps the tire bead so you can run lower pressure for sand and rocks without unseating.

Does this fit Polaris RZR XP 1000?

Yes, on the 4x156 variant, with General, YXZ1000R, Teryx KRX 1000, and Wildcat XX.

Does this fit Can-Am Maverick X3?

Yes, on the 4x137/4x136 variant, with Talon, Pioneer, Commander, and Defender.

How is this different from the H116 Jigsaw?

The H316 is a true beadlock for low-pressure retention; the H116 is non-beadlock for simpler service.

What should I verify before ordering?

Verify bolt pattern, offset, bore, tire size, brake clearance, lug hardware, and beadlock service.

Why Hostile

Hostile Wheels builds the Jigsaw Beadlock to cover a mixed 4-lug garage with real bead security and a stealth satin face for low-pressure sand and rock builds.

Lock In Your 4-Lug Jigsaw Beadlock

Order the Hostile H316 Jigsaw Beadlock in Asphalt for 4-lug fitment from Dunes 2 Dezert SXS, then confirm size, bolt pattern, offset, tire setup, lug hardware, clearance, and beadlock service before installation.
